High real-time predictive control for active collision avoidance of intelligent vehicles

doi:10.3969/j.issn.1674-8484.2023.05.007

Abstract

Abstract:

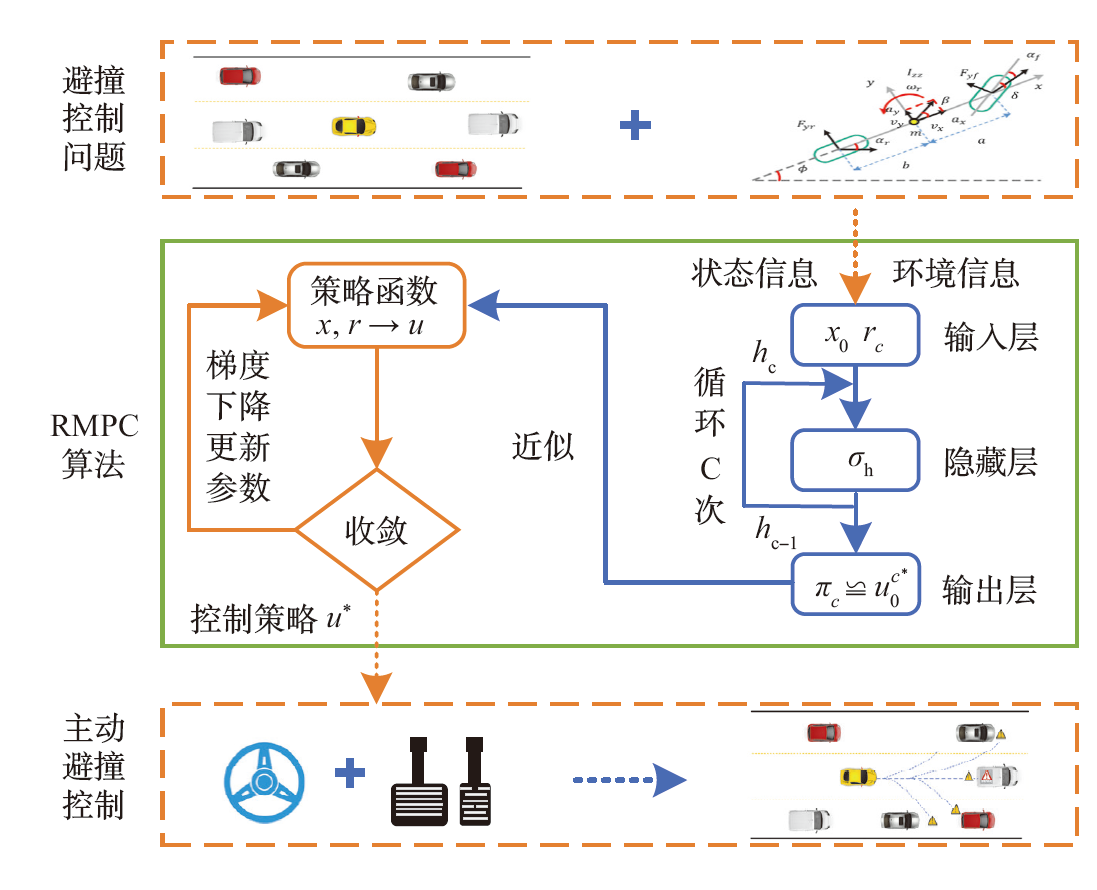

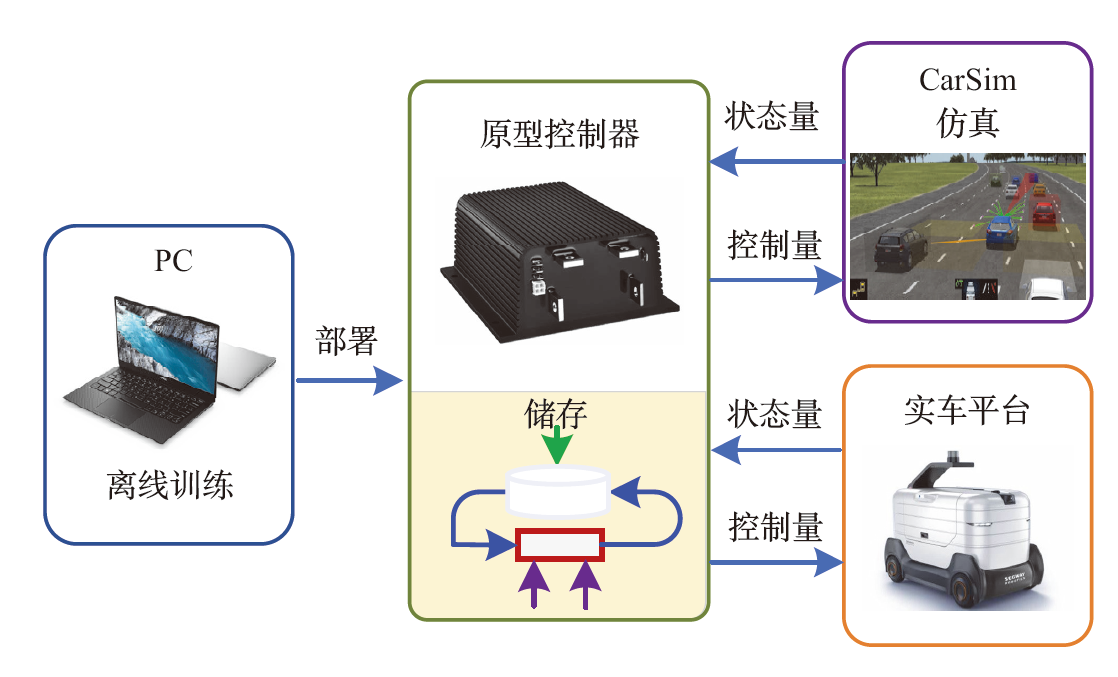

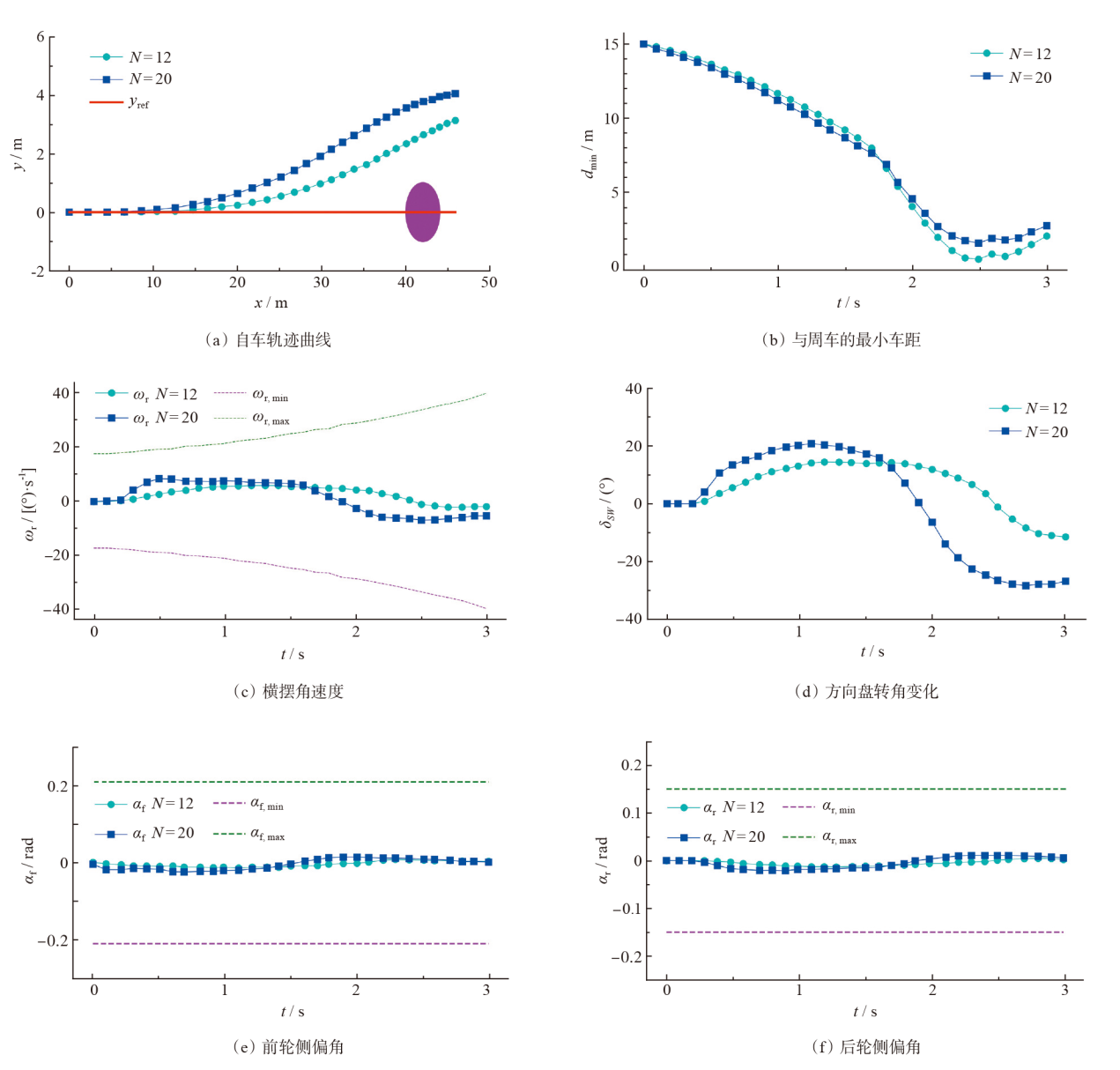

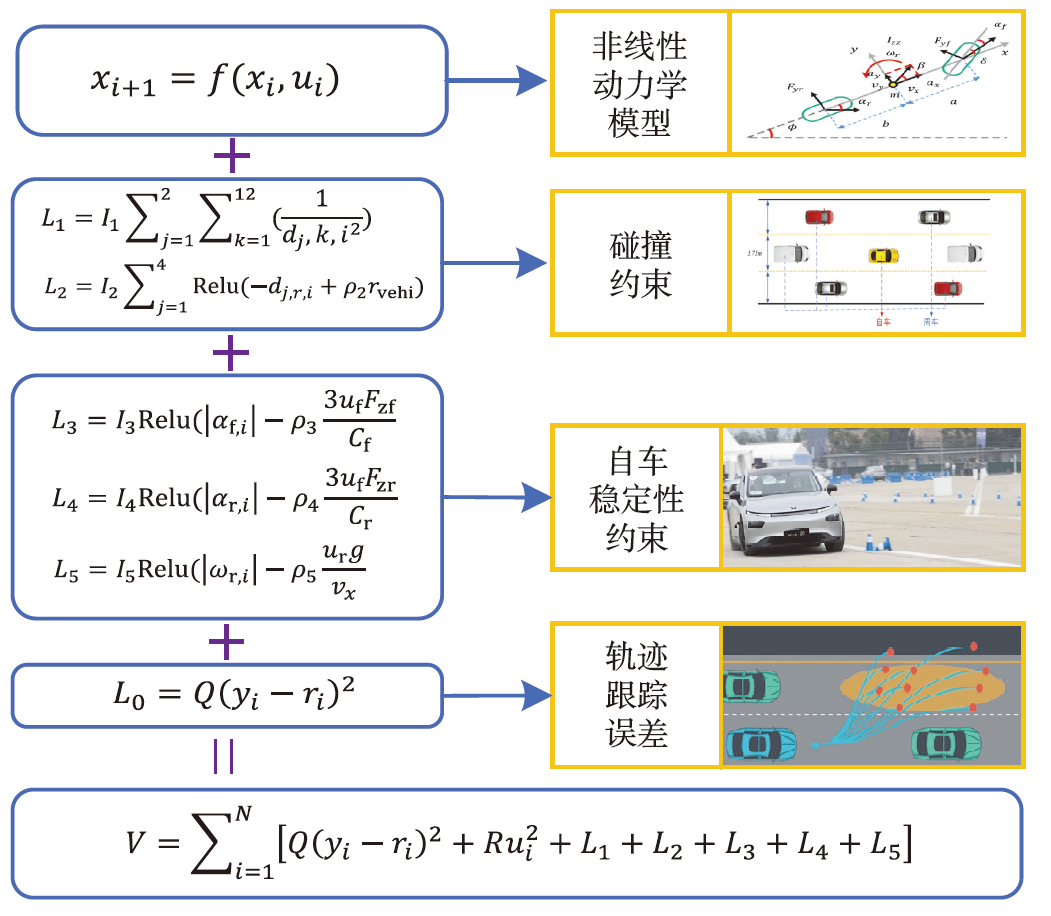

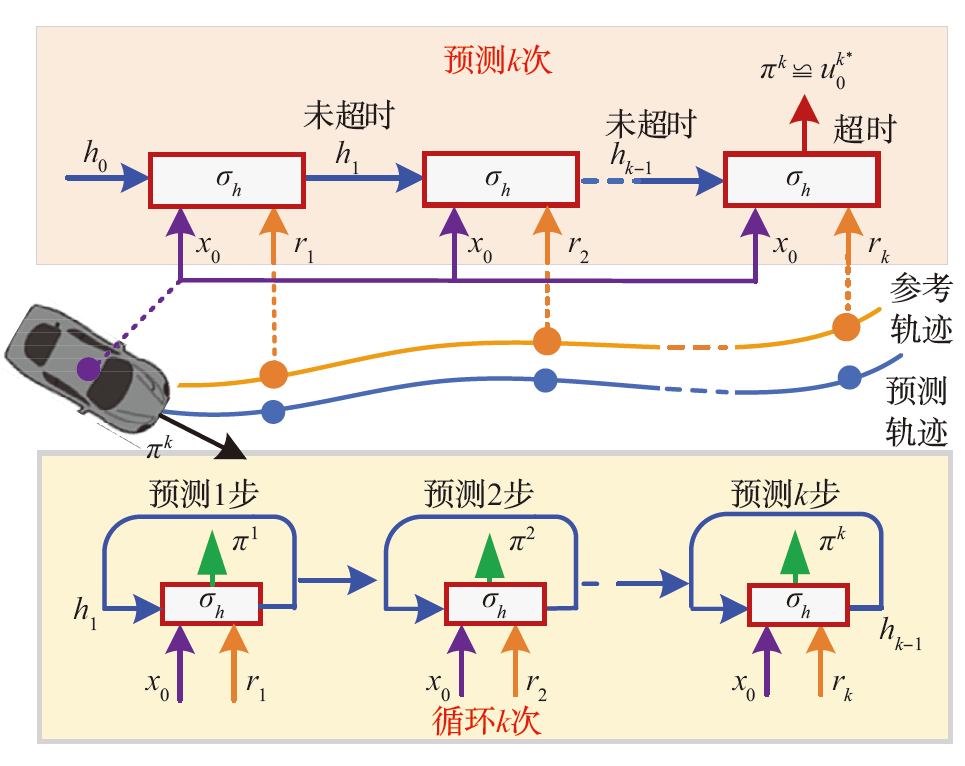

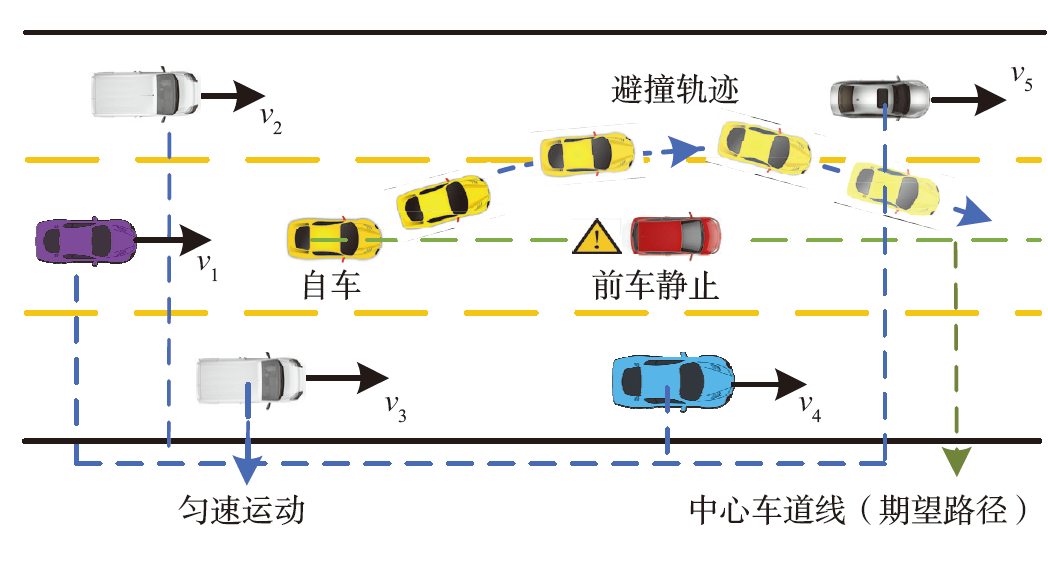

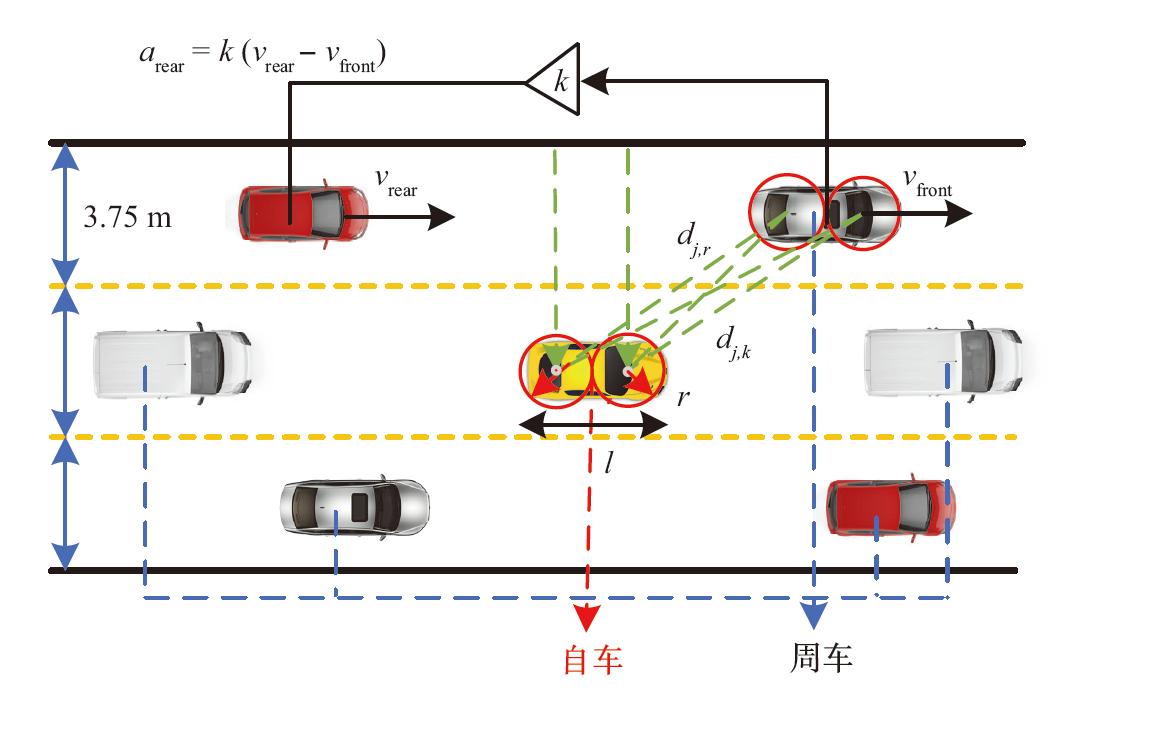

A recurrent model predictive control (RMPC) algorithm was adopted to meet the high real-time requirements for active collision avoidance control in complex traffic scenarios. RMPC transformed the online optimization problem into an offline solution of recurrent policy parameters, and simulation experiments were conducted to validate its effectiveness. By introducing a penalty function, the constrained active collision avoidance optimization control problem was formulated as an unconstrained finite-time optimal control problem. The optimal solution of the control problem with different prediction steps was represented by a recurrent neural network. The learned policy to the prototype controller was deployed and its collision avoidance performance and online computational efficiency was verified by using CarSim. The results shows that the minimum vehicle distance during the collision process increases from 0.34 m to 1.38 m with the prediction step increasing from 12 to 20, and the number of collisions in a thousand experiments decreases from 44 to 0. Furthermore, the algorithm demonstrates a computational efficiency improvement of over 5.6 times compared to commonly used online optimization solvers when the prediction step is 15.

Key words: intelligent vehicle, model predictive control, recurrent function, lateral active collision avoidance

CLC Number:

U467.1+4

DUAN Jingliang, CHEN Liangfa, WANG Wenxuan, JIAO Chunxuan, LIU Zhengyu, MA Fei, LI Shengbo. High real-time predictive control for active collision avoidance of intelligent vehicles[J]. Journal of Automotive Safety and Energy, 2023, 14(5): 580-590.

Figures/Tables 15

References 22

[1]	HE Xiangkun, LIU Yulong, et al. Emergency steering control of autonomous vehicle for collision avoidance and stabilization[J]. Vehi Syst Dyn, 2019, 57(8): 1163-1187.
[2]	LIU Zhaoyong, WEN Gaobo, LIU Wudong, et al. Research on automatic emergency steering collision avoidance and stability control of intelligent driving vehicle[J]. Front Robot AI, 2023, 10: 1120658. doi: 10.3389/frobt.2023.1120658 URL
[3]	CHENG Shuo, LI Liang, GUO Hongqiang, et al. Longitudinal collision avoidance and lateral stability adaptive control system based on MPC of autonomous vehicles[J]. IEEE T Intel Transport, 2019, 21(6): 2376-2385.
[4]	来飞, 黄超群, 董红亮, 等. 智能汽车极限工况下联合制动与转向的自动紧急避撞研究[J]. 汽车工程, 2021, 43(6): 851-860.
	LAI Fei, HUANG Chaoqun, DONG Hongliang, et al. Research on automatic emergency collision avoidance of intelligent vehicle in extreme condition by combined braking and steering control[J]. Autom Engi, 2021, 43(6): 851-860. (in Chinese)
[5]	王艺, 蔡英凤, 陈龙, 等. 基于模型预测控制的智能网联汽车路径跟踪控制器设计[J]. 机械工程学报, 2019, 55(8): 136-144. doi: 10.3901/JME.2019.08.136
	WANG Yi, CAI Yingfeng, CHEN Long, et al. Design of path tracking controller for intelligent networked vehicles based on model predictive control[J]. Chin J Mech Eng-En, 2019, 55(8): 136-144. (in Chinese)
[6]	Nguyen H D, Kim D, et al. Linear time-varying MPC-based autonomous emergency steering control for collision avoidance[J]. IEEE T Vehi Tech, Doi: 10.1109/TVT.2023.3269787.
[7]	李耀华, 范吉康, 刘洋, 等. 自适应双时域参数MPC的智能车辆路径规划与跟踪控制[J]. 汽车安全与节能学报, 2021, 12(4): 528-539.
	LI Yaohua, FAN Jikang, LIU Yang, et al. Intelligent vehicle path planning and tracking control with adaptive dual time domain parameter MPC[J]. J Autom Safe Energ, 2021, 12(4): 528-539. (in Chinese)
[8]	任玥, 郑玲, 张巍, 等. 基于模型预测控制的智能车辆主动避撞控制研究[J]. 汽车工程, 2019, 41(4): 404-410.
	REN Yue, ZHENG Ling, ZHANG Wei, et al. Research on active collision avoidance control of Intelligent vehicle based on model predictive control[J]. Autom Engi, 2019, 41(4): 404-410. (in Chinese)
[9]	GUO Hongyan, SHEN Chen, ZHANG Hui, et al. Simultaneous trajectory planning and tracking using an MPC method for cyber-physical systems: A case study of obstacle avoidance for an intelligent vehicle[J]. IEEE T Ind Info, 2018, 14(9): 4273-4283.
[10]	Abbas M A, Milman R, Eklund J M. Obstacle avoidance in real time with nonlinear model predictive control of autonomous vehicles[J]. Can J Elect Comput E, 2017, 40(1): 12-22.
[11]	Zeilinger M N, Raimondo D M, Domahidi A, et al. On real-time robust model predictive control[J]. Automatica, 2014, 50(3): 683-694. doi: 10.1016/j.automatica.2013.11.019 URL
[12]	Cagienard R, Grieder P, Kerrigan E C, et al. Move blocking strategies in receding horizon control[J]. J Process Contr, 2007, 17(6): 563-570. doi: 10.1016/j.jprocont.2007.01.001 URL
[13]	冷姚, 赵树恩. 智能车辆横向轨迹跟踪的显式模型预测控制方法[J]. 系统仿真学报, 2021, 33(5): 1177-1187. doi: 10.16182/j.issn1004731x.joss.19-0684
	LENG Yao, ZHAO Shuen. Explicit model predictive control method for lateral trajectory tracking of intelligent vehicle[J]. J Simulate, 2021, 33(5): 1177-1187. (in Chinese)
[14]	LIU Zhengyu, DUAN Jiangliang, WANG Wenxuan, et al. Recurrent model predictive control: Learning an explicit recurrent controller for nonlinear systems[J]. IEEE T Ind Electron, 2022: 10437-10446.
[15]	LI Shengbo. Reinforcement Learning for Sequential Decision and Optimal Control[M]. Springer Verlag, Singapore, 2023: 26-37.
[16]	GUAN Yang, REN Yangang, SUN Qi, et al. Integrated decision and control: toward interpretable and computationally efficient driving intelligence[J]. IEEE T Cybernet, 2022, 53(2): 859-873.
[17]	DUAN Jiangliang, LI Jie, GE Qiang, et al. Relaxed actor-critic with convergence guarantees for continuous-time optimal control of nonlinear systems[J]. IEEE T Intel Vehi, 2023, Doi: 10.1109/TIV.2023.3255264.
[18]	DUAN Jiangliang, LI Shengbo, GUAN Yang, et al. Hierarchical reinforcement learning for self-driving decision-making without reliance on labelled driving data[J]. IET Intel Transport Symp, 2020, 14(5): 297-305.
[19]	Kong J, Pfeiffer M, Schildbach G, et al. Kinematic and dynamic vehicle models for autonomous driving control design[C]// IEEE Intel Vehi Symp. IEEE, 2015: 1094-1099.
[20]	Erlien S M, Fujita S, Gerdes J C. Shared steering control using safe envelopes for obstacle avoidance and vehicle stability[J]. IEEE T Intel Transport, 2016, 17(2): 441-451.
[21]	Andersson J A E, Gillis J, Horn G, et al. CasADi: a software framework for nonlinear optimization and optimal control[J]. Math Program Comput, 2019, 11: 1-36. doi: 10.1007/s12532-018-0139-4
[22]	Biegler L T, Zavala V M. Large-scale nonlinear programming using IPOPT: An integrating framework forenterprise-wide dynamic optimization[J]. Comput Chem Engi, 2009, 33(3): 575-582.

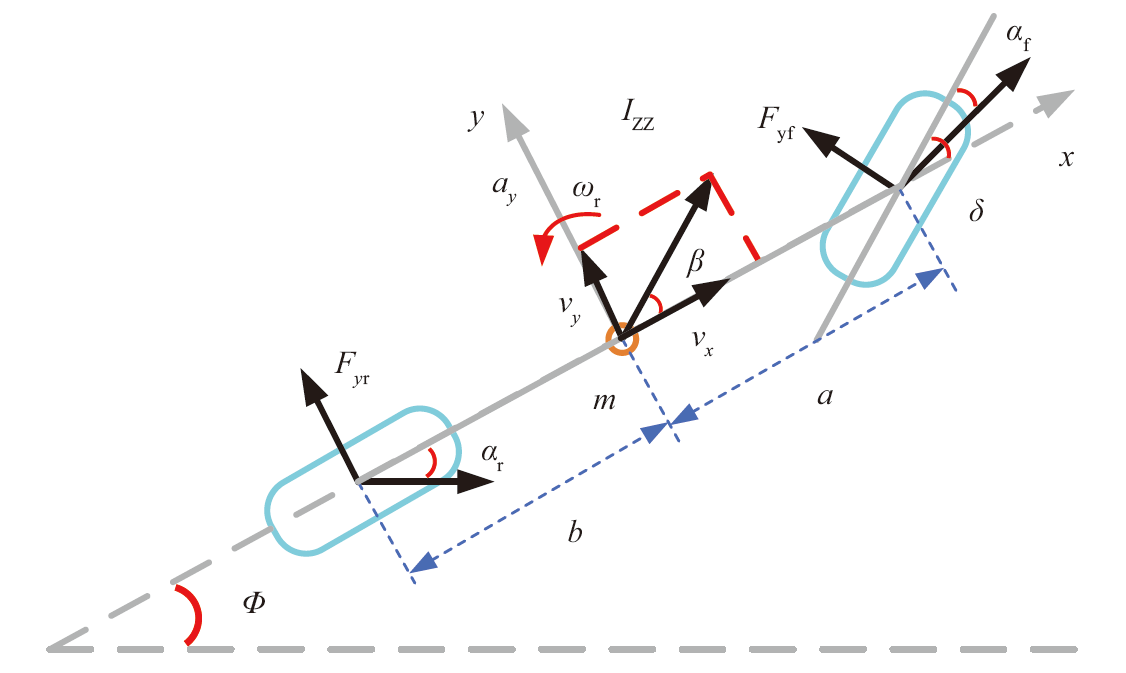

车辆质量，m	1.5 t
质心距前轴的距离， a	1.14 m
质心距后轴的距离， b	1.40 m
前轮侧偏刚度， C_f	-88 kN / rad
后轮侧偏刚度， C_r	-94 kN / rad
横摆惯性力矩， I_zz	2 420 kg / m²
路面附着系数，μ	0.9
前轮侧偏力最大值， F_{f, max}	5.937 kN
后轮侧偏力最大值， F_{r max}	7.297 kN
质心距地面高度， h	0.52 m
纵向加速度，a_x	-5 m / s²

车辆质量，m	1.5 t
质心距前轴的距离， a	1.14 m
质心距后轴的距离， b	1.40 m
前轮侧偏刚度， C_f	-88 kN / rad
后轮侧偏刚度， C_r	-94 kN / rad
横摆惯性力矩， I_zz	2 420 kg / m²
路面附着系数，μ	0.9
前轮侧偏力最大值， F_{f, max}	5.937 kN
后轮侧偏力最大值， F_{r max}	7.297 kN
质心距地面高度， h	0.52 m
纵向加速度，a_x	-5 m / s²

车车碰撞惩罚系数，I₁	1 800
车路碰撞惩罚系数，I₂	80
前轮侧偏角惩罚系数，I₂	1 000
后轮侧偏角惩罚系数，I₄	1 000
横摆角速度惩罚系数，I₅	1 000
跟踪误差惩罚系数，Q	1
控制输入惩罚系数，R	1
车路碰撞松弛因子，ρ₂	1.50
前轮侧偏角松弛因子，ρ₃	1.25
后轮侧偏角松弛因子，ρ₄	1.25
横摆角速度松弛因子，ρ₅	1.25
最大前轮转角，u_max / rad	0.15
最小前轮转角，u_min / rad	-0.15
控制频率，f_s / Hz	10

车车碰撞惩罚系数，I₁	1 800
车路碰撞惩罚系数，I₂	80
前轮侧偏角惩罚系数，I₂	1 000
后轮侧偏角惩罚系数，I₄	1 000
横摆角速度惩罚系数，I₅	1 000
跟踪误差惩罚系数，Q	1
控制输入惩罚系数，R	1
车路碰撞松弛因子，ρ₂	1.50
前轮侧偏角松弛因子，ρ₃	1.25
后轮侧偏角松弛因子，ρ₄	1.25
横摆角速度松弛因子，ρ₅	1.25
最大前轮转角，u_max / rad	0.15
最小前轮转角，u_min / rad	-0.15
控制频率，f_s / Hz	10

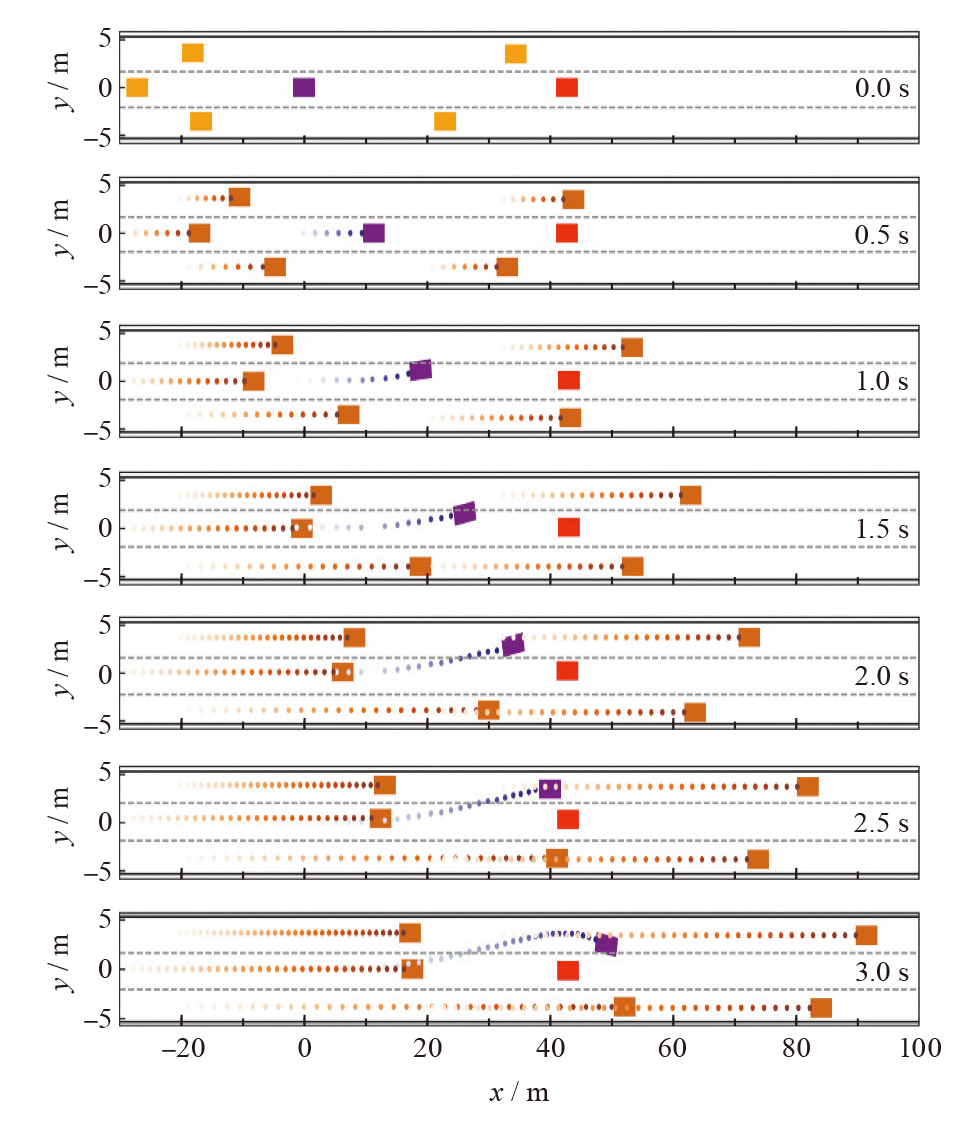

纵向速度/ (km·h^-1)	碰撞过程最小车距 / m	千次试验碰撞次数
80	1.38	0
95	1.27	0
110	1.01	0
