Prediction of battery-module damage in electric-vehicle side-collisions

doi:10.3969/j.issn.1674-8484.2024.02.004

Abstract

Abstract:

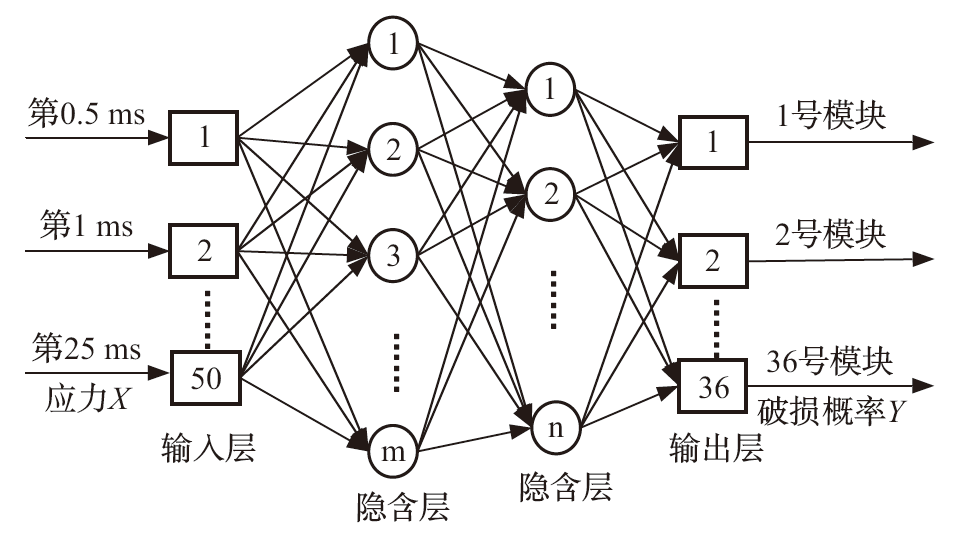

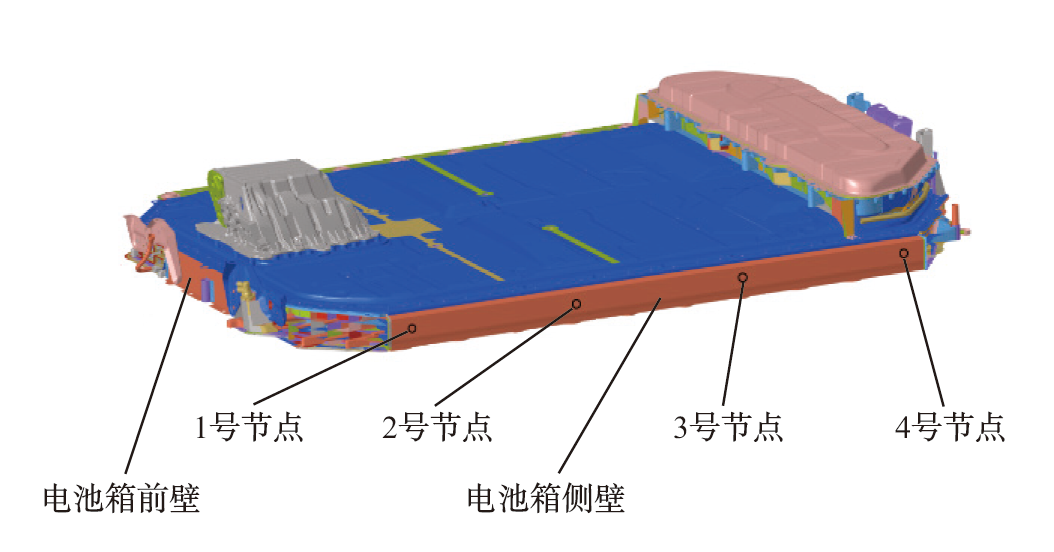

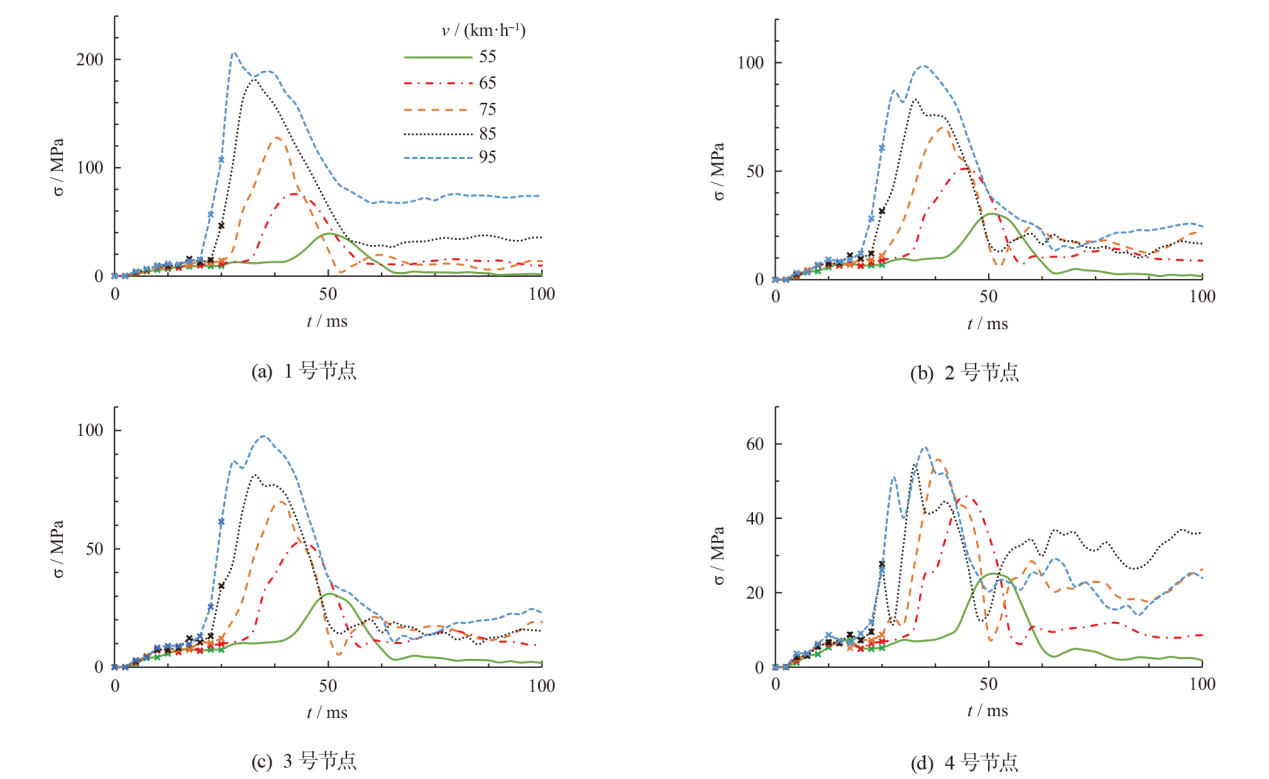

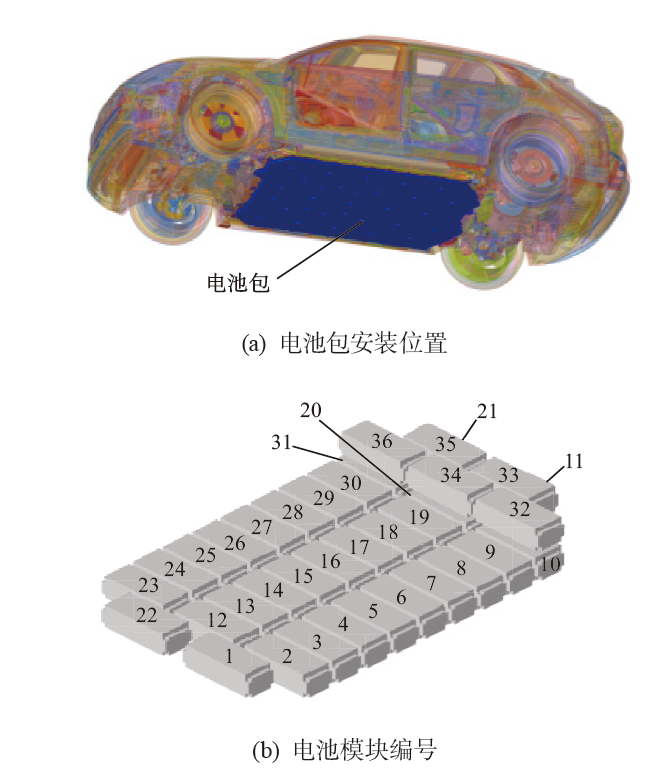

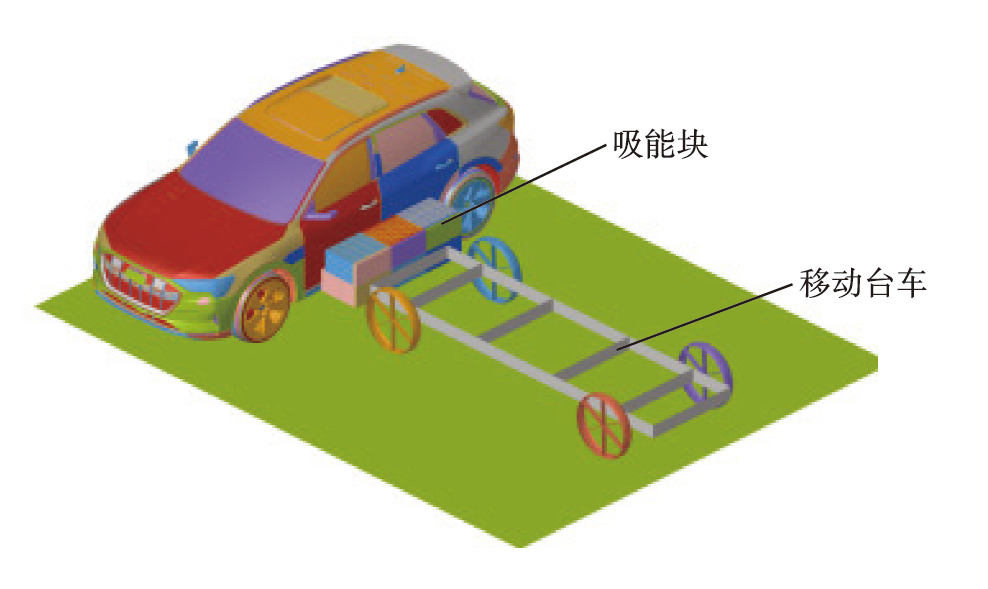

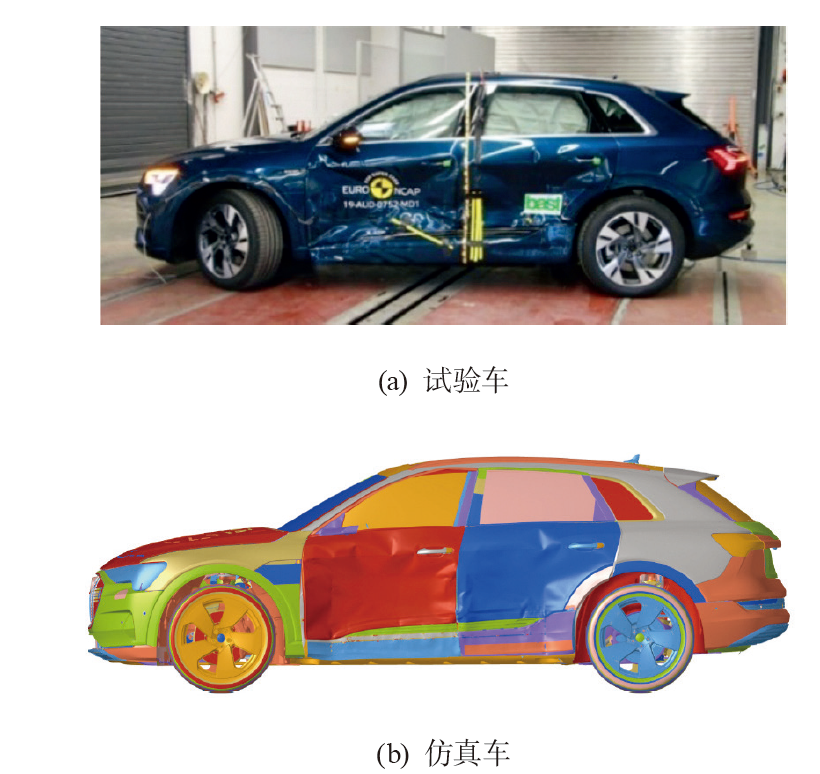

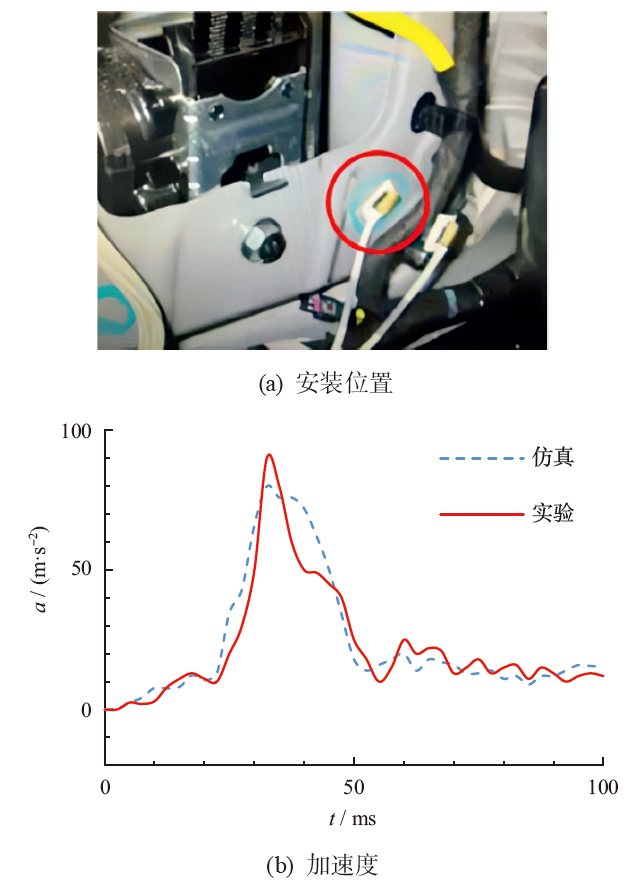

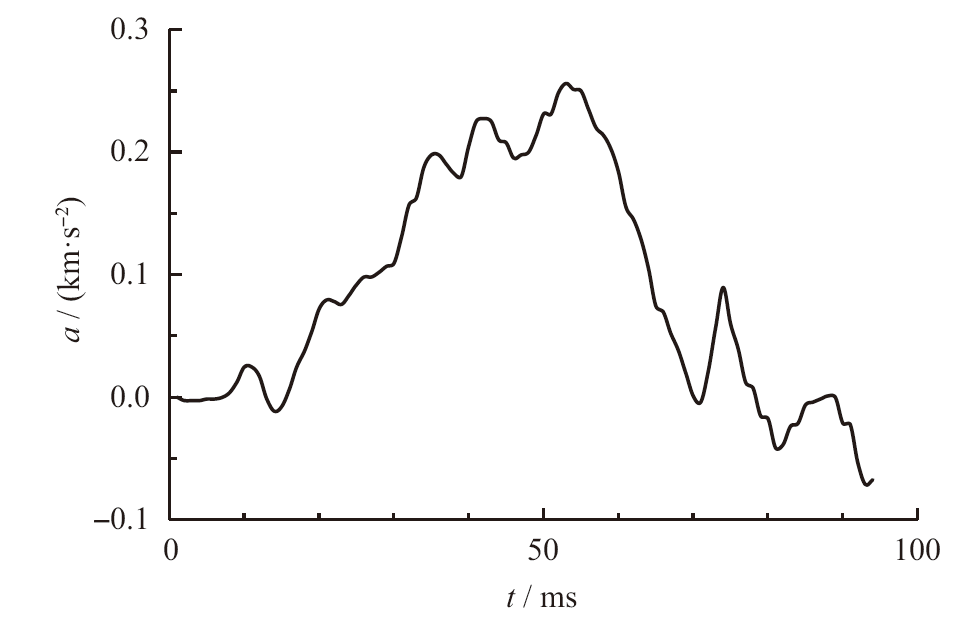

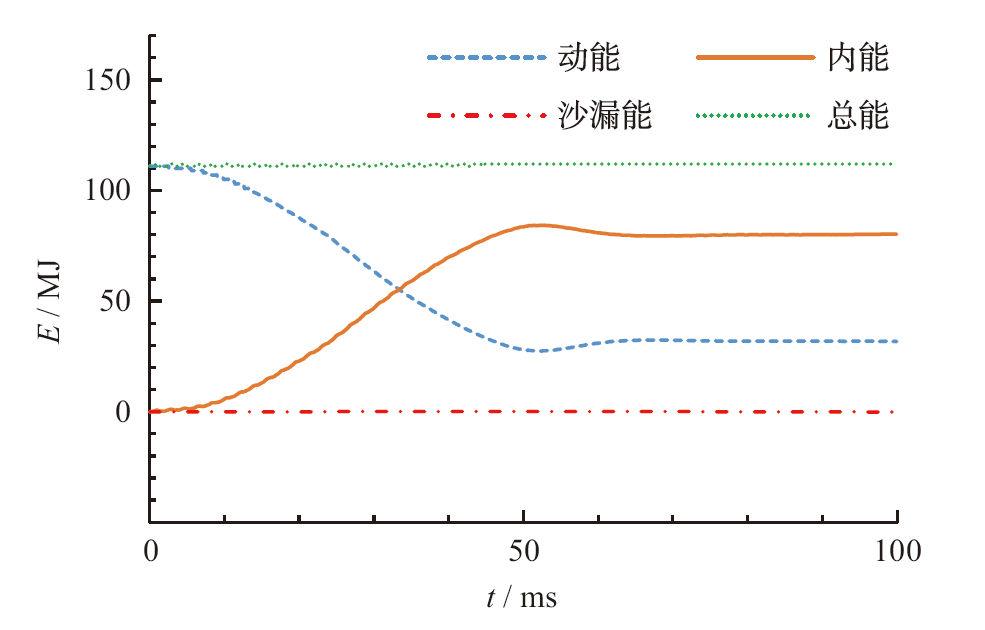

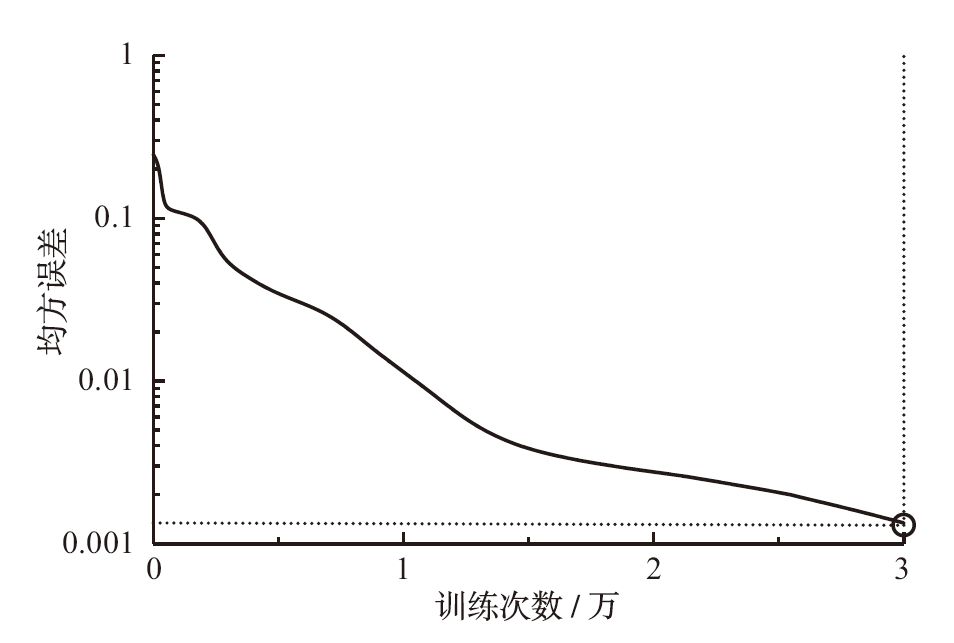

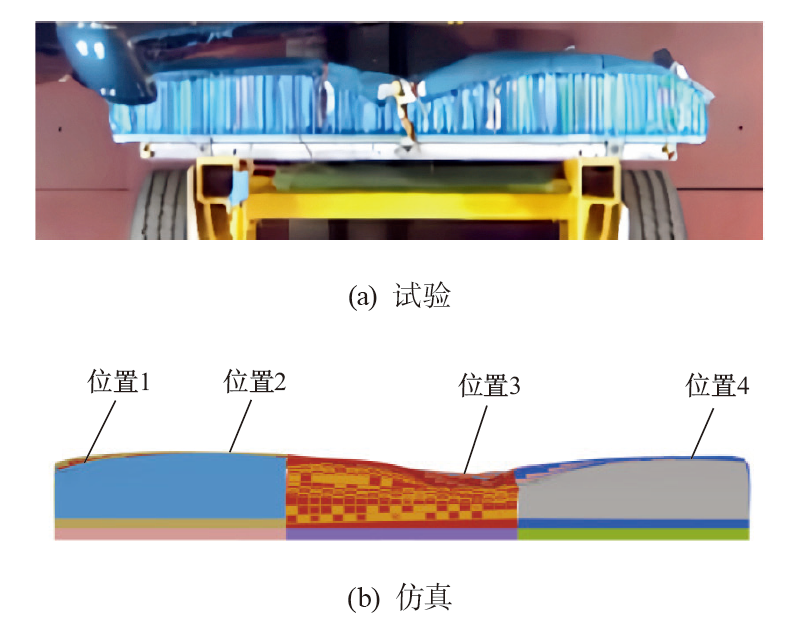

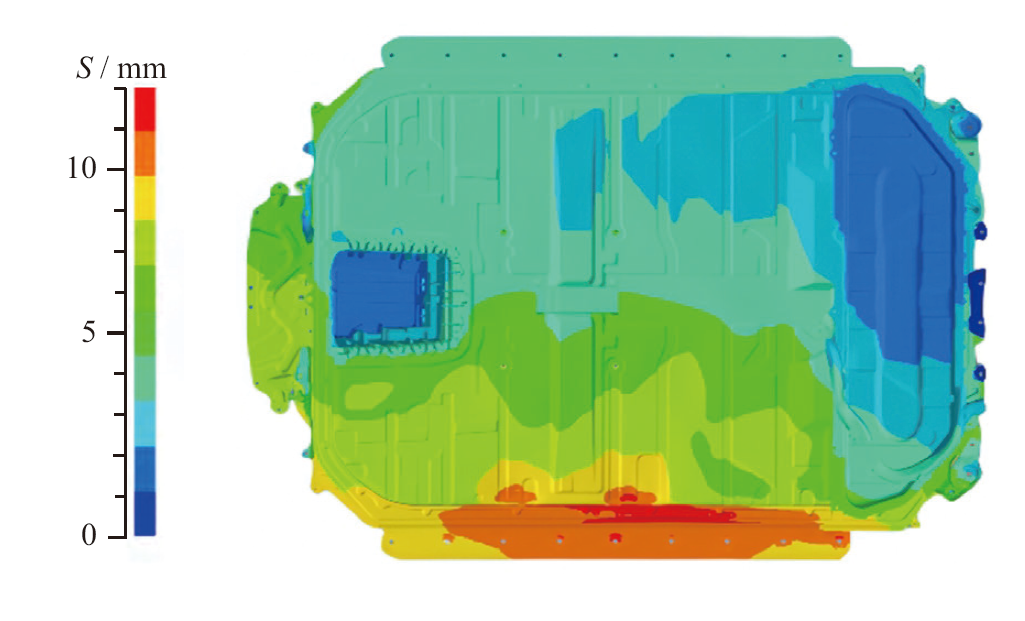

A finite element model was developed to simulate side-collision scenarios on a new type of energy-vehicle (EV) battery-pack to enhance the battery safety of EVs in the side-collision accidents. Using LS-DYNA, five different collision simulations were performed at various speeds. The stress curves at the geometric center of the battery pack's side wall and the battery module damage conditions were extracted. A predictive neural network model from the back propagation (BP) was established for battery module collision damage based on the correlation between the stress curves and the battery-module damage-conditions factors. The model's input quantity was the stress curves, and the output vector was the module damage conditions. The results show that three blocks at five different speeds are predicted incorrectly after collisions, while the remaining 177 blocks are predicted correctly with an accuracy rate of 98.33%. Therefore, this algorithm's design enables the identification of specific modules prone to damage in electric vehicles during side collisions, which holds significant implications for enhancing overall electric vehicle safety.

Key words: electric vehicles (EV), battery module, side-collision, damage prediction, back propagation (BP) neural network, finite element (FE) simulation

CLC Number:

U467.14

WANG Juchuang, CAO Qinglin, QIU Rui, SONG Liuwei, GUO Ping'an, ZHAO Gang. Prediction of battery-module damage in electric-vehicle side-collisions[J]. Journal of Automotive Safety and Energy, 2024, 15(2): 169-177.

Figures/Tables 17

References 23

[1]	兰凤崇, 刘金, 陈吉清, 等. 电动汽车电池包箱体及内部结构碰撞变形与响应分析[J]. 华南理工大学学报(自然科学版), 2017, 45(2): 1-8. doi: 10.3969/j.issn.1000-565X.2017.02.001
	LAN Fengchong, LIU Jin, CHEN Jiqing, et al. Collision deformation and response analysis of electric vehicle battery pack enclosure and internal structure[J]. J South China Uni of Tech (Nat Sci Ed), 2017, 45(2): 1-8. (in Chinese)
[2]	Avdeev I, Gilaki M. Structural analysis and experimental characterization of cylindrical lithium-ion battery cells subject to lateral impact[J]. *J Power Sources*, 2014, 36(8): 271-279.
[3]	兰凤崇, 陈元, 周云郊, 等. 轻质多材料动力电池包箱体选材与优化[J]. 吉林大学学报(工学版), 2020, 50(4): 1227-1234.
	LAN Fengchong, CHEN Yuan, ZHOU Yunjiao, et al. Material selection and optimization for lightweight multimaterial power battery pack enclosure[J]. J Jilin Univ (Engi Ed), 2020, 50(4): 1227-1234. (in Chinese)
[4]	李宝宁. 电动汽车电池包箱体及内部结构碰撞变形与响应设计分析[J]. 企业技术开发, 2017, 36(10): 40-41+54.
	LI Baoning. Analysis of collision deformation and response design of battery pack box and internal structure of electric vehicle[J]. *Enterprise Tech Develp*, 2017, 36(10): 40-41+54. (in Chinese)
[5]	王月, 肖海涛, 王鹏翔, 等. 某混动车型侧面柱撞结构优化[J]. 电池工业, 2017, 21(5): 1-4+8.
	WANG Yue, XIAO Haitao, WANG Pengxiang, et al. Optimization of side pillar collision structure for a certain hybrid vehicle model[J]. *Battery Indu*, 2017, 21(5): 1-4+8. (in Chinese)
[6]	Motevalli et al. New approach for performing failure analysis of fuel cell-powered vehicles. *Int’l J Auto Tech*, 2009, 10(6): 743-752.
[7]	Sudworth J L. Zebra batteries[J]. *J Power Sources*, 1994, 51(1): 105-114. doi: 10.1016/0378-7753(94)01967-3 URL
[8]	Hartmann M, Roschitz M, Khalil Z. Enhanced battery pack for electric vehicle: Noise reduction and increased stiffness[J]. *Mate Sci Forum*, 2013, 765: 818-822. doi: 10.4028/www.scientific.net/MSF.765 URL
[9]	陈彦雷. 一款纯电动汽车碰撞断电功能及碰撞后高压电安全测试[J]. 汽车电器, 2016, 334(6): 18-20.
	CHEN Yanlei. A pure electric vehicle crash power failure function and post-collision high-voltage electric safety test[J]. *Automotive Elec Appl, 2016, 334*(6): 18-20. (in Chinese)
[10]	张亚军, 任高晖, 李君杰, 等. 基于某电动汽车高压电碰撞安全设计与防护[J]. 汽车安全与节能学报, 2017, 8(4): 388-396.
	ZHANG Yajun, REN Gaohui, LI Junjie, et al. Safety design and protection based on the high-voltage electric collision of an electric vehicle[J]. *J Autom Safe Energ*, 2017, 8(4): 388-396. (in Chinese)
[11]	刘爽, 吴杰余, 杨问弘, 等. 一种电动汽车碰撞断电保护系统[P]. 中国: CN104494544B, 2017-01-18.
	LIU Shuang, WU Jieyu, YANG WenHong, et al. A collision power-off protection system for electric vehicles [P]. China: CN104494544B, 2017-01-18. (in Chinese)
[12]	GAN Nianfei, FENG Yanan, YIN Hanfeng, et al. Quasi-static axial crushing experiment study of foam-filled CFRP and aluminum alloy thin-walled structures[J]. *Composite Struc*, 2016, 157: 303-319. doi: 10.1016/j.compstruct.2016.08.043 URL
[13]	LONG Jiangqi, HUAG Wenhao, ZHANG Wuhu. Lightweight investigation of extended-range electric vehicle based on collision failure using numerical simulation[J]. *Shock Vibr*, 2015, 20(15): 1-9.
[14]	刘佳. 碰撞工况下电动客车动力电池系统安全控制研究[D]. 北京: 北京理工大学, 2015.
	LIU Jia. Study on safety control of electric bus under collision condition[D]. Beijing: Beijing Inst of Tech, 2015. (in Chinese)
[15]	Wierzbicki T, Sahraei E. Homogenized mechanical properties for the jellyroll of cylindrical lithium-ion cells[J]. *J Power Sources, 2013, 241*(8): 467-476. doi: 10.1016/j.jpowsour.2013.04.135 URL
[16]	郝霆, 王雍. 汽车碰撞试验及Hybird Ⅲ(假人)应用分析[J]. 人民公交, 2003(1): 21-23.
	HAO Ting, WANG Yong. Automobile crash test and Hybird Ⅲ (dummy) application analysis[J]. *People's Bus*, 2003(1): 21-23. (in Chinese)
[17]	徐飞. 2021年EURO NCAP第五批测试结果发布[J]. 世界汽车, 2021, 474(10): 60-71.
	XU Fei. The fifth batch of EURO NCAP 2021[J]. *World Automotive, 2021, 474*(10): 60-71. (in Chinese)
[18]	郝琪, 潘文杰, 肖琪, 等. 纯电动汽车侧面碰撞试验及仿真分析[J]. 机械设计与制造, 2019, 341(7): 119-122.
	HAO Qi, PAN Wenjie, XIAO Qi, et al. Side collision test and simulation analysis of pure electric vehicles[J]. *Mech Des Manu, 2019, 341*(7): 119-122. (in Chinese)
[19]	Abbas K, Saeid N, Doug C, et al. Comprehensive review of neural network-based prediction intervals and new advances[J]. *IEEE Trans Neural Networks*, 2011, 22(9): 1341-1356. doi: 10.1109/TNN.2011.2162110 URL
[20]	林仕高, 欧元贤. BP神经网络学习参数优化研究[J]. 微计算机信息, 2010, 26(16): 199-200+206.
	LIN Shigao, OU Yuanxian. Research on optimization of BP neural network learning parameters[J]. *Microcomputer Info*, 2010, 26(16): 199-200+206. (in Chinese)
[21]	Hecht-Nielsen R. Theory of the backpropagation neural network[J]. *Neur Networks Perception*, 1992, 15(11): 65-93.
[22]	蒋佳欣, 王博, 王猛, 等. 基于BIM技术和BP神经网络的成都理工大学图书馆天然采光研究[J]. 土木建筑工程信息技术, 2020, 12(1): 30-38.
	JIANG Jiaxin, WANG Bo, WANG Meng, et al. Research on natural lighting in the library of Chengdu University of Technology, based on BIM technology and BP neural network[J]. *Civil Constr Eng Info Tech*, 2020, 12(1): 30-38. (in Chinese)
[23]	王嵘冰, 徐红艳, 李波, 等. BP神经网络隐含层节点数确定方法研究[J]. 计算机技术与发展, 2018, 28(4): 31-35.
	WANG Rongbing, XU Hongyan, LI Bo, et al. Study on the number of nodes in BP neural network[J]. *Computer Tech Deve*, 2018, 28(4): 31-35. (in Chinese)

v / (km·h^-1)	x₁	x₂	x₃	x₄
55	[0，0.013，…，9.440]	[0，0.015，…，6.935]	[0，0.011，…，7.381]	[0，0.012，…，5.217]
65	[0，0.017，…，11.324]	[0，0.013，…，9.089]	[0，0.009，…，9.891]	[0，0.015，…，6.932]
75	[0，0.019，…，14.227]	[0，0.014，…，11.118]	[0，0.020，…，12.208]	[0，0.012，…，8.738]
85	[0，0.021，…，24.678]	[0，0.025，…，37.302]	[0，0.016，…，28.076]	[0，0.021，…，27.763]
95	[0，0.017，…，56.728]	[0，0.016，…，60.796]	[0，0.019，…，61.519]	[0，0.019，…，26.118]

v / (km·h^-1)	x₁	x₂	x₃	x₄
55	[0，0.013，…，9.440]	[0，0.015，…，6.935]	[0，0.011，…，7.381]	[0，0.012，…，5.217]
65	[0，0.017，…，11.324]	[0，0.013，…，9.089]	[0，0.009，…，9.891]	[0，0.015，…，6.932]
75	[0，0.019，…，14.227]	[0，0.014，…，11.118]	[0，0.020，…，12.208]	[0，0.012，…，8.738]
85	[0，0.021，…，24.678]	[0，0.025，…，37.302]	[0，0.016，…，28.076]	[0，0.021，…，27.763]
95	[0，0.017，…，56.728]	[0，0.016，…，60.796]	[0，0.019，…，61.519]	[0，0.019，…，26.118]

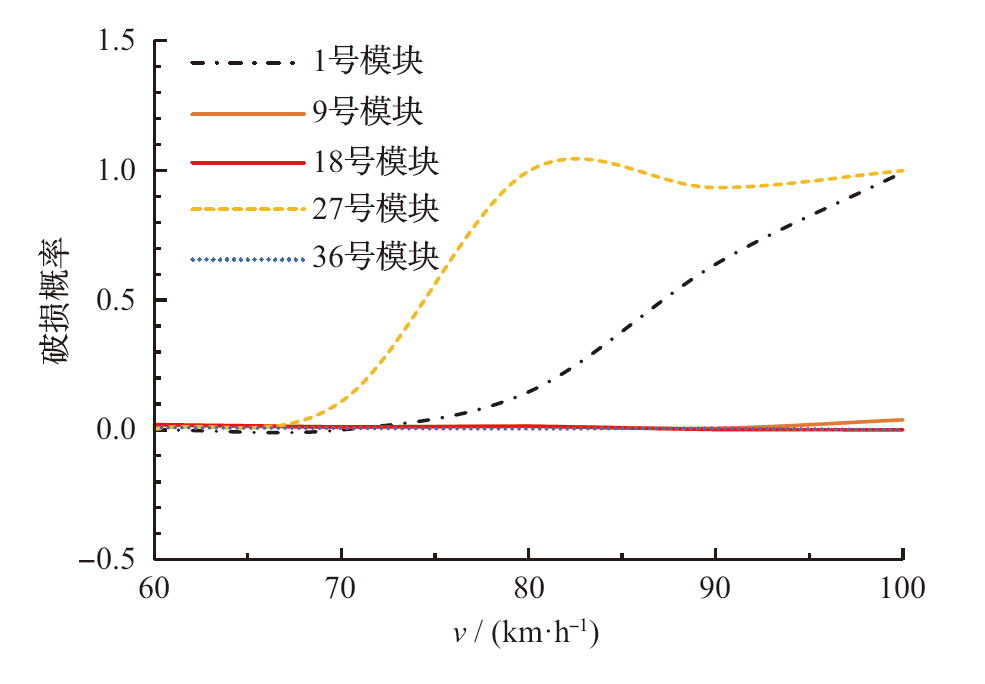

编号	破损概率
编号	v / (km·h^-1)	55	65	75	85	95
1		2.31×10^-5	5.13×10^-4	1.47×10^-1	6.40×10^-1	9.94×10^-1
2		7.40×10^-5	5.02×10^-4	1.04×10^-1	9.98×10^-1	9.97×10^-1
3		2.86×10^-3	5.22×10^-4	4.22×10^-5	1.56×10^-1	1.39×10^-7
4		1.69×10^-5	6.59×10^-4	9.57×10^-2	9.95×10^-1	6.40×10^-1
5		3.35×10^-3	1.44×10^-1	9.97×10^-1	8.47×10^-1	9.98×10^-1
32		8.03×10^-3	3.58×10^-1	9.87×10^-1	2.66×10^-3	9.78×10^-1
33		5.55×10^-5	9.54×10^-4	6.88×10^-2	9.96×10^-2	9.99×10^-1
34		1.88×10^-5	5.08×10^-4	2.27×10^-1	6.26×10^-1	9.95×10^-1
35		4.50×10^-5	3.99×10^-4	1.67×10^-1	5.78×10^-1	9.94×10^-1
36		9.90×10^-3	6.93×10^-3	4.13×10^-3	6.16×10^-3	1.01×10^-4

编号	破损概率
编号	v / (km·h^-1)	55	65	75	85	95
1		2.31×10^-5	5.13×10^-4	1.47×10^-1	6.40×10^-1	9.94×10^-1
2		7.40×10^-5	5.02×10^-4	1.04×10^-1	9.98×10^-1	9.97×10^-1
3		2.86×10^-3	5.22×10^-4	4.22×10^-5	1.56×10^-1	1.39×10^-7
4		1.69×10^-5	6.59×10^-4	9.57×10^-2	9.95×10^-1	6.40×10^-1
5		3.35×10^-3	1.44×10^-1	9.97×10^-1	8.47×10^-1	9.98×10^-1
32		8.03×10^-3	3.58×10^-1	9.87×10^-1	2.66×10^-3	9.78×10^-1
33		5.55×10^-5	9.54×10^-4	6.88×10^-2	9.96×10^-2	9.99×10^-1
34		1.88×10^-5	5.08×10^-4	2.27×10^-1	6.26×10^-1	9.95×10^-1
35		4.50×10^-5	3.99×10^-4	1.67×10^-1	5.78×10^-1	9.94×10^-1
36		9.90×10^-3	6.93×10^-3	4.13×10^-3	6.16×10^-3	1.01×10^-4

v / (km·h^-1)	破损情况
v / (km·h^-1)	编号	1	2	3	4	5	…	32	33	34	35	36
55		0	0	0	0	0	…	0	0	0	0	0
65		0	0	0	0	0	…	0	0	0	0	0
75		0	0	0	0	1	…	1	0	0	0	0
85		0	1	1	1	0	…	0	1	0	0	0
95		1	1	0	1	1	…	0	1	1	1	0
