Design of pedestrian-safety-island height based on traffic accident reconstruction

doi:10.3969/j.issn.1674-8484.2024.02.005

Abstract

Abstract:

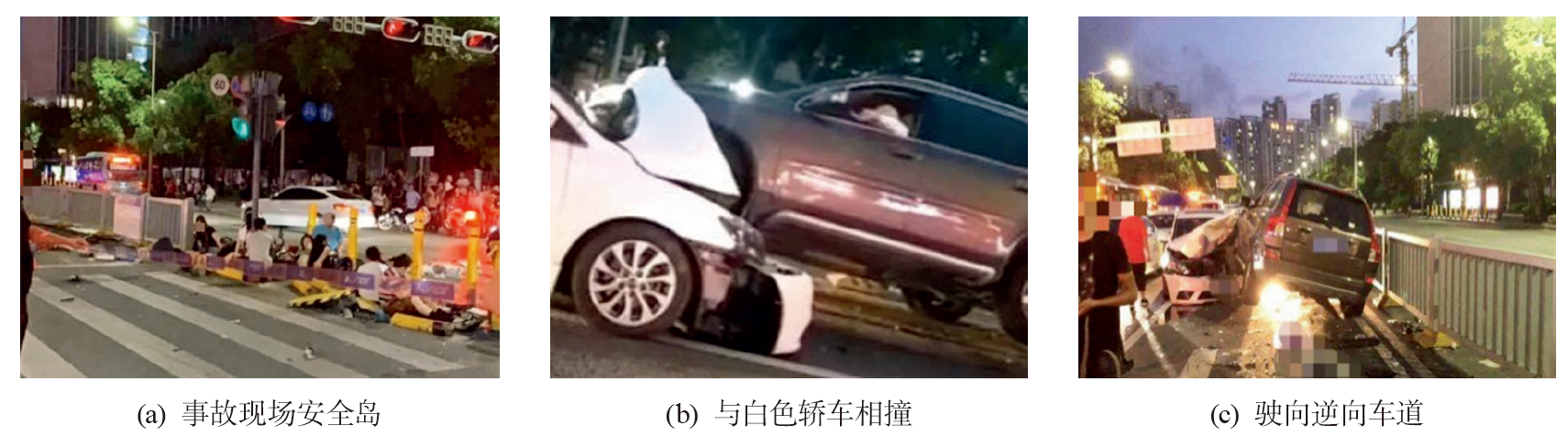

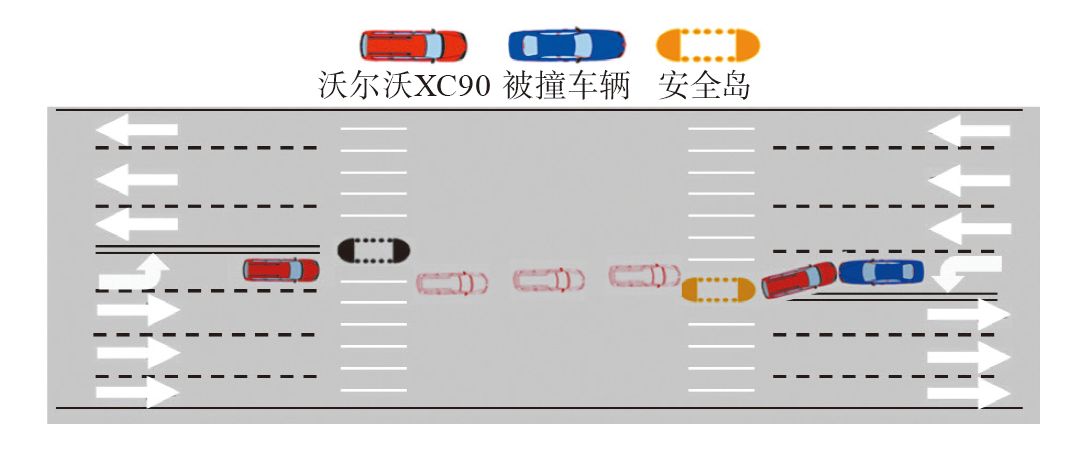

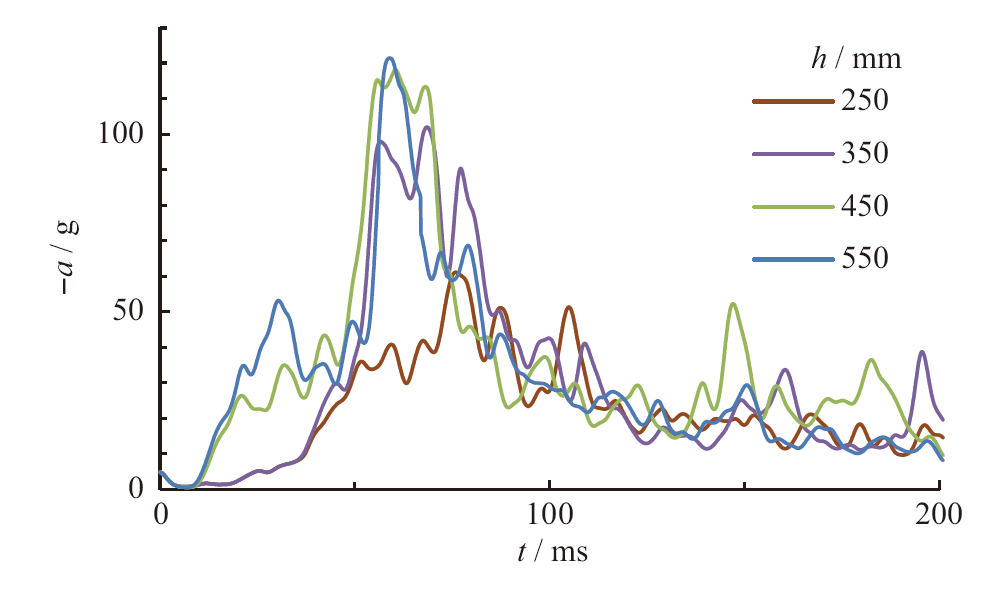

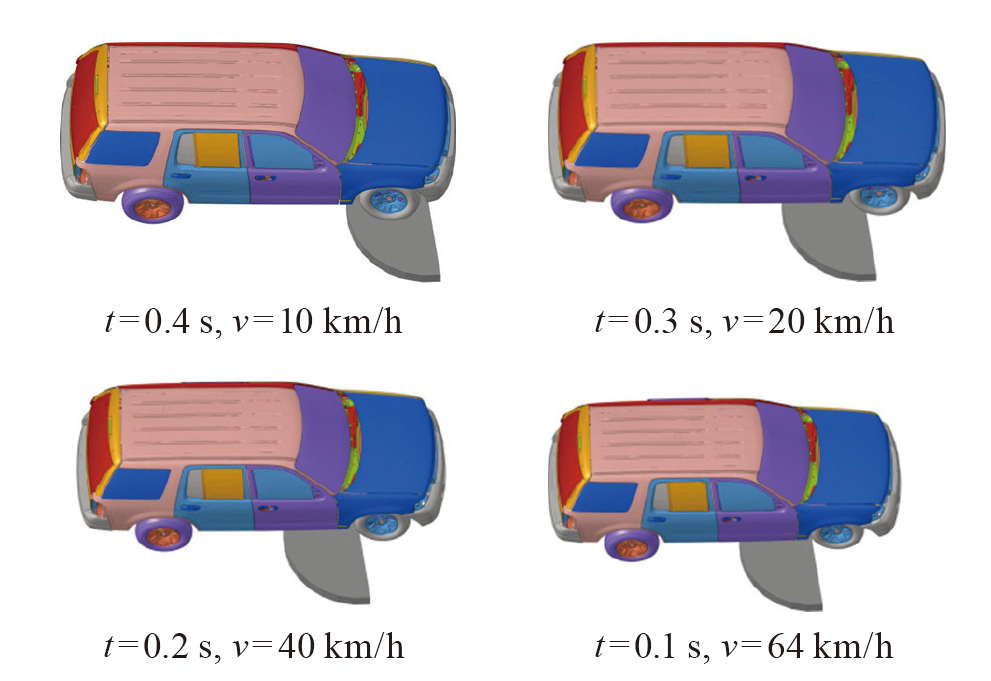

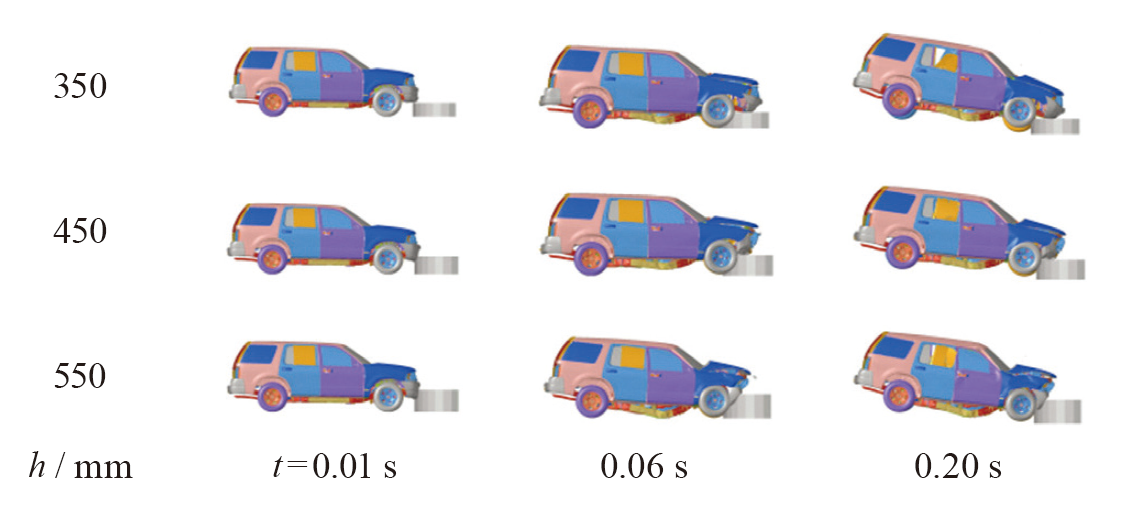

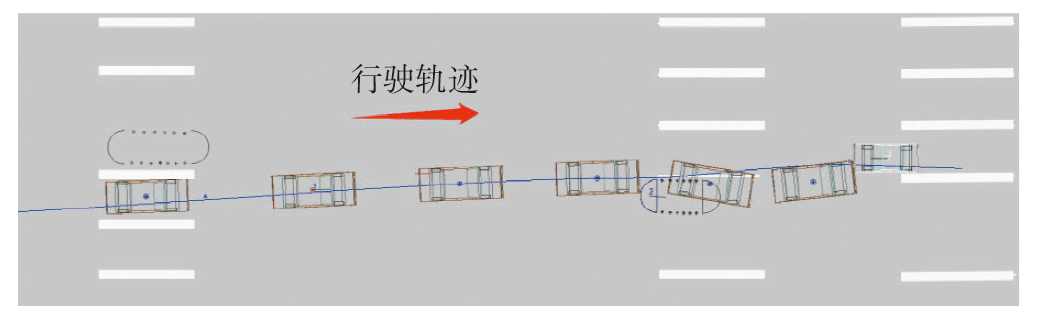

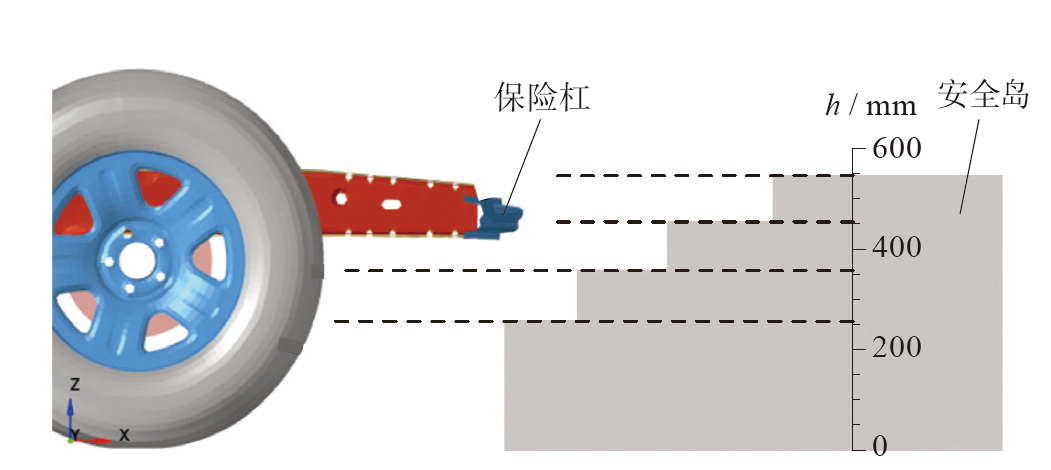

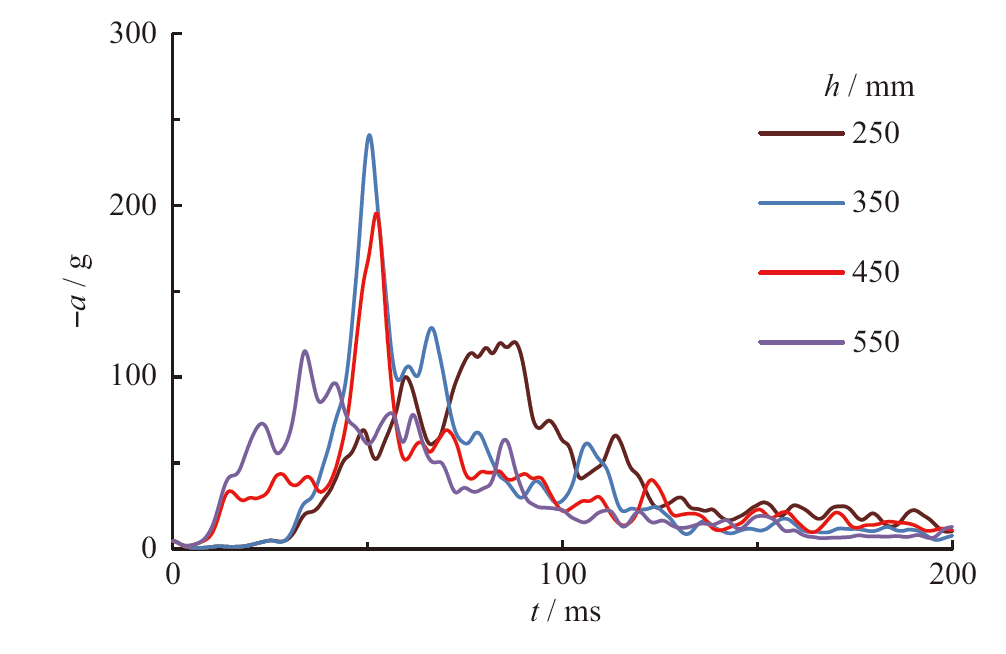

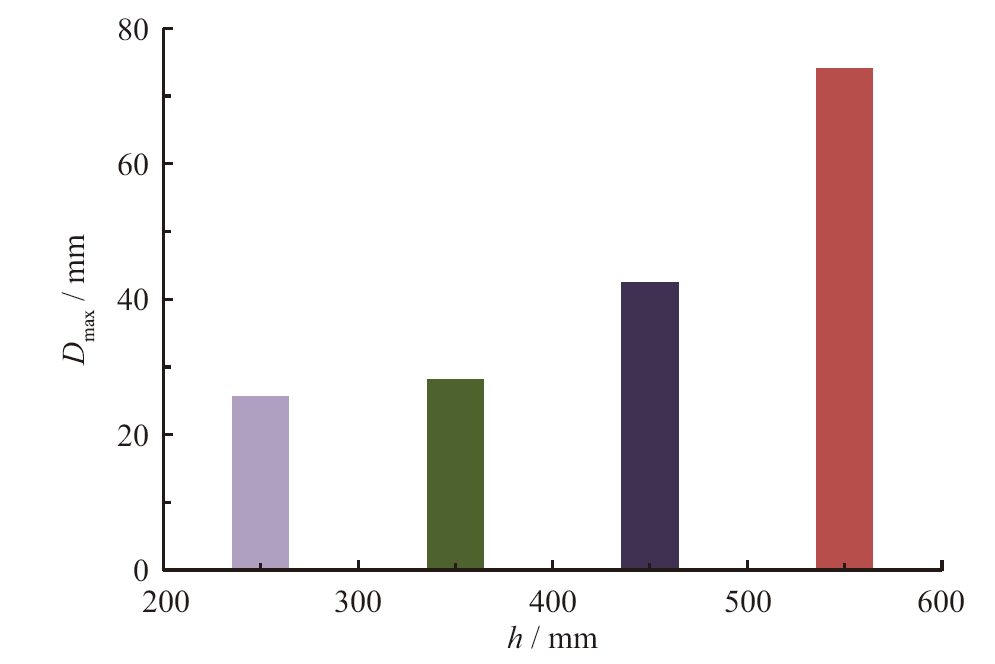

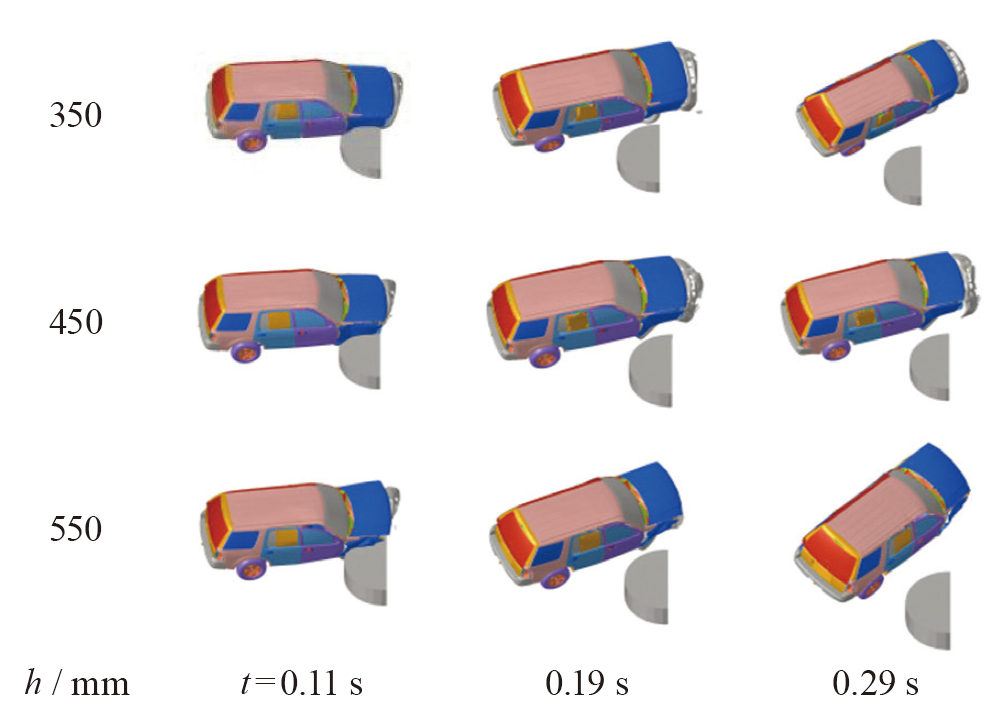

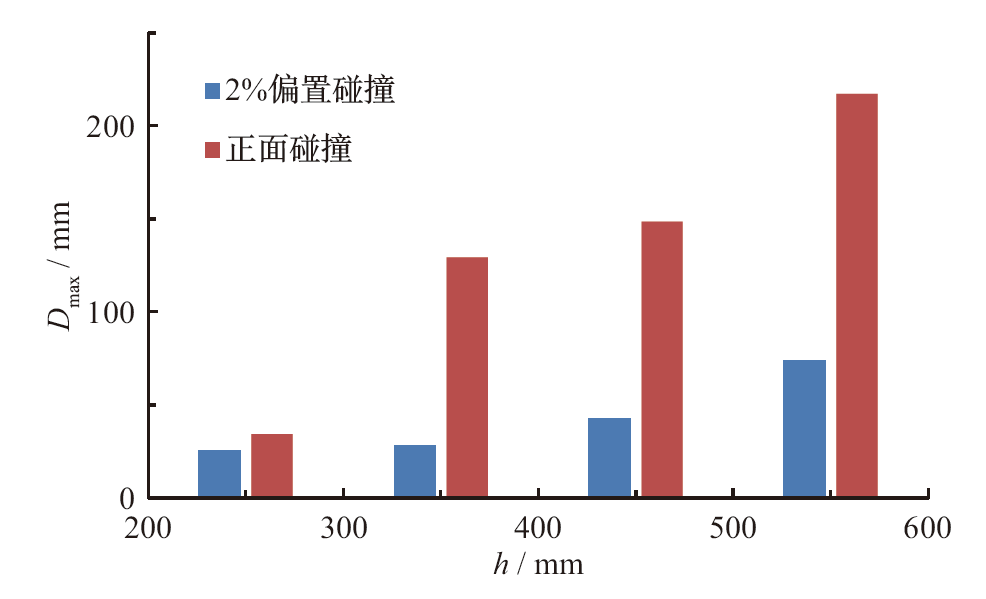

A typical collision accident between vehicle and safety island was investigated, with reconstructed the accidents by utilizing PC-CRASH to investigate the protective effect of the height design of road traffic safety island on pedestrians and occupants in collision accidents. The influence of different vehicle collision speed and different safety island heights on the safety protection of pedestrians and occupants in the vehicle was analyzed with LS-DYNA based on the accident reconstruction. The results show that too low of the safety island height was the main cause of pedestrian casualties in the collision between vehicle and safety island. In the common speed range (30~50 km/h) of urban roads, the safety island designed with a height of more than 350 mm could effectively prevent the vehicle from driving on the safety island, so as to protect pedestrians. However, the 3-ms peak deceleration of the vehicle is much more than 72 g, which will lead to a high risk of head injury for the occupants of the vehicle. The future safety island design should consider the dual-protection of both pedestrians in the safety island and occupants in the vehicle. Therefore, it should be considered to design energy-absorbing buffer device around the safety island while raising the height of it, so as to better realize the safety protection of occupants in the vehicle through the dual-absorption of both the vehicle and the safety island.

Key words: road traffic safety, safety island height, safety protection, accident reconstruction, finite element simulation

CLC Number:

T416

ZHANG Chen, WEI Wei, CHEN Jiaxing, MA Zhengwei. Design of pedestrian-safety-island height based on traffic accident reconstruction[J]. Journal of Automotive Safety and Energy, 2024, 15(2): 178-187.

Figures/Tables 16

References 20

[1]	王小洪. 全国机动车保有量达4.35亿辆,驾驶人达5.23亿人, 新能源汽车保有量超过2000万辆[EB/OL]. (2024-01-11). https://www.gov.cn/lianbo/bumen/202401/content_6925362.htm.
	WANG Xiaohong. The number of motor vehicles in the country has reached 435 million, the number of drivers has reached 523 million, and the number of new energy vehicles has exceeded 20 million[EB/OL]. (2024-01-11). https://www.gov.cn/lianbo/bumen/202401/content_6925362.htm. (in Chinese)
[2]	Alase V D, Kothale S R, Chavan S B, et al. Traffic island and development[J]. *Computer Sci*, 2022: 10(5): 384-389.
[3]	阚德祥. 安全岛的由来[J]. 道路交通管理, 2007(6): 63-65.
	KAN Dexiang. The origin of safety islands[J]. *J Road Traffic Manage*, 2007(6): 63-65. (in Chinese)
[4]	宫建, 曹静, 杨孝宽. 信号交叉口行人安全岛设计[J]. 道路交通与安全, 2006(7): 21-25.
	GONG Jian, CAO Jing, YANG XiaoKuan. Design of pedestrian safety islands at signalized intersections[J]. *Road Traffic and Safety*, 2006(7): 21-25. (in Chinese)
[5]	李汝志. 多车道行人过街特性及安全岛设置方法研究[D]. 长春: 吉林大学, 2016.
	LI Ruzhi. Method under multi-lanesstudy on pedestrian crossing characteristics and refuge island design[D]. Changchun: Jilin University, 2016. (in Chinese)
[6]	顾明洋, 马跃东, 陈永华, 等. 基于高性能复合材料的安全岛柔性防撞结构建造技术[J]. 市政技术, 2021, 39(11): 123-129.
	GU Mingyang, MA Yuedong, CHEN Yonghua, et al. Construction technology of flexible anti-collision structure of safety island based on high performance composite materials[J]. *Munici Tech*, 2021, 39(11): 123-129. (in Chinese)
[7]	杜志刚, 杨柳, 韩磊, 等. 行人过街安全岛的心理旋转效应理论优化方法研究[J]. 安全与环境学报, 2023, 23(9): 3043-3050.
	YANG Zhigang, YANG Liu, HAN Lei, et al. Risk evaluation of urban gas pipelines based on greyrelevance theory and dematel[J]. *J Safety Envir*, 2023, 23(9): 3043-3050. (in Chinese)
[8]	Dotoli M, Fanti M P, Meloni C. A signal timing plan formulation for urban traffic control[J]. *Contr Eng Prac*, 2006, 14(11): 1297-1311. doi: 10.1016/j.conengprac.2005.06.013 URL
[9]	Marić B, Lipovac K, Nešić M, et al. The influence of a countdown display on pedestrian behavior at a signalized pedestrian crossing equipped with a pedestrian refuge island[J]. *Transp Res Procedia*, 2021, 55: 1720-1728. doi: 10.1016/j.trpro.2021.07.164 URL
[10]	Vignali V, Cuppi F, Acerra E, et al. Effects of median refuge island and flashing vertical sign on conspicuity and safety of unsignalized crosswalks[J]. **Transp Res Part F: Traffic Psychology Behaviour**, 2019, 60: 427-439. doi: 10.1016/j.trf.2018.10.033 URL
[11]	王天青. 关于提高行人过街安全性的研究[J]. 规划师, 2006(10): 78-80.
	WANG Tianqing. Research on improving pedestrian crossing safety[J]. *Planner*, 2006(10): 78-80. (in Chinese)
[12]	严锡蕾, 王运霞. 路段行人过街存在的交通安全问题及提升建议[J]. 中国公共安全, 2019(2): 88-91.
	YAN Xilei, WANG Yunxia. Traffic safety issues and improvement suggestions for pedestrian crossing on road sections[J]. *Chin Public Security*, 2019(2): 88-91. (in Chinese)
[13]	Moser A, Steffan H, Kasanicky G. The pedestrian model in pc-crash-the introduction of a multi body system and its validation[R]. SAE Tech Paper, 1999-01-0445.
[14]	Moser A, Stefan H, et al. Validation of the pc-crash pedestrian model[R]. SAE Tech Paper, 2000-01-0847: 1336-1339.
[15]	王国林, 鲁砚. 人车碰撞事故仿真与行人保护研究[J]. 汽车工程, 2009, 31(1): 14-17.
	WANG Guolin, LU Yan. Research on simulation of pedestrian-vehicle collision accidents and pedestrian protection[J]. *Automotive Engineering*, 2009, 31(1): 14-17. (in Chinese)
[16]	邹铁方, 余志, 蔡铭, 等. 基于Pc-Crash的车-人事故再现[J]. 振动与冲击, 2011, 30(3): 215-219.
	ZHOU Tiefang, YU Zhi, CAI Ming, et al. Reconstruction of vehicle-pedestrian accidents based on Pc-Crash[J]. *J Vibr Shock*, 2011, 30(3): 215-219. (in Chinese)
[17]	秦浪朝. 路面摩擦系数的检测与评价方法的研究[D]. 重庆: 重庆交通大学, 2015.
	QIN Langchao. The detection of pavement friction coefficient and the research of its evaluation methods[D]. Chongqing: Chongqing Jiaotong University, 2015. (in Chinese)
[18]	白金泽. LS-DYNA3D 理论基础与实例分析 [M]. 北京: 科学出版社, 2005: 30-59.
	BAI Jinze. LS-DYNA3D Theory and Case Analysis [M]. Beijing: Science Press, 2005: 30-59. (in Chinese)
[19]	胡远志, 曾必强, 谢书港. 基于LS-DYNA和HyperWorks的汽车安全仿真与分析[M]. 北京: 清华大学出版社, 2011: 138-175.
	HU Yuanzhi, ZENG Biqiang, XIE Shugang. Automobile Safety Simulation and Analysis based on LS-DYNA and Hyperworks [M]. Beijing: Tsinghua University Press, 2011: 138-175. (in Chinese)
[20]	中汽测评中心. *C-NCAP管理规则2021版*[S/OL]. (2021-02-18). http://www.c-ncap.org.cn.
	China Automotive Evaluation Center. C-NCAP management rules 2021 edition[S/OL]. (2021-02-18). http://www.c-ncap.org.cn. (in Chinese)

整备质量	2.120 t	轴距	2.857 m
长度	4.807 m	前轮距	1.676 m
宽度	1.936 m	后轮距	1.679 m
高度	1.784 m

整备质量	2.120 t	轴距	2.857 m
长度	4.807 m	前轮距	1.676 m
宽度	1.936 m	后轮距	1.679 m
高度	1.784 m

半圆形安全岛半径	1.00 m
半圆形安全岛高度	170 mm
防撞柱数量	10根
防撞柱高度	1.00 m
防撞柱直径	140 mm

半圆形安全岛半径	1.00 m
半圆形安全岛高度	170 mm
防撞柱数量	10根
防撞柱高度	1.00 m
防撞柱直径	140 mm

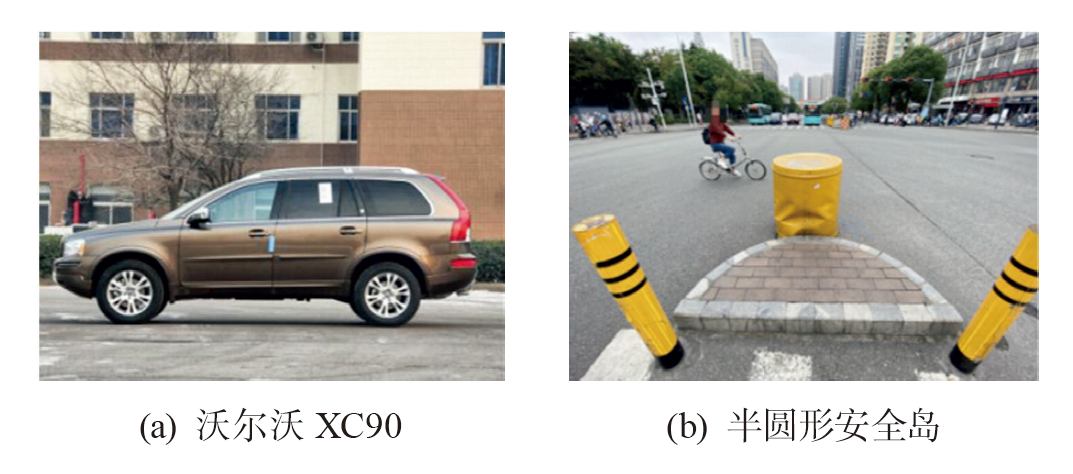

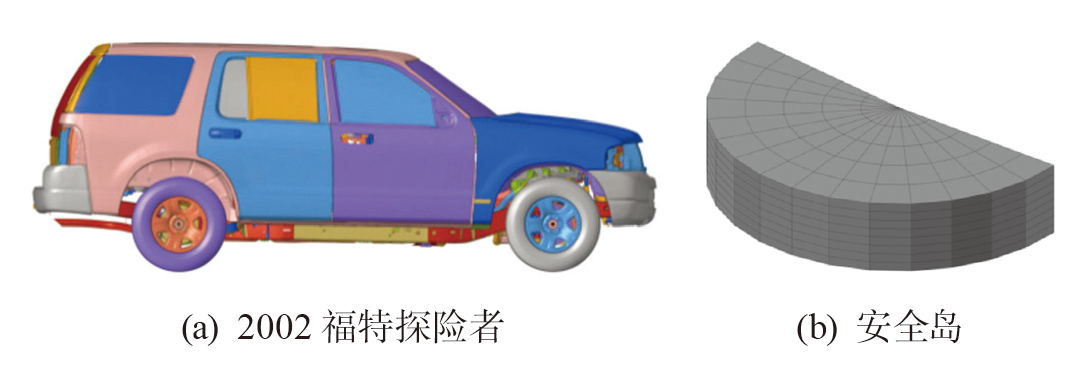

车辆	整备质量/ t	长度/ m	宽度/ m	高度/ m	轴距/ m	前轮距/ m	后轮距/ m
事故车	2.120	4.807	1.936	1.784	2.857	1.676	1.679
模型车	2.244	4.819	1.839	1.767	2.848	1.553	1.573
差值 / %	+5.85	+0.25	-5.01	-0.95	-0.32	-7.34	-6.32
