Fault-tolerant control of speed sensors for direct drive in-wheel electric vehicles

doi:10.3969/j.issn.1674-8484.2022.01.007

Abstract

Abstract:

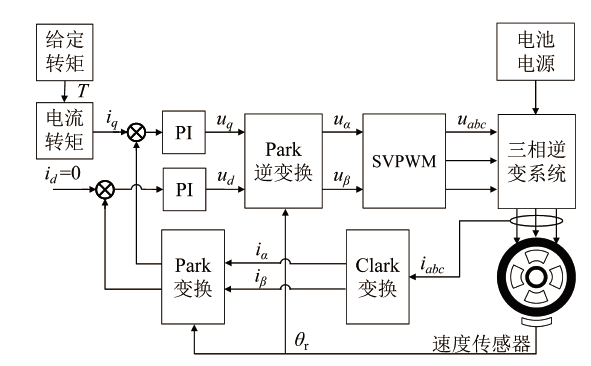

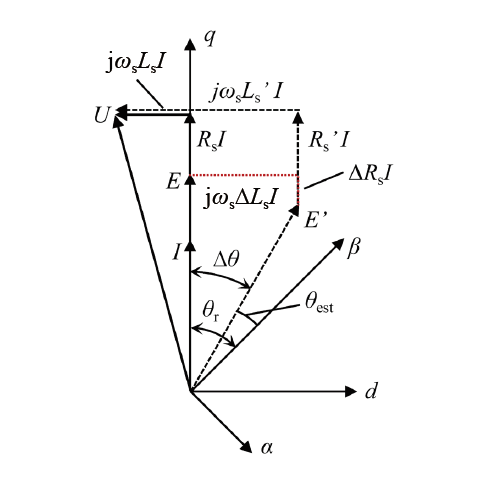

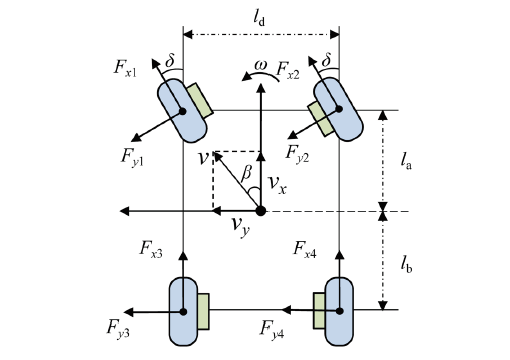

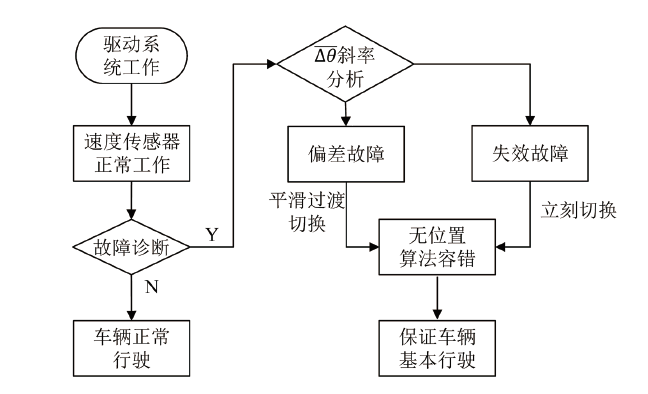

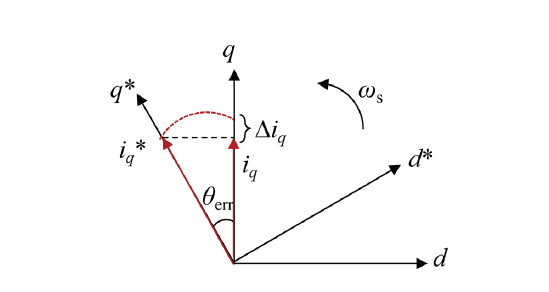

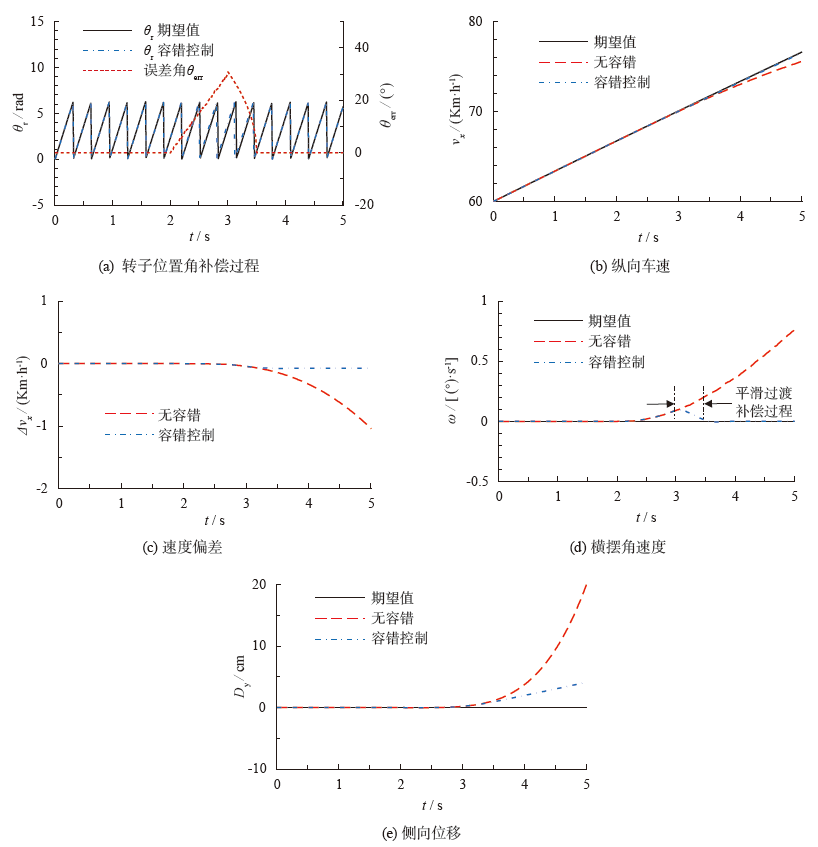

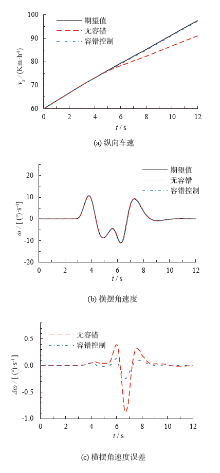

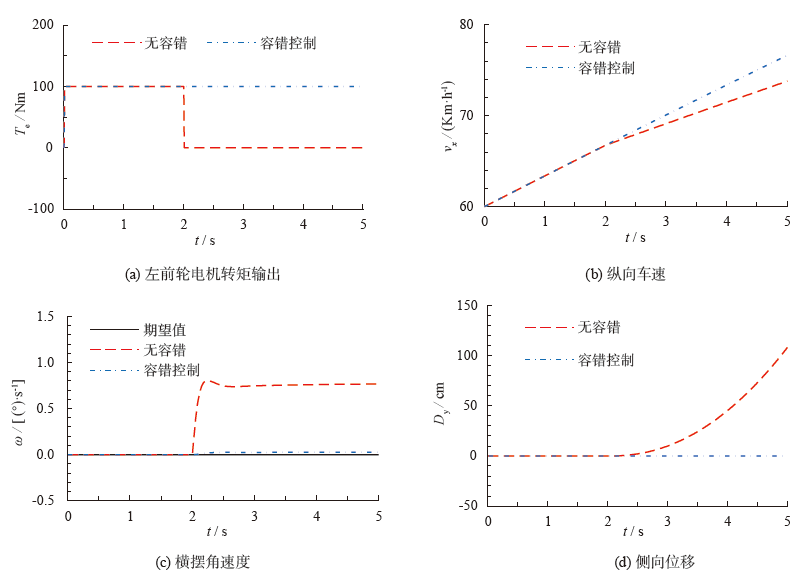

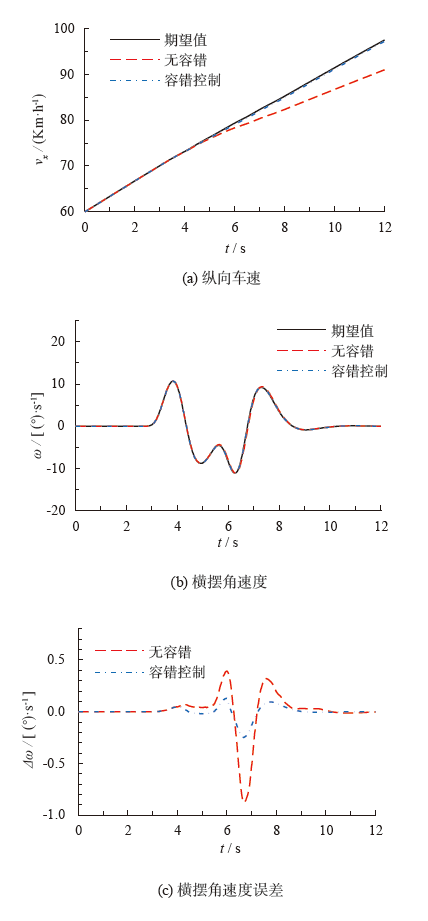

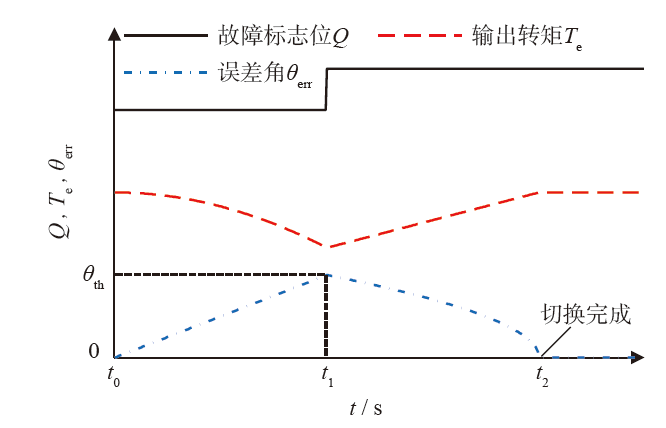

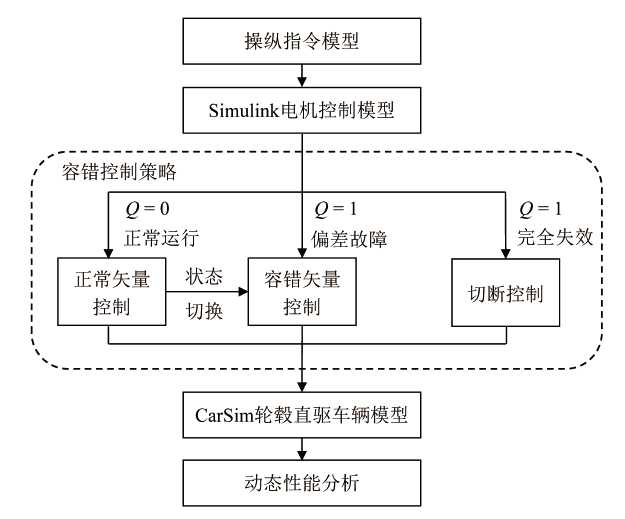

A fault-tolerant diagnosis and control strategy was proposed for direct drive in-wheel electric vehicle based on sensorless algorithm to improve the vehicle driving performance and the handling stability when the speed sensor fails. A three-degree-of-freedom vehicle dynamics model was established to analyze the influences of speed sensor fault on the vehicle dynamic performances. A thresholding characteristic method was applied for diagnosing sensor failure and its type, and a sensorless algorithm was used based on the flux observer to estimate the rotor position angle. A state-switching method was designed based on power angle progressive compensation for smooth torque transition. The speed sensor fault-tolerant control processes under straightforward test condition and double-lane change test condition were verified by Matlab-CarSim co-simulation platform. The results show that the proposed control strategy restores and maintains 100% motor torque output within 3 ms, and eliminate the yaw angular velocity of 0.77 (°)/s, and therefore, improves vehicle driving performances.

Key words: electric vehicles (EV), direct drive in-wheel motors, speed sensors, fault diagnosis, fault tolerant control

CLC Number:

U461

SHAO Jincai, HE Zhiyuan, WANG Zihui. Fault-tolerant control of speed sensors for direct drive in-wheel electric vehicles[J]. Journal of Automotive Safety and Energy, 2022, 13(1): 78-85.

Figures/Tables 11

References 15

[1]	永井正夫. 基于先进控制技术的车辆主动安全领域研究展望(英文)[J]. 汽车安全与节能学报, 2010,1(1):14-22.
	Masao NAGAI. Perspectives of research for enhancing active safety based on advanced control technology (in English)[J]. J Auto Safe Energy, 2010, 1(1): 14-22. (China J)
[2]	ZHAI Li, SUN Tianmin, WANG Jie. Electronic stability control based on motor driving and braking torque distribution for a four in-wheel motor drive electric vehicle[J]. IEEE Trans Vehi Tech, 2016,65(6):4726-4739.
[3]	张雷, 赵宪华, 王震坡. 四轮轮毂电机独立驱动电动汽车轨迹跟踪与横摆稳定性协调控制研究[J]. 汽车工程, 2020,42(11):1513-1521.
	ZHANG Lei, ZHAO Xianhua, WANG Zhenpo. Study on coordinated control of trajectory tracking and yaw stability for autonomous four-wheel-independent-driving electric vehicles[J]. Automotive Engineering, 2020,42(11):1513-1521. (in Chinese)
[4]	王海兵, 赵荣祥, 汤胜清, 等. 永磁同步电机位置检测偏差对驱动系统性能的影响研究[J]. 电工技术学报, 2018,33(4):910-918.
	WANG Haibing, ZHAO Rongxiang, TANG Shengqing, et al. Research on the influence of the position detection error to the PMSM drive system[J]. Trans Chin Electrotechnical Soc, 2018,33(4):910-918. (in Chinese)
[5]	孙宁, 孙天奎, 杜博超, 等. PMSM驱动系统位置传感器偏转故障的诊断与容错[J]. 电气传动, 2013,43(5):3-7.
	SUN Ning, SUN Tiankui, DU Bochao, et al. Fault diagnosis and tolerant method on position sensor deflection of PMSM electric drive system[J]. Electric Drive, 2013,43(5):3-7. (in Chinese)
[6]	应黎明, 杭翠翠, 舒乃秋, 等. 永磁同步电机传感器故障诊断及容错控制[J]. 电机与控制学报, 2020,24(1):45-52.
	YING Liming, HANG Cuicui, SHU Naiqiu, et al. Permanent magnet synchronous motor fault-diagnosis and fault-tolerant control[J]. Elec Mach Control, 2020,24(1):45-52. (in Chinese)
[7]	肖丽, 高峰, 侯淑萍, 等. 新能源汽车驱动系统速度传感器故障检测与容错控制法[J]. 电工技术学报, 2020,35(24):5075-5086.
	XIAO Li, GAO Feng, HOU Shuping, et al. Speed sensor fault detection and tolerant control for new energy vehicle drive system[J]. Trans Chin Electrotechnical Soc, 2020,35(24):5075-5086. (in Chinese)
[8]	Mutoh N, Nakano Y. Dynamics of Front-and-rear-wheel-independent-drive-type electric vehicles at the time of failure[J]. IEEE Trans Indu Electr, 2012,59(3):1488-1499.
[9]	朱绍鹏, 傅琪涛, 黄小燕, 等. 分布式四驱电动汽车电机故障诊断及失效控制[J]. 汽车工程, 2020,42(9):1284-1291.
	ZHU Shaopeng, FU Qitao, HUANG Xiaoyan, et al. Motor fault diagnosis and failure control for distributed four-wheel drive electric vehicles[J]. Auto Engineering, 2020,42(9):1284-1291. (in Chinese)
[10]	WANG Qiuwei, ZHAO Youqun, DENG Yaoji, et al. Optimal coordinated control of ARS and DYC for four-wheel steer and in-wheel motor driven electric vehicle with unknown tire model[J]. IEEE Trans Vehi Tech, 2020,69(10):10809-10819.
[11]	欧健, 陈瑞楠, 杨鄂川, 等. 基于故障估计的分布式驱动电动汽车容错控制方法[J]. 汽车技术, 2019(6):14-19.
	OU Jian, CHEN Ruinan, YANG Echuan, et al. Fault estimation based fault-tolerant control of distributed drive electric vehicles[J]. Auto Technology, 2019(6):14-19. (in Chinese)
[12]	刘新磊, 何洪文, 王喜明, 等. 分布式驱动电动汽车电机容错控制策略的研究[J]. 计算机仿真, 2013,30(11):152-155.
	LIU Xinlei, HE Hongwen, WANG Ximing, et al. Study on motor fault tolerance control strategy of distributed driving electric vehicle[J]. Computer Simu, 2013,30(11):152-155. (in Chinese)
[13]	张雷, 余文, 王震坡, 等. 基于多方法切换的四轮轮毂电机驱动电动汽车容错控制策略[J]. 机械工程学报, 2020,56(16):227-239.
	ZHANG Lei, YU Wen, WANG Zhenpo, et al. Fault tolerant control based on multi-methods switching for four-wheel-independently-actuated electric vehicles[J]. J Mech Engi, 2020,56(16):227-239. (in Chinese)
[14]	WANG Rongrong, WANG Junmin. Fault-tolerant control with active fault diagnosis for four-wheel independently driven electric ground vehicles[J]. IEEE Trans Vehi Tech, 2011,60(9):4276-4287.
[15]	WANG Zihui, SHAO Jincai, HE Zhiyuan. Fault tolerant sensorless control strategy with multi-states switching method for in-wheel electric vehicle[J]. IEEE Access, 2021,9:61150-61158.

连续输出功率, P	50 kW
最高转速, n	1 200 r·min^-1
定子电阻, R_s	87 mΩ
定子电感, L_s	1.03 mH
簧下惯量, J	1.0 kg·m²
极对数, P_n	10 对
车辆整备质量, m	1.11 t
横摆转动惯量, I_z	1.343 t·m^²
质心到前轴距离, l_a	1.040 m
质心到后轴距离, l_b	1.560 m
车辆轮距, l_d	1.480 m
车轮滚动半径, R	0.298 m

连续输出功率, P	50 kW
最高转速, n	1 200 r·min^-1
定子电阻, R_s	87 mΩ
定子电感, L_s	1.03 mH
簧下惯量, J	1.0 kg·m²
极对数, P_n	10 对
车辆整备质量, m	1.11 t
横摆转动惯量, I_z	1.343 t·m^²
质心到前轴距离, l_a	1.040 m
质心到后轴距离, l_b	1.560 m
车辆轮距, l_d	1.480 m
车轮滚动半径, R	0.298 m
