Eco-driving strategy at ramp road for hybrid electric vehicles based on two-state dynamic programming

doi:10.3969/j.issn.1674-8484.2021.03.012

Abstract

Abstract:

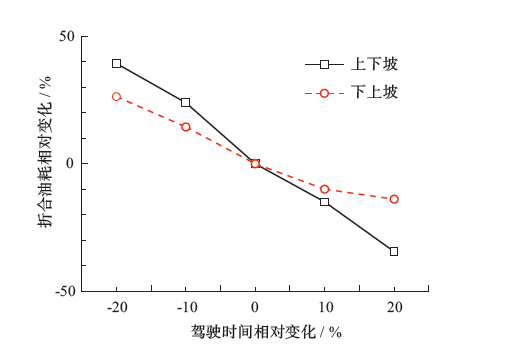

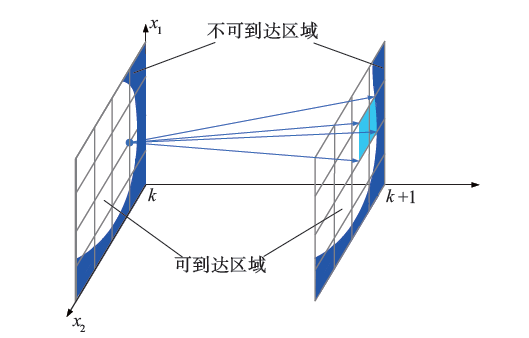

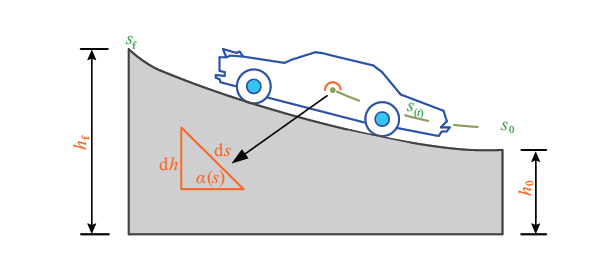

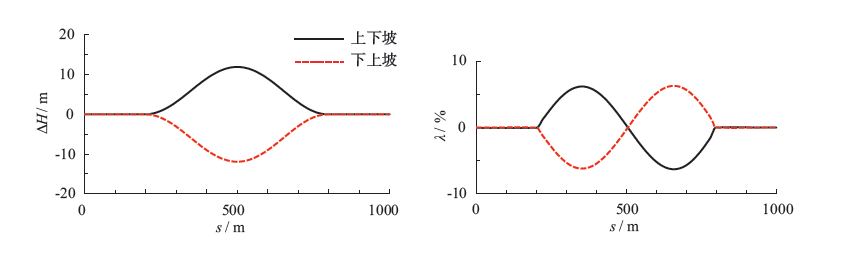

The effect of driving time of on-road vehicles on eco-driving (ECO) strategy at ramp road was investigated for hybrid electric vehicles (HEV) by using adjusting vehicle speeds to reduce the energy consumed by vehicles. An ECO strategy model was established based on two-state dynamic programming with driving distance and vehicle speed selected as two states, and driving time as a stage variable; The sum of driving and braking energy was used as objection function due to the fuel economy of on-road HEV mainly affected by vehicle energy demand. After calculation from the vehicle model of a HEV operating at different driving strategies, the results show that the fuel economy of the HEV at ECO strategy reduces by 17.6 % for up-down road and 12.2 % for down-up road respectively compared to fixed-speed driving strategy; The influence of driving time on the fuel economy of the HEV at ECO strategy is more obvious at up-down road than at down-up road.

Key words: eco-driving (ECO), hybrid electric vehicle (HEV), ramp road, driving time, driving strategy, two-state dynamic programming

CLC Number:

U461.8

FU Xueqing, WANG Baosen, YANG Jianjun, GAO Haiyang, HE Bangquan, ZHAO Hua, GUO Wencui, LIU Shuangxi. Eco-driving strategy at ramp road for hybrid electric vehicles based on two-state dynamic programming[J]. Journal of Automotive Safety and Energy, 2021, 12(3): 373-379.

Figures/Tables 9

References 15

[1]	Egardt B, Murgovski N, Pourardollah M, et al. Electromobility studies based on convex optimization: design and control issues regarding vehicle electrification[J]. *IEEE Contr Syst*, 2014, 34(2):32-49.
[2]	Bingham C, Walsh C, Carroll S. Impact of driving characteristics on electric vehicle energy consumption and range[J]. *IET Intell Transp Syst*, 2012, 6(1):29-35. doi: 10.1049/iet-its.2010.0137 URL
[3]	HUANG Yuhan, Ng E, ZHOU Johnl, et al. Eco-driving technology for sustainable road transport: a review[J]. *Renewable Sustainable Energy Rev*, 2018, 93:596-609. doi: 10.1016/j.rser.2018.05.030 URL
[4]	付锐, 张雅丽, 袁伟. 生态驾驶研究现状及展望[J]. 中国公路学报, 2019, 32(3):1-12. doi: 10.19721/j.cnki.1001-7372.2019.03.001
	FU Rui, ZHANG Yali, YUAN Wei. Progress and prospect in research on eco-driving[J]. *Chin J Highway Transp*, 2019, 32(3):1-12. (in Chinese)
[5]	王建强, 俞倩雯, 李升波, 等. 基于道路坡度实时信息的经济车速优化方法[J]. 汽车安全与节能学报, 2015, 5(3):257-262.
	WANG Jianqiang, YU Qianwen, LI Shengbo, et al. Eco speed optimization based on real-time information of road gradient[J]. *J Autom Safe Energ*, 2015, 5(3):257-262. (in Chinese)
[6]	YE Ziqi, LI Kailai, Stapelbroek M, et al. Variable step-size discrete dynamic programming for vehicle speed trajectory optimization[J]. *IEEE Trans Intell Transp Syst*, 2019, 20(2):476-484. doi: 10.1109/TITS.2018.2812921 URL
[7]	Dib W, Chasse A, Moulin P, et al. Optimal energy management for an electric vehicle in eco-driving applications[J]. *Control Engineering Practice*, 2014, 29:299-307. doi: 10.1016/j.conengprac.2014.01.005 URL
[8]	Vajedi M, Azad N. Ecological adaptive cruise controller for plug-in hybrid electric vehicles using nonlinear model predictive control[J]. *IEEE Trans Intell Transp Syst*, 2016, 17(1):113-122. doi: 10.1109/TITS.2015.2462843 URL
[9]	Padilla G, Weiland S, Donkers M. A global optimal solution to the eco-driving problem[J]. *IEEE Control Syst Lett*, 2018, 2(4):599-604. doi: 10.1109/LCSYS.2018.2846182 URL
[10]	邵春福, 魏丽英, 贾斌. 交通流理论 [M]. 北京: 电子工业出版社, 2012: 99-102.
	SHAO Chunfu, WEI Liying, JIA Bin. Theory of Traffic Flow [M]. Beijing: Publishing House of Electronics Industry, 2012: 99-102. (in Chinese)
[11]	FU Xueqing, WANG Baosen, YANG Jianjun, et al. A rule-based energy management strategy for a light-duty commercial P2 hybrid electric vehicle optimized by dynamic programming [R]. SAE Tech Paper, 2021-01-0722.
[12]	Hamdy A T. 运筹学基础 (第十版) [M]. 刘德刚,等,译. 北京: 中国人民大学出版社, 2018: 306-310.
	Hamdy A T. Operations Research: An Introduction (10th Ed) [M]. LIU Degang, et al, int. Beijing: China Renmin University Press, 2018: 306-310. (in Chinese)
[13]	Kamal M, Mukai M, Murata J, et al. Ecological vehicle control on roads with up-down slopes[J]. *IEEE Trans Intell Transp Syst*, 2011, 12(3):783-794. doi: 10.1109/TITS.2011.2112648 URL
[14]	金辉, 张俊. 智能车经济性起步车速规划研究[J]. 汽车工程, 2020, 42(2):270-276.
	JIN Hui, ZHANG Jun. Research on economic speed planning of intelligent vehicle for starting stage[J]. *Automotive Engineering*, 2020, 42(2):270-276. (in Chinese)
[15]	LIU Zifan, Ivanco A, Filipi Z. Impacts of real-world driving and driver aggressiveness on fuel consumption of 48V mild hybrid vehicle[J]. *SAE Int’l J Alter Powertrains*, 2016, 5(2):249-258.

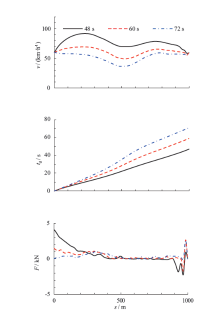

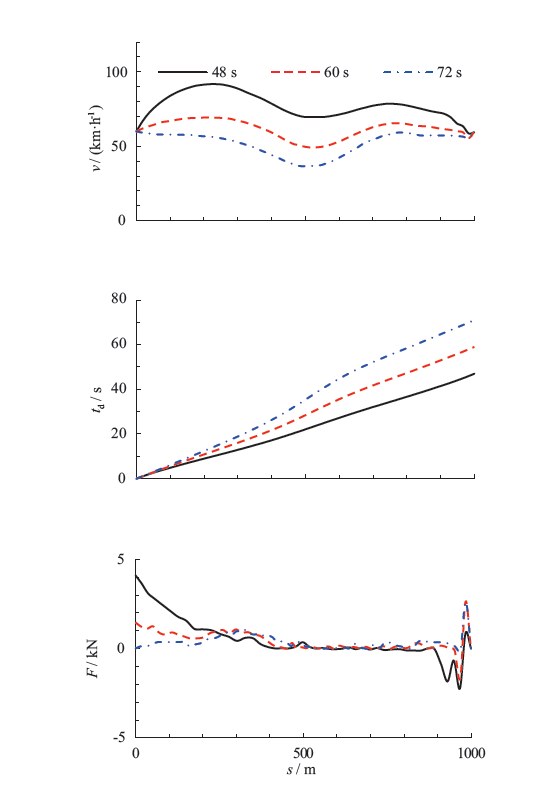

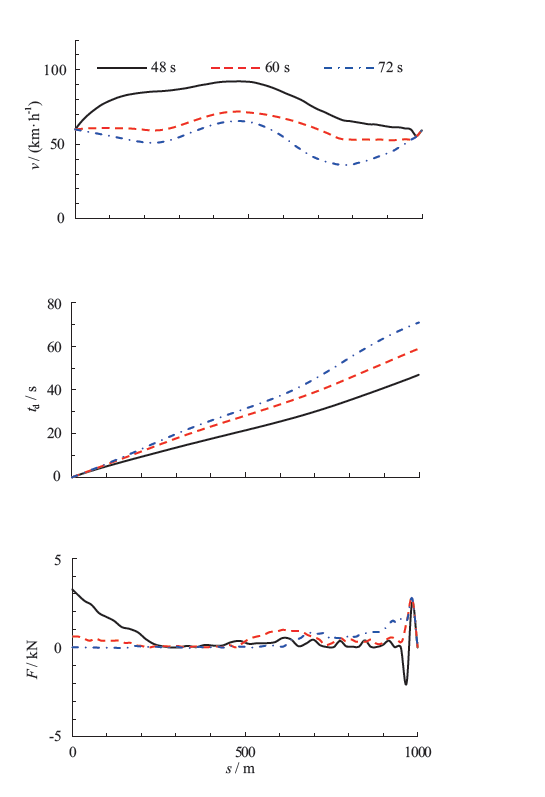

坡道	驾驶策略	t_d / s	ΔSOC / %	100 km油耗 / L	100 km折合油耗 / L
上下	FSD	60	0.2	6.46	6.47
	ECO	48	1.5	7.38	7.42
	ECO	60	1.8	5.28	5.33
	ECO	72	5.1	3.39	3.54
下上	FSD	60	0.2	6.45	6.46
	ECO	48	1.1	7.11	7.14
	ECO	60	2.3	5.60	5.67
	ECO	72	3.1	4.80	4.89

坡道	驾驶策略	t_d / s	ΔSOC / %	100 km油耗 / L	100 km折合油耗 / L
上下	FSD	60	0.2	6.46	6.47
	ECO	48	1.5	7.38	7.42
	ECO	60	1.8	5.28	5.33
	ECO	72	5.1	3.39	3.54
下上	FSD	60	0.2	6.45	6.46
	ECO	48	1.1	7.11	7.14
	ECO	60	2.3	5.60	5.67
	ECO	72	3.1	4.80	4.89
