PAN/UiO-66-NH2 / Nafion复合纳米纤维质子交换膜制备与性能

doi:10.3969/j.issn.1674-8484.2024.03.011

汽车安全与节能学报 ›› 2024, Vol. 15 ›› Issue (3): 379-386.DOI: 10.3969/j.issn.1674-8484.2024.03.011

PAN/UiO-66-NH₂/ Nafion复合纳米纤维质子交换膜制备与性能

孙静怡¹(), 韩丁波¹, 葛婧¹, 郭晗¹, 张剑波², 刘勇¹^,^*()

1.北京化工大学材料科学与工程学院，北京100029，中国
2.清华大学，绿色智能车辆与交通全国重点实验室（原汽车安全与节能国家重点实验室），北京 100083，中国

收稿日期:2023-11-09 修回日期:2023-12-21 出版日期:2024-06-30 发布日期:2024-07-01
通讯作者: *刘勇，教授。E-mail：yongliu@mail.buct.edu.cn。
作者简介:孙静怡（1998—），女（汉），山东，硕士研究生。E-mail：2021200317@buct.edu.cn。
基金资助:
汽车安全与节能国家重点实验室开放基金资助项目(KFZ2204)

Preparation and performance of the PAN/UiO-66-NH₂/Nafion composite nanofiber proton exchange membrane

SUN Jingyi¹(), HAN Dingbo¹, GE Jing¹, GUO Han¹, ZHANG Jianbo², LIU Yong¹^,^*()

1. College of Materials Science and Engineering, Beijing University of Chemical Technology, Beijing 100029, China
2. State Key Laboratory of Intelligent Green Vehicle and Mobility (Former: State Key Laboratory of Automotive Safety and Energy), Tsinghua University, Beijing 100084, China

Received:2023-11-09 Revised:2023-12-21 Online:2024-06-30 Published:2024-07-01

摘要/Abstract

摘要：

氢燃料电池中质子交换膜的质子传导率在低湿度下会急剧降低，且膜在高湿度下还会过度溶胀，成为限制燃料电池应用的因素之一。为平衡二者之间的关系，提高膜的尺寸稳定性，该研究将聚丙烯腈（PAN）纤维和金属-有机框架（MOF）UiO-66-NH₂结合，并探究水解时间、反应温度对UiO-66-NH₂在PAN纤维上原位生长的影响，制备了MOF功能化的纳米纤维质子交换膜。结果表明：该复合膜质子传导率比PAN/Nafion可最高提升175.36%，60 ℃时其溶胀率与Nafion相比降低了179.10%，能有效提高尺寸稳定性和机械强度，具有良好的发展前景。

关键词: 燃料电池, 金属-有机框架（MOF）, 水解, 原位生长, 静电纺丝, 纳米纤维质子交换膜

Abstract:

The proton conductivity of the proton exchange membrane in fuel cells sharply decreases under low humidity conditions, and the membrane also excessively swells under high humidity conditions, which becomes one of the limiting factors for the application of fuel cells. The polyacrylonitrile (PAN) nanofibers with the metal-organic framework (MOF) UiO-66-NH₂ was combined to balance the relationship between the two and improve the dimensional stability of the membrane. And the effects of hydrolysis time and reaction temperature on the in-situ growth of UiO-66-NH₂ on PAN nanofibers were investigated, followed by the preparation of functionalized nanofiber proton exchange membranes with MOF. The results show that the proton conductivity of the composite membrane has a maximum improvement of 175.36% compared to PAN/Nafion; at 60 °C, the swelling rate of the composite membrane is reduced by 179.10% compared to Nafion, which can effectively improve dimensional stability and mechanical strength, and has good development prospects.

Key words: fuel cell, metal-organic framework(MOF), hydrolysis, in-situ growth, electrospinning, nanofiber proton exchange membrane

中图分类号:

TM911.4

孙静怡, 韩丁波, 葛婧, 郭晗, 张剑波, 刘勇. PAN/UiO-66-NH₂/ Nafion复合纳米纤维质子交换膜制备与性能[J]. 汽车安全与节能学报, 2024, 15(3): 379-386.

SUN Jingyi, HAN Dingbo, GE Jing, GUO Han, ZHANG Jianbo, LIU Yong. Preparation and performance of the PAN/UiO-66-NH₂/Nafion composite nanofiber proton exchange membrane[J]. Journal of Automotive Safety and Energy, 2024, 15(3): 379-386.

图/表 9

图1 不同水解时间的PAN纤维膜的SEM图像

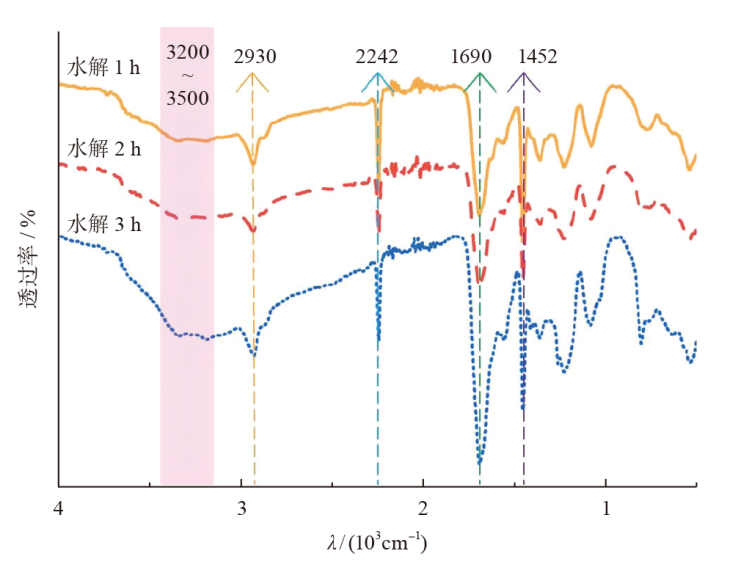

图2 PAN不同水解时间的红外谱图

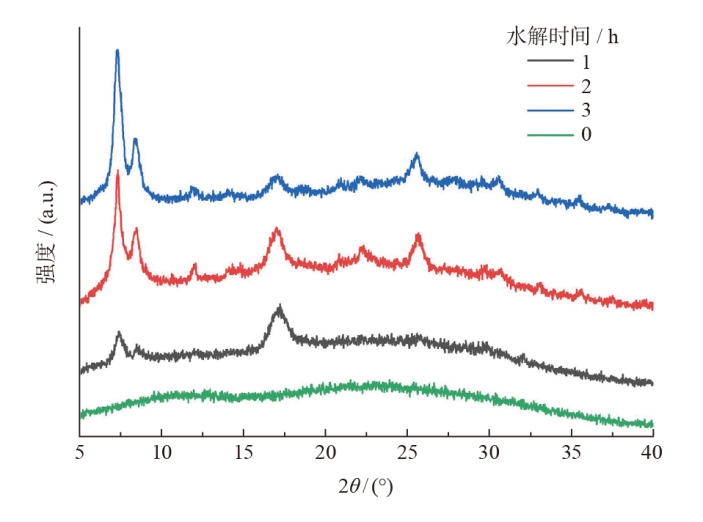

图3 不同水解时间100 ℃下PAN纤维上生长的UiO-66-NH2的XRD结果

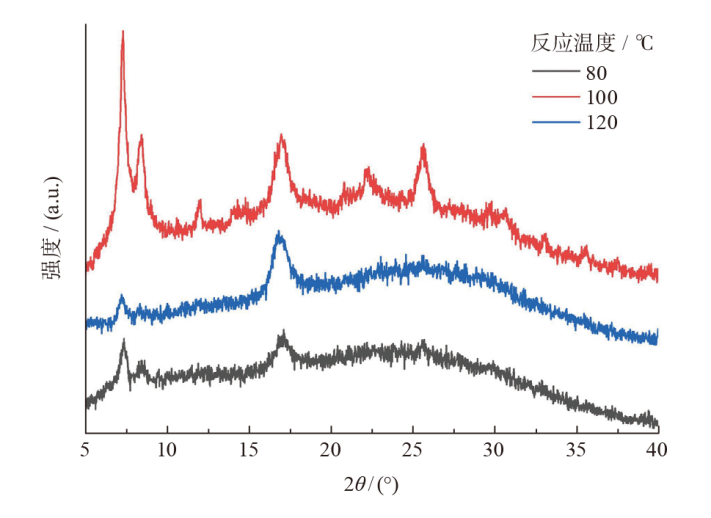

图4 在不同温度下2 h水解PAN纤维上生长的UiO-66-NH2的XRD结果

图5 在最终条件(水解2h，反应温度100 ℃)下PAN / UiO-66-NH2的SEM图像

质子交换膜	抗拉强度/ MPa	断裂伸长率/ %
PAN / Nafion	14.81	55.37
PAN / UiO-66-NH₂ / Nafion	17.44	24.15
Nafion	11.70	128.47

表1 3组质子交换膜的抗拉强度和断裂伸长率

膜类型	IEC / (mmol·g^-1)
PAN / Nafion	0.776 6
PAN / UiO-66-NH₂ / Nafion	0.869 0
Nafion	0.883 5

表2 质子交换膜的IEC值

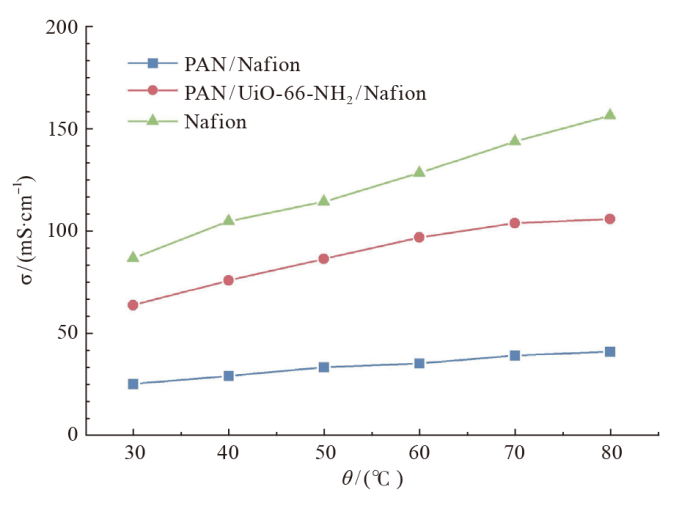

图6 PAN / Nafion, PAN / UiO-66-NH2 / Nafion和Nafion在30~80 ℃内的质子传导率

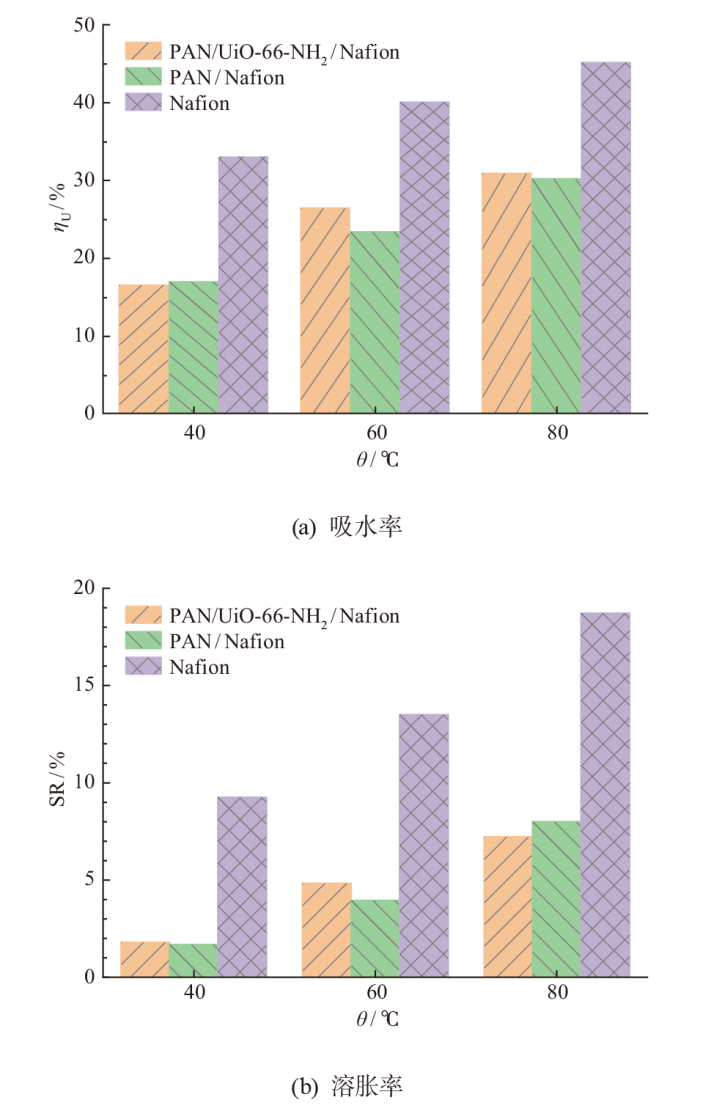

图7 PAN / Nafion, PAN / UiO-66-NH2 / Nafion和Nafion的吸水率及溶胀率比较

参考文献 22

[1]	Majlan E H, Rohendi D, Daud W R W, et al. Electrode for proton exchange membrane fuel cells: A review[J]. Renew Sust Energ Rev, 2018, 89(6): 117-134.
[2]	WANG Hang, ZHANG Jinghan, NING Xin, et al. Recent advances in designing and tailoring nanofiber composite electrolyte membranes for high-performance proton exchange membrane fuel cells[J]. Int’l J Hydro Energ, 2021, 46(49): 25225-25251.
[3]	PENG Shengjie, LI Linin, LEE J, et al. Electrospun carbon nanofibers and their hybrid composites as advanced materials for energy conversion and storage[J]. Nano Energy, 2016, 22: 361-395.
[4]	Nam I, Kim N, Kim G, et al. One step preparation of Mn₃O₄ / graphene composites for use as an anode in Li ion batteries[J]. J Power Sources, 2013, 244: 56-62.
[5]	LI Xiangye, ZHOU Ruifeng, WANG Zhenzhen, et al. Electrospun metal-organic framework based nanofibers for energy storage and environmental applications: Current approaches and challenges[J]. J Mater Chem A Mater, 2022, 10(4): 1642-1681.
[6]	LIANG Xiaoqiang, ZHANG Feng, FENG Wei, et al. From metal-organic framework (MOF) to MOF-polymer composite membrane: enhancement of low-humidity proton conductivity[J]. Chem Sci, 2013, 4(3): 983-992.
[7]	LIU Yaru, CHEN Yiyang, ZHUANG Qi, et al. Recent advances in MOFs-based proton exchange membranes[J]. Coord Chem Rev, 2022, 471(15): 214740.
[8]	Troyano J, Carné-Sánchez A, Pérez-Carvajal J, et al. A self-folding polymer film based on swelling metal-organic frameworks[J]. Angew Chem Int’l Edit, 2018, 57(47): 15420-15424.
[9]	FENG Lu, HOU Haobo, ZHONG Hong. UiO-66 derivatives and their composite membranes for effective proton conduction[J]. Dalton T, 2020, 49(47): 17130-17139.
[10]	YANG Fan, HUANG Hongliang, WANG Xiayan, et al. Proton Conductivities in Functionalized UiO-66: Tuned Properties, Thermogravimetry Mass, and Molecular Simulation Analyses[J]. Cryst Grow Desi, 2015, 15(12): 5827-5833.
[11]	WANG Qinghui, ZHENG Xiaofeng, CHEN Huixuan, et al. Synergistic effect of MOF-Directed acid-base pairs for enhanced proton conduction[J]. Micro Meso Mate, 2021, 323: 111199.
[12]	WANG Liyuan, DENG Nanping, LIANG Yueyao, et al. Metal-organic framework anchored sulfonated poly(ether sulfone) nanofibers as highly conductive channels for hybrid proton exchange membranes[J]. J Power Sources, 2020, 450: No 227592.
[13]	Ariyamparambil V J, Kandasubramanian B. A mini-review on the recent advancement of electrospun MOF-derived nanofibers for energy storage[J]. Chem Engi J, 2022, 11: 100355.
[14]	ZHANG Guojun, SONG Xue, LI Jie, et al. Single-side hydrolysis of hollow fiber polyacrylonitrile membrane by an interfacial hydrolysis of a solvent-impregnated membrane[J]. J Memb Sci, 2010, 350(1-2): 211-216.
[15]	李万斌. 新型金属有机骨架/聚合物中空纤维复合膜的制备及其分离性能[D]. 杭州: 浙江工业大学, 2016.
	LI Wanbin. Preparation of novel metal-organic framework/polymer hollow fiber composite membranes and their separation performance[D]. Hangzhou: Zhejiang University of Technology, 2016. (in Chinese)
[16]	Lu X A, Ploskonka A, Tovar T, et al. Direct surface growth of UIO-66-NH₂ on polyacrylonitrile nanofibers for efficient toxic chemical removal[J]. Ind Engi Chem Res, 2017, 56(49): 14502-14506.
[17]	Aghili F, Ghoreyshi A A, Rahimpour A, et al. New chemistry for mixed matrix membranes: growth of continuous multilayer UiO-66-NH₂ on UiO-66-NH₂-based polyacrylonitrile for highly efficient separations[J]. Ind Engi Chem Res, 2020, 59(16): 7825-7838.
[18]	李成运. 表面改性聚丙烯腈纤维与磺化聚醚醚酮复合质子交换膜的制备与研究[D]. 北京: 中国石油大学, 2020.
	LI Chengyun. Preparation and study of surface modified polyacrylonitrile fiber and sulfonated poly (ether ether ketone) composite proton exchange membrane[D]. Beijing: China University of Petroleum, 2020. (in Chinese)
[19]	CHEN Peng, YUAN Xinhai, XIA Yingbin, et al. An artificial polyacrylonitrile coating layer confining zinc dendrite growth for highly reversible aqueous zinc-based batteries[J]. Advan Sci, 2021, 8(11): 2100309.
[20]	YANG Hu, YUAN Bo, LU Yaobo, et al. Preparation of magnetic chitosan microspheres and its applications in wastewater treatment[J]. Sci Chin B Chem, 2009, 52: 249-256.
[21]	Zango Z, Ramli A, Jumbri K, et al. Optimization studies and artificial neural network modeling for pyrene adsorption onto UiO-66(Zr) and NH₂-UiO-66(Zr) metal organic frameworks[J]. Polyhedron, 2020, 192: 114857.
[22]	ZHAO Guodong, SHI Lei, ZHANG Meiling, et al. Self-assembly of metal organic framework onto nanofibrous mats to enhance proton conductivity for proton exchange membrane[J]. Int’l J Hydro Energ, 2021, 46(73): 36415-36423.
