基于ISSA的燃料电池多电源模糊能量管理策略

doi:10.3969/j.issn.1674-8484.2023.04.012

汽车安全与节能学报 ›› 2023, Vol. 14 ›› Issue (4): 496-504.DOI: 10.3969/j.issn.1674-8484.2023.04.012

基于ISSA的燃料电池多电源模糊能量管理策略

罗闯(), 许亮^*()

天津市新能源电力变换传输与智能控制重点实验室，天津理工大学电气工程与自动化学院，天津 300384, 中国

收稿日期:2022-12-07 修回日期:2023-04-25 出版日期:2023-08-31 发布日期:2023-08-31
通讯作者: *许亮，教授。E-mail：lxu@email.tjut.edu.cn。
作者简介:罗闯（1999—），男（汉），湖北，硕士研究生。E-mail：luo1234321@qq.com。
基金资助:
国家自然科学基金(61975151);国家自然科学基金(61308120);天津市科技重大专项与工程，互联网+新能源跨界融合创新示范工程项目(ZXHLGX00040)

Fuzzy energy management strategies based on the ISSA for multiple power sources in fuel cells

LUO Chuang(), XU Liang^*()

Tianjin Key Laboratory of New Energy Power Conversion, Transmission and Intelligent Control, and School of Electrical Engineering and Automation, Tianjin University of Technology, 300384 Tianjin, China

Received:2022-12-07 Revised:2023-04-25 Online:2023-08-31 Published:2023-08-31

摘要/Abstract

摘要：

为了提高燃料电池(FC)混合动力汽车(HEV)的经济性，提出一种利用模糊逻辑控制（FLC）的方法对其实现能量管理策略(EMS)。以氢耗量最优为目标，加入超级电容器作为辅助能源，考虑汽车驱动与制动2种状态，把需求功率、超级电容荷电状态、燃料电池的工作效率，添加为模糊控制器输入变量，对模糊规则进行改进。引入改进的麻雀搜索算法（ISSA）对模糊控制器的隶属度函数进行优化，采用Circle映射初始化麻雀种群，同时引入随机游走策略对全局最优解扰动。采用Advisor软件和Matlab/Simulink环境建模并进行联合仿真。结果表明：本文能量管理策略，在城市道路循环工况（UDDS）和高速公路燃油经济性测试工况（HWFET）下，等效氢耗量分别减低了29.38%和29.88%，同时，也减少了燃料电池在运行时的变载次数，使得燃料电池寿命得到延长。

关键词: 混合动力汽车（HEV）, 燃料电池（FC）, 能量管理策略（EMS）, 模糊逻辑控制（FLC）, 改进的麻雀搜索算法（ISSA）

Abstract:

A Fuzzy Logic Control (FLC) method was proposed for Energy Management Strategies (EMS) to enhance the fuel efficiency of the Fuel Cell (FC) Hybrid Electric Vehicle (HEV). With a supercapacitor as an auxiliary energy source to optimize the hydrogen consumption, the power required under working conditions, the State of Charge (SOC) of the supercapacitors, and the fuel cell’s working efficiency were incorporated as input variables into the fuzzy controller to improve the fuzzy rules, considering the two states of automobile drive and braking. The Sparrow Search Algorithm (SSA) was employed to optimize the membership functions of the fuzzy controller. The circle mapping technique was utilized for initializing the sparrow population, with a random walk strategy to perturb the global optimal solution. Advisor software and the Matlab/Simulink environment were employed for modeling and conducting joint simulations. The results show that the energy management strategy reduces 29.38% and 29.88% of equivalent hydrogen consumption, specifically under the Urban Dynamometer Driving Schedule (UDDS) and the HighWay Fuel Economy Test (HWFET) operational scenarios, with decreasing the occurrence of load changes during the fuel cell’s operation, and consequently enhancing its longevity.

Key words: hybrid electric vehicle (HEV), fuel cell (FC), energy management strategies (EMS), fuzzy logic control (FLC), improved sparrow search algorithm (ISSA)

中图分类号:

U461.8

罗闯, 许亮. 基于ISSA的燃料电池多电源模糊能量管理策略[J]. 汽车安全与节能学报, 2023, 14(4): 496-504.

LUO Chuang, XU Liang. Fuzzy energy management strategies based on the ISSA for multiple power sources in fuel cells[J]. Journal of Automotive Safety and Energy, 2023, 14(4): 496-504.

图/表 15

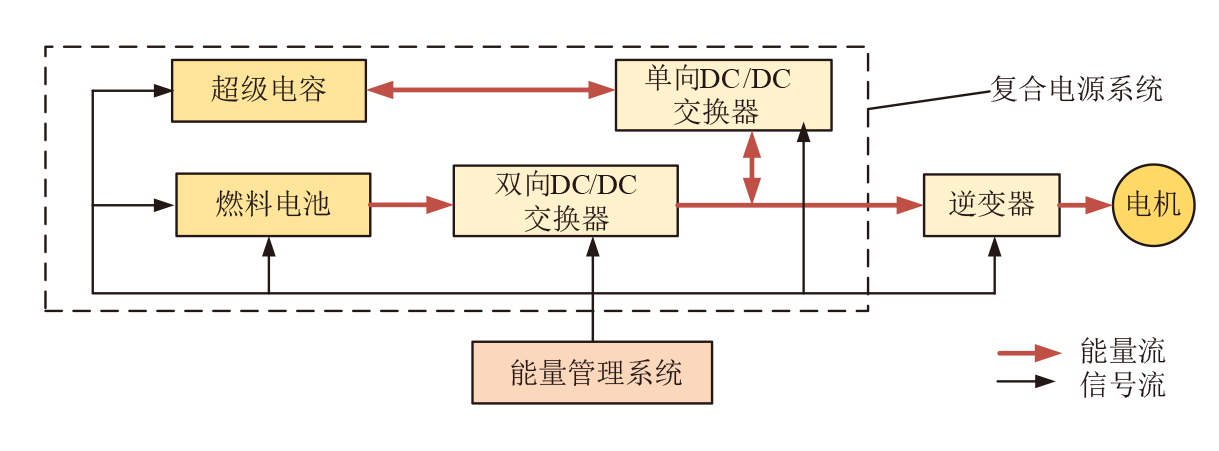

图1 复合电源系统的选型与构建

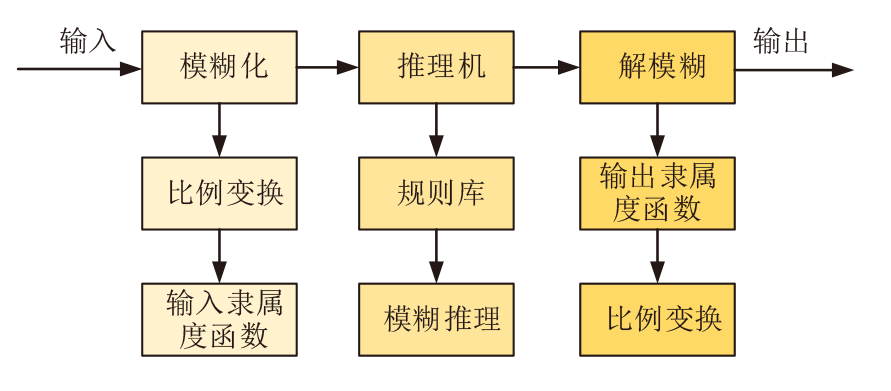

图2 模糊控制结构框图

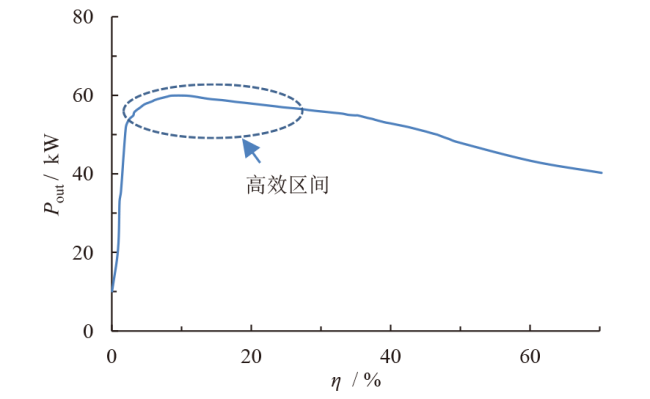

图3 燃料电池功率-效率图

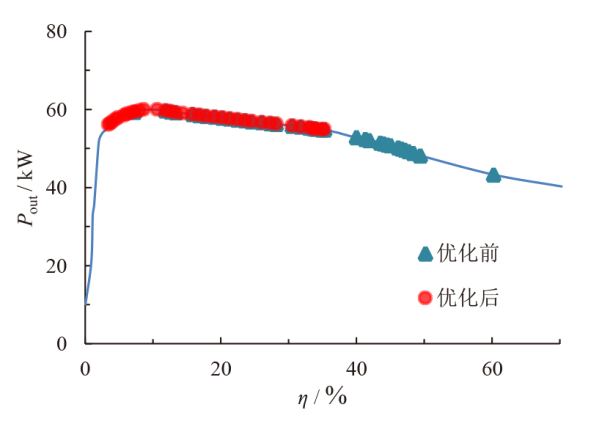

图4 优化前、后的燃料电池效率

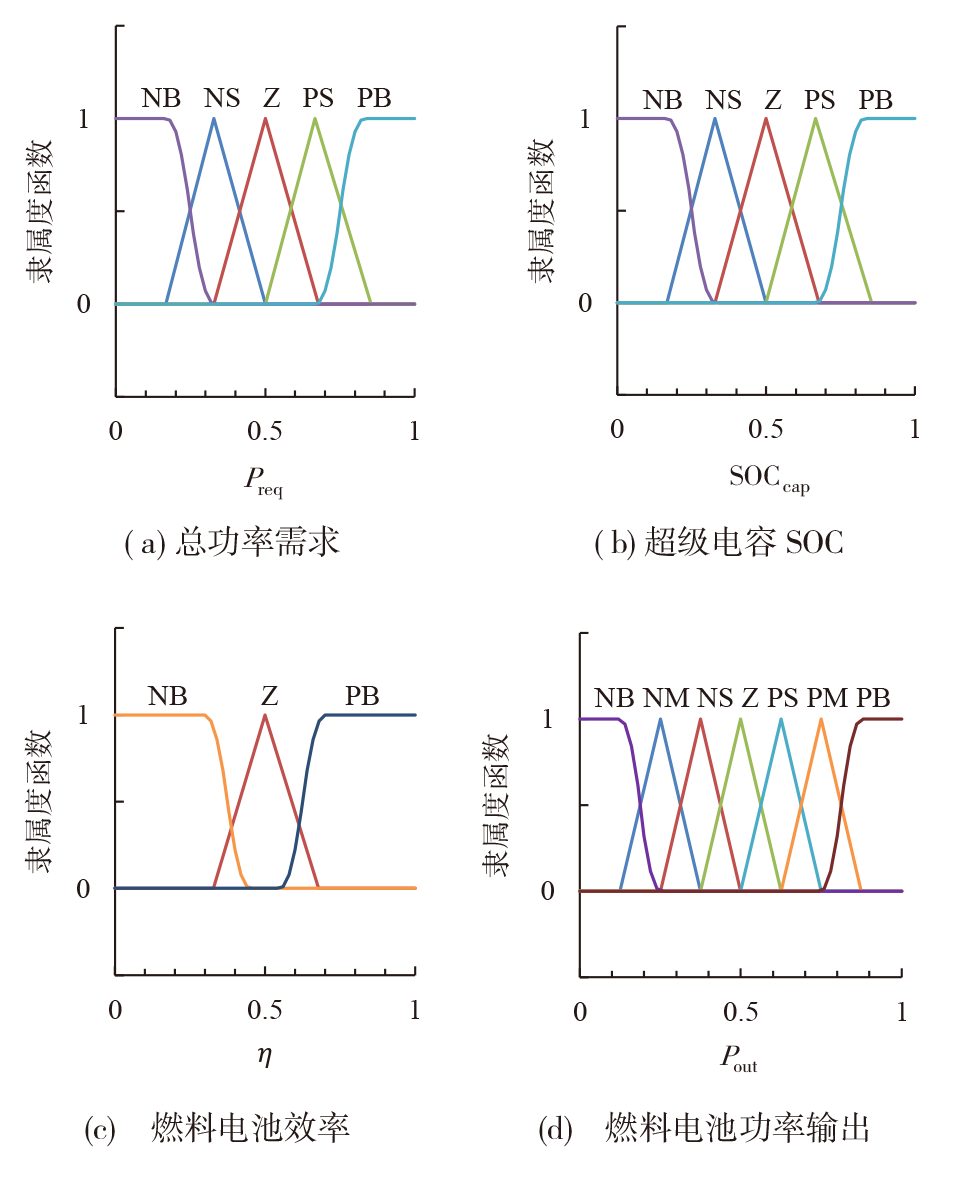

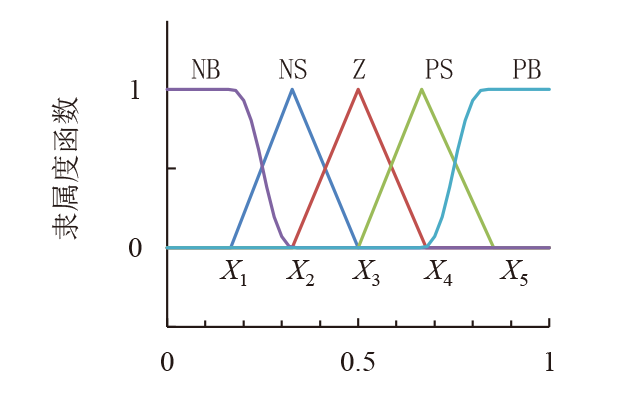

图5 各变量隶属度函数图

P_out	SOC_cap	P_req
P_out	SOC_cap	NB	NS	Z	PS	PB
η = NB	NB	NB	NB	NM	NM	NM
	NS	NB	NB	NM	NM	NS
	Z	NB	NB	NM	NM	NS
	PS	NB	NB	NM	NM	NS
	PB	NB	NM	NM	NM	NS
η = Z	NB	NS	NS	Z	Z	PS
	NS	NS	Z	Z	Z	PS
	Z	NS	Z	Z	PS	PS
	PS	NS	Z	Z	PS	PS
	PB	NS	Z	Z	PS	PS
η = PB	NB	PS	PM	PM	PB	PB
	NS	PS	PM	PM	PB	PB
	Z	PS	PM	PM	PB	PB
	PS	PM	PM	PM	PB	PB
	PB	PM	PM	PM	PB	PB

表1 模糊逻辑控制规则表

图6 超级电容SOC隶属度函数待优化变量

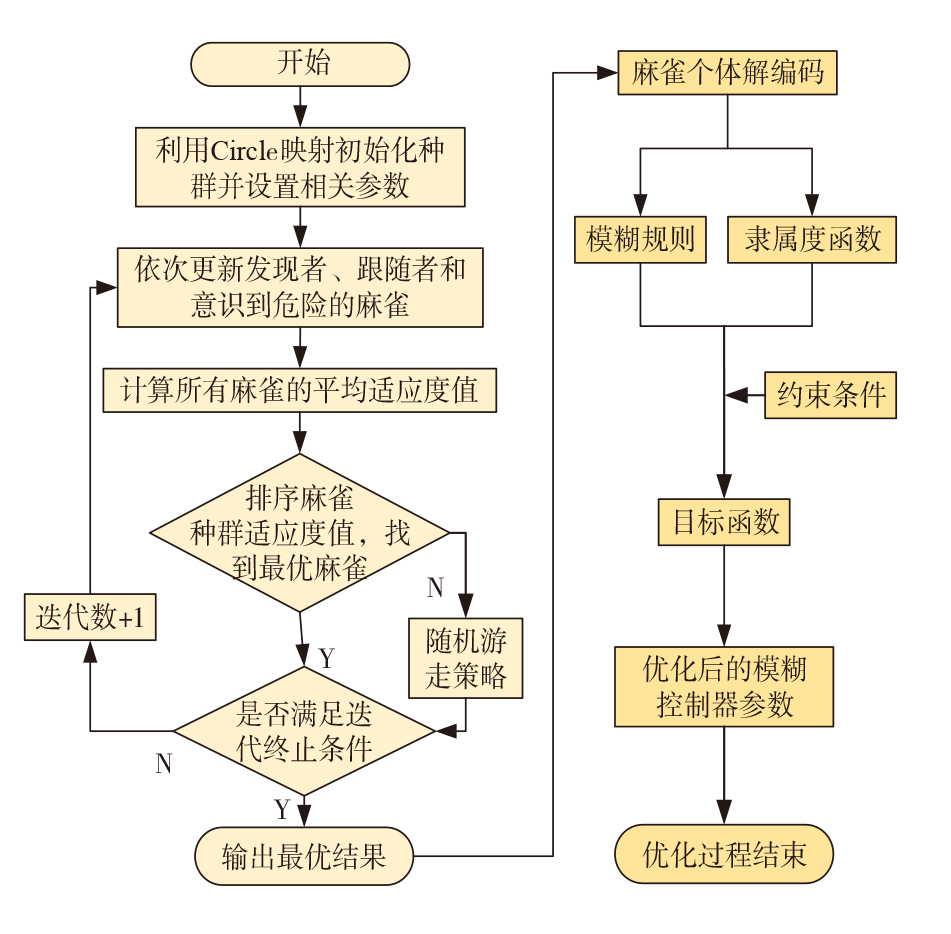

图7 ISSA优化模糊逻辑流程框图

车辆	整备质量	900 kg
	迎风面积	2.88 m2
	滚动半径	252 mm
燃料电池堆	单体电压	0.6~0.7 V
	单体功率	0.31 kW
	数量	220个
超级电容	单体电压	2.7 V
	单体容量	9.5 kF
	数量	22个

表2 燃料电池汽车基本参数

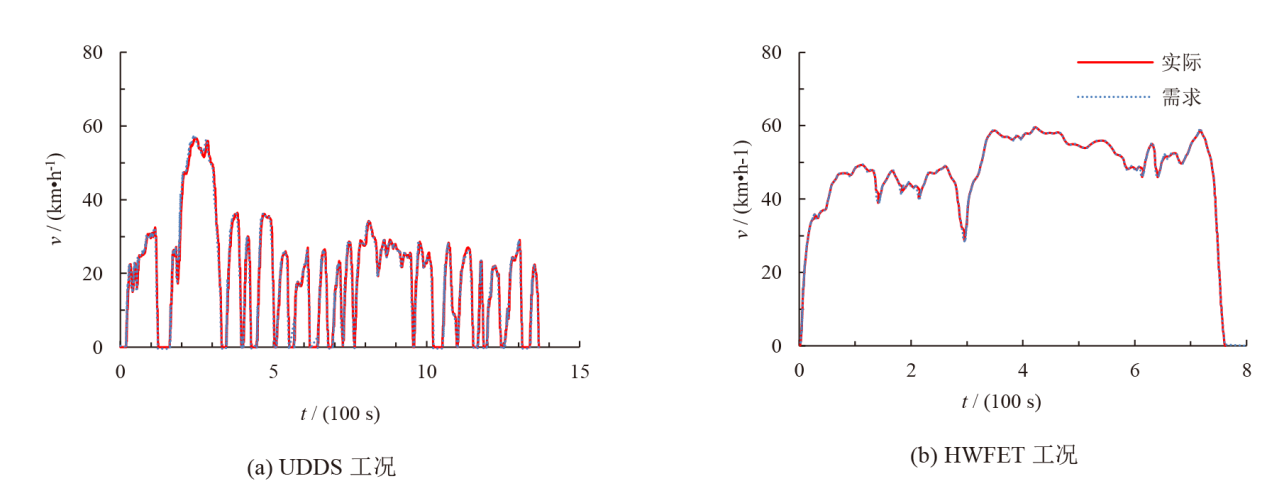

图8 2种工况条件下车速跟随曲线

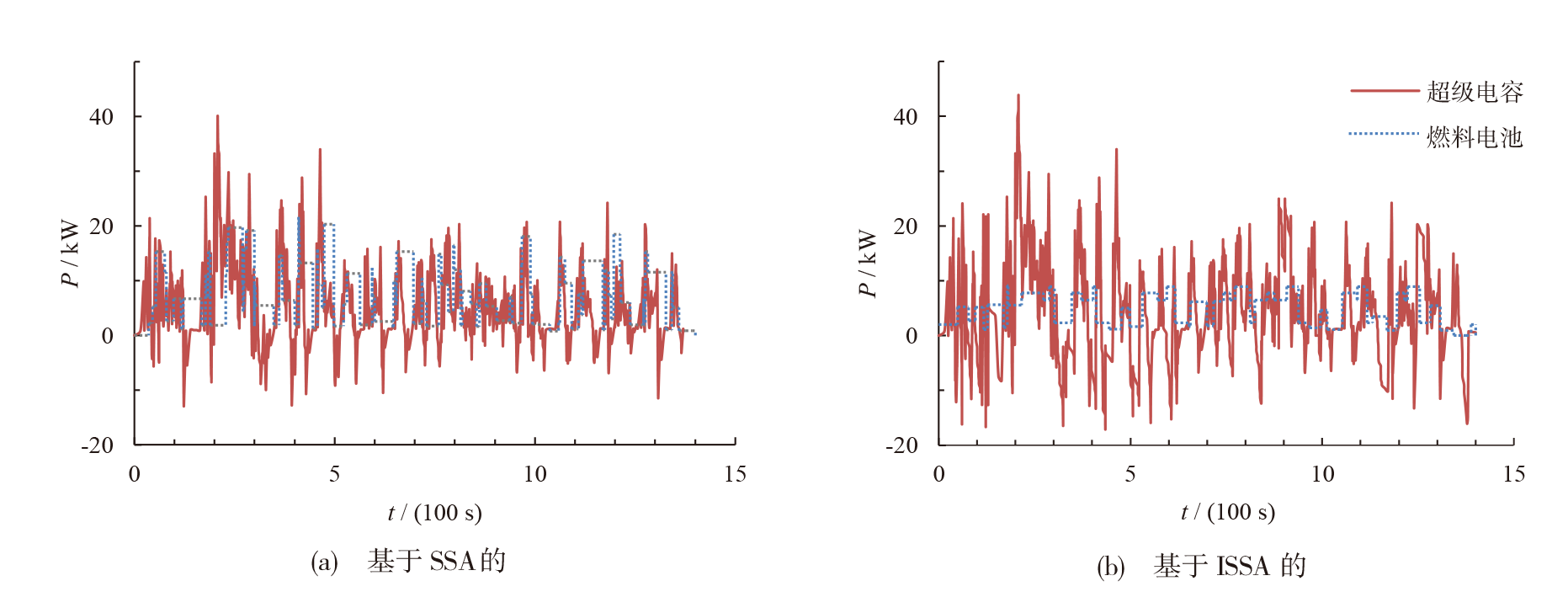

图9 UDDS工况下2种优化模糊控制策略的功率曲线

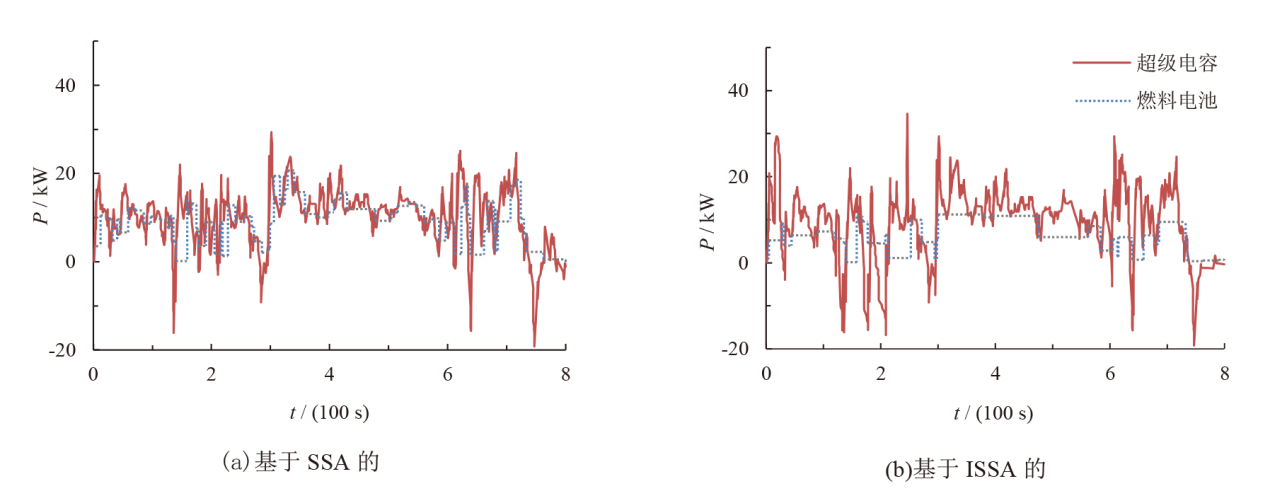

图10 HWFET工况下2种优化模糊控制策略的功率曲线

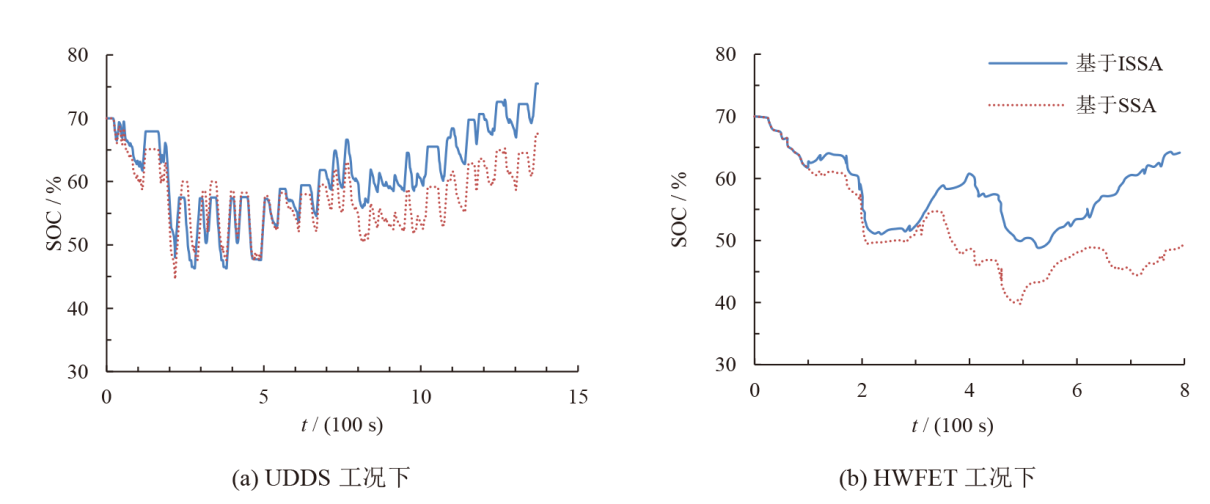

图11 2种工况下2种策略超级电容SOC变化

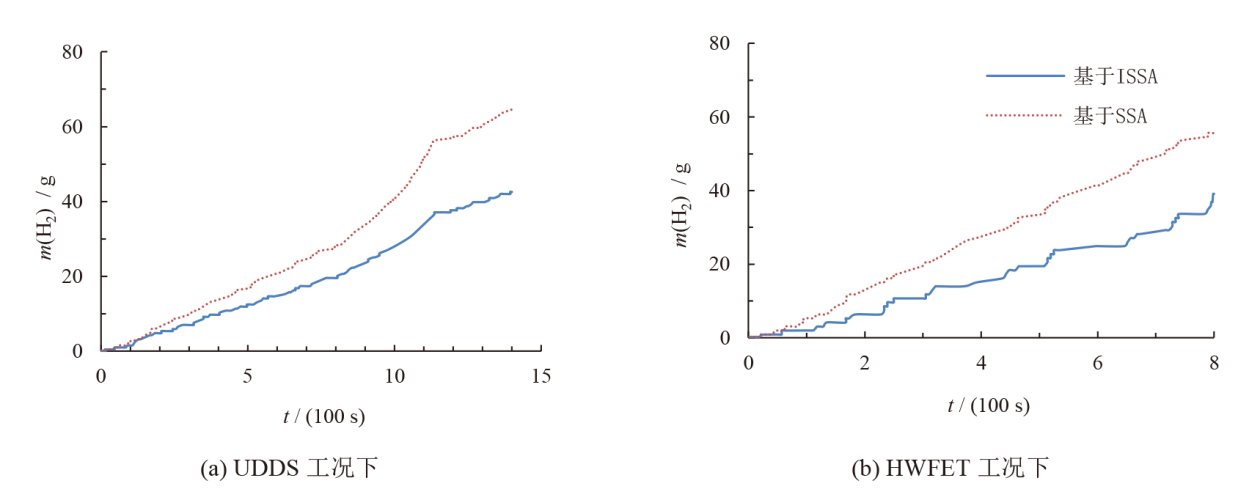

图12 2种工况、2种策略的氢耗量累积曲线

工况	里程 / km	m(H₂) / g		优化量/％
工况	里程 / km	SSA-Fuzzy	ISSA-Fuzzy	优化量/％
UDDS	12.07	61.51	43.44	29.38
HWFET	16.45	55.62	39.10	29.88

表3 2种工况2 种策略下氢耗量对比

参考文献 18

[1]	王志福, 罗崴, 徐崧, 等. 燃料电池汽车能量管理策略综述[J]. 电池, 2022, 52(3): 328-332.
	WANG Zhifu, LUO Wei, XU Song, et al. Review of energy management strategies for fuel cell vehicles[J]. Batteries, 2022, 52(3): 328-332. (in Chinese).
[2]	王新光. 燃料电池混合能源优化管理与控制算法研究[D]. 太原: 太原科技大学, 2016.
	WANG Xinguang. Research on optimal management and control algorithm of fuel cell hybrid energy[D]. Taiyuan: Taiyuan University of Science and Technology, 2016. (in Chinese).
[3]	何洪文, 孟祥飞. 混合动力电动汽车能量管理技术研究综述[J]. 北京理工大学学报, 2022, 42(8): 773-783.
	HE Hongwen, MENG Xiangfei. Review of energy management technology for hybrid electric vehicles[J]. Trans Beijing Insti Tech, 2022, 42(8): 773-783. (in Chinese).
[4]	Daud W R W, Rosli R E, Majlan E H, et al. PEM fuel cell system control: A review[J]. Renew Energ, 2017, 113: 620-638. doi: 10.1016/j.renene.2017.06.027 URL
[5]	Das H S, Tan C W, Yatim A H M. Fuel cell hybrid electric vehicles: A review on power conditioning units and topologies[J]. Renew Sustain Energ Rev, 2017, 76: 268-291. doi: 10.1016/j.rser.2017.03.056 URL
[6]	Bigdeli N. Optimal management of hybrid PV/fuel cell/battery power system: A comparison of optimal hybrid approaches[J]. Renew Sustain Energ Rev, 2015, 42: 377-393. doi: 10.1016/j.rser.2014.10.032 URL
[7]	Abadlia I, Bahi T, Bouzeria H. Energy management strategy based on fuzzy logic for compound RES/ESS used in stand-alone application[J]. Int’l J Hydro Energ, 2016, 41(38): 16705-16717.
[8]	王胜达. 燃料电池加超级电容混合动力系统能量管理研究[D]. 青岛: 青岛理工大学, 2019.
	WANG Shengda. Research on energy management of hybrid power system with fuel cell and supercapacitor[D]. Qingdao: Qingdao Technological University, 2019. (in Chinese).
[9]	周健豪, 顾诚, 刘军, 等. 基于IGWO的燃料电池汽车模糊控制能量管理策略[J]. 重庆理工大学学报(自然科学), 2021, 35(5): 33-41.
	ZHOU Jianhao, GU Cheng, LIU Jun, et al. Fuzzy control energy management strategy for fuel cell vehicles based on IGWO[J]. J Chongqing Unive Tech (Nat Sci), 2021, 35(5): 33-41. (in Chinese).
[10]	LU Xueqin, WU Yinbo, LIAN Jie, et al. Energy management of hybrid electric vehicles: A review of energy optimization of fuel cell hybrid power system based on genetic algorithm[J]. Energy Conv Manag, 2020, 205: 74-99.
[11]	Kaleybar H J, Brenna M, LI Huan, et al. Fuel cell hybrid locomotive with modified fuzzy logic based energy management system[J]. Sustainability, 2022, 14(14): 36-57. doi: 10.3390/su14010036 URL
[12]	Erdinc O, Uzunoglu M. Recent trends in PEM fuel cell-powered hybrid systems: Investigation of application areas, design architectures and energy management approaches[J]. Renew Sustain Energy Rev, 2010, 14(9): 2874-2884. doi: 10.1016/j.rser.2010.07.060 URL
[13]	王骞, 李顶根, 苗华春. 基于模糊逻辑控制的燃料电池汽车能量管理控制策略研究[J]. 汽车工程, 2019, 41(12): 1347-1355. doi: 10.19562/j.chinasae.qcgc.2019.012.001
	WANG Qian, LI Dinggen, MIAO Huachun. Research on energy management control strategy of fuel cell vehicle based on fuzzy logic control[J]. Autom Engineering, 2019, 41(12): 1347-1355. (in Chinese).
[14]	宋晓琳, 任祥喜. 基于改进人工蜂群算法的复合电源电动车FSM-Fuzzy能量管理策略[J]. 现代制造工程, 2018(3): 68-73.
	SONG Xiaolin, REN Xiangxi. Fm-fuzzy energy management strategy for hybrid electric vehicle based on improved artificial bee swarm algorithm[J]. Modern Manuf Eng, 2018(3): 68-73. (in Chinese).
[15]	刘新天, 李强, 郑昕昕, 等. 基于多目标优化的燃料电池汽车能量管理策略[J]. 电子测量技术, 2021, 44(6): 81-89.
	LIU Xintian, LI Qiang, ZHENG Xinxin, et al. Energy management strategy for fuel cell vehicles based on multi-objective optimization[J]. Elect Meas Tech, 2021, 44(6): 81-89. (in Chinese).
[16]	高建树, 尹尔乐, 陈煜, 等. 基于鱼群算法的复合电源模糊能量管理策略[J]. 计算机应用与软件, 2021, 38(11): 86-90.
	GAO Jianshu, YIN Erle, CHEN Yu, et al. Fuzzy energy management strategy for compound power supply based on fish swarm algorithm[J]. Compu Appl Software, 2021, 38(11): 86-90. (in Chinese).
[17]	Kasimalla V K, Srinivasulu G N, Velisala V. A review on energy allocation of fuel cell/battery/ultracapacitor for hybrid electric vehicles[J]. Int’l J Energy Res, 2018, 42(14): 4263-4283.
[18]	Ahmadi S, Bathaee S M T. Multi-objective genetic optimization of the fuel cell hybrid vehicle supervisory system: Fuzzy logic and operating mode control strategies[J]. Int’l J Hydrogen Energy, 2015, 40(36): 12512-12521.
