考虑经验驾驶行为的入弯实时类人速度规划方法

doi:10.3969/j.issn.1674-8484.2024.03.003

摘要/Abstract

摘要：

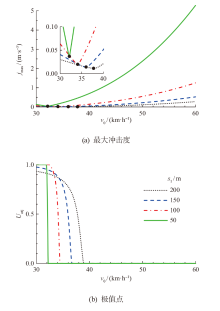

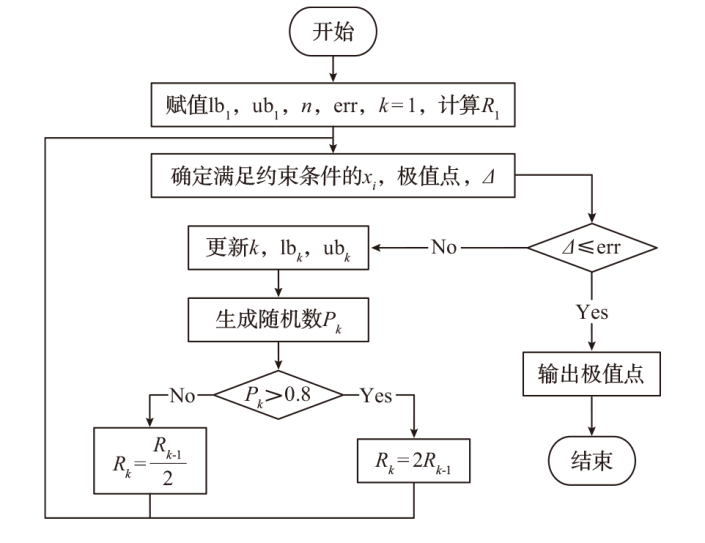

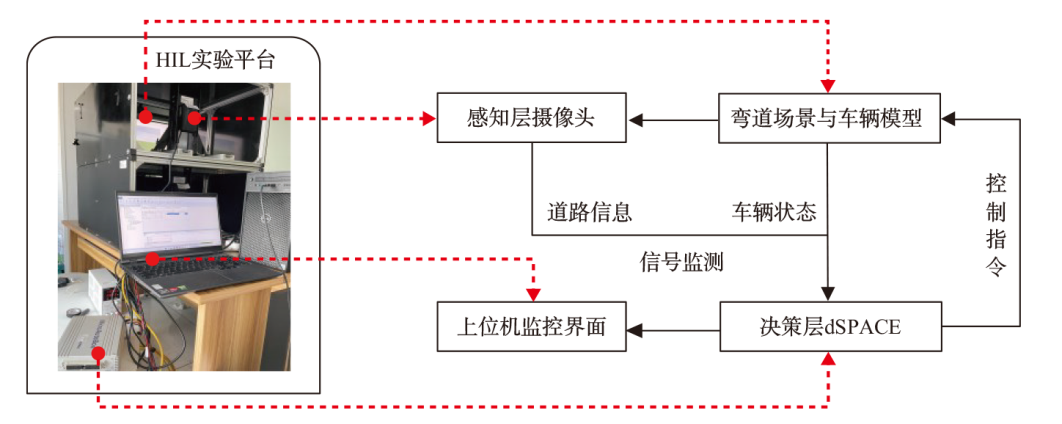

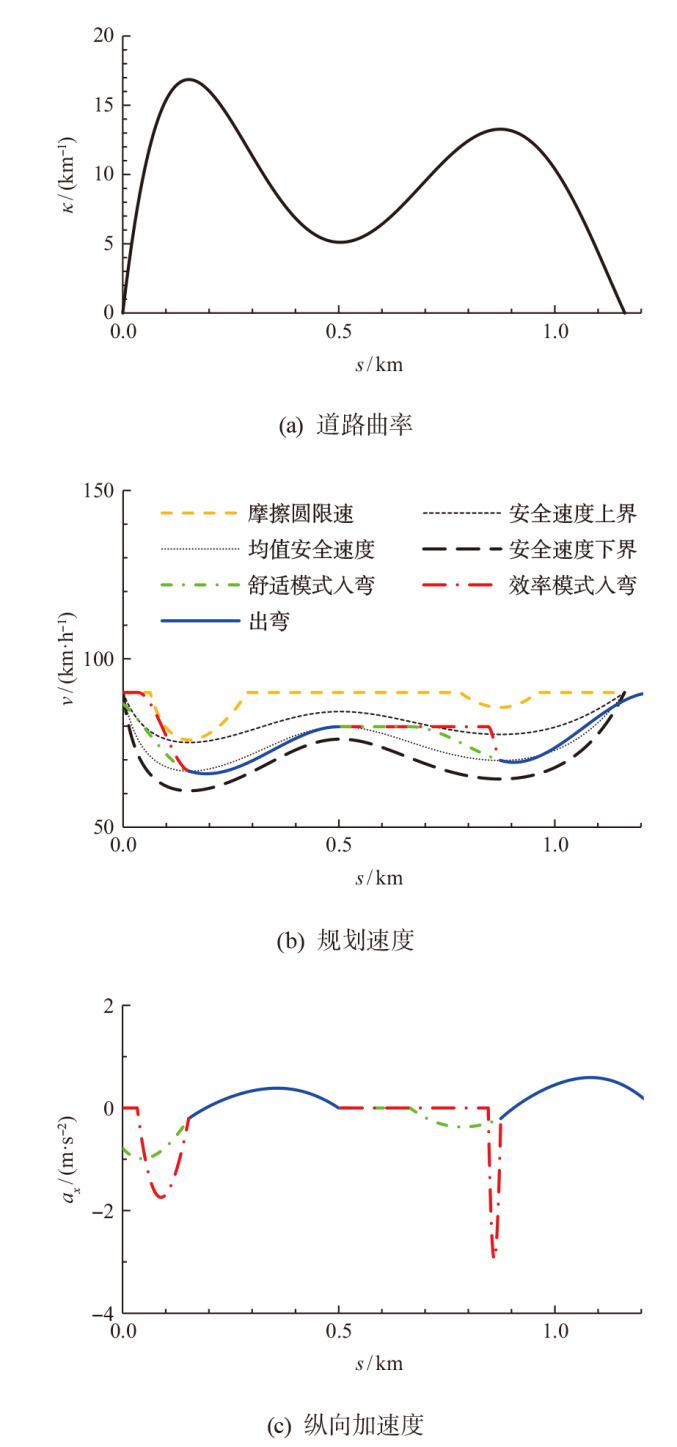

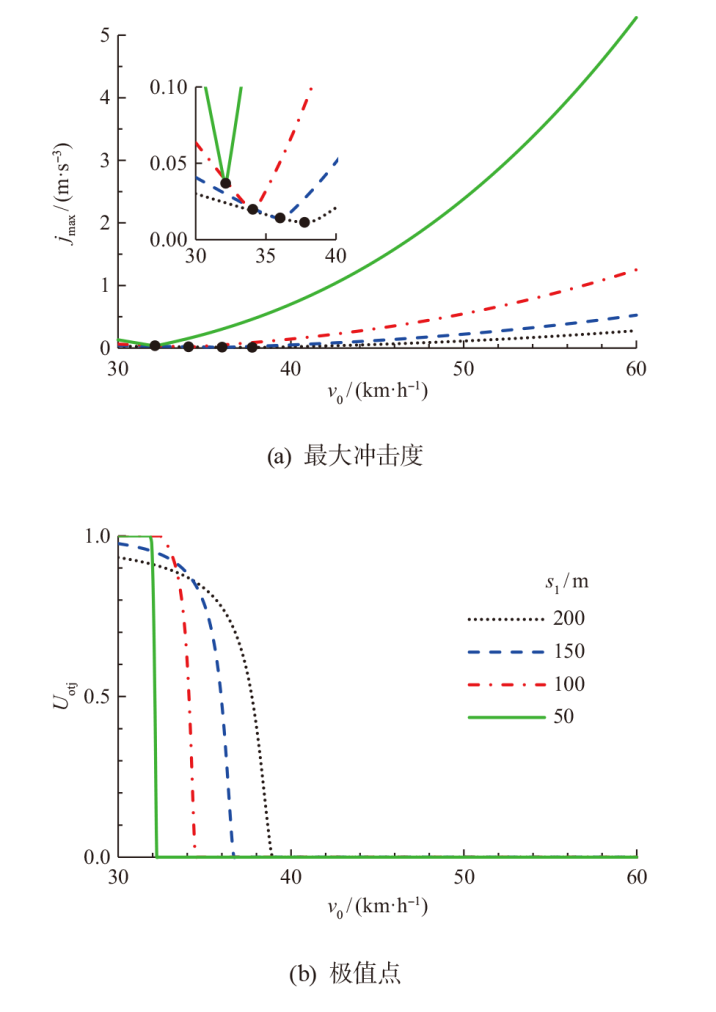

为提高自动驾驶汽车的安全性、舒适性与通行效率，提出了一种考虑到滑行及安全速度的类人入弯速度规划策略。该策略基于混沌优化理论与实车弯道行驶速度数据，通过将车辆的入弯速度规划问题构建为多目标优化问题，建立了舒适模式与效率模式。通过定义奇点速度，简化了非线性高阶约束条件。结果表明：在该策略规划中，在不同弯道场景下，横向加速度和纵向加速度均在摩擦圆约束内，可保证车辆的行驶安全。相比于未考虑滑行的方法，在舒适模式下，该策略产生的纵向加速度减小9.76%，通行效率提高61.73%；在效率模式中，纵向加速度为加速度阈值，满足加速度约束，通行效率提高88%。因而，无论舒适模式还是效率模式，该方法均可兼顾舒适性和通行效率。

关键词: 自动驾驶汽车, 滑行驾驶行为, 车辆入弯速度, 类人速度规划, 多目标优化, 安全速度模型

Abstract:

A human-like safe-speed-planning method was proposed for vehicle curve entry considering coasting and safe-speed based on the chaos theory and the real curve driving velocity data to improve the safety, the comfort and the travel efficiency of autonomous vehicles. A comfort mode and an efficiency mode were constructed through formulating the curve-entry speed-planning problem of autonomous vehicles as the multi-objective optimization problems. A singularity velocity was defined to simplify the constraint condition with high-order and non-linear characteristics and to improve its computation efficiency. The results show that both the lateral accelerations and the longitudinal accelerations satisfied the friction circle constraint for the proposed strategy, with guaranteeing the driving safety in different curve scenarios. Compared with the method regardless of coasting, the maximum longitudinal acceleration, which are generated by the proposed strategy, was reduced by 9.76% in the comfort mode with the travel efficiency being improved by 61.73%. In the efficiency mode, the longitudinal accelerations values are the acceleration threshold, which satisfy the acceleration constraint with an increase of 88% in traffic efficiency. Therefore, both the comfort mode and the efficiency mode achieve a balance between comfort and travel efficiency.

Key words: autonomous vehicle, coasting driving behaviors, vehicle curve-entry speed, human-like speed planning, multi-objective optimization, coasting driving behaviors, safe speed model

中图分类号:

U469.72

陈绮桐, 赵东, 刘丛志, 李亮. 考虑经验驾驶行为的入弯实时类人速度规划方法[J]. 汽车安全与节能学报, 2024, 15(3): 309-320.

CHEN Qitong, ZHAO Dong, LIU Congzhi, LI Liang. Real-time human-like speed planning method for curve entry considering experienced driving behaviors[J]. Journal of Automotive Safety and Energy, 2024, 15(3): 309-320.

图/表 19

参考文献 21

[1]	李国法, 陈耀昱, 吕辰, 等. 智能汽车决策中的驾驶行为语义解析关键技术[J]. 汽车安全与节能学报. 2019, 10(4): 391-412.
	LI Guofa, CHEN Yaoyu, LÜ Chen, et al. Key techniques of semantic analysis of driving behavior in decision making of autonomous vehicles[J]. J Auto Safe Energy, 2019, 10(4): 391-412. (in Chinese)
[2]	采国顺, 刘昊吉, 冯吉伟, 等. 智能汽车的运动规划与控制研究综述[J]. 汽车安全与节能学报, 2021, 12(03): 279-297.
	CAI Guoshun, LIU Haoji, FENG Jiwei, et al. Review on the research of motion planning and control for intelligent vehicles[J]. J Auto Safe Energy, 2021, 12(03): 279-297. (in Chinese)
[3]	WANG Miao, LIU Qingshan, ZHENG Yanling. A curvature-segmentation-based minimum time algorithm for autonomous vehicle velocity planning[J]. Info Sci, 2021, 565: 248-261.
[4]	王建强, 俞倩雯, 李升波, 等. 基于道路坡度实时信息的经济车速优化方法[J]. 汽车安全与节能学报. 2014, 5(3): 279-297.
	WANG Jianqiang, YU Qianwen, LI Shengbo, et al. Eco speed optimization based on real-time information of road gradient[J]. J Auto Safe Energy, 2014, 5(3): 279-297. (in Chinese)
[5]	Diels C, Bos J E, Hottelart K, et al. Motion sickness in automated vehicles: the elephant in the room[M]. Road Vehicle Automation 3. Springer, Cham, 2016: 121-129.
[6]	Werling M, Kammel S, Ziegler J, et al. Optimal trajectories for time-critical street scenarios using discretized terminal manifolds[J]. Int’l J Robot Res, 2012, 31(3): 346-359.
[7]	张平, 陈一凡, 江书真, 等. 高速公路上自动超车过程的轨迹规划与跟踪控制[J]. 汽车安全与节能学报, 2022, 13(3): 463-472.
	ZHANG P, CHEN Y, JIANG S, et al. Trajectory planning and tracking control of automatic overtaking process on highway[J]. J Auto Safety Energy, 2022, 13(3): 463-472. (in Chinese)
[8]	Bosetti P, Lio M D, Saroldi A. On curve negotiation: from driver support to automation[J], IEEE Trans Intell Transp Syst, 2015, 16(4): 2082-2093.
[9]	兰凤崇, 李诗成, 陈吉清, 等. 考虑操纵稳定性的自动驾驶汽车轨迹综合优化方法[J]. 湖南大学学报(自然科学版), 2019, 46(10): 36-45.
	LAN Fengcong, LI Shicheng, CHEN Jiqing, et al. Comprehensive approach for trajectory optimization of autopilot vehicles considering handling stability[J]. J Hunan Univ (Nat Sci), 2019, 46(10): 36-45. (in Chinese)
[10]	Rajamani R. Vehicle Dynamics and Control[M]. New York: Springer Science,2012:381-382.
[11]	Ritchie M L, McCoy W K, Welde W L. A study of the relation between forward velocity and lateral acceleration in curves during normal driving[J]. Human Factors, 1968, 10(3): 255-258. pmid: 5674361
[12]	Reymond G, Kemeny A, Droulez J. Role of lateral acceleration in curve driving: driver model and experiments on a real vehicle and a driving simulator[J]. Human Factors, 2001, 43(3): 483-495. pmid: 11866202
[13]	Levison W H, Campbell J L, Kludt K. Development of a driver vehicle module for the interactive highway safety design model[R]. US: Fede Highway Admi, FHWA-HRT-08-019, 2007.
[14]	Flash T, Meirovitch Y, Barliya A. Models of human movement: Trajectory planning and inverse kinematics studies[J]. Robo Auton Syst, 2013, 61(4): 330-339.
[15]	ZHANG Yu, CHEN Huiyan, Waslander S L, et al. Speed planning for autonomous driving via convex optimization[C]// Int’l Conf Intell Transp Syst (ITSC), 2018-11-04—01: 1089-1094.
[16]	Consolini L, Locatelli M, Minari A, et al. Optimal time-complexity speed planning for Robot manipulators[J]. IEEE Trans Robo, 2019, 35(3): 790-797.
[17]	YAN Shengyu, LIU Chenglong, CAO Jing. Comfort-based trajectory and velocity planning for automated vehicles considering road conditions[J]. Int’l J Autom Tech, 2021, 22(5): 883-893.
[18]	Etsuo K, Makoto Y, Masato A. A state-of-the-art review: toward a novel vehicle dynamics control concept taking the driveline of electric vehicles into account as promising control actuators[J]. Vehi Syst Dyn, 2021, 59(7): 976-1025.
[19]	Claussmann L, Revilloud M, Gruyer D, et al. A review of motion planning for highway autonomous driving[J]. IEEE Trans Intell Transp Syst, 2019, 21(5): 1826-1848.
[20]	HE Xiangkun, LIU Yulong, LÜ Chen, et al. Emergency steering control of autonomous vehicle for collision avoidance and stabilization[J]. Vehi Syst Dyn, 2018, 57(8): 1163-1187.
[21]	YANG Dixion, LI Gang, CHENG Gengdong. On the efficiency of chaos optimization algorithms for global optimization[J]. Chaos, Solitons Fractals, 2007, 34(4): 1366-1375.

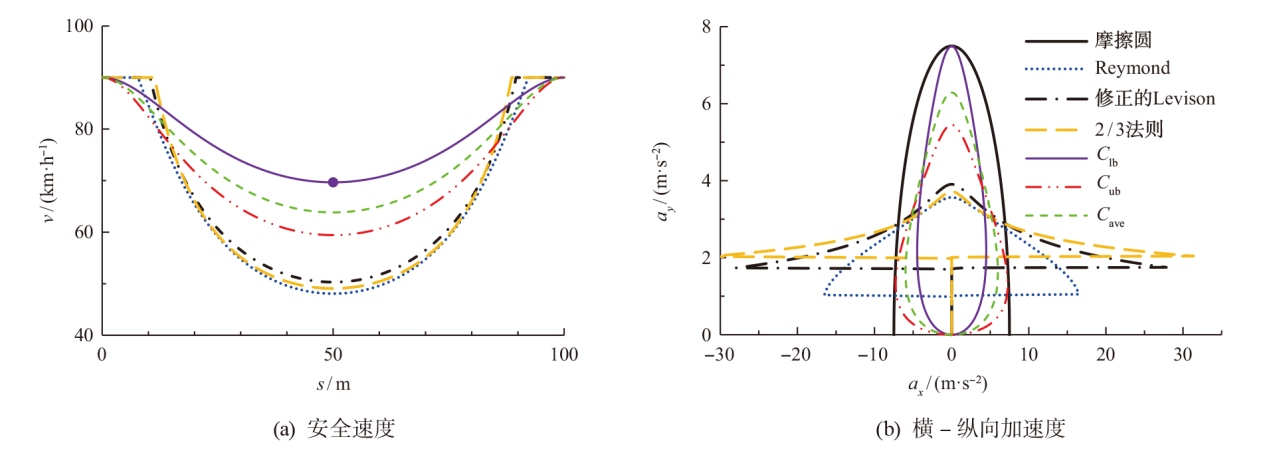

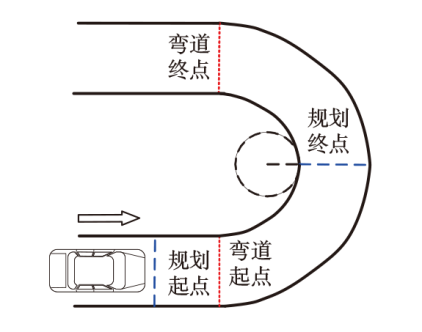

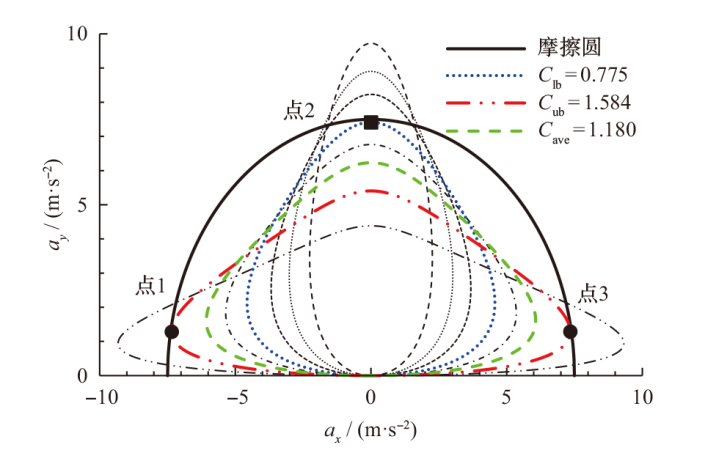

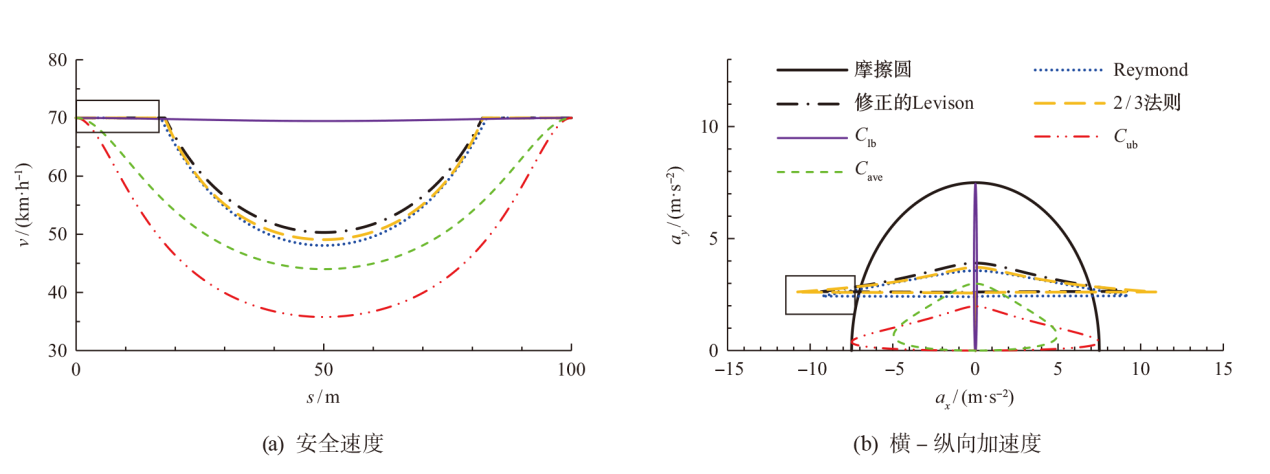

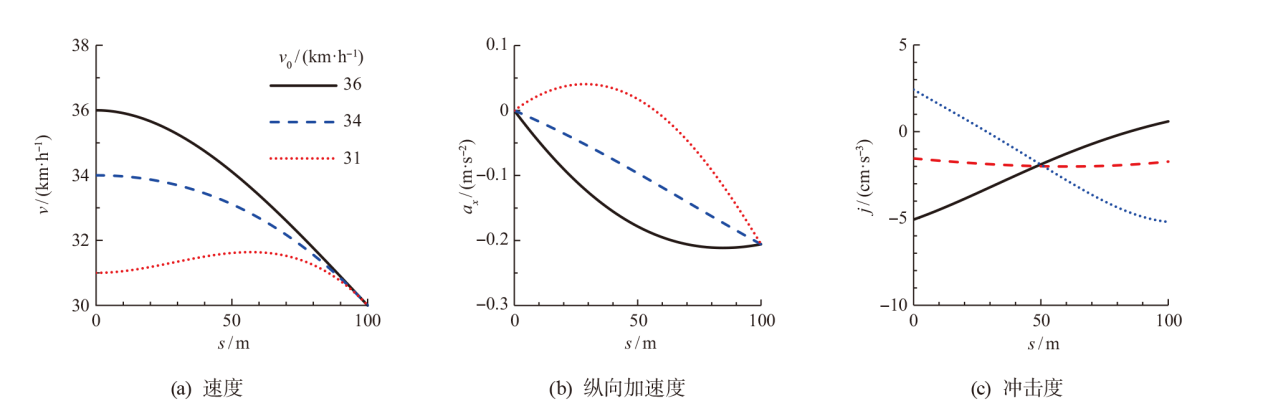

弯道总长s_f	100 m
入弯长度s_fentr	50 m
弯道最大曲率κ_max	20 km^-1
路面附着因数μ	0.9

弯道总长s_f	100 m
入弯长度s_fentr	50 m
弯道最大曲率κ_max	20 km^-1
路面附着因数μ	0.9

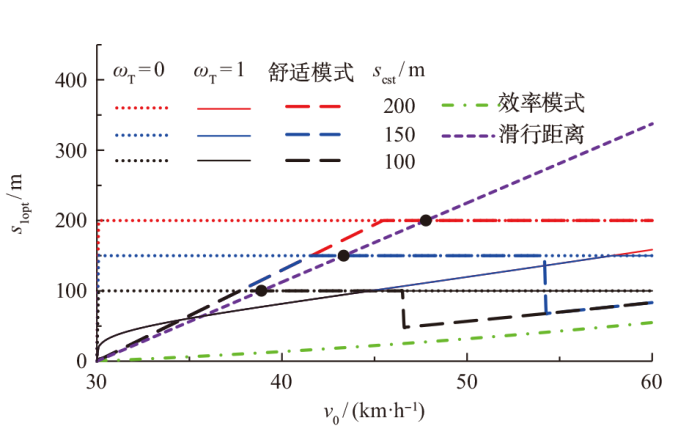

工况编号	s_cst / m	a_lim / (m·s^-2)	j_lim / (m·s^-3)
1	100	-3.0	-2.0
2	150	-4.0	-1.5
3	150	-3.0	-2.0
4	200	-3.0	-2.0
5	150	-4.0	—
6	200	-4.0	—
7	250	-4.0	—
8	250	-3.0	-2.0

工况编号	s_cst / m	a_lim / (m·s^-2)	j_lim / (m·s^-3)
1	100	-3.0	-2.0
2	150	-4.0	-1.5
3	150	-3.0	-2.0
4	200	-3.0	-2.0
5	150	-4.0	—
6	200	-4.0	—
7	250	-4.0	—
8	250	-3.0	-2.0

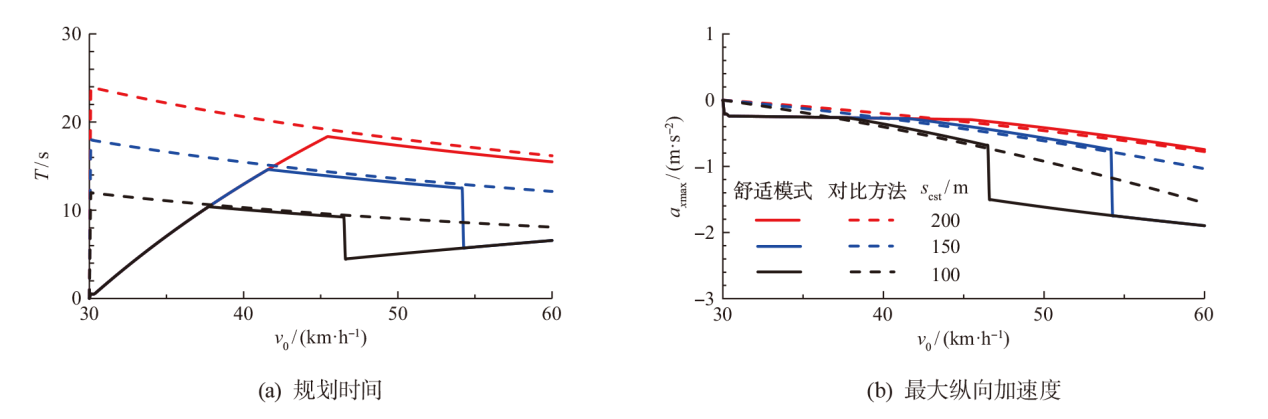

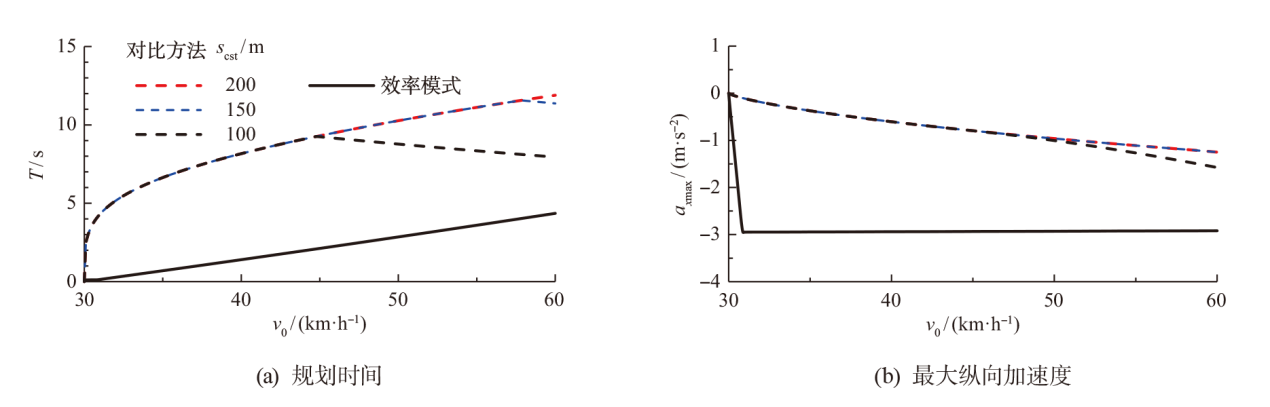

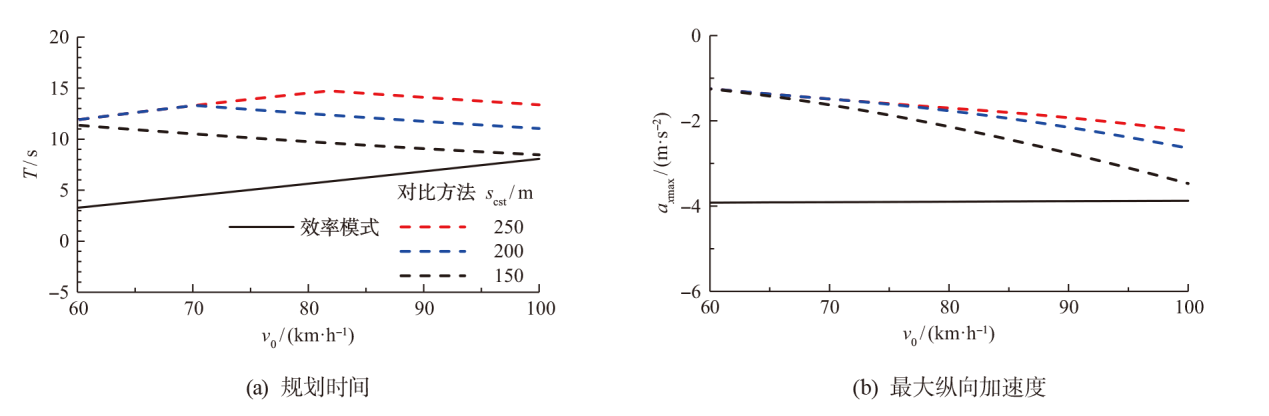

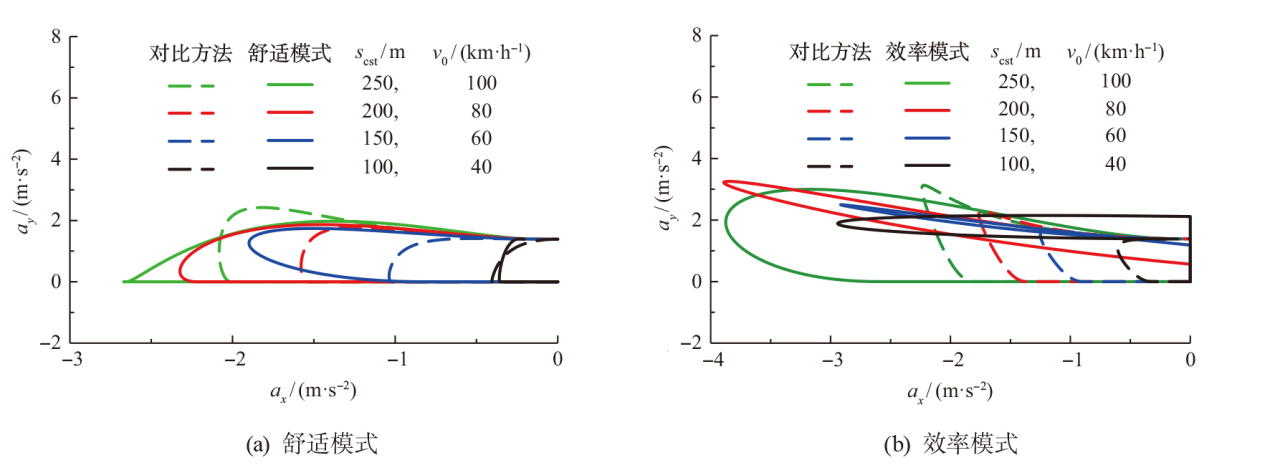

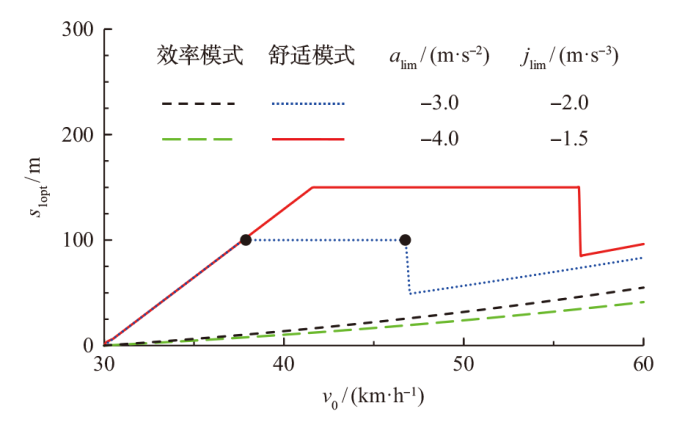

s_cst / m	v₀ / (km·h^-1)	舒适模式，ΔA / (m·s^-2)			效率模式，ΔA / (m·s^-2)			η_T / %
s_cst / m	v₀ / (km·h^-1)	max	RMS	var	max	RMS	var	舒适模式	效率模式
100	36	-0.03	-0.10	-0.05	-1.99	-1.80	-0.06	23.46	88.02
	40	-0.03	0.02	-0.02	-2.07	-1.90	-0.90	2.33	82.85
	50	-0.60	-0.56	-0.11	-2.01	-1.68	-0.29	44.24	67.51
	60	-0.11	-0.17	-0.01	-1.26	-0.95	-0.39	18.73	45.19
150	36	-0.06	-0.32	-0.03	-1.91	-1.58	-0.16	48.99	88.02
	40	-0.05	-0.06	-0.05	-1.96	-1.71	-0.05	16.17	82.85
	50	-0.06	0.20	0.00	-2.03	-1.88	-0.12	3.24	72.21
	60	-0.87	-0.70	-0.19	-1.78	-1.57	-0.23	45.83	61.69
200	36	-0.09	-0.51	0.11	-1.84	-1.39	-0.28	61.73	88.02
	40	-0.09	-0.22	-0.07	-1.83	-1.51	-0.21	37.12	82.85
	50	-0.09	0.33	-0.03	-1.93	-1.79	-0.10	4.14	71.21
	60	-0.04	0.09	0.01	-1.91	-1.80	-0.12	4.26	63.36
