搭载改进滑模控制的自动驾驶汽车轨迹跟踪控制

doi:10.3969/j.issn.1674-8484.2020.04.010

汽车安全与节能学报 ›› 2020, Vol. 11 ›› Issue (4): 503-510.DOI: 10.3969/j.issn.1674-8484.2020.04.010

搭载改进滑模控制的自动驾驶汽车轨迹跟踪控制

李磊¹^,²(), 李军¹^,²^,^*(), 张世义³

1.重庆交通大学机电与车辆工程学院,重庆,400074, 中国
2.重庆市轨道交通车辆系统集成与控制重点实验室（重庆交通大学）,重庆,400074,中国
3.重庆交通大学航运与船舶工程学院,重庆,400074,中国

收稿日期:2020-09-09 出版日期:2020-12-30 发布日期:2021-01-04
通讯作者: 李军
作者简介:*李军(1964–),男(汉),重庆,教授。E-mail:cqleejun@163.com。
李磊(1995–),男(汉),重庆,硕士研究生。E-mail:lileiCBD@163.com。
基金资助:
国家自然科学基金资助项目(51305472)

Trajectory tracking control of autonomous vehicles with optimized sliding mode control

LI Lei¹^,²(), LI Jun¹^,²^,^*(), ZHANG Shiyi³

1. School of Mechatronics and Vehicle Engineering, Chongqing Jiaotong University, Chongqing 400074, China
2. Chongqing Key Laboratory of Rail Vehicle System Integration and Control (Chongqing Jiaotong University), Chongqing 400074, China
3. School of Shipping and Naval Engineering, Chongqing Jiaotong University, Chongqing 400074, China

Received:2020-09-09 Online:2020-12-30 Published:2021-01-04
Contact: LI Jun

摘要/Abstract

摘要：

为了提高自动驾驶汽车在各种干扰因素下轨迹跟踪控制的鲁棒性,提出了一种改进滑模控制的鲁棒控制器。通过采用时变误差模型来设计滑模面, 而不是恒定滑模面,进而缩短滑模控制器到达滑动阶段的时间。利用了MATLAB对改进后的滑模控制器,进行了滑模面仿真、变道工况仿真以及超车工况仿真,并与未改进的滑模控制器进行了对比。结果表明：改进后的滑模控制器到达滑动阶段的时间减少了33.10%;在变道仿真工况中鲁棒性提高了7.44%;在超车仿真工况中鲁棒性提高了10.45%。因而,在自动驾驶汽车轨迹跟踪控制研究中,该控制器可以提升控制鲁棒性。

关键词: 自动驾驶汽车, 轨迹跟踪, 鲁棒性控制, 滑模控制

Abstract:

A robust controller was proposed with an improved sliding-mode-controller to improve the robustness of autonomous-vehicle trajectory-tracking under various disturbance factors. Designed a sliding-mode-surface instead of a constant sliding-mode- surface by adopting the time-varying error model to shorten the time for the sliding-mode- controller to reach the sliding phase. Simulated an optimized sliding-mode-controller for the driving condition with sliding-mode-surface, the lane change, and the overtaking by using a MATLAB software. The simulation results were compared with that by the unoptimized sliding-mode-controller. The results show that the time is reduced by 33.10% for the optimized sliding-mode-controller to reach the sliding phase; the robustness is increased by 7.44% in the lane change simulation conditions; and the robustness is increased by 10.45% in the overtaking simulation conditions. Therefore, the controller improves the control robustness in the trajectory-tracking control research.

Key words: autonomous vehicles, trajectory tracking, robust control, sliding mode control

中图分类号:

TP273

李磊, 李军, 张世义. 搭载改进滑模控制的自动驾驶汽车轨迹跟踪控制[J]. 汽车安全与节能学报, 2020, 11(4): 503-510.

LI Lei, LI Jun, ZHANG Shiyi. Trajectory tracking control of autonomous vehicles with optimized sliding mode control[J]. Journal of Automotive Safety and Energy, 2020, 11(4): 503-510.

图/表 10

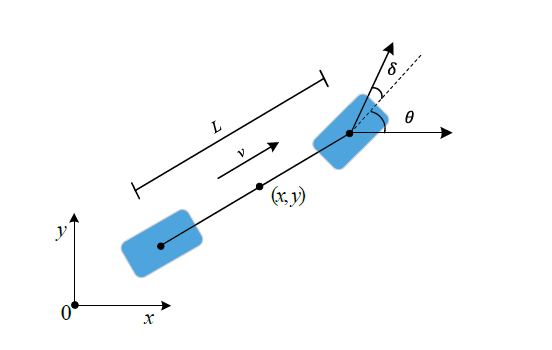

图1 三自由度自行车运动学模型

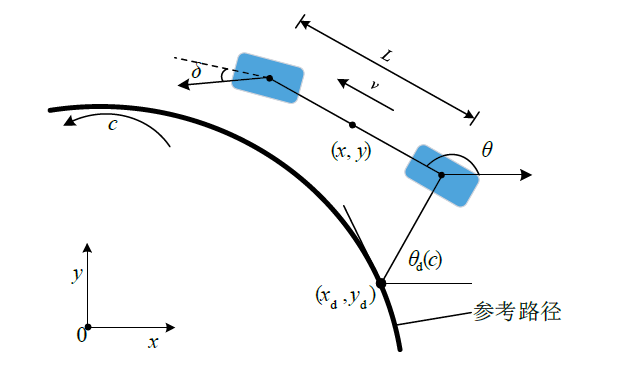

图2 轨迹跟踪控制的误差模型

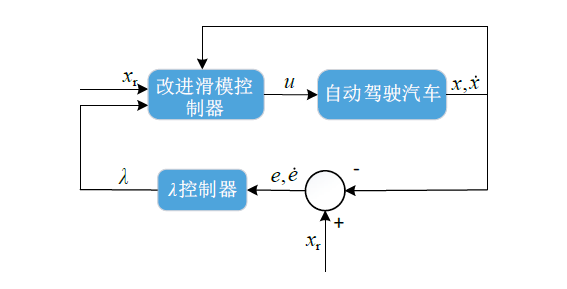

图3 改进后的滑模控制器

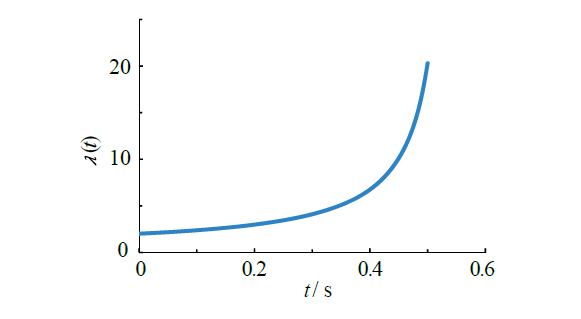

图4 λ（t）随时间变化图

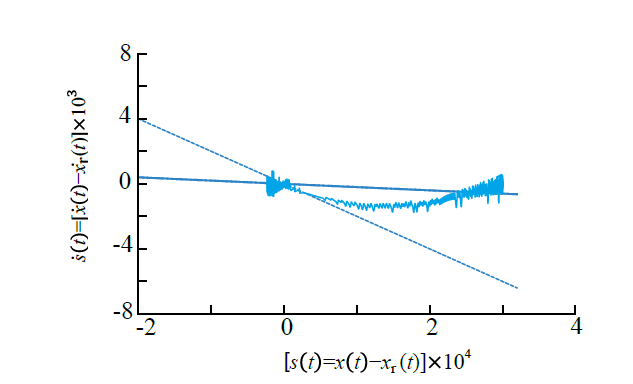

图5 未改进的时间变化图

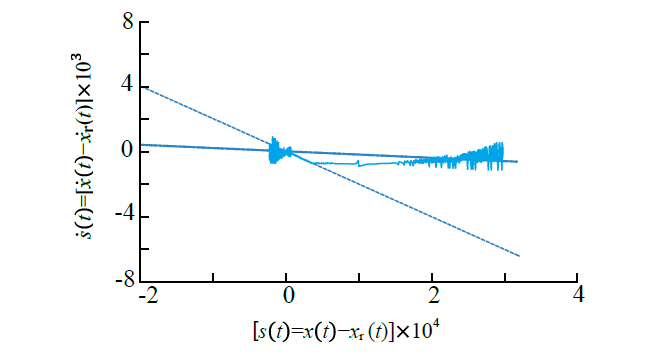

图6 改进后的时间变化图

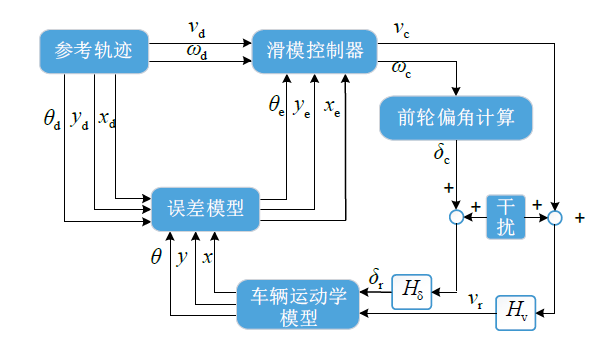

图7 仿真框图

质量	1.75 t
惯性力矩	245 kN·m²
轴径	2.7 m
前轮轴径	1.43 m
后轮轴径	1.27 m
重心高度	0.5 m
前轮转角刚度	19 kN·m^-1
后轮转角刚度	33 kN·m^-1

表1 自动驾驶汽车的车辆参数

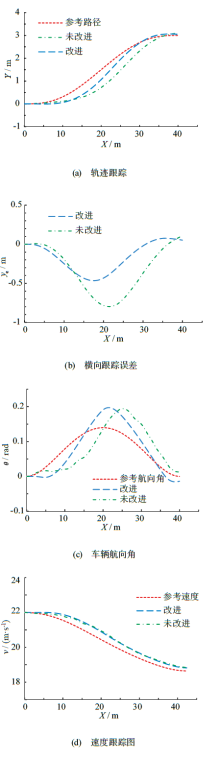

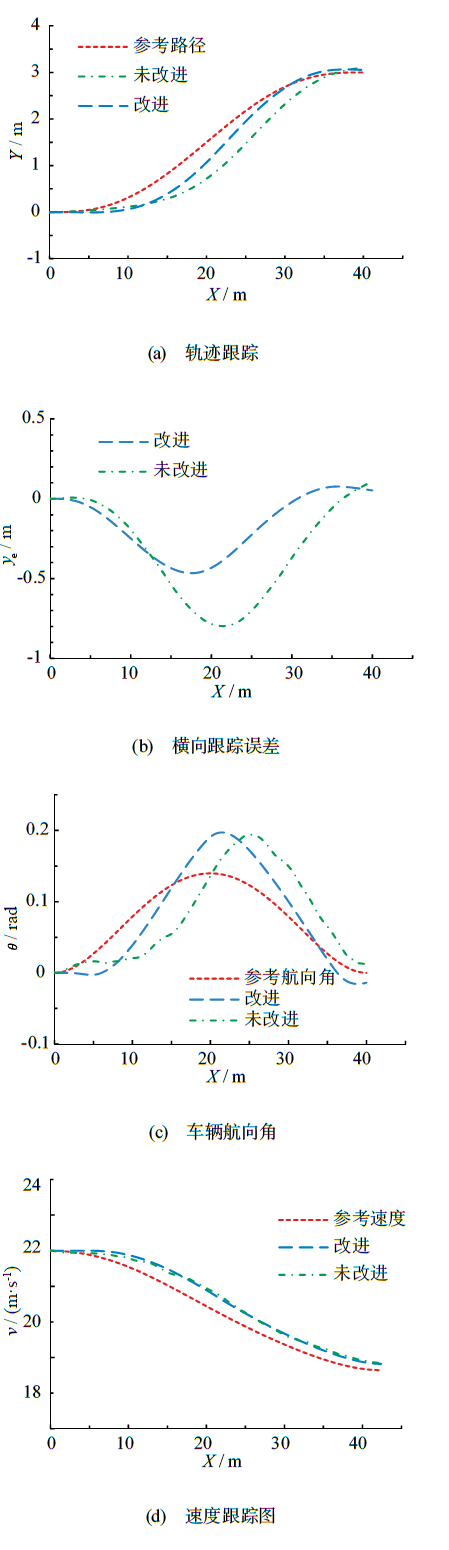

图8 变道工况仿真结果

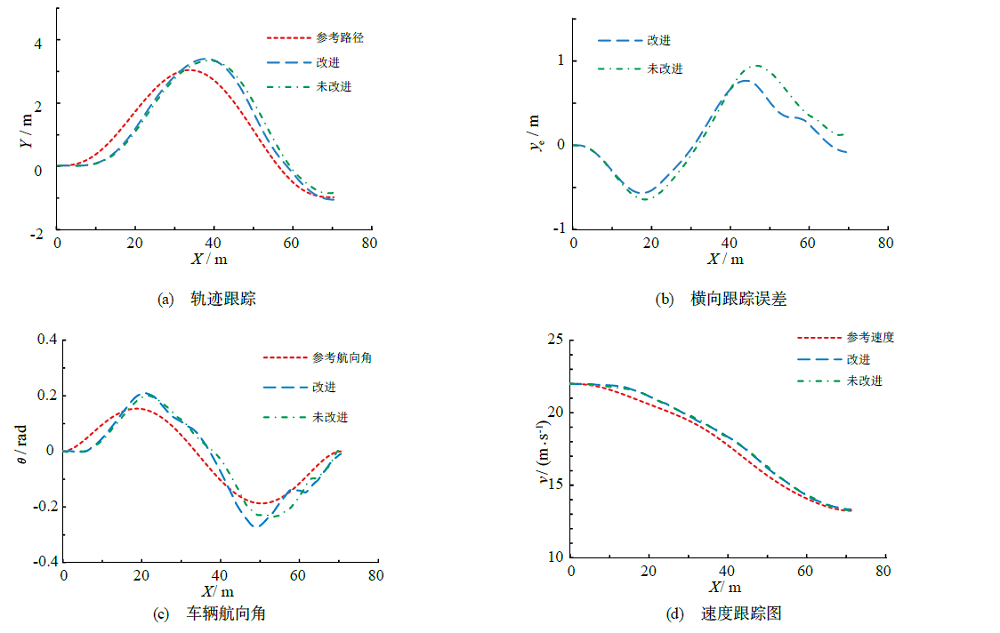

图9 超车工况仿真结果

参考文献 19

[1]	Raffo G V, Gomes G K, Normey-Rico J E, et al. A predictive controller for autonomous vehicle path tracking[J]. IEEE Trans Intell Transp Syst, 2009,10(1):92-102.
[2]	Kayacan E, Ramon H, Saeys W. Robust trajectory tracking error model-based predictive control for unmanned ground vehicles[J]. IEEE/ASME Trans Mechatronics, 2016,21(2):806-814.
[3]	WU Yan, WANG Lifang, ZHANG Junzhi, et al. Path following control of autonomous ground vehicle based on nonsingular terminal sliding mode and active disturbance rejection control[J]. IEEE Trans Veh Technol, 2019,68(7):6379-6390.
[4]	SUN Zhe, ZHENG Jinchuan, MAN Zhihong, et al. Nested adaptive super-twisting sliding mode control design for a vehicle steer-by-wire system[J]. Mech Syst Signal Pr, 2019, 122:658-672.
[5]	赵健, 张进, 朱冰. 基于路面识别的汽车驱动力模糊滑模控制[J]. 吉林大学学报: 工学版, 2015,45(4):1036-1042.
	ZHAO Jian, ZHANG Jin, ZHU Bing. Fuzzy sliding mode traction control based on road friction coefficient estimation[J]. J Jilin Univ: Eng Tech Ed, 2015,45(4):1036-1042. (in Chinese)
[6]	王其东, 刘伟, 陈无畏, 等. 基于路面识别的汽车稳定系统滑模控制[J]. 汽车工程, 2018,40(1):82-90.
	WANG Qidong, LIU Wei, CHEN Wuwei, et al. Sliding mode control of vehicle electronic stability program based on road identification[J]. Automotive Eng, 2018,40(1):82-90. (in Chinese)
[7]	张海伦, 汪选要. 智能车自动换道横向控制策略的研究[J]. 机械设计, 2018,35(4):78-83.
	ZHANG Hailun, WANG Xuanyao. Research on lateral control strategy for automatic lane changing of intelligent vehicle[J]. J Mach Des, 2018,35(4):78-83. (in Chinese)
[8]	贺伊琳, 马建, 赵丹, 等. 无人驾驶汽车RBF神经网络滑模横向控制策略[J]. 长安大学学报:自然科学版, 2018,38(5):238-248.
	HE Yilin, MA Jian, ZHAO Dan, et al. Lateral control strategy of RBF neural sliding mode for autonomous vehicles[J]. J Chang’an Univ: Nat Sci Ed, 2018,38(5):238-248. (in Chinese)
[9]	姜立标, 吴中伟. 基于趋近律滑模控制的智能车辆轨迹跟踪研究[J]. 农业机械学报, 2018,49(3):381-386.
	JIANG Libiao, WU Zhongwei. Sliding mode control for intelligent vehicle trajectory tracking based on reaching law[J]. Trans Chin Soci Agri Mach, 2018,49(3):381-386. (in Chinese)
[10]	Slotine J-J, Sastry S S. Tracking control of non-linear systems using sliding surfaces, with application to robot manipulators[J]. Int’l J Control, 1983,38(2):465-492.
[11]	Martin T C, Orchard M E, Sánchez P V. Design and simulation of control strategies for trajectory tracking in an autonomous ground vehicle[J]. IFAC Proc Volume, 2013, 46(24):118-123.
[12]	Bacha S, Saadi R, Ayad M Y, et al. A review on vehicle modeling and control technics used for autonomous vehicle path following[C]// Proc of the 2017 Int’l Conf Green Energy Conversion Syst (GECS), IEEE Press, 2017: 1-6.
[13]	Amer N H, Zamzuri H, Hudha K, et al. Modelling and control strategies in path tracking control for autonomous ground vehicles: A review of state of the art and challenges[J]. J Intell Robot Syst, 2017,86(2):225-254.
[14]	Alcala E, Puig V, Quevedo J, et al. Autonomous vehicle control using a kinematic Lyapunov-based technique with LQR-LMI tuning[J]. Control Eng Pract, 2018,73(4):1-12.
[15]	龚建伟, 姜岩, 徐威. 无人驾驶车辆模型预测控制 [M]. 北京: 北京理工大学出版社, 2014: 22-23.
	GONG Jianwei, JIANG Yan, XU Wei. Model Predictive Control of Autonomous Vehicle [M]. Beijing: Beijing Institute of Technology Press, 2014: 22-23. (in Chinese)
[16]	Slotine J-J E, Li W. Applied Nonlinear Control[M]. Englewood Cliffs: Prentice Hall, 1991: 277-290.
[17]	Kirk D E. Optimal control theory: An introduction[J]. J Test Positive Aware Network, 2004,23(2):13-15.
[18]	田宏奇. 滑模控制理论及其应用 [M]. 武汉: 武汉出版社, 1995: 9-10.
	TIAN Hongqi. Theory and Application of Sliding Mode Control [M]. Wuhan: Wuhan Press, 1995: 9-10. (in Chinese)
[19]	郑大钟. 线性系统理论,第2版 [M]. 北京: 清华大学出版社, 2002: 218-231.
	ZHENG Dazhong. Theory of Linear System, Ed 2 [M]. Beijing: Tsinghua University Press, 2002: 218-231. (in Chinese)
