基于蓄热装置辅助的燃料电池电动车供暖系统动态仿真

doi:10.3969/j.issn.1674-8484.2024.01.006

摘要/Abstract

摘要：

为了辅助燃料电池车辆预热，提升燃料电池在低温下的冷启动速率以及降低电动车能耗，该文提出了一种基于热泵和蓄热装置联合的燃料电池电动车供暖方案，并开展了燃料电池车辆系统动态仿真研究，对比了有无蓄热装置辅助的系统对车辆运行过程的影响。结果表明: 在寒冷运行环境下，蓄热装置可确保驾驶循环工况下循环冷却液热量来源的连续性, 相较于无蓄热装置的热管理系统，热泵和蓄热联合供暖方案可使空调系统能耗下降26%；利用蓄热装置辅助的供暖系统能够改善燃料电池电动车的冬季冷启动特性，优化车辆电池系统的热管理。

关键词: 燃料电池, 电动车, 热泵空调, 蓄热, 冷启动

Abstract:

A heating schedule of fuel cell vehicles, which was based on heat pumps combined with thermal storage system was proposed to facilitate the pre-heating of fuel cell vehicles and increase the cold-start rates with decreasing the energy consuming of fuel cell vehicles. The dynamic simulation of fuel cell vehicle system was carried out, and the influence of the system with or without heat storage device on the vehicle operation was compared. The results show that in freezing environments, the heat storage unit ensures the continuity of the heat source of the circulating coolant during the driving cycle, and the heat pump and combined heat storage heating solution can reduce the energy consumption of the air conditioning system by 26% compared to the thermal management system without the heat storage unit, indicating that the heating system assisted by the heat storage device can improve the cold start characteristics of fuel cell electric vehicles in winter and optimize the thermal management of the vehicle battery system.

Key words: fuel cells, electrical vehicles, heat pump air conditioning, thermal storage, cold start

中图分类号:

U462

宋泽华, 陈浩, 郭航, 叶芳, 张惟博. 基于蓄热装置辅助的燃料电池电动车供暖系统动态仿真[J]. 汽车安全与节能学报, 2024, 15(1): 54-62.

SONG Zehua, CHEN Hao, GUO Hang, YE Fang, ZHANG Weibo. Dynamic simulation of heating system in fuel cell vehicles based on thermal storage device assistance[J]. Journal of Automotive Safety and Energy, 2024, 15(1): 54-62.

图/表 12

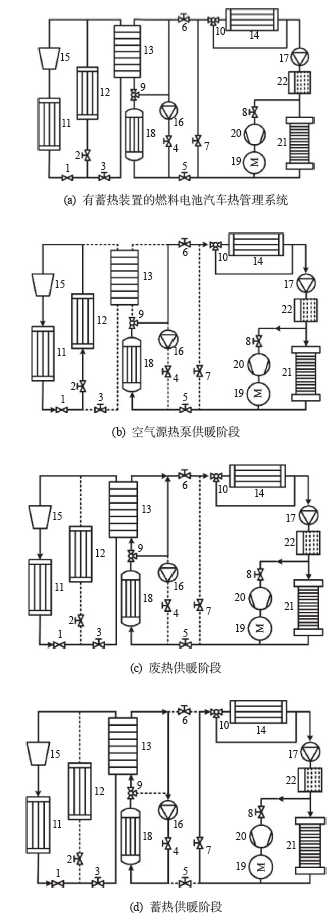

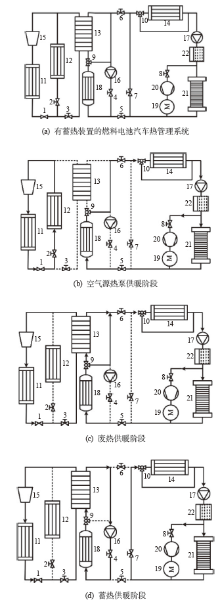

图1 燃料电池汽车热管理系统及3个工作阶段1—膨胀阀；2至8—截止阀；9、10—节温阀；11—空调系统舱内换热器；12—空调系统舱外换热器；13—板式蒸发器；14—散热器；15—空调系统压缩机；16、17—冷却液泵；18—蓄热装置；19—驱动电机；20—空压机；21—燃料电池电堆；22—水箱

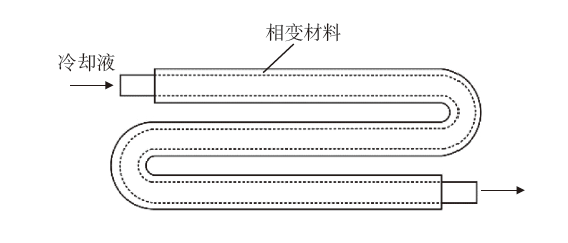

图2 相变材料换热器结构示意图

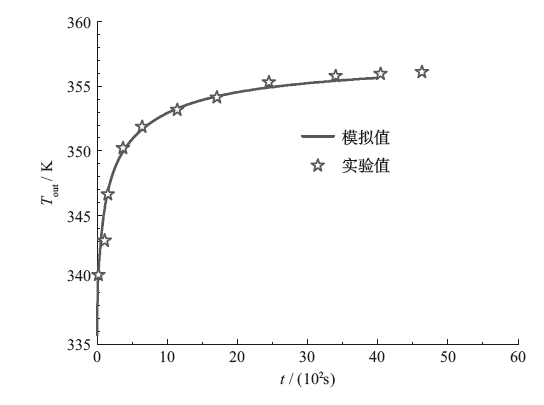

图3 相变材料换热器模型验证

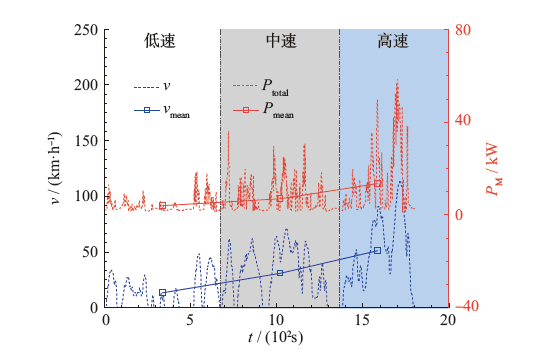

图4 启动运行中车速和整车功率变化情况

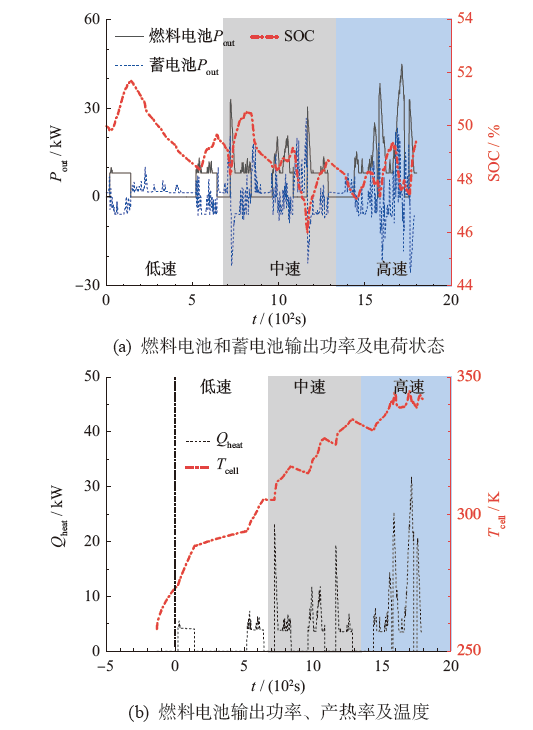

图5 启动运行工况下电池的运行状态以及温度变化曲线

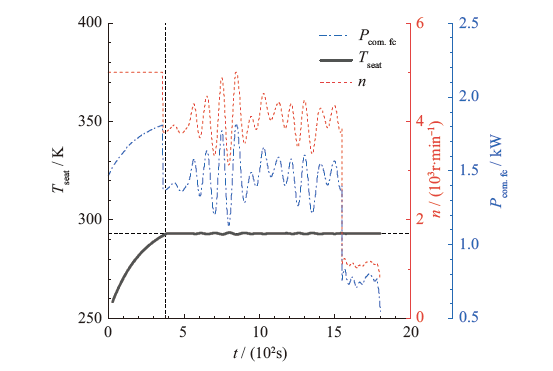

图6 启动运行情况下，座舱温度和压缩机转速、功率变化曲线

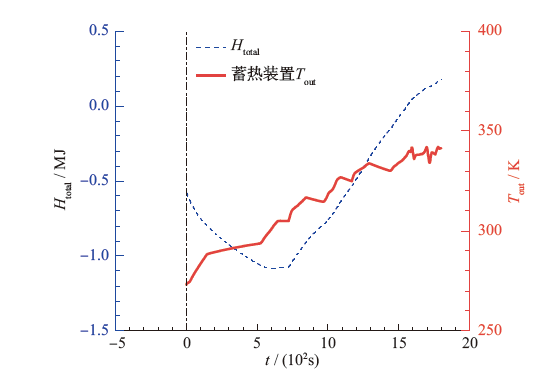

图7 启动运行情况下，蓄热装置累计蓄热量和出口温度变化曲线

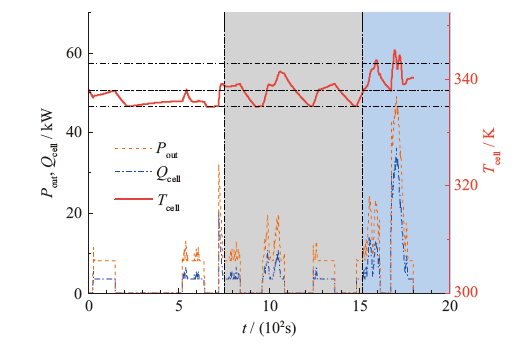

图8 正常运行情况下，燃料电池的输出功率、产热率及温度变化曲线

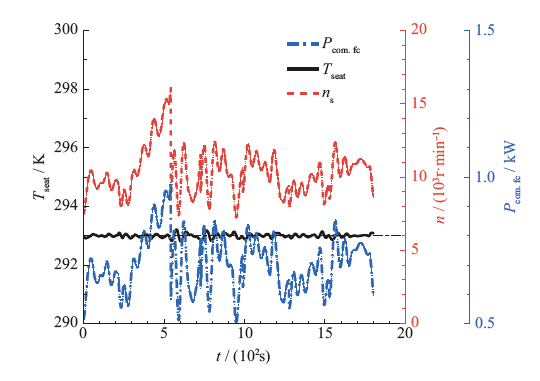

图9 正常运行情况下，座舱温度和压缩机转速、功率变化曲线

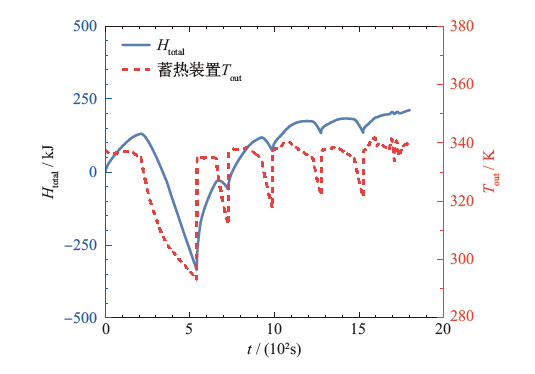

图10 正常运行情况下，蓄热装置的累计蓄热量和出口温度变化曲线

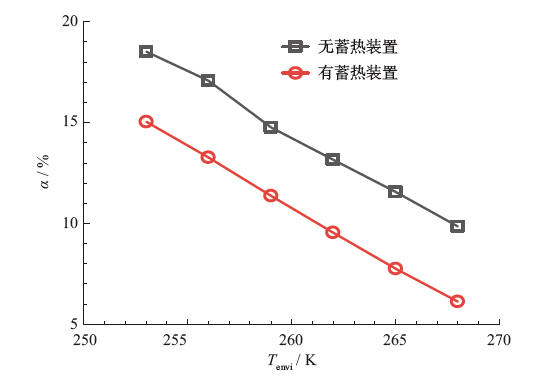

图11 空调系统能耗在有/无蓄热装置时占整车能耗比例

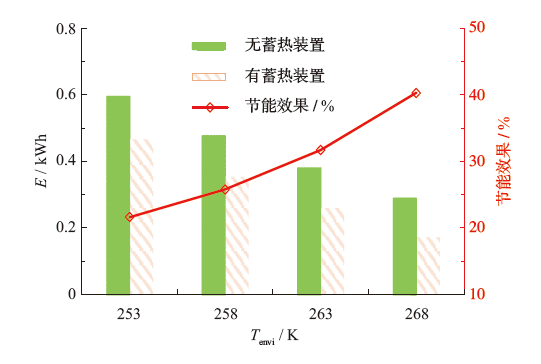

图12 有/无蓄热装置每km空调系统能能耗及节能情况
