Experimental study on a wide-temperature-range lithium-ion battery thermal management system based on thermoelectric devices-coupled forced air-cooled

doi:10.3969/j.issn.1674-8484.2026.04.007

Abstract

Abstract:

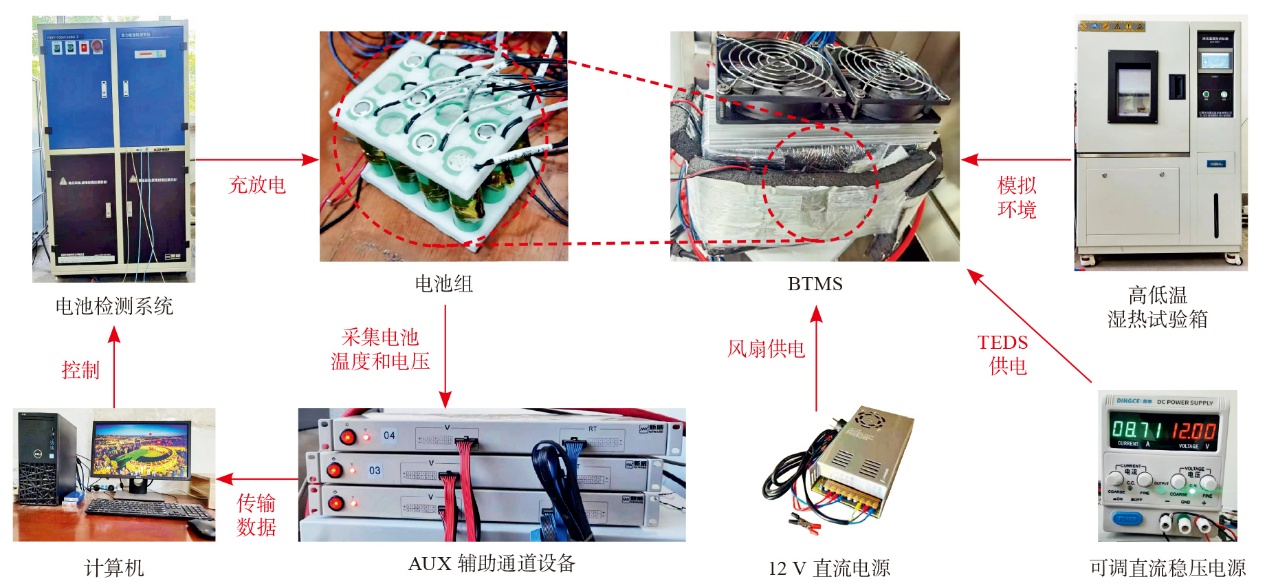

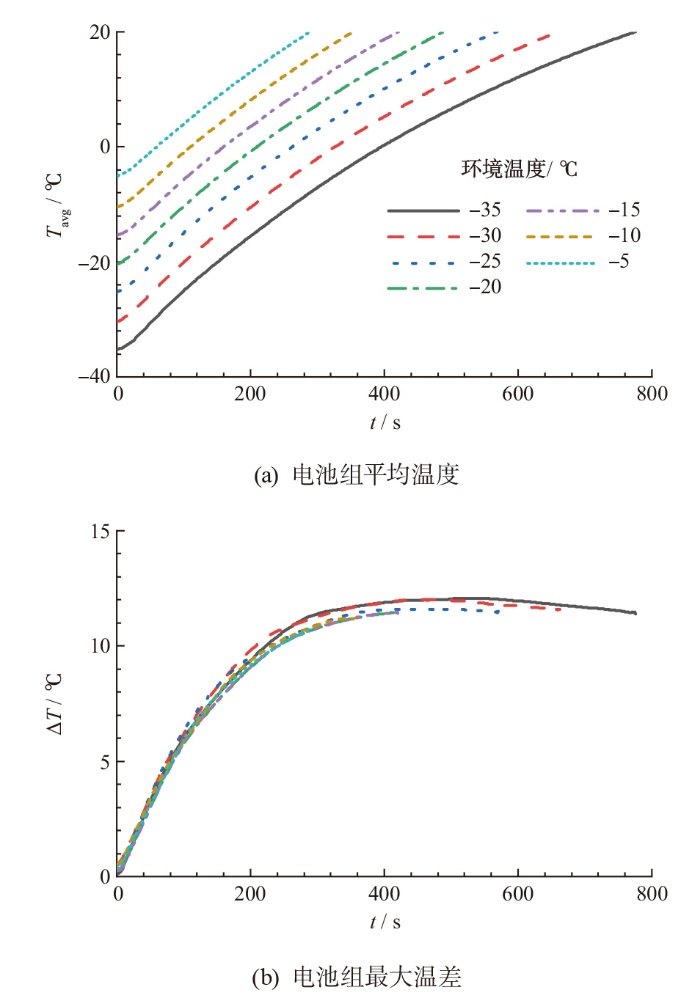

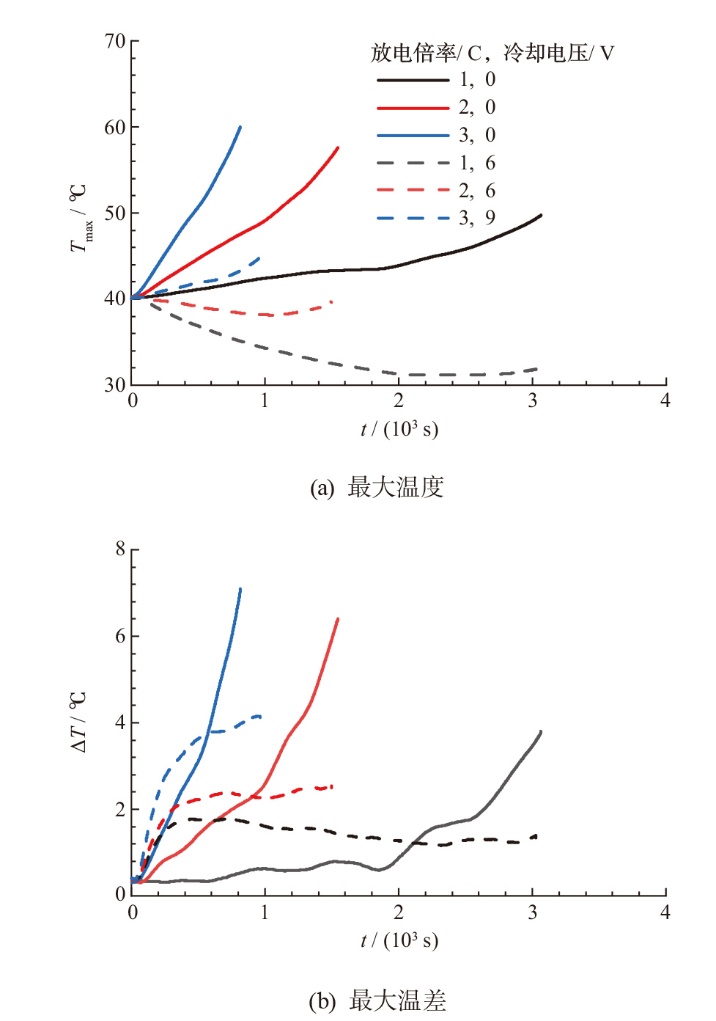

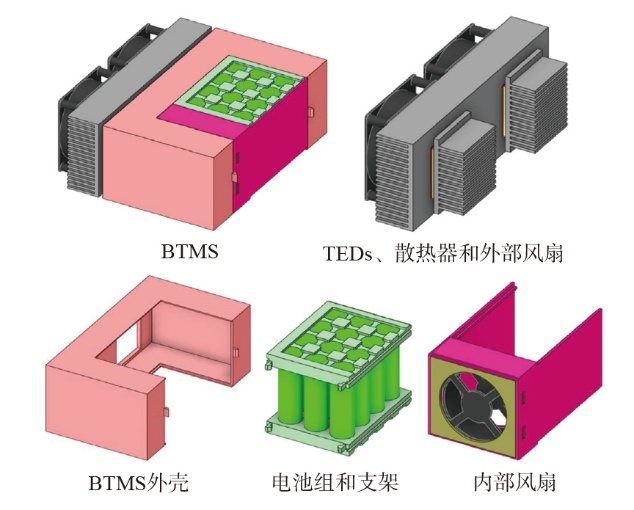

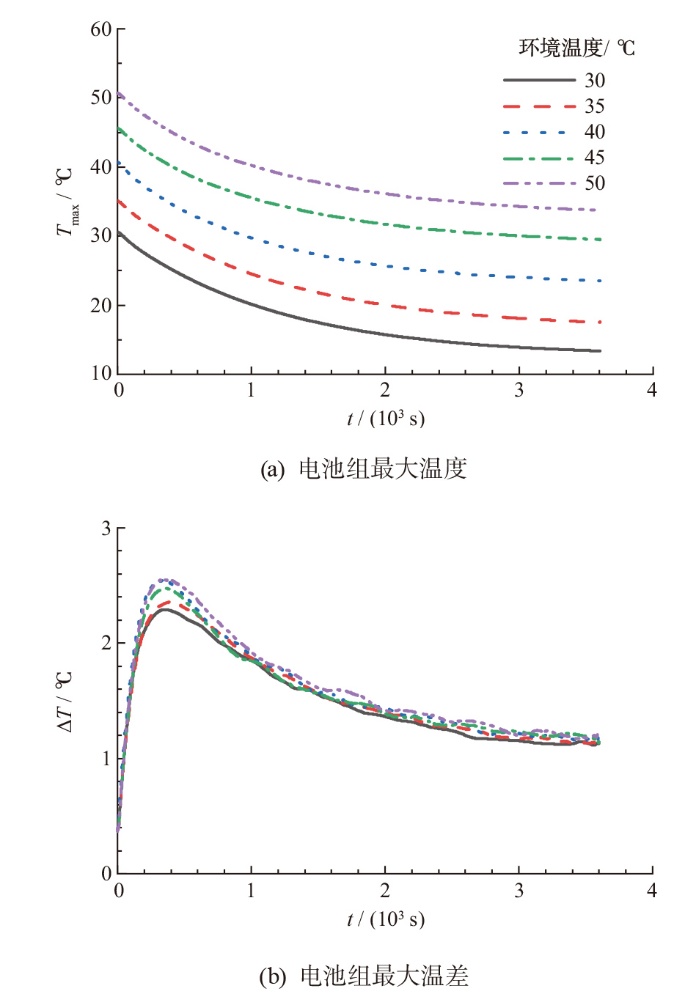

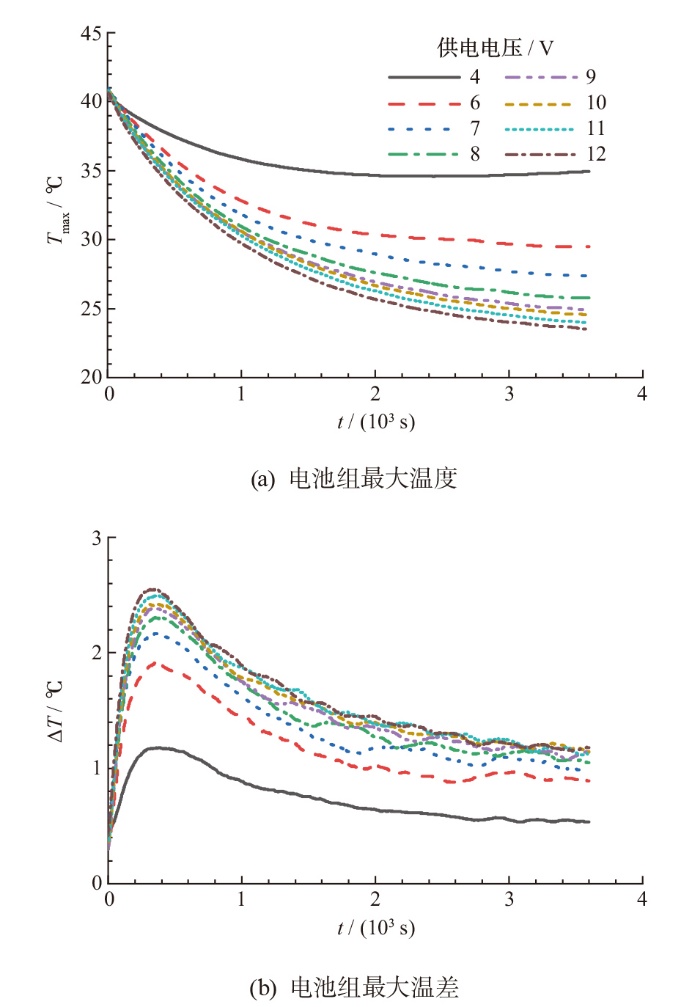

Conventional air cooling has limited heat dissipation capacity in hot summer environments and struggles to meet the heating needs of batteries in cold winter conditions. To address this issue, a battery thermal management system (BTMS) coupled with circulating air flow and thermoelectric devices (TEDs) was proposed. The circulating air flow inside the battery pack facilitated heat exchange between the batteries and the TEDs, and reversing the current direction of the TEDs enables flexible switching between heating and cooling modes. An experimental test bench was established to investigate the effects of ambient temperature, TED operating voltage, and battery discharge conditions on the thermal management performance. The results show that at an ambient temperature of -20 ℃, when heating the battery pack to 15 ℃ with a TED voltage of 6 V, the average temperature rise rate is 1.41 ℃ / min and the maximum temperature difference is 4.5 ℃. During 3 C-rate discharge at 40 ℃, the maximum temperature and maximum temperature difference of the battery pack are 45 ℃ and 4.3 ℃, respectively, representing reductions of 25% and 39.44% compared with the case without TED cooling (60 ℃ and 7.1 ℃, respectively). This study provides a feasible technical solution and experimental basis for battery thermal management over a wide temperature range.

Key words: thermoelectric devices (TEDs), battery thermal management system (BTMS), lithium-ion battery, circulating airflow, wide-temperature-range thermal control

CLC Number:

TM912

LIN Mingtong, WANG Qi, LIU Qiang, LIN Shanshan, ZHAO Yujie, YU Yang. Experimental study on a wide-temperature-range lithium-ion battery thermal management system based on thermoelectric devices-coupled forced air-cooled[J]. Journal of Automotive Safety and Energy, 2026, 17(4): 485-493.

Figures/Tables 12

References 24

[1]	Khoharo H, Selvaraj J, Hasanuzzaman M, et al. Global advancement, prospect and challenges of battery thermal management systems: A comprehensive review[J]. Renew Sustain Energ Revi, 2025, 222: 115923.
[2]	Tiwari M S, Sahdev R K, et al. Advancements and challen-ges in battery thermal management for electric vehicles[J]. Renew Sustain Energ Revi, 2025, 209: 115089.
[3]	贺元骅, 苏星辰, 赵梁. 动力锂离子电池主动热管理研究进展[J]. 清华大学学报(自然科学版), 2024, 65(9): 1-16.
	HE Yuanhua, SU Xingchen, ZHAO Liang. Research progress on active thermal management of power battery[J]. J Tsinghua Univ (Sci Tech), 2024, 65(9): 1-16. (in Chinese)
[4]	刘金祎, 王炎, 庞英杰, 等. 储能电站锂离子电池系统风液双循环优化设计[J]. 汽车安全与节能学报, 2025, 16(4): 568-576.
	LIU Jinwei, WANG Yan, PANG Yingjie, et al. Optimized design of wind-liquid double cycle for lithium-ion battery system in energy storage power station[J]. J Autom Safe Energ, 2025, 16(4): 568-576. (in Chinese)
[5]	WANG Yujie, ZHANG Xingchen, CHEN Zonghai. Low temperature preheating techniques for Lithium-ion batteries: Recent advances and future challenges[J]. Appl Energ, 2022, 313: 18832.
[6]	LV Youfu, LUO Weiming, LI Chuanchang, et al. Experi-mental study on the integrated thermal management system based on composite phase change materials coupled with metal heating film[J]. Appl Ther Engi, 2023, 221: 119840.
[7]	ZHANG Shunbo, HE Xuan, LONG Nanchong, et al. Improving the air-cooling performance for lithium-ion battery packs by changing the air flow pattern[J]. Appl Ther Engi, 2023, 221: 119825.
[8]	Junaid F P, Rakshit D, Saha B B. Converging passage: A strategy for uniform cell cooling in air-cooled battery thermal management system[J]. Ther Sci Engi Prog, 2025, 61: 103559.
[9]	WANG Zhaotian, GUAN Qingzhe, ZHANG Huibo, et al. Optimized design of liquid-cooled plate structure for flying car power battery system[J]. J Energy Stor, 2024, 97: 112720.
[10]	TANG Zhiguo, LI Xinghao, LI Yan, et al. Multi-objective optimization of parallel flow immersion cooling battery thermal management system with flow guide plates based on artificial neural network[J]. Appl Ther Engi, 2025, 274: 126833.
[11]	TONG Bang, SHI Junye, CAO Mingwei, et al. Comprehen-sive comparison study on battery thermal management modules with indirect and direct liquid cooling[J]. Appl Ther Engi, 2025, 268: 25945.
[12]	WANG Yichao, XU Xiaobin, HUANG Wenjun, et al. A versatile battery thermal management system based on thermoelectric devices for preheating and cooling[J]. Int’l J Ther Sci, 2025, 211: 109700.
[13]	KANG Zhuang, PENG Qingguo, YIN Ruixue, et al. Investigation of multifactorial effects on the thermal performance of battery pack inserted with multi-layer phase change materials[J]. Energy, 2024, 290: 130164.
[14]	XU Xiaobin, ZHU Jiajun, ZHANG Hengyun, et al. Low cost energy-efficient preheating of battery module integrated with air cooling based on a heat spreader plate[J]. Appl Ther Engi, 2023, 232: 121024.
[15]	YANG Wen, ZHOU Fei, LIU Yuchen, et al. Preheating performance by heating film for the safe application of cylindrical lithium-ion battery at low temperature[J]. Fire Tech, 2023, 59(3): 1115-1135.
[16]	LI Wei, XIE Yi, HU Xiaosong, et al. An internal heating strategy for lithium-ion batteries without lithium plating based on self-adaptive alternating current pulse[J]. IEEE Trans Vehi Tech, 2023, 72(5): 5809-5823.
[17]	Sirikasemsuk S, Wiriyasart S, Naphon P, et al. Thermal cooling characteristics of Li-ion battery pack with thermo-electric ferrofluid cooling module[J]. Int’l J Energ Res, 2021, 45(6): 8824-8836.
[18]	崔祥波. 动力锂离子电池温度分布建模、荷电状态估计及热调控策略研究[D]. 长沙: 中南大学, 2023.
	CUI Xiangbo. Research on temperature distribution modeling, state of charge estimation and thermal regulation strategy of power lithium-ion battery[D]. Changsha: Central South University, 2023. (in Chinese)
[19]	CUI Xiangbo, JIANG Shuxia. A novel temperature distri-bution modeling method for thermoelectric cooler with application to battery thermal management system[J]. Energy, 2024, 306: 132426.
[20]	ZHANG Yang, CUI He, FAN Yi, et al. Investigation of a novel lithium battery thermal management strategy by using thermoelectric technology[J]. Energy, 2025, 333: 137247.
[21]	Kellermann H, Fuhrmann S, Shamiyeh M, et al. Design of a battery cooling system for hybrid electric aircraft[J]. J Prop Power, 2022, 38(5): 736-751.
[22]	LUO Ding, WU Zihao, YAN Yuying, et al. Performance analysis of a battery thermal management system combi-ning thermoelectric, composite phase change material, and liquid cooling under extreme operating conditions[J]. J Energ Stor, 2024, 95: 112679.
[23]	Bell L E. Cooling, heating, generating power, and recover-ing waste heat with thermoelectric systems[J]. Sci, 2008, 321(5895): 1457-1461.
[24]	CAO Tianyi, SHI Xiaolei, LI Meng, et al. Advances in bismuth-telluride-based thermoelectric devices: Progress and challenges[J]. eSci, 2023, 3(3): 100122.

采样点	RSD(T_max) / %	占比/ %
365	0~0.3	13.16
555	0.3~0.6	20.01
504	0.6~0.9	18.18
557	0.9~1.2	20.09
545	1.2~1.5	19.65
247	1.5~1.8	8.91

采样点	RSD(T_max) / %	占比/ %
365	0~0.3	13.16
555	0.3~0.6	20.01
504	0.6~0.9	18.18
557	0.9~1.2	20.09
545	1.2~1.5	19.65
247	1.5~1.8	8.91

采样点	SD (∆T) / ℃	占比/ %
317	0~0.05	11.43
1 565	0.05~0.1	56.44
614	0.1~0.15	22.14
253	0.15~0.2	9.12
22	0.2~0.25	0.79
2	0.25~0.3	0.07

采样点	SD (∆T) / ℃	占比/ %
317	0~0.05	11.43
1 565	0.05~0.1	56.44
614	0.1~0.15	22.14
253	0.15~0.2	9.12
22	0.2~0.25	0.79
2	0.25~0.3	0.07

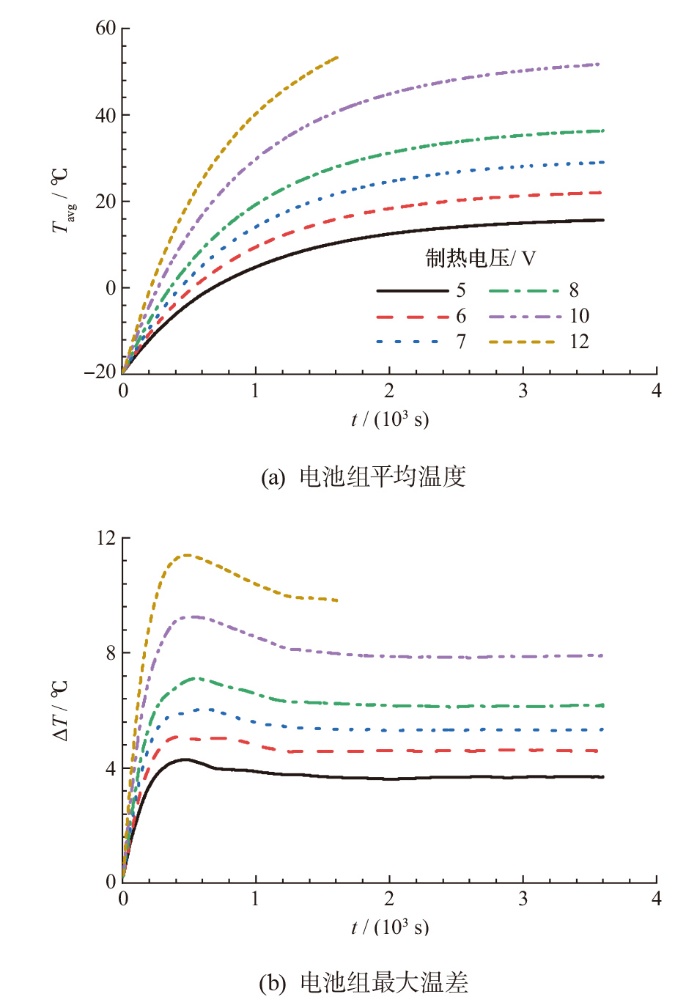

电压 V	加热时间 s	TEDs能耗 J	温升速率 (℃∙min^-1)	∆T ℃	η_heat %
5	2 995	58 344	0.70	3.6	15.01
6	1 491	41 825	1.41	4.5	10.76
7	1 056	40 320	1.99	5.6	10.37
8	811	40 445	2.59	6.8	10.40
10	555	43 247	3.78	9.3	11.12
12	421	47 239	4.99	11.2	12.15
