Yaw stability control of distributed-drive electric vehicles based on road adhesion coefficient estimation

doi:10.3969/j.issn.1674-8484.2026.04.002

Abstract

Abstract:

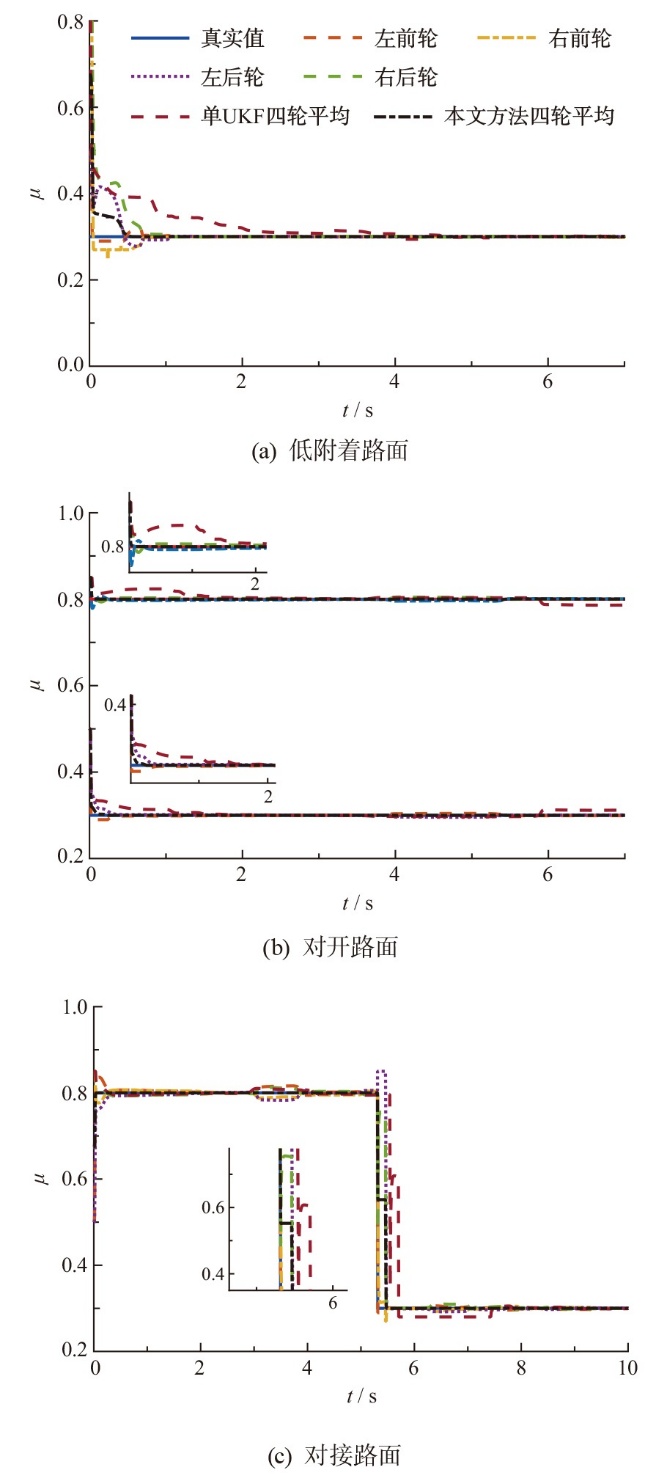

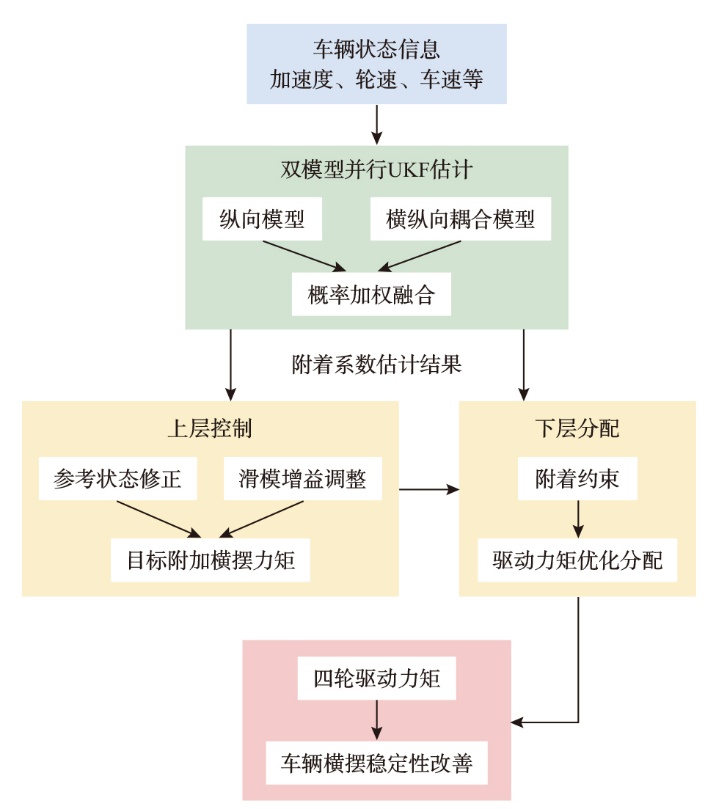

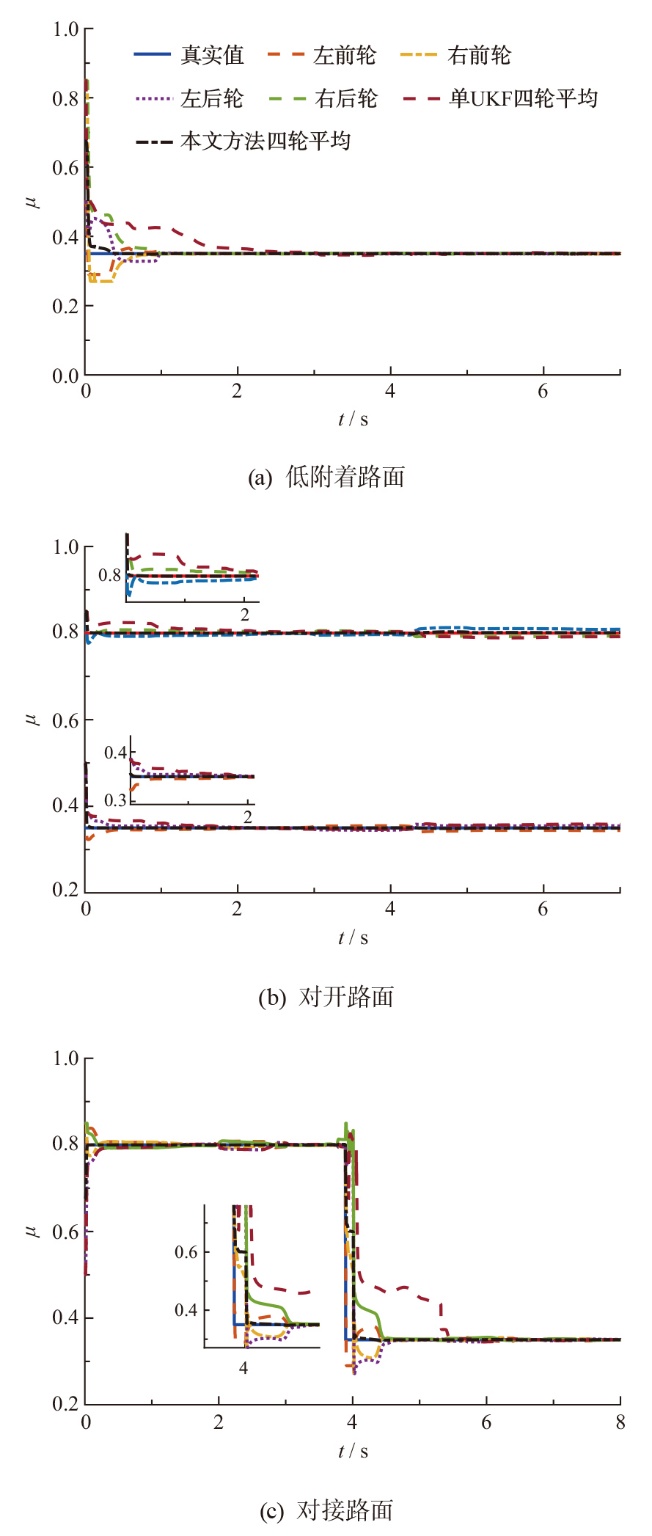

A yaw stability control strategy based on road adhesion coefficient estimation was proposed to address the yaw instability of distributed-drive electric vehicles under low-adhesion, split-μ, and abrupt road adhesion variation conditions. Considering the differences in the observability of adhesion information under different driving conditions, an online road adhesion coefficient estimation method was developed based on dual-model parallel unscented Kalman filtering (UKF). The estimated adhesion coefficient was then introduced to modify the constraints of the reference yaw rate and vehicle sideslip angle, and to adaptively tune the switching gain of the sliding mode controller. Meanwhile, in the lower-layer torque allocation, an optimal four-wheel drive torque allocation strategy based on adhesion constraints was established. The results show that, compared with the conventional sliding mode control strategy, the proposed method reduces the peak yaw rate by 15.19% and the peak vehicle sideslip angle by 22.90% on average, indicating that the proposed strategy can adapt to road adhesion changes in real time and effectively improve vehicle handling stability under complex road conditions.

Key words: distributed drive, road adhesion coefficient, unscented Kalman filter (UKF), direct yaw moment control, sliding mode control, torque distribution

CLC Number:

U461.6

CHEN Shuo, ZHANG Fengqi, FU Yeyu, XIE Shaobo. Yaw stability control of distributed-drive electric vehicles based on road adhesion coefficient estimation[J]. Journal of Automotive Safety and Energy, 2026, 17(4): 438-449.

Figures/Tables 9

References 22

[1]	牛强, 魏文军. 分布式驱动电车的多智能体协同驱动防滑控制[J]. 现代制造工程, 2025(8): 63-70.
	NIU Qiang, WEI Wenjun. Multi-agent cooperative drive anti-slip control for distributed drive electric vehicle[J]. Mode Manufact Engi, 2025(8): 63-70. (in Chinese)
[2]	李琴, 汤建明, 张博远, 等. 分布式驱动电动汽车多执行器容错控制研究[J]. 汽车工程, 2023, 45(12): 2251-2259.
	LI Qin, TANG Jianming, ZHANG Boyuan, et al. Research on fault-tolerant control of multi-actuator for distributed drive electric vehicles[J]. Autom Engineering, 2023, 45(12): 2251-2259. (in Chinese)
[3]	李壮. 分布式驱动电动汽车自适应巡航与转矩分配协同控制研究[D]. 南宁: 广西大学, 2025.
	LI Zhuang. Research on cooperative control of adaptive cruise and torque distribution for distributed drive electric vehicles[D]. Nanning: Guangxi University, 2025. (in Chinese)
[4]	ZHANG Xudong, Göhlich D. Integrated traction control strategy for distributed drive electric vehicles with impro-vement of economy and longitudinal driving stability[J]. Energies, 2017, 10(1): 126.
[5]	刘秋生, LAZARO Joan P. 紧急制动下基于DYC与AFS的横摆稳定性控制研究[J]. 计算机测量与控制, 2025, 33(8): 206-215, 241.
	LIU Qiusheng, LAZARO Joan P. Research on yaw stability control based on DYC and AFS during emergency braking[J]. Comput Measu Contr, 2025, 33(8): 206-215, 241. (in Chinese)
[6]	王震坡, 丁晓林, 张雷. 四轮轮毂电机驱动电动汽车驱动防滑控制关键技术综述[J]. 机械工程学报, 2019, 55(12): 99-120.
	WANG Zhenpo, DING Xiaolin, ZHANG Lei. Overview on key technologies of acceleration slip regulation for four-wheel-independently-actuated electric vehicles[J]. J Mech Engi, 2019, 55(12): 99-120. (in Chinese)
[7]	Šabanovič E, Žuraulis V, Prentkovskis O, et al. Identifica-tion of road-surface type using deep neural networks for friction coefficient estimation[J]. Sensors, 2020, 20(3): 612.
[8]	张雷, 关可人, 丁晓林, 等. 基于图像识别与动力学融合的路面附着系数估计方法[J]. 汽车工程, 2023, 45(7): 1222-1234, 1262.
	ZHANG Lei, GUAN Keren, DING Xiaolin, et al. Tire-road friction estimation method based on image recogni-tion and dynamics fusion[J]. Autom Engineering, 2023, 45(7): 1222-1234, 1262. (in Chinese)
[9]	SHAO Liang, JIN Chi, Lex C, et al. Robust road friction estimation during vehicle steering[J]. Vehi Syst Dyna, 2019, 57(4): 493-519.
[10]	YIN Yuming, Li S E, Tang K, et al. Approximate optimal filter design for vehicle system through actor-critic reinfor-cement learning[J]. Autom Innov, 2022, 5(4): 415-426.
[11]	XU Ying, Chen B, CHI Cheng. Estimation of road friction coefficient and vehicle states by 3-DOF dynamic model and HSRI model based on information fusion[J]. Asian J Contr, 2018, 20(3): 1067-1076.
[12]	Wielitzka M, Ortmaier T. Credibility of state and friction coefficient estimation in vehicle dynamics using UKF[C]// 2019 IEEE 58th Conf Deci Contr (CDC). IEEE, 2019: 3922-3927.
[13]	Asiabar A N, Kazemi R. A direct yaw moment controller for a four in-wheel motor drive electric vehicle using adaptive sliding mode control[J]. Proc Institut Mech Engi, Part K: J Multi-Body Dyna, 2019, 233(3): 549-567.
[14]	刘学成, 刘俊, 李汉杰. 基于相平面法的车辆直接横摆力矩控制研究[J]. 合肥工业大学学报(自然科学版), 2019, 42(11): 1455-1461.
	LIU Xuecheng, LIU Jun, LI Hanjie. Research on direct yaw moment control of vehicle based on phase plane method[J]. J Hefei Univ Tech (Nat Sci), 2019, 42(11): 1455-1461. (in Chinese)
[15]	张一西, 赵轩, 马建, 等. 基于NFTSMC的分布式驱动电动汽车稳定性控制[J]. 汽车安全与节能学报, 2023, 14(2): 212-223.
	ZHANG Yixi, ZHAO Xuan, MA Jian, et al. Stability control of distributed drive electric vehicles based on the nonsingular fast terminal sliding mode control (NFTSMC)[J]. J Autom Safe Energ, 2023, 14(2): 212-223. (in Chinese)
[16]	JIN Lisheng, ZHOU Heping, XIE Xianyi, et al. A direct yaw moment control frame through model predictive control considering vehicle trajectory tracking performance and handling stability for autonomous driving[J]. Contr Engi Pract, 2024, 148: 105947.
[17]	LIU Hui, LIU Cong, HAN Lijin, et al. Handling and stability integrated control of AFS and DYC for distributed drive electric vehicles based on risk assessment and prediction[J]. IEEE Trans Intel Transport Syst, 2022, 23(12): 23148-23163.
[18]	WU Xiru, HUANG Yuyuan. Adaptive fractional-order non-singular terminal sliding mode control based on fuzzy wavelet neural networks for omnidirectional mobile robot manipulator[J]. ISA Transactions, 2022, 121: 258-267.
[19]	连晋毅, 王坤, 任艳强. 分布驱动式纯电动汽车直接横摆力矩控制研究[J]. 机械设计与制造, 2023(11): 149-155.
	LIAN Jinyi, WANG Kun, REN Yanqiang. Research on direct yaw moment control of distributed drive pure electric vehicle[J]. Mach Desig Manuf, 2023(11): 149-155. (in Chinese)
[20]	YANG Zhi, CHEN Yunxing, CHENG Qingsi, et al. Research on yaw stability control for distributed-drive pure electric pickup trucks[J]. World Elect Vehi J. 2025, 16(9): 534.
[21]	LIU Shuiku, ZHANG Haichuan, WANG Shu, et al. Hiera-rchical torque vectoring control strategy of distributed driving electric vehicles considering stability and economy[J]. Sensors. 2025, 25(13): 3933.
[22]	邓浩楠, 赵治国, 赵坤, 等. 四驱车辆交互式多模型自适应无迹卡尔曼滤波路面附着系数估计[J]. 汽车工程, 2024, 46(8): 1357-1369.
	DENG Haonan, ZHAO Zhiguo, ZHAO Kun, et al. Estima-tion of road adhesion coefficient using interactive multiple model adaptive Unscented Kalman Filter for 4WID vehicles[J]. Autom Engineering, 2024, 46(8): 1357-1369. (in Chinese)

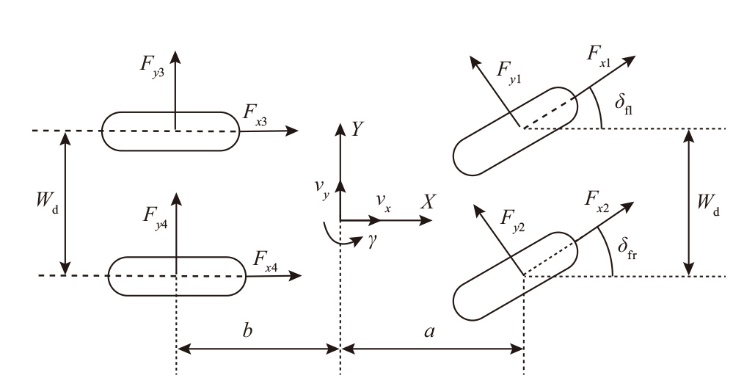

整车质量，m	1 447.2 kg
横摆转动惯量，I_z	1 536.7 kg·m²
质心到前轴距离，a	1.015 m
质心到后轴距离，b	1.895 m
前轮侧偏刚度，C_f	-85 kN / rad
后轮侧偏刚度，C_r	-59 kN / rad
轮距，W_d	1.675 m
车轮半径，R	0.325 m

整车质量，m	1 447.2 kg
横摆转动惯量，I_z	1 536.7 kg·m²
质心到前轴距离，a	1.015 m
质心到后轴距离，b	1.895 m
前轮侧偏刚度，C_f	-85 kN / rad
后轮侧偏刚度，C_r	-59 kN / rad
轮距，W_d	1.675 m
车轮半径，R	0.325 m

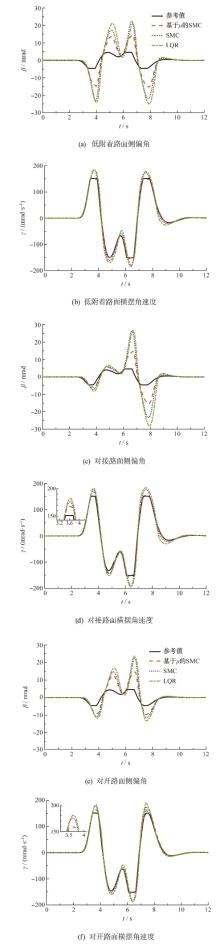

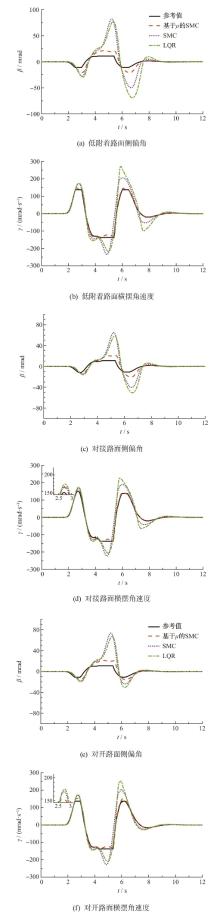

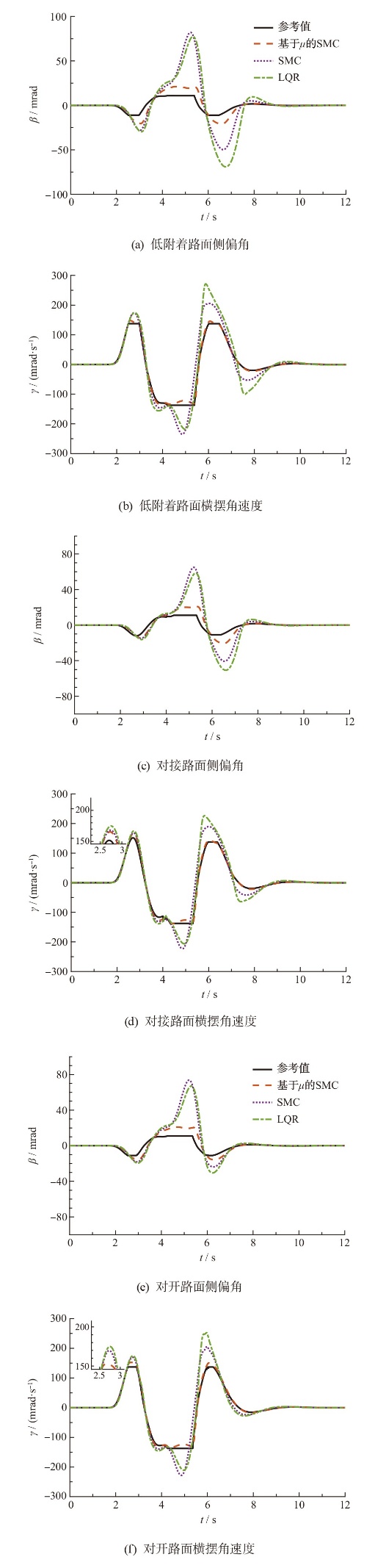

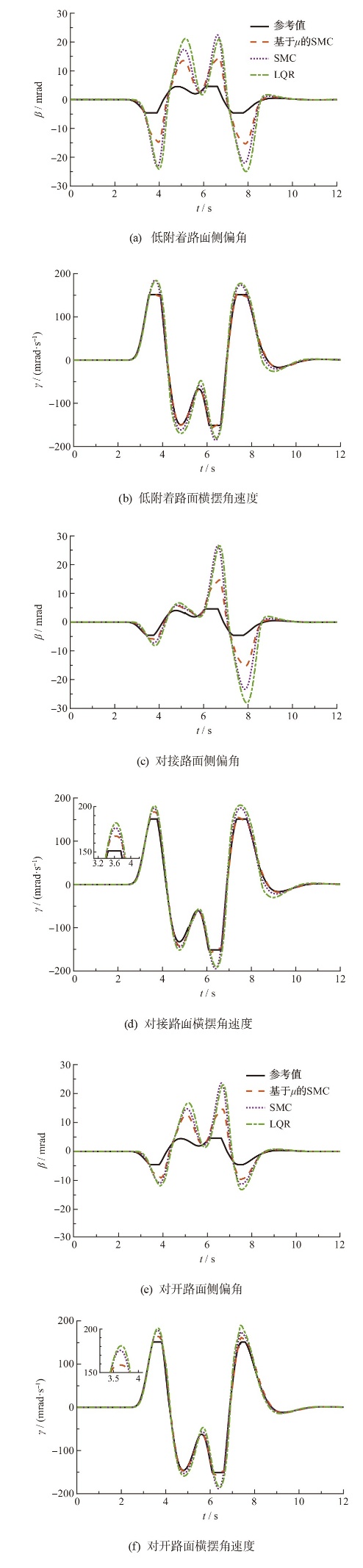

	工况	β峰值降低率/ %	γ峰值降低率/ %
SMC相比 LQR	低速、低附着	15.26	11.03
	低速、对开	15.11	6.94
	低速、对接	15.64	7.53
	高速、低附着	34.51	28.41
	高速、对开	20.06	16.11
	高速、对接	27.24	17.20
基于μ的 SMC相比 SMC	低速、低附着	17.19	10.97
	低速、对开	8.34	4.52
	低速、对接	22.54	10.26
	高速、低附着	36.97	25.37
	高速、对开	25.04	16.90
	高速、对接	27.34	23.09

	工况	β峰值降低率/ %	γ峰值降低率/ %
SMC相比 LQR	低速、低附着	15.26	11.03
	低速、对开	15.11	6.94
	低速、对接	15.64	7.53
	高速、低附着	34.51	28.41
	高速、对开	20.06	16.11
	高速、对接	27.24	17.20
基于μ的 SMC相比 SMC	低速、低附着	17.19	10.97
	低速、对开	8.34	4.52
	低速、对接	22.54	10.26
	高速、低附着	36.97	25.37
	高速、对开	25.04	16.90
	高速、对接	27.34	23.09

控制算法	工况	RMSE (β) rad	RMSE (γ) (rad·s^-1)	a_y峰值 g
LQR	低速、低附着	0.006 84	0.013 83	0.285 2
	低速、对开	0.005 49	0.013 34	0.349 6
	低速、对接	0.005 91	0.012 99	0.322 6
	高速、低附着	0.005 62	0.014 43	0.348 9
	高速、对开	0.019 35	0.032 96	0.480 5
	高速、对接	0.009 35	0.021 81	0.412 7
SMC	低速、低附着	0.005 86	0.007 04	0.284 9
	低速、对开	0.004 90	0.008 58	0.332 4
	低速、对接	0.005 35	0.008 69	0.296 7
	高速、低附着	0.004 91	0.008 96	0.345 1
	高速、对开	0.016 24	0.027 09	0.435 1
	高速、对接	0.008 33	0.019 36	0.409 1
基于μ的SMC	低速、低附着	0.004 21	0.004 84	0.277 7
	低速、对开	0.004 15	0.007 12	0.324 0
	低速、对接	0.004 03	0.005 29	0.283 9
	高速、低附着	0.004 54	0.006 47	0.327 2
	高速、对开	0.004 90	0.005 44	0.361 1
	高速、对接	0.004 82	0.005 83	0.349 3
