Economic feasibility analysis on low-cost hydrogen utilization in China's hydrogen-powered transportation

doi:10.3969/j.issn.1674-8484.2026.01.012

Abstract

Abstract:

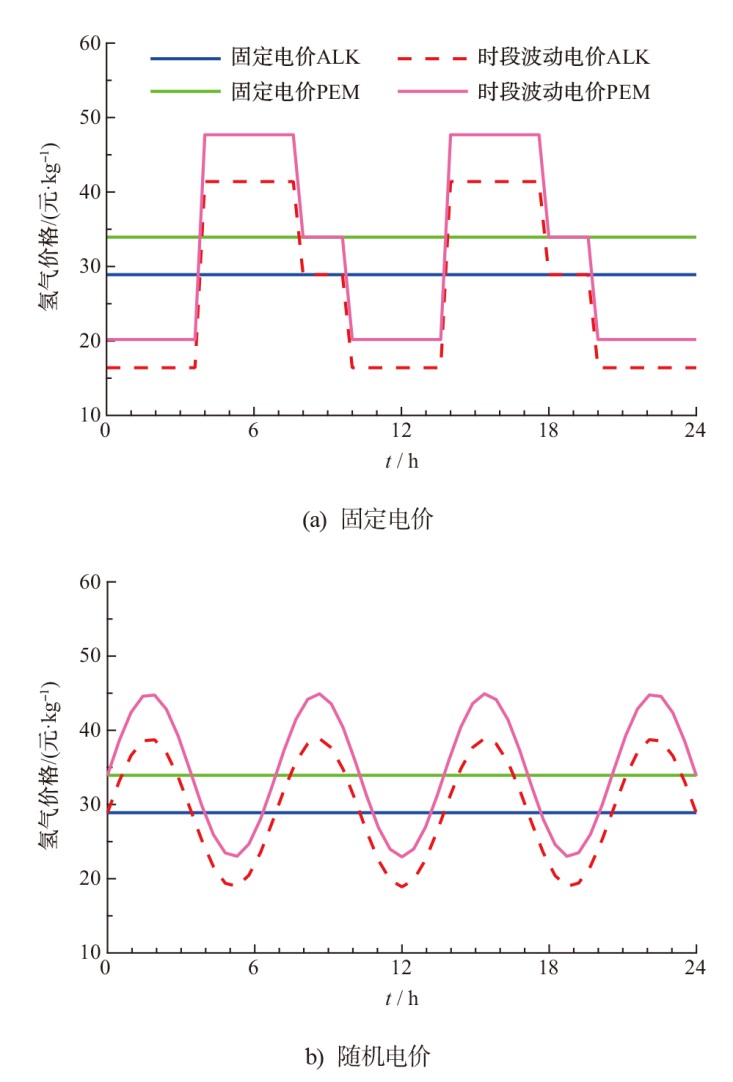

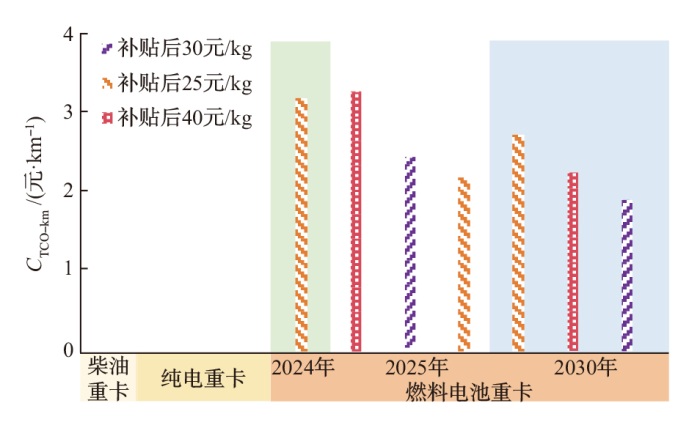

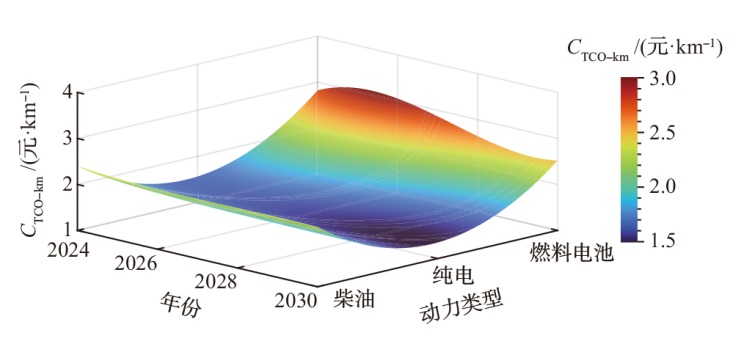

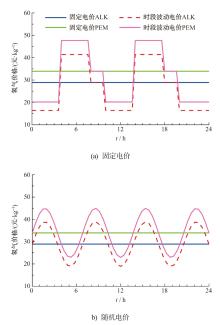

The cost components and influencing factors of hydrogen production via water electrolysis was systematically analyzed to evaluate the economic viability and development potential of hydrogen fuel cell heavy-duty trucks (HFC-HDTs). Focusing on 49-ton heavy-duty trucks, the total cost of ownership (TCO) of HFC-HDTs, battery electric trucks, and diesel trucks was compared, while the predicting future cost reduction trends was predicted. The results indicate that grid stability and electricity price fluctuations significantly affect the economics of electrolytic hydrogen production. Driven by policy subsidies and technological advancements, the cost of HFC-HDTs in 2024 is 2.82 CNY/km, approaching the 2.30 CNY/km of diesel trucks. Furthermore, cost parity between hydrogen and diesel is expected to be achieved by 2030 if the hydrogen price drops to 30 CNY/kg, and by 2025 if the price falls to 25 CNY/kg. Consequently, with the significant reduction in vehicle manufacturing costs, HFC-HDTs are poised to achieve cost competitiveness against diesel trucks in the future, provided that hydrogen prices decrease further.

Key words: hydrogen-powered transportation, electrolytic hydrogen production, total cost of ownership (TCO), economic feasibility, cost forecasting

CLC Number:

TM911

ZHAO Jiayi, HU Wenyu, LIAO Mengke, HAN Tianyi, ZHOU Honglian, LI Zhongzheng. Economic feasibility analysis on low-cost hydrogen utilization in China's hydrogen-powered transportation[J]. Journal of Automotive Safety and Energy, 2026, 17(1): 114-121.

Figures/Tables 9

References 16

[1]	国务院. 国家中长期科学和技术发展规划纲要(2006—2020年)[EB/OL]. (2006-02-09) [2023-10-20] http://www.gov.cn/zwgk/2006-02/09/content_183787.htm.
	The State Council. National medium-and long term plan for science and technology development (2006-2020)[EB/OL]. (2006-02-09) [223-10-20] http://www.gov.cn/zwgk/2006-02/09/content_183787.htm. (in Chinese)
[2]	国务院. 节能与新能源汽车产业发展规划(2012-2020年)[EB/OL]. (2012-07-09) [2023-10-20] http://www.gov.cn/zwgk/2012-07/09/content_2179032.htm.
	The State Council. Development plan for energy conservation and new energy vehicle industry (2012-2020)[EB/OL]. (2012-07-09) [2023-10-20] http://www.gov.cn/zwgk/2012-07/09/content_2179032.htm. (in Chinese)
[3]	国务院办公厅. 能源发展战略行动计划(2014-2020年)[EB/OL]. (2014-06-07) [2023-10-20] http://www.gov.cn/zhengce/content/2014-11/19/content_9212.htm.
	The General Office of the State Council. Energy Development Strategy Action Plan (2014-2020)[EB/OL]. (2014-06-07) [2023-10-20] http://www.gov.cn/zhengce/content/2014-11/19/content_9212.htm. (in Chinese)
[4]	财政部, 工业和信息化部, 科技部, 国家发展改革委, 国家能源局. 关于开展燃料电池汽车示范应用的通知:财建〔2020〕394号[EB/OL]. (2020-09-16) [2023-10-20] http://jjs.mof.gov.cn/zhengcefagui/202009/t20200921_3594054.htm.
	Ministry of Finance of the People's Republic of China, Ministry of Industry and Information Technology, Ministry of Science and Technology, National Development and Reform Commission, National Energy Administration. Notice on carrying out demonstration applications of fuel cell vehicles: Caijian [2020] No. 394[EB/OL]. (2020-09-16) [2022-10-20] http://jjs.mof.gov.cn/zhengcefagui/202009/t20200921_3594054.htm. (in Chinese)
[5]	国家发展改革委, 国家能源局. 氢能产业发展中长期规划(2021—2035年):发改能源〔2022〕567号[EB/OL]. (2022-03-23) [2023-10-20] http://www.gov.cn/zhengce/zhengceku/2022-03/23/content_5680760.htm.
	National Development and Reform Commission, National Energy Administration. Medium and long term plan for the development of hydrogen energy industry (2021—2035): NDRC Energy [2022] No. 567 [EB/OL]. (2022-03-23) [2022-10-20] http://www.gov.cn/zhengce/zhengceku/2022-03/23/content_5680760.htm. (in Chinese)
[6]	节能与新能源汽车技术路线战略咨询委员会, 中国汽车工程学会. 节能与新能源汽车技术路线图[M]. 北京: 机械工业出版社, 2016: 1-448.
	Energy Saving and New Energy Vehicle Technology Route Strategy Advisory Committee, China Automotive Engineering Institute. Road Map of Energy Saving and New Energy Vehicle Technology[M]. Beijing: Machinery Industry Press, 2016: 1-448. (in Chinese)
[7]	宋大凤, 吴西涛, 曾小华, 等. 基于理论油耗模型的轻混重卡全生命周期成本分析[J]. 吉林大学学报(工学版), 2018, 48(5): 1313-1323.
	SONG Dafeng, WU Xitao, ZENG Xiaohua, et al. Life cycle cost analysis of light hybrid heavy-duty trucks based on theoretical fuel consumption model[J]. *J Jilin Univ (Engi Edit)*, 2018, 48(5): 1313-1323. (in Chinese)
[8]	杜黎, 杜小建. 重型卡车全生命周期成本管理[J]. 汽车工程师, 2018(8): 17-18.
	DU Li, DU Xiaojian. Full lifecycle cost management of heavy-duty trucks[J]. *Autom Engineer*, 2018(8): 17-18. (in Chinese)
[9]	张磊, 谢南宏, 曹田田, 等. 氢能在交通领域的应用及燃料电池汽车成本分析[J]. 石油石化绿色低碳, 2022, 7(4): 1-5, 30.
	ZHANG Lei, XIE Nanhong, CAO Tiantian, et al. Application of hydrogen energy in transportation and cost analysis of fuel cell vehicles[J]. *Petrol Petrochem Green Low Carb*, 2022, 7(4): 1-5, 30. (in Chinese)
[10]	McQueen S, Stanford J, Satyapal S, et al. Department of energy hydrogen program plan[R]. U S Department of Energy (USDOE), Washington, DC (United States), 2020.
[11]	Lee J, Usman M, Park S, et al. Development of dehydroge-nation system for liquid organic hydrogen carrier with enhanced reaction rate[J]. *Appl Sci*, 2024, 14(13): 5803. doi: 10.3390/app14135803 URL
[12]	王明华, 王雯, 陈泽宇, 等. 中国氢燃料电池重型卡车的总拥有成本分析[J]. 汽车安全与节能学报, 2023, 14(6): 762-773.
	WANG Minghua, WANG Wen, CHEN Zeyu, et al. Analysis of total cost of ownership of heavy duty hydrogen fuel cell trucks in China[J]. *J Autom Safe Energ*, 2023, 14(6): 762-773. (in Chinese)
[13]	Buttler A, Spliethoff H. Current status of water electrolysis for energy storage, grid balancing and sector coupling via power-to-gas and power-to-liquids: A review[J]. *Renew Sustain Energ Rev*, 2018, 82: 2440-2454. doi: 10.1016/j.rser.2017.09.003 URL
[14]	Serban E, Ordonez M, Pondiche C. Voltage and frequency grid support strategies beyond standards[J]. *IEEE Trans Power Elect*, 2016, 32(1): 298-309. doi: 10.1109/TPEL.2016.2539343 URL
[15]	中国汽车工业协会. 2025年商用车新能源化白皮书[R/OL]. 北京: 中国汽车工业协会, 2025. [2025-12-16]https://www.caam.org.cn/report/2025-commercial-vehicle-electrification.
	China Association of Automobile Manufacturers. 2025 White paper on new energy conversion of commercial vehicles[R/OL]. Beijing: China Association of Automobile Manufacturers, 2025. [2025-12-16] https://www.caam.org.cn/report/2025-commercial-vehicle-electrification. (in Chinese)
[16]	谭旭光, 余卓平. 燃料电池商用车产业发展现状与展望[J]. 中国工程科学, 2020, 22(5): 152-158. doi: 10.15302/J-SSCAE-2020.05.019
	TAN Xuguang, YU Zhuoping. Current development status and prospects of the fuel cell commercial vehicle industry[J]. *China Engi Sci*, 2020, 22(5): 152-158. (in Chinese)

参数	PEM电解槽	ALK电解槽
每千克H₂能耗/ (kWh · kg^-1)	55~65	55~65
制氢理论能耗/ (kWh · kg^-1)	39.4	39.4
电解槽规模/MW	1~20	5~100
电解槽效率/ %	60~70	65~75
电解槽成本/(元 · kW^-1)	6 000~12 000	3 000~5 000
基础设施成本/(元 · kW^-1)	800~2 500	500~2 000
人工费用/(万元 · 年^-1)	50~200	50~150

参数	PEM电解槽	ALK电解槽
每千克H₂能耗/ (kWh · kg^-1)	55~65	55~65
制氢理论能耗/ (kWh · kg^-1)	39.4	39.4
电解槽规模/MW	1~20	5~100
电解槽效率/ %	60~70	65~75
电解槽成本/(元 · kW^-1)	6 000~12 000	3 000~5 000
基础设施成本/(元 · kW^-1)	800~2 500	500~2 000
人工费用/(万元 · 年^-1)	50~200	50~150

分类	指标	柴油重卡		纯电重卡		燃料电池重卡
分类	指标	2024	2024	2025	2030	2024	2025	2030
动力需求与效率	总轴重/t	49	49	49	49	49	49	49
	续航里程/km	500	500	500	500	500	500	500
	车辆驱动能量需求/kWh	600	600	600	600	600	600	600
	传动系统效率/ %	82.3	83.6	85.0	90.0	82.3	85.0	90.0
	动力源效率/ %	40.0	91.0	92.0	95.0	50.0	55.0	60.0
	主动力源额定功率/kW	460	220	220	220	180	240	240
能耗与燃料需求	实际驱动能量消耗/kWh	1 822.6	-	783.2	767.3	701.8	-	1 357.5
	燃料需求量/kg	153.7	0.0	0.0	0.0	40.4	38.2	33.1
	百千米燃料消耗/ (kWh · kg^-1)	30.7	162.0	153.5	140.4	8.2	7.6	6.6
	燃料低热值/ (kJ · kg^-1)	42 700	-	-	-	120 900	120 900	120 900
成本构成	燃料价格/ (元 · kg^-1)或[元 · (kWh)^-1]	7.5	1.0	1.0	1.0	25 (无补贴)	40 (补贴后)	40 (不补贴)
	动力系统寿命/ (10⁴ km)	100	100	100	100	100	100	100
	储能价格/[元 · (kWh)^-1]或(元 · kg^-1)	-	800	750	500	2 500	2 000	1 000
	主动力源单价/[元 · (kWh)^-1]	-	-	-	-	4 000	1 000	500
	动力电池系统购置成本/万元	0.0	48.0	45.0	30.0	15.0	10.0	7.5
	储氢系统成本/万元	0	0	0	0	20	7.6	3.3
	主动力源购置成本/万元	12	0	0	0	60	24	12
	传动驱动系统购置成本/万元	5	5	5	5	5	5	5
C_TCO	能源成本/万元	230.6	156.1	153.5	140.4	282.2	305.7	264.7
C_TCO	维护成本/万元	20	20	20	20	20	20	20

分类	指标	柴油重卡		纯电重卡		燃料电池重卡
分类	指标	2024	2024	2025	2030	2024	2025	2030
动力需求与效率	总轴重/t	49	49	49	49	49	49	49
	续航里程/km	500	500	500	500	500	500	500
	车辆驱动能量需求/kWh	600	600	600	600	600	600	600
	传动系统效率/ %	82.3	83.6	85.0	90.0	82.3	85.0	90.0
	动力源效率/ %	40.0	91.0	92.0	95.0	50.0	55.0	60.0
	主动力源额定功率/kW	460	220	220	220	180	240	240
能耗与燃料需求	实际驱动能量消耗/kWh	1 822.6	-	783.2	767.3	701.8	-	1 357.5
	燃料需求量/kg	153.7	0.0	0.0	0.0	40.4	38.2	33.1
	百千米燃料消耗/ (kWh · kg^-1)	30.7	162.0	153.5	140.4	8.2	7.6	6.6
	燃料低热值/ (kJ · kg^-1)	42 700	-	-	-	120 900	120 900	120 900
成本构成	燃料价格/ (元 · kg^-1)或[元 · (kWh)^-1]	7.5	1.0	1.0	1.0	25 (无补贴)	40 (补贴后)	40 (不补贴)
	动力系统寿命/ (10⁴ km)	100	100	100	100	100	100	100
	储能价格/[元 · (kWh)^-1]或(元 · kg^-1)	-	800	750	500	2 500	2 000	1 000
	主动力源单价/[元 · (kWh)^-1]	-	-	-	-	4 000	1 000	500
	动力电池系统购置成本/万元	0.0	48.0	45.0	30.0	15.0	10.0	7.5
	储氢系统成本/万元	0	0	0	0	20	7.6	3.3
	主动力源购置成本/万元	12	0	0	0	60	24	12
	传动驱动系统购置成本/万元	5	5	5	5	5	5	5
C_TCO	能源成本/万元	230.6	156.1	153.5	140.4	282.2	305.7	264.7
C_TCO	维护成本/万元	20	20	20	20	20	20	20

动力	时间	H₂价格/(元 · kg^-1)	C_TCO/万元	C_TCO-km/(元 · km^-1)
柴油	2024	/	230.6 ^[8]	2.30
纯电	2024	/	156.1 ^[15]	1.56
	2025	/	153.5	1.53
	2030	/	140.4	1.40
燃料电池	2024	25(无补贴)	282.2	2.82
	2025	40(无补贴)	305.7	3.05
	2030	40(无补贴)	264.7	2.64
