Research on thermal spread laws of lithium-ion batteries in enclosed spaces

doi:10.3969/j.issn.1674-8484.2026.01.011

Abstract

Abstract:

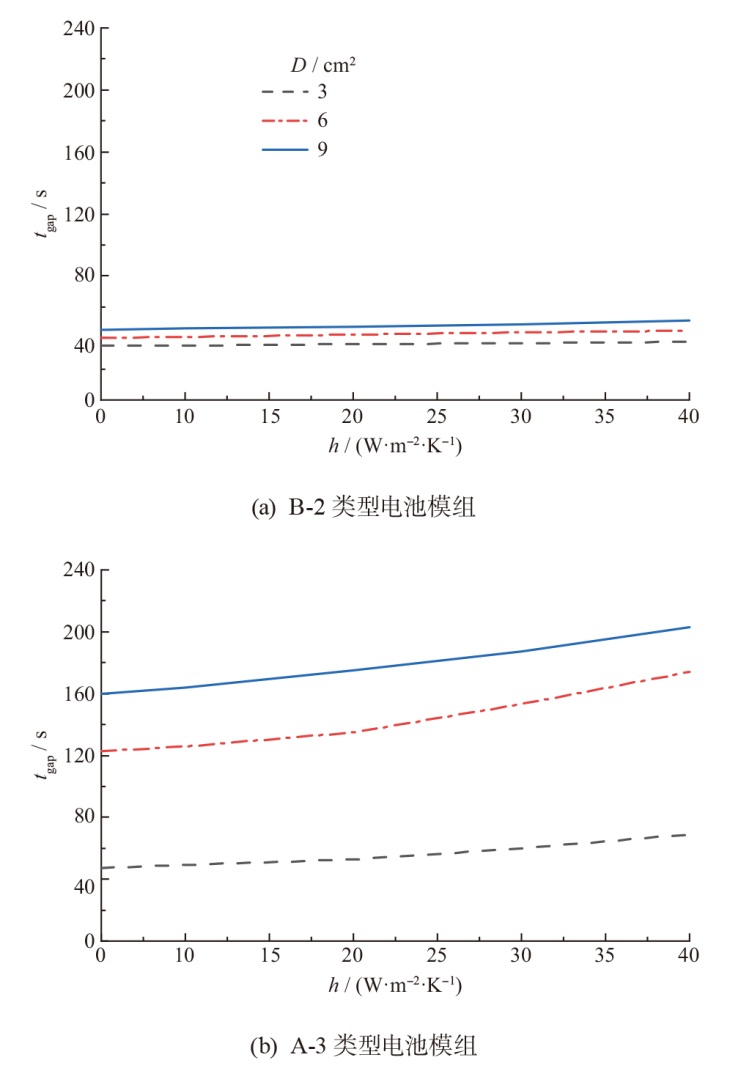

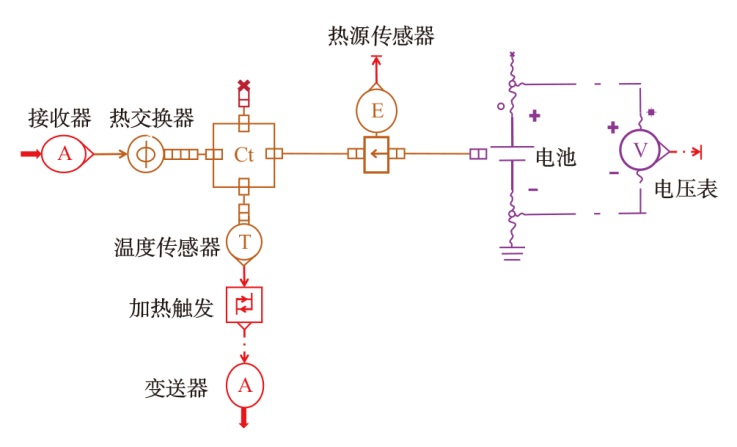

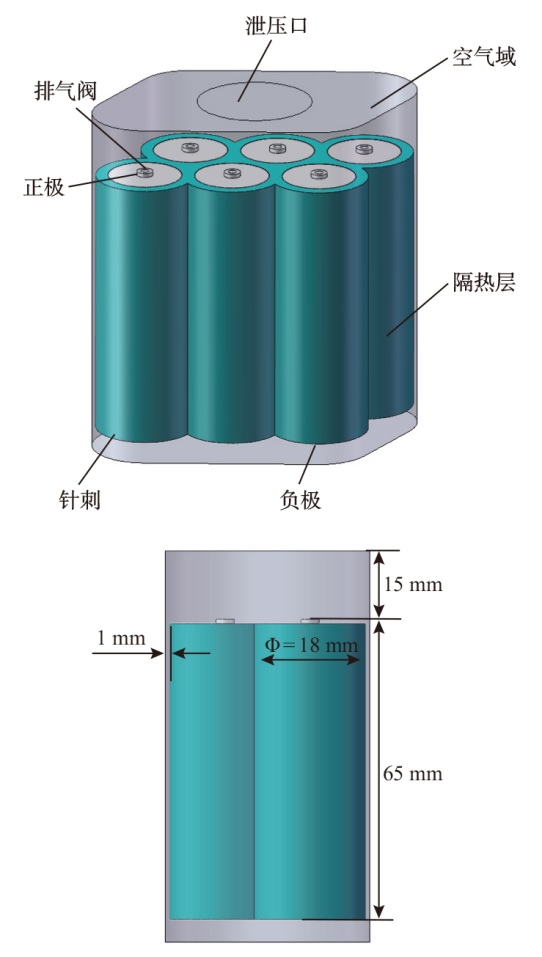

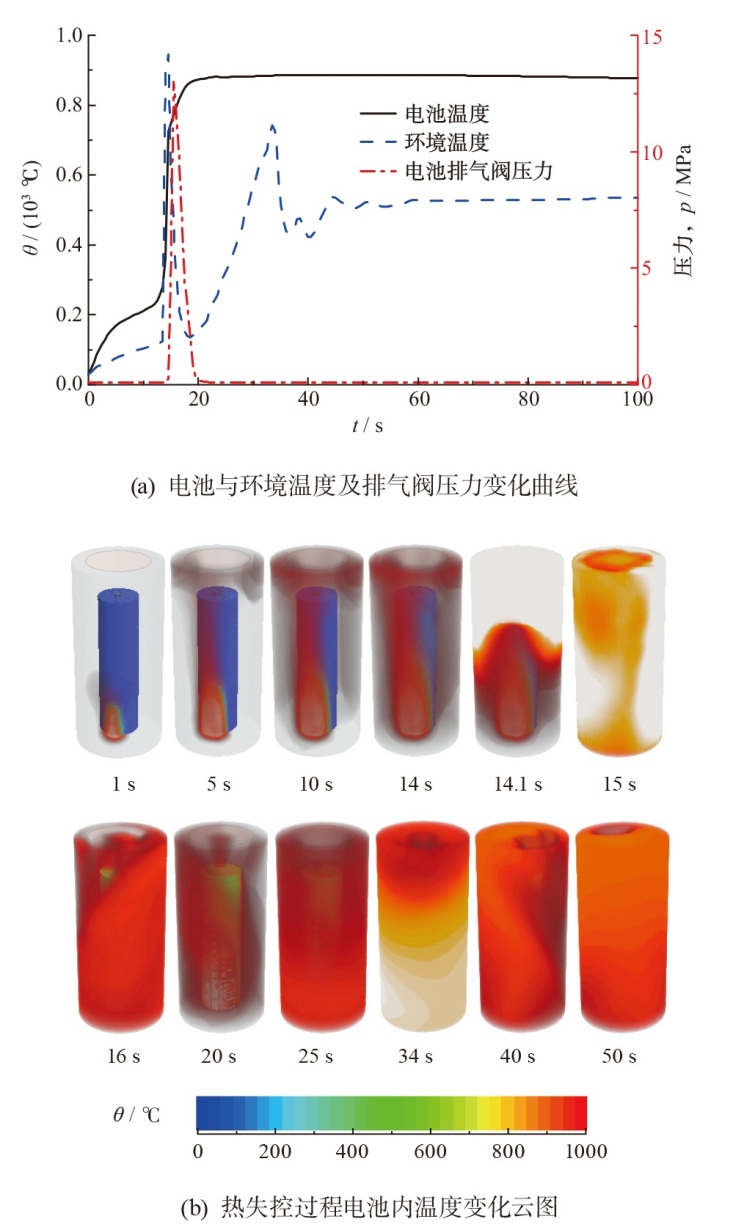

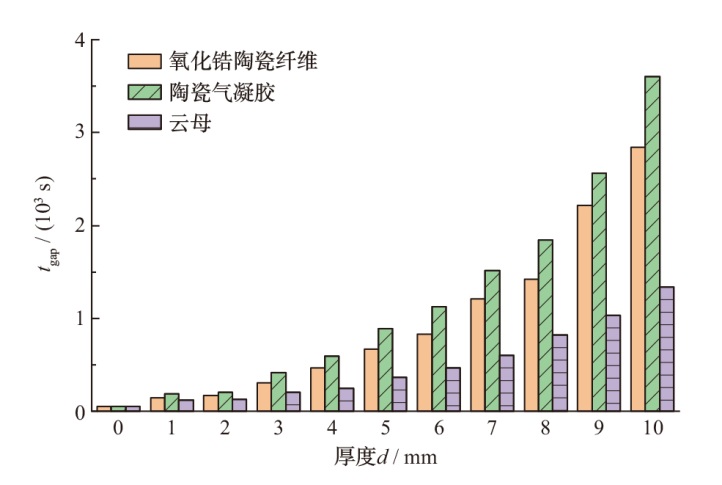

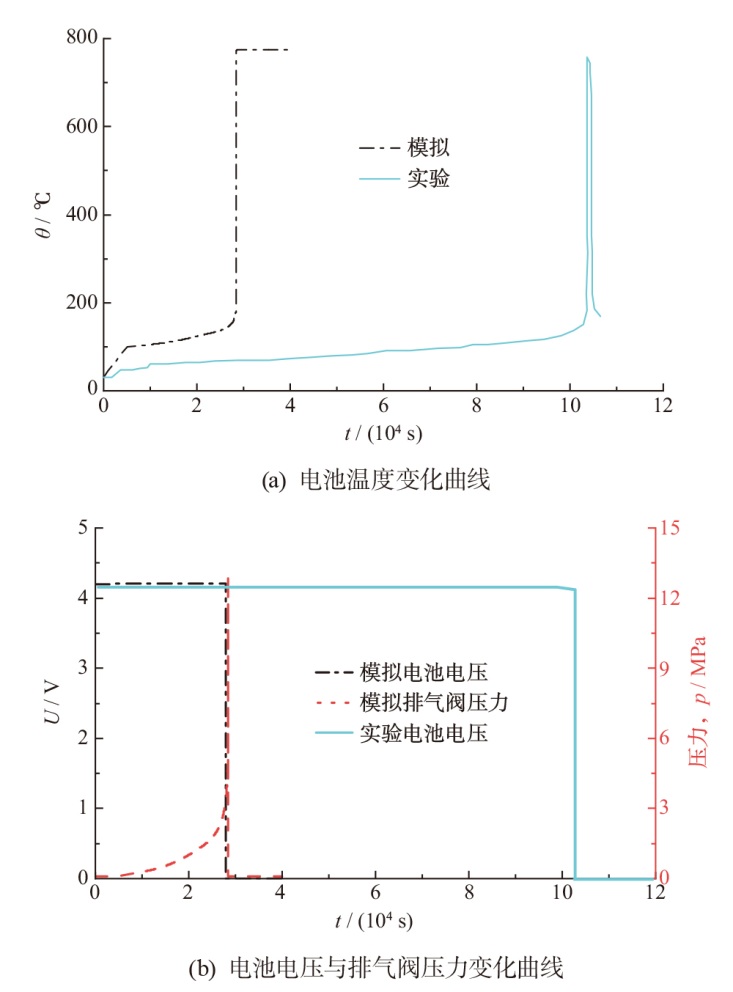

Using the high-energy-density ternary lithium-ion battery model LGMJ1 as the subject of investigation, the research integrated experimental data with chemical reaction kinetic modeling to conduct coupled one-dimensional and three-dimensional numerical simulations to investigate the propagation characteristics of thermal runaway in confined environments and evaluate protective strategies for lithium-ion batteries. The impact of three key parameters—the pressure-relief vent area, the air convective heat transfer coefficient, and the thermal insulation layer properties—on thermal propagation within a battery module was investigated, based on a coupled thermal-gas dynamics model developed using Amesim and STAR-CCM+. The results show that the arrangement of battery modules has a significant impact on battery thermal propagation. The fewer adjacent contact batteries with the triggering cells, the easier it is to trigger battery thermal propagation. Coordinated optimization of the vent area and convective cooling conditions can achieve efficient suppression of the thermal propagation process. Among the insulation materials, ceramic aerogel has the best performance and can effectively inhibit the propagation of thermal runaway.

Key words: ternary lithium battery, enclosed environment, thermal-gas coupling, thermal runaway propagation, insulation, needle acupuncture

CLC Number:

TM911

FENG Xupeng, LI Chengbing, LI Rui, XIAO Ke, PENG Junheng, WU Sixiang, LIU Bohao. Research on thermal spread laws of lithium-ion batteries in enclosed spaces[J]. Journal of Automotive Safety and Energy, 2026, 17(1): 104-113.

Figures/Tables 14

References 28

[1]	朱亚宁, 张振东, 盛雷, 等. 21700锂离子电池在不同SOC下的热失控实验研究[J]. 汽车安全与节能学报, 2024, 15(2): 218-225.
	ZHU Yaning, ZHANG Zhendong, SHENG Lei, et al. Experimental study on thermal runaway of 21700 lithium ion battery under different SOCs[J]. *J Autom Safe Energ*, 2024, 15(2): 218-225. (in Chinese)
[2]	匡柯, 任东生, 韩雪冰, 等. 车用大尺寸锂离子动力电池性能的仿真与分析[J]. 汽车安全与节能学报, 2021, 12(1): 116-124.
	Kuang Ke, REN Dongsheng, HAN Xuebing, et al. Simulation and analysis of performance of size lithium ion power batteries for vehicles[J]. *J Autom Safe Energ*, 2021, 12(1): 116-124. (in Chinese)
[3]	徐晓明, 袁秋奇, 张扬军, 等. 极耳侧加热条件下锂离子电池热失控的数值分析[J]. 汽车安全与节能学报, 2020, 11(3): 388-396
	XU Xiaoming, YUAN Qiuqi, ZHANG Yangjun, et al. Numerical analysis of thermal runaway in lithium ion batteries under tab side heating conditions[J]. *J Autom Safe Energ*, 2020, 11(3): 388-396. (in Chinese)
[4]	Gi-Heon K, Pesaran A, Spotnitz R. A three-dimensional thermal abuse model for lithium-ion cells[J]. *J Power Sources, 2007, 170*(2): 476-489 doi: 10.1016/j.jpowsour.2007.04.018 URL
[5]	Sadeghi H, RestucciaCA1 F. Pyrolysis-based modelling of 18650-type lithium-ion battery fires in thermal runaway with LCO, LFP and NMC cathodes[J]. *J Power Sources, 2024, 603*: 234480. doi: 10.1016/j.jpowsour.2024.234480 URL
[6]	翟祺悦. 锂离子电池热失控过程产热建模及仿真研究[D]. 天津: 中国民航大学, 2022.
	ZHAI Qiyue. Modeling and simulation of heat generation during thermal runaway in lithium ion batteries[D]. Tianjin: Civil Avia Univ China, 2022. (in Chinese)
[7]	何亚飞, 黄清鋆, 崔鑫. 不同厚度隔热材料的电池模组热扩散研究[J]. 农业装备与车辆工程, 2024, 62(3): 127-130.
	HE Yafei, HUANG Qingyun, CUI Xin. Study on thermal diffusion of battery modules with different thicknesses of insulation materials[J]. *Agri Equip Vehi Engi*, 2024, 62(3): 127-130. (in Chinese)
[8]	Walker W Q, Darst J J, Finegan D P, et al. Decoupling of heat generated from ejected and non-ejected contents of 18650-format lithium-ion cells using statistical methods[J]. *J Power Sources, 2019, 415*: 207-218. doi: 10.1016/j.jpowsour.2018.10.099 URL
[9]	PENG Peng, JIANG Fangming. Thermal safety of lithium-ion batteries with various cathode materials: A numerical study[J]. *Int’l J Heat Mass Transf, 2016, 103*: 1008-1016.
[10]	Heenan TMM, Jnawali A, Kok M, et al. Data for an advanced microstructural and electrochemical datasheet on 18650 Li-ion batteries with Nickel-rich NMC811 cathodes and graphite-silicon anodes[J]. *Data Brief*, 2020, 32: 106033. doi: 10.1016/j.dib.2020.106033 URL
[11]	Donal P, CA 1 Finegan, Billman J, et al. The battery failure databank: Insights from an open-access database of thermal runaway behaviors of Li-ion cells and a resource for benchmarking risks[J]. *J Power Sources, 2024, 597*: 234106. doi: 10.1016/j.jpowsour.2024.234106 URL
[12]	MAO Binbin, CHEN Haodong, JIANG Lin, et al. Refined study on lithium ion battery combustion in open space and a combustion chamber[J]. *Proc Safe Environ Protect, 2020, 139*: 133-146.
[13]	MAN Zhiyi, WANG Shaoping. Thermal runaway of lithium battery based on Star CCM+[J]. *IET Conf Proc, 2022, 2022*(7): 1452-1458. doi: 10.1049/icp.2022.1885 URL
[14]	WANG Jiahao, JIANG Ziqi, MEI Mei, et al. Numerical simulation study on two-phase flow of thermal runaway evolution and jet fire of 18650 lithium-ion battery under thermal abuse[J]. *Case Stud Therm Engi*, 2024, 53: 103726.
[15]	SHEN Kai, MAO Yuhua, ZHENG Yuejiu, et al. One-dimensional modeling and experimental analysis of nail penetration thermal runaway for large capacity Li-ion power battery[J]. *J Electrochem Soc, 2022, 169*(4): 040502. doi: 10.1149/1945-7111/ac5cf0
[16]	Spotnitz R, Franklin J. Abuse behavior of high-power, lithium-ion cells[J]. *J Power Sources, 2003, 113*(1): 81-100. doi: 10.1016/S0378-7753(02)00488-3 URL
[17]	Puneet J, Sravan B K, Jishnu B, et al. Coupled electrochemical-abuse-heat-transfer model to predict thermal runaway propagation and mitigation strategy for an EV battery module[J]. *J Energ Stor*, 2021, 39: 102619.
[18]	FENG Xunning, LU Languang, OUYANG Minggao, et al. A 3D thermal runaway propagation model for a large format lithium ion battery module[J]. *Energy, 2016, 115*(1): 194-208. doi: 10.1016/j.energy.2016.08.094 URL
[19]	Hyun-Soo K, Ketack K, Seong-In M, et al. A study on carbon-coated LiNi1/3Mn1/3Co1/3O2 cathode material for lithium secondary batteries[J]. *J Solid State Electrochem*, 2008, 12(7): 867-872. doi: 10.1007/s10008-008-0552-0 URL
[20]	Hoelle S, Dengler F, Zimmermann S, et al. 3D Thermal simulation of lithium-ion battery thermal runaway in autoclave calorimetry: Development and comparison of modeling approaches[J]. *J Electrochem Soc, 2023, 170*(1): 010509. doi: 10.1149/1945-7111/acac06
[21]	Cheon-Soo K, Jin-Seong Y, Kyung-Min J, et al. Investigation on internal short circuits of lithium polymer batteries with a ceramic-coated separator during nail penetration[J]. J Power Sources, 2015, 289: 41-49. doi: 10.1016/j.jpowsour.2015.04.010 URL
[22]	Timothy D H, Dean D M, Basu A, et al. Thermal Model of cylindrical and prismatic lithium-ion cells[J]. *J Electrochem Soc, 2001, 148*(7): A755-A761.
[23]	LI Yan, LIU Xiang, WANG Li, et al. Thermal runaway mechanism of lithium-ion battery with LiNi_0.8Mn_0.1Co_0.1O₂ cathode materials[J]. *Nano Energy*, 2021, 85: 105878. doi: 10.1016/j.nanoen.2021.105878 URL
[24]	Paul T C, Darcy C, White E, et al. Simplified thermal runaway model for assisting the design of a novel safe li-ion battery pack[J]. *J Electrochem Soc, 2022, 169*(4): 040516. doi: 10.1149/1945-7111/ac62bd
[25]	WANG Tao, Tseng K J, ZHAO Jiyun, et al. Thermal investigation of lithium-ion battery module with different cell arrangement structures and forced air-cooling strategies[J]. *Appl Energ, 2014, 134*(14): 229-238. doi: 10.1016/j.apenergy.2014.08.013 URL
[26]	王补宣. 工程传热传质学[M]. 北京: 科学出版社, 1982:442-526.
	WANG Buxuan. Engineering Heat and Mass Transfer[M]. Beijing: Science Press, 1982: 442-526. (in Chinese)
[27]	杨娟, 梁焰彭, 刘媛, 等. 航空动力锂离子电池热失控高温与冲击危害的被动防护包容性[J]. 爆炸与冲击, 2025, 45(2): 117-127.
	YANG Juan, LIANG Yanpeng, LIU Yuan, et al. Passive protection and inclusiveness of thermal runaway, high temperature and impact hazards in aerospace lithium-ion batteries[J]. *Expl Impact*, 2025, 45(2): 117-127. (in Chinese)
[28]	韩丁, 郑世刚, 孙现凯, 等. 氧化锆纤维高温隔热材料传热性能研究[J]. 陶瓷, 2022(7): 9-12.
	HAN Ding, ZHENG Shigang, SUN Xiankai, et al. Study on heat transfer performance of zirconia fiber high temperature insulation materials[J]. *Ceramics*, 2022(7): 9-12. (in Chinese)

序号	总能量/kJ	电芯能量/kJ	正极能量/kJ	负极能量/kJ	测试前质量/g	测试后质量/g
1	86.746 3	27.372 4	45.007 2	14.366 8	47	20.2
2	84.905 6	17.302 2	67.063 7	0.539 8	47	17.3
3	100.375 0	17.438 2	81.611 5	1.325 1	47	13.9
4	87.479 7	12.539 3	64.954 0	9.986 5	47	11.3
5	69.409 0	15.517 8	36.371 8	17.519 4	47	15.2

序号	总能量/kJ	电芯能量/kJ	正极能量/kJ	负极能量/kJ	测试前质量/g	测试后质量/g
1	86.746 3	27.372 4	45.007 2	14.366 8	47	20.2
2	84.905 6	17.302 2	67.063 7	0.539 8	47	17.3
3	100.375 0	17.438 2	81.611 5	1.325 1	47	13.9
4	87.479 7	12.539 3	64.954 0	9.986 5	47	11.3
5	69.409 0	15.517 8	36.371 8	17.519 4	47	15.2

符号	数值	参考文献	符号	数值	参考文献
H_SEI	287 kJ/kg	[16-17]	H_pe	3 766 kJ/kg	[19-20]
A_SEI	1.867×10¹⁵s^-1	[18]	A_pe	9.8×10⁹s^-1	[21]
E_a,SEI	2.361×10^-19J	[19]	E_a,pe	1.75×10^-19J	[21]
m_SEI	1	[18]	m_pe	1	[16]
C_SEI	0.15	[18]	C_pe	0.04	[16]
H_ne	193.4 kJ/kg	[18]	H_e	122.500 kJ/kg	[17]
A_ne	2.7×10¹³s^-1	[18]	A_e	5.47×10²⁵s^-1	[17]
E_a,ne	2.361×10^-19J	[18]	E_a,e	4.48×10^-19J	[17]
m_ne	1	[18]	m_e	1	[22]
C_ne	0.811	[18]	C_e	1	[22]

符号	数值	参考文献	符号	数值	参考文献
H_SEI	287 kJ/kg	[16-17]	H_pe	3 766 kJ/kg	[19-20]
A_SEI	1.867×10¹⁵s^-1	[18]	A_pe	9.8×10⁹s^-1	[21]
E_a,SEI	2.361×10^-19J	[19]	E_a,pe	1.75×10^-19J	[21]
m_SEI	1	[18]	m_pe	1	[16]
C_SEI	0.15	[18]	C_pe	0.04	[16]
H_ne	193.4 kJ/kg	[18]	H_e	122.500 kJ/kg	[17]
A_ne	2.7×10¹³s^-1	[18]	A_e	5.47×10²⁵s^-1	[17]
E_a,ne	2.361×10^-19J	[18]	E_a,e	4.48×10^-19J	[17]
m_ne	1	[18]	m_e	1	[22]
C_ne	0.811	[18]	C_e	1	[22]

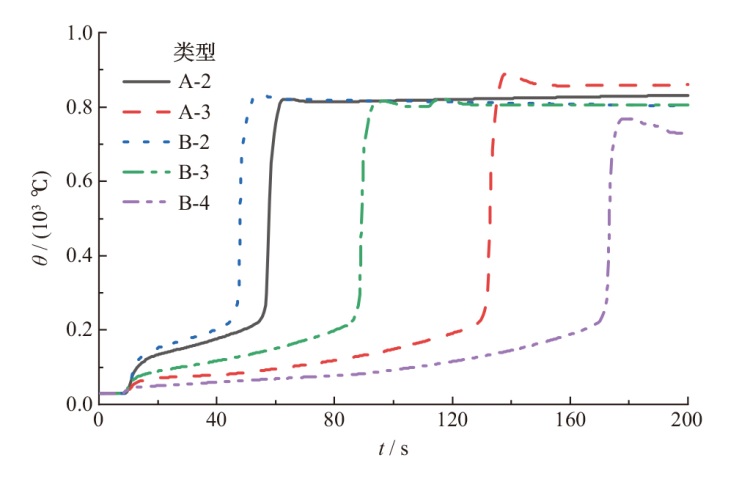

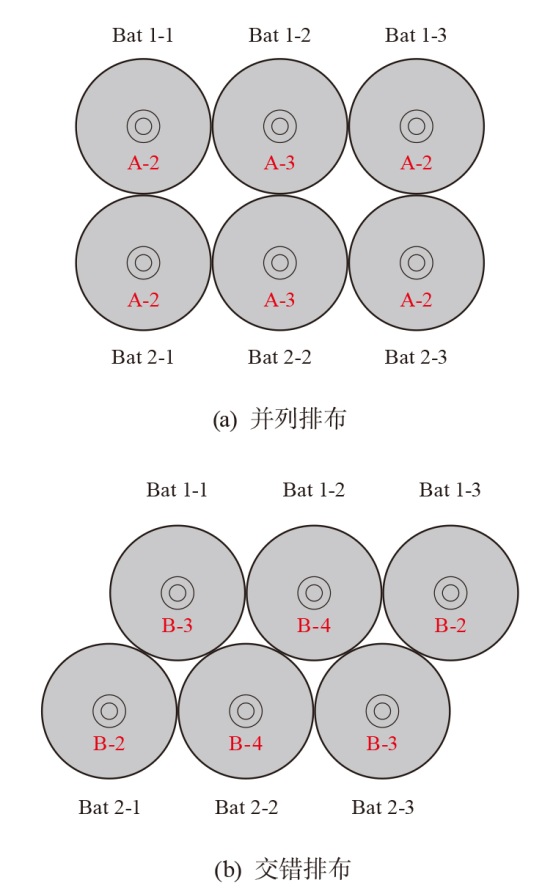

排布方式	类型	触发电芯位置	相邻电芯数目
并列排布	A-2	Bat1-1、Bat1-3、Bat2-1、Bat2-3	2
并列排布	A-3	Bat1-2、Bat2-2	3

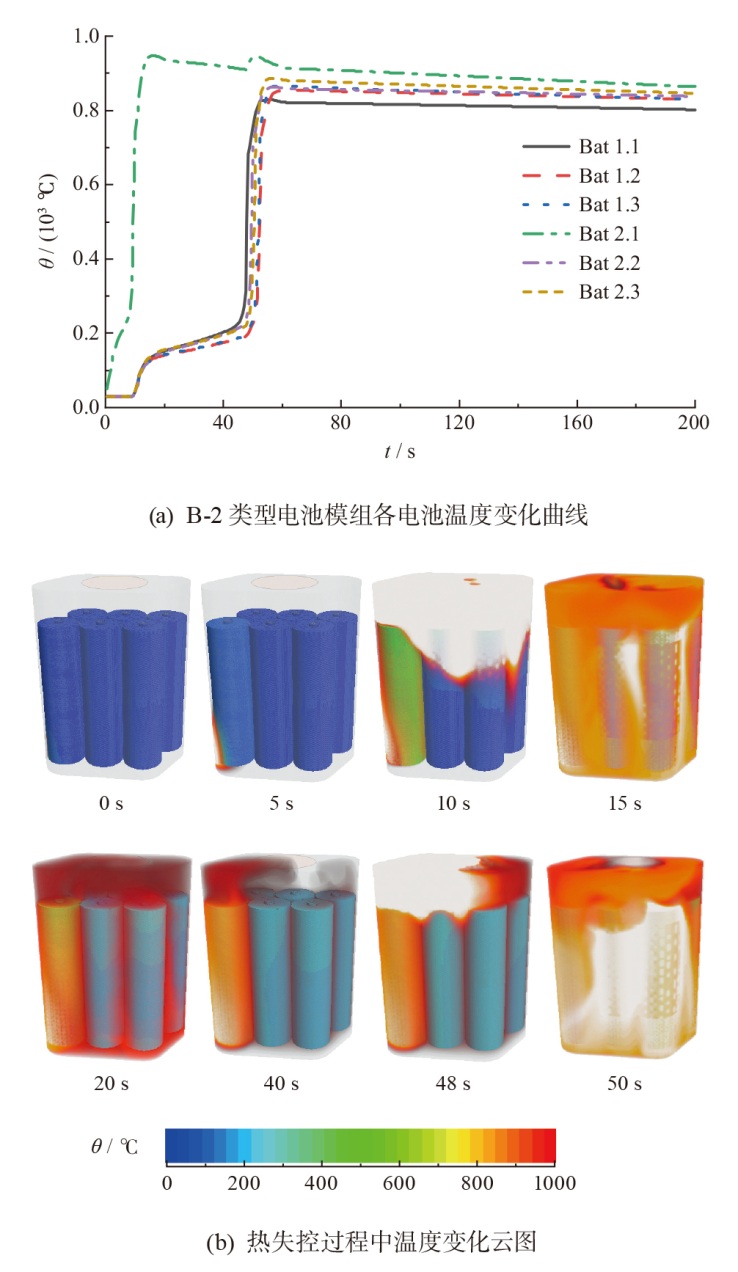

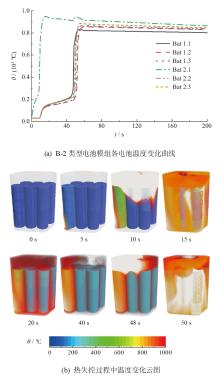

交错排布	B-2	Bat2-1、Bat1-3	2
	B-3	Bat1-1、Bat2-3	3
	B-4	Bat1-2、Bat2-2	4
