Effects of occupant anthropometry on thoracolumbar injury risk in reclined postures during frontal collisions

doi:10.3969/j.issn.1674-8484.2026.01.005

Abstract

Abstract:

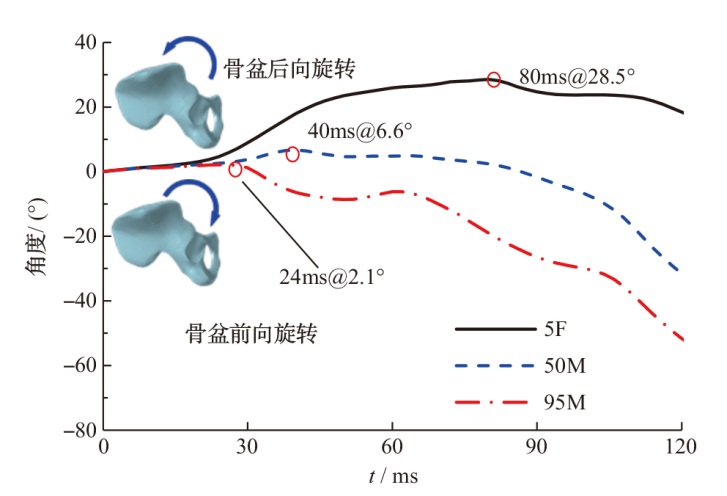

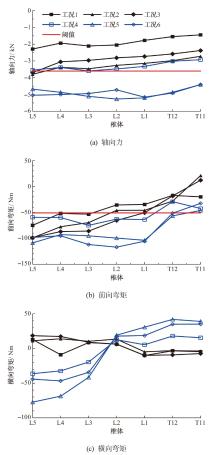

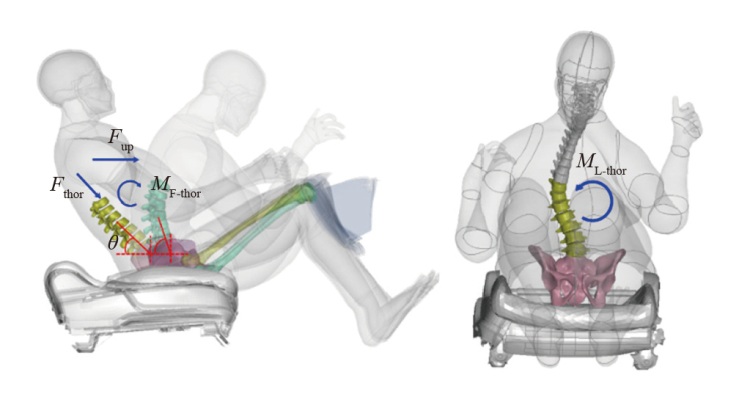

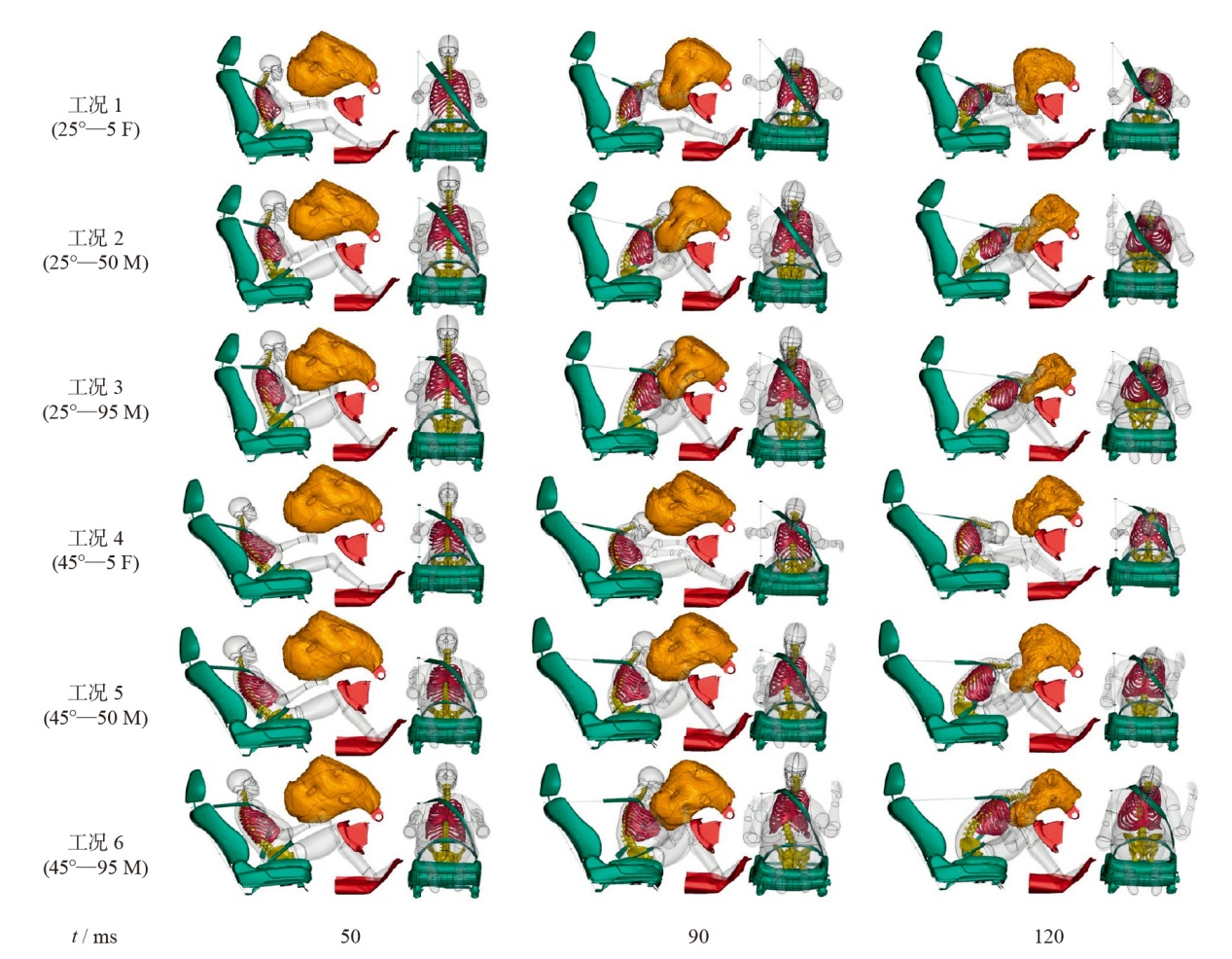

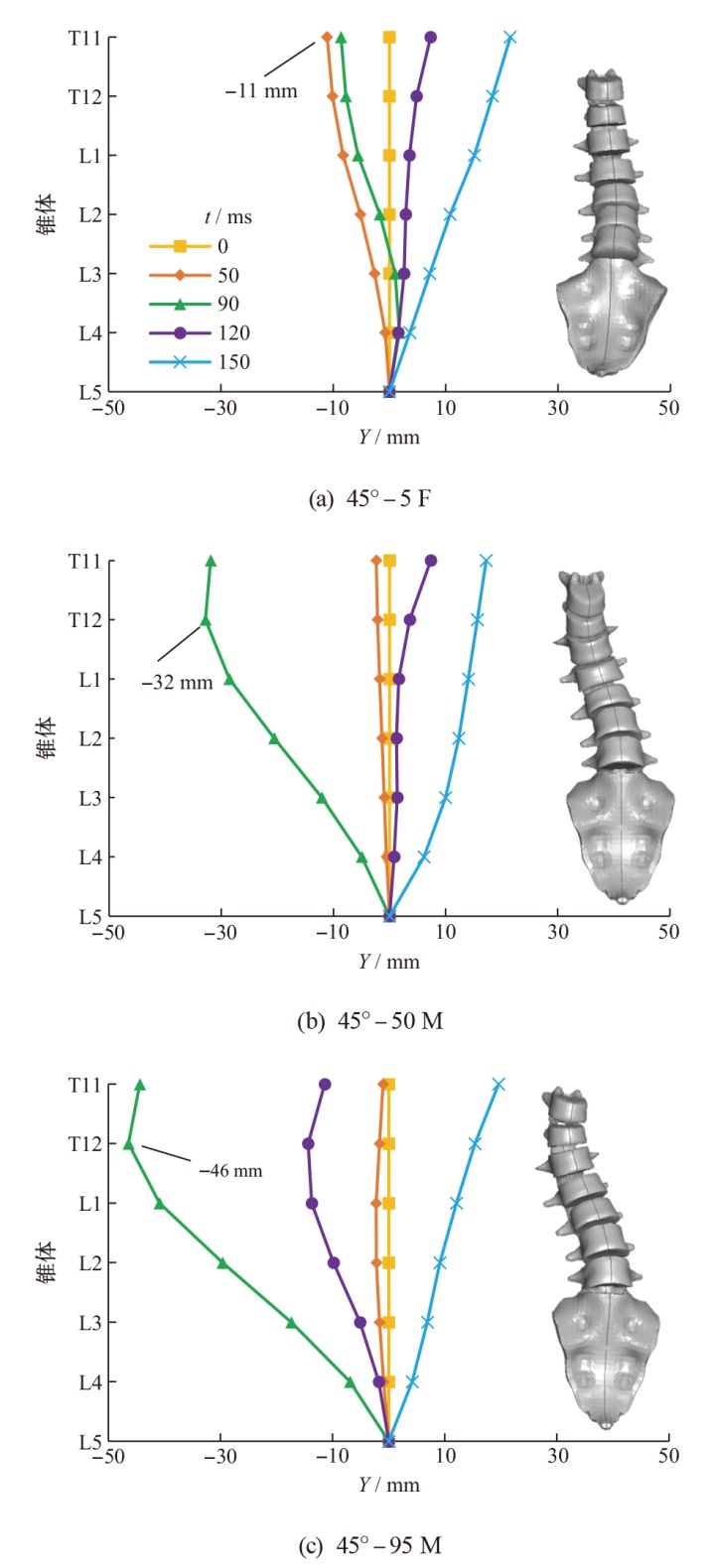

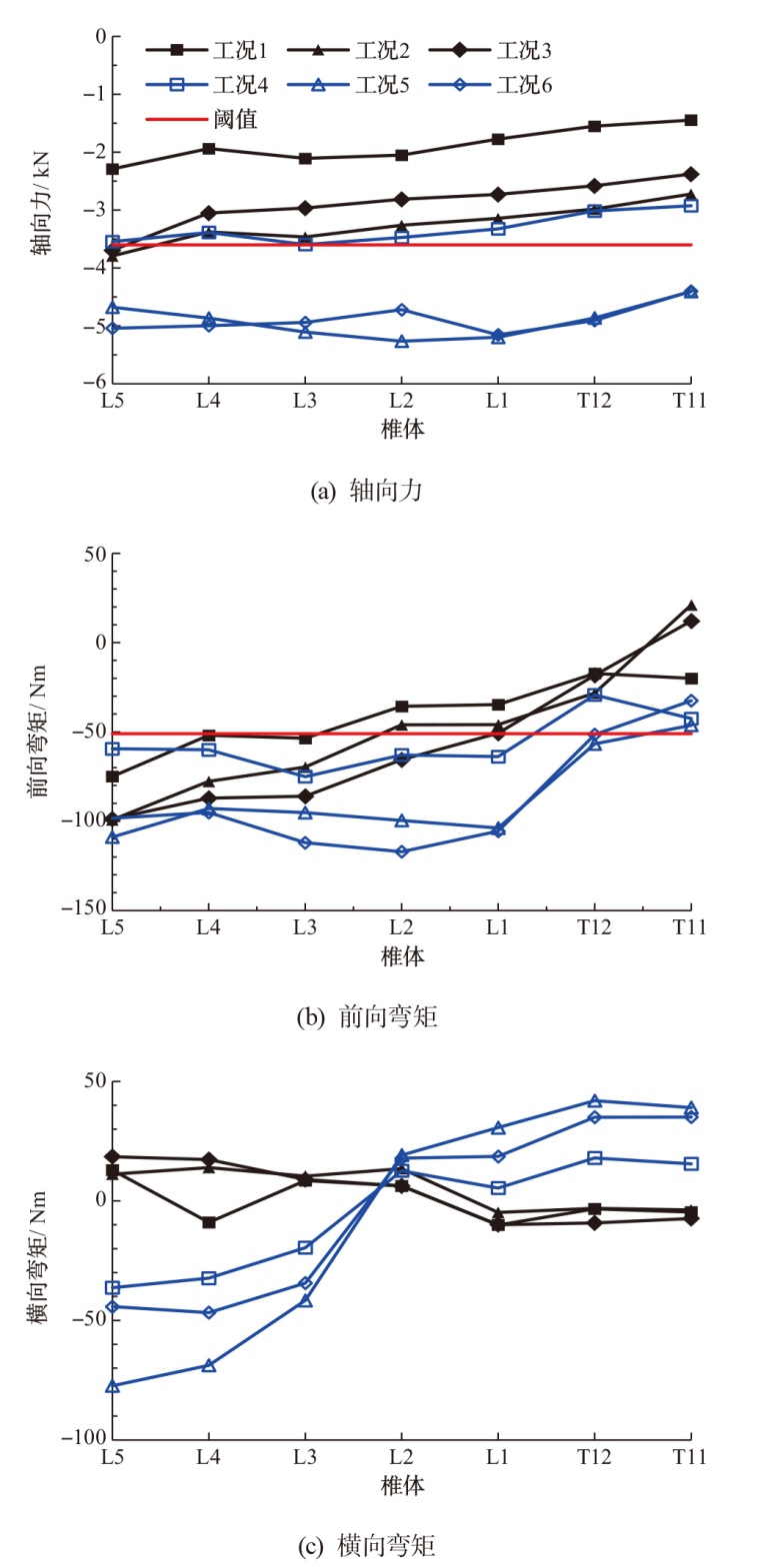

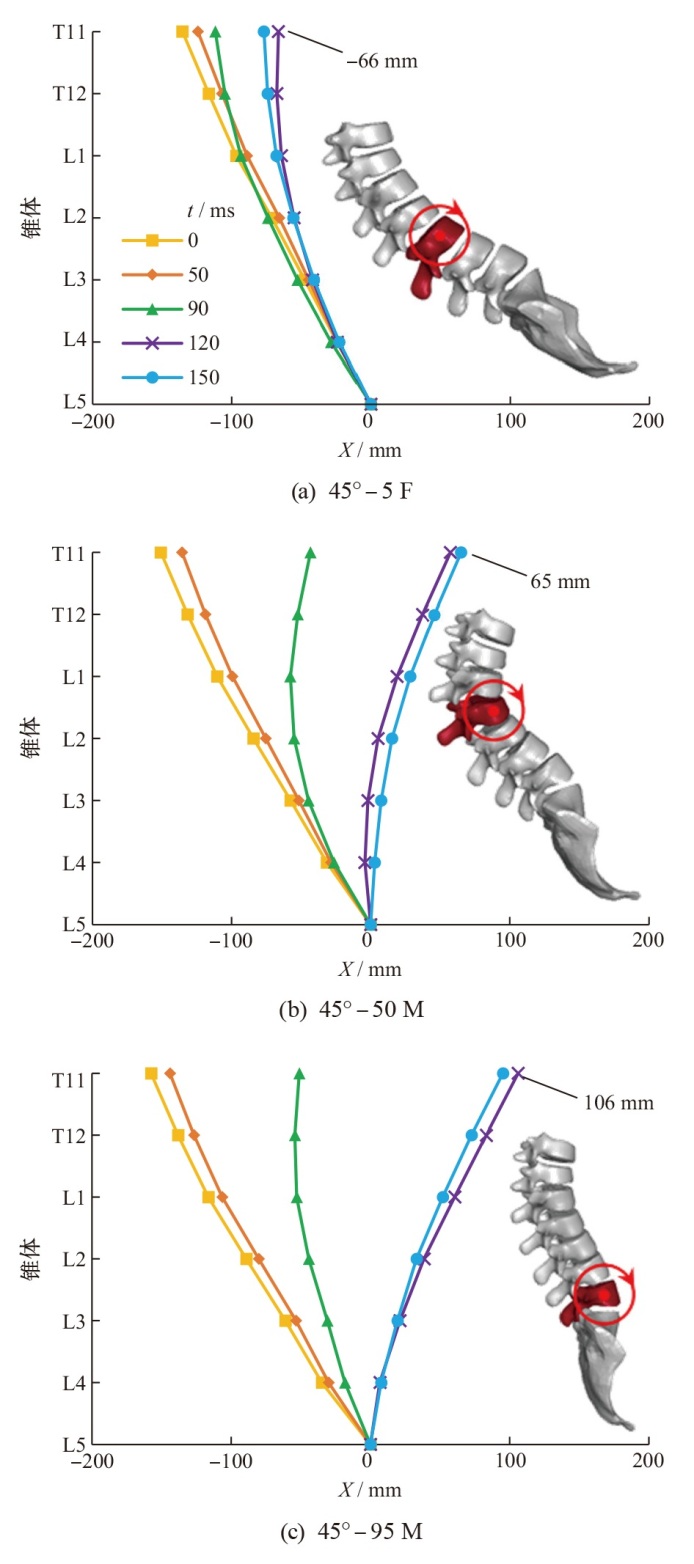

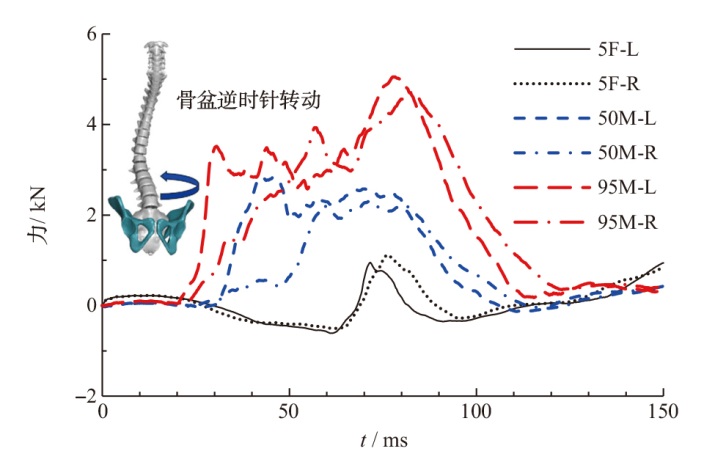

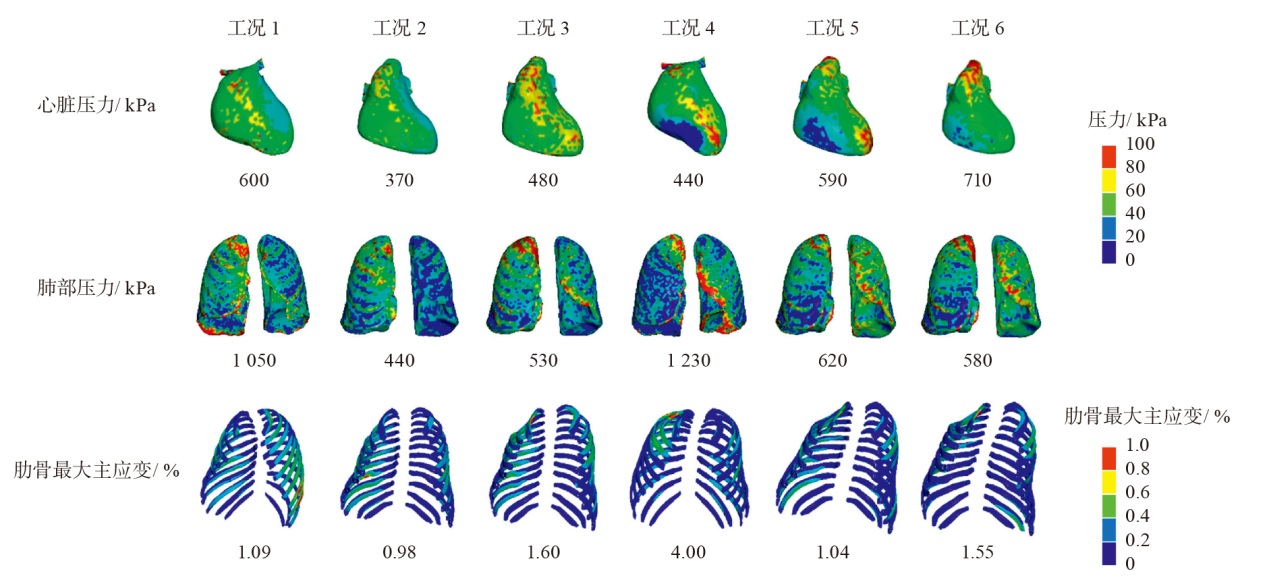

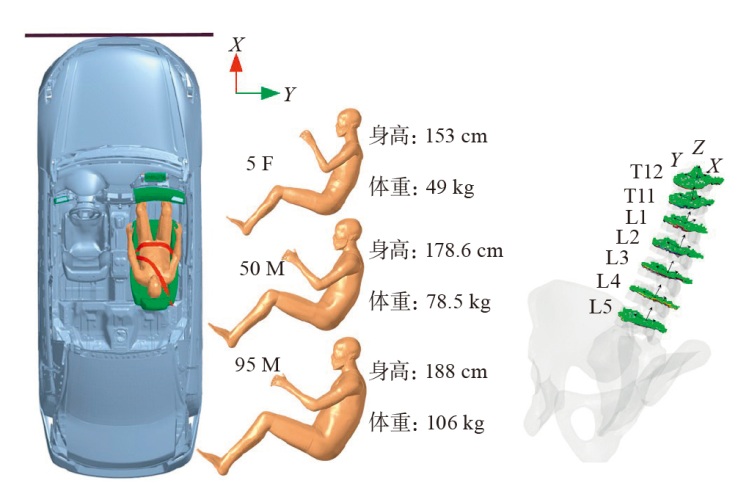

A full-vehicle frontal 100% overlap rigid barrier crash model was established to investigate the impact of anthropometric differences on occupant thoracic and thoracolumbar spine (T11—L5) injuries in reclined posture. The kinematic and injury responses of occupants in standard and reclined postures were compared, using the human finite element models THUMS (total human model for safety) of the 5th percentile female (5 F), 50th percentile male (50 M), and 95th percentile male (95 M). The results show that the reclined posture generally increases injury risk with injury patterns exhibiting significant body size specificity. Under the reclined posture, the 5 F exhibites the most pronounced thoracic injury risk, with lung pressure reaching 1 230 kPa and maximum principal rib strain reaching 4%. Injury risks for the 50 M and 95 M are concentrated in the thoracolumbar spine, the peak axial force and flexion moment at L2 of the 50 M exceeds the thresholds by 44% and 129%, respectively; the peak axial force at L1 of the 95 M exceeds the threshold by 38%, and the peak flexion moment at L5 exceeds the threshold by 111%. Moreover, the lateral bending moment of the thoracolumbar spine increases with larger body size.

Key words: frontal collision, total human model for safety (THUMS), reclined postures, anthropometric differences, injury risk

CLC Number:

U467.1+4

HUANG Zhishan, PAN Di, HAN Yong, XIAO Zonghan, LIU Hui, QIN Zhenyuan. Effects of occupant anthropometry on thoracolumbar injury risk in reclined postures during frontal collisions[J]. Journal of Automotive Safety and Energy, 2026, 17(1): 50-58.

Figures/Tables 13

References 29

[1]	中华人民共和国国家统计局. 中国统计年鉴[M]. 北京: 中国统计出版社, 2023: 24-25.
	National Bureau of Statistics.2023 China Statistical Yearbook[M]. Beijing: China Statistics Press, 2023: 24-25. (in Chinese)
[2]	李海岩, 苏航杰, 祝贺, 等. 中国体征3岁儿童乘员损伤仿生模型在C-NCAP正面碰撞测试仿真中的应用[J]. 汽车工程, 2022, 44(12): 1944-1953.
	LI Haiyan, SU Hangjie, ZHU He, et al. The application of the injury bionic model of Chinese three-year-old child occupant to the simulation of C-NCAP frontal crash tests[J]. *Autom Engineering*, 2022, 44(12): 1944-1953. (in Chinese)
[3]	Sofia J, Katarina B, Annika L. Seating positions and activities in highly automated cars-a qualitative study of future automated driving scenarios[C]// Proc IRCOBI, Antwerp (Belgium), 2017: 17-11.
[4]	Östling M, Annika L. Occupant activities and sitting positions in automated vehicles in China and Sweden[C]// Proc ESV conf, Eindhoven (Netherlands), 2019: 19-83.
[5]	Schaefer L C, Junge M, Vörös I, et al. Odds ratios for reclined seating positions in real-world crashes[J]. *Acci Anal Prev, 2021, 161*(0): 106357.
[6]	Richardson R, Donlon J P, Javathirtha M, et al. Kinematic and injury response of reclined PMHS in frontal impacts[J]. *Stapp Car Crash J*, 2020, 64: 83-153. doi: 10.4271/2020-22-0004 pmid: 33636004
[7]	Richardson R, Javathirtha M, Chastain K, et al. Thoraco-lumbar spine kinematics and injuries in frontal impacts with reclined occupants[J]. *Traf Inju Prev*, 2020, 21(1): S66-S71.
[8]	Yoganandan N, Sommasundaram K, Pintar F. Analysis of experimental injuries to obese occupants with different postures in frontal impact[J]. *Acci Anal Prev, 2023, 193*: 107294.
[9]	Baudrit P, Uriot J, Richard O, et al. Investigation of potential injury patterns and occupant kinematics in frontal impact with PMHS in reclined postures[J]. *Stap Car Crash J*, 2022, 66(1): 1-30.
[10]	Kang Y S, Detitt T, Marcallini A, et al. Responses and injuries of male post-mortem human subjects (PMHS) seated in an unreinforced production seat in rear-facing frontal impacts[C]// Proc IRCOBI, Stockholm (Sweden), 2024: 24-31.
[11]	Rawska K, Gepner B, Kulkarni S, et al. Submarining sensitivity across varied anthropometry in an autonomous driving system environment[J]. *Traf Inju Prev*, 2019, 20(2): 1-5.
[12]	Rawska K, Gepner B, Moreau M, et al. Submarining sensitivity across varied seat configurations in autonomous driving system environment[J]. *Traf Inju Prev*, 2020, 21(1): S1-S6.
[13]	Rawska K, Gepner B, Jason R. K. Effect of various restraint configurations on submarining occurrence across varied seat configurations in autonomous driving system environment[J]. *Traf Inju Prev*, 2021, 22(1): S128-S133.
[14]	Takeuchi Y, Tanaka Y, Azuma T, et al. Predictive modeling of submarining risk in car occupants based on pelvis angle and lap belt positioning[J]. *Traf Inju Prev*, 2024, 25(2): 147-155.
[15]	Leledakis A, Östh J, Iraeusi J, et al. Influence of an individualised shoulder belt position for diverse occupant anthropometries on seatbelt interaction in frontal and side Impacts[C]// Proc IRCOBI, Cambridge (UK), 2023: 23-82.
[16]	Singh H, Ganesan V, Davies J, et al. Vehicle interior and restraints modeling development of full vehicle finite element model including vehicle interior and occupant restraints systems for occupant safety analysis using THOR dummies[R]. Washington: national highway traffic safety administration, 2018.
[17]	Iwamoto M, Kisanuki Y, Watanabe I, et al. Development of a finite element model of the total human model for safety (THUMS) and application to injury reconstruction[C]// Proc IRCOBI, Munich (Germany), 2002: 31-42.
[18]	Boyle K, Fanta A, Reed M P, et al. Restraint systems considering occupant diversity and pre-crash posture[J]. *Traf Inj Prev*, 2020, 21(1): S31-S36.
[19]	Izumiyama T, Nishida N, Yamagata H, et al. Analysis of individual variabilities for lumbar and pelvic alignment in highly reclined seating postures and occupant kinematics in a collision[C]// Proc IRCOBI, Porto (Portugal), 2022: 22-113.
[20]	Hollowell W T, Gabler H C, STucki S L, et al. FMVSS NO. 208[S]. The United States: National highway traffic safety administration (NHTSA), 1966.
[21]	C-NCAP管理中心. C-NCAP管理规则(2024版)[S]. 天津: 中国汽车技术研究中心, 2024.
	C-NCAP Management Center. C-NCAP management regulation (2024 version)[S]. Tianjin: China Automotive Technology and Research Center Co., 2024. (in Chinese)
[22]	Ruan J, El-jawahri R, Chai L, et al. Prediction and analysis of human thoracic impact responses and injuries in cadaver impacts using a full human body finite element model[J]. *Stapp Car Crash J*, 2003, 47: 299-321. pmid: 17096254
[23]	Kemper R A, Mcnally C, Pullins A C, et al. The biome-chanics of human ribs: material and structural properties from dynamic tension and bending tests[J]. *Stapp Car Crash J*, 2007, 51: 235-273.
[24]	Yoganandan N, Arun M W, Stemper B D, et al. Biome-chanics of human thoracolumbar spinal column trauma from vertical impact loading[J]. *Anna Adva Autom Medi*, 2013, 57: 155-166.
[25]	Tushak S K, Donlona J P, Gepner B D. et al. Failure tolerance of the human lumbar spine in dynamic combined compression and flexion loading[J]. *J Biomech, 2022, 135*: 111051. doi: 10.1016/j.jbiomech.2022.111051 URL
[26]	Boyle k J, Reed M P, Zaseck L W, et al. A human modelling study on occupant kinematics in highly reclined seats during frontal crashes[C]// Proc IRCOBI, Florence (Italy) 2019: 19-43.
[27]	姬佩君. 均衡约束概念的乘员碰撞保护研究[D]. 北京: 清华大学, 2016.
	JI Peijun. Study of uniform occupant restraint system on vehicle crash protection[D]. Beijing: Tsinghua university, 2016. (in Chinese)
[28]	Joji I, Bernard H G. Thoracolumbar junction injuries after motor vehicle collision: are there differences in restrained and nonrestrained front seat occupants?[J]. *J Neurosurge. Spin*, 2007, 7(3): 311-314.
[29]	TANG Liang, ZHENG Jiajia, HU Jingwen. A numerical investigation of factors affecting lumbar spine injuries in frontal crashes[J]. *Acci Anal Prev, 2020, 136*(0): 105400.

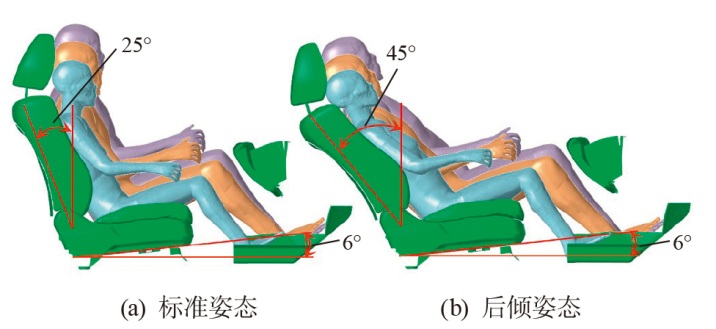

序号	角度	体型
工况1	25°	5 F
工况2		50 M
工况3		95 M
工况4	45°	5 F
工况5		50 M
工况6		95 M

序号	角度	体型
工况1	25°	5 F
工况2		50 M
工况3		95 M
工况4	45°	5 F
工况5		50 M
工况6		95 M

损伤部位	损伤评价指标	参考阈值
胸部	胸部3 ms合成加速度/g	60 ^[20]
	胸部压缩量/mm	高性能限值22 ^[21]
	胸部压缩量/mm	低性能限值50 ^[21]
	心脏压力/kPa	170 ^[22]
	肺部压力/kPa	16 ^[22]
	肋骨最大主应变(皮质骨)	2.4% ^[23]
胸腰椎	轴向力/kN	3.6 ^[24]
	前向弯矩/Nm	51 ^[25]
	横向弯矩/Nm	仅输出参考

损伤部位	损伤评价指标	参考阈值
胸部	胸部3 ms合成加速度/g	60 ^[20]
	胸部压缩量/mm	高性能限值22 ^[21]
	胸部压缩量/mm	低性能限值50 ^[21]
	心脏压力/kPa	170 ^[22]
	肺部压力/kPa	16 ^[22]
	肋骨最大主应变(皮质骨)	2.4% ^[23]
胸腰椎	轴向力/kN	3.6 ^[24]
	前向弯矩/Nm	51 ^[25]
	横向弯矩/Nm	仅输出参考

序号	胸部3 ms合成加速度/g	胸部压缩量/mm
工况1	29.8	25.2
工况2	40.3	26.7
工况3	38.0	30.1
工况4	31.2	28.3
工况5	28.4	33.2
工况6	41.8	33.7
