Active anti-rollover control strategy for multi-axle heavy-duty vehicles based on torque distribution

doi:10.3969/j.issn.1674-8484.2026.01.004

Abstract

Abstract:

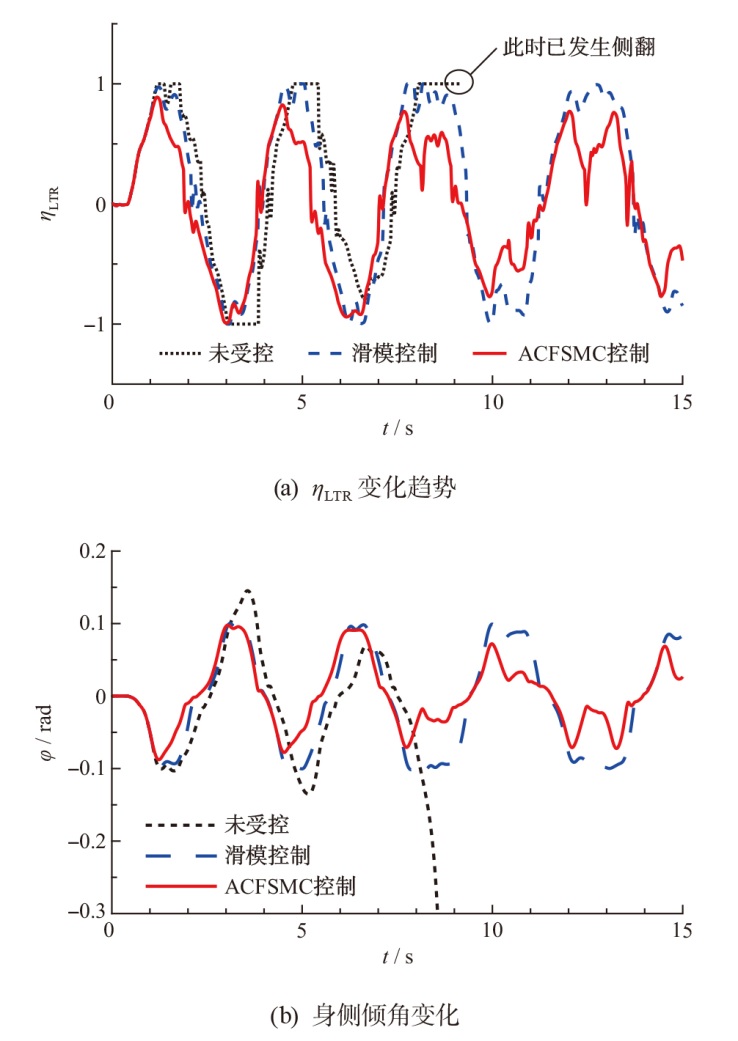

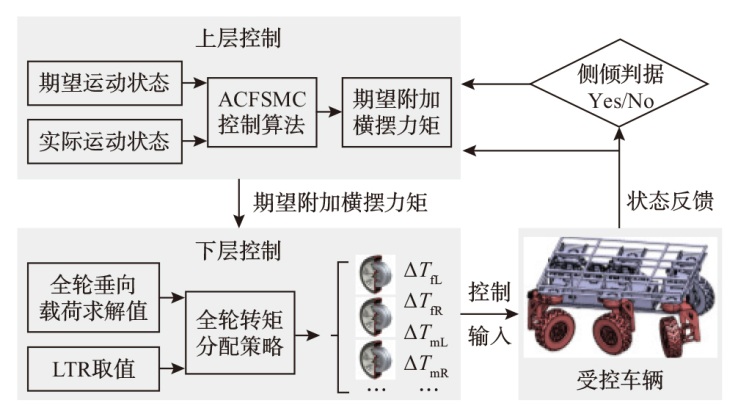

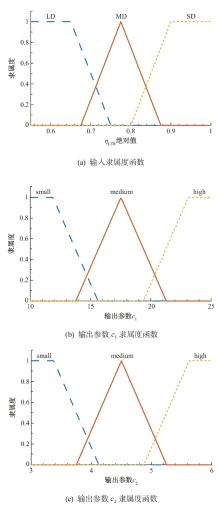

A multi-axle heavy-duty vehicle active anti rollover control system based on torque distribution was developed to improve the active anti rollover performance of multi-axle heavy-duty vehicles under high-speed extreme rollover conditions, taking the distributed electric drive multi axle heavy-duty vehicle as the object. The lateral load transfer rate was used as the roll criterion, and an Anti-Chattering Fuzzy Sliding Mode Control algorithm was proposed to obtain the desired additional yaw moment, and the differential yaw moment was generated by reasonably distributing all wheel drive torque to ensure the roll stability of the vehicle. And the effectiveness of the proposed method was verified by driver in the loop experiment. The results show that the proposed control method can successfully avoid vehicle rollover under the extreme condition of driver manual operation, and the maximum absolute value of vehicle lateral load transfer rate is reduced by about 2%, the maximum roll angle is reduced by about 4.9%, the time of lateral load transfer rate exceeding roll threshold decreases by 42.2%.

Key words: vehicle dynamics, vehicle control system, muti-axle heavy-duty vehicle, active anti-rollover system, distributed electric drive

CLC Number:

U461.91

WU Zhongtao, SHEN Lilin, LI Bingbing, YIN Guodong, CHEN Boli. Active anti-rollover control strategy for multi-axle heavy-duty vehicles based on torque distribution[J]. Journal of Automotive Safety and Energy, 2026, 17(1): 40-49.

Figures/Tables 12

References 18

[1]	赵树恩, 张雄. 基于差动制动的车辆侧翻稳定性控制的数字仿真[J]. 汽车安全与节能学报, 2018, 9(2): 171-177.
	ZHAO Shuen, ZHANG Xiong. Digital simulation of vehicle-rollover stability-control based on differential braking[J]. *J Autom Safe Energ*, 2018, 9(2):171-177.
[2]	Solmaz S, Corless M, Shorten R. A methodology for the design of robust rollover prevention controllers for automotive vehicles: Part 2-Active steering[C] // 2007 American Contr Conf, New York, USA, 2007.
[3]	HANG Peng, CHEN Xinbo, WANG Wei. Cooperative control framework for human driver and active rear steering system to advance active safety[J]. *IEEE Trans Intel Vehi*, 2021, 6(3): 460-469.
[4]	WANG Zhenbo, DING Xiaolin, ZHANG Lei. Chassis coordinated control for full X-by-wire four-wheel-independent-drive electric vehicles[J]. *IEEE Trans Vehi Tech*, 2023, 72(4): 4394-4410.
[5]	LU Yanbo, LIANG Jinhao, WANG Faan, et al. An active front steering system design considering the CAN network delay[J]. *IEEE Trans Transport Elect*, 2023, 9(4): 5244-5256.
[6]	HE Qingshuo, LI Yang, YI Sha, et al. Research on anti-rollover intelligent suspension control based on dynamic bayesian network[C]// IEEE 19th Conf Indu Electron Appl (ICIEA), Kristiansand, Norway, 2024.
[7]	SUN Weichao, PAN Huihui, GAO Huijun. Filter-based adaptive vibration control for active vehicle suspensions with electrohydraulic actuators[J]. *IEEE Trans Vehi Tech*, 2015, 65(6): 4619-4626.
[8]	LI Liang, LU Yishi, WANG Rongrong, et al. A three-dimensional dynamics control framework of vehicle lateral stability and rollover prevention via active braking with MPC[J]. *IEEE Trans Indu Elect*, 2017, 64(4): 3389-3401.
[9]	Rajamani R, Piyabongkarn D N. New paradigms for the integration of yaw stability and rollover prevention functions in vehicle stability control[J]. *IEEE Trans Intel Transport Syst*, 2013, 14(1): 249-261.
[10]	Sukumaran R, Gaurkar P V, Subramanian S C. Integrated rollover prevention and antilock brake system for heavy commercial road vehicles[J]. *IEEE Access*, 2023, 11: 124081-124097. doi: 10.1109/ACCESS.2023.3330179 URL
[11]	Preston-Thomas J, Woodrooffe J. Feasibility study of a rollover warning device for heavy trucks[J]. *Overturning*, 1990(1): 1-63.
[12]	ZHU Tianming, HU Mingmao, GUO Qinghe, et al. Research on anti-rollover differential braking of heavy-dump truck based on fuzzy PID control[C]// 2023 4th Int’l Conf Mech Tech Intelli Manuf(ICMTIM), Nanjing, China, 2023.
[13]	殷国栋, 金贤建, 张云. 分布式驱动电动汽车底盘动力学控制研究综述[J]. 重庆理工大学学报(自然科学), 2016, 30(8): 13-19, 26.
	YIN Guodong, JIN Xianjian, ZHANG Yun. Overview for chassis vehicle dynamics control of distributed drive electric vehicle[J]. *J Chongqing Univ Tech*, 2016, 30(8): 13-19, 26.
[14]	Park G. Vehicle sideslip angle estimation based on interacting multiple model Kalman filter using low-cost sensor fusion[J]. *IEEE Trans Vehi Tech*, 2022, 71(6): 6088-6099.
[15]	王宣锋, 梁迎春, 黄朝胜, 等. 超静定多轴牵引车制动试验载荷参数的优化[J]. 吉林大学学报(工学版), 2011, 41(2): 316-320.
	WANG Xuanfeng, LIANG Yingchun, HUANG chaosheng, et al. Load parameter optimization of brake test on statically indeterminate multi-axle tractor[J]. *J Jilin Univ (Engi Tech Edit)*, 2011, 41(2): 316-320.
[16]	WEI Heng, LIU Wei, WANG Yusen, et al. Improved design of generalized dynamic rollover threshold of multi-axial vehicle[C]// 2017 9th Int'l Conf Meas Tech Mechat Autom (ICMTMA), Changsha, China, 2017.
[17]	Hajiloo R, Khajepour R, Kasaiezadeh A, et al. A model predictive control of electronic limited slip differential and differential braking for improving vehicle yaw stability[J]. *IEEE Trans Contr Sys Tech*, 2023, 31(2): 797-808. doi: 10.1109/TCST.2022.3206282 URL
[18]	Yamamoto M, Koibuchi K, Fukada Y, et al. Vehicle stability control in limit cornering by active brake[J]. *SAE Tech Paper*, 1996: 960487.

M	5 505 kg	K	150 N/mm
m_s	4 455 kg	C	10 N/(mm·s^-1)
T	2.03 m	m_uf	350 kg
l_f	1.755 m	m_um	350 kg
l_m	3.475 m	m_ur	350 kg
l_r	4.745 m	r_e	510 mm
b	1.200 m	r₀	520 mm
I_x	34 823.2 kg·m²	C_yfL, C_yfR	-171.800 kN/rad
I_z	2 286.8 kg·m²	C_ymL, C_ymR	-40.855 kN/rad
h_c	1.200 m	C_yrL, C_yrR	-39.415 kN/rad
h_r	672 mm

M	5 505 kg	K	150 N/mm
m_s	4 455 kg	C	10 N/(mm·s^-1)
T	2.03 m	m_uf	350 kg
l_f	1.755 m	m_um	350 kg
l_m	3.475 m	m_ur	350 kg
l_r	4.745 m	r_e	510 mm
b	1.200 m	r₀	520 mm
I_x	34 823.2 kg·m²	C_yfL, C_yfR	-171.800 kN/rad
I_z	2 286.8 kg·m²	C_ymL, C_ymR	-40.855 kN/rad
h_c	1.200 m	C_yrL, C_yrR	-39.415 kN/rad
h_r	672 mm
