Difference of car driver’s reaction in a typical car-electric two-wheeler collision scenario

doi:10.3969/j.issn.1674-8484.2023.02.005

Abstract

Abstract:

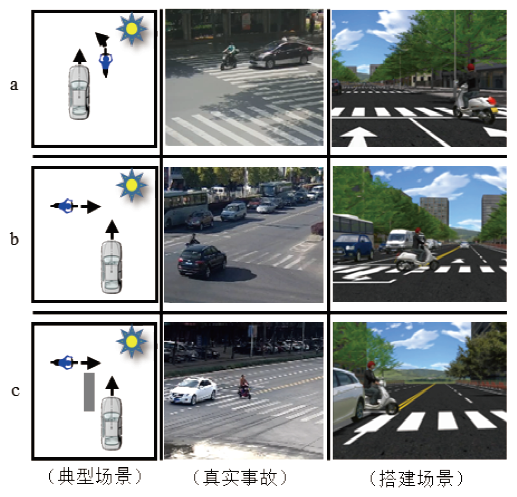

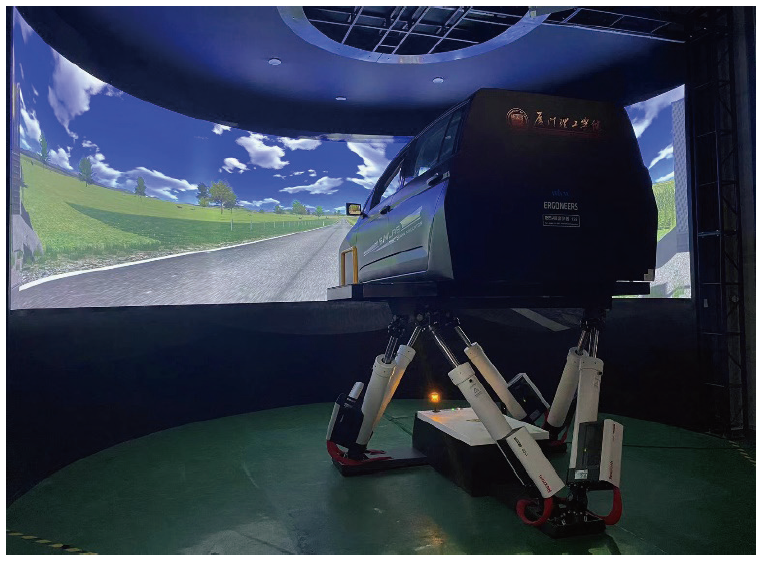

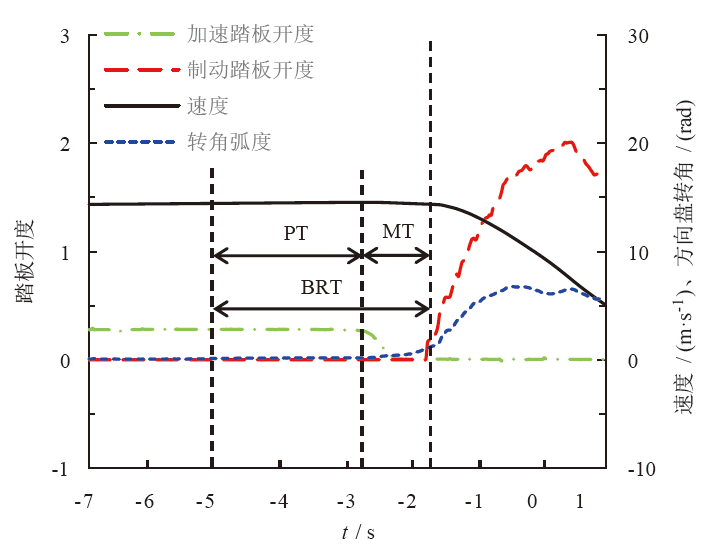

In order to investigate the differences in pre-crash behavior of car drivers and the effects on vehicle active collision avoidance of electric two-wheelers accidents. By building 3 typical scenarios of electric two-wheeler accidents and 3 driving speed scenarios in a six-degree-of-freedom driving simulator to conduct volunteer tests, the differences in drivers’ emergency collision avoidance behaviors in different accident scenarios and their effects on accident occurrence were investigated by combining nonparametric tests and binary logistic regression analysis methods. The results showed that the driver’s pre-crash characteristics of braking reaction time, perception time, movement time, average brake pedal opening and average accelerator pedal opening were significantly different in different typical scenarios, and the driver’s reaction characteristics were significantly different in different driving speeds only in the case of large speed differences. Among them, brake reaction time, average brake pedal opening and average steering wheel angle are important factors affecting the occurrence of collision. The results of the study provide theoretical references to improve the safety design of the vehicle automatic emergency braking system for collision avoidance electric two-wheelers.

Key words: active collision avoidance, driver behavior, two-wheeler accidents, six-degree-of-freedom driving simulation, non-parametric tests, binary logistic regression

CLC Number:

U461.91

HAN Yong, LU Ming, WANG Bingyu, YUAN Xiaobin, ZHANG Haiyang. Difference of car driver’s reaction in a typical car-electric two-wheeler collision scenario[J]. Journal of Automotive Safety and Energy, 2023, 14(2): 182-190.

Figures/Tables 10

References 32

[1]	胡林, 易平, 黄晶, 等. 基于真实事故案例的自动紧急制动系统两轮车测试场景研究[J]. 汽车工程, 2018, 40(12): 1435-1446.
	HU Lin, YI Ping, HUANG Jing, et al. Research on test scenarios of automatic emergency braking system for two-wheelers based on real accident cases[J]. Autom Engineering, 2018, 40(12): 1435-1446. (in Chinese)
[2]	Lee J D. Can technology get your eyes back on the road?[J]. Science, 2009, 324(5925): 344-346. doi: 10.1126/science.1168085 URL
[3]	WANG Xuedong, ZHU Meixin, CHEN Ming, et al. Drivers’ rear end collision avoidance behaviors under different levels of situational urgency[J]. Transport Res Part C: Emerg Tech, 2016, 71: 419-433. doi: 10.1016/j.trc.2016.08.014 URL
[4]	ZHAO Yuqing, Miyahara T, Mizuno K, et al. Analysis of car driver responses to avoid car-to-cyclist perpendicular collisions based on drive recorder data and driving simulator experiments[J]. Accid Anal Prevent, 2021, 150: 105862. doi: 10.1016/j.aap.2020.105862 URL
[5]	DUAN Jingliang, LI Renjie, HOU Lian, et al. Driver braking behavior analysis to improve autonomous emergency braking systems in typical Chinese vehicle-bicycle conflicts[J]. Accid Anal Prevent, 2017, 108: 74-82. doi: 10.1016/j.aap.2017.08.022 URL
[6]	Green M. “ How long does it take to stop?” Methodological analysis of driver perception-brake times[J]. Transport Human Factors, 2000, 2(3): 195-216. doi: 10.1207/STHF0203_1 URL
[7]	Abou Elassad Z E, Mousannif H, Al Moatassime H. A proactive decision support system for predicting traffic crash events: A critical analysis of imbalanced class distribution[J]. Knowledge-Based Syst, 2020, 205: 106314. doi: 10.1016/j.knosys.2020.106314 URL
[8]	de Diego I M, Siordia O S, Crespo R, et al. Analysis of hands activity for automatic driving risk detection[J]. Transport Res Part C: Emerg Tech, 2013, 26: 380-395. doi: 10.1016/j.trc.2012.10.006 URL
[9]	Simsek B, Pakdil F, Dengiz B, et al. Driver performance appraisal using GPS terminal measurements: A conceptual framework[J]. Tramsport Res Part C: Emerg Tech, 2013, 26: 49-60.
[10]	BA Yutao, ZHANG Wei, WANG Qinhua, et al. Crash prediction with behavioral and physiological features for advanced vehicle collision avoidance system[J]. Transport Res Part C: Emerg Techn, 2017, 74: 22-33. doi: 10.1016/j.trc.2016.11.009 URL
[11]	Summala H. Brake reaction times and driver behavior analysis[J]. Transport Human Factors, 2000, 2(3): 217-226. doi: 10.1207/STHF0203_2 URL
[12]	Billot-Grasset A, Amoros E, Hours M. How cyclist behavior affects bicycle accident configurations?[J]. Transport Res Part F: Traf Psych Behav, 2016, 41: 261-276.
[13]	LI Shuang, LI Penghui, YAO Yao, et al. Analysis of drivers’ deceleration behavior based on naturalistic driving data[J]. Traf Injur Prev, 2020, 21(12): 1-6.
[14]	王雪松, 朱美新, 陈铭. 工况紧急程度对驾驶员避撞行为的影响[J]. 同济大学学报(自然科学版), 2016, 44(6): 876-883.
	WANG Xuesong, ZHU Meixin, CHEN Ming. Influence of driving emergency on driver’s collision avoidance behavior[J]. J Tongji Univ(Natu Sci) 2016, 44(6): 876-883. (in Chinese)
[15]	王雪松, 朱美新, 陈铭. 驾驶员前向避撞行为特征的降维及多元方差分析[J]. 同济大学学报(自然科学版), 2016, 44(12): 1858-1866.
	WANG Xxuesong, ZHU Meixin, CHEN Ming. Dimensional reduction and multiple variance analysis of drivers’ forward collision avoidance behavior[J]. J Tongji Univ(Natu Sci), 2016, 44(12): 1858-1866. (in Chinese)
[16]	赵治国, 冯建翔, 周良杰, 等. 驾驶员避撞转向行为的改进K-means聚类与识别[J]. 汽车工程, 2020, 42(1): 52-58.
	ZHAO Zhiguo, FENG Jianxiang, ZHOU Liangjie, et al. Improved K-means clustering and recognition of Driver collision avoidance and Steering Behavior[J]. Autom Engineering, 2020, 42(1): 52-58. (in Chinese)
[17]	李晓梦. 基于驾驶模拟实验的驾驶员紧急避撞行为研究[D]. 北京: 北京交通大学, 2013.
	LI Xiaomeng. Research on driver’s emergency collision avoidance behavior based on driving simulation experiment[D]. Beijing: Beijing Jiaotong University, 2013. (in Chinese)
[18]	Lenard J, Welsh R, Danton R. Time-to-collision analysis of pedestrian and pedal-cycle accidents for the development of autonomous emergency braking systems[J]. Accid Anal Prevent, 2018, 115: 128-136. doi: 10.1016/j.aap.2018.02.028 URL
[19]	PAN Di, HAN Yong, JIN Qianqian, et al. Study of typical electric two-wheelers pre-crash scenarios using K-medoids clustering methodology based on video recordings in China[J]. Accid Anal Prev, 2021, 160: 106320. doi: 10.1016/j.aap.2021.106320 URL
[20]	韩勇, 李永强, 许永虹, 等. 基于VRUs深度事故重建的AEB效能对头部损伤风险的影响[J]. 汽车安全与节能学报, 2021, 12(4): 490-498.
	HAN Yong, LI Yongqiang, XU Yonghong, et al. Effectiveness of AEB system for head injury risk based on VRUs in-depth accident reconstruction[J]. J Autom Safe Energ, 2021, 12(4): 490-498. (in Chinese)
[21]	GUO Chunshi, Sentouh C, Popieul J C, et al. Predictive shared steering control for driver override in automated driving: A simultor study[J]. Transport Res Part F: Traf Psych Beha, 2019, 61: 326-336.
[22]	Koisaari T, Utriainen R, Kari T, et al. The most difficult at-fault fatal crashes to avoid with current active safety technology[J]. Accid, Analy Prevent, 2019, 135:105396.
[23]	Utriainen R. Potential safety effects of partially automated vehicles-comprehensive analysis of detailed passenger car crash data[C]// Europ Transport Conf. AET Association for European Transport, 2018.
[24]	HAN Yong, LI Quan, QIAN Yubin, et al. Comparison of the landing kinematics of pedestrians and cyclists during ground impact determined from vehicle collision video records[J]. Int’l J Vehi Safe, 2018, 10(3-4): 212-234.
[25]	吴贺, 韩勇, 石亮亮, 等. 基于视频信息的高精度事故重建方法研究[J]. 汽车工程, 2020, 42(6): 778-783.
	WU He, HAN Yong, SHI Liangliang, et al. Research on High Precision Accident Reconstruction Method Based on Video Information[J]. Autom Engineering, 2020, 42(6): 778-783. (in Chinese)
[26]	Montella A, Aria M, D’Ambrosio A, et al. Simulator evaluation of drivers’ speed, deceleration, and lateral position at rural intersections in relation to different perceptual cues[J]. Accid Anal Prevent, 2011, 43(6): 2072-2084. doi: 10.1016/j.aap.2011.05.030 URL
[27]	杨振海, 张忠占. 应用数理统计[M]. 北京: 北京工业大学出版社, 2005: 137-141.
	YANG Zhenghai, ZHANG Zhongzhan. Applied Mathematical Statistics[M]. Beijing: Beijing University of Technology Press, 2005: 137-141. (in Chinese)
[28]	Friedman M. The use of ranks to avoid the assumption of normality implicit in the analysis of variance[J]. J Am Statist Assoc, 1937, 32(200): 675-701. doi: 10.1080/01621459.1937.10503522 URL
[29]	Gemonet E, Bougard C, Masfrand S, et al. Car drivers coping with hazardous events in real versus simulated situations: Declarative, behavioral and physiological data used to assess drivers’ feeling of presence[J]. PLoS one, 2021, 16(2): e0247373. doi: 10.1371/journal.pone.0247373 URL
[30]	Eichelberger A H, Mccartt A T. Volvo drivers’ experiences with advanced crash avoidance and related technologies[J]. J Crash Prevent Injur Contr, 2014, 15(2): 187-19.
[31]	何仁, 冯海鹏. 自动紧急制动(AEB)技术的研究与进展[J]. 汽车安全与节能学报, 2019, 10(1): 1-15.
	HE Ren, FENG Haipeng. Research and development of automatic emergency braking (AEB) technology[J]. J Autom Safe Energ, 2019, 10(1): 1-15. (in Chinese)
[32]	黄城. 考虑舒适性的AEB控制策略研究.[D]. 重庆: 西南大学, 2021.
	HUANG Cheng. Research on AEB control strategy considering comfort[D]. Chongqing: Southwest University, 2021. (in Chinese)

场景编号	类型	典型场景		被选取事故
场景编号	类型	v_C / km·h^-1	v_E / km·h^-1	v_C / km·h^-1	v_E / km·h^-1
1	a	25~45	15~25	40.5（40）	20
2	b	30~50	20~30	49.1（50）	23.2
3	b	30~50	20~30	40（40）	23.2
4	b	30~50	20~30	60（60）	23.2
5	c	25~50	20~30	48.7（50）	13.5

场景编号	类型	典型场景		被选取事故
场景编号	类型	v_C / km·h^-1	v_E / km·h^-1	v_C / km·h^-1	v_E / km·h^-1
1	a	25~45	15~25	40.5（40）	20
2	b	30~50	20~30	49.1（50）	23.2
3	b	30~50	20~30	40（40）	23.2
4	b	30~50	20~30	60（60）	23.2
5	c	25~50	20~30	48.7（50）	13.5

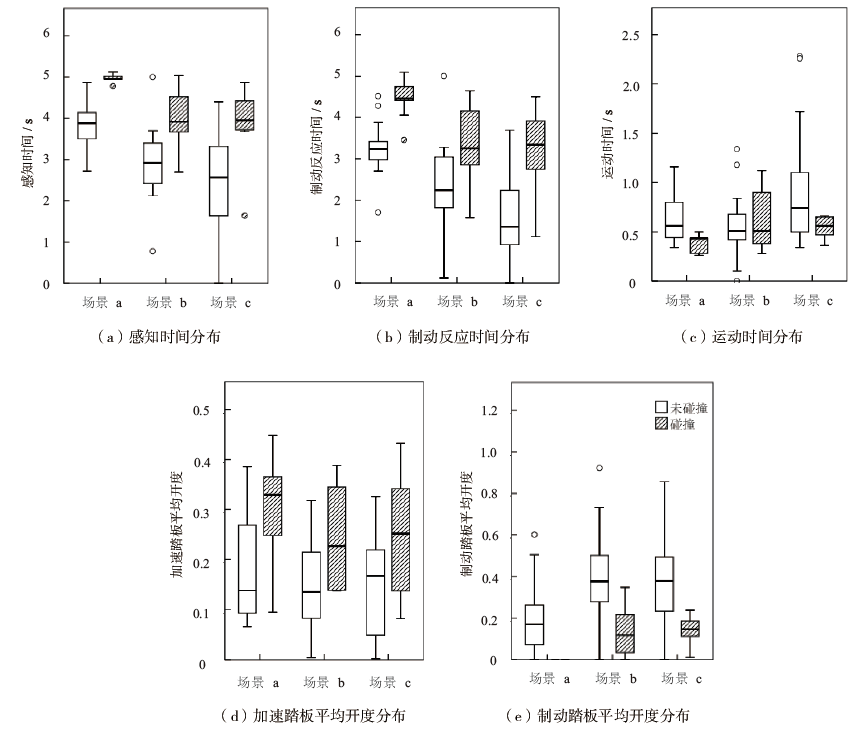

对比场景	p_BRT	p_PT	p_MT	p_APmean	p_BPmean
a 与b	0.000	0.001	1	0.085	0.002
b 与 c	1.000	1.000	0.024	1.000	1.000
a 与c	0.000	0.000	0.051	0.014	0.004

对比场景	p_BRT	p_PT	p_MT	p_APmean	p_BPmean
a 与b	0.000	0.001	1	0.085	0.002
b 与 c	1.000	1.000	0.024	1.000	1.000
a 与c	0.000	0.000	0.051	0.014	0.004

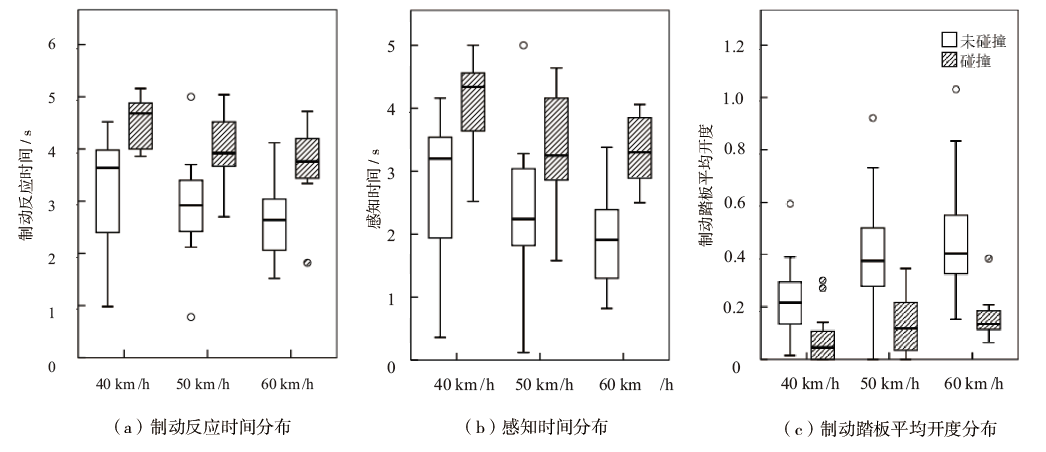

对比场景	p_BRT	p_PT	p_BPmean
40与50 (km/h)	0.384	1	0.212
50与60 (km/h)	0.158	0.043	0.212
40与60 (km/h)	0.001	0.002	0.001
