基于力学性能安全的ATV桁架式车身轻量化设计

doi:10.3969/j.issn.1674-8484.2024.06.003

摘要/Abstract

摘要：

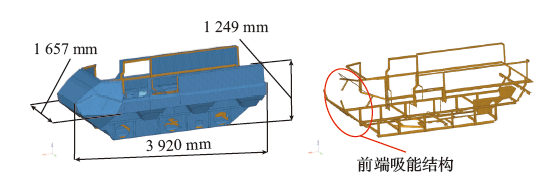

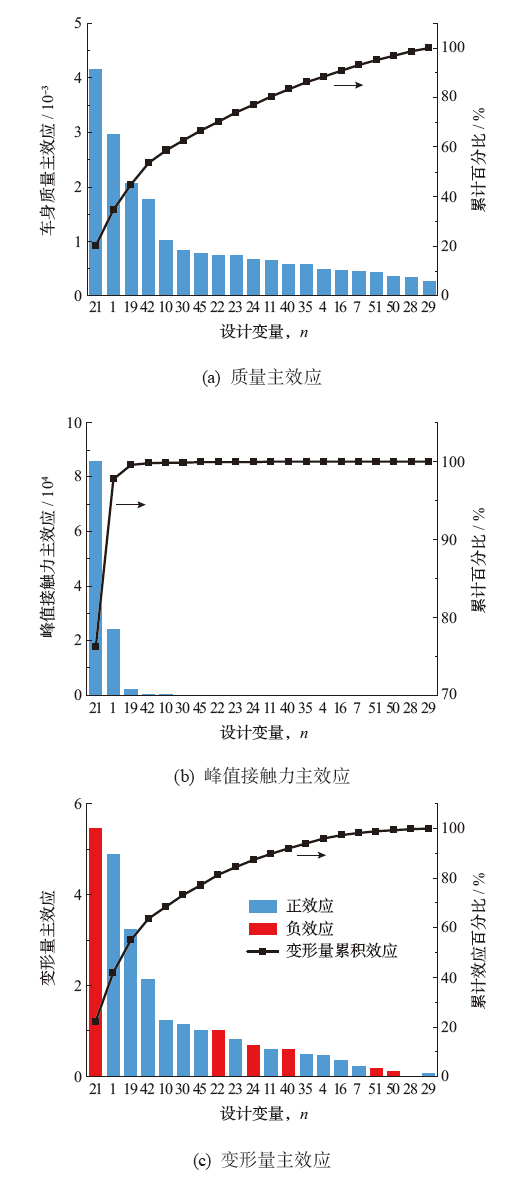

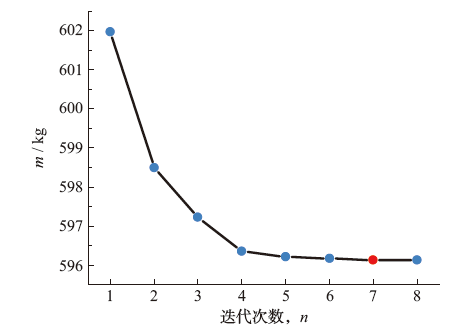

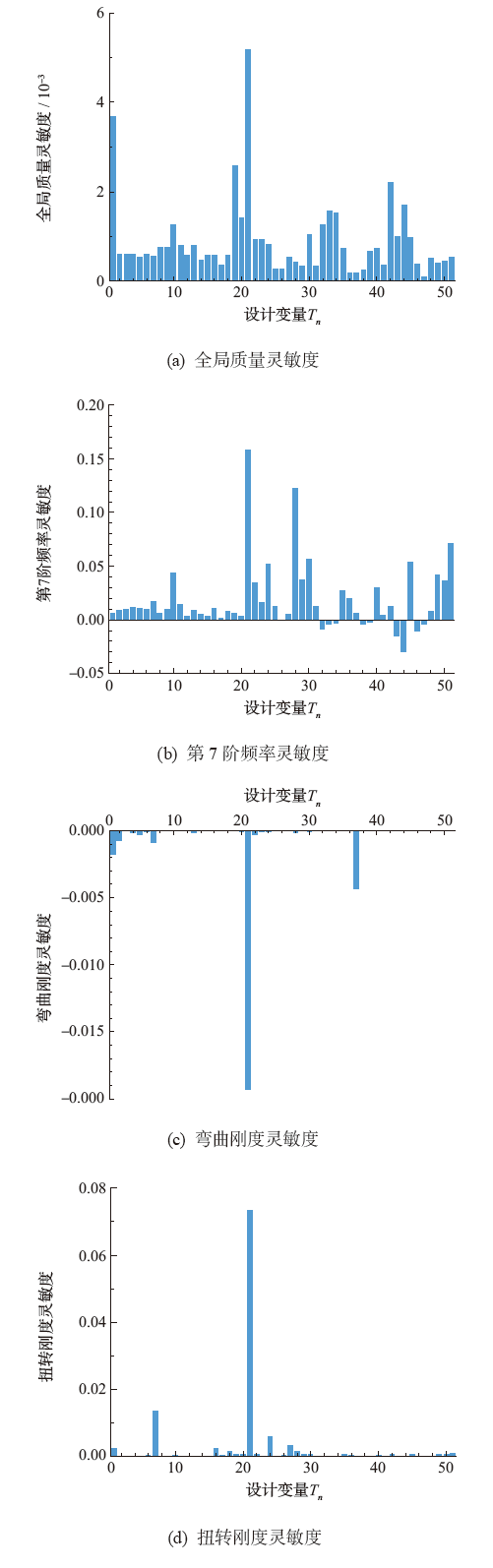

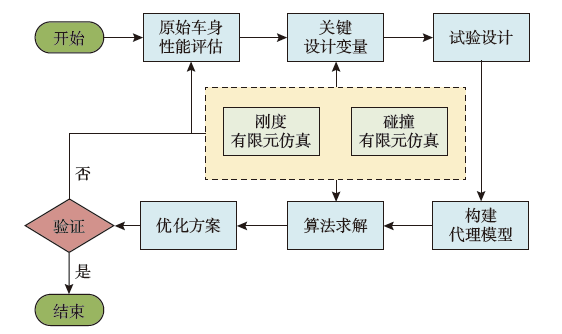

针对特种全地形车（ATV）桁架式车身安全与轻量化需求，该文提出协同静动态力学性能轻量化方法，开展某特种ATV桁架式车身轻量化设计。通过有限元分析获取车身结构静动态力学特性，建立基于力学性能安全的ATV桁架式车身轻量化优化模型；结合灵敏度分析和主效应分析提取桁架式车身关键设计变量，开展试验设计获取轻量化设计样本点，构建最小二乘法（LSR） -径向基函数（RBF）混合代理模型，提出协同静动态力学性能轻量化优化策略，通过序列二次规划（SQP）算法优化获取ATV桁架式车身轻量化设计方案。结果表明，在保证静动态力学性能条件下，该方法能有效降低ATV桁架式车身质量3.82%。

关键词: 特种全地形车（ATV）, 桁架式车身, 轻量化, 耐撞性

Abstract:

Aiming at the safety and lightweight requirements of all-terrain vehicle (ATV) truss body, a lightweight method of collaborative static and dynamic mechanical properties was proposed to carry out the lightweight design of the ATV truss body. The body structure's static and dynamic mechanical properties were obtained by finite element analysis, and the lightweight optimization model of the ATV truss body based on mechanical performance safety was established. Combined with sensitivity analysis and main effect analysis, the key design variables of the truss body were extracted, the sample points of lightweight design were obtained by experimental design, and the least square method (LSR) -radial basis function (RBF) hybrid surrogate model was constructed. The lightweight optimization strategy of collaborative static and dynamic mechanical properties was proposed, and the lightweight design scheme of ATV truss body was optimized by sequential quadratic programming (SQP) algorithm. The results show that the method can effectively reduce the mass of ATV truss body by 3.82% under the condition of ensuring static and dynamic mechanical properties.

Key words: all-terrain vehicle (ATV), truss body, lightweight, crashworthiness

中图分类号:

U463.82

包宏立, 陆思思, 刘曾禹, 闫凯波, 朱文青, 舒洋. 基于力学性能安全的ATV桁架式车身轻量化设计[J]. 汽车安全与节能学报, 2024, 15(6): 821-829.

BAO Hongli, LU Sisi, LIU Zengyu, YAN Kaibo, ZHU Wenqing, SHU Yang. Lightweight design of ATV truss body based on mechanical performance safety[J]. Journal of Automotive Safety and Energy, 2024, 15(6): 821-829.

图/表 14

参考文献 17

[1]	程洪杰, 高蕾, 刘志浩, 等. 多轴特种车辆动力学建模及制动性能优化研究[J]. 振动与冲击, 2021, 40(17): 241-248.
	CHENG Hongjie, GAO Lei, LIU Zhihao, et al. Dynamic modeling and braking performance optimization of multi-axle special vehicle[J]. J Vibr Shoc, 2021, 40(17): 241-248. (in Chinese)
[2]	ZHANG Jiangfan, WANG Liangmo, WANG Tao, et al. Frontal crashworthiness optimization for a light-duty vehicle based on a multi-objective reliability method[J]. Int’l J Crashworth, 2023, 28(4): 449-461.
[3]	单春来, 刘朋科, 古斌, 等. 多级优化算法在火炮总体结构设计中的应用[J]. 兵工学报, 2022, 43(1): 11-19. doi: 10.3969/j.issn.1000-1093.2022.01.002
	SHAN Chunlai, LIU Pengke, GU Bin, et al. Application of multilevel optimization algorithm in artillery integrated design[J]. Acta Armamentarii, 2022, 43(1): 11-19. (in Chinese) doi: 10.3969/j.issn.1000-1093.2022.01.002
[4]	ZOU Xihong, ZHOU Yuting, ZHOU Yuhang, et al. Research on fatigue life of all-terrain vehicle control arm based on measured load spectrum[J]. Cobot, 2022, 1: 16.
[5]	Maradey Lázaro J G, Esteban Villegas H S, Blanco Caballero B J. Finite element analysis (FEA) for optimization the design of a BAJA SAE chassis[C]// Int’l Mech Engi Cong Exposit. American Soc Mech Engi, 2018, 52033: V04AT06A050.
[6]	Zafer N, Aybar U. Vibration analysis and optimization of a tracked armored vehicle[J]. J Vibr Engi Tech, 2023, 11(7): 3177-3184.
[7]	金兆辉, 杜佳泽, 王达, 等. 中小型全地形车的车架结构设计与仿真分析[C]// 中国汽车工程学会. 2021中国汽车工程学会年会论文集(8). 吉林大学, 2021: 250-254.
	JIN Zhaohui, DU Jiaze, WANG Da, et al. Structural design and mechanical analysis of BAJA off-road vehicle frame [C]// Proc 2021 Ann Conf Chin Soc Autom Engi (8). Jilin University, 2021: 250-254. (in Chinese)
[8]	Soundararajan R, Ajith R, Sabarivasan U, et al. A novel approach for design and analysis of an all-terrain vehicle roll cage[J]. Mate Today: Proc, 2021, 45: 2239-2247.
[9]	左文杰, 陈继顺, 李亦文, 等. 刚度、强度与频率约束下的白车身板厚尺寸优化[J]. 汽车工程, 2017, 39(2): 145-149.
	ZUO Wenjie, CHEN Jishun, LI Yiwen, et al. Size optimization on plate thickness of BlW with constraints of stiffness, strength and frequency[J]. Autom Engineering, 2017, 39(2): 145-149. (in Chinese)
[10]	龙江启, 周平, 郑金品, 等. 考虑多工况刚度和模态灵敏度的全地形车车架轻量化设计[J]. 重庆理工大学学报(自然科学), 2022, 36(7): 109-118.
	LONG Jiangqi, ZHOU Ping, ZHENG Jinpin, et al. Lightweight design of all-terrain vehicle frame considering multi-condition stiffness and modal sensitivity[J]. J Chongqing Univ Tech (Nat Sci), 2022, 36(7): 109-118. (in Chinese)
[11]	李作轩, 贾良跃, 郝佳, 等. 基于多工况关联的无人车辆车身结构轻量化优化设计[J]. 兵工学报, 2023, 10(30): 1-13.
	LI Zuoxuan, JIA Liangyue, HAO Jia, et al. The lightweight optimization design of unmanned vehicle body structure based on multi-working conditions correlation[J]. Acta Armamentarii, 2023, 10(30): 1-13. (in Chinese)
[12]	WANG Shuang, WANG Dengfeng. Research on crashworthiness and lightweight of B-pillar based on MPSO with TOPSIS method[J]. J Brazilian Soc Mech Sci Engi, 2019, 41(11): 498.
[13]	王鹤翔, 毛晓东, 庞丽萍, 等. 基于多目标遗传算法的特种车舱室送风系统优化设计[J]. 兵工学报, 2022, 43(12): 2981-2988. doi: 10.12382/bgxb.2021.0632
	WANG Hexiang, MAO Xiaodong, PANG Liping, et al. Design on layout optimization of air supply system for special vehicle cabin based on multi-objective genetic algorithm[J]. Acta Armamentarii, 2022, 43(12): 2981-2988. (in Chinese) doi: 10.12382/bgxb.2021.0632
[14]	CHEN Jielin, Kwak Y, XU Moran, et al. Topology and modular size optimization of small electric vehicle frame based on cross-section contribution analysis[J]. Struct Multidis Optim, 2021, 64: 4287-4304.
[15]	刘莹, 祝振林, 王登峰. 基于隐式全参数化技术的动力电池仓轻量化设计[J]. 汽车安全与节能学报, 2020, 11(2): 236-242.
	LIU Ying, ZHU Zhenlin, WANG Dengfeng. Lightweight design of power battery compartments based on implicit full parameterization technology[J]. J Autom Safe Energ, 2020, 11(2): 236-242. (in Chinese)
[16]	LI Shenhua, WANG Dengfeng, WANG Shuang, et al. Structure-connection-performance integration lightweight optimisation design of multi-material automotive body skeleton[J]. Struct Multidis Optim, 2023, 66(9): 198.
[17]	孙喜龙, 王登峰, 荣宝军, 等. 响应面法在汽车侧面结构多目标优化中的应用[J]. 机械科学与技术, 2022, 41(7): 1039-1047.
	SUN Xilong, WANG Dengfeng, RONG Baojun, et al. Applying response surface method to multi-objective optimization of automobile's side structure[J]. Mech Sci Tech Aeros Engi, 2022, 41(7): 1039-1047. (in Chinese)

材料	ρ / (g·m^-3)	v	E / GPa	σ_s/ MPa
Q345	7.85	0.28	206	361
DP980	7.83	0.30	210	789

材料	ρ / (g·m^-3)	v	E / GPa	σ_s/ MPa
Q345	7.85	0.28	206	361
DP980	7.83	0.30	210	789

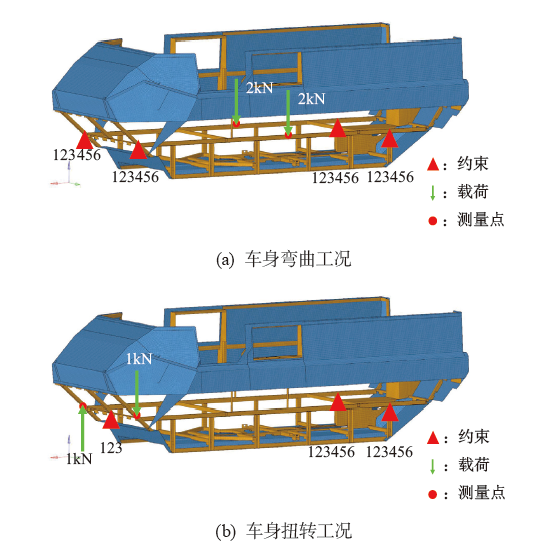

弯曲刚度，S_B	44.67 kN / mm
扭转刚度，S_T	24 120.14 (kN·mm) / rad
固有频率，f	11.00 Hz

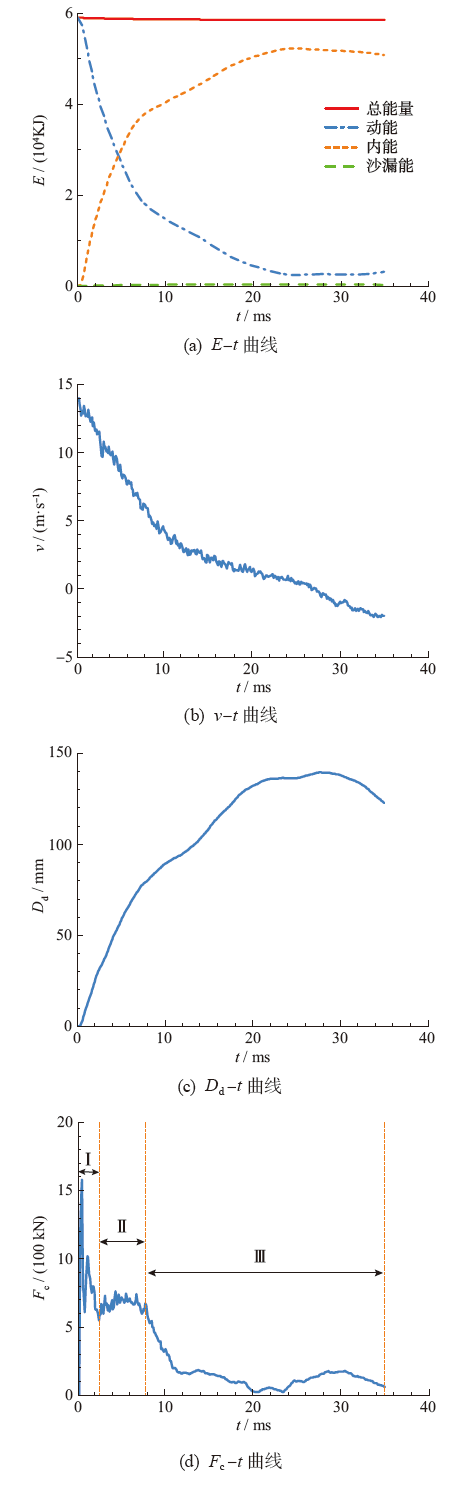

整车最大变形量，D_d	139.63 mm
峰值接触力，F_c	1 579.37 kN

弯曲刚度，S_B	44.67 kN / mm
扭转刚度，S_T	24 120.14 (kN·mm) / rad
固有频率，f	11.00 Hz
整车最大变形量，D_d	139.63 mm
峰值接触力，F_c	1 579.37 kN

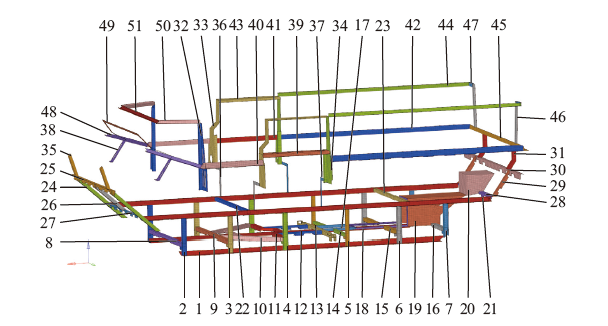

设计变量	质量响应	频率响应	弯曲刚度响应	扭转刚度响应	结果
T21	1	1	1	1	4
T22	1	1	1	1	4
T24	1	1	1	1	4
T30	1	1	1	1	4
T42	1	1	1	1	4
T1	1	0	1	1	3
T4	1	1	1	0	3
T7	0	1	1	1	3
T10	1	1	0	1	3
T11	1	1	1	0	3
T16	0	1	1	1	3
T19	1	0	1	1	3
T23	1	1	1	0	3
T28	0	1	1	1	3
T29	0	1	1	1	3
T35	1	1	0	1	3
T40	1	1	0	1	3
T45	1	1	0	1	3
T50	0	1	1	1	3
T51	0	1	1	1	3
