基于神经网络代理模型的车身多学科轻量化优化设计

doi:10.3969/j.issn.1674-8484.2025.01.003

摘要/Abstract

摘要：

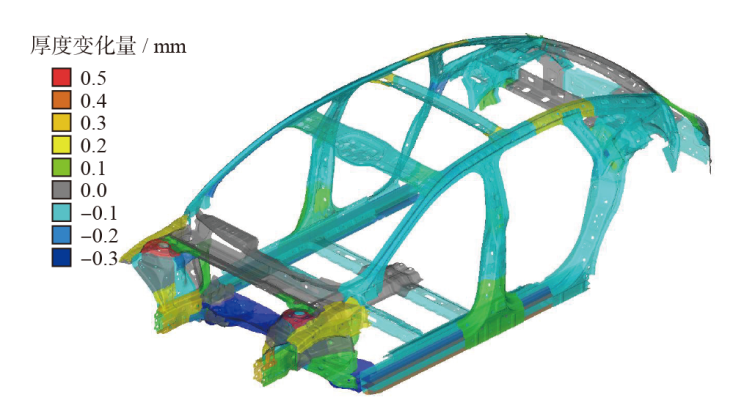

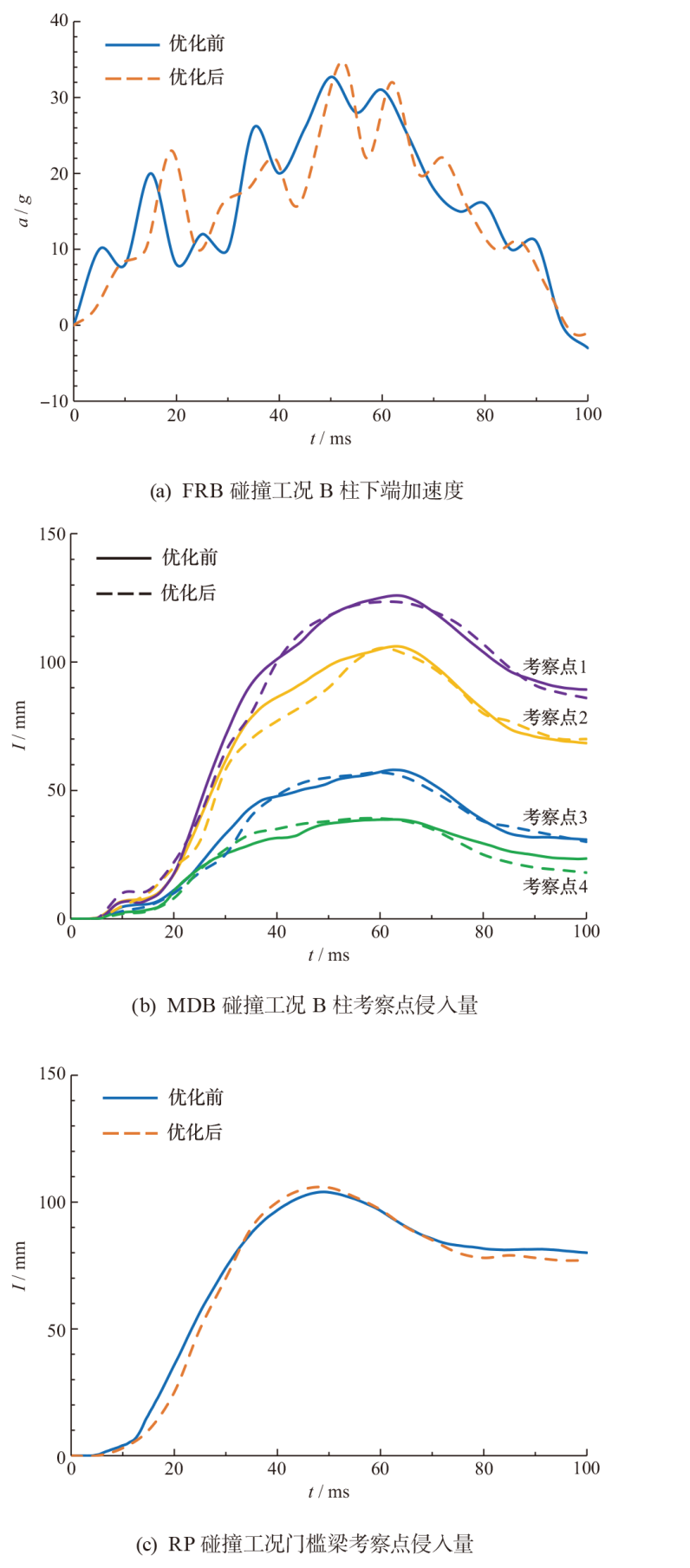

通过车身零件厚度优化，在保证正碰、侧碰、模态和刚度多个学科关键性能基本不变的前提下，实现车身轻量化设计。采用代理模型法代替仿真与协同优化方法结合开展优化；考虑到碰撞工况的高度非线性特性，选择基于机器学习算法的全连接神经网络（FCNN）来建立代理模型；基于代理模型法获得轻量化方案最终通过仿真验证。结果表明：与传统响应面模型和Kriging模型相比，FCNN模型具有更强的非线性回归和泛化能力；碰撞工况FCNN的预测精度相较于其他2种模型提升约12.5%，R²达到0.9左右；优化前后车身整体性能变化不大，实现减重7.5 kg。

关键词: 汽车轻量化, 多学科优化, 神经网络, 协同优化, 代理模型

Abstract:

The thicknesses of a vehicle body were optimized to achieve lightweight design on the basis of little effect on the key performances in frontal collision, side collision, modal and stiffness conditions. Surrogate model method was used to replace simulation to conduct optimization process combined with collaboration optimization method. Considering high nonlinearity in collision conditions, a fully connected neural network (FCNN) based on machine learning algorithm was established as surrogate model. The lightweight solution obtained from surrogate model was finally validated through simulation. The results show that FCNN model exhibits more powerful nonlinear regression and generalization abilities compared with traditional response surface model and Kriging model. The prediction accuracy of FCNN is higher by about 12.5% than the other two models in collision conditions, and the R² increases to about 0.9. The difference between the overall performances of the vehicle body before and after optimization is insignificant, meanwhile, a weight reduction of 7.5 kg is ultimately achieved.

Key words: automobile lightweight, multidisciplinary design optimization, neural network, collaboration optimization, surrogate model

中图分类号:

荣海, 蒋建中, 姚再起, 马凯, 杜柯南. 基于神经网络代理模型的车身多学科轻量化优化设计[J]. 汽车安全与节能学报, 2025, 16(1): 32-42.

RONG Hai, JIANG Jianzhong, YAO Zaiqi, MA Kai, DU Kenan. Multidisciplinary design optimization of a vehicle body for lightweight based on a neural network surrogate model[J]. Journal of Automotive Safety and Energy, 2025, 16(1): 32-42.

图/表 20

参考文献 26

[1]	Kodiyalam S, Yang R J, Gu L, et al. Multidisciplinary design optimization of a vehicle system in a scalable, high performance computing environment[J]. *Struct Multidiscip Opti*, 2004, 26(3-4): 256-263.
[2]	史国宏, 陈勇, 杨雨泽, 等. 白车身多学科轻量化优化设计应用[J]. 机械工程学报, 2012, 48(8): 110-114.
	SHI Guohong, CHEN Yong, YANG Yuze, et al. BIW architecture multidisciplinary light weight optimization design[J]. *J Mech Eng*, 2012, 48(8): 110-114. (in Chinese)
[3]	Ryberg A B, Nilsson L. A metamodel-based multidisciplinary design optimization process for automotive structures[J]. *Engi Compu*, 2015, 31(4): 711-728.
[4]	刘钊, 李晗, 朱平. 基于粒子群算法的轿车车身多学科优化设计[J]. 汽车工程, 2018, 40(3): 251-258.
	LIU Zhao, LI Han, ZHU Ping. Multidisciplinary design optimization of car body based on particle swarm algorithm[J]. *Autom Engineerin*, 2018, 40(3): 251-258. (in Chinese)
[5]	段利斌, 周华锦, 杜展鹏, 等. 基于SHCA-T算法的车身骨架多工况耐撞性优化设计[J]. 汽车工程, 2023, 45(2): 304-312.
	DUAN Libin, ZHOU Huajin, DU Zhanpeng, et al. Multi working condition crashworthiness optimization design of body frame based on SHCA-T algorithm[J]. *Autom Engineerin*, 2023, 45(2): 304-312. (in Chinese)
[6]	Queipo N V, Haftka R T, Shyy W, et al. Surrogate-based analysis and optimization[J]. *Prog Aerosp Sc*, 2005, 41(1): 1-28.
[7]	程雨婷. 基于协同优化方法的汽车车身性能多学科优化[D]. 北京: 北京理工大学, 2016.
	CHENG Yuting. Multidisciplinary design optimization of vehicle body performance based on collaborative optimization[D]. Beijing: Beijing Institute of Technology, 2016. (in Chinese)
[8]	LI Han, LIU Zhao, ZHU Ping. An improved multi-objective optimization algorithm with mixed variables for automobile engine hood lightweight design[J]. *J Mech Sci Tec*, 2021, 35(5): 2073-2082.
[9]	LI Zhixiang, MA Wen, YAO Shuguang, et al. A machine learning based optimization method towards removing undesired deformation of energy-absorbing structures[J]. *Struct Multidiscip Opti*, 2021, 64(2): 919-934.
[10]	王居闯, 曹清林, 邱睿, 等. 在侧面碰撞中电动汽车电池模块破损的预测[J]. 汽车安全与节能学报, 2024, 15(2): 169-177.
	WANG Juchuang, CAO Qinglin, QIU Rui, et al. Prediction of battery-module damage in electric-vehicle side-collisions[J]. *J Autom Safe Ener*, 2024, 15(2): 169-177. (in Chinese)
[11]	陈延展. 基于机器学习与智能优化的车身薄壁结构轻量化设计[D]. 长沙: 湖南大学, 2022.
	CHEN Yanzhan. Lightweight design of thin-wall structure based on machine learning and intelligent optimization[D]. Changsha: Hunan University, 2022. (in Chinese)
[12]	National Highway Traffic Safety Administration. USDOT releases 2016 fatal traffic crash data[EB/OL]. (2016-10-06) https://www.nhtsa.gov/press-releases/usdot-releases2016-fatal-traffic-crash-data.
[13]	中国汽车技术研究中心有限公司. C-NCAP管理规则(2021年版)[S]. 天津: 中国汽车技术研究中心有限公司, 2019.
	China Automotive Technology and Research Center Co., Ltd. C-NCAP Management Regulation (2021 Edition)[S]. Tianjin: China Automotive Technology and Research Center Co., Ltd, 2019. (in Chinese)
[14]	黄焕军, 张博文, 吴光强, 等. 基于组合代理模型的车身多学科设计优[J]. 汽车工程, 2016, 38(9): 1107-1113.
	HUANG Huanjun, ZHANG Bowen, WU Guangqiang, et al. Multidisciplinary design optimization of vehicle body based on ensemble surrogates[J]. *Autom Engineerin*, 2016, 38(9): 1107-1113. (in Chinese)
[15]	肖海涛, 董江涛, 王月, 等. 某车型侧面柱碰车身结构耐撞性优化[J]. 汽车安全与节能学报, 2015, 6(2): 156-163.
	XIAO Haitao, DONG Jiangtao, WANG Yue, et al. Optimization of body structure crashworthiness in side pole impact for a car[J]. *J Autom Safe Ener*, 2015, 6(2): 156-163. (in Chinese)
[16]	XU Zhongming, ZHANG Liang, ZHANG Zhifei, et al. Research on pole and moving deformable barrier side impact of passenger car based on simulation test[J]. *J Syst Simula*, 2013, 25(1): 170-175.
[17]	马骊凕, 朱智民, 安占飞, 等. 轿车白车身模态分析[J]. 振动与冲击, 2013, 32(21): 214-218.
	MA Liming, ZHU Zhimin, AN Zhanfei, et al. Modal analysis of a car BIW[J]. *J Vibrat Shoc*, 2013, 32(21): 214-218. (in Chinese)
[18]	XIONG Feng, WANG Dengfeng, CHEN Shuming, et al. Multi-objective lightweight and crashworthiness optimization for the side structure of an automobile body[J]. *Struct Multidiscip Opti*, 2018, 58(4): 1-21.
[19]	沈保山, 范圣耀, 钟兵, 等. 基于隐式参数化的车身轻量化设计[J]. 机械设计, 2022, 39(8): 109-113.
	SHEN Baoshan, FAN shengyao, ZHONG Bing, et al. Lightweight design of car body based on implicit parameterization[J]. *J Mach Desi*, 2022, 39(8): 109-113. (in Chinese)
[20]	Kroo I, Altus S, Braun R, et al. Multidisciplinary optimization methods for aircraft preliminary design[R]. AIAA-1994-4325.
[21]	杨丽丽. 多学科协同优化及其不确定性和多目标性研究[D]. 上海: 上海交通大学, 2018.
	YANG Lili. Research on multidisciplinary collaborative optimization and its uncertainty and multiobjectivity[D]. Shanghai: Shanghai Jiao Tong University, 2018. (in Chinese)
[22]	Alexandrov N M, Lewis R M. Analytical and computational aspects of collaborative optimization for multidisciplinary design[J]. *AIAA* , 2002, 40(2): 301-309.
[23]	XIA Yufei, LIU Chuanzhe, LI Yuying, et al. A boosted decision tree approach using Bayesian hyper-parameter optimization for credit scoring[J]. *Expert Syst App*, 2017, 78: 225-241.
[24]	Rumelhart D E, Hinton G, Williams R J. Learning representations by back-propagating errors[J]. *Natur, 1986, 323*(6088) : 533-536.
[25]	Draper N R, Smith H. Applied Regression Analysis (3rd Edit)[M]. New York: Wiley, 1998: 1-13.
[26]	Fukuda E H, Drummond L M G, Raupp F M P. An external penalty-type method for multicriteria[J]. TO, 2016, 24(2): 493-513.

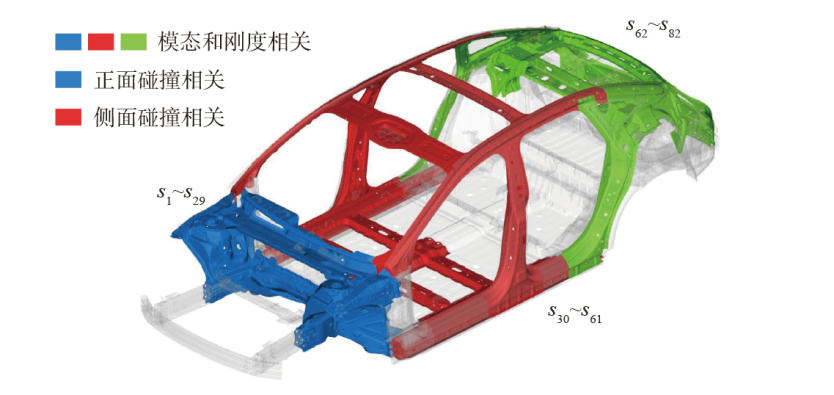

模型编号	性能指标	工况	设计变量

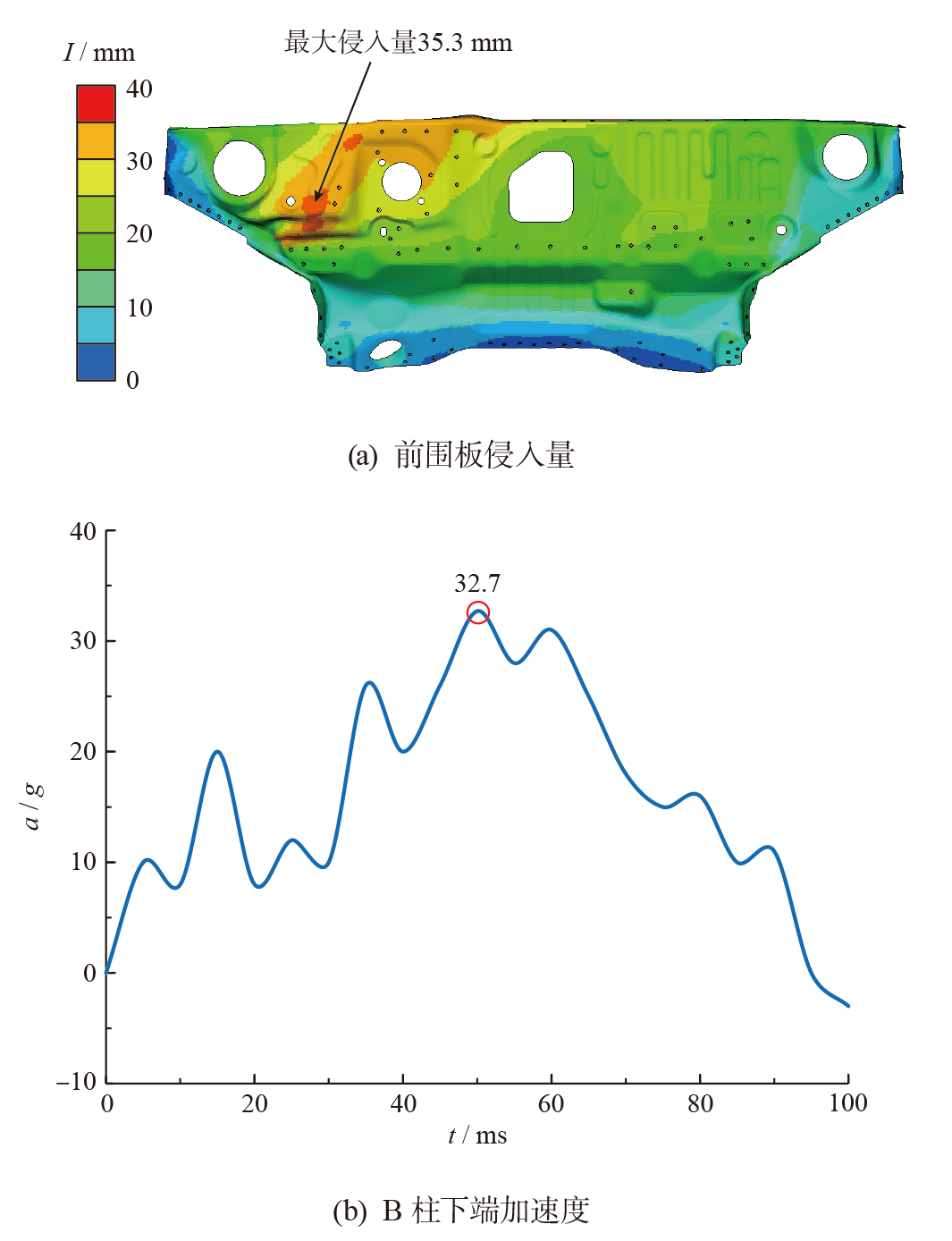

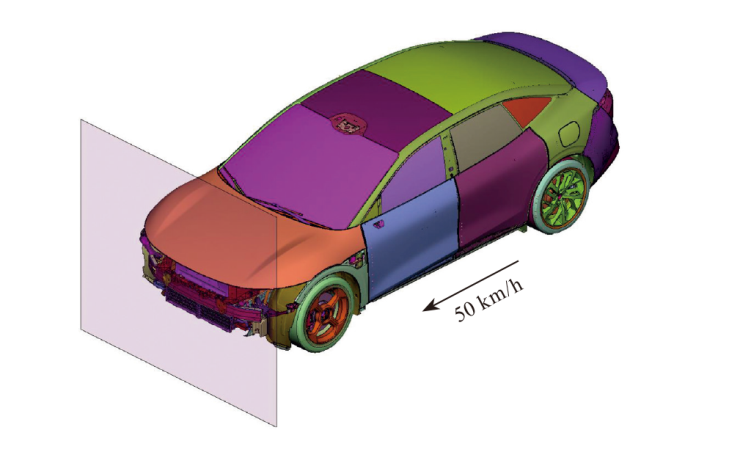

#1	I_FRB	FRB	s₁~s₂₉
#2	a_FRB	FRB	s₁~s₂₉

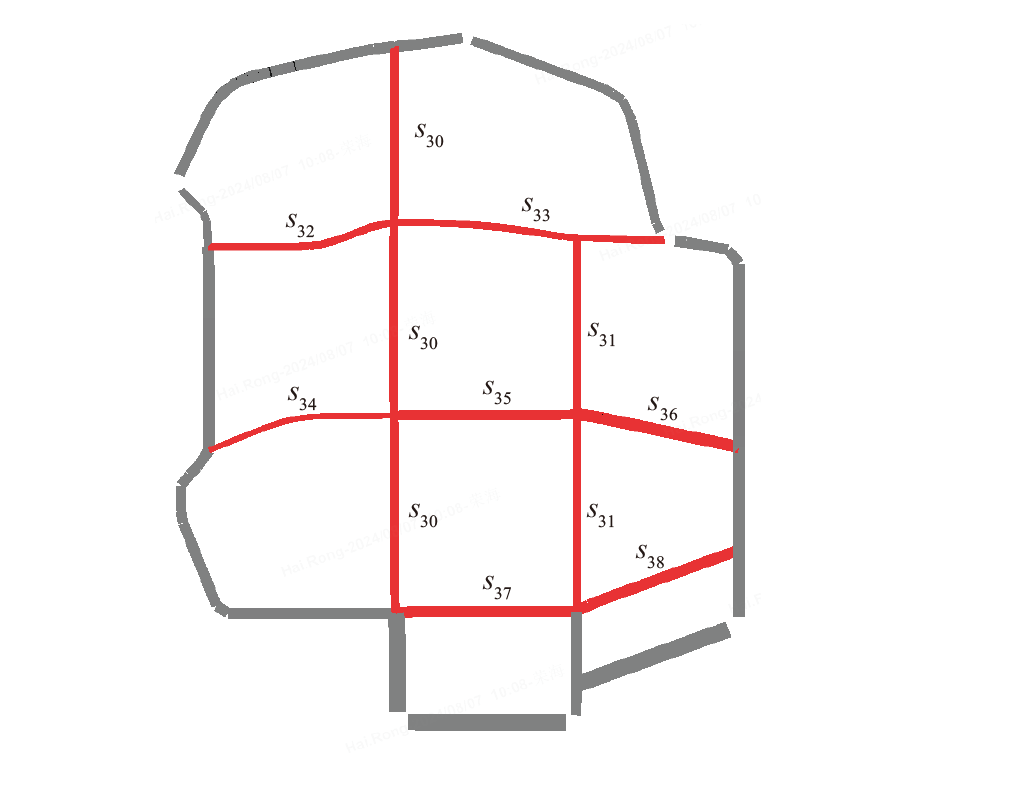

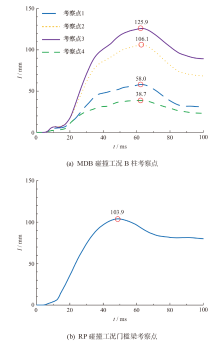

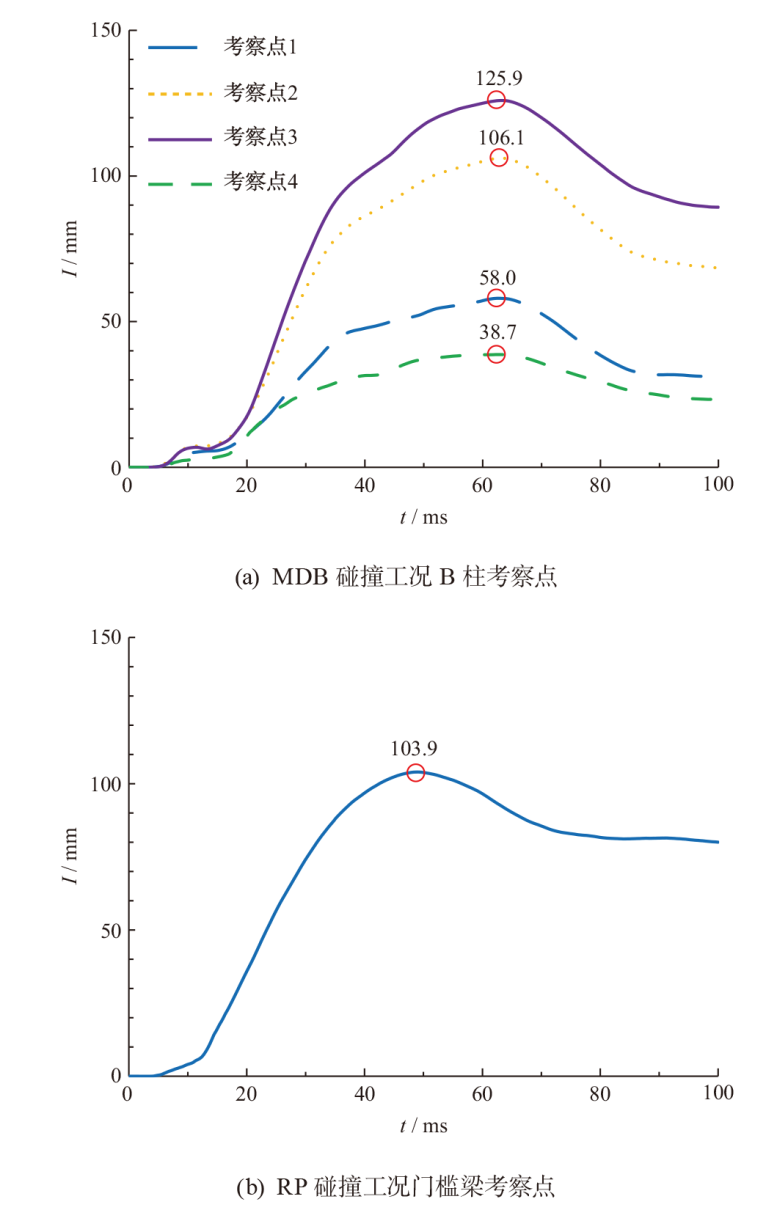

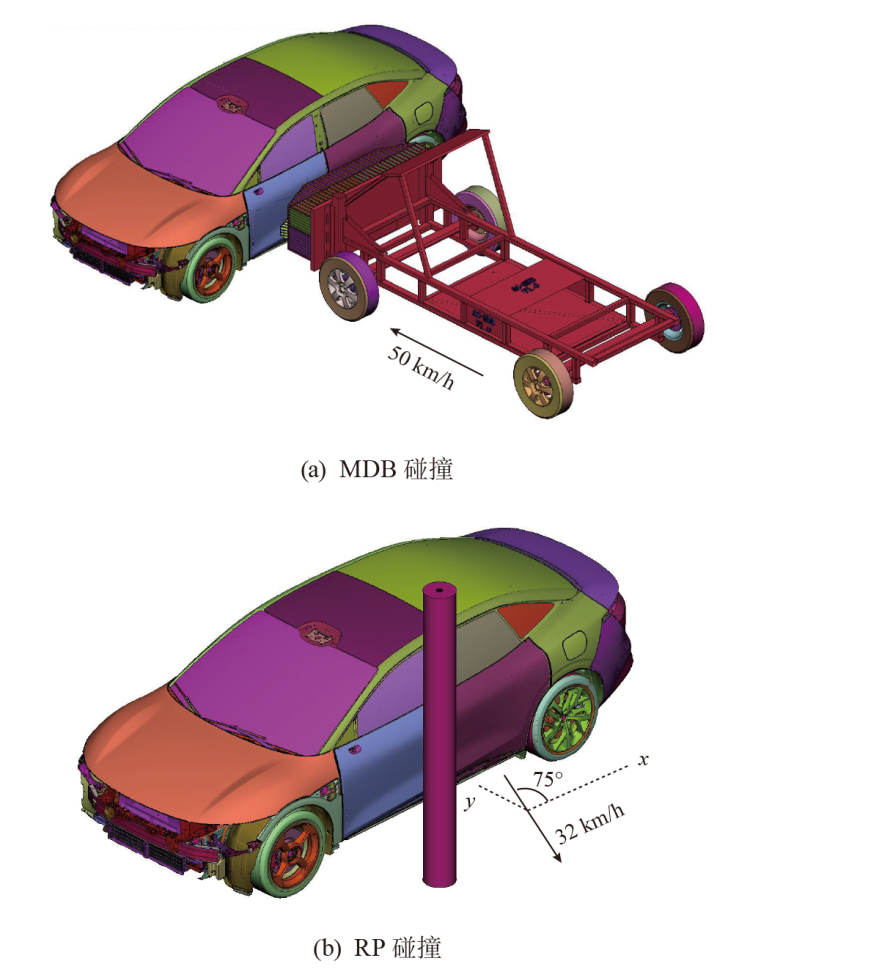

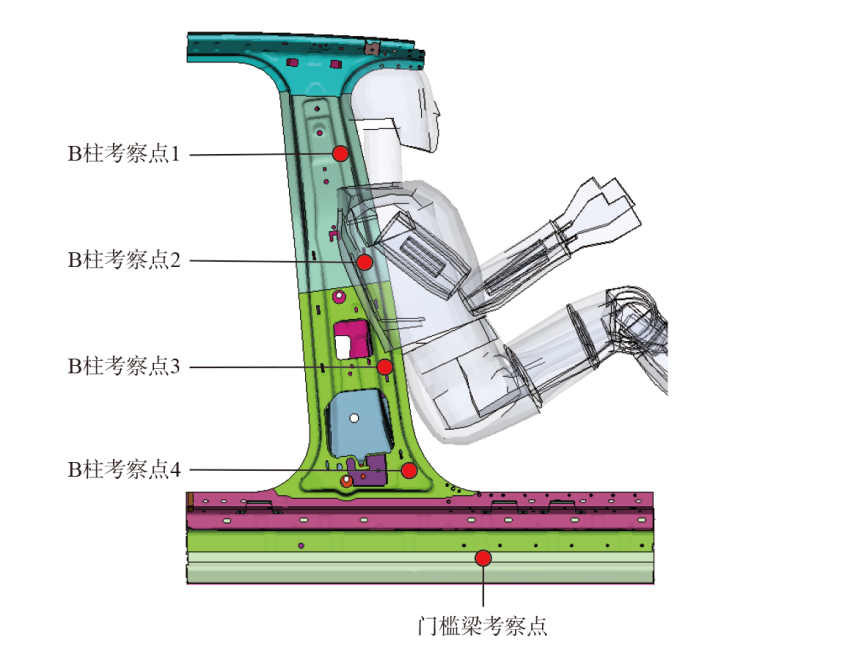

#3	I_MDB1~I_MDB4	MDB	s₃₀~s₆₁
#4	I_RP	RP	s₃₀~s₆₁

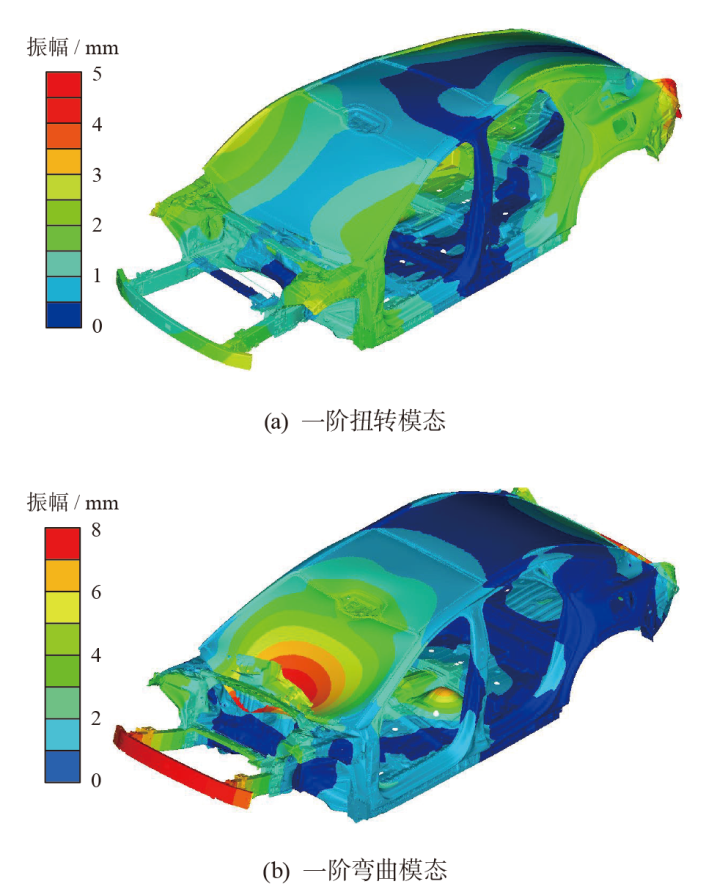

#5	M_t and M_b	模态	s₁~s₈₂

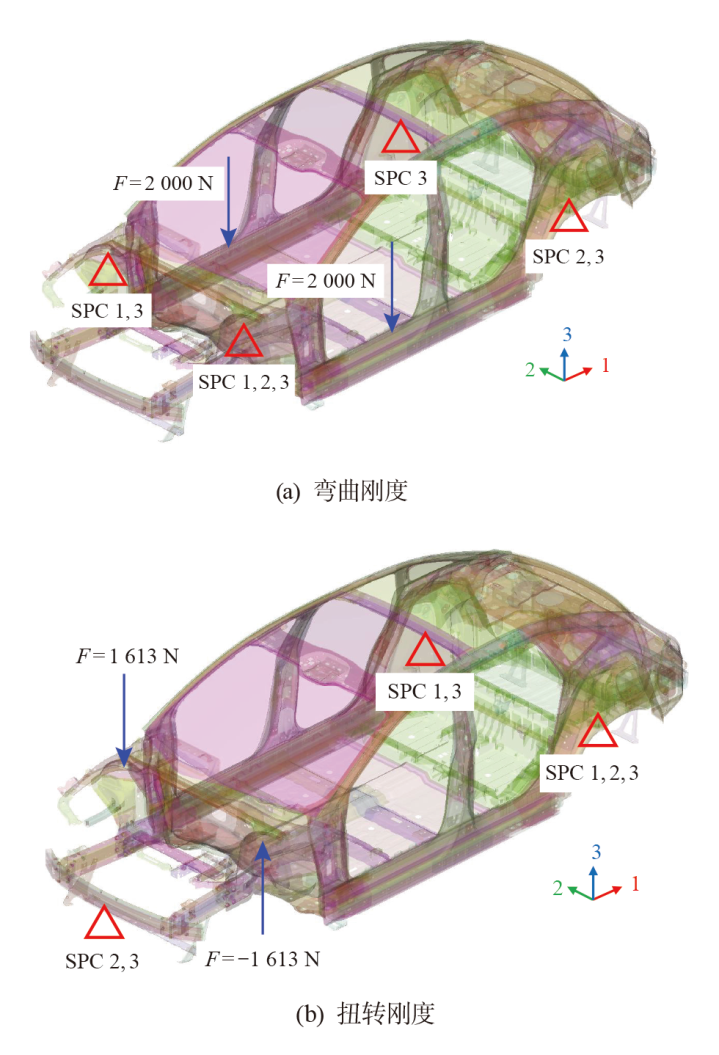

#6	S_t and S_b	刚度	s₁~s₈₂

模型编号	性能指标	工况	设计变量
#1	I_FRB	FRB	s₁~s₂₉
#2	a_FRB	FRB	s₁~s₂₉
#3	I_MDB1~I_MDB4	MDB	s₃₀~s₆₁
#4	I_RP	RP	s₃₀~s₆₁
#5	M_t and M_b	模态	s₁~s₈₂
#6	S_t and S_b	刚度	s₁~s₈₂

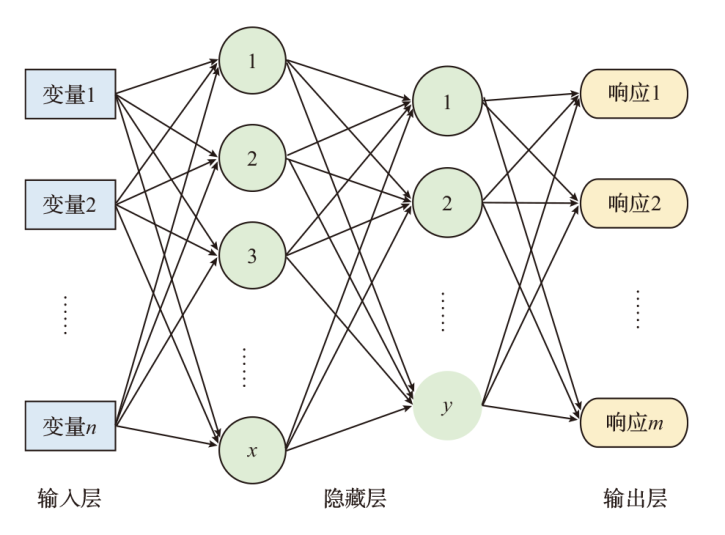

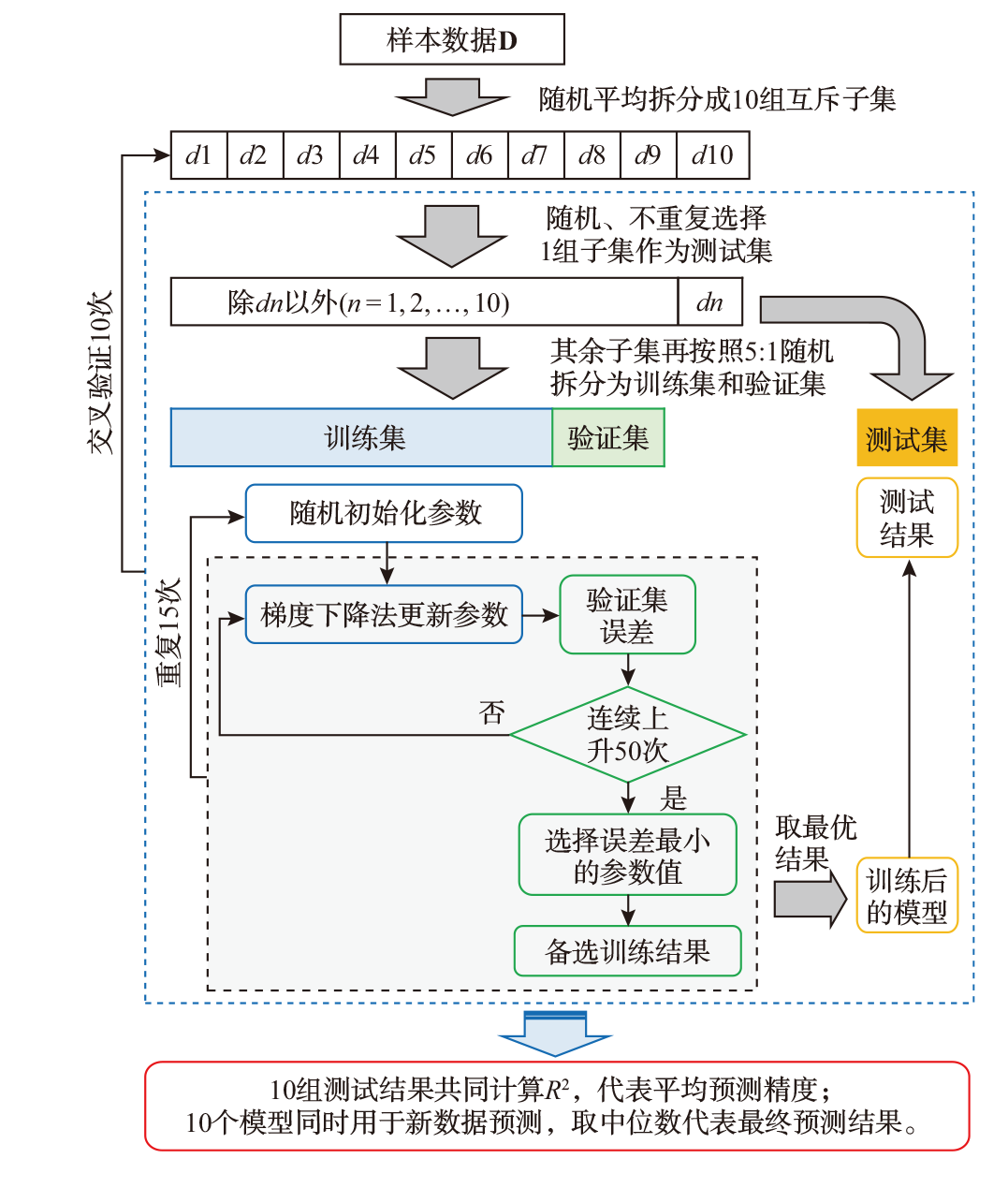

模型编号	#1	#2	#3	#4	#5	#6
输入层神经元个数	29	29	32	32	82	82
输出层神经元个数	1	1	4	1	2	2
输出层激活函数	线性	线性	线性	线性	线性	线性
隐藏层层数	3	3	4	3	2	2
隐藏层神经元个数	18	21	20	20	15	12
隐藏层激活函数	ReLU	ReLU	ReLU	ReLU	ReLU	ReLU

模型编号	#1	#2	#3	#4	#5	#6
输入层神经元个数	29	29	32	32	82	82
输出层神经元个数	1	1	4	1	2	2
输出层激活函数	线性	线性	线性	线性	线性	线性
隐藏层层数	3	3	4	3	2	2
隐藏层神经元个数	18	21	20	20	15	12
隐藏层激活函数	ReLU	ReLU	ReLU	ReLU	ReLU	ReLU

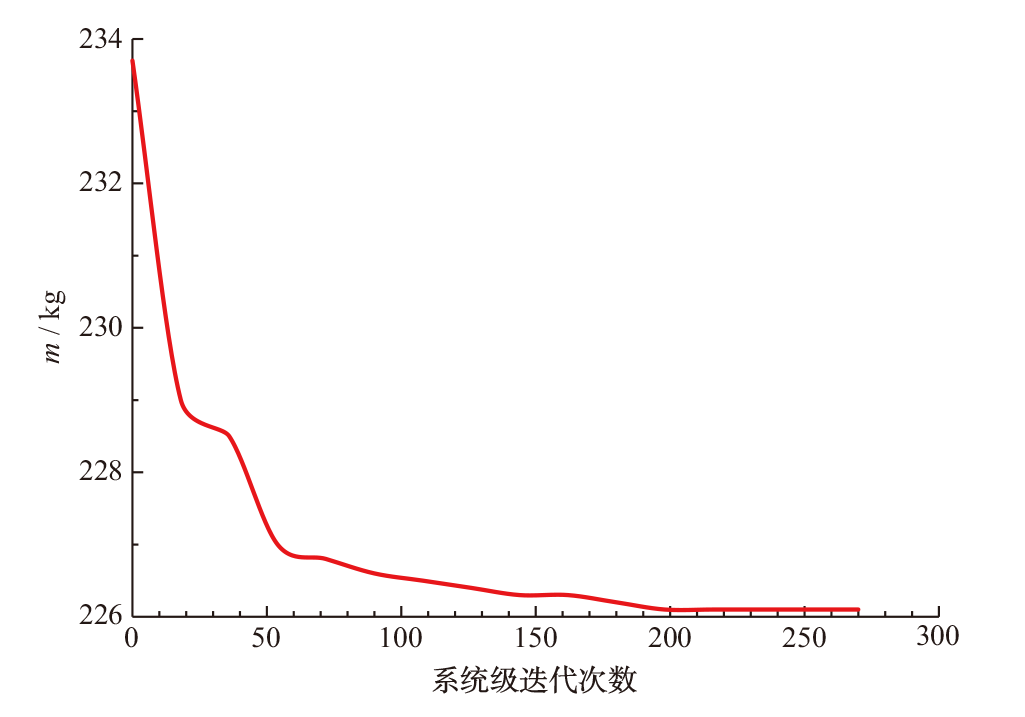

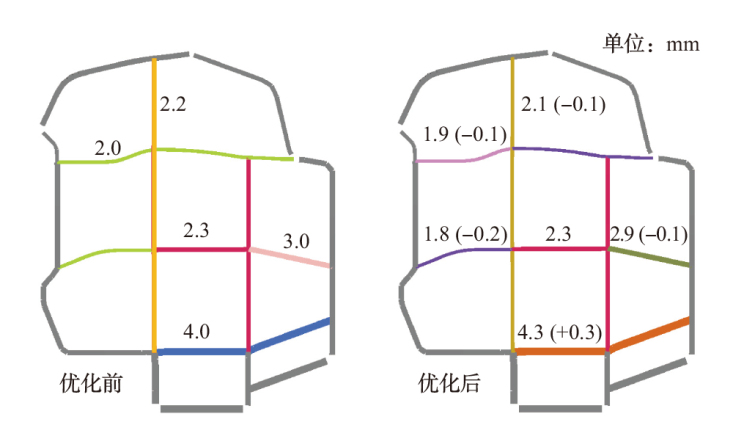

工况	性能指标	FCNN	RSM	Kriging
FRB	I_FRB	0.92	0.81	0.79
FRB	a_FRB	0.88	0.78	0.79
MDB	I_MDB1~I_MDB4	0.91	0.80	0.82
RP	I_RP	0.91	0.81	0.83
模态	M_t / M_b	0.99/0.94	0.96/0.91	0.95/0.92
刚度	S_t / S_b	0.99/0.98	0.98/0.98	0.97/0.98
