某电动汽车侧面柱碰工况门槛梁截面参数优化

doi:10.3969/j.issn.1674-8484.2024.06.002

摘要/Abstract

摘要：

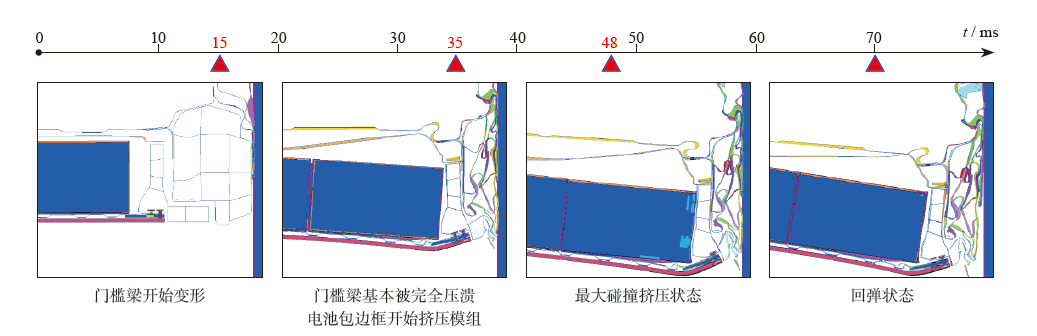

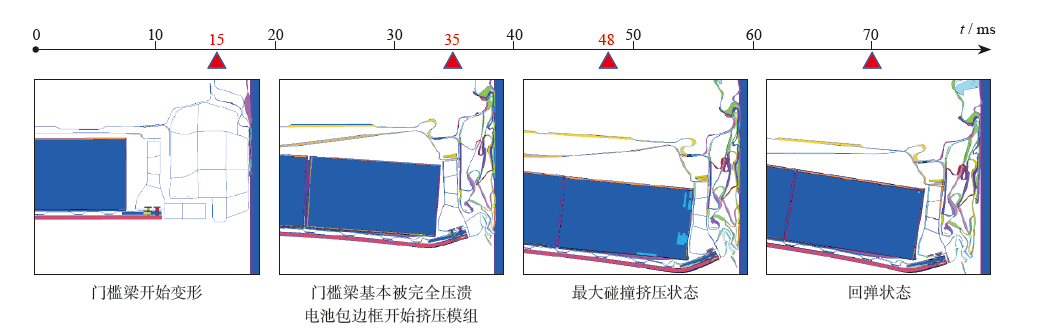

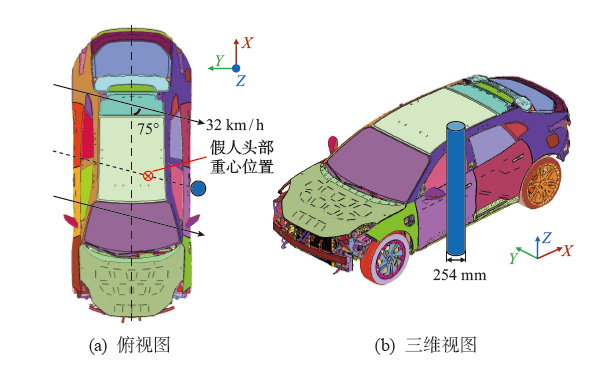

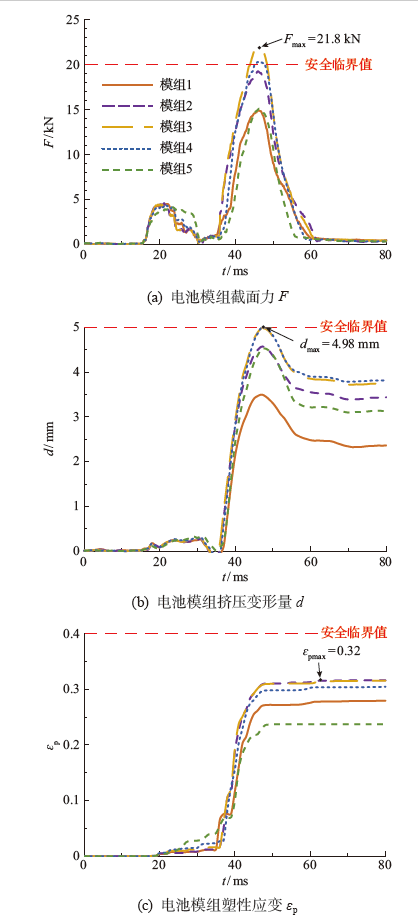

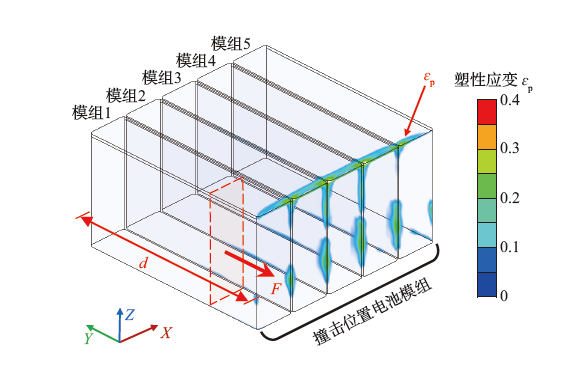

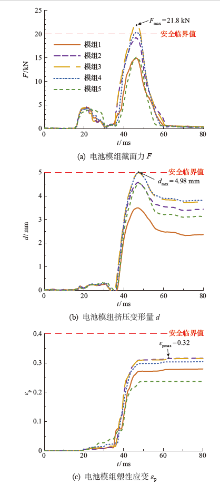

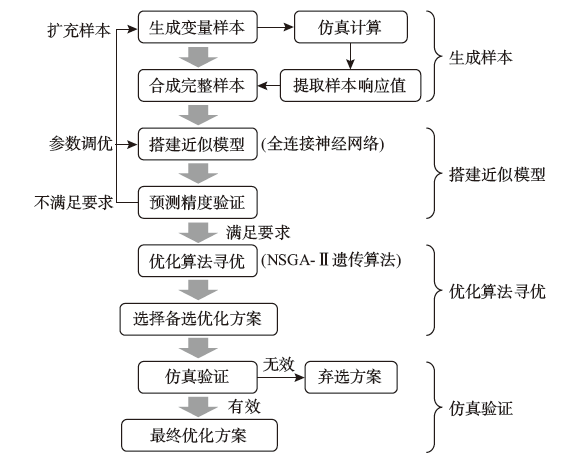

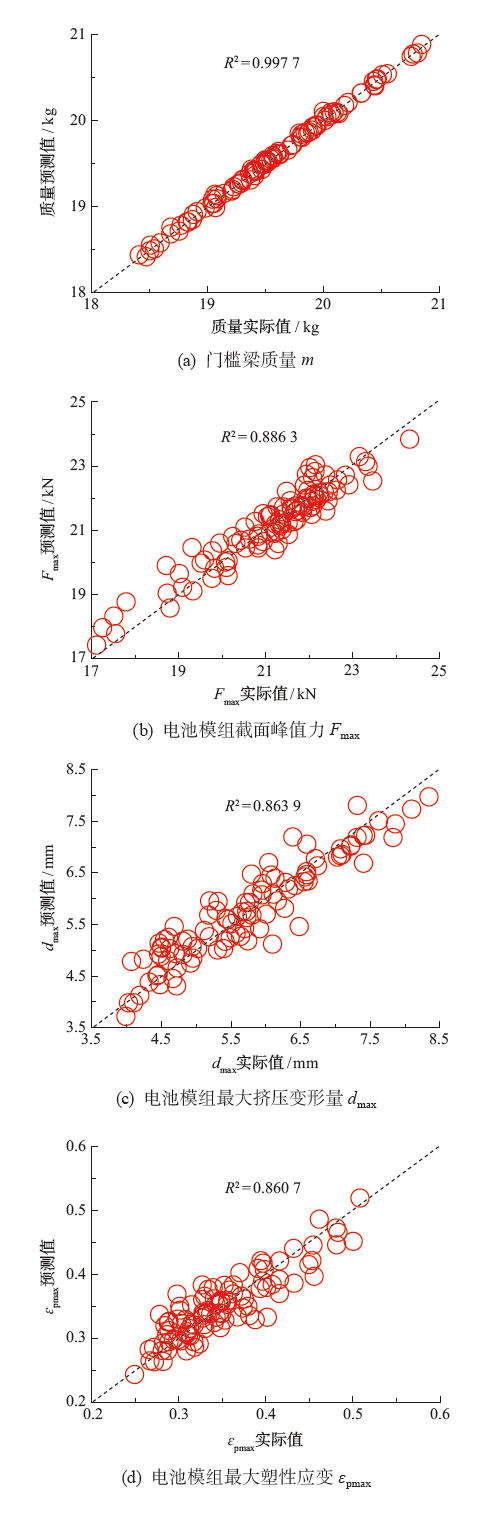

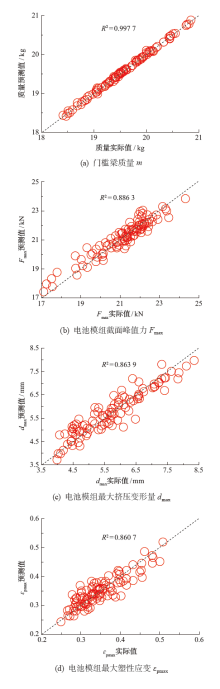

某电动汽车侧面柱碰工况电池模组截面峰值力（F_max）超标，为提升电池碰撞安全性，同时实现车身轻量化，开展门槛梁截面参数优化。选取26个厚度及位置参数作为优化变量，以减小F_max和门槛梁质量作为目标，以电池模组最大挤压变形量（d_max）和塑性应变（ε_pmax）作为约束。首先通过最优Latin超立方生成样本，基于样本建立全连接神经网络近似模型，然后运用NSGA-Ⅱ算法开展多目标优化，最后将优化结果代入仿真进行验证。结果表明：优化后电池模组F_max由21.8 kN降低至20 kN以下，达到了安全要求；同时，门槛梁减重1.41%~4.02%，实现了轻量化效果。进一步分析表明，部分方案电池模组d_max和ε_pmax也同步降低，在减重的同时更全面地提升了电池的碰撞安全性。

关键词: 侧面柱碰, 电池安全, 近似模型, 轻量化, 有限元仿真

Abstract:

The peak section force (F_max) of battery modules of an electric vehicle exceeded the safety range under side pole collision condition. The parameter optimization of the sill beam section was carried out to improve battery collision safety and achieve weight reduction of the vehicle body. 26 thicknesses or position parameters were selected as optimization variables to reduce F_max and the mass of sill beam. The maximum compression deformation(d_max) and plastic strain(ε_pmax)of battery modules were chosen as constrains. Firstly, the optimal Latin hypercube method was employed to generate samples. A fully connected neural network was established as approximation model based on samples, and the non-dominated sorting genetic algorithms-Ⅱ(NSGA-Ⅱ) was employed for multi-objective optimization. Finally, optimization results were verified through simulation. The results show that the F_max of battery modules is decreased from 21.8 kN to less than 20 kN, indicating safety requirement is eventually satisfied. Meanwhile, the mass of sill beam is reduced by 1.41%~4.02%, which means lightweight design is also achieved. Further analysis shows that d_max and ε_pmax of battery modules are also reduced synchronously in some solutions, which improves battery collision safety comprehensively in the meantime of weight reduction.

Key words: side pole collision, battery safety, approximation model, lightweight, finite element simulation

中图分类号:

荣海, 蒋建中, 姚再起, 马凯. 某电动汽车侧面柱碰工况门槛梁截面参数优化[J]. 汽车安全与节能学报, 2024, 15(6): 813-820.

RONG Hai, JIANG Jianzhong, YAO Zaiqi, MA Kai. Parameter optimization of the sill beam section of an electric vehicle under side pole collision condition[J]. Journal of Automotive Safety and Energy, 2024, 15(6): 813-820.

图/表 13

参考文献 20

[1]	陈泽宇, 熊瑞, 孙逢春. 电动汽车电池安全事故分析与研究现状[J]. 机械工程学报, 2019, 55(24): 93-104, 116. doi: 10.3901/JME.2019.24.093
	CHEN Zeyu, XIONG Rui, SUN Fengchun. Research status and analysis for battery safety accidents in electric vehicles[J]. J Mech Engi, 2019, 55(24): 93-104, 116. (in Chinese)
[2]	接桂利, 朱西产, 曹亦兴, 等. 电动汽车碰撞电安全性风险及仿真分析[J]. 汽车技术, 2015(3): 42-46.
	JIE Guili, ZHU Xichan, CAO Yixing, et al. Risks and simulation analysis of electric safety in electric vehicle crash[J]. Autom Tech, 2015(3): 42-46. (in Chinese)
[3]	胡林, 谷子逸, 王丹琦, 等. 汽车安全性测评规程现状及趋势展望[J]. 汽车工程, 2024, 46(2): 187-200, 240.
	HU Lin, GU Ziyi, WANG Danqi, et al. Current status and trend of automotive safety procedures/ programs[J]. Autom Engineering, 2024, 46(2): 187-200, 240. (in Chinese)
[4]	肖海涛, 董江涛, 王月, 等. 某车型侧面柱碰车身结构耐撞性优化[J]. 汽车安全与节能学报, 2015, 6(2): 156-163.
	XIAO Haitao, DONG Jiangtao, WANG Yue, et al. Optimization of body structure crashworthiness in side pole impact for a car[J]. J Autom Safe Energ, 2015, 6(2): 156-163. (in Chinese)
[5]	XU Zhongming, ZHANG Liang, ZHANG Zhifei, et al. Research on pole and moving deformable barrier side impact of passenger car based on simulation test[J]. J Syst Simul, 2013, 25(1): 170-175.
[6]	中国汽车技术研究中心有限公司.C-NCAP管理规则(2021年版)[S]. 天津: 中国汽车技术研究中心有限公司, 2019.
	China Automotive Technology and Research Center Co., Ltd. C-NCAP management regulation (2021 Edit)[S]. Tianjin: China Automotive Technology and Research Center Co., Ltd, 2019. (in Chinese)
[7]	高伟钊, 邓清源, 杨军, 等. 基于等效静载荷法的挤压铝门槛梁非线性结构优化[J]. 汽车工艺与材料, 2024(1): 1-6.
	GAO Weizhao, DENG Qingyuan, YANG Jun, et al. Nonlinear optimization design of extruded aluminum sill based on ESL method[J]. Autom Tech Mater, 2024(1): 1-6. (in Chinese)
[8]	Ortmann S, Sperber J, Schneider D, et al. Crashworthiness design of cross-sections with the graph and heuristic based topology optimization incorporating competing designs[J]. Struct Multidis Optim, 2020, 64: 1063-1077.
[9]	GUO Guikai, ZHAO Yanfang, SU Weihe, et al. Topology optimization of thin-walled cross section using moving morphable components approach[J]. Struct Multidis Optim, 2021, 63: 2159-2176.
[10]	段利斌, 周华锦, 杜展鹏, 等. 基于SHCA-T算法的车身骨架多工况耐撞性优化设计[J]. 汽车工程, 2023, 45(2): 304-312.
	DUAN Libin, ZHOU Huajin, DU Zhanpeng, et al. Multi working condition crashworthiness optimization design of body frame based on SHCA-T algorithm[J]. Autom Engineering, 2023, 45(2): 304-312. (in Chinese)
[11]	姚再起, 鲁慧才, 尹道志, 等. 基于局部碰撞模型的电动汽车铝合金门槛参数优化[C]// 第十五届中国CAE工程分析技术年会, 上海, 2019.
	YAO Zaiqi, LU Huicai, YIN Daozhi, et al. Parameter optimization of aluminum alloy rocker for electric vehicle based on local crash model[C]// The 15th China CAE Engi Analy Tech Annu Conf. Shanghai, 2019. (in Chinese)
[12]	Park K J, Lee J N, Park G J. Structural shape optimization using equivalent static loads transformed from dynamic loads[J]. Int’l J Nume Method Engi, 2005, 63(4): 589-602.
[13]	陆善彬, 蒋伟波, 左文杰. 基于等效静态载荷法的汽车前端结构抗撞性尺寸和形貌优化[J]. 振动与冲击, 2018, 37(7): 56-61.
	LU Shanbin, JIANG Weibo, ZUO Wenjie. Size and morphology crashworthiness optimization for automotive frontal structures using equivalent static loads method[J]. J Vibra Shoc, 2018, 37(7): 56-61. (in Chinese)
[14]	MA Yanhua, CHEN Xueqian, ZUO Wenjie. Equivalent static displacements method for contact force optimization[J]. Struct Multidis Optim, 2020, 63: 323-336.
[15]	任春. 改进的等效静态载荷法及其在汽车结构碰撞拓扑优化中的应用研究[D]. 长春: 吉林大学, 2020.
	REN Chun. Research on improved equivalent static loads method and its application in crash topology optimization of vehicle structure[D]. Changchun: Jilin University, 2020. (in Chinese)
[16]	马聪承, 兰凤崇, 陈吉清, 等. 泡沫铝填充门槛横梁改善汽车侧碰安全性研究[J]. 汽车工程学报, 2020, 10(1): 34-39.
	MA Congcheng, LAN Fengchong, CHEN Jiqing, et al. Study on the effect of aluminum foam structure on improving vehicle safety[J]. Chin J Autom Engineering, 2020, 10(1): 34-39. (in Chinese)
[17]	周豫城. 车用动力电池包碰撞仿真与安全性分析[D]. 柳州: 广西科技大学, 2023.
	ZHOU Yucheng. Crash simulation and safety analysis of vehicle power battery pack[D]. Liuzhou: Guangxi University of Science and Technology, 2023. (in Chinese)
[18]	郝琪, 李海伦, 崔宏伟, 等. 考虑侧面柱碰的电动汽车车门多学科优化设计[J]. 汽车安全与节能学报, 2020, 11(3): 314-321.
	HAO Qi, LI Hailun, CUI Hongwei, et al. Multidisciplinary design optimization of an electric vehicle door based on pole side crash[J]. J Autom Safe Energ, 2020, 11(3): 314-321. (in Chinese)
[19]	路艳雪, 赵超凡, 吴晓锋, 等. 基于改进的NSGA-Ⅱ多目标优化方法研究[J]. 计算机应用研究, 2018, 35(6): 1733-1737.
	LU Yanxue, ZHAO Chaofan, WU Xiaofeng, et al. Multi-objective optimization method research based on improved NSGA-Ⅱ[J]. Appl Res Comput, 2018, 35(6): 1733-1737. (in Chinese)
[20]	王骞, 刘军, 张亚军, 等. 基于侧面碰撞安全性的电动汽车车身结构件轻量化设计[J]. 汽车技术, 2017(2): 44-50.
	WANG Qian, LIU Jun, ZHANG Yajun, et al. Lightweight design of an electric vehicle body structural parts based on side crash safety[J]. Autom Tech, 2017(2): 44-50. (in Chinese)

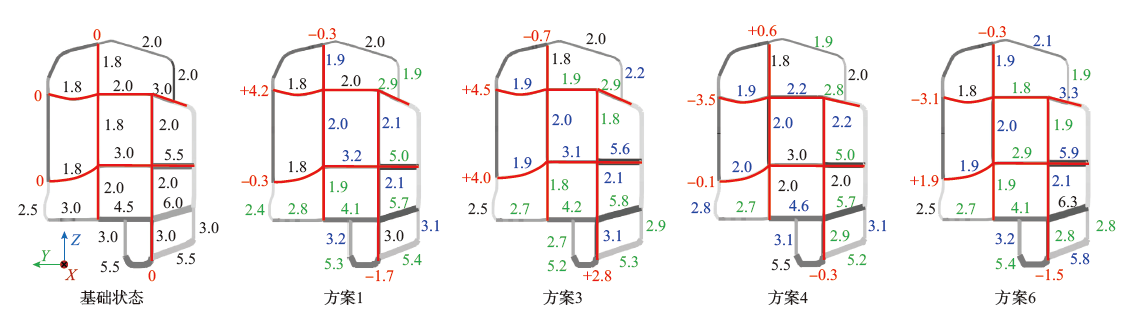

	变量
	基础	方案1	方案2	方案3	方案4	方案5	方案6
t1	2.0	2.0	2.0	2.0	1.9	1.9	2.1
t2	3.0	2.9	2.9	2.9	2.8	2.8	3.3
t3	2.0	2.0	1.8	1.9	2.2	2.0	1.8
t4	1.8	1.8	1.9	1.9	1.9	1.8	1.8
t5	5.5	5.0	5.1	5.6	5.0	5.8	5.9
t6	3.0	3.2	3.0	3.1	3.0	3.2	2.9
t7	1.8	1.8	1.9	1.9	2.0	1.8	1.9
t8	6.0	5.7	6.5	5.8	5.7	6.3	6.3
t9	4.5	4.1	4.4	4.2	4.6	4.5	4.1
t10	3.0	2.8	2.9	2.7	2.7	2.9	2.7
t11	5.5	5.4	5.2	5.3	5.2	5.6	5.8
t12	5.5	5.3	5.2	5.2	5.5	5.3	5.4
t13	2.0	1.9	1.9	2.2	2.0	1.9	1.9
t14	1.8	1.9	1.9	1.8	1.8	1.9	1.9
t15	2.0	2.1	1.9	1.8	2.2	1.8	1.9
t16	1.8	2.0	1.9	2.0	2.0	1.8	2.0
t17	2.0	2.1	2.0	2.1	2.0	2.1	2.1
t18	2.0	1.9	1.8	1.8	2.0	1.9	1.9
t19	2.5	2.4	2.7	2.5	2.8	2.6	2.5
t20	3.0	3.1	2.9	2.9	3.1	2.7	2.8
t21	3.0	3.0	2.7	3.1	2.9	2.9	2.8
t22	3.0	3.2	3.1	2.7	3.1	2.9	3.2
s1	0	-0.3	+0.6	-0.7	+0.6	+0.9	-0.3
s2	0	-1.7	+1.9	+2.8	-0.3	-2.2	-1.5
s3	0	+4.2	-2.1	+4.5	-3.5	-0.1	-3.1
s4	0	-0.3	+3.3	+4.0	-0.1	-3.2	+1.9

	变量
	基础	方案1	方案2	方案3	方案4	方案5	方案6
t1	2.0	2.0	2.0	2.0	1.9	1.9	2.1
t2	3.0	2.9	2.9	2.9	2.8	2.8	3.3
t3	2.0	2.0	1.8	1.9	2.2	2.0	1.8
t4	1.8	1.8	1.9	1.9	1.9	1.8	1.8
t5	5.5	5.0	5.1	5.6	5.0	5.8	5.9
t6	3.0	3.2	3.0	3.1	3.0	3.2	2.9
t7	1.8	1.8	1.9	1.9	2.0	1.8	1.9
t8	6.0	5.7	6.5	5.8	5.7	6.3	6.3
t9	4.5	4.1	4.4	4.2	4.6	4.5	4.1
t10	3.0	2.8	2.9	2.7	2.7	2.9	2.7
t11	5.5	5.4	5.2	5.3	5.2	5.6	5.8
t12	5.5	5.3	5.2	5.2	5.5	5.3	5.4
t13	2.0	1.9	1.9	2.2	2.0	1.9	1.9
t14	1.8	1.9	1.9	1.8	1.8	1.9	1.9
t15	2.0	2.1	1.9	1.8	2.2	1.8	1.9
t16	1.8	2.0	1.9	2.0	2.0	1.8	2.0
t17	2.0	2.1	2.0	2.1	2.0	2.1	2.1
t18	2.0	1.9	1.8	1.8	2.0	1.9	1.9
t19	2.5	2.4	2.7	2.5	2.8	2.6	2.5
t20	3.0	3.1	2.9	2.9	3.1	2.7	2.8
t21	3.0	3.0	2.7	3.1	2.9	2.9	2.8
t22	3.0	3.2	3.1	2.7	3.1	2.9	3.2
s1	0	-0.3	+0.6	-0.7	+0.6	+0.9	-0.3
s2	0	-1.7	+1.9	+2.8	-0.3	-2.2	-1.5
s3	0	+4.2	-2.1	+4.5	-3.5	-0.1	-3.1
s4	0	-0.3	+3.3	+4.0	-0.1	-3.2	+1.9

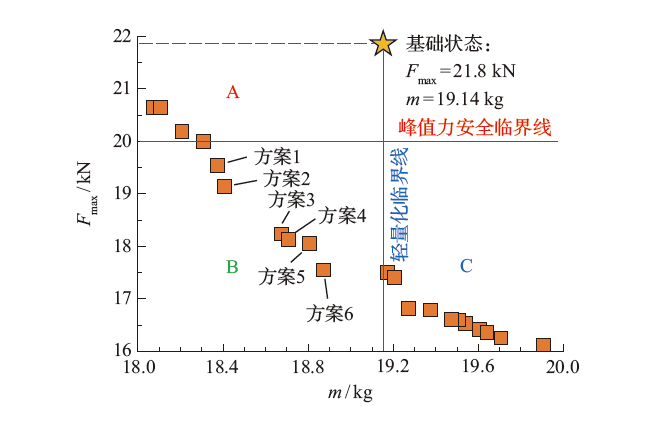

	m / kg	F_max / kN	d_max / mm	ε_pmax
基础	19.14	21.80	4.98	0.32
方案1	18.37	19.54	4.92	0.31
方案2	18.41	19.14	4.43	0.27
方案3	18.67	18.24	4.43	0.29
方案4	18.71	18.13	4.41	0.37
方案5	18.81	18.05	4.16	0.3
方案6	18.87	17.55	3.93	0.38

	m / kg	F_max / kN	d_max / mm	ε_pmax
基础	19.14	21.80	4.98	0.32
方案1	18.37	19.54	4.92	0.31
方案2	18.41	19.14	4.43	0.27
方案3	18.67	18.24	4.43	0.29
方案4	18.71	18.13	4.41	0.37
方案5	18.81	18.05	4.16	0.3
方案6	18.87	17.55	3.93	0.38

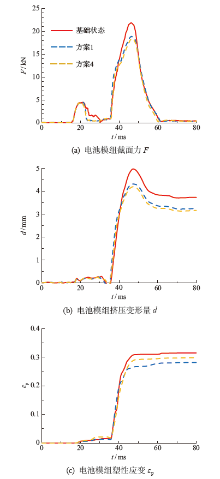

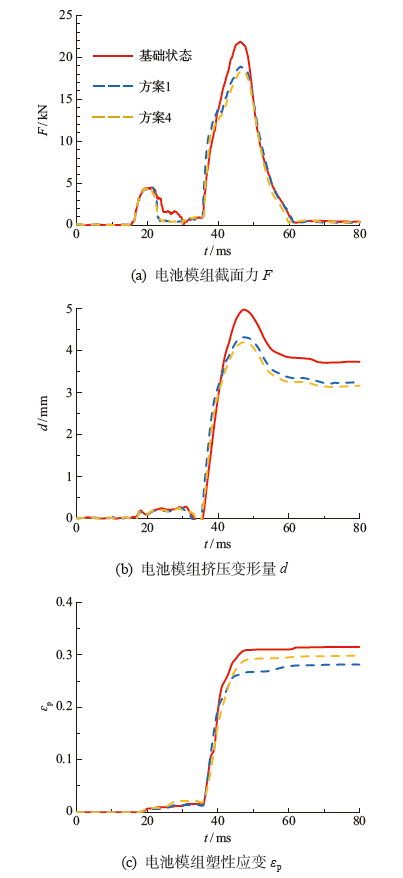

	m / kg	F_max / kN	d_max / mm	ε_pmax	有效性
基础	19.14	21.80	4.98	0.32	/
方案1	18.37	18.89	4.32	0.28	有效
方案2	18.41	20.14	5.03	0.29	无效
方案3	18.67	18.74	4.01	0.33	有效
方案4	18.71	18.32	4.2	0.3	有效
方案5	18.81	18.55	5.07	0.35	无效
方案6	18.87	17.53	3.63	0.39	有效
