汽车安全与节能学报 ›› 2025, Vol. 16 ›› Issue (1): 57-65.DOI: 10.3969/j.issn.1674-8484.2025.01.006

• 汽车安全 • 上一篇    下一篇

非法规侧面碰撞工况下近远端乘员损伤风险

韩勇1,2(), 徐国超1, 李明旺1, 潘迪1,2, 张海洋3,*()

  1. 1.厦门理工学院 机械与汽车工程学院，厦门 361024，中国
    2.福建省客车先进设计与制造重点实验室，厦门 361024，中国
    3.浙江吉利汽车研究院有限公司，宁波 315336，中国
  • 收稿日期:2024-07-12 修回日期:2024-08-29 出版日期:2025-02-28 发布日期:2025-03-04
  • 通讯作者: * 张海洋，高级工程师。E-mail：zhanghaiyang@geely.com。
  • 作者简介:韩勇（1984—），男（汉），江西，教授。E-mail：yonghan@xmut.edu.cn。
  • 基金资助:
    福建省技术创新重点攻关及产业化项目(2023G013);福建省技术创新重点攻关及产业化项目(2023G048);厦门市自然科学基金面上项目(3502Z20227223);浙江省汽车安全技术研究重点实验室基金(JYN2207Y03493)

Near and far end occupant injury risk in non-regulatory side impact conditions

HAN Yong1,2(), XU Guochao1, LI Mingwang1, PAN Di1,2, ZHANG Haiyang3,*()

  1. 1. School of Mechanical and Automotive Engineering, Xiamen Institute of Technology, Xiamen 361024, China
    2. Fujian Key Laboratory of Advanced Design and Manufacturing of Buses, Xiamen 361024, China
    3. Geely Automobile Research Institute, Ningbo 315336, China
  • Received:2024-07-12 Revised:2024-08-29 Online:2025-02-28 Published:2025-03-04

RichHTML

2

PDF

230

摘要：

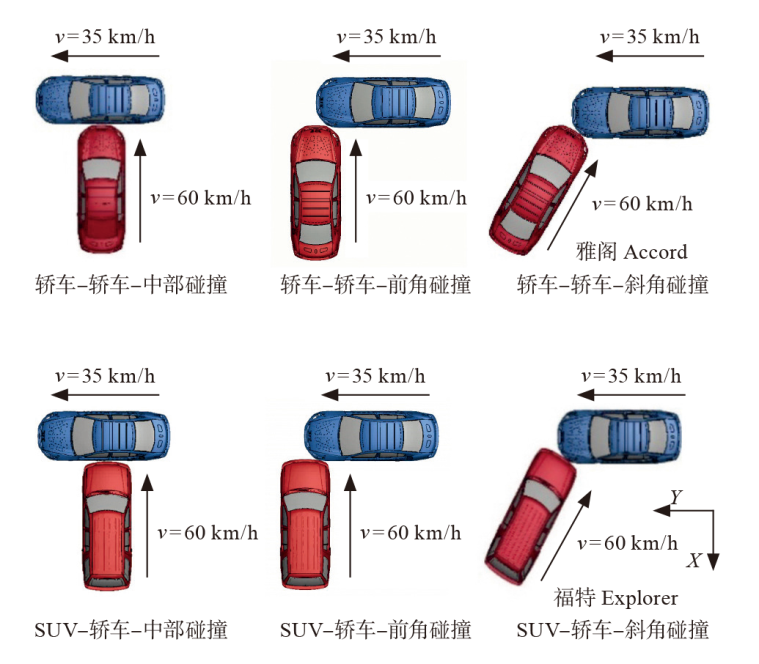

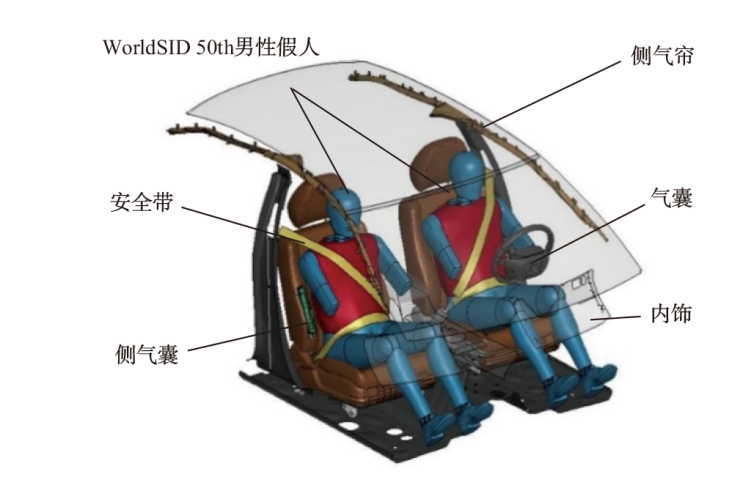

为提高车辆在真实事故中的安全性能，进行了非法规侧面碰撞工况下乘员的运动学响应及损伤风险研究。建立了2款车型（轿车和运动型多用途汽车SUV）在3种碰撞工况（前角碰撞、斜角碰撞、中部碰撞）中与轿车侧面碰撞的有限元仿真模型；采用Abaqus全球侧碰假人WorldSID的50th男性假人。结果表明：不同碰撞工况对近端、远端乘员运动学响应和头部、胸部损伤均有显著影响；在SUV-轿车-斜角碰撞工况下，远端乘员头部损伤风险远大于近端乘员，其中头部伤害指标HIC15值达3 011，远超严重损伤限值700；在SUV-轿车-中部碰撞工况下，近端乘员的胸部压缩量57.5 mm，腹部压缩量为88.7 mm，均超过损伤限值。

关键词: 车辆安全, 侧面碰撞, 近远端乘员, 损伤风险, 头部损伤指标（HIC）, 50th假人, 有限元法

Abstract:

The kinematic response and the injury risk of occupants in non-regulatory side-impact conditions were investigated to improve the safety performances of vehicles in real accidents. A Finite element simulation model for two types of vehicles (sedan and SUV (Sports Utility Vehicle)) in three collision conditions (the front-angle collision, the oblique-angle collision, and the mid-range collision) with the sedan's side collision was established using the 50th male dummy of WorldSID (Abaqus Worldwide Side Impact Dummy), and the global side-impact dummy of Abaqus. The results show that different collision conditions have significant effects on the proximal and distal occupant kinematic responses and the head and chest injuries; In the SUV-sedan-beveled-angle collision conditions, the risk of head injury for the distal occupant is much greater than that for the proximal occupant, in which the head injury index, HIC15, reaches 3 011, which is far more than the severe injury limit of 700; In the SUV-car-center collision condition, the chest compression of the near-end occupant is 57.5 mm and the abdominal compression is 88.7 mm, both exceeding the injury limit value.

Key words: vehicle safety, side impact, near- and far-end occupant, injury risk, head injury criterion(HIC), 50th dummy, finite element method
