面向儿童约束系统的多点侵入侧碰方法及假人损伤

doi:10.3969/j.issn.1674-8484.2023.01.005

摘要/Abstract

摘要：

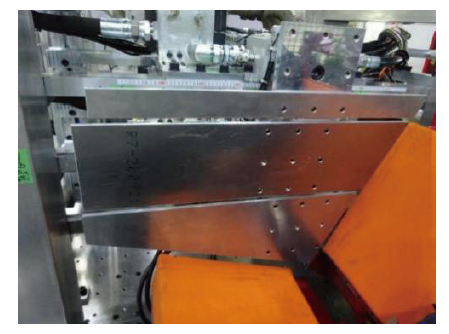

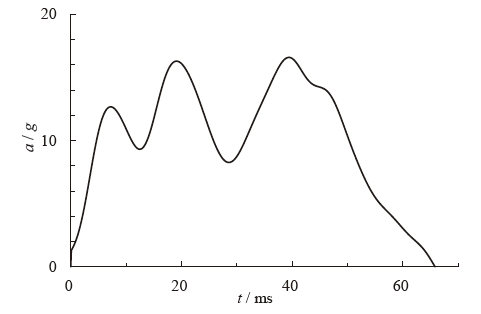

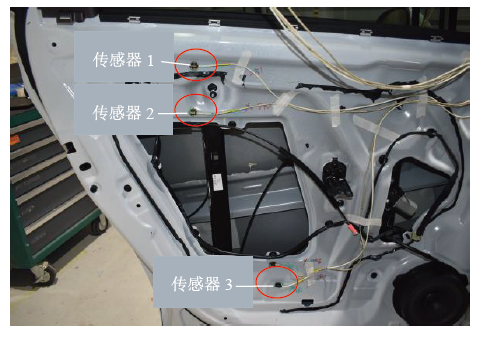

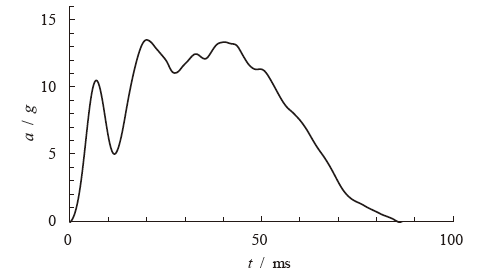

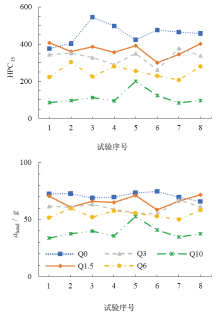

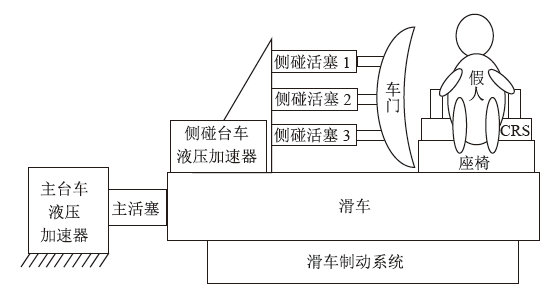

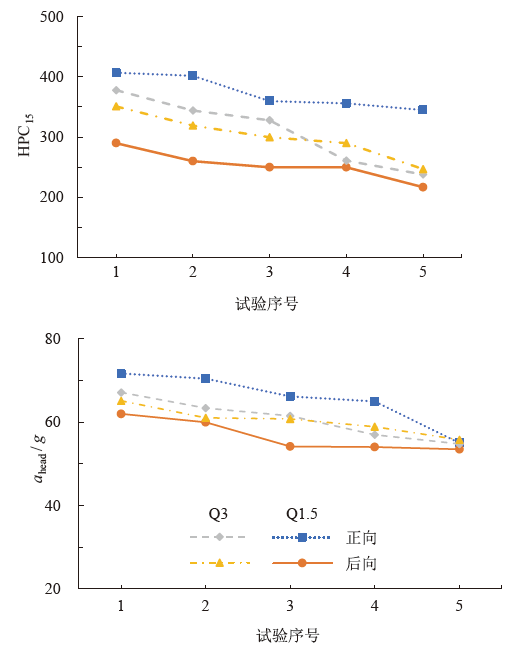

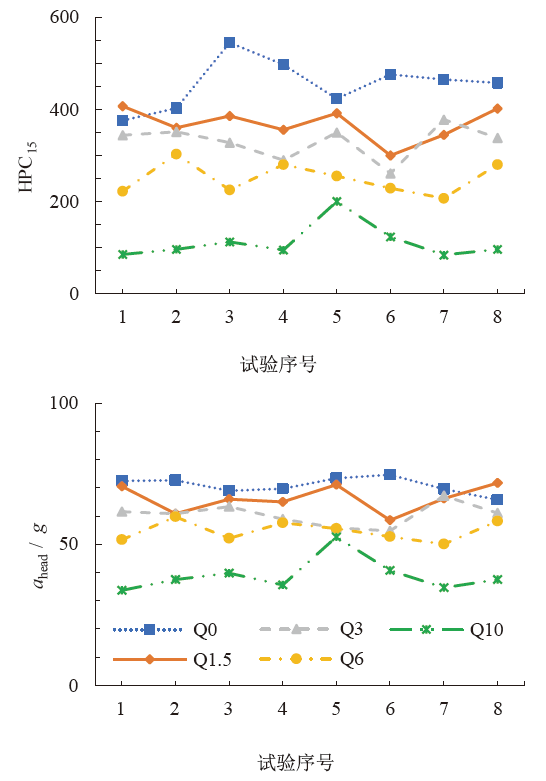

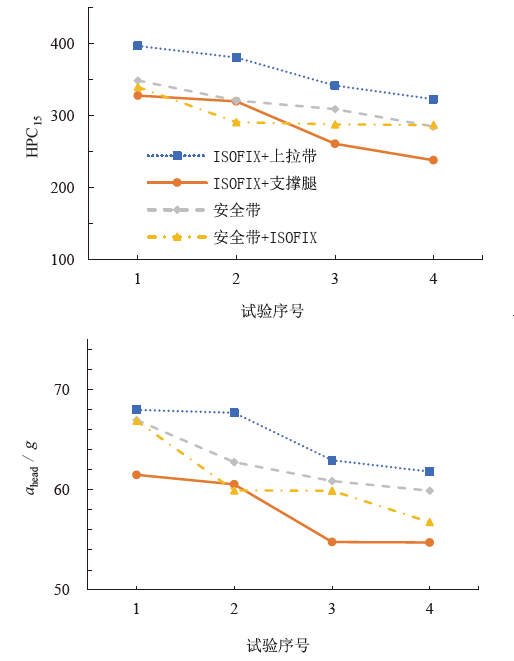

提出了一种面向儿童约束系统(CRS)的多点侵入台车侧面碰撞测试方法，以复现实车碰撞中车门不同部位的侵入情况。该方法与实车试验进行了对标验证。利用此测试方法进行多次台车侧碰试验，以研究儿童的头部损伤与儿童约束系统的安装方式、安装方向、以及不同大小的儿童假人的关系。结果表明：ISOFIX+支撑腿方式下的假人头部损伤低于ISOFIX+上拉带方式，这2种安装方式的头部性能指标和头部合成加速度的差异分别为25.8%和12.4%；后向安装比正向更有利于儿童头部的保护，2种安装方向的头部性能指标和头部合成加速度差异分别为47.8%和15.9%；头部损伤与假人的大小呈现负相关，假人越大，头部损伤减小。

关键词: 汽车安全, 被动安全, 侧面碰撞, 儿童约束系统(CRS), 多点侵入, 假人头部损伤

Abstract:

A multi-point intrusion sled side impact test method was proposed for Child Restraint System (CRS) to reproduce the intrusion on the different parts of door in real vehicle collisions. The method was verified with the real vehicle tests. Using this test method, sled side impact tests were carried out many times to investigate the relationship between the children head injury and the installation modes, the installation directions of the CRS, and the different sizes of child dummies. The results show that the dummy head injury in the ISOFIX+support leg mode is lower than that in the ISOFIX+top tether, the differences of head performance index and head resultant accelerations of the two installation modes are 25.8% and 12.4% respectively; the backward installation is more beneficial to the protection of children's head than forward installation, the differences of head performance index and head resultant accelerations of the two installation directions are 47.8% and 15.9% respectively; the head injury is negatively correlated with the size of the dummy, the larger the dummy, the smaller the head injury.

Key words: automotive safety, passive safety, side impact, child restraint system (CRS), multi-point intrusion, dummy head injury

中图分类号:

U467.3

徐哲, 高冠宇, 刘灿灿, 娄磊. 面向儿童约束系统的多点侵入侧碰方法及假人损伤[J]. 汽车安全与节能学报, 2023, 14(1): 38-45.

XU Zhe, GAO Guanyu, LIU Cancan, LOU Lei. Multi-point intrusion side impact method for the child restraint system and dummy injury[J]. Journal of Automotive Safety and Energy, 2023, 14(1): 38-45.

图/表 17

参考文献 13

[1]	Arbogast K B, CHEN Irene, Durbin D R, et al. Injury risks for children in child restraint systems in side impact crashes[J]. Pediatric Emergency Care, 2004, 20(10): 25-36.
[2]	李海岩, 李健, 崔世海, 等. 儿童安全座椅中填充吸能泡沫对头部的保护效果分析[J]. 汽车工程, 2020, 42(2): 228-233.
	LI Haiyan, LI Jian, CUI Shihai, et al. Analysis on child-head protection effects of energy-absorbing foam filled in safety seat[J]. Automo Engineering, 2020, 42(2): 228-233. (in Chinese)
[3]	Arbogast K B, Kallan M J, Durbin D R. Front versus rear seat injury risk for child passengers: evaluation of newer model year vehicles[J]. Traffic Injury Prevention, 2009, 10(3): 297-301. doi: 10.1080/15389580802677799 pmid: 19452372
[4]	陈超, 魏明江, 刘志新, 等. 儿童约束系统侧面碰撞台车试验方法对比分析[J]. 拖拉机与农用运输车, 2013, 40(5): 30-34.
	CHEN Chao, WEI Mingjiang, LIU Zhixin, et al. Analysis of side impact sled test methods of child restraint system[J]. Tractor Farm Transporter, 2013, 40(5): 30-34. (in Chinese)
[5]	赵以飞. 基于侧碰台车试验的车门内饰材料参数反求[D]. 长沙: 湖南大学, 2011.
	ZHAO Yifei. Identification of material parameters of door trim panel based on side crash sled test[D]. Changsha: Hunan University, 2011. (in Chinese)
[6]	马志雄. 轿车台车试验方法及侧面约束系统数学仿真技术研究[D]. 武汉: 武汉理工大学, 2008.
	MA Zhixiong. Research on vehicle sled test methodology and mathematical simulation technique of side restraint system[D]. Wuhan: Wuhan University of Technology, 2008. (in Chinese)
[7]	Australia: Standards Australia Limited/Standards New Zealand. AS/NZS 1754: 2013, Child Restraint Systems for Use in Motor Vehicles[S]. 2013.
[8]	Switzerland: ISO Copyright Office. ISO/TS 29062: 2009(E), Road vehicles—Child restraint systems—Sled test method to enable the evaluation of side impact protection[S]. 2009.
[9]	刘军, 贾林夕, 张学荣, 等. 儿童约束系统侧面碰撞试验对比分析[J]. 重庆理工大学学报(自然科学), 2013, 27(10): 1-5.
	LIU jun, JIA Linxi, ZHANG Xuerong, et al. Comparison and analysis on side impact sled test of child restraint system[J]. J Chongqing Univ Tech (Nat Sci), 2013, 27(10): 1-5. (in Chinese)
[10]	United Nations Economic Commission of Europe. Regulation No. 129. Uniform provisions concerning the approval of enhanced child restraint systems used on board of motor vehicles (ECRS) [S]. (2021-02-04). http://www.unece.org.
[11]	Johannsen H, Bendjellal F, Renaudin F, et al. Update on lateral impact test procedure for child restraint systems[C]// Proc 22nd Int, Tech Conf Enha Safety Vehi (ESV). 2011, Washington, DC, Paper Number: 11-0291.
[12]	中华人民共和国国家质量监督检验检疫总局, 中国国家标准化管理委员会.GB 27887-2011. 机动车儿童乘员用约束系统[S]. 北京: 中国标准出版社, 2012.
	General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China. Standardization Administration of the People’s Repub.GB 27887-2011. Restraint systems for child occupants of motor vehicles [S]. Beijing: Standards Press of China, 2012. (in Chinese)
[13]	吕孟宽, 杨欣, 许述财, 等. 儿童安全座椅侧面碰撞头部保护研究[J]. 汽车工程, 2021, 43(9): 1360-1366.
	LÜ Mengkuan, YANG Xin, XU Shucai, et al. Research on head protection of child on safety seat in side collision[J]. Automo Engineering, 2021, 43(9): 1360-1366. (in Chinese)

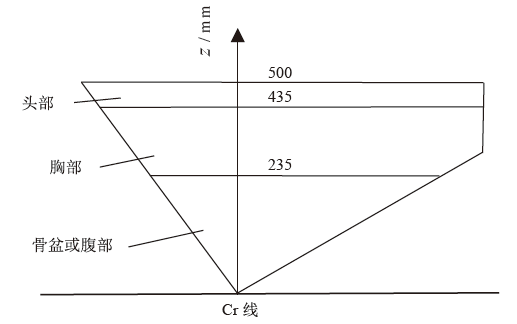

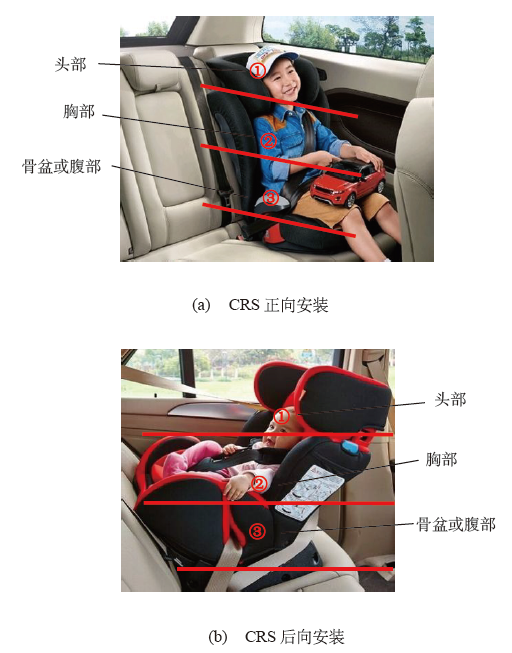

序号	组别	CRS类型	假人型号	乘坐方向	区域高度/ mm
序号	组别	CRS类型	假人型号	乘坐方向	骨盆	胸部
1	0+	提篮加底座	Q0	后	196.1	297.7
2	0+I	可360°旋转	Q1.5	后	232.7	385.6
3	0+	提篮	Q1.5	后	182.6	332.6
4	0+I	可360°旋转	Q3	正	263.5	468.3
5	0+I	可正反向安装	Q3	正	234.1	434.7
6	I+II+III	方向不可调	Q3	正	224.5	427.9
7	I+II+III	方向不可调	Q10	正	267.4	526.8
8	II+III	带靠背增高椅	Q10	正	234.5	498.0
9	0+I+II+III	可360°旋转	Q10	正	280.5	539.0
		平均值			235.1	434.5

序号	组别	CRS类型	假人型号	乘坐方向	区域高度/ mm
序号	组别	CRS类型	假人型号	乘坐方向	骨盆	胸部
1	0+	提篮加底座	Q0	后	196.1	297.7
2	0+I	可360°旋转	Q1.5	后	232.7	385.6
3	0+	提篮	Q1.5	后	182.6	332.6
4	0+I	可360°旋转	Q3	正	263.5	468.3
5	0+I	可正反向安装	Q3	正	234.1	434.7
6	I+II+III	方向不可调	Q3	正	224.5	427.9
7	I+II+III	方向不可调	Q10	正	267.4	526.8
8	II+III	带靠背增高椅	Q10	正	234.5	498.0
9	0+I+II+III	可360°旋转	Q10	正	280.5	539.0
		平均值			235.1	434.5

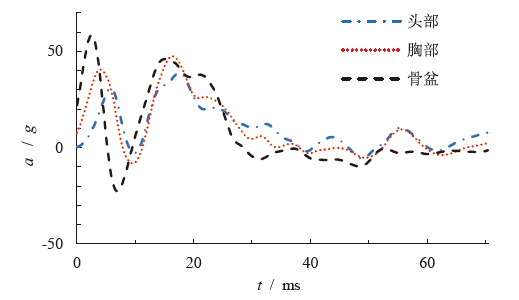

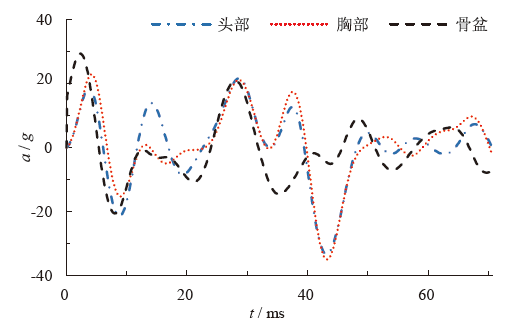

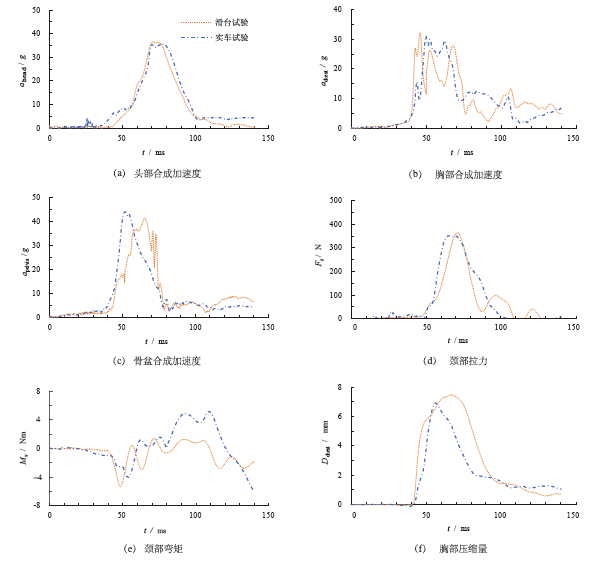

	颈部拉力， F_z / N	颈部弯矩， M_x / Nm	胸部位移， D / mm	合成3 ms加速度, a / g
	颈部拉力， F_z / N	颈部弯矩， M_x / Nm	胸部位移， D / mm	头部	胸部	骨盆
实车试验	351.28	-6.02	6.91	35.62	31.11	43.92
滑台试验	363.75	-5.35	7.47	36.54	32.18	41.39
误差 / %	3.55	-11.16	8.06	2.57	3.45	-5.76

	颈部拉力， F_z / N	颈部弯矩， M_x / Nm	胸部位移， D / mm	合成3 ms加速度, a / g
	颈部拉力， F_z / N	颈部弯矩， M_x / Nm	胸部位移， D / mm	头部	胸部	骨盆
实车试验	351.28	-6.02	6.91	35.62	31.11	43.92
滑台试验	363.75	-5.35	7.47	36.54	32.18	41.39
误差 / %	3.55	-11.16	8.06	2.57	3.45	-5.76

序号	车型信息	序号	车型信息
1	上汽大通G50	8	广本 FIT
2	一汽轿车NAT	9	奇瑞
3	湖北星晖 ASE-3	10	红旗
4	奇瑞捷途	11	北汽
5	东风奕炫	12	起亚
6	东风柳汽 SX5G	13	马自达
7	一汽奔腾 D357	14	广汽传祺
