Commercial vehicle APU control strategy based on neural network identification and Markov chain prediction

doi:10.3969/j.issn.1674-8484.2023.05.009

Abstract

Abstract:

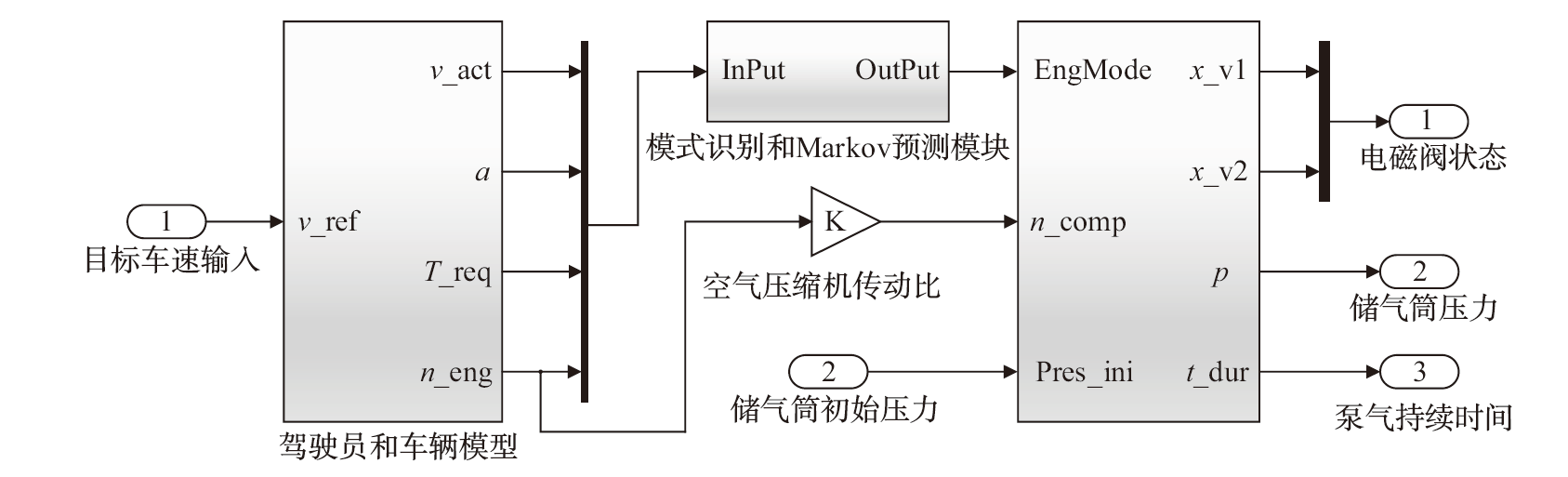

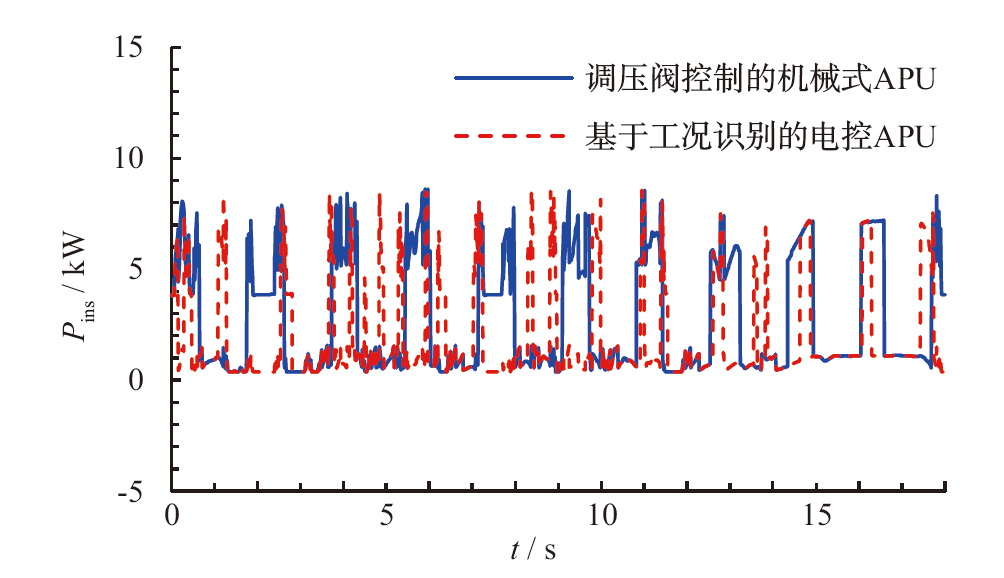

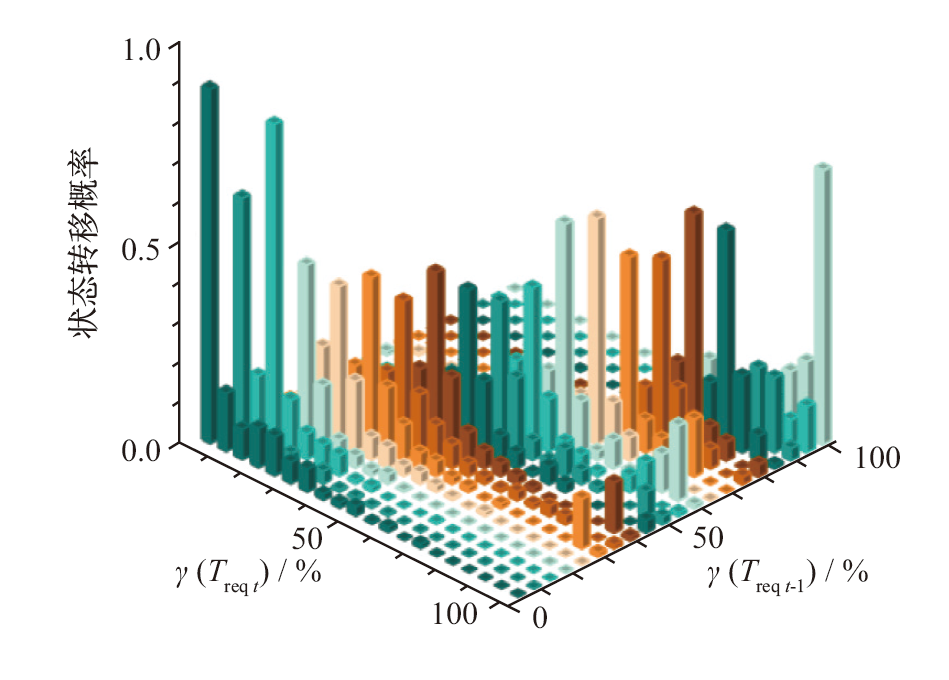

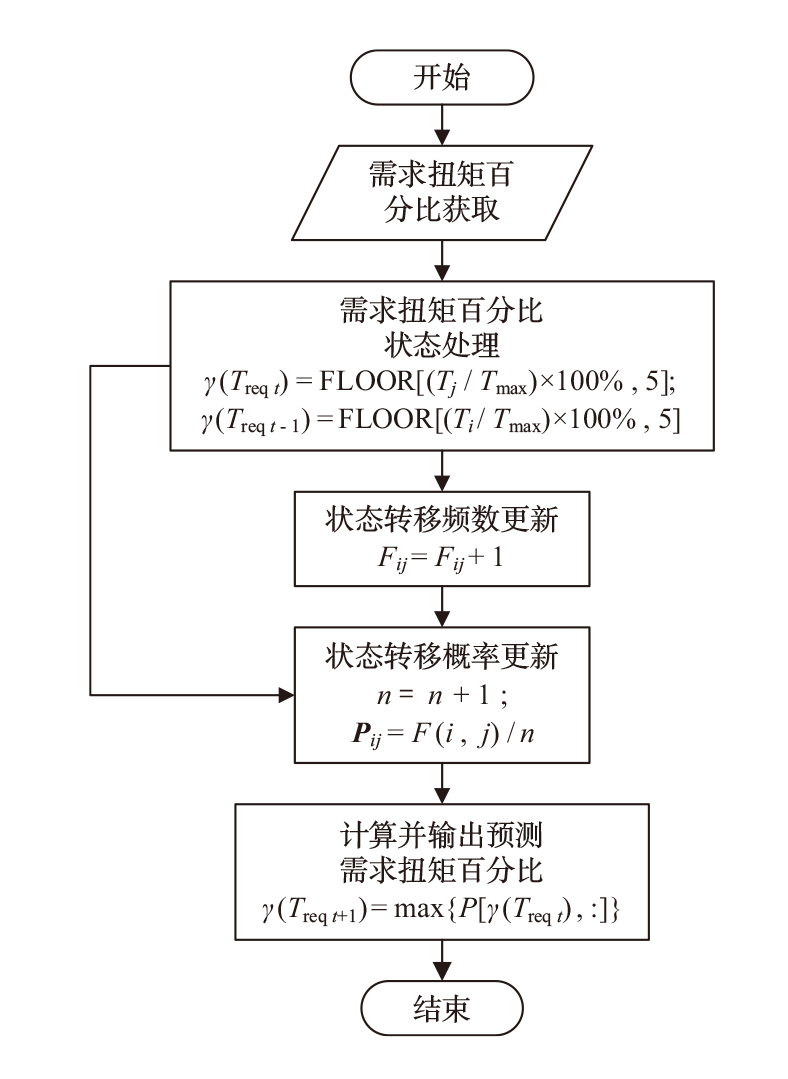

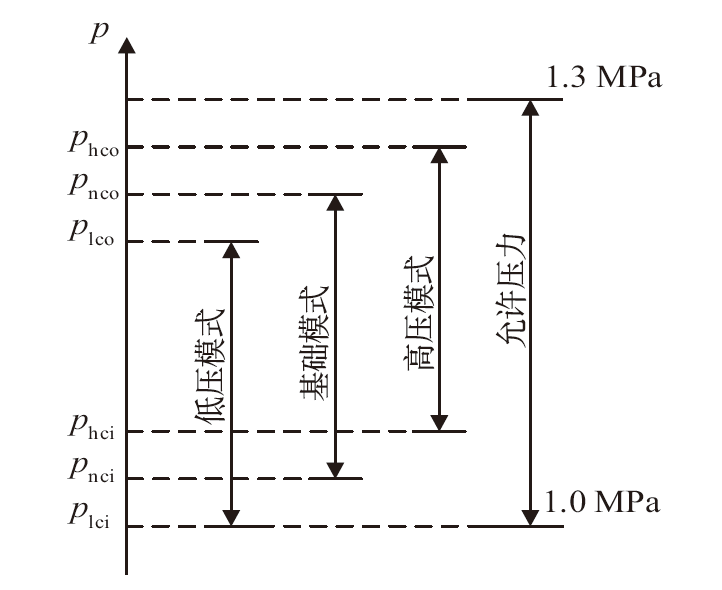

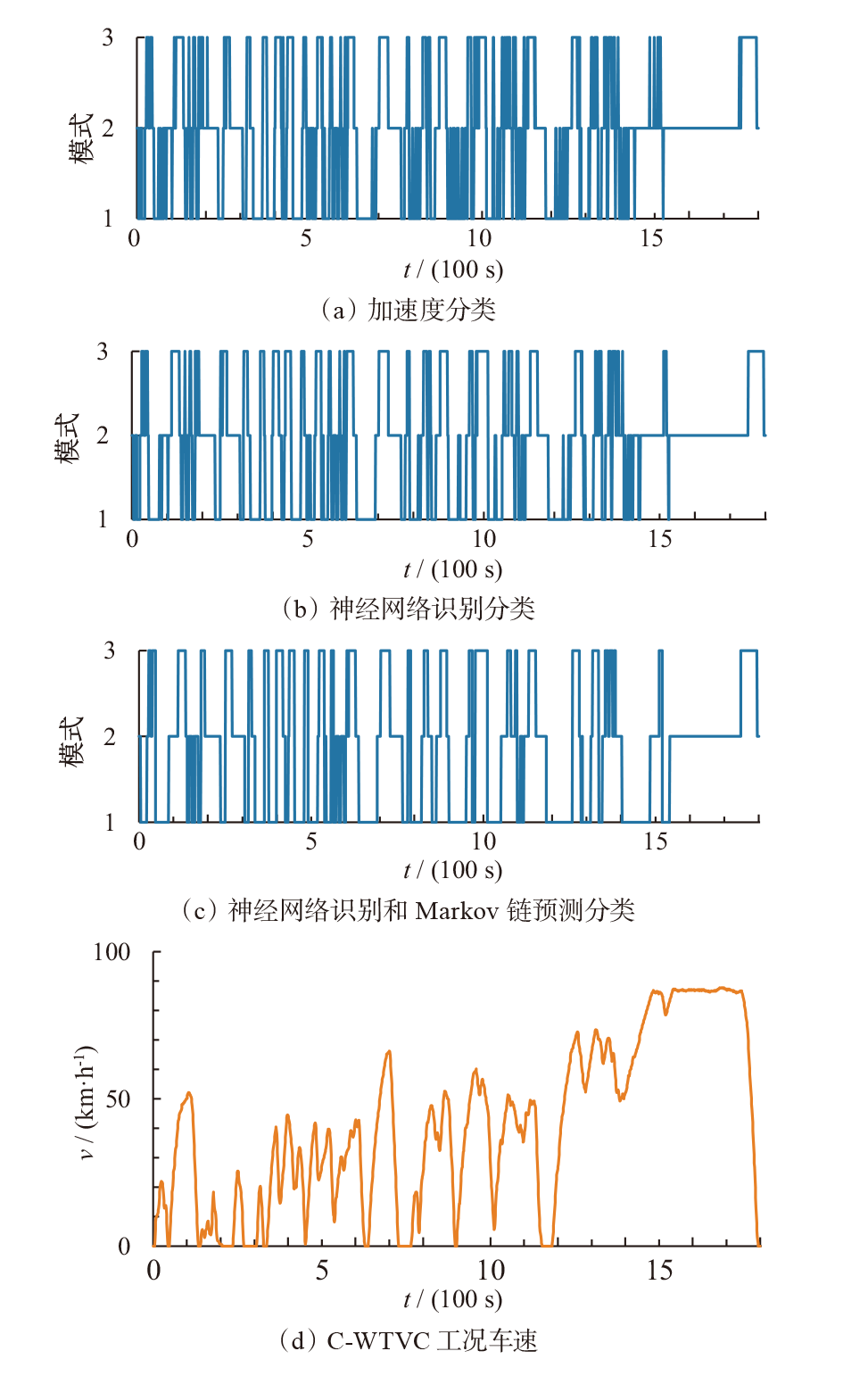

A control strategy was proposed for an electronically-controlled air-processing-unit (APU) based on electromagnetic valve control, with some Simulink system simulation experiment being conducted to improve the fuel economy of commercial-vehicle air-treatment systems. The strategy had three working modes: the basic, the low-pressure, and the high-pressure, based on the identification and prediction methods of engine operating-condition. A vehicle model and an air treatment system model were built by using the Matlab/Simulink. A neural-network pattern recognition and a Markov-chain prediction control model were constructed to identify and classify the engine operating-conditions and predict the required torque percentage. The results show that the electronically controlled APU with this control strategy reduces the power consumption by 480 Wh compared to the mechanically controlled APU under the same initial pressure conditions of air tank in the China World Transient Vehicle Cycle (C-WTVC), with a reduction rate of 34.7%. These results improve fuel economy significantly.

Key words: commercial vehicles, fuel economy, air processing unit (APU), solenoid valve control, control strategy, pattern recognition, Markov chain

CLC Number:

WANG Junqi, LI Yongtao, ZHENG Weiguang, ZHANG Yanhui, CHEN Ziyou, XU Enyong, Li Yufang, WANG Shanchao. Commercial vehicle APU control strategy based on neural network identification and Markov chain prediction[J]. Journal of Automotive Safety and Energy, 2023, 14(5): 600-608.

Figures/Tables 13

References 22

[1]	LIU Dahui, Eksioglu B, Schmid M J, et al. Optimizing energy savings for a fleet of commercial autonomous trucks[C]// IEEE Trans Intel Transp Syst, 2022, 23(7): 7570-7586.
[2]	李耀华, 何杰, 范吉康. 基于多MAP图的商用车电动助力转向控制策略[J]. 汽车安全与节能学报, 2022, 13(1): 86-94.
	LI Yaohua, HE Jie, FAN jikang. Control strategy of electric power steering for commercial vehicle based on Multi-MAP[J]. J Autom Safe Energ, 2022, 13(1): 86-94. (in Chinese)
[3]	杨凡, 顾杰, 黄凡, 等. 商用车气压电子驻车系统坡道辅助控制方法[J]. 液压与气动, 2021, 45(8): 145-153.
	YANG Fan, GU Jie, HUANG Fan, et al. Hill start assistance control method of commercial vehicle with electronic air parking brake system[J]. Chin Hydrau Pneumatics, 2021, 45(8): 145-153. (in Chinese)
[4]	同晓雅, 杜彬, 任静媛, 等. 基于商用车的电子驻车制动控制系统研究[J]. 汽车电器, 2022(10): 65-66+69.
	TONG Xiaoya, DU Bin, REN Jingyuan, et al. Research on electronic parking brake control system based on commercial vehicle[J]. Auto Electric Parts, 2022(10): 65-66+69. (in Chinese)
[5]	张文斌, 王涛, 丁万兴, 等. 重型商用车电子电气架构的规划[J]. 汽车电器, 2021(1): 30-34.
	ZHANG Wenbin, WANG Tao, DING Wanxing, et al. Planning of electronic and electrical architecture of heavy commercial vehicle[J]. Auto Electric Parts, 2021(1): 30-34. (in Chinese)
[6]	杨长伟. 商用车制动系空气管理系统研究仿真[D]. 吉林: 吉林大学, 2018.
	YANG Changwei. Research and simulation of air management system of commercial vehicle brake system[D]. Jilin:Jilin University. 2018. (in Chinese)
[7]	Park W K, Mun S D, Lee H K, et al. Optimization of drying performance considering driving conditions[J]. Int.J Automot. Technol. 12, 705 (2011).
[8]	项小雷, 李松松. 键合图理论在商用车气制动系统空气干燥器响应特性分析中的应用[J]. 汽车技术, 2012(10): 32-35+61.
	XIANG Xiaolei, LI Songsong. Application of bond graph theory on air dryer response characteristic analysis of the air brake system for commercial vehicles[J]. Auto Tech, 2012(10): 32-35+61. (in Chinese)
[9]	张旗, 严天一, 赵燕乐. 具有多工作模式的电机式主动横向稳定器控制策略研究[J]. 机械科学与技术, 2023, 42(5): 793-801.
	ZHANG Qi, YAN Tianyi, ZHAO Yanle. Research on control strategy of a motor-type active anti-roll stabilizer with multiple operating modes[J]. Mech Sci Tech Aerosp Engi, 2023, 42(5): 793-801. (in Chinese)
[10]	李耀华, 刘洋, 冯乾隆, 等. 基于最优预瞄和模型预测的智能商用车路径跟踪控制[J]. 汽车安全与节能学报, 2020, 11(4): 462-469.
	LI Yaohua, LIU Yang, FENG Qianlong, et al. Path tracking control for an intelligent commercial vehicle based on optimal preview and model predictive[J]. J Autom Safe Energ, 2020, 11(4): 462-469. (in Chinese)
[11]	史培龙, 赵轩, 陈子童, 等. 基于道路行驶工况辨识的重型载货汽车排气制动系统主动控制研究[J]. 汽车工程, 2023, 45(1): 104-111+146.
	SHI Peilong, ZHAO Xuan, CHEN Zitong, et al. Study on active control of exhaust brake system for heavy-duty truck based on road driving condition recognition[J]. Autom Engineering, 2023, 45(1): 104-111+146. (in Chinese)
[12]	蔡伟. 基于车速预测的电动商用汽车能量管理策略研究[D]. 成都: 西华大学, 2022.
	CAI Wei. Research on energy management strategy of electric commercial vehicles based on condition prediction[D]. Chengdu: Xihua University, 2022. (in Chinese)
[13]	郇浪浪, 田雪毅, 赵鹏昌, 等. 空气处理单元的原理及实现方式研究[J]. 汽车实用技术, 2021, 46(11): 196-198.
	HUAN Langlang, TIAN Xueyi, ZHAO Pengchang, et al. Study on the Principle and Implementation of Air Treatment Unit[J]. Auto Appl Tech, 2021, 46(11): 196-198. (in Chinese)
[14]	吕征, 李法兵, 陈首刚. 商用车电控空气干燥器性能研究及应用[J]. 汽车实用技术, 2018(20): 159-162.
	LÜ Zheng, LI Fabing, CHEN Shougang. Properties and application of electronic controlled air dryer for commercial vehicles[J]. Auto Appl Tech, 2018(20): 159-162. (in Chinese)
[15]	中华人民共和国工业和信息化部. 重型商用车辆燃料消耗量测量方法: GB/T 27840-2021[S]. 北京: 中国标准出版社, 2021.
	Ministry of Industry and Information Technology of the People’s Republic of China. Fuel consumption test methods for heavy-duty commercial vehicles: GB/T 27840-2021[S]. Beijing: Standards Press of China, 2021. (in Chinese)
[16]	JIE Xing, HAN Xuefeng, YE Hui, et al. Driving cycle recognition for hybrid electric vehicle[C]// ITEC Asia-Pacific, 2014: 1-6.
[17]	刘灵芝, 张冰战, 蒋通. 基于工况自适应的PHEV等效燃油最小策略[J]. 汽车安全与节能学报, 2020, 11(3): 371-378.
	LIU Lingzhi, Zhang Bingzhan, JIANG Tong. Equivalent consumption minimization strategy for PHEV based on driving condition adaptation[J]. J Autom Safe Energ, 2020, 11(3): 371-378. (in Chinese)
[18]	FENG Lei, LIU Wenjia, CHEN Bo. Driving pattern recognition for adaptive hybrid vehicle control[J]. SAE Int J Alt Power, 2012, 1(1): 169-179. doi: 10.4271/2012-01-0742 URL
[19]	Ericsson E. Independent driving pattern factors and their influence on fuel-use and exhaust emission factors[J]. Transp Res Part D: Transp Environ, 2001, 6(5): 325-345. doi: 10.1016/S1361-9209(01)00003-7 URL
[20]	吴迪. ISG混合动力汽车能量优化管理策略研究[D]. 合肥: 合肥工业大学, 2013: 75-88.
	WU Di. Research on energy optimal management control strategy for ISG hybrid electric vehicle[D]. Hefei: Hefei University of Technology, 2013: 75-88. (in Chinese)
[21]	尹燕莉, 马永娟, 周亚伟, 等. Markov链与Q-Learning算法的超轻度混动汽车模型预测控制[J]. 汽车安全与节能学报, 2021, 12(4): 557-569.
	YING Yanli, MA Yongjuan, ZHOU Yawei, et al. Model predictive control of super-mild hybrid electric vehicle based on Markov chain and Q-Learning[J]. J Autom Safe Energ, 2021, 12(4): 557-569. (in Chinese)
[22]	付翔, 铁鑫, 刘会康. 基于需求功率预测的混合动力越野车能量管理[J]. 江苏大学学报(自然科学版), 2021, 42(1): 67-76.
	FU Xiang, TIE Xin, LIU Huikang. Energy management of hybrid off road vehicles based on demand power prediction[J]. J Jiangsu Univ (Nat Sci Ed), 2021, 42(1): 67-76. (in Chinese)

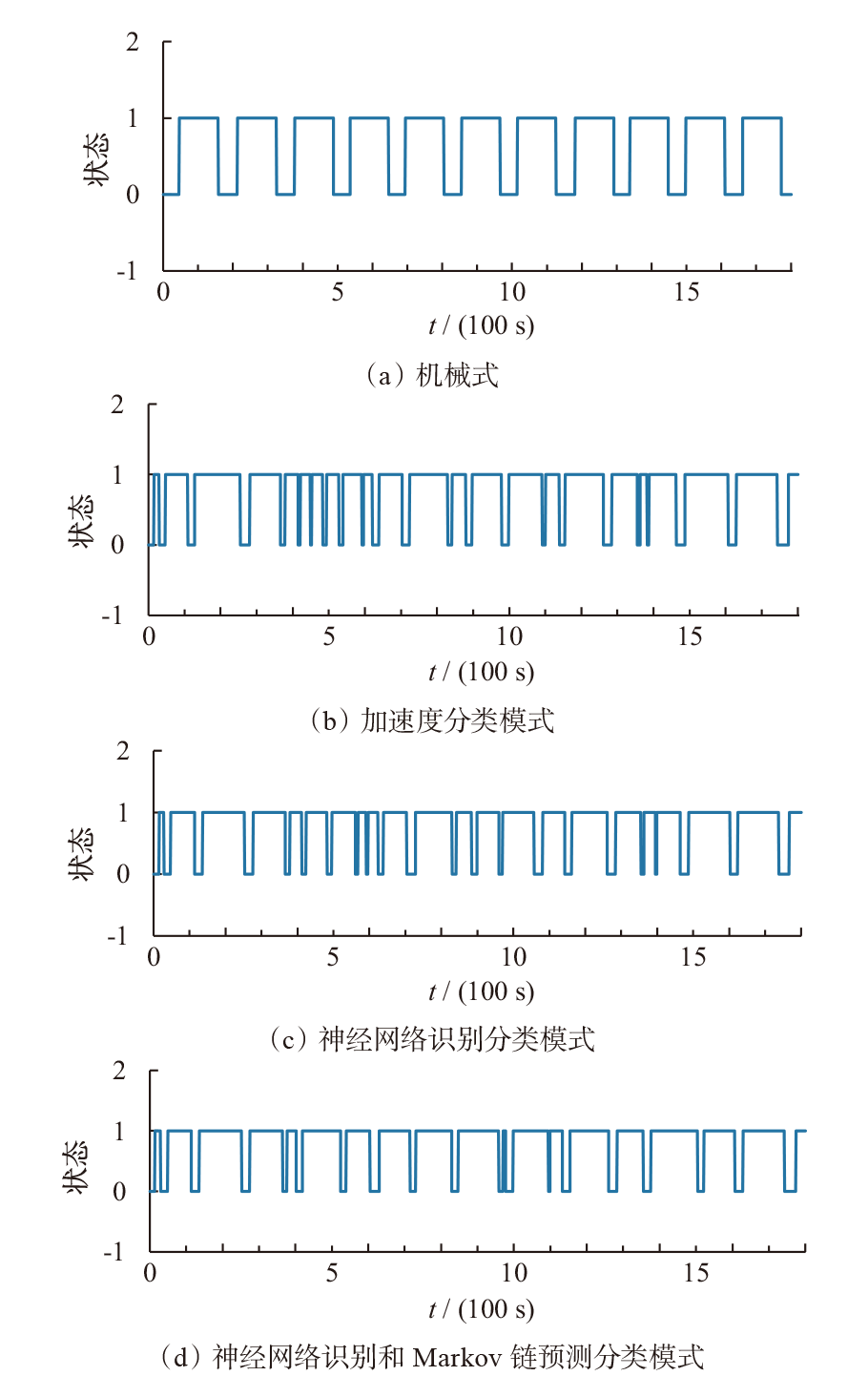

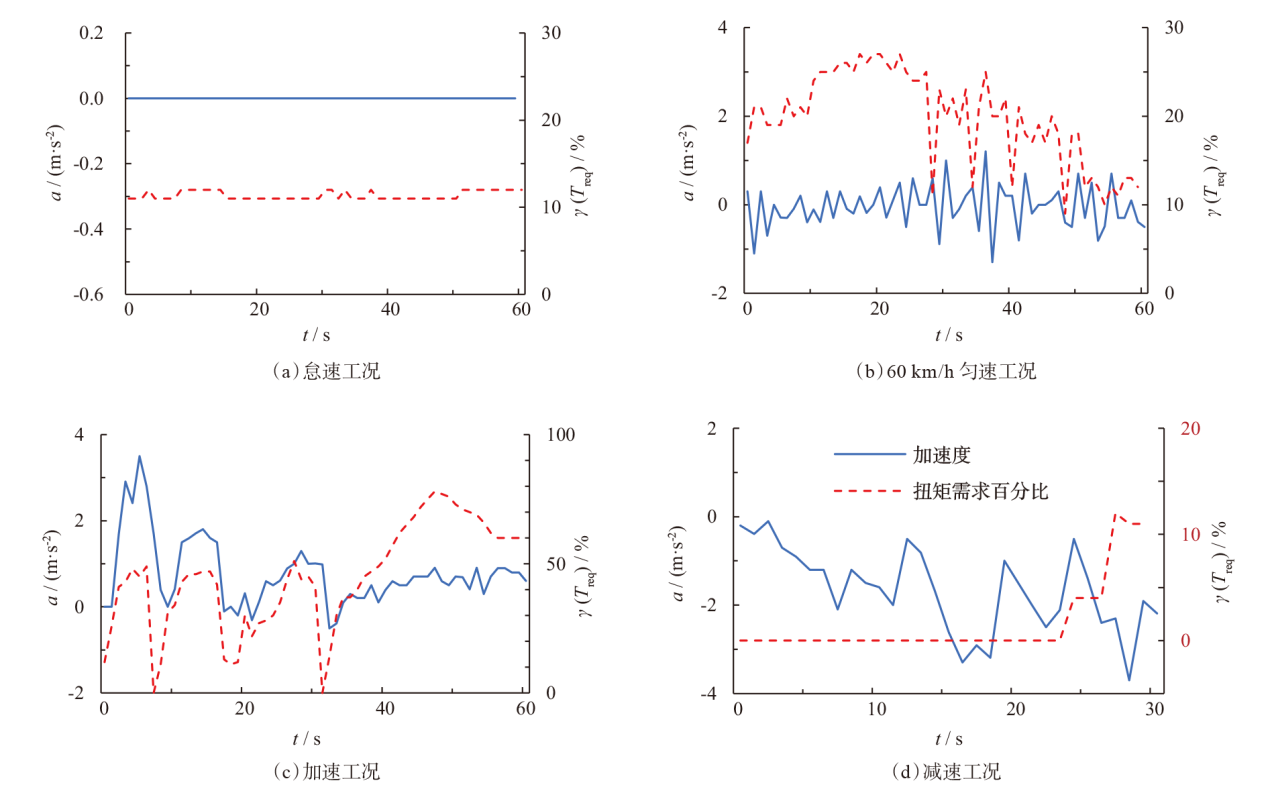

工况	a / (m·s^-2)			γ (T_req) / %
工况	ave	min	max	ave	max
怠速	0.00	0.00	0.00	11.5	12.0
匀速	-0.04	-1.30	1.18	19.9	27.0
加速	0.78	-0.48	3.50	43.5	82.0
减速	-1.71	-3.82	-0.10	1.5	12.0

工况	a / (m·s^-2)			γ (T_req) / %
工况	ave	min	max	ave	max
怠速	0.00	0.00	0.00	11.5	12.0
匀速	-0.04	-1.30	1.18	19.9	27.0
加速	0.78	-0.48	3.50	43.5	82.0
减速	-1.71	-3.82	-0.10	1.5	12.0

实际类	预测类			识别率 / %
实际类	1	2	3	识别率 / %
1	316	0	4	98.8
2	2	106	0	98.1
3	8	7	558	97.4
正确率 / %	96.9	93.8	99.3	97.9

实际类	预测类			识别率 / %
实际类	1	2	3	识别率 / %
1	316	0	4	98.8
2	2	106	0	98.1
3	8	7	558	97.4
正确率 / %	96.9	93.8	99.3	97.9

车身长度	7.160 m
车身宽度	2.525 m
车身高度	3.940 m
风阻因数	0.527
整车质量	8.8 t
牵引总质量	40.0 t
轮胎规格	12R22.5
主减速器传动比	3.636
发动机最大扭矩	2.4 kNm
发动机最大功率	382 kW
发动机额定转速	1 900 r/min
发动机传动效率	0.99
各档速比	12.1、9.41、7.31、5.71、4.46、3.48、 2.71、2.11、1.64、1.28、1.00、0.28
挡位数量	12
后桥速比	3.636
变速器传动效率	0.98
