Optical diagnostics of charge stratification compression ignition in high compression ratio gasoline engine

doi:10.3969/j.issn.1674-8484.2021.03.017

Abstract

Abstract:

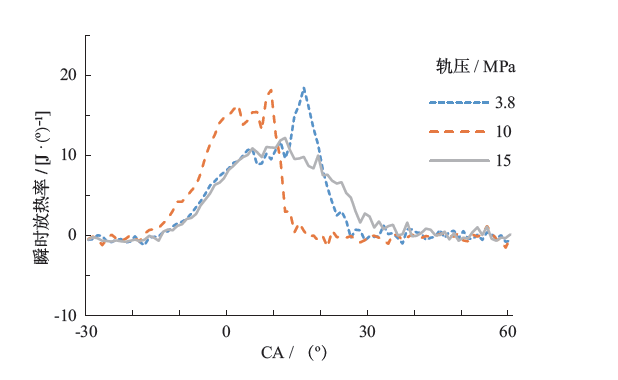

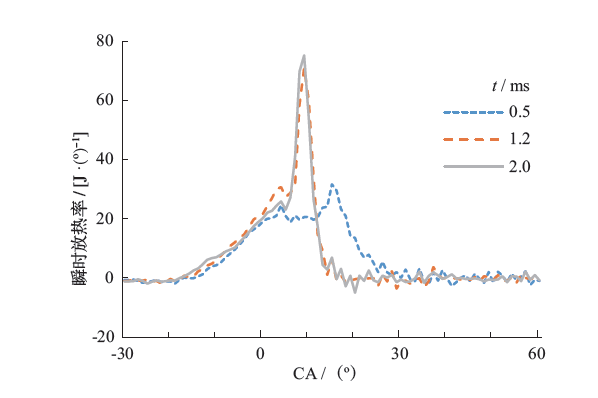

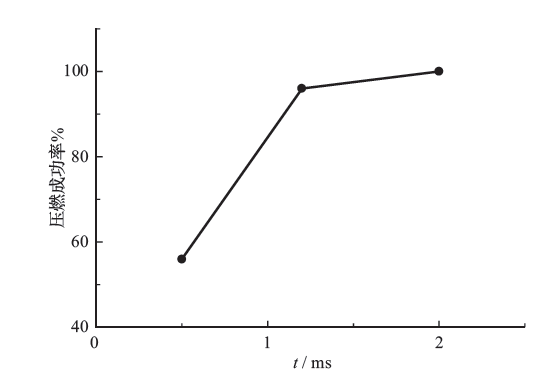

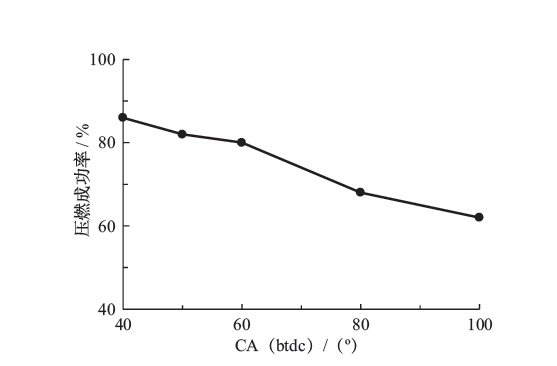

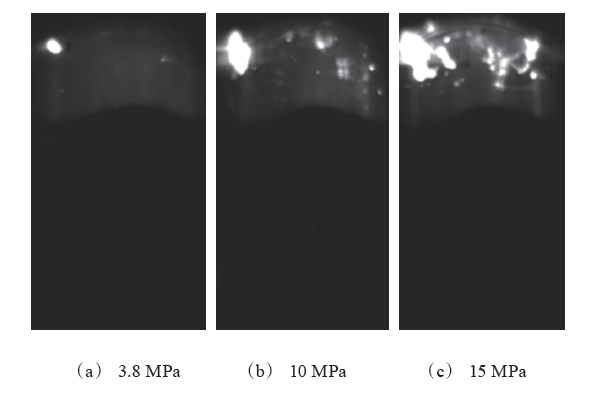

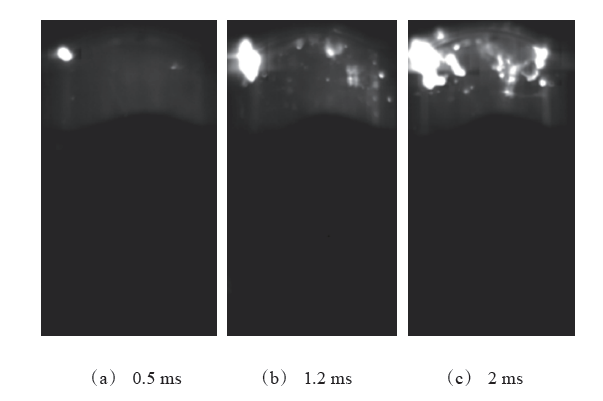

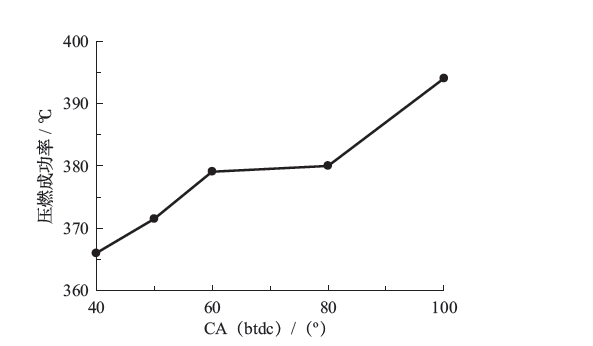

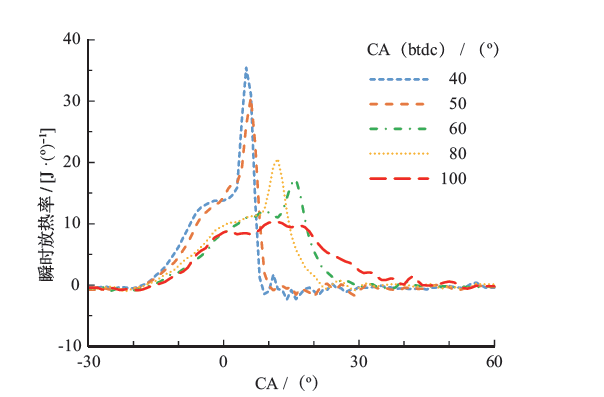

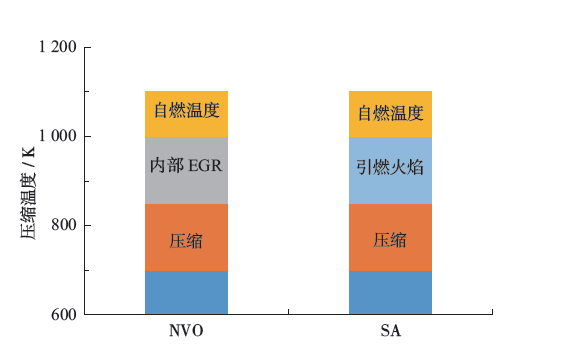

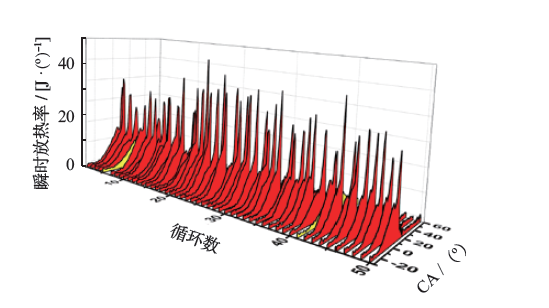

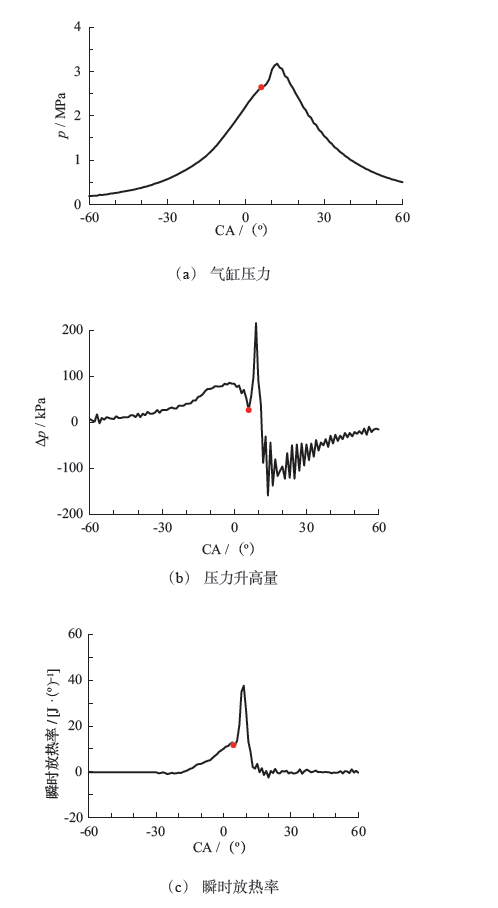

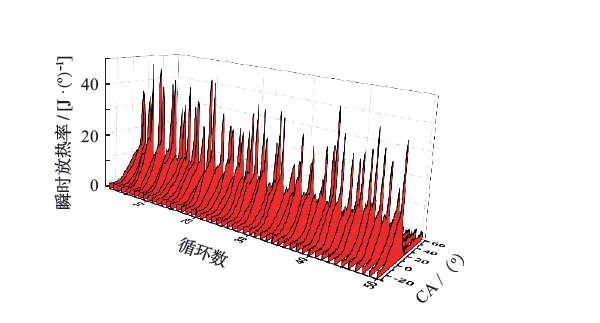

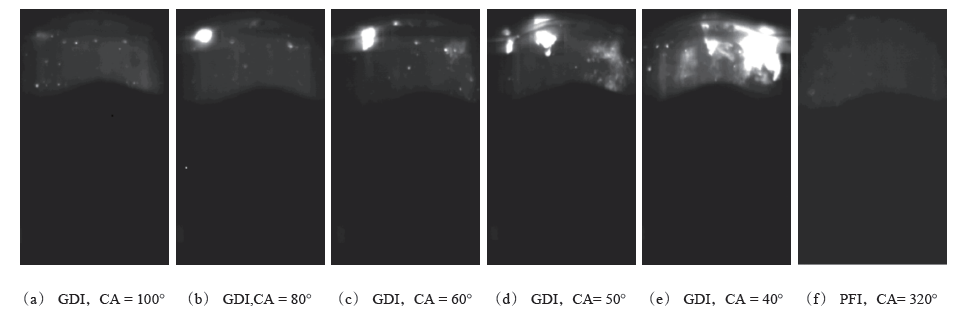

An optical diagnostic on charge stratification compression ignition was used to investigate the influences of gasoline direct injection (GDI) duration, timing and rail pressure to charge stratification compression ignition. Based on a single-cylinder optical engine with port injection method to inform pre-mixture and direct injection fuel to induce ignition, some experiments were developed under the conditions at different GDI duration of 0.5, 1.2, and 2 ms, with different timing at crank angles (before top dead center) of 40°, 50°, 60°, 80°, and 100°, and with different rail pressure of 3.8, 10, 15 MPa. The results show that charge stratification compression ignition is realized by adopting high compression ratio, normal valve timing, port injection to inform pre-mixture and direct injection fuel to induce ignition. Success chance of compression combustion is increased, combustion stability is improved, and the emission of soot is reduced by reasonable calibration to GDI duration, timing and rail pressure.

Key words: gasoline engine, charge stratification compression ignition, high compression ratio, optical diagnostics

CLC Number:

TK411

ZHANG Zhiyong, GAO Dingwei, LAI Haipeng, ZHANG Bin, XING Huafeng. Optical diagnostics of charge stratification compression ignition in high compression ratio gasoline engine[J]. Journal of Automotive Safety and Energy, 2021, 12(3): 410-416.

Figures/Tables 15

References 12

[1]	Lee B, Oh H, Han S K, et al. Development of high efficiency gasoline engine with thermal efficiency over 42% [R]. SAE Tech Paper, 2017-01-2229.
[2]	Nakata K, Nogawa S, Takahashi D, et al. Engine technologies for achieving 45% thermal efficiency of S.I engine [R]. SAE Tech Paper, 2015-01-1896.
[3]	Sellnau M, Foster. M, Moore W, et al. Pathway to 50% Brake thermal efficiency using gasoline direct injection compression ignition [R]. SAE Tech Paper, 2019-01-1154.
[4]	Ikeya K, Takazawa M, Yamada T, et al. Thermal efficiency enhancement of a gasoline engine [R]. SAE Tech Paper, 2015-01-1263.
[5]	Tagishi R, Ikeya K, Takazawa M, et al. Technology for realization of gasoline engine brake thermal efficiency of 45%[J]. *Honda R&D Tech Rev*, 2015, 27(2):1-11.
[6]	王志, 王建昕, 帅石金, 等. 火花点火对缸内直喷汽油机HCCI 燃烧的影响[J]. 内燃机学报, 2005, 23(2):105-112.
	WANG Zhi, WANG Jianxin, SHUAI Shijin, et al. Effects of spark ignition on HCCI combustion in gasoline direct injection engines[J]. *Trans Chin Soc Int Combu Engines (CSICE)*. 2005, 23(2):105-112. (in Chinese)
[7]	Kiminori K, Masanobu T, Teruyashi M. Advanced ignition control technology for HCCI combustion[J]. *Honda R&D Tech Rev*, 2014, 26(2):65-73.
[8]	王志, 王建昕, 帅石金, 等. 缸内直喷燃料改质控制HCCI着火时刻和燃烧速率的研究[J]. 自然科学进展, 2006, 16(9):1191-1195.
	WANG Zhi, WANG Jianxin, SHUAI Shijin, et al. Reserch on GDI-HCCI spark timing and combustion speed by fuel reformed[J]. *Proc Nat Sci*, 2006, 16(9):1191-1195. (in Chinese)
[9]	陈权, 谢辉, 江维海, 等. NVO策略下HCCI汽油机缸内残余废气率估计[J]. 燃烧科学与技术, 2016, 22(6):499-505.
	CHEN Quan, XIE Hui, JIANG Weihai, et al. Estimation of residual gas fraction in HCCI gasoline engine with NVO strategy[J]. *J Combus Sci Tech*, 2016, 22(6):499-505. (in Chinese)
[10]	Patrick B, Per T, Bengt J, Investigation and comparison of residual gas enhanced HCCI using trapping (NVO HCCI) or rebreathing of residual gases[R]. SAE Tech Paper, 2011-01-1772.
[11]	Martz J B, Kwak H, Im H G, et al. Combustion regime of a reacting front propagating into an auto-igniting mixture[J]. *Proc Combu Inst*, 2010. 33(2):3001-3006. doi: 10.1016/j.proci.2010.07.040 URL
[12]	赖海鹏, 宋东先, 裴培. 汽油机分层燃烧引燃汽油压燃试验研究[J]. 小型内燃机与车辆技术, 2017, 46(2):21-28.
	LAI Haipeng, SONG Dongxian, PEI Pei. Experimengtal study on stratified combustion induced compression-ignition in gasoline engine[J]. *Small Int Combu Engine Vehi Tech*, 2017, 46(2):21-28. (in Chinese)

缸径	79.5 mm
行程	100 mm
压缩比	14
排量	0.5 L
最高转速	3 500 r/min

缸径	79.5 mm
行程	100 mm
压缩比	14
排量	0.5 L
最高转速	3 500 r/min

转速	2 000 r/min
平均指示有效压力, IMEP	260 kPa
点火时刻,CA(btdc)	38°
PFI喷油时刻,CA(btdc)	320°
PFI喷射压力	550 kPa
过量空气因数	1.20
冷却水温度	60 ℃
机油温度	60 ℃

转速	2 000 r/min
平均指示有效压力, IMEP	260 kPa
点火时刻,CA(btdc)	38°
PFI喷油时刻,CA(btdc)	320°
PFI喷射压力	550 kPa
过量空气因数	1.20
冷却水温度	60 ℃
机油温度	60 ℃
