仿生雪花液冷通道散热器的性能优化

doi:10.3969/j.issn.1674-8484.2025.01.011

摘要/Abstract

摘要：

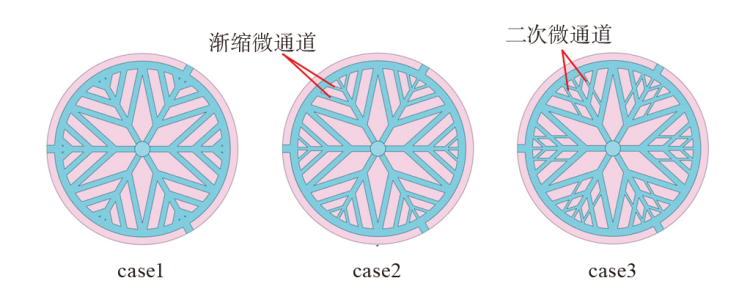

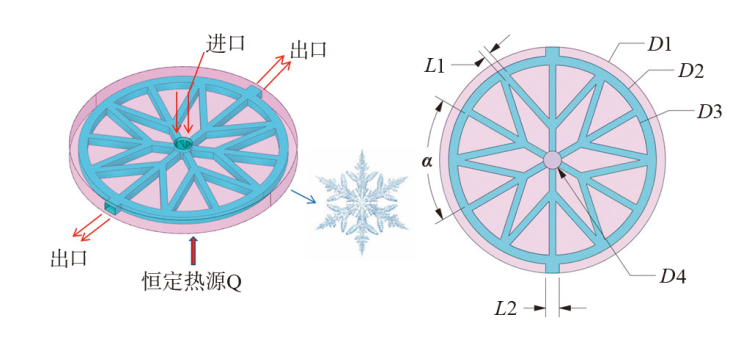

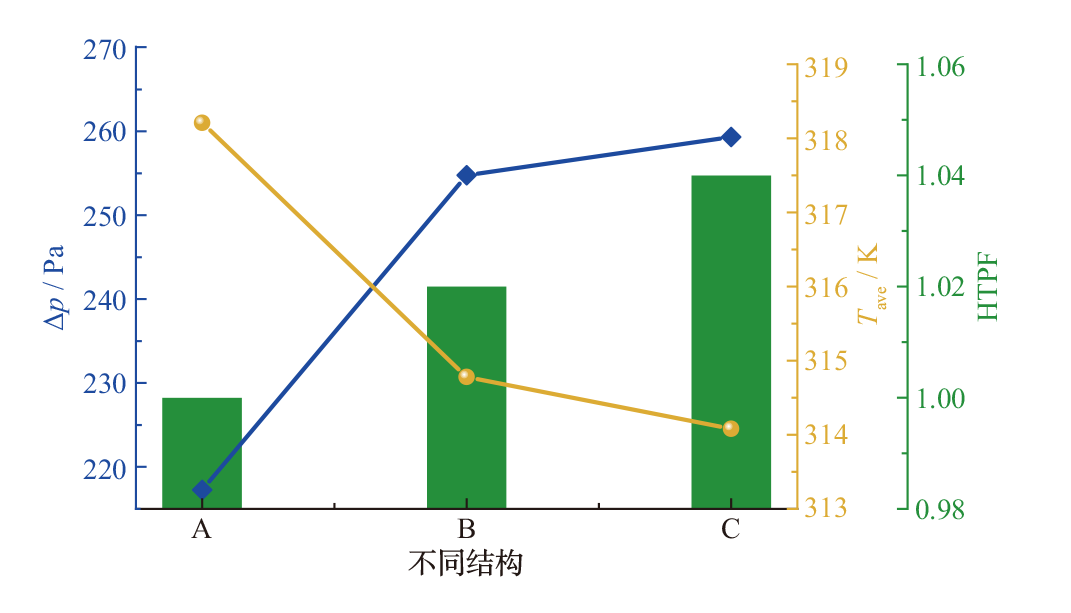

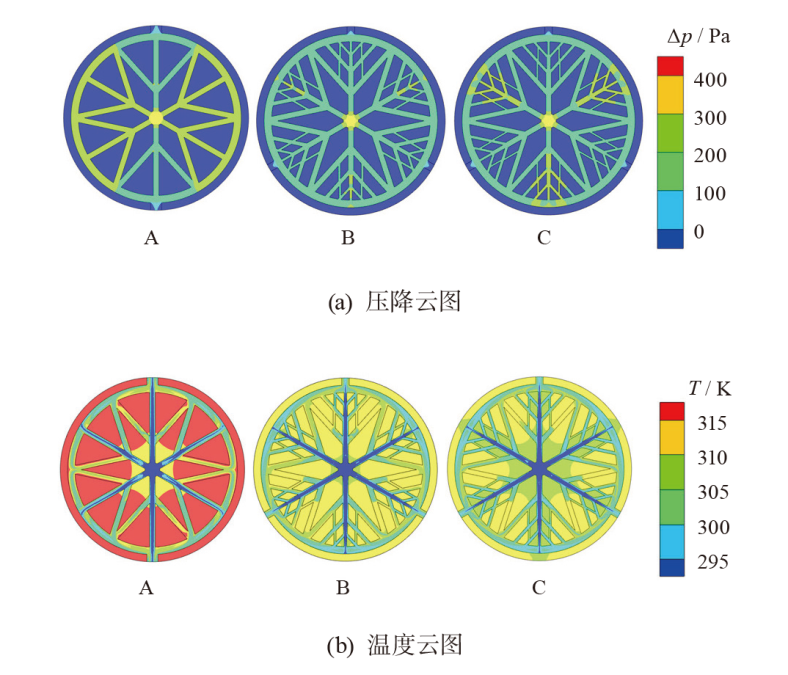

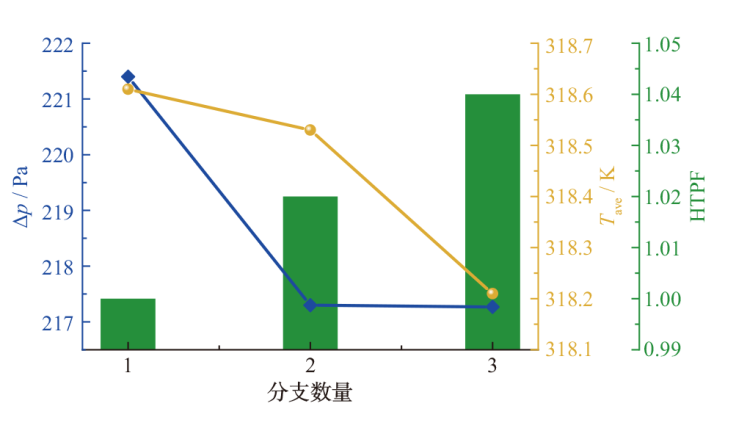

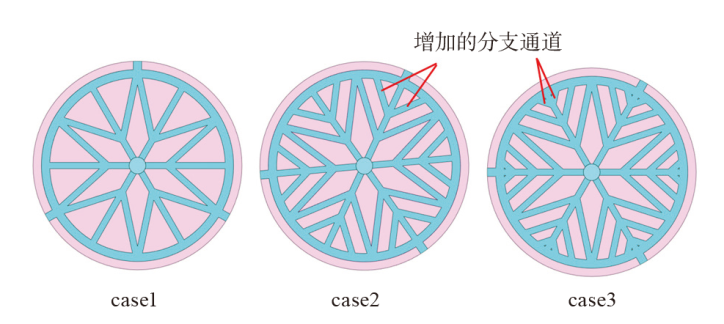

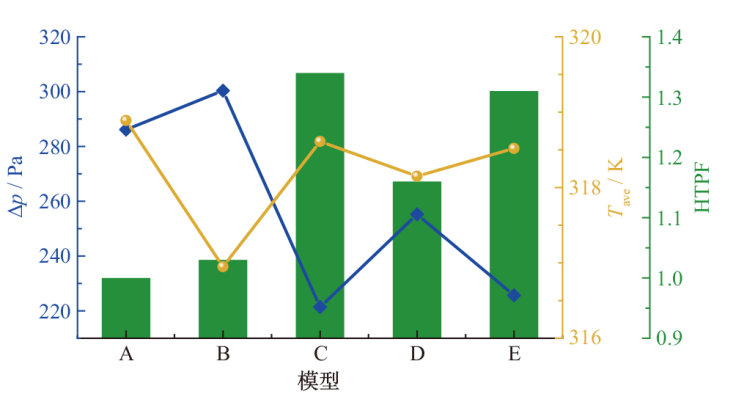

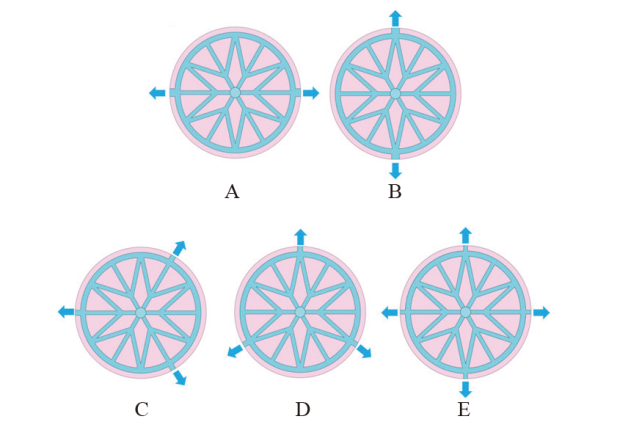

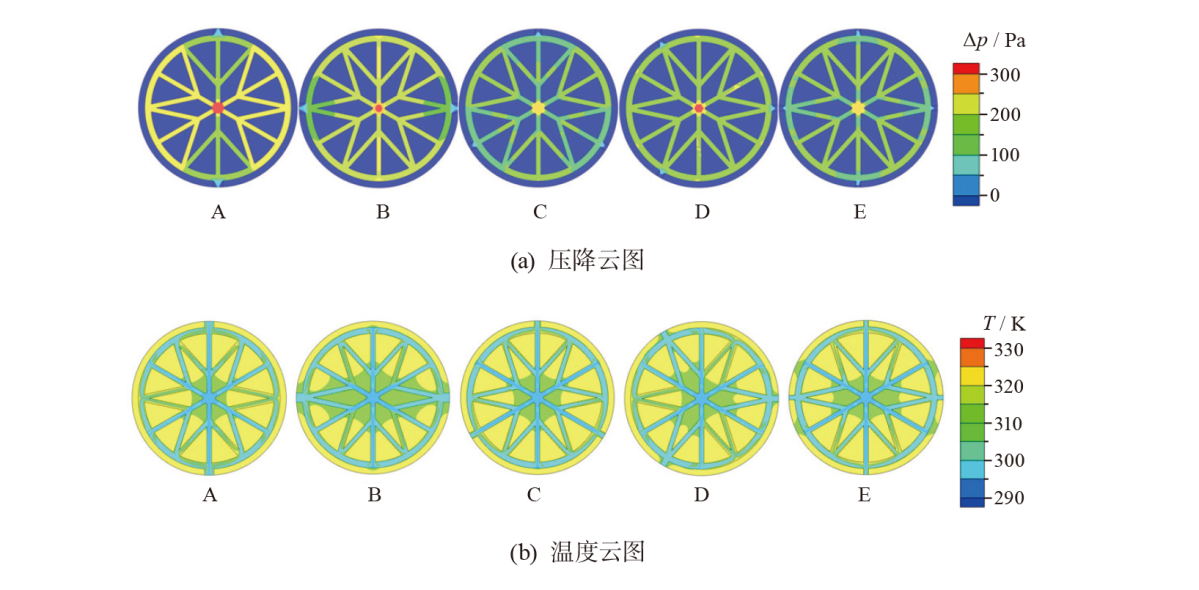

为了解决汽车电子器件在运行时难以满足散热需求等问题，提出了一种用于电动汽车和自动驾驶系统电子器件的新型仿生雪花液冷通道散热器。对散热器的结构、分支通道的数量以及宽度的优化是研究的关键。首先采用单因素优化方法对基础结构进行一系列优化，包括出口数量以及位置、分支通道数量、渐缩分支通道并加入二次液冷通道；然后对分支通道的宽度进行单因素分析；最后，以散热器的压降和平均温度作为目标函数，对散热器内部通道结构进行多目标优化。结果表明：经过多目标优化后的模型有着较为良好的散热性能，其压降和平均温度分别为262.81 Pa、312.67 K，相比于初始结构压降降低了8.15%，平均温度降低了1.95%。

关键词: 液体冷却散热器, 电子器件, 多目标优化, 仿生雪花

Abstract:

In order to solve the problems such as the difficulty of meeting the heat dissipation requirements of automobile electronic devices during operation, a new bionic snowflake liquid-cooled channel heat sink for electronic devices of electric vehicles and autonomous driving systems was proposed. The key of the research was to optimize the structure of the radiator, the number and width of the branch channels. Firstly, the single factor optimization method was used to optimize the basic structure, including the number and location of exits, the number of branch channels, the decreasing branch channels and the addition of secondary liquid cooling channels. Then a one-factor analysis of the width of the branching channels was performed. Finally, taking the pressure drop and average temperature of the radiator as the objective function, the internal channel structure of the radiator is optimized with multiple objectives. The results show that the model after multi-objective optimization has a relatively good heat dissipation performance, with a pressure drop and average temperature of 262.81 Pa and 312.67 K, respectively, which is 8.15% lower than the initial structure's pressure drop and 1.95% lower than the average temperature.

Key words: liquid-cooled heat sink, electronics, multi-objective optimization, bionic snowflake

中图分类号:

U464.1388

陶佳辉, 张甫仁, 孙世政, 邱帅帅, 王烽, 陶远兵, 谭海坤, 李龙辉. 仿生雪花液冷通道散热器的性能优化[J]. 汽车安全与节能学报, 2025, 16(1): 107-116.

TAO Jiahui, ZHANG Furen, SUN Shizheng, QIU Shuaishuai, WANG Feng, TAO Yuanbing, TAN Haikun, LI Longhui. Performance optimization of bionic snowflake liquid-cooled channel heat sinks[J]. Journal of Automotive Safety and Energy, 2025, 16(1): 107-116.

图/表 23

参考文献 30

[1]	HE Ziqiang, YAN Yunfei, ZHANG Zhien. Thermal management and temperature uniformity enhancement of electronic devices by micro heat sinks: A review[J]. Energy. 2021, 216:119223.
[2]	Van Erp R, Soleimanzadeh R, Nela L, et al. Co-designing electronics with microfluidics for more sustainable cooling[J]. Nature. 2020, 585(7824): 211-216.
[3]	WANG Chenxi, HUA Lingji, YAN Hongzhi, et al. A thermal management strategy for electronic devices based on moisture sorption-desorption processes[J]. Joule. 2020, 4(2): 435-447.
[4]	Tuckerman D B, Pease R F W. High-performance heat sinking for VLSI[J]. IEEE Elect devi letts. 1981, 2(5): 126-129.
[5]	Hung T-C, Yan W-M, WANG Xiaodong, et al. Optimal design of geometric parameters of double-layered microchannel heat sinks[J]. Int'l J Heat Mass Trans. 2012, 55(11-12): 3262-3272.
[6]	TAN Hui, WU Longwen, WANG Mingyang, et al. Heat transfer improvement in microchannel heat sink by topology design and optimization for high heat flux chip cooling[J]. *Int'l J Heat Mass Tran, 2019, 129*: 681-689.
[7]	HUANG Pingnan, DONG Guanping, ZHONG Xineng, et al. Numerical investigation of the fluid flow and heat transfer characteristics of tree-shaped microchannel heat sink with variable cross-section[J]. *Chem Engi Proc-Proc Intensifica, 2020, 147*: 107769.
[8]	CHEN Chaowei, LI Fei, WANG Xinyu, et al. Improvement of flow and heat transfer performance of manifold microchannel with porous fins[J]. *Appl Therm Eng, 2022, 206*: 118129.
[9]	FAN Yiwei, WANG Zhaohui, FU Ting, et al. Numerical investigation on lithium-ion battery thermal management utilizing a novel tree-like channel liquid cooling plate exchanger[J]. *Int'l J Heat Mass Tran, 2022, 183*: 122143.
[10]	PENG Yi, LI Zhibin, LI Shaobo, et al. The experimental study of the heat ransfer performance of a zigzag-serpentine microchannel heat sink[J]. *Int'l J Therm Sc, 2021, 163*: 106831.
[11]	ZHOU Jianhong, LU Mingxiang, ZHAO Qi, et al. Topologically optimized manifold microchannel heat sink with extreme cooling performance for high heat flux cooling of electronics[J]. Appl Therm Engi. 2024, 241: 122426.
[12]	CUI Haichuan, ZHANG Zikang, YU Minjie, et al. A hybrid slot jet impingement/microchannel heat sink for cooling high-power electronic devices: an combined experimental and numerical study[J]. *Int'l J Therm Sc, 2024, 197*: 108823.
[13]	YANG Jingshan, CHENG Keyong, ZHANG Kai, et al. Numerical study on thermal and hydraulic performances of a hybrid manifold microchannel with bifurcations for electronics cooling[J]. *Appl Therm Eng, 2023, 232*: 121099.
[14]	Shahrestani M I, Maleki A, Shadloo M S, et al. Numerical investigation of forced convective heat transfer and performance evaluation criterion of Al₂O₃/water nanofluid flow inside an axisymmetric microchannel[J]. Symmetry. 2020, 12(1): 120.
[15]	WANG Helin, CHEN Xueye. Numerical simulation of heat transfer and flow of Al₂O₃-water nanofluid in microchannel heat sink with cantor fractal structure based on genetic algorithm[J]. Analy Chim Acta. 2022, 1221: 339927.
[16]	Ali A M, Angelino M, Rona A. Numerical analysis on the thermal performance of microchannel heat sinks with Al₂O₃ nanofluid and various fins[J]. Appl Therm Engi. 2021, 198: 117458.
[17]	Jena S, Mishra M K. Entropy analysis of Cu-Al₂O₃ based hybrid and Cu based mono nanofluid flows through porous medium: A comparative study[J]. *Case Stud Therm Eng*, 2023, 50: 103463.
[18]	Sakanova A, Keian C C, ZHAO Jiyun. Performance improvements of microchannel heat sink using wavy channel and nanofluids[J]. *Int'l J Heat Mass Tran*, 2015, 89: 59-74.
[19]	Rahimi-Gorji M, Pourmehran O, Hatami M, et al. Statistical optimization of microchannel heat sink (MCHS) geometry cooled by different nanofluids using RSM analysis[J]. Europ Physi J Plus. 2015, 130: 1-21.
[20]	Hashemi S M H, Fazeli S A, Zirakzadeh H, et al. Study of heat transfer enhancement in a nanofluid-cooled miniature heat sink[J]. *Int'l Commun Heat Mass Tran*, 2012, 39(6): 877-884.
[21]	Ambreen T, Kim M-H. Effect of fin shape on the thermal performance of nanofluid-cooled micro pin-fin heat sinks[J]. *Int‘l J Heat Mass Tran, 2018, 126*: 245-256.
[22]	Barnoon P. Electroosmotic flow and heat transfer of a hybrid nanofluid in a microchannel: A structural optimization[J]. *Int'l J Thermoflui*, 2023, 20: 100499.
[23]	MA Zihuan, HU Chengyu, MA Li, et al. Nanofluids in microchannel heat sinks for efficient flow cooling of power electronic devices[J]. *Appl Mate Toda*, 2023, 35: 101980.
[24]	Anqi A E. Numerical investigation of heat transfer and entropy generation in serpentine microchannel on the battery cooling plate using hydrophobic wall and nanofluid[J]. *J Energ Stor*, 2023, 66: 106548.
[25]	WANG Tianhu, WU Haochi, MENG Jinghui, et al. Optimization of a double-layered microchannel heat sink with semi-porous-ribs by multi-objective genetic algorithm[J]. *Int'l J Heat Mass Tran, 2020, 149*: 119217.
[26]	Koga A A, Lopes E C C, Nova H F V, et al. Development of heat sink device by using topology optimization[J]. *Int'l J Heat Mass Tran*, 2013, 64: 759-772.
[27]	XU Shanglong, WU Yihao, CAI Qiyu, et al. Optimization of the thermal performance of multi-layer silicon microchannel heat sinks[J]. *Therm Sc*, 2016, 20(6): 2001-2013.
[28]	Pourfattah F, Sabzpooshani M. On the thermal management of a power electronics system: Optimization of the cooling system using genetic algorithm and response surface method[J]. *Energ, 2021, 232*: 120951.
[29]	SUN Chen, WANG Wei, TIAN Xiwei, et al. Thermal design of composite cold plates by topology optimization[J]. *Int'l J Mech Sc, 2023, 259*: 108594.
[30]	YUE Linfei, QI Cong, TANG Maoqing. A novel composite bionic leaf vein and honeycomb microchannel heat sink applied for thermal management of electronic components[J]. *Appl Therm Eng, 2024, 252*: 123716.

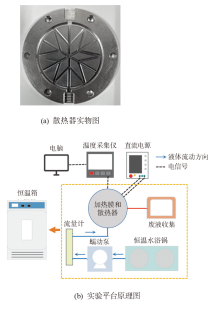

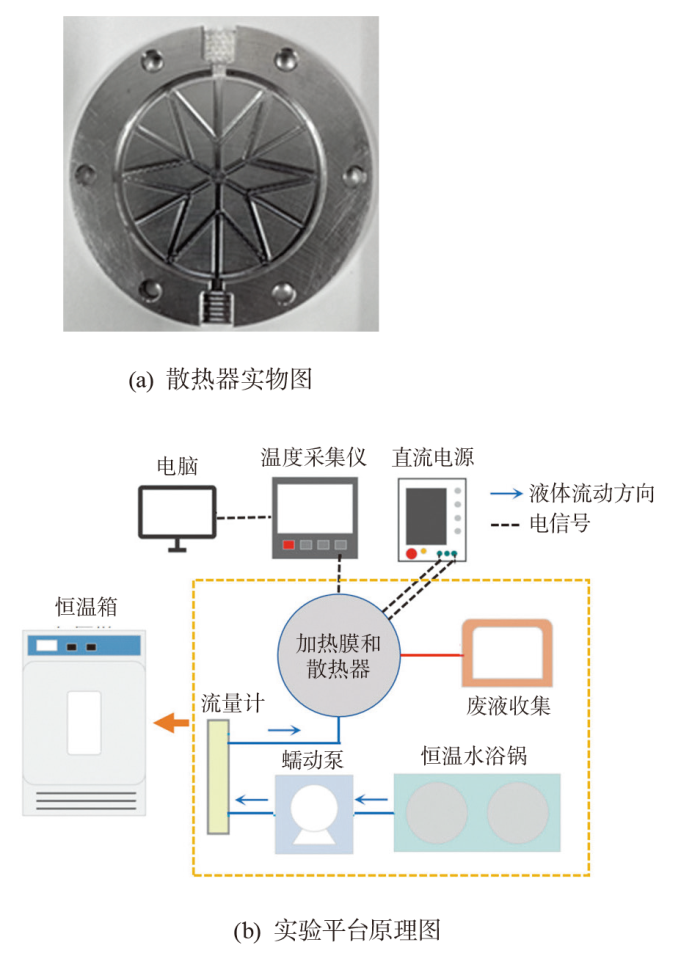

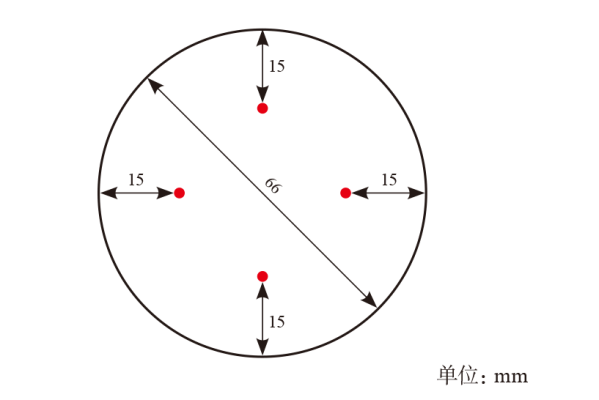

实验仪器	型号	精度
卡默尔智能蠕动泵	550	(±) 5%
数据采集仪	LD5200	(±) 0.2% FS
恒温恒湿箱	SPX-350B	(±) 0.5 ℃
温度传感器	PT100	(±) 0.15 ℃
玻璃转子流量计	LZB-4WB	(±) 2.5 ℃
数显恒温水浴锅	HH-4	(±) 0.5 ℃

实验仪器	型号	精度
卡默尔智能蠕动泵	550	(±) 5%
数据采集仪	LD5200	(±) 0.2% FS
恒温恒湿箱	SPX-350B	(±) 0.5 ℃
温度传感器	PT100	(±) 0.15 ℃
玻璃转子流量计	LZB-4WB	(±) 2.5 ℃
数显恒温水浴锅	HH-4	(±) 0.5 ℃

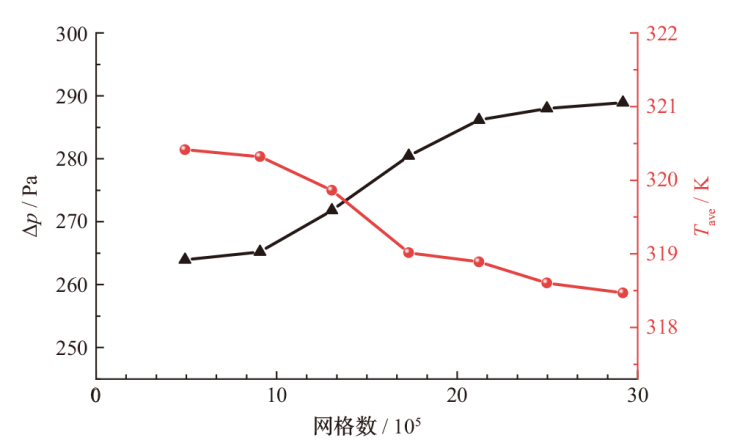

流量/ (g·s^-1)	模拟温度/ K	实验温度/ K	相对误差/ %
1	302.25	302.94	0.23
2	298.92	299.13	0.07
3	297.61	298.07	0.15
4	296.81	297.53	0.24
5	296.30	297.29	0.33

流量/ (g·s^-1)	模拟温度/ K	实验温度/ K	相对误差/ %
1	302.25	302.94	0.23
2	298.92	299.13	0.07
3	297.61	298.07	0.15
4	296.81	297.53	0.24
5	296.30	297.29	0.33

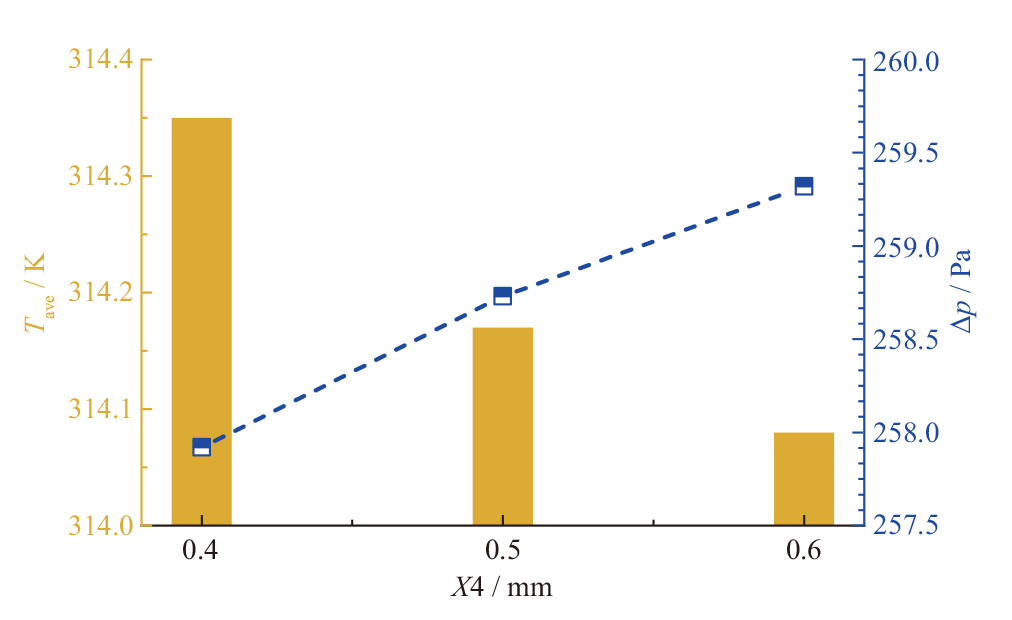

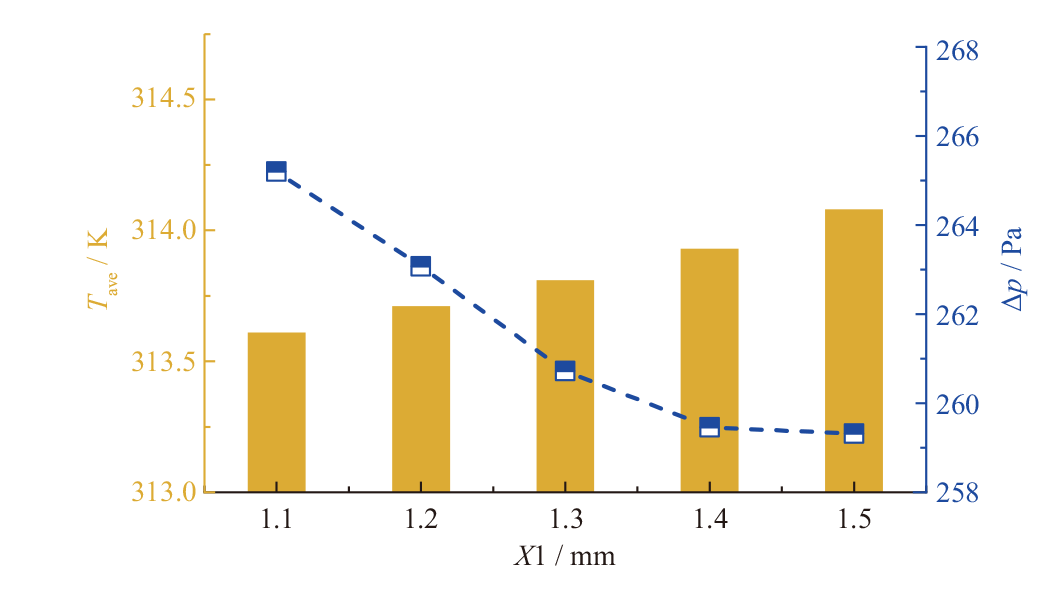

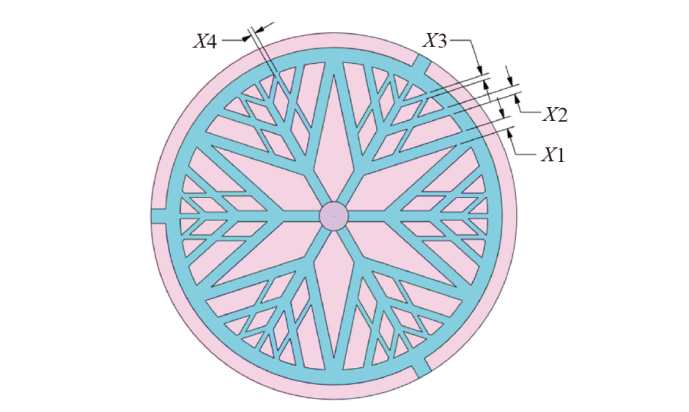

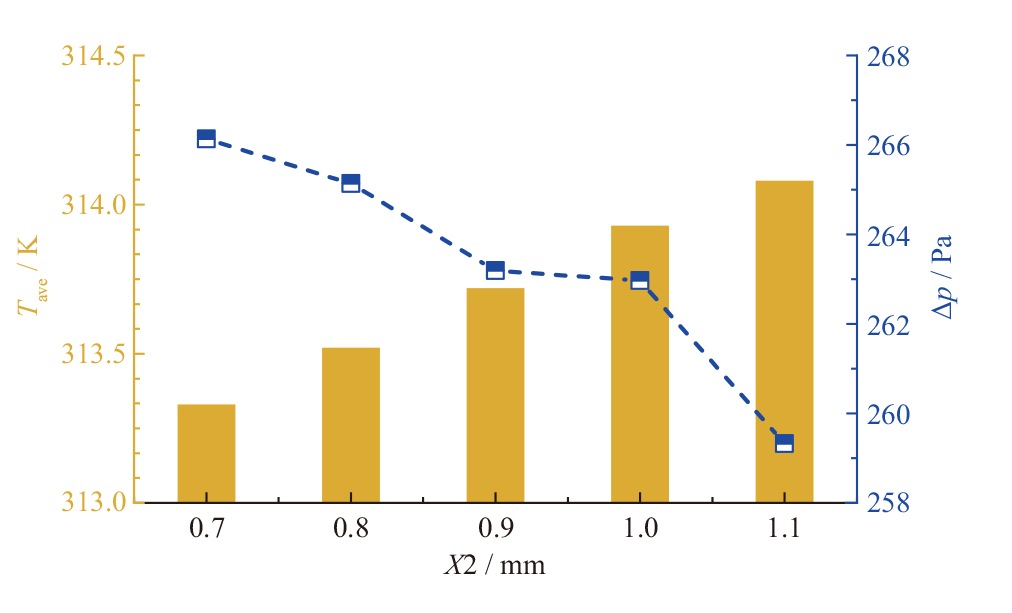

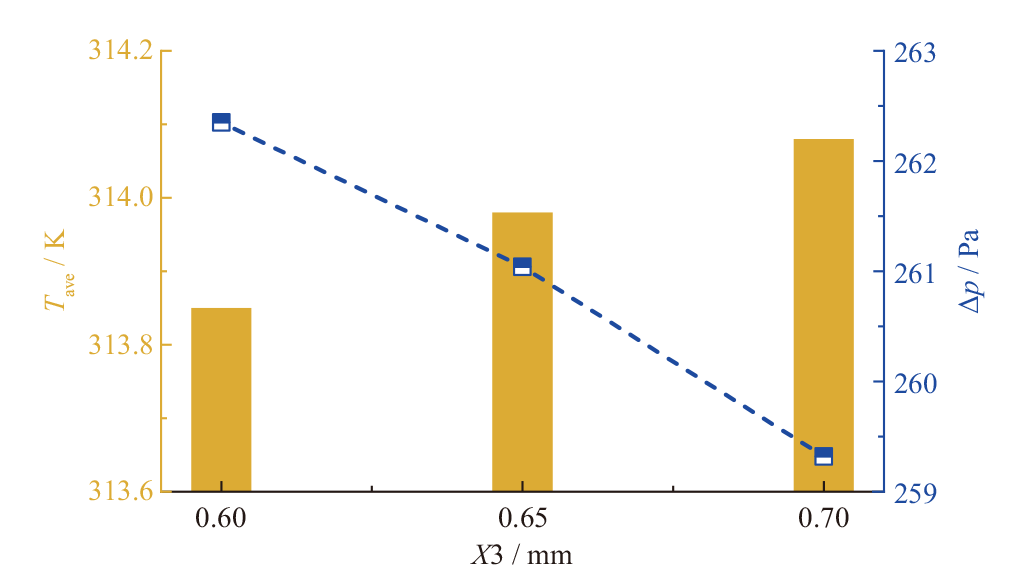

范围	X1 / mm	X2 / mm	X3 / mm	X4 / mm
上限	1.5	1.1	0.7	0.6
初值	1.5	1.1	0.7	0.6
下限	1.1	0.7	0.6	0.4
