男性老龄乘员年龄增长对损伤风险的影响

doi:10.3969/j.issn.1674-8484.2023.04.002

摘要/Abstract

摘要：

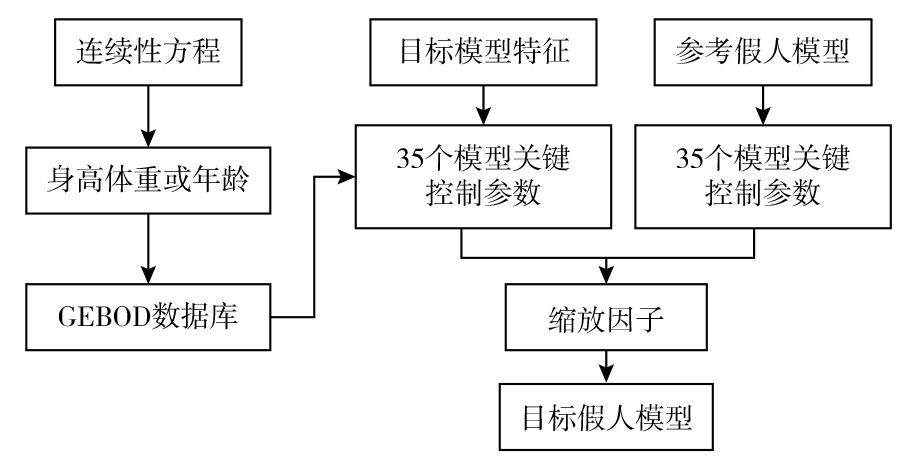

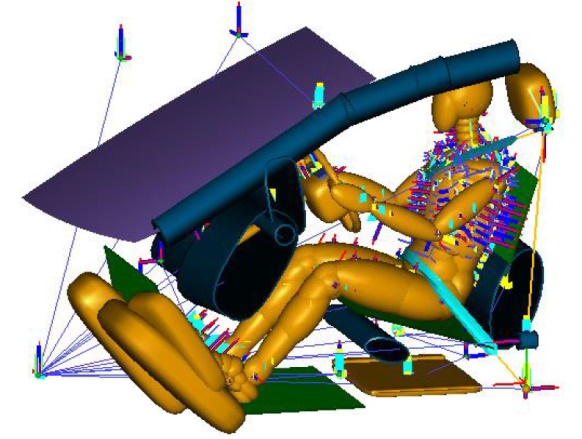

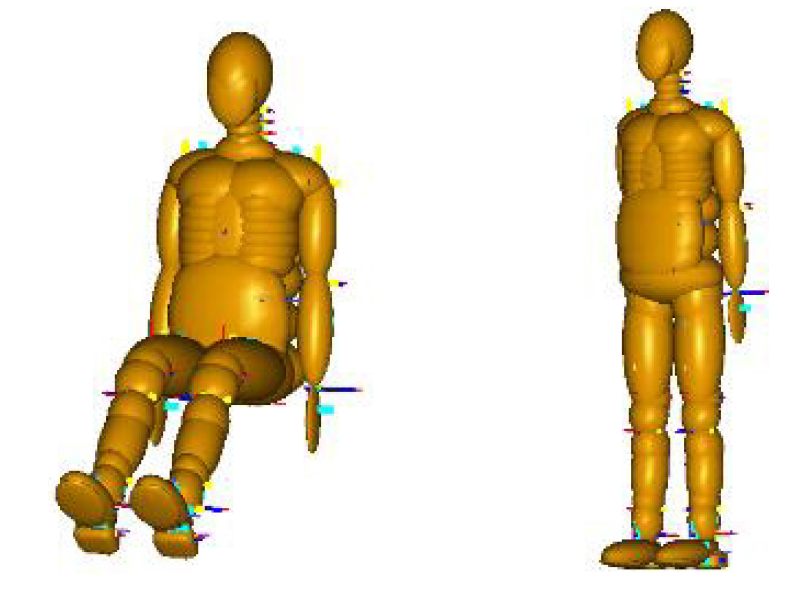

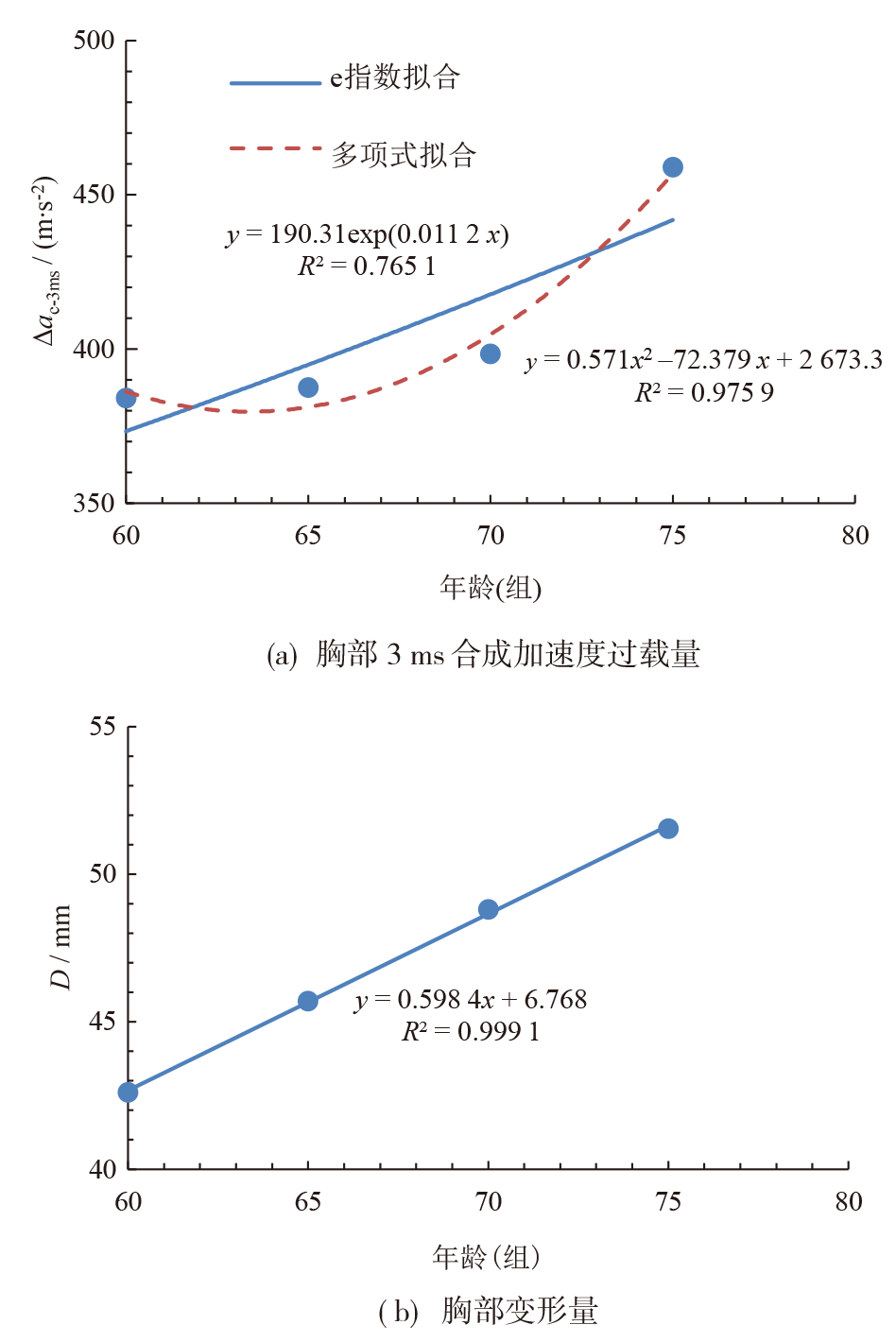

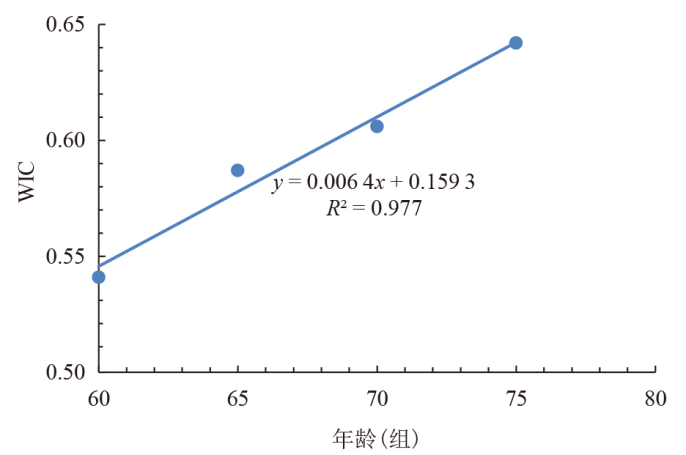

为了研究年龄增长对男性老龄乘员损伤风险的影响规律，以Hybrid Ⅲ 50th男性假人为基础，结合中国60~79岁男性老年人身体尺寸，采用MADYMO软件建立具有中国老龄人体特征的多体假人模型。通过耦合乘员座椅约束系统模型，对比分析了4个年龄组（60~64、65~69、70~74、75~79岁）乘员头部、胸部、大腿和综合伤害指标WIC值与年龄因素之间的影响关系，提出了随年龄增长的老龄乘员损伤风险概率模型。结果表明：随着老龄乘员年龄的增长，头部HIC值和合成加速度值、胸部加速度值和压缩量、综合伤害WIC值呈线性上升趋势；当年龄超过74岁时，胸部3 ms加速度值呈“陡峭”指数上升趋势；随着年龄的增长，老龄乘员伤害程度与年龄呈显著的强正相关性（r > 0.97， p < 0.05）。

关键词: 汽车被动安全, 年龄增长, 老龄乘员, 损伤风险概率模型, 约束系统, 模型缩放

Abstract:

To investigate the effect of increasing age on the injury risk of male elderly occupants, MADYMO software was used to establish multi-body dummy models combined with the human body size of Chinese 60-79 years old male elderly, based on the Hybrid Ⅲ 50-percentile male dummy. By coupling the model of occupant seat restraint system, the influence relationship between head, chest, thigh and weighted injury criteria (WIC) and age factors of male elderly occupants in 4 age groups (60-64, 65-69, 70-74 and 75-79 years old) was compared and analyzed, and a probability model of injury risk for elderly occupants with increasing age was proposed. The results showed that the HIC value of head, the integrate acceleration value, chest acceleration value and compression value, and the WIC value of comprehensive damage increase linearly with the increasing of the age of elderly occupants; When the age is over 74 years old, the chest 3 ms acceleration shows a steep index upward trend; With the increasing of age, the injury risk of male elderly occupants is significantly positively correlated with age (r > 0.97, p < 0.05).

Key words: automotive passive safety, increasing age, elderly occupant, probability model of injury risk, restraint system, model scaler

中图分类号:

U461.91

唐友名, 谢祥键, 孙贵斌, 王平, 张义, 孙冠豫. 男性老龄乘员年龄增长对损伤风险的影响[J]. 汽车安全与节能学报, 2023, 14(4): 413-420.

TANG Youming, XIE Xiangjian, SUN Guibin, WANG Ping, ZHANG Yi, SUN Guanyu. Effect of increasing age on injury risk in elderly male occupant[J]. Journal of Automotive Safety and Energy, 2023, 14(4): 413-420.

图/表 16

参考文献 16

[1]	童玉芬. 中国人口的最新动态与趋势-结合第七次全国人口普查数据的分析[J]. 中国劳动关系学院学报, 2021, 35(4): 15-25.
	TONG Yufen. The latest trends and trends of China's population:Analysis combined with the data of the seventh national census[J]. J Chin Inst Labo Relat, 2021, 35(4): 15-25. (in Chinese)
[2]	Bansal V, Conroy C, Chang D, et al. Rib and sternum fractures in the elderly and extreme elderly following motor vehicle crashes[J]. Accid Anal Prev, 2011, 43(3): 661-665. doi: 10.1016/j.aap.2010.10.009 pmid: 21376852
[3]	Kent R, Lee S H, Darvish K, et al. Structural and material changes in the aging thorax and their role in crash protection for older occupants[C]// 49th Stapp Car Crash Conf. Washington D.C, 2005.
[4]	Haug E, Choi H Y, Robin S, et al. Human models for crash and impact simulation[J]. Handbook Numerical Analysis, 2004, 12: 231-452.
[5]	张文会, 伊静, 刘委, 等. 基于 MADYMO 的大客车追尾碰撞事故乘员损伤机理[J]. 吉林大学学报 (工学版), 2022, 52(1): 118-126. (in Chinese)
	ZHANG Wenhui, YI Jing, LIU Wei, et al. Occupant injury mechanism in rear-end collision accident of bus based on MADYMO[J]. J Jilin Univ(Engi Sci), 2022, 52(1): 118-126.
[6]	舒雅静, 董文祥, 刘玉云, 等. 老龄乘员胸腔损伤分析及保护策略研究[C]// 2020 中国汽车工程学会年会论文集 (4), 上海, 2020.
	SHU Yajing, DONG Wenxiang, LIU Yuyun, et al. Research on thoracic injury analysis and protection strategies of aged occupants[C]// Proceed 2020 Soc Autom Engi Chin Ann Conf (4), Shanghai, 2020. (in Chinese)
[7]	Lange R D, Made R V D, Feustel J R, et al. Development and evaluation of MADYMO child occupant dummy models[C]// 4th MADYMO Users Meet Ame, Detroit, US. 2001.
[8]	申杰, 金先龙, 张晓云, 等. 基于中国人体形特征的行人假人缩放方法[J]. 汽车工程, 2007, 29(12): 1025-1027.
	SHEN Jie, JIN Xianlong, ZHANG Xiaoyun, et al. Pedestrian dummy scaling method based on Chinese body shape characteristics[J]. Autom Engineering, 2007, 29(12): 1025-1027. (in Chinese)
[9]	阳益涛. 基于自适应遗传算法的校车儿童假人建模与损伤研究[D]. 长沙: 湖南大学, 2016.
	YANG Yitao. Research on modeling and damage of school bus dummies based on adaptive genetic algorithm[D]. Changsha: Hunan University, 2016. (in Chinese)
[10]	国家国民体质监测中心. 第五次国民体质监测公报[EB/OL]. 国家国民体质监测中心——国家体育总局体育科学研究所(ciss.cn). (2021-12-30), https://www.sport.gov.cn/n315/n329/c24335066/content.html.
	National Physical Fitness Monitoring Center. The fifth national physical fitness monitoring bulletin[EB/OL]. National Physical Fitness Monitoring Center――Institute of Sports Science, General Administration of Sports (ciss.cn). (2021-12-30), https://www.sport.gov.cn/n315/n329/c24335066/content.html. (in Chinese)
[11]	颜萍, 陈靖芯, 陈新文, 等. 基于MADYMO的主驾驶正面约束系统模型分析[J]. 农业装备与车辆工程, 2019, 57(9): 27-31.
	YAN Ping, CHEN Jingxin, CHEN Xinwen, et al. Model analysis of frontal restraint system based on MADYMO[J]. Agri Equip Vehi Engi, 2019, 57(9): 27-31. (in Chinese)
[12]	袁泉, 李一兵, 郭榕. 基于人体损伤特征信息的人车碰撞事故车速分析研究[J]. 汽车工程, 2008, 11(30): 979-983.
	YUAN Quan, LI Yibing, GUO Rong. Analysis and research on the speed of human-vehicle collision accidents based on human injury feature information[J]. Autom Engineering, 2008, 11(30): 979-983. (in Chinese)
[13]	Laberge-Nadeau C, Bellavance F, Messier S, et al. Occupant injury severity from lateral collisions: A literature review[J]. J Safe Res, 2009, 40(6): 427-435. doi: 10.1016/j.jsr.2009.08.005 URL
[14]	艾军. 基于正面碰撞副驾驶员防护的乘员约束系统优化研究[D]. 长沙: 湖南大学, 2011.
	Ai Jun. Research on optimization of passenger restraint system based on frontal collision co-pilot protection[D]. Changsha: Hunan University, 2011. (in Chinese)
[15]	Kim J K, Ulfarsson G F, Kim S, et al. Driver-injury severity in single-vehicle crashes in California: A mixed logit analysis of heterogeneity due to age and gender[J]. Accid Anal Prev, 2013, 50: 1073-1081. doi: 10.1016/j.aap.2012.08.011 URL
[16]	彭金平. 老年人体胸部的碰撞生物力学响应研究[D]. 长沙: 长沙理工大学, 2019.
	PENG Jinping. Research on the impact biomechanical response of the chest of the elderly[D]. Changsha: Changsha University of Science and Technology, 2019. (in Chinese)

年龄组	60-64岁	65-69岁	70-74岁	75-79岁
体质量/ kg	69.0	68.1	66.7	65.6
站立身高/ cm	165.9	165.4	164.6	164.2
座姿高度/ cm	121.7	120.5	119.3	118.0
头部长度/ cm	20.5	20.5	20.4	20.4
肩部到肘部长度/ cm	28.6	27.9	27.5	27.2
前臂到手长/ cm	41.7	41.4	41.0	40.9
脚长/ cm	23.2	23.1	22.9	22.7
手长/ cm	17.3	17.2	17.1	17.1

年龄组	60-64岁	65-69岁	70-74岁	75-79岁
体质量/ kg	69.0	68.1	66.7	65.6
站立身高/ cm	165.9	165.4	164.6	164.2
座姿高度/ cm	121.7	120.5	119.3	118.0
头部长度/ cm	20.5	20.5	20.4	20.4
肩部到肘部长度/ cm	28.6	27.9	27.5	27.2
前臂到手长/ cm	41.7	41.4	41.0	40.9
脚长/ cm	23.2	23.1	22.9	22.7
手长/ cm	17.3	17.2	17.1	17.1

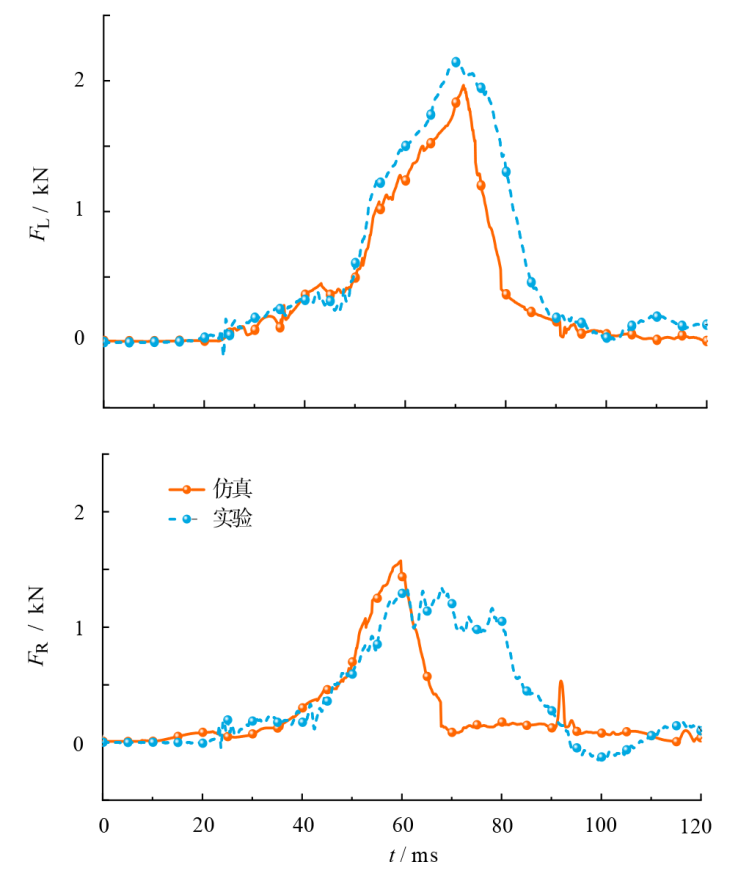

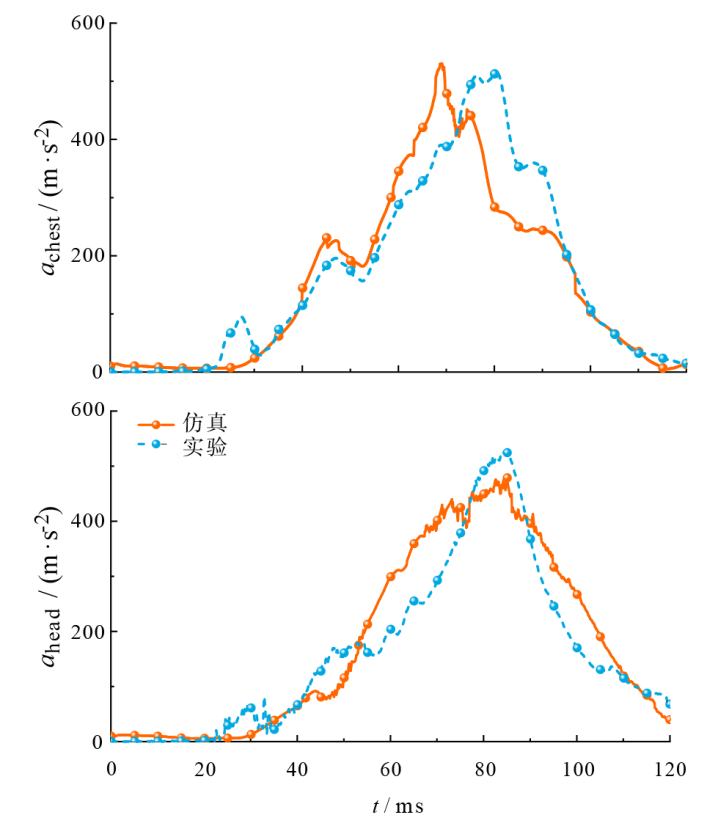

损伤指标	实验值	仿真值	误差/ %
HIC₁₅	247.87	234.98	5.20
a_h-peak / g	52.76	48.85	7.41
a_c-peak/ g	51.50	53.15	3.20
D / mm	32.10	34.89	8.70
F_L-peak / kN	1.930	1.832	5.10
F_R-peak / kN	1.485	1.558	4.91
WIC	0.602	0.570	5.32

损伤指标	实验值	仿真值	误差/ %
HIC₁₅	247.87	234.98	5.20
a_h-peak / g	52.76	48.85	7.41
a_c-peak/ g	51.50	53.15	3.20
D / mm	32.10	34.89	8.70
F_L-peak / kN	1.930	1.832	5.10
F_R-peak / kN	1.485	1.558	4.91
WIC	0.602	0.570	5.32

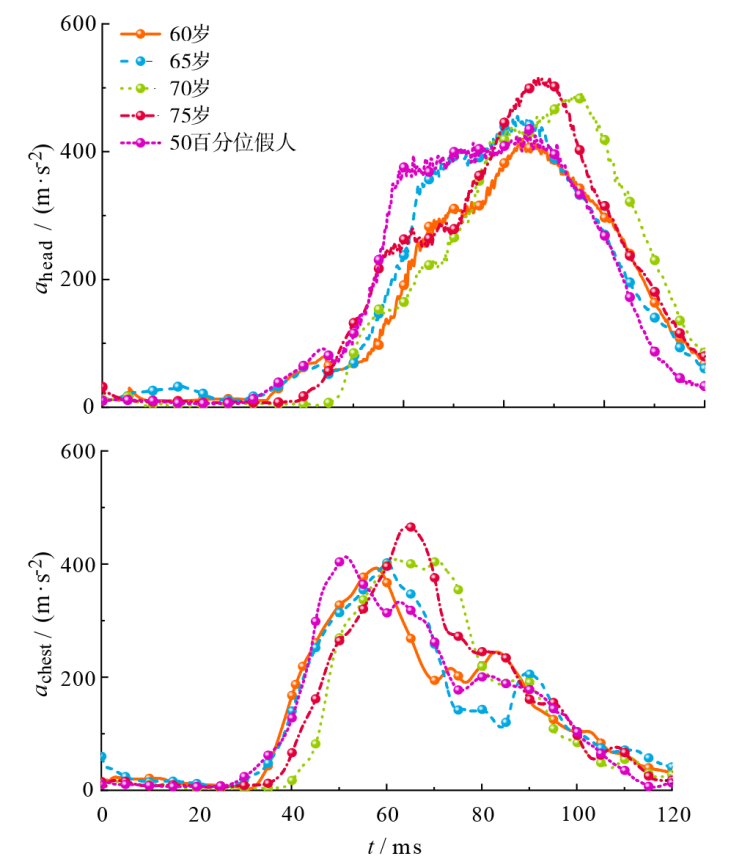

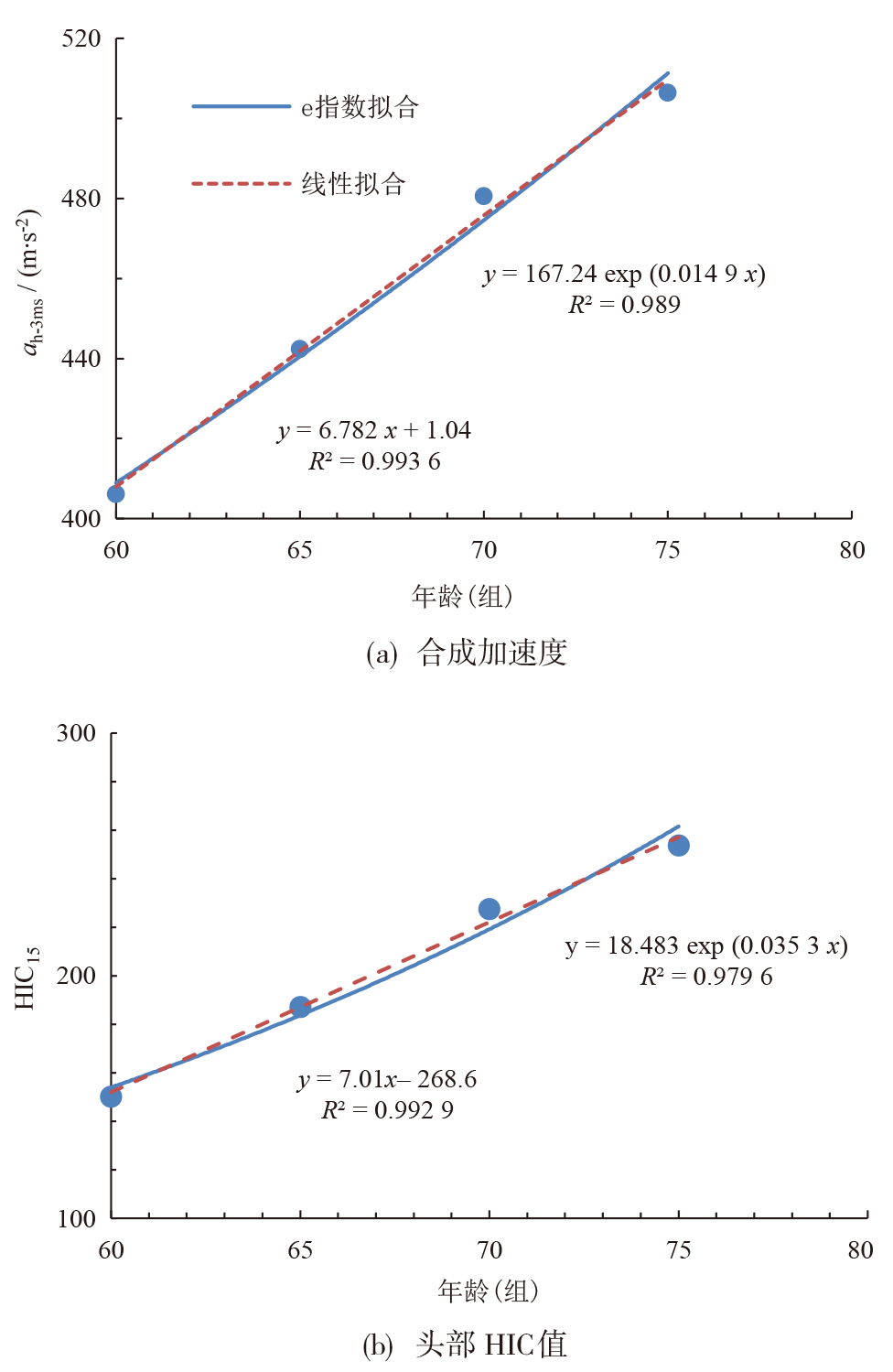

假人模型	HIC₁₅	相对变化率 %	合成加速度 g	相对变化率 %
60~64岁	150.2	—	40.6	—
65~69岁	187.1	24.57	44.2	8.87
70~74岁	227.4	21.54	48.1	8.82
75~79岁	253.6	11.52	50.6	5.20
