基于远程监控三区移动平均窗口法的重型车排放特征

doi:10.3969/j.issn.1674-8484.2023.03.013

汽车安全与节能学报 ›› 2023, Vol. 14 ›› Issue (3): 375-384.DOI: 10.3969/j.issn.1674-8484.2023.03.013

基于远程监控三区移动平均窗口法的重型车排放特征

任烁今¹(), 张超¹, 李刚²^,^*(), 李腾腾¹, 于全顺¹, 关敏², 吉喆², 景晓军¹

1.中汽研汽车检验中心（天津）有限公司，天津300300，中国
2.中国环境科学研究院国家环境保护机动车污染控制与模拟重点实验室，北京100012，中国

收稿日期:2022-12-13 修回日期:2023-02-12 出版日期:2023-06-30 发布日期:2023-06-30
通讯作者: 李刚
作者简介:*李刚，高级工程师。E-mail：ligang@vecc.org.cn。
任烁今（1990—），男（汉），河北，高级工程师。E-mail： renshuojin@163.com。
基金资助:
中国环境科学研究院中央级公益性科研院所基本科研业务专项资助(2021-JY-23)

Heavy-duty vehicle emission characteristics based on the remote-monitoring three-bin moving-average window method

REN Shuojin¹(), ZHANG Chao¹, LI Gang²^,^*(), LI Tengteng¹, Yu Quanshun¹, GUAN Min², JI Zhe², JING Xiaojun¹

1. CATARC Automotive Test Center (Tianjin) Co., Ltd., Tianjin 300300, China
2. State Environmental Protection Key Laboratory of Vehicle Emission Control and Simulation, Beijing 100012, China

Received:2022-12-13 Revised:2023-02-12 Online:2023-06-30 Published:2023-06-30
Contact: LI Gang

摘要/Abstract

摘要：

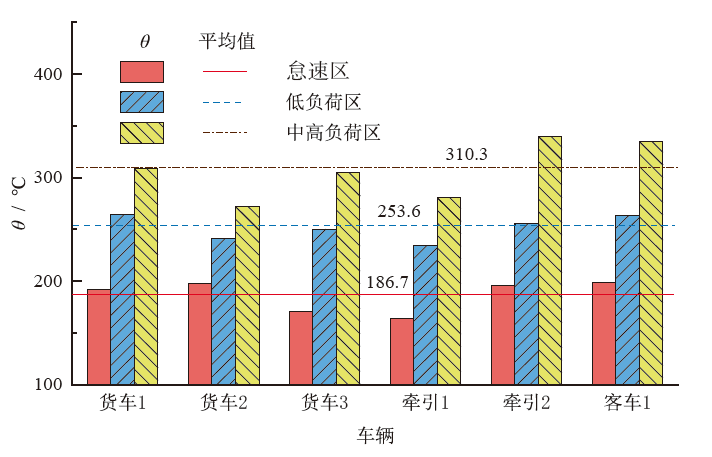

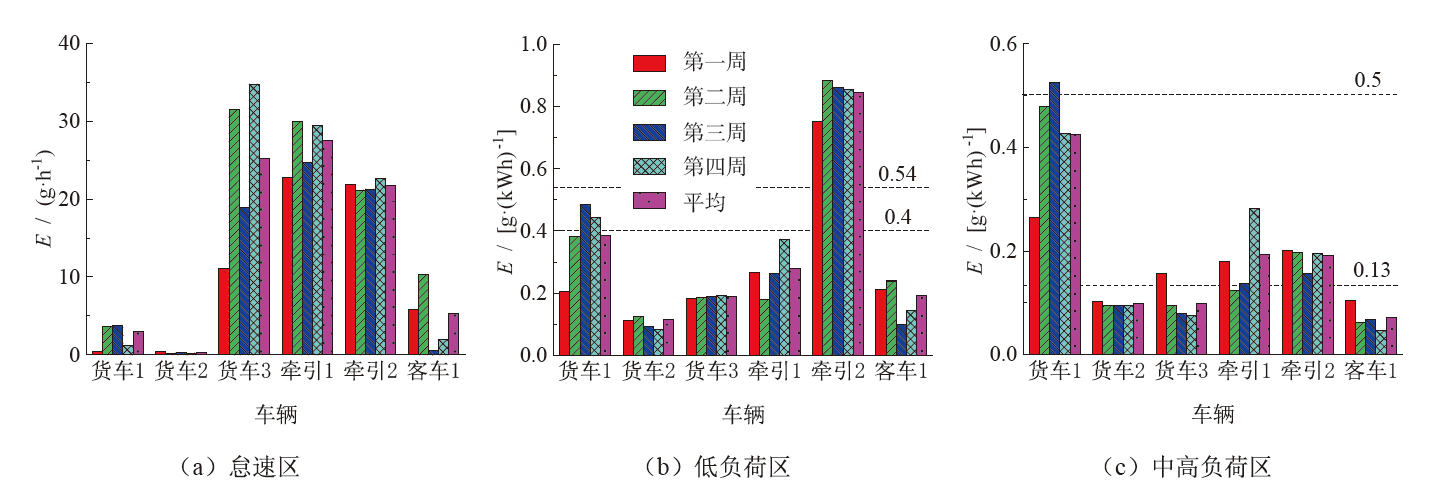

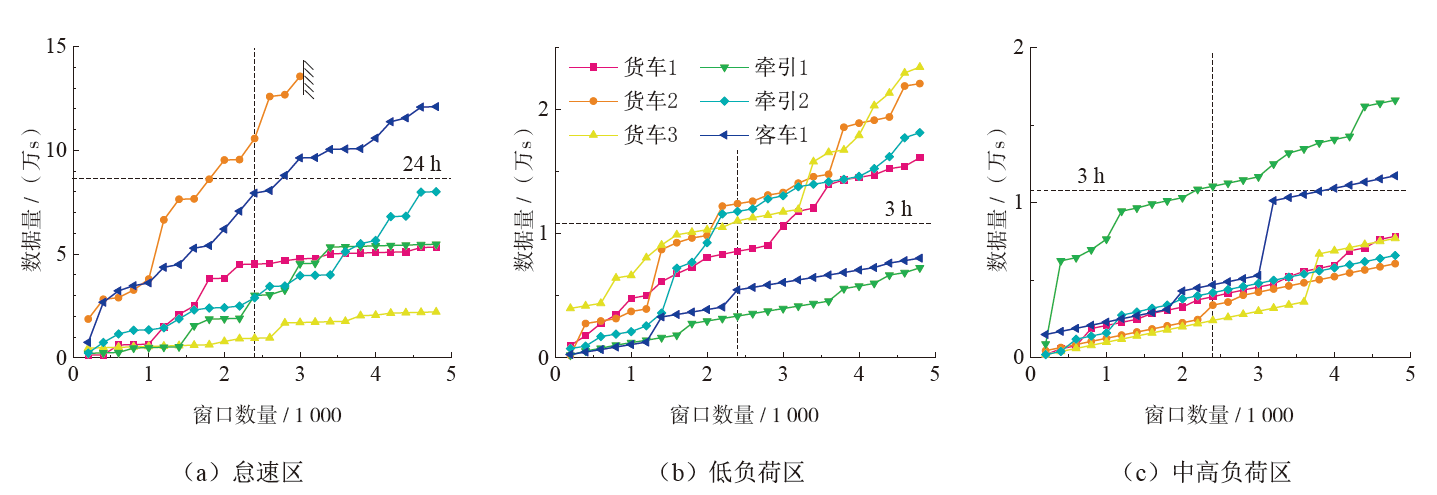

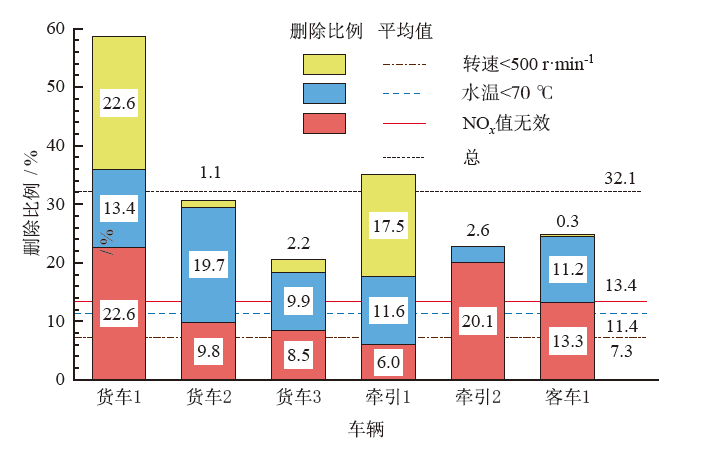

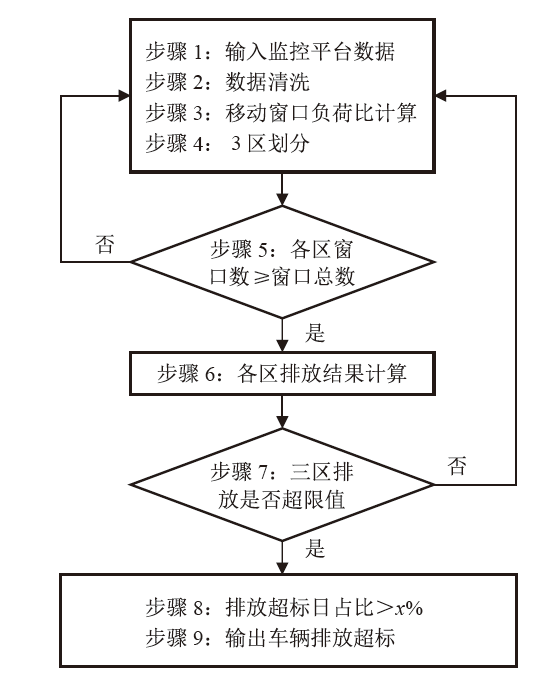

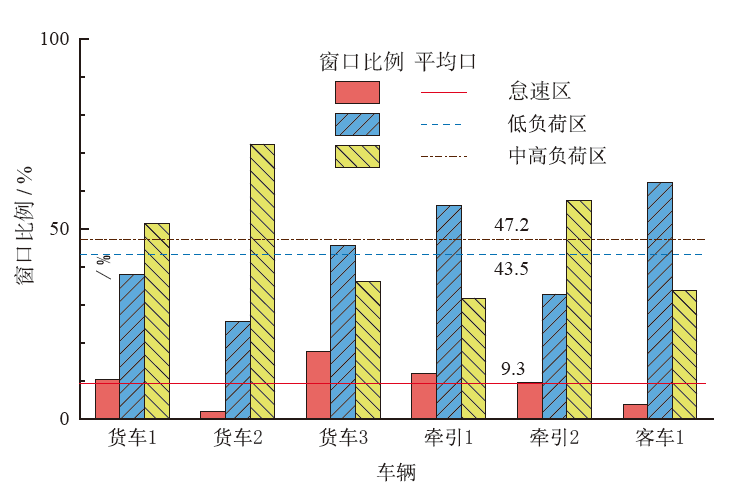

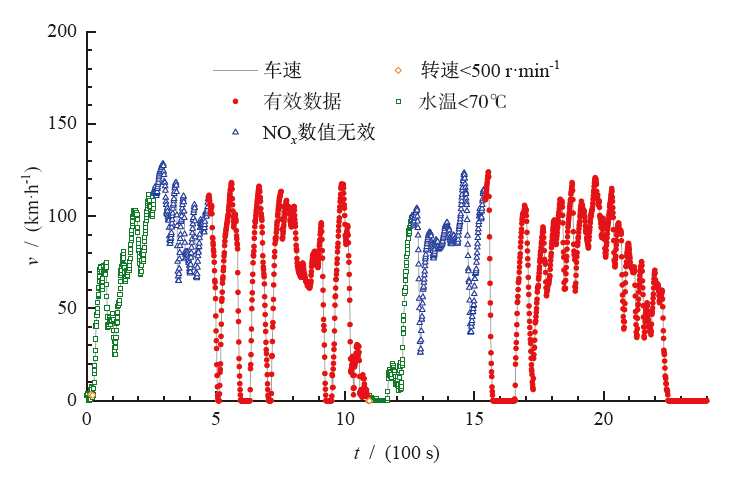

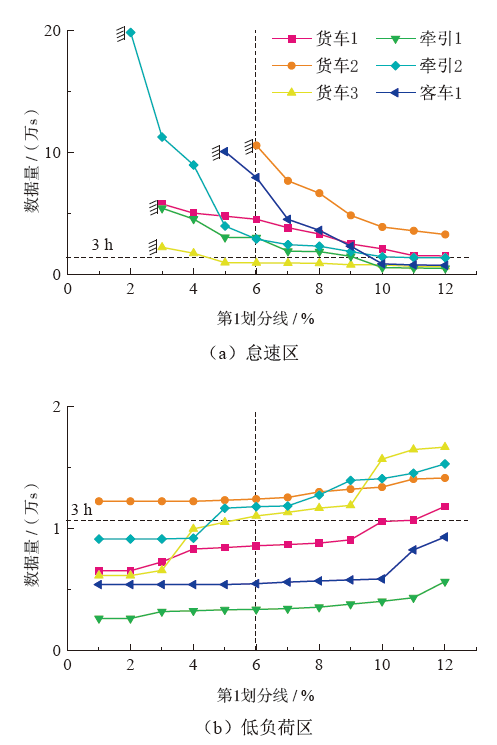

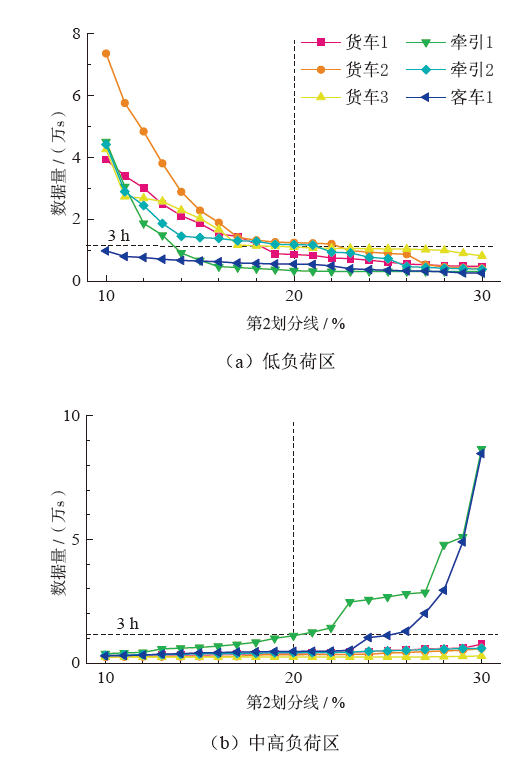

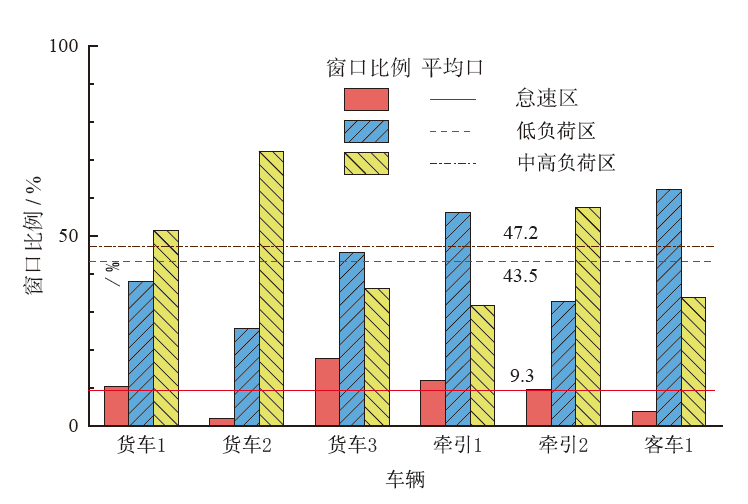

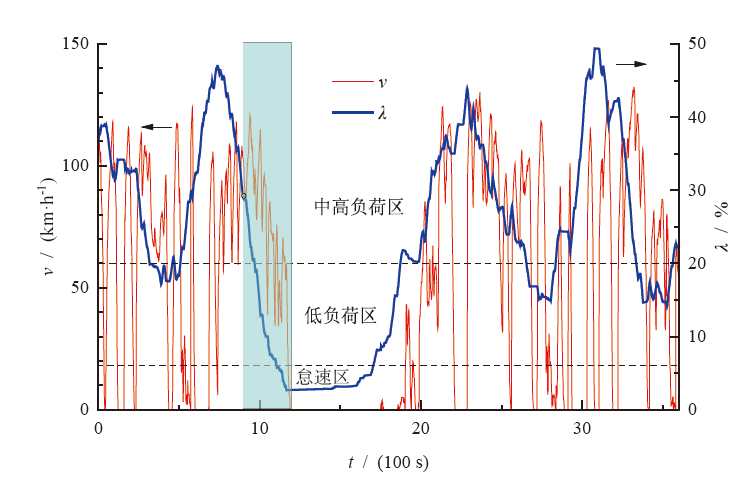

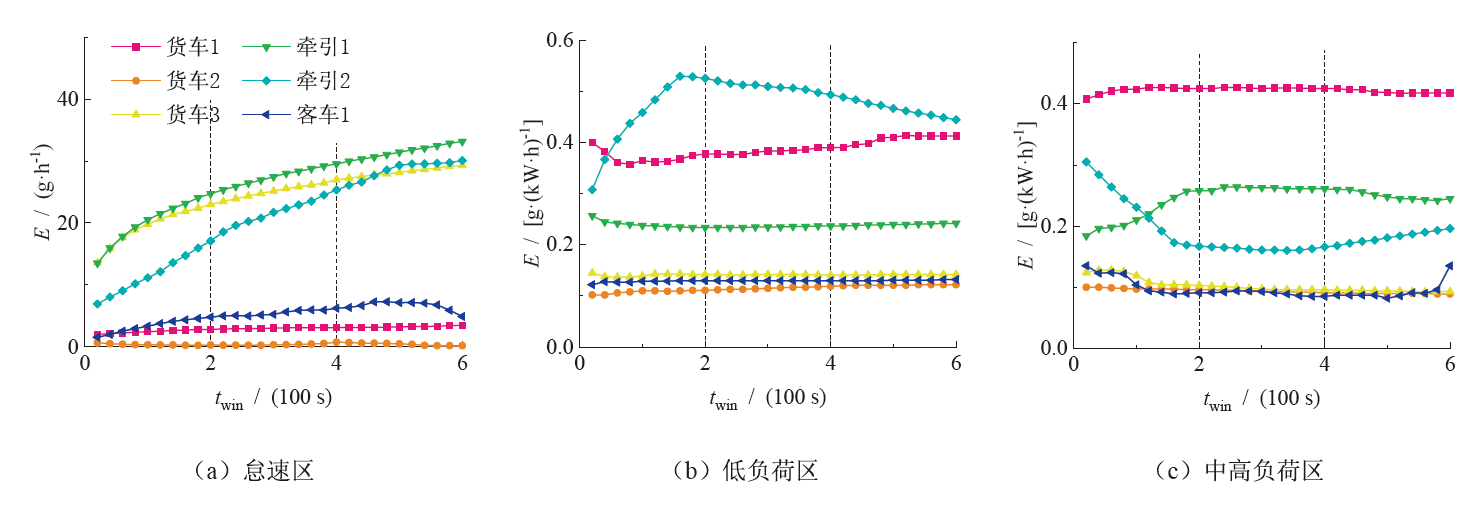

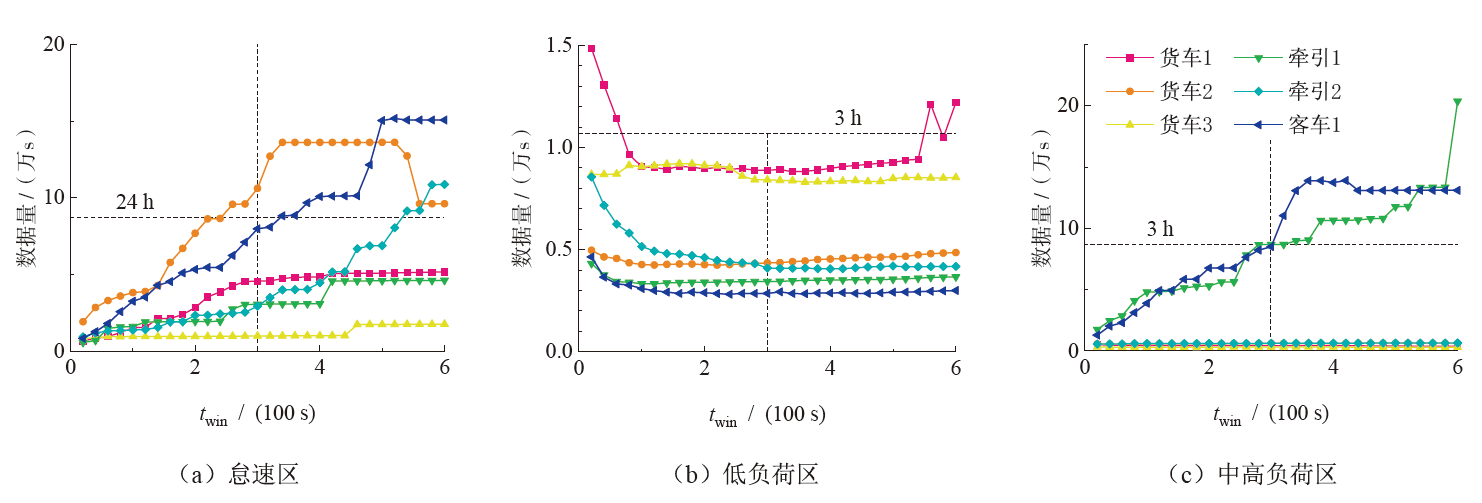

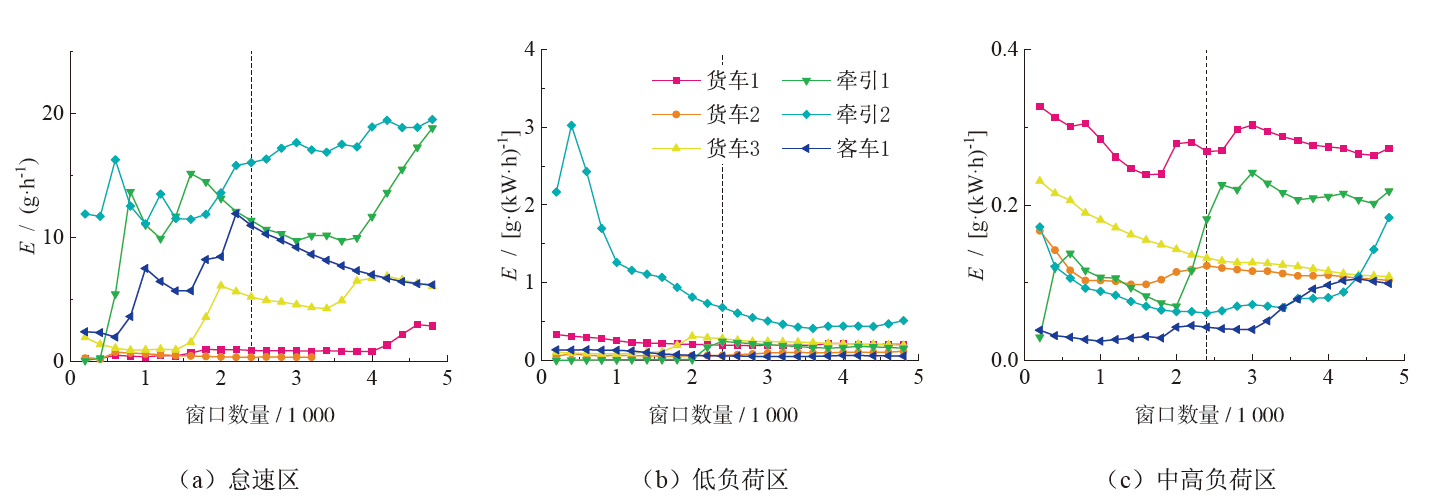

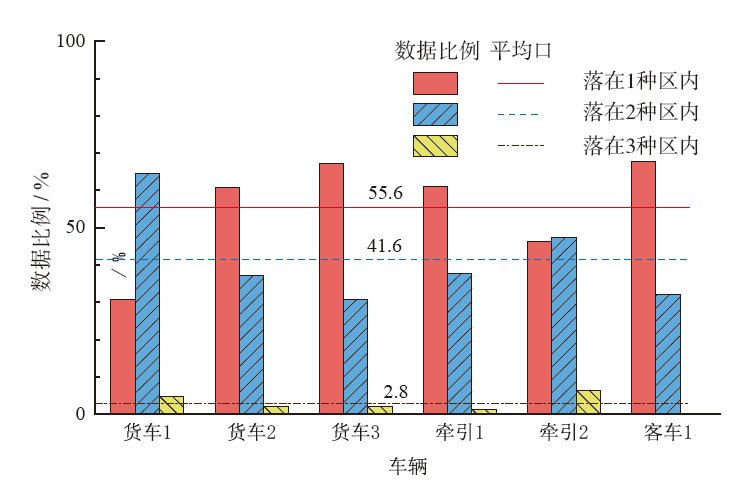

为了研究实际道路上重型车的排放特征，提出了一种基于远程监控数据的三区移动平均窗口（3B-MAW）模型，并与功基窗口法分析结果进行了对比。模型中远程监控无效数据主要包含NO_x传感器未正常传输的数据和发动机停机后仍然上传的数据。每个数据点有可能落在1种、2种或3种区内，三区划分的比例与车辆的实际行驶工况有关。为了同时兼顾排放结果计算的准确性和所需数据量不过大，最小窗口数、窗口宽度、第1划分线和第2划分线这4个模型主要参数应分别设置在2 400、300 s，6%和20%附近。由于不受窗口功率阈值限制，相对于功基窗口法，3B-MAW模型能够实现对低负荷排放更为有效的核查，适合对实际道路随机工况进行分析。

关键词: 重型车, 实际道路排放, 移动平均, 远程监控, 功基窗口法

Abstract:

A three-bin moving average window (3B-MAW) model was proposed and compared with the work-based window method (WB-WM) to investigate the on-road emission characteristics of heavy-duty vehicles. The invalid data of remote monitoring were mainly composed of the NO_x sensor’s abnormal data and the uploaded data after the engine shutdown. In the 3B-MAW model, each data was attributed to one, two or three bins. The percentage of the three bins were linked to the vehicle’s real driving conditions. In order to gain the emission calculation accuracy and a smaller scale of required data, the value of the four main parameters, i.e., the minimum window number, the window width, the first cut-off and the second cut-off are set around 2 400 s, 300 s, 6% and 20%, respectively. Since the window power threshold is no longer required, the 3B-MAW method is able to capture the low load emission characteristics more effectively, compared to the WB-WM. Therefore, the 3B-MAW method is a more appreciate approach to analyse on-road random driving conditions.

Key words: heavy-duty vehicle, moving average, remote monitoring, work-based window method

中图分类号:

X831

任烁今, 张超, 李刚, 李腾腾, 于全顺, 关敏, 吉喆, 景晓军. 基于远程监控三区移动平均窗口法的重型车排放特征[J]. 汽车安全与节能学报, 2023, 14(3): 375-384.

REN Shuojin, ZHANG Chao, LI Gang, LI Tengteng, Yu Quanshun, GUAN Min, JI Zhe, JING Xiaojun. Heavy-duty vehicle emission characteristics based on the remote-monitoring three-bin moving-average window method[J]. Journal of Automotive Safety and Energy, 2023, 14(3): 375-384.

图/表 19

参考文献 16

[1]	生态环境部. 2022中国移动源环境管理年报[Z/OL]. (2022-12-07). https://www.mee.gov.cn/ywdt/xwfb/202212/t20221207_1007157.shtml.
	Ministry of Ecology and Environment China. 2022 China mobile source environmental management annual report[Z/OL]. (2022-12-07). https://www.mee.gov.cn/ywdt/xwfb/202212/t20221207_1007157.shtml. (in Chinese)
[2]	生态环境部, 国家市场监督管理总局. GB 17691-2018重型柴油车污染物排放限值及测量方法(中国第六阶段)[S]. 北京: 中国环境出版集团, 2018.
	Ministry of Ecology and Environment China, State Administration for Market Regulation of the P. R. C. GB 17691-2018 Limits and measurement methods for emissions from diesel fuelled heavy-duty vehicles (CHINA VI)[S]. Beijing: Standards Press of China. 2018. (in Chinese)
[3]	孙一龙, 郭勇, 王长园. 重型车OBDⅢ远程排放管理车载终端在线数据一致性研究[J]. 小型内燃机与车辆技术, 2019, 48(2): 1-6.
	SUN Yilong, GUO Yong, WANG Changyuan. Research on data consistency of remote emission management vehicle terminals for heavy-duty vehicles[J]. Small Intern Combu Engine Vehi Tech, 2019, 48(2): 1-6. (in Chinese)
[4]	生态环境部. HJ1239-2021重型车排放远程监控技术规范[S]. 北京: 生态环境部, 2021.
	Ministry of Ecology and Environment China. HJ1239-2021 Technical specification for emission remote supervision system of heavy-duty vehicles[S]. Beijing: Ministry of Ecology and Environment (China), 2021. (in Chinese)
[5]	李刚, 尹航, 吉喆, 等. 重型车排放远程监控技术规范制订思路及实施建议[J]. 环境工程技术学报, 2023, 13(2): 867-872.
	LI Gang, YIN Hang, JI Zhe, et al. Formulation ideas and implementation suggestions on technical specification for emission remote supervision system of heavy-duty vehicles[J]. J Environ Engi Tech, 2023, 13(2): 867-872. (in Chinese)
[6]	赵成磊. 柴油发动机排放现状及远程在线监控探索[J]. 内燃机与配件, 2021(13): 200-201.
	ZHAO Chenglei. Diesel engine current status of emissions and exploration of remote online monitoring[J]. Intern Combu Engine Parts, 2021(13): 200-201. (in Chinese)
[7]	程晓章, 王浩, 邢晓通, 等. 基于OBD远程监测数据的高排放柴油车筛选方法研究[J]. 合肥工业大学学报(自然科学版), 2022, 45(7): 894-900.
	CHENG Xiaozhang, WANG Hao, XING Xiaotong, et al. Research on screening method of high-emission diesel vehicles based on OBD remote monitoring data[J]. J Hefei Univ Tech (Nat Sci), 2022, 45(7): 894-900. (in Chinese)
[8]	徐为标, 黄成, 任洪娟, 等. 基于远程在线监控车载终端的柴油车NO_x排放等级诊断研究[J]. 环境科学学报, 2021, 41(6): 2329-2339.
	XU Weibiao, HUANG Cheng, REN Hongjuan, et al. Diagnosis of NO_x emission level of diesel vehicles based on remote online monitoring terminal[J]. Acta Sci Circums, 2021, 41(6): 2329-2339. (in Chinese)
[9]	张新宇, 蒋茂玎, 吴磊, 等. 基于远程监控大数据处理的柴油机SCR系统研究[J]. 内燃机, 2021(6): 10-14.
	ZHANG Xinyu, JIANG Maoding, WU Lei, et al. Research on diesel engine SCR system based on remote monitoring big data processing[J]. Intern Combu Engi, 2021(6): 10-14. (in Chinese)
[10]	吕立群, 尹航, 王军方, 等. 基于功基窗口法的国六重型柴油车实际道路排放研究[J]. 中国环境科学, 2021, 41(8): 3539-3545.
	LÜ Liqun, YIN Hang, WANG Junfang. et al. Research on real driving emissions from China-VI heavy-duty diesel vehicles based on work-based window method[J]. Chin Enviro Sci, 2021, 41(8): 3539-3545.
[11]	Mendoza-Villafuerte P, Suarez-Bertoa R, Giechaskiel B, et al. NOx, NH3, N2O and PN real driving emissions from a Euro VI heavy-duty vehicl: Impact of regulatory on-road test conditions on emissions[J]. Sci Total Environ, 2017, 609: 546-555. doi: 10.1016/j.scitotenv.2017.07.168 URL
[12]	ZHANG Xiaowen, LI Jingyuan, LIU Haoye, et al. A fuel-consumption based window method for PEMS NOx emission calculation of heavy-duty diesel vehicles: Method description and case demonstration[J]. J Environ Manag, 2023, 325: Paper No 116446.
[13]	Sharp C. Low NO_x demonstration program: Stage 2[R]. San Antonio: SwRI, Project Number 03.22496, 2020.
[14]	California Air Resources Board. Proposed 3 bin Moving Average Window (MAW) method for chassis certified Medium Duty Vehicles (MDVs)[BS/OL]. (2021-05-01). https://ww2.arb.ca.gov/sites/default/files/2021-05/moving_average_window_method_mdv_ac.pdf.
[15]	Sadek G. Investigating NO_x vs CO₂ Tradeoff in Heavy Duty Emissions Through the Years Under the Scope of CARB’s 3-Bin Moving Average Window Method[D]. USA, Morgantown: West Virginia Univeristy, 2021.
[16]	California Air Resources Board. Initial statement of reason: Public hearing to consider the proposed heavy-duty engine and vehicle omnibus regulation and associated amendments[BS/OL]. Sacramento, (2020-06-23). https://ww2.arb.ca.gov/sites/default/files/barcu/regact/2020/hdomnibuslownox/isor.pdf.

名称	分类	最大总质量 / t	体积排量 / L	额定功率 / kW	M_CO2 / [g·(kW·h)^-1]	数据量 / s
货车1	N2	4.5	2.29	96	670.2	258 196
货车2	N3	18.0	4.58	162	583.9	222 072
货车3	N3	31.0	9.50	289	609.1	739 538
牵引1	N3	18.0	10.52	327	602.7	963 274
牵引2	N3	25.0	12.90	426	552.0	784 589
客车1	M3	16.0	7.80	235	696.4	204 990

名称	分类	最大总质量 / t	体积排量 / L	额定功率 / kW	M_CO2 / [g·(kW·h)^-1]	数据量 / s
货车1	N2	4.5	2.29	96	670.2	258 196
货车2	N3	18.0	4.58	162	583.9	222 072
货车3	N3	31.0	9.50	289	609.1	739 538
牵引1	N3	18.0	10.52	327	602.7	963 274
牵引2	N3	25.0	12.90	426	552.0	784 589
客车1	M3	16.0	7.80	235	696.4	204 990

分区	限值
分区	CARB	WVU
怠速区	CF×IDLE限值	15~45 g/h
低负荷区	CF×LLC限值	0.4 g/(kWh)
中高负荷区	CF×FTP/RMC限值	0.1~0.4 g/(kWh)

分区	限值
分区	CARB	WVU
怠速区	CF×IDLE限值	15~45 g/h
低负荷区	CF×LLC限值	0.4 g/(kWh)
中高负荷区	CF×FTP/RMC限值	0.1~0.4 g/(kWh)

样车	最大总质量 t	排量 L	循环功 kWh	加载 %
1	4.5	2.49	10.0	94.3
2	4.5	2.29	6.7	82.8
3	10.5	5.19	10.5	40.0
4	31.0	7.80	22.3	0.0
5	49.0	13.00	36.0	90.0

基于远程监控三区移动平均窗口法的重型车排放特征

Heavy-duty vehicle emission characteristics based on the remote-monitoring three-bin moving-average window method

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 19

参考文献 16

相关文章 11

编辑推荐

Metrics

本文评价

期刊信息

在线期刊

作者中心

审稿中心

联系我们

样车	有效数据量/s	WB-WM			3B-MAW
		窗口通过率/%	平均排放 / [g·(kWh)^-1]		怠速区		低负荷区		中高负荷区
		窗口通过率/%	有效窗口	所有窗口	窗口数	排放/(g·h^-1)	窗口数	排放/[g·(kWh)^-1]	窗口数	排放/[g·(kWh)^-1]
1	8 537	100	0.006 7	0.007 1	0	—	5 527	0.12	2 710	0.004
2	6 429	100	0.229 6	0.189 1	396	0.47	2 646	0.77	3 087	0.130
3	9 975	80	0.591 1	0.619 6	305	9.42	6 789	0.64	2 581	0.480
4	8 588	100	0.030 1	0.453 7	2 821	29.02	2 665	0.09	2 802	0.007
5	13 510	0	2.776 2	2.714 1	2 534	58.15	4 776	3.38	5 900	1.880
