低光照环境下基于面部特征点的疲劳驾驶检测技术

doi:10.3969/j.issn.1674-8484.2022.02.008

摘要/Abstract

摘要：

提出了一种新型在低光照环境下有较高适应性和识别精度的疲劳驾驶检测技术。用深度视觉传感器获取驾驶员驾驶图像,用人脸跟踪算法实时提取面部特征点数据,基于最小二乘法对眼睛和嘴巴轮廓进行曲线拟合。计算眼睛和嘴巴开合度归一化指标,提取了眨眼频率、眨眼平均时长、眼睛闭合总时长、打哈欠频率、打哈欠总时长、低抬头频率等6个疲劳识别特征数据。基于数据统计序列的卷积神经网络算法,建立识别模型,构建疲劳状态检测系统。实验表明：本文算法在低光照环境下的疲劳驾驶识别精度达到了90%,识别时间约为130 ms。

关键词: 汽车安全, 疲劳驾驶识别, 深度视觉传感器, 卷积神经网络, 低光照环境, 面部特征点, 归一化指标

Abstract:

A new fatigue driving detection technology was proposed with high adaptability and recognition accuracy in low light environment. A depth vision sensor was used to obtain the driver’s driving image in real time;with extracted the face feature point data in real time through a face tracking algorithm to fit a eyes and mouth contour with a least square method.The normalized indexes were calculated for the eye and mouth opening and closing to extract six fatigue recognition feature data including the blink frequency, the average blink time, the total eye closing time, the yawning frequency, the total yawning time, and the low head up frequency. A recognition model was established based on the convolution neural network algorithm of data statistical sequence to construct a fatigue state detection system. Experiments show that in low light environment, this algorithm has a accuracy of 90% for fatigue driving recognition with a recognition time of about 130 ms.

Key words: automotive safety, fatigue driving identification, depth vision sensor, convolutional neural network, low light environment, face feature point, normalized index

中图分类号:

TP391

朱艳, 谢忠志, 于雯, 李曙生, 张逊. 低光照环境下基于面部特征点的疲劳驾驶检测技术[J]. 汽车安全与节能学报, 2022, 13(2): 282-289.

ZHU Yan, XIE Zhongzhi, YU Wen, LI Shusheng, ZHANG Xun. Fatigue-driving detect-technology in low light environment based on facial feature points[J]. Journal of Automotive Safety and Energy, 2022, 13(2): 282-289.

图/表 16

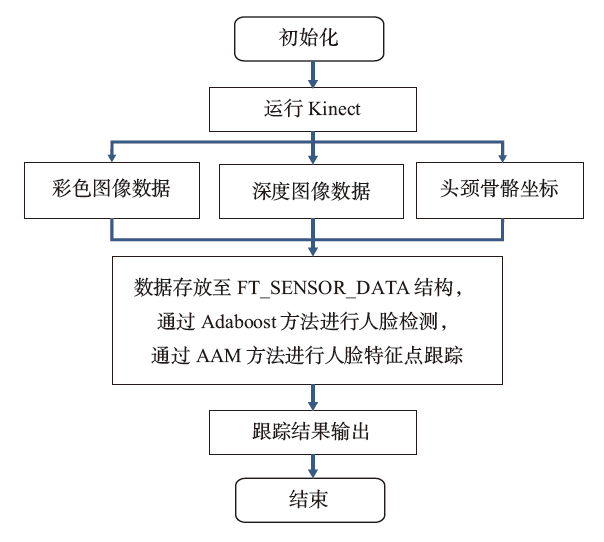

图1 Face Tracking人脸跟踪流程图

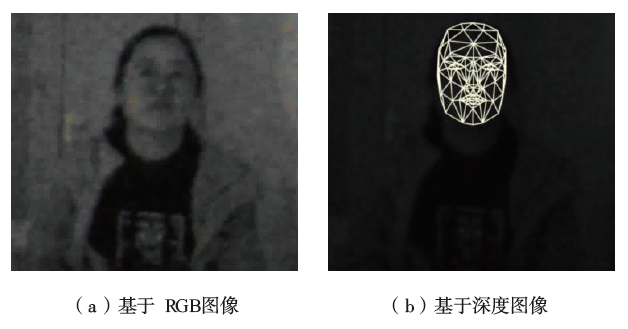

图2 低可见度下RGB图像和深度图像人脸跟踪效果

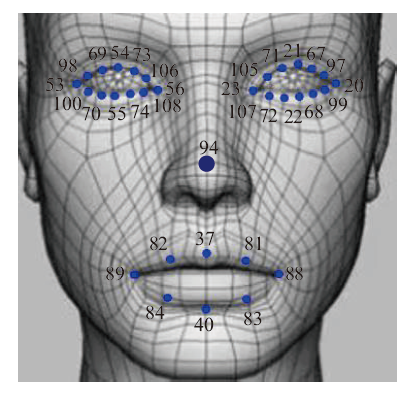

图3 疲劳识别所用面部特征点分布

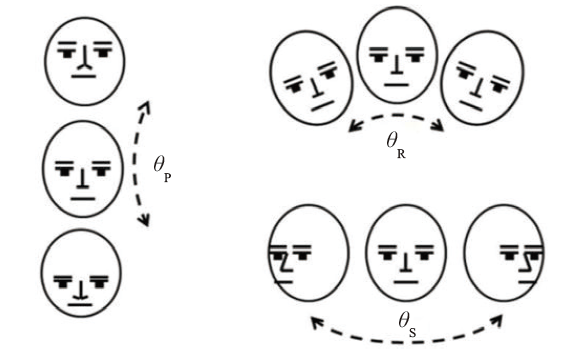

图4 Kinect V2头部转角识别示意图

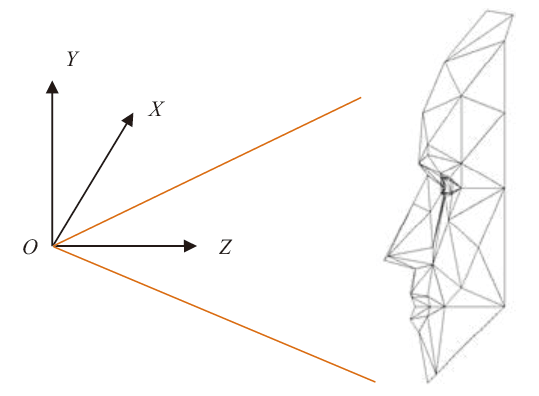

图5 面部特征点数据坐标系统

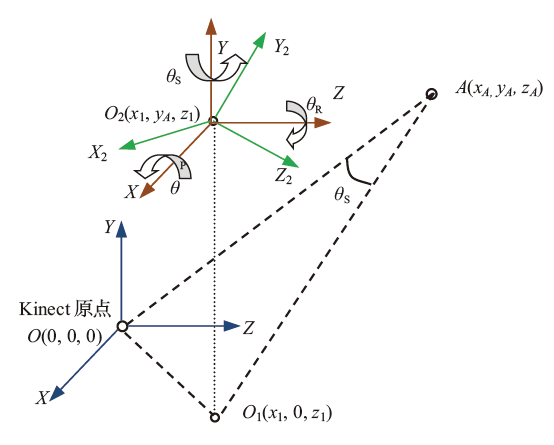

图6 面部特征坐标变换过程

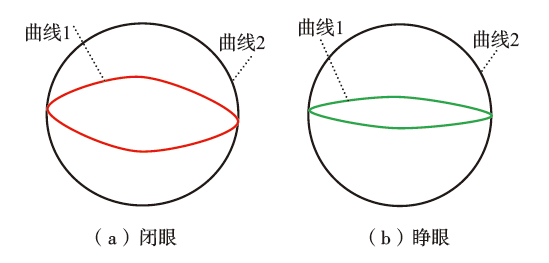

图7 眼睛轮廓拟合曲线和外接圆

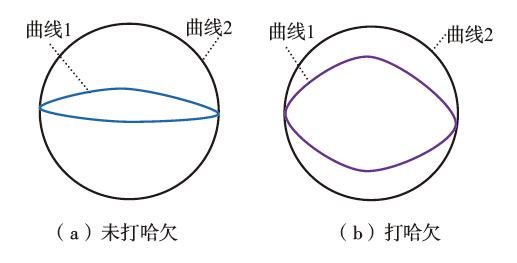

图8 嘴巴轮廓拟合曲线和外接圆

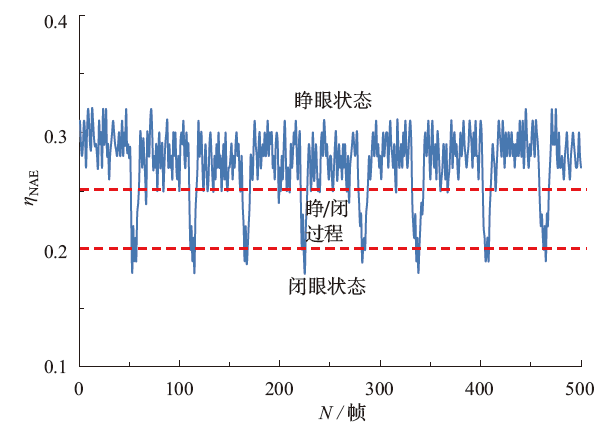

图9 眼睛开合度归一化指标ηNAE曲线图

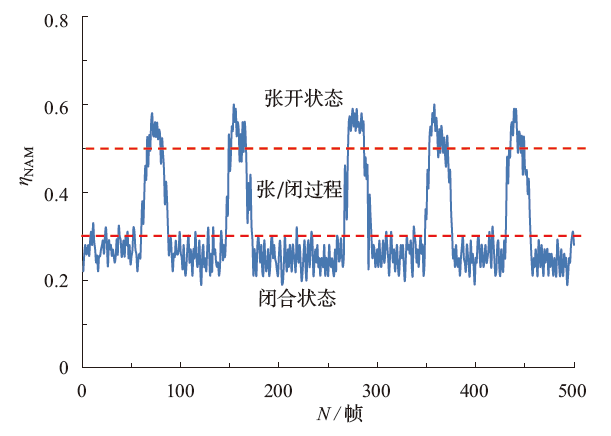

图10 嘴巴开合度归一化指标ηNAM曲线图

疲劳等级	f_b min^-1	t_b s	t_c s	f_y min^-1	t_y s	f_h min^-1
不	> 15	< 0.3	< 2	< 1	< 0.5	< 3
轻度	10~15	0.3~0.5	2~3	1~2	0.5~2	3~6
中度	6~10	0.5~1	3~5	2~4	2~5	6~10
严重	< 6	> 1	> 5	> 4	> 5	> 10

表1 疲劳等级划分和识别特征数据之间的关系

图11 卷积神经网络疲劳识别模型结构

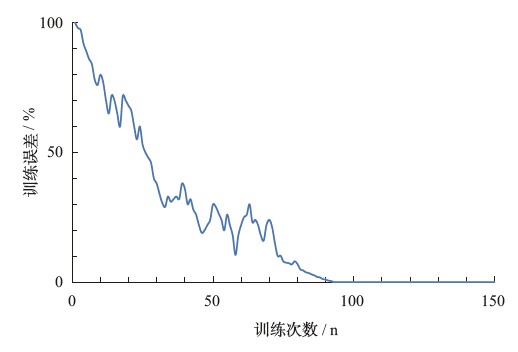

图12 卷积神经网络疲劳识别模型训练过程

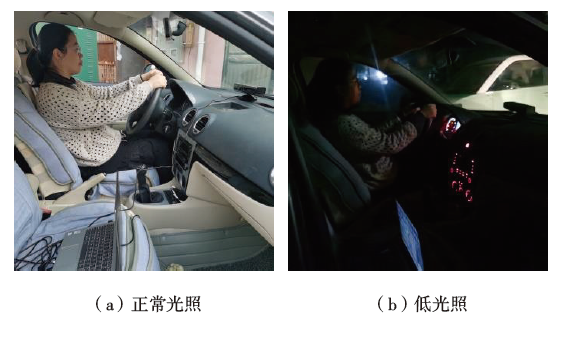

图13 疲劳驾驶实验所处的光照环境图

年龄/ 岁	人数		样本数/ 个				模拟时长/ min
年龄/ 岁	男	女	正常驾驶	轻度疲劳	中度疲劳	严重疲劳	正常驾驶	轻度疲劳	中度疲劳	严重疲劳
20~30	6	4	10	10	10	10	30	30	30	30
30~40	4	2	14	10	8	8	42	30	24	24
40~45	2	2	16	10	7	7	48	30	21	21

表2 实验对象年龄、性别、不同疲劳状态下的模拟时长

算法模型	正常光照情况		低光照情况
算法模型	准确率/ %	识别时间/ ms	准确率/ %	识别时间/ ms
TVA	66	69	62	78
SVM	80	282	74	272
Ada-Boost	87	242	85	253
DT	75	206	77	224
KNN	78	185	70	181
CNN	91	125	90	132

表3 正常光照和低光照环境下各算法模型识别结果
