Compound aerodynamic drag reduction schemes of van type trucks based on morphological bionics

doi:10.3969/j.issn.1674-8484.2023.02.009

Abstract

Abstract:

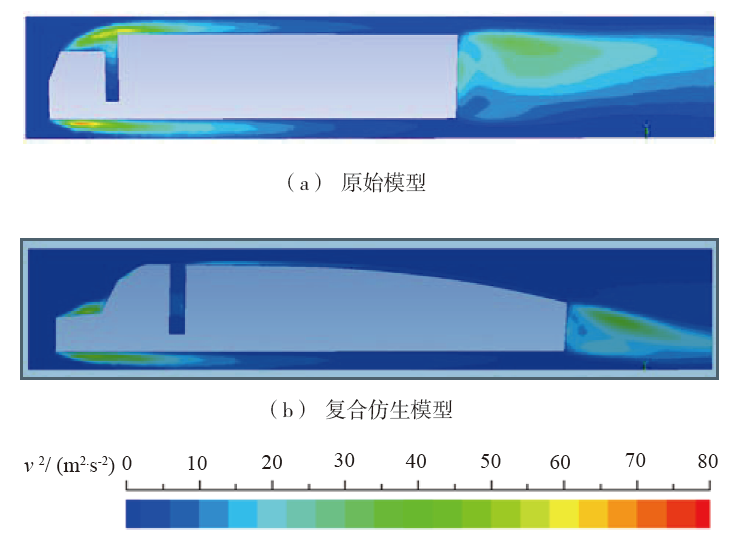

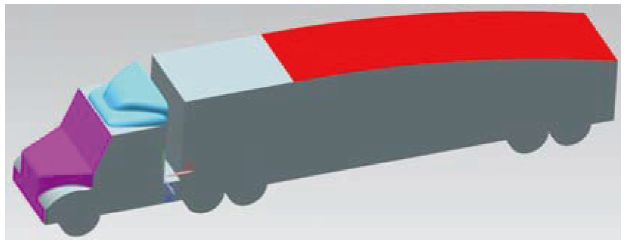

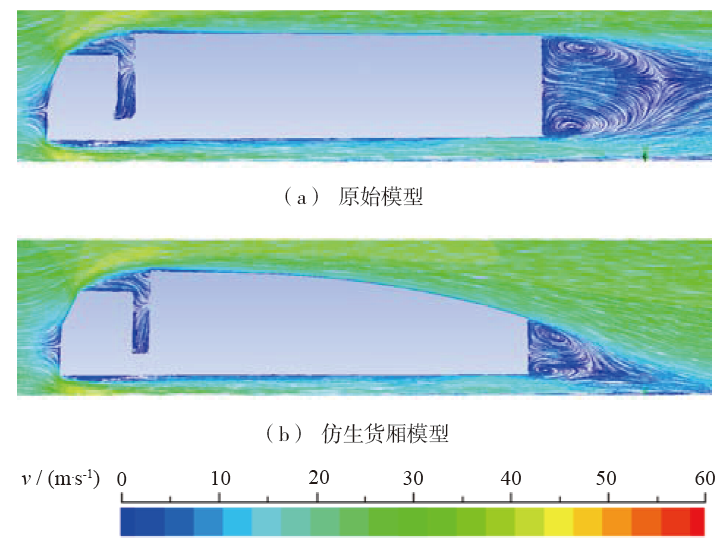

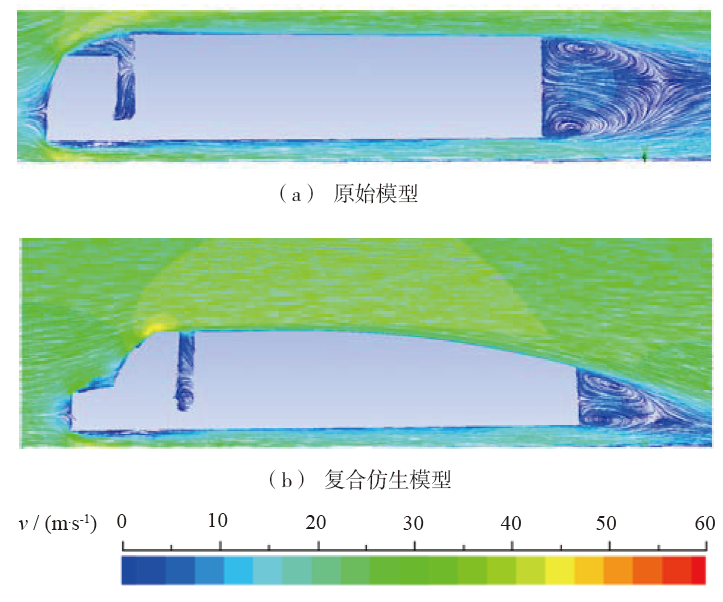

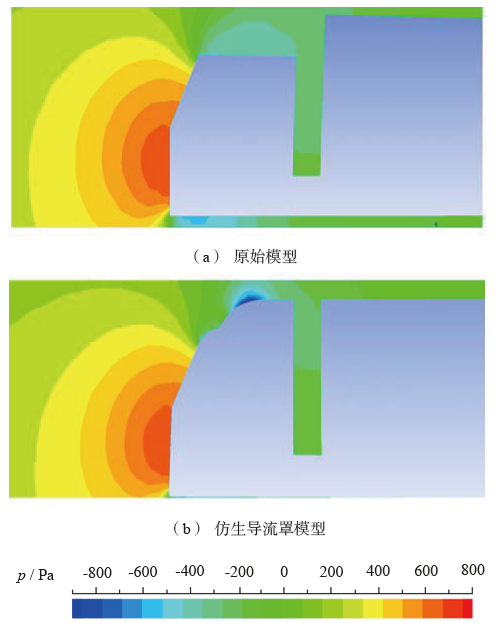

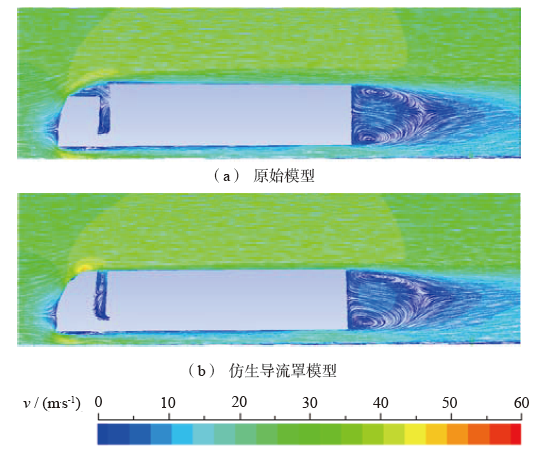

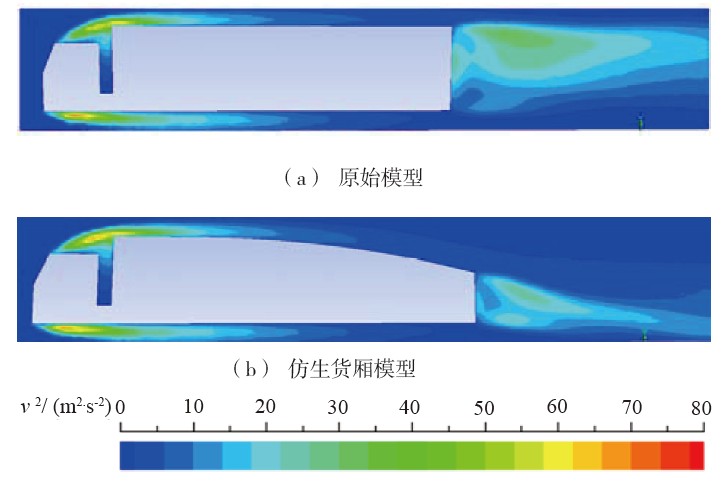

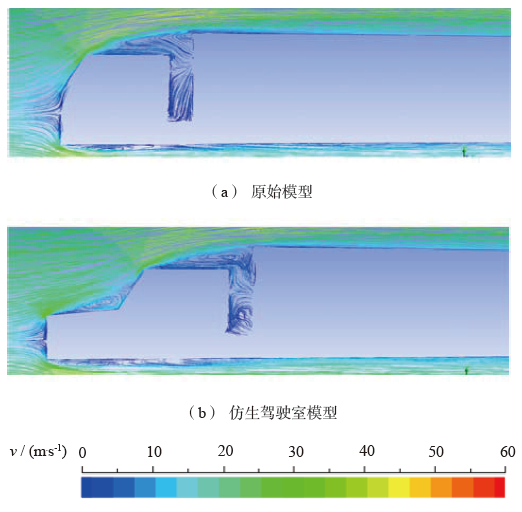

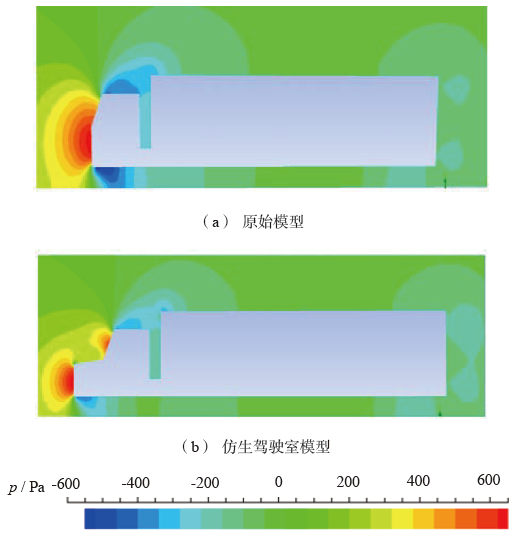

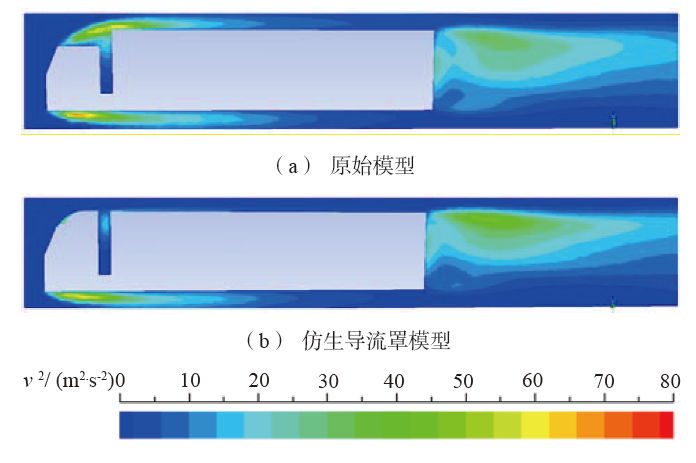

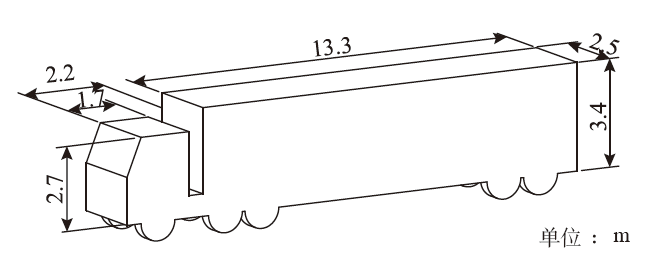

Three types of new aerodynamic drag reduction schemes for the shroud, the cab and the cargo compartment were designed based on morphological bionics, and so done a composite bionic drag reduction scheme of a van type truck to reduce the aerodynamic drag. The effects of three single bionic drag reduction schemes on the aerodynamic drag coefficient and their drag reduction mechanism were investigated. The drag reduction effect of the composite bionic drag reduction scheme was investigated by combining the three single drag reduction methods together. The results show that the optimal drag reduction rates of bionic shroud model, bionic cab model and bionic cargo compartment model are 3.57%, 9.45% and 11.86%, respectively, compared to the original truck model. The reduction rate of aerodynamic drag coefficient of the composite drag reduction scheme is 24.5%, and the drag reduction effect is obvious. Therefore, the drag reduction structure of the van based on morphological bionics design improves the flow field structure around the van and reduces the aerodynamic drag.

Key words: van type trucks, morphological bionic design, aerodynamic drag coefficient, compound drag reduction, shroud, cab, cargo compartment

CLC Number:

U461.1

XU Jianmin, GONG Xiaoyan, SONG Lei, ZHENG Qingjie. Compound aerodynamic drag reduction schemes of van type trucks based on morphological bionics[J]. Journal of Automotive Safety and Energy, 2023, 14(2): 224-231.

Figures/Tables 26

References 23

[1]	Wood R M, Bauer S X S. Simple and low-cost aerodynamic drag reduction devices for tractor-trailer trucks[J]. SAE Transa, 2003, 112: 143-160.
[2]	Altaf A, Omar A A, Asrar W. Passive drag reduction of square back road vehicles[J]. J Wind Eng InduAerodyna, 2014, 134: 30-43.
[3]	崔文诗, 杨志刚, 王国俊. 合成射流激励频率对车辆气动阻力的影响[J]. 同济大学学报 (自然科学版), 2017, 45(8): 1167-1173.
	CUI Wenshi, YANG Zhigang, WANG Guojun. Influence of driving frequency using synthetic jets on aerodynamic drag of a ground vehicle[J]. J Tongji Univ(Nat Sci), 2017, 45(8): 1167-1173.. (in Chinese)
[4]	张英朝, 郑镇雨, 吴开广, 等. MIRA快背式模型主动减阻研究[J]. 汽车工程, 2020, 42(5): 588-592.
	ZHANG Yingzhao, ZHENG Zhenyu, WU Kaiguang, et al. Research on active drag reduction of MIRA fastback model[J]. Auto Engineering, 2020, 42(5): 588-592.. (in Chinese)
[5]	Minelli G, Hartono E A, Chernoray V, et al. Validation of PANS and active flow control for a generic truck cabin[J]. J Wind Eng Indu Aerodyna, 2017, 171: 148-160.
[6]	杨小龙, 邹宏伟, 张泽坪. 厢式货车尾部非光滑表面导流板减阻效果研究[J]. 汽车工程, 2016, 38(7): 815-821.
	YANG Xiaolong, ZOU Hongwei, ZHANG Zeping. A study on the drag reduction effects of rear deflector with non-smooth surface for a cargo van[J]. Auto Engineering, 2016, 38(7): 815-821.. (in Chinese)
[7]	杨易, 黄剑锋, 范光辉, 等. 非光滑表面对汽车尾涡结构的控制分析研究[J]. 机械工程学报, 2016, 52(8): 133-140. doi: 10.3901/JME.2016.08.133
	YANG Yi, HUANG Jianfeng, FAN Guanghui, et al. Research on non-smooth surfaces for control of the automobile trailing vortex structure[J]. J Mech Eng, 2016, 52(8): 133-140.. (in Chinese) doi: 10.3901/JME.2016.08.133
[8]	SONG Xiaowen, LIN Pengzhe, LIU Rui, et al. Skin friction reduction characteristics of variable ovoid non-smooth surfaces[J]. J Zhejiang Univ:Sci A, 2017, 18(1): 59-66. doi: 10.1631/jzus.A1500324 URL
[9]	Lo K H, Kontis K. Flow characteristics over a tractor-trailer model with and without vane-type vortex generator installed[J]. J Wind Eng Indu Aerodyna, 2016, 159: 110-122.
[10]	李斌斌, 姚勇, 印帅, 等. 基于涡流发生器的 Ahmed 模型分离流被动控制实验[J]. 西南科技大学学报 (自然科学版), 2016, 31(3): 95-101.
	LI Binbin, YAO Yong, YIN Shuai, et al. Experimental investigation on passive control of Ahmed model separation flow based on vortex generator[J]. J Southwest Univ Sci Tech, 2016, 31(3): 95-101.. (in Chinese)
[11]	许建民, 范健明. 基于正交试验法的厢式货车气动减阻优化[J]. 重庆大学学报, 2020, 43(3): 12-26.
	XU Jianmin, FAN Jianming. Optimization of pneumatic drag reduction of van type truck based on orthogonal test method[J]. J Chongqing Univ, 2020, 43(3): 12-26.. (in Chinese)
[12]	Woodiga S, Salazar D M, Wewengkang P, et al. Skin-friction topology on tail plate for tractor-trailer truck drag reduction[J]. J Visualization, 2018, 21(6): 1017-1029. doi: 10.1007/s12650-018-0506-2
[13]	胡兴军, 李腾飞, 王靖宇, 等. 尾板对重型载货汽车尾部流场的影响[J]. 吉林大学学报: 工学版, 2013, 43(3): 595-601.
	HU Xingjun, LI Tengfei, WANG Jingyu, et al. Numerical simulation of the influence of rear-end panels on the wake flow field of a heavy-duty truck[J]. J Jilin Univ(Eng Tech Ed), 2013, 43(3): 595-601.. (in Chinese)
[14]	张英朝, 丁伟, 陈涛, 等. 商用车驾驶室导流罩气动造型设计[J]. 汽车工程, 2014, 36(9): 1063-1067.
	ZHANG Yingzhao, DING Wei, CHEN Tao. Aerodynamic styling of fairing for commercial vehicle cab[J]. Auto Engineering, 2014, 36(9): 1063-1067.. (in Chinese)
[15]	Kim J J, Lee S, Kim M, et al. Salient drag reduction of a heavy vehicle using modified cab-roof fairings[J]. J Wind Eng Indu Aerodyna, 2017, 164: 138-151.
[16]	Kim J J, Hong J, Lee S J. Bio-inspired cab-roof fairing of heavy vehicles for enhancing drag reduction and driving stability[J]. Int’l J Mech Sci, 2017, 131: 868-879.
[17]	Khosravi M, Mosaddeghi F, Oveisi M, et al. Aerodynamic drag reduction of heavy vehicles using append devices by CFD analysis[J]. J Central South Univ, 2015, 22: 4645-4652. doi: 10.1007/s11771-015-3015-7 URL
[18]	王新宇, 王登峰, 范士杰, 等. 商用车空气动力学附加装置减阻技术的研究及应用[J]. 机械工程学报, 2011, 47(6): 107-112.
	WANG Xinyu, WANG Dengfeng, FAN Shijie. Research and application of aerodynamic drag reduction devices on commercial vehicle[J]. J Mech Engineering, 2011, 47(6): 107-112.. (in Chinese)
[19]	杨帆, 胡阳洋, 王建华. 重型卡车风阻优化[J]. 交通运输工程学报, 2013, 13(6): 54-60.
	YANG Fan, HU Yangyang, WANG Jianhua. Optimization of wind resistance for heavy truck[J]. J Traff Transp Engi, 2013, 13(6): 54-60.. (in Chinese)
[20]	倪捷, 刘志强, 胡国梁, 等. 带有减阻增稳仿生结构的车辆空气动力学特性仿真研究[J]. 汽车工程, 2015, 37(12): 1390-1394.
	NI Jie, LIU Zhiqiang, HU Guoliang, et al. A simulation study on the aerodynamic characteristics of a vehicle with biomimetic structure for drag reduction and stability enhancement[J]. Auto Engineering, 2015, 37(12): 1390-1394.. (in Chinese)
[21]	PENG Jing, WANG Tie, YANG Tiantian, et al. Research on the aerodynamic characteristics of tractor-trailers with a parametric cab design[J]. Appl Sci, 2018, 8(5): 791-811. doi: 10.3390/app8050791 URL
[22]	许建民. 基于仿生导流罩的厢式货车减阻研究[J]. 汽车工程, 2019, 41(03): 283-288. doi: 10.19562/j.chinasae.qcgc.2019.03.007
	XU Jianmin. A research on drag reduction of a van-type truck with a bionic cab-roof fairing[J]. Auto Enginneering, 2019, 41(03): 283-288.. (in Chinese)
[23]	庞加斌, 刘晓晖, 陈力, 等. 汽车风洞试验中的雷诺数、阻塞和边界层效应问题综述[J]. 汽车工程, 2009, 31(7): 609-615.
	PANG Jiabin, LIU Xiaohui, CHEN Li, et al. A review on Reynolds number, blockage and boundary layer effects in automotive wind tunnel tests[J]. Auto Engineering, 2009, 31(7): 609-615.. (in Chinese)

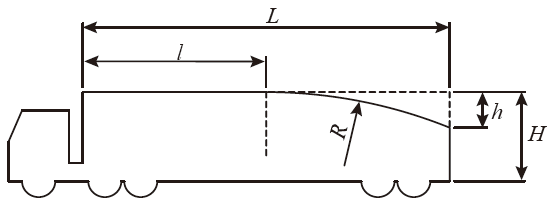

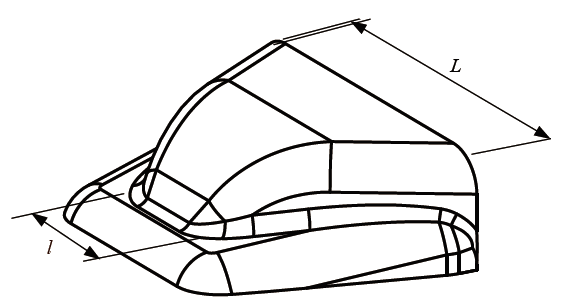

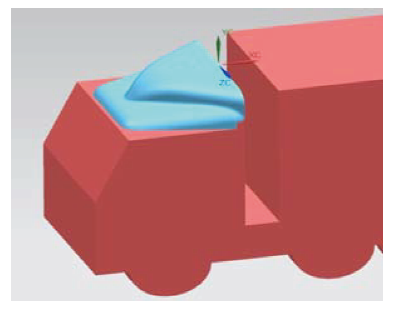

模型编号	l / L	C_D	减阻率/%
1	1/10	0.849	2.30
2	2/10	0.845	2.76
3	3/10	0.838	3.57
4	4/10	0.844	2.88

模型编号	l / L	C_D	减阻率/%
1	1/10	0.849	2.30
2	2/10	0.845	2.76
3	3/10	0.838	3.57
4	4/10	0.844	2.88

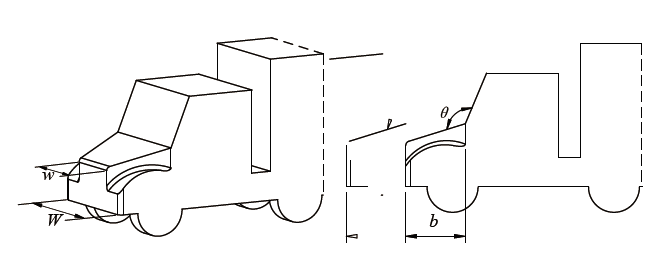

水平	因素1 ，	因素2，	因素3 ，
水平	θ / (°)	b / m	w / m
1	120	0.8	0.7
2	130	1.1	1.0
3	140	1.4	1.3

水平	因素1 ，	因素2，	因素3 ，
水平	θ / (°)	b / m	w / m
1	120	0.8	0.7
2	130	1.1	1.0
3	140	1.4	1.3

模型	θ / (°)	b / m	w / m	C_D	减阻率 / %
1	120	0.8	0.7	0.800 6	7.87
2	120	1.1	1.3	0.797 5	8.23
3	120	1.4	1.0	0.790 2	9.07
4	130	0.8	1.3	0.802 0	7.71
5	130	1.1	1.0	0.815 9	6.11
6	130	1.4	0.7	0.803 2	7.57
7	140	0.8	1.0	0.812 7	6.48
8	140	1.1	0.7	0.819 8	5.66
9	140	1.4	1.3	0.810 9	6.69
