基于特征阻抗及滑动t方法的变电流快充析锂检测方法

doi:10.3969/j.issn.1674-8484.2024.03.007

汽车安全与节能学报 ›› 2024, Vol. 15 ›› Issue (3): 344-350.DOI: 10.3969/j.issn.1674-8484.2024.03.007

基于特征阻抗及滑动t方法的变电流快充析锂检测方法

郝祯淇¹^,²(), 王学远¹^,²^,^*(), 李嘉伟¹^,², 戴海峰¹^,², 魏学哲¹^,²

1.同济大学汽车学院，201804，中国
2.同济大学新能源汽车工程中心，201804，中国

收稿日期:2023-09-06 修回日期:2024-03-02 出版日期:2024-06-30 发布日期:2024-07-01
通讯作者: *王学远，助教。E-mail：7wangxueyuan@tongji.edu.cn。
作者简介:郝祯淇（2000—），男（汉），山西，本科。E-mail：1852134@tongji.edu.cn。
基金资助:
国家自然科学基金项目(52207242);汽车安全与节能国家重点实验室开放基金课题(KFY2226)

Lithium plating detection based on characteristic impedance and sliding t-test with multi-stage current fast charging

HAO Zhenqi¹^,²(), WANG Xueyuan¹^,²^,^*(), LI Jiawei¹^,², DAI Haifeng¹^,², WEI Xuezhe¹^,²

1. School of Automotive Studies, Tongji University, Shanghai 201804, China
2. Clean Energy Automotive Engineering Center, Tongji University, Shanghai 201804, China

Received:2023-09-06 Revised:2024-03-02 Online:2024-06-30 Published:2024-07-01

摘要/Abstract

摘要：

在低温、高倍率等充电情况下，锂离子电池的石墨负极会发生析锂现象，对电池的寿命和安全性造成严重影响。为了解决锂离子电池在变电流快充工况下析锂的在线检测问题，该文提出了一种基于特征阻抗与滑动t检验的在线析锂检测方法。采用在直流充电电流的基础上叠加1 Hz正弦交流激励电流来实时测量特征频率阻抗，探究变电流充电时阻抗随电池析锂的变化规律; 继而利用特征阻抗实部的变化与电池负极析锂的相关性，针对变电流快充工况，提出了基于滑动t方法的在线检测析锂起始点的检测方法。结果表明：该方法可以实现充电过程中5%SOC的延迟内识别析锂起始点，有利于形成闭环充电策略，最大限度地减少析锂危害。

关键词: 锂离子电池, 析锂, 阻抗, 快速充电, 滑动t检验

Abstract:

Under low temperature and high-rate charging, the graphite anode of lithium-ion battery will have a lithium plating phenomenon, which has a serious impact on the life and safety of the battery. An on-line detection method based on characteristic impedance and sliding t-test was proposed to realize the on-line detection of lithium plating of lithium-ion battery under variable current fast charge condition. The characteristic frequency impedance was measured in real time by superimposing 1 Hz sinusoidal excitation alternating current on the direct current charging. Based on the correlation between the change of the real part of characteristic impedance and the lithium plating of the negative electrode of the battery, an on-line detection method of lithium plating starting point based on sliding t-method was proposed for the fast-charging condition of variable current. The results show that this method can realize the delayed identification of the initial point of lithium plating within 5%SOC during the charging process, which is conducive to forming a closed-loop charging strategy and minimizing the harm of lithium plating.

Key words: lithium-ion battery, lithium plating, impedance, fast charging, sliding t-test

中图分类号:

TM911.3

郝祯淇, 王学远, 李嘉伟, 戴海峰, 魏学哲. 基于特征阻抗及滑动t方法的变电流快充析锂检测方法[J]. 汽车安全与节能学报, 2024, 15(3): 344-350.

HAO Zhenqi, WANG Xueyuan, LI Jiawei, DAI Haifeng, WEI Xuezhe. Lithium plating detection based on characteristic impedance and sliding t-test with multi-stage current fast charging[J]. Journal of Automotive Safety and Energy, 2024, 15(3): 344-350.

图/表 7

正极材料	Li(NiCoMn) + (NiCoAl)O₂
负极材料	石墨
电池标称放电容量	2 750 mAh (C/3, 25 ℃)
充电截止电压	4.2 V
放电截止电压	2.5 V
最大充电电流	1 C (2.75 A)
最大持续放电电流	2 C (5.50 A)
工作温度	充电：0~45 ℃；放电： -20~60 ℃

表1 INR18650-29E型锂离子电池基本参数

实验编号	θ / ℃	N_b / C	y / %	N_a / C
#1	10	0.75	50	0.25
#2		0.75	50	0.5
#3		1	40	0.25
#4		1	40	0.5
#5	20	1.25	50	0.25
#6		1.25	50	0.5
#7		1.5	40	0.25
#8		1.5	40	0.5

表2 充电电流变化下转移频率阻抗测量实验工况

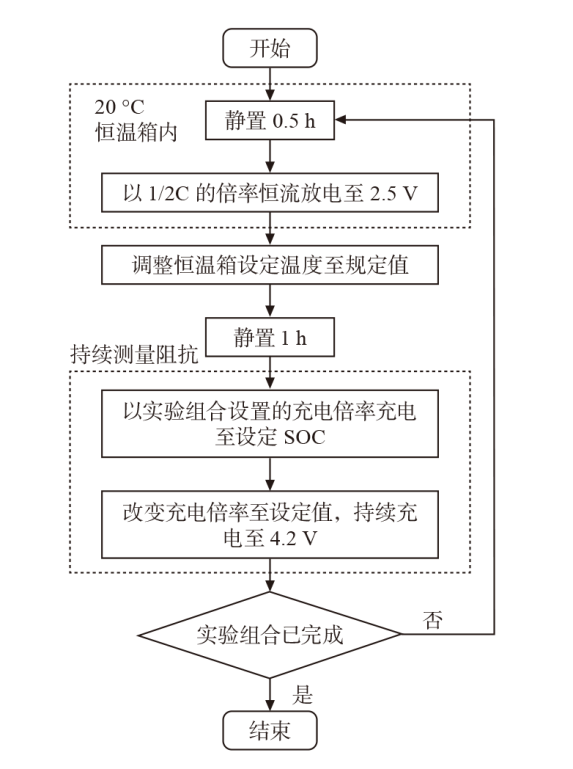

图1 充电电流变化下交流阻抗测量实验流程图

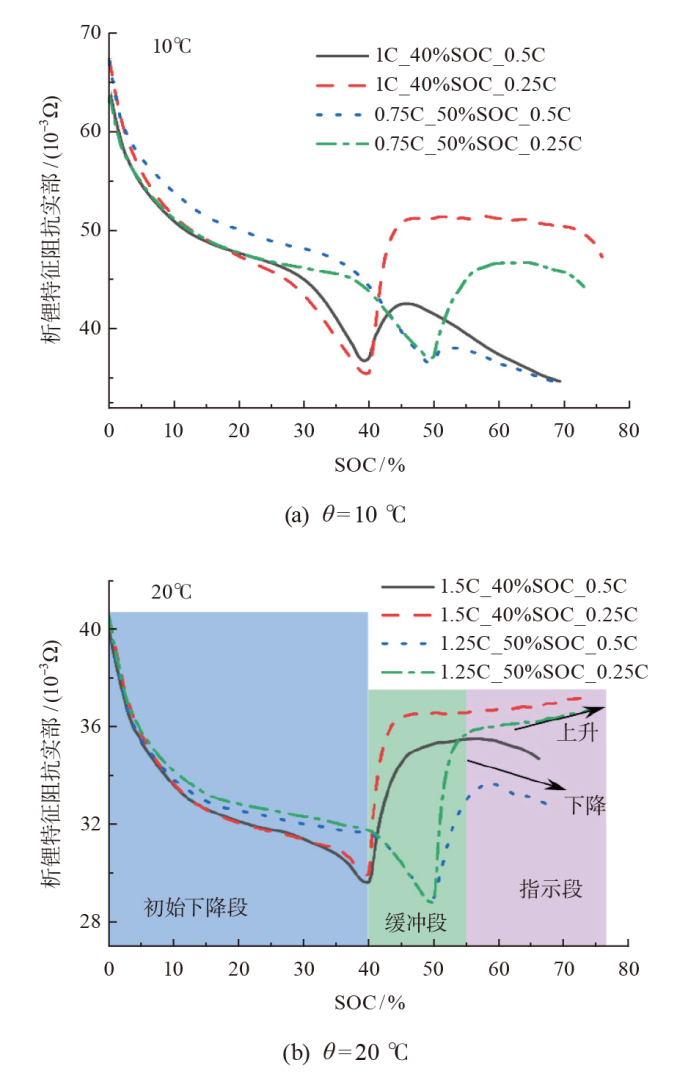

图2 充电电流变化下交流阻抗测量结果

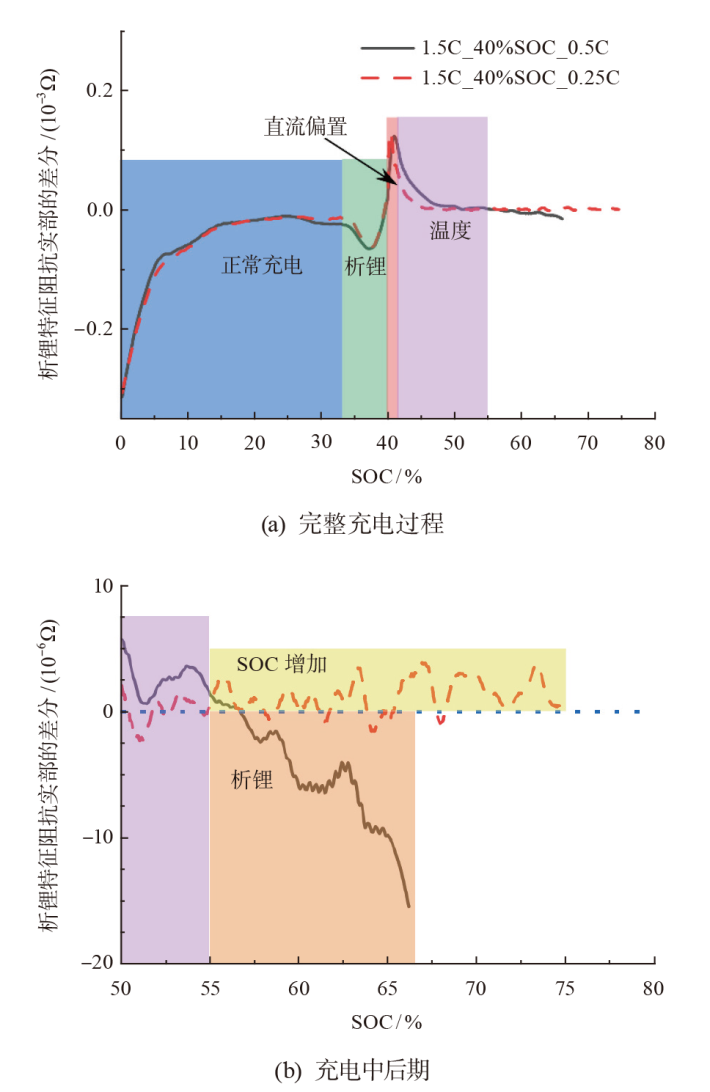

图3 充电电流变化下充电实验转移频率阻抗实部差分值(θ = 20℃)

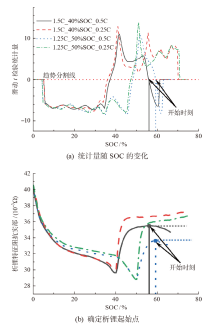

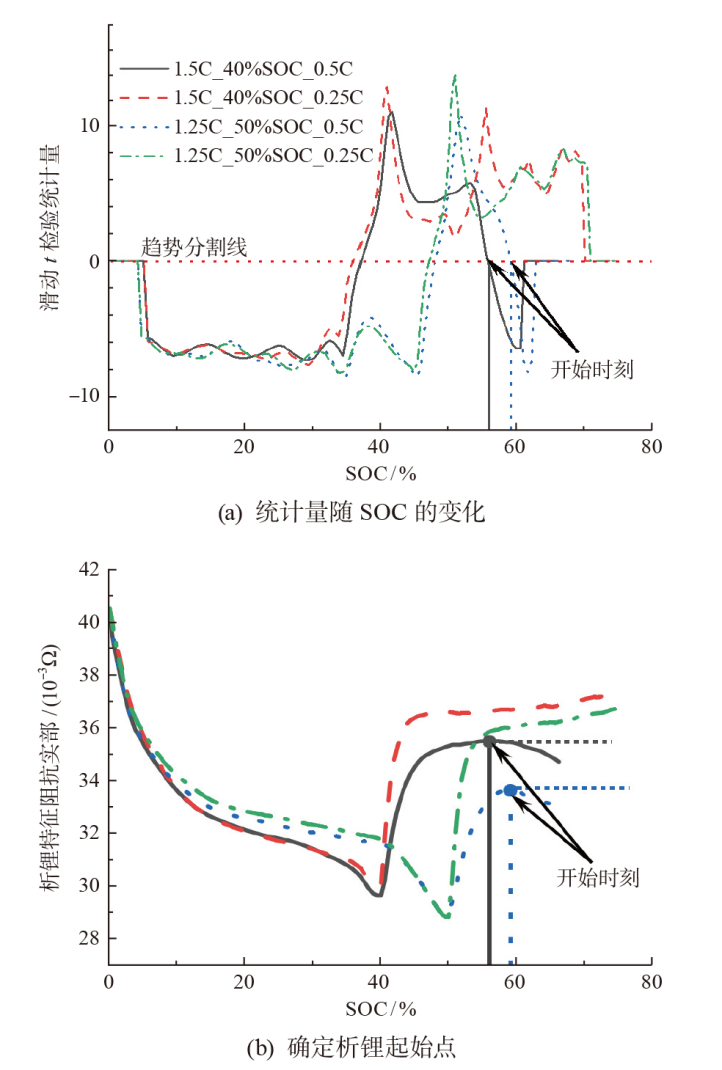

图4 θ = 20 ℃时滑动t检验统计量随SOC的变化及滑动t检验确定析锂起始点

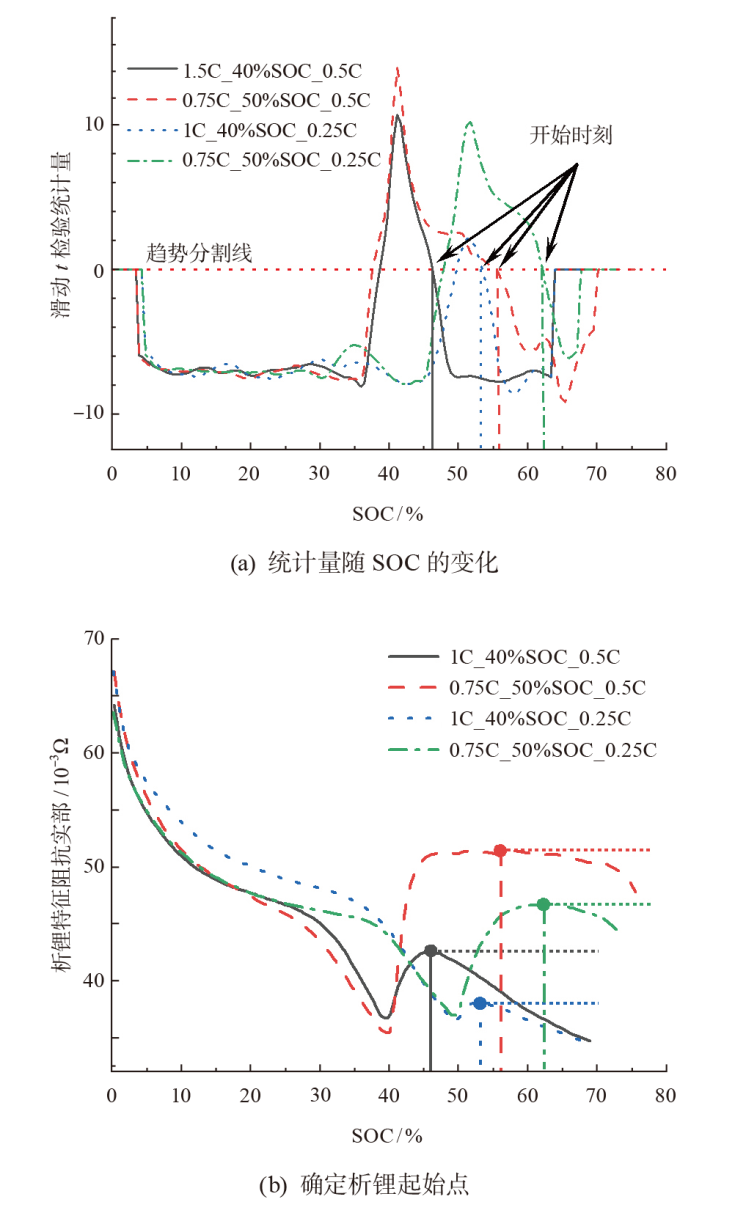

图5 θ = 10 ℃时，滑动t检验统计量随SOC的变化及滑动t检验确定析锂起始点

参考文献 18

[1]	Smart M C, Ratnakumar B V. Effects of electrolyte composition on lithium plating in lithium-ion cells[J]. J Electrochem Soc, 2011, 158(4): A379-A389.
[2]	ZHANG Simeng, YANG Gaojing, LIU Shuai, et al. Understanding the dropping of lithium plating potential in carbonate electrolyte[J]. Nano Energy, 2020, 70: No 104486
[3]	葛昊. 低温下抑制析锂的锂离子电池交流预热与快速充电方法[D]. 北京: 清华大学, 2017.
	GE Hao. Low temperatures inhibiting formation of lithium lithium ion battery exchange preheating and fast charging method[D]. Beijng: Tsinghua University, 2017. (in Chinese)
[4]	Schindler S, Bauer M, Petzl M, et al. Voltage relaxation and impedance spectroscopy as in-operando methods for the detection of lithium plating on graphitic anodes in commercial lithium-ion cells[J]. J Power Sources, 2016, 304: 170-80.
[5]	Koleti U R, Dinh T Q, Marco J. A new on-line method for lithium plating detection in lithium-ion batteries[J]. J Power Sources, 2020, 451: No 227798.
[6]	Koseoglou M, Tsioumas E, Ferentinou D, et al. Lithium plating detection using dynamic electrochemical impedance spectroscopy in lithium-ion batteries[J]. J Power Sources, 2021, 512: No 230508.
[7]	WANG Xueyuan, LI Jiawei, CHEN Siqi, et al. Online detection of lithium plating onset for lithium-ion batteries based on impedance changing trend identification during charging processes[J]. IEEE Trans Transport Elect, 2022, 9(2): 3487-3497.
[8]	LIN H-C, LIU C-W, LIN J-S. Development of current-controllable batteries charging system based on multi-stage mechanism[J]. Int’l J Embed Syst, 2019, 11(6): 719-730.
[9]	Kannan D R R, Weatherspoon M H. The effect of pulse charging on commercial lithium nickel cobalt oxide (NMC) cathode lithium-ion batteries[J]. J Power Sources, 2020, 479: No 229085
[10]	Hajisadeghian H, Birjandi A A M, Nahavandi R, et al. Sliding mode controller (SMC) for sinusoidal ripple current (SRC) charge of Li-ion battery[C]// Proceed 10th Int’l Power Elect, Drive Syst Tech Conf (PEDSTC), Shiraz Univ, Shiraz, IRAN, F 2019: 600-605.
[11]	吴晓刚, 崔智昊, 孙一钊, 等. 电动汽车大功率充电过程动力电池充电策略与热管理技术综述[J]. 储能科学与技术, 2021, 10(6): 2218-2234. doi: 10.19799/j.cnki.2095-4239.2021.0267
	WU Xiaogang, CUI Zhihao, SUN Yizhao, et al. Review of power battery charging strategies and thermal management techniques during high-power charging of electric vehicles[J]. Energ Stor Sci Tech, 2021, 10(6): 2218-2234. (in Chinese)
[12]	梅尊禹, 吴晓刚, 胡宸. 一种适用于低温环境的锂离子动力电池充电方法[J]. 汽车技术, 2018(6): 11-16.
	MEI Junyu, WU Xiaogang, HU Cheng. A kind of suitable for lithium ion power battery charging method of low temperature environment[J]. Autom Tech, 2018(6): 11-16 (in Chinese)
[13]	邓林旺, 冯天宇, 舒时伟, 等. 锂离子电池快充策略技术研究进展[J]. 储能科学与技术, 2022, 11(9): 2879-2890. doi: 10.19799/j.cnki.2095-4239.2021.0635
	DENG Lingwang, FENG Tianyu, SHU Shiwei, et al. Lithium ion battery quick charge strategy technology[J]. Energ Stor Sci Tech, 2022, 11(9): 2879-2890. (in Chinese)
[14]	Mai W, Colclasure A M, Smith K. Model-instructed design of novel charging protocols for the extreme fast charging of lithium-ion batteries without lithium plating[J]. J Electrochem Soc, 2020, 167: No 080517
[15]	Romain M, Olivier B, Philippe G, et al. Fast charging for electric vehicles applications: Numerical optimization of a multi-stage charging protocol for lithium-ion battery and impact on cycle life[J]. J Energy Storage, 2021, 40: No 102756
[16]	AN Fuqiang, ZHANG Rui, WEI Zhiguo, et al. Multi-stage constant-current charging protocol for a high-energy-density pouch cell based on a 622NCM/graphite system[J]. RSC Advances, 2019, 9(37): 21498-21506 doi: 10.1039/c9ra03629f
[17]	黄亦轩, 徐宗学, 陈浩, 等. 1960-2020广东汛期降水的时空变异性分析[J]. 水力发电学报, 2022, 41(3): 70-82.
	HUANG Yixuan, XU Zongxue, CHEN Hao, et al. Spatio-temporal variability of rainfall in flood season in Guangdong from 1960 to 2020[J]. J Hydroelect Power, 2012, 41(3): 70-82. (in Chinese)
[18]	张文. 近百年来气候突变与极端事件的检测与归因的初步研究[D]. 扬州: 扬州大学, 2007.
	ZHANG Wen. Nearly hundred years climate mutation and extreme events detection and attribution of preliminary research[D]. Yangzhou: Yangzhou University, 2007. (in Chinese)
