面向无人驾驶车辆节能的迭代优化预测控制方法

doi:10.3969/j.issn.1674-8484.2023.01.010

汽车安全与节能学报 ›› 2023, Vol. 14 ›› Issue (1): 80-88.DOI: 10.3969/j.issn.1674-8484.2023.01.010

面向无人驾驶车辆节能的迭代优化预测控制方法

刘熠¹(), 宫新乐²^,^*(), 唐云³, 胡嫚¹, 马捷³, 秦毅³, 吴飞³^,^*(), 蒲华燕³, 罗均³

1.西南大学工程技术学院，重庆 400715，中国
2.清华大学，汽车安全与节能国家重点实验室，北京 100084，中国
3.重庆大学机械与运载工程学院，重庆 400044，中国

收稿日期:2022-04-18 修回日期:2022-11-24 出版日期:2023-02-28 发布日期:2023-03-07
通讯作者: 宫新乐,吴飞
作者简介:吴飞 (1987—)，男(汉)，湖南，副教授。E-mail：wufeifrank@cqu.edu.cn。
*宫新乐(1990—)，男(汉)，黑龙江，博士后。E-mail：xinlegong@gmail.com。
刘熠(1998—)，男(汉)，贵州，硕士研究生。E-mail：liuyiswu@126.com。
基金资助:
国家自然科学基金(52102438);中国博士后科学基金(2022M710523);中央高校基本科研业务费项目(2022CDJXY-006)

An iterative optimization-based predictive control method for eco-driving of unmanned vehicles

LIU Yi¹(), GONG Xinle²^,^*(), TANG Yun³, HU Man¹, MA Jie³, QIN Yi³, WU Fei³^,^*(), PU Huayan³, LUO Jun³

1. College of Engineering and Technology, Southwest University, Chongqing 400716, China
2. State Key Laboratory of Automotive Safety and Energy, Tsinghua University, Beijing 100084, China
3. College of Mechanical and Vehicle Engineering, Chongqing University, Chongqing 400044，China

Received:2022-04-18 Revised:2022-11-24 Online:2023-02-28 Published:2023-03-07
Contact: GONG Xinle,WU Fei

摘要/Abstract

摘要：

该文提出一种数据驱动的无人驾驶重型车辆节能驾驶迭代优化预测控制（IOBPC）方法。基于历史数据构造并迭代更新终端状态约束集和终端油耗函数，并对约束集和终端油耗函数进行近似处理，提高算法计算效率；通过学习车辆状态轨迹和燃油消耗的关联机理，保证优化算法代价函数在迭代过程中单调递减并最终收敛，从而实现车辆燃油经济性的显著提升。结果表明：迭代优化预测控制器在多次迭代后使车辆轨迹收敛，燃油消耗减少了约10.2%，相比基于动态规划（DP）的节能驾驶策略，节能效果得到了进一步的提升，且调节参数较少，支持实时求解，更利于实际应用。

关键词: 无人驾驶重型车辆, 节能驾驶, 迭代优化, 预测控制

Abstract:

A data-driven Iterative Optimization-Based Predictive Control (IOBPC) method for energy saving of unmanned heavy vehicles was proposed. Based on the historical data, the terminal state constraint set and terminal cost function were constructed and updated iteratively. And the approximate treatment of the constraint set and terminal cost function improved the computational efficiency of the algorithm. By learning the correlation between vehicle state trajectory and fuel consumption, the cost function of the optimization algorithm was guaranteed to decrease monotonically and converge in the iterative process, so as to realize the significant improvement of vehicle fuel economy. The results show that the iterative optimization predictive controller makes the vehicle trajectory converged and reduces fuel consumption by about 10.2% after several iterations. Compared with the energy-saving driving strategy based on dynamic programming (DP), the energy-saving effect is further improved. Moreover, it has fewer adjustment parameters and supports real-time solution, which is more conducive to practical application.

Key words: unmanned heavy vehicles, eco-driving, iterative optimization, predictive control

中图分类号:

U463.61

刘熠, 宫新乐, 唐云, 胡嫚, 马捷, 秦毅, 吴飞, 蒲华燕, 罗均. 面向无人驾驶车辆节能的迭代优化预测控制方法[J]. 汽车安全与节能学报, 2023, 14(1): 80-88.

LIU Yi, GONG Xinle, TANG Yun, HU Man, MA Jie, QIN Yi, WU Fei, PU Huayan, LUO Jun. An iterative optimization-based predictive control method for eco-driving of unmanned vehicles[J]. Journal of Automotive Safety and Energy, 2023, 14(1): 80-88.

图/表 11

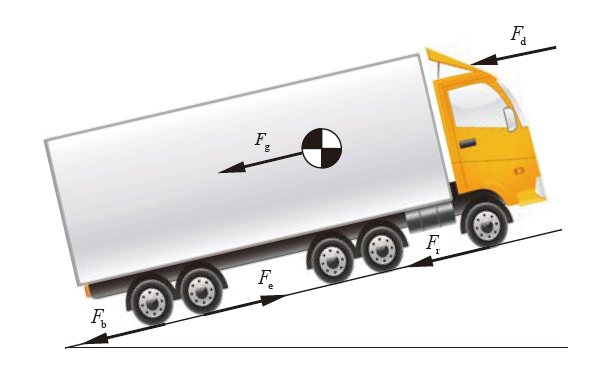

图1 车辆纵向受力图

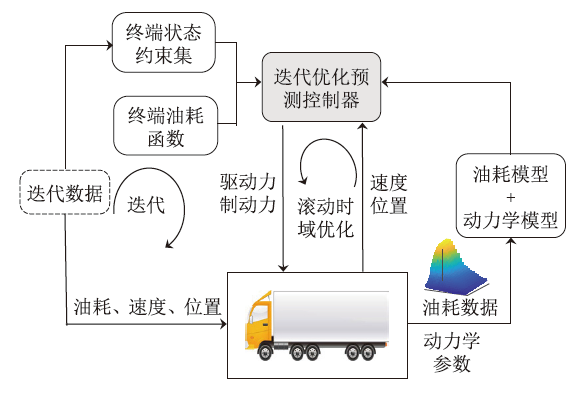

图2 迭代优化预测控制方法架构

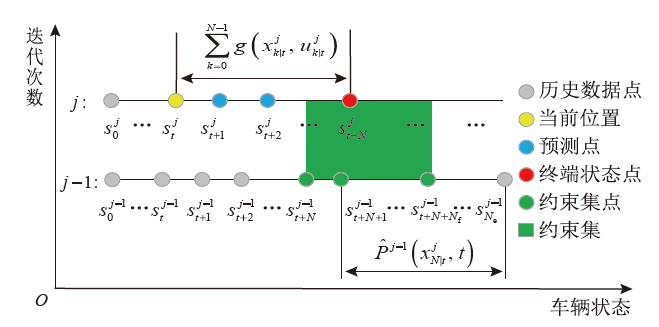

图3 迭代优化预测控制算法原理架构

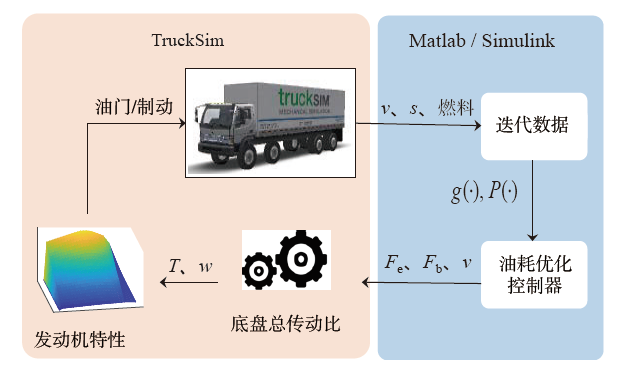

图4 仿真平台示意图

整车质量，m	30 t
滚动阻力因数，C_r	0.005 5
空气阻力因数，C_D	0.69
车辆横截面积，A	10 m²
车身长度，l	8 m

表1 车辆参数

离散时间，t_s	0.1 s
预测步长，N	30
约束集步长，N_f	10

表2 典型坡道仿真参数

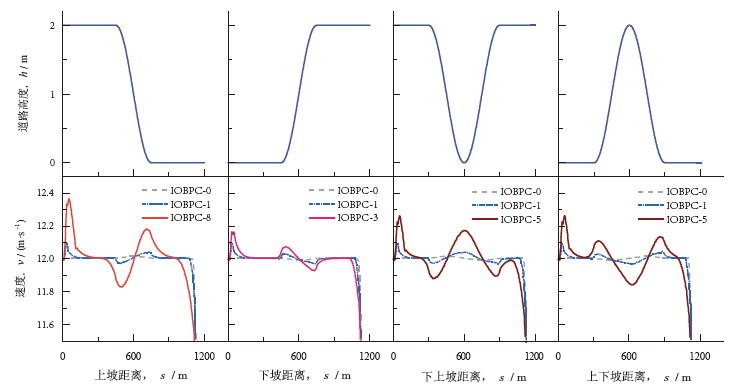

图5 不同典型坡道仿真结果

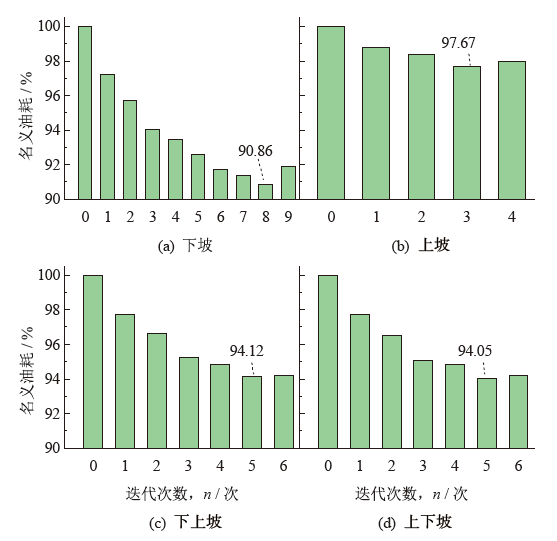

图6 典型坡道迭代油耗

离散时间，t_s	0.2 s
预测步长， N	30
约束集步长， N_f	10

表3 实际道路仿真参数

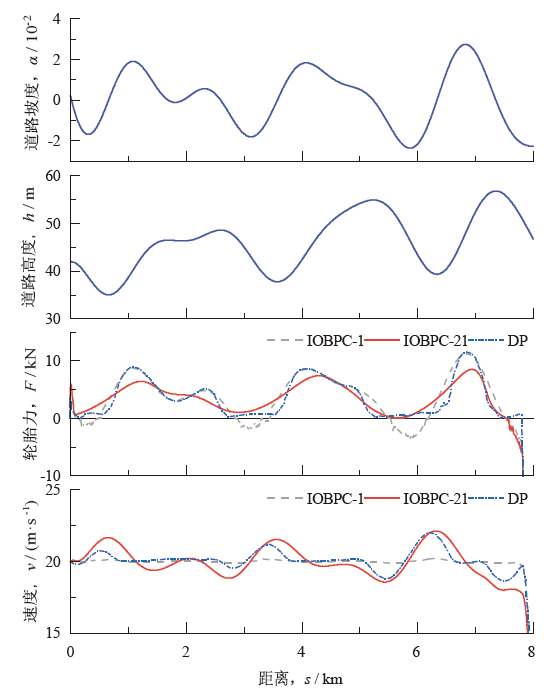

图7 实际道路仿真结果

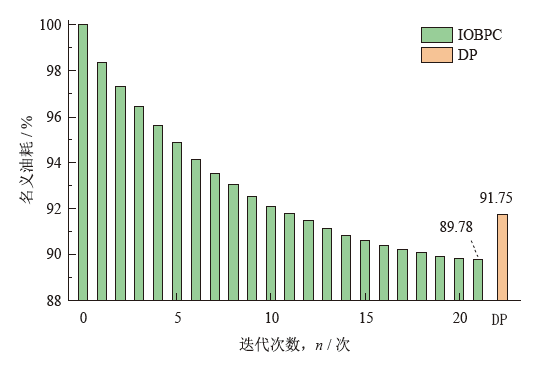

图8 实际道路迭代油耗

参考文献 24

[1]	国家统计局. 中华人民共和国2020年国民经济和社会发展统计公报[J]. 中国统计, 2021(3): 8-22.
	Statistical bulletin of the People’s Republic of China on national economic and social development in 2020[J]. China Statistics, 2021(3): 8-22. (in Chinese)
[2]	Alam A, Besselink B, Turri V, et al. Heavy-duty vehicle platooning for sustainable freight transportation: A cooperative method to enhance safety and efficiency[J]. IEEE Contr Syst Maga, 2015, 35(6): 34-56.
[3]	陈兴. 自主重型车队的油耗优化问题研究[D]. 大连: 大连海事大学, 2019.
	CHEN Xing. The optimization research for autonomous heavy-duty vehicle platoon’s fuel consumption[D]. Dalian Maritime University, Dalian, 2019. (in Chinese)
[4]	赵晓华, 陈晨, 荣建, 等. “生态驾驶”的应用现状与新思路[J]. 节能与环保, 2017(9): 54-59.
	ZHAO Xiaohua, CHEN Chen, RONG Jian, et al. Application status and new ideas of eco-driving[J]. Energ Conserv Environ Protect, 2017 (9): 54-59. (in Chinese)
[5]	黎明. 基于生态驾驶工况曲线函数的坡道和交叉口车辆轨迹优化方法[D]. 北京: 北京交通大学, 2017.
	LI Ming. Optimization of the vehicle trajectory on the hilly road and the intersection based on curvilinear functions of eco-operating modes[D]. Beijing Jiaotong University, Beijing, 2017. (in Chinese)
[6]	伍毅平, 赵晓华, 荣建, 等. 基于驾驶模拟实验的生态驾驶行为节能减排潜力[J]. 北京工业大学学报, 2015, 41(8): 1212-1218.
	WU Yiping, ZHAO Xiaohua, RONG Jian, et al. Potential of eco-driving in reducing fuel consumption and emissions based on a driving simulator[J]. J Beijing Univ Tech, 2015, 41(8): 1212-1218. (in Chinese)
[7]	王建强, 俞倩雯, 李升波, 等. 基于道路坡度实时信息的经济车速优化方法[J]. 汽车安全与节能学报, 2014, 5(3): 257-262.
	WANG Jianqiang, YU Qianwen, LI Shengbo, et al. Eco speed optimization based on real-time information of road gradient[J]. J Autom Safe Energ, 2014, 5(3): 257-262. (in Chinese)
[8]	俞倩雯. 基于车联网的汽车行驶经济车速控制方法[D]. 北京: 清华大学, 2014.
	YU Qianwen. Vehicular speed control of eco-driving systems based on connected vehicles[D]. Tsinghua University, Beijing, 2014. (in Chinese)
[9]	Turri V, Besselink B, Johansson K H. Cooperative look-ahead control for fuel-efficient and safe heavy-duty vehicle platooning[J]. IEEE Trans Contr Syst Tech, 2017, 25(1): 12-28. doi: 10.1109/TCST.2016.2542044 URL
[10]	Groelke B, Borek J, Earnhardt C, et al. A Comparative assessment of economic model predictive control strategies for fuel economy optimization of heavy-duty trucks[C]// 2018 Annu Ame Contr Conf (ACC), Milwaukee, WI, USA, 2018: 834-839.
[11]	Borek J, Groelke B, Earnhardt C, et al. Economic optimal control for minimizing fuel consumption of heavy-duty trucks in a highway environment[J]. IEEE Trans Contr Syst Tech, 2020, 28(5): 1652-1664. doi: 10.1109/TCST.87 URL
[12]	GUO Ge, LI Dandan. PMP-based set-point optimization and sliding-mode control of vehicular platoons[J]. IEEE Trans Comput Soc Syst, 2018, 5(2): 553-562. doi: 10.1109/TCSS.2018.2829626 URL
[13]	Padilla G P, Weiland S, Donkers M. A Global optimal solution to the eco-driving problem[J]. IEEE Contr Syst Lett, 2018, 2(4): 599-604.
[14]	Kohut N J, Hedrick J K, Borrelli F. Integrating traffic data and model predictive control to improve fuel economy[C]// 12th IFAC Symp Contr Transport Syst, Redondo Beach, California, USA, 2009: 130-135.
[15]	Kamal M A S, Mukai M, Murata J, et al. Ecological vehicle control on roads with up-down slopes[J]. IEEE Trans Intel Transport Syst, 2011, 12(3): 783-794.
[16]	Kaku A, Kamal A S, Mukai M, et al. Model predictive control for ecological vehicle synchronized driving considering varying aerodynamic drag and road shape information[J]. SICE J Control, 2013, 6(5): 299-308.
[17]	Stanger T, Re L D. A model predictive cooperative adaptive cruise control approach[C]// 2013 Ame Contr Conf (ACC 2013), Washington, DC, USA, 2013: 1374-1379.
[18]	Bertoni L, Guanetti J, Basso M, et al. An adaptive cruise control for connected energy-saving electric vehicles[J]. IFAC-Papersonline, 2017, 50(1): 2359-2364. doi: 10.1016/j.ifacol.2017.08.425 URL
[19]	王琼, 郭戈. 车队速度滚动时域动态规划及非线性控制[J]. 自动化学报, 2019, 45(5): 888-896.
	WANG Qiong, GUO Ge. Platoon speed receding horizon dynamic programming and nonlinear control[J]. Acta Autom Sinica, 2019, 45(5): 888-96. (in Chinese)
[20]	Rosolia U, Borrelli F. Learning model predictive control for iterative tasks. a data-driven control framework[J]. IEEE Trans Auto Contr, 2018, 63(7): 1883-1896. doi: 10.1109/TAC.2017.2753460 URL
[21]	Rosolia U, Borrelli F. Learning how to autonomously race a car: A predictive control approach[J]. IEEE Trans Contr Syst Tech, 2020, 28(6): 2713-2719. doi: 10.1109/TCST.87 URL
[22]	王建萍, 何力. 干线物流无人驾驶卡车市场化挑战[J]. 汽车与配件, 2021(2): 56-59.
	WANG Jianping, HE Li. Marketization challenges of autonomous truck in trunk logistics[J]. Autom Parts, 2021(2): 56-59. (in Chinese)
[23]	Schwarzkopf A B, Leipnik R B. Control of highway vehicles for minimum fuel consumption over varying terrain[J]. Transport Res, 1977, 11(4): 279-286. doi: 10.1016/0041-1647(77)90093-4 URL
[24]	Lofberg J. YALMIP : A toolbox for modeling and optimization in MATLAB[C]// 2004 IEEE Int’l Conf Robot Autom, Taipei, Taiwan, 2004: 284-289.
