基于最优预瞄和模型预测的智能商用车路径跟踪控制

doi:10.3969/j.issn.1674-8484.2020.04.005

摘要/Abstract

摘要：

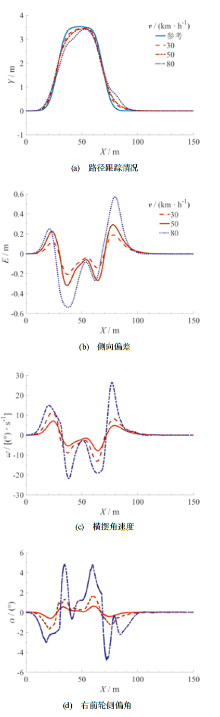

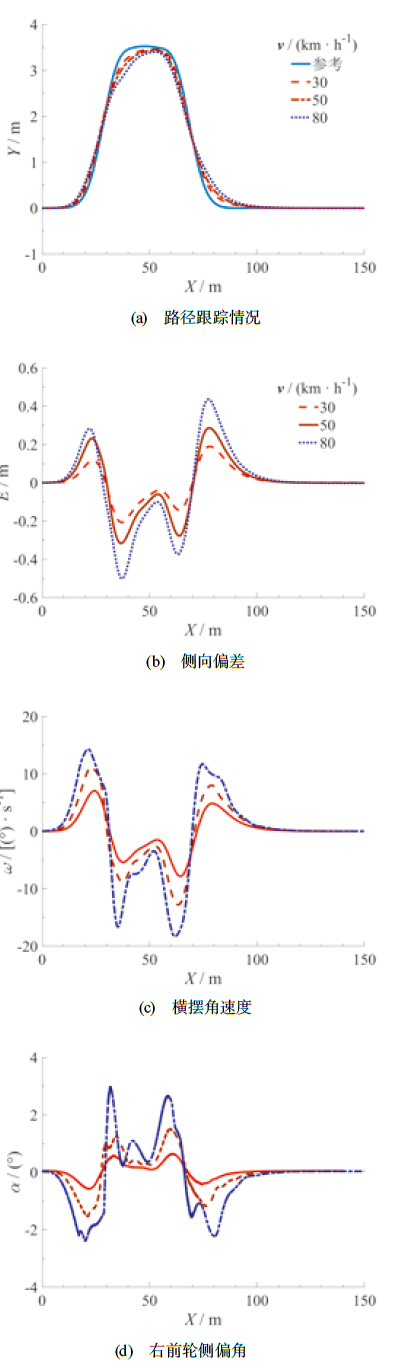

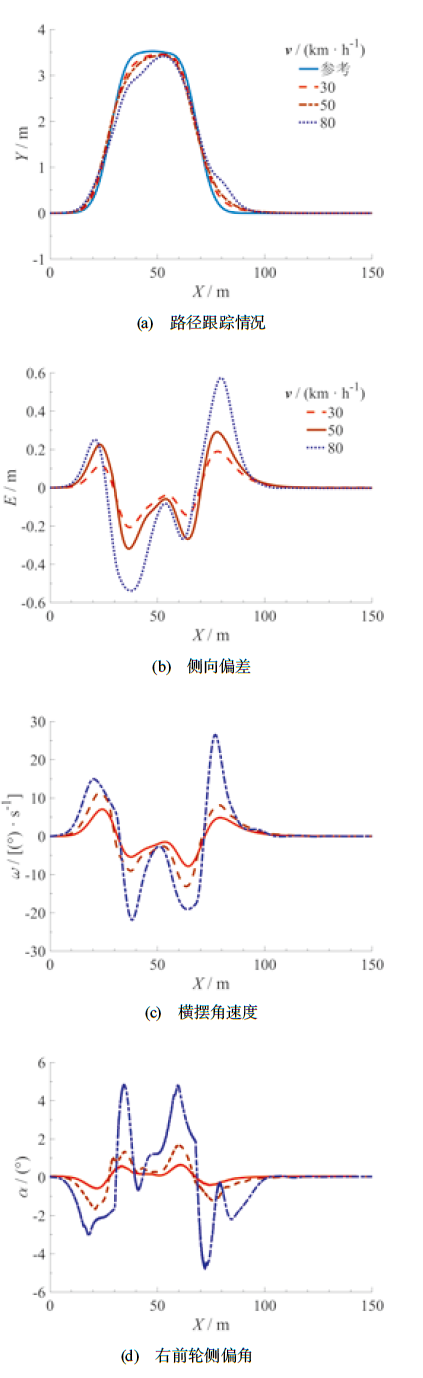

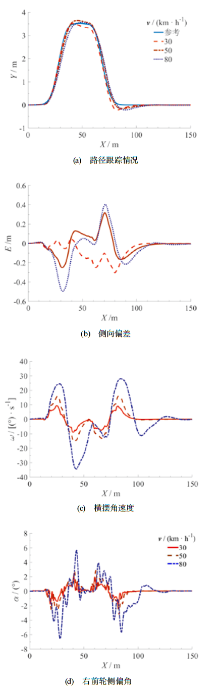

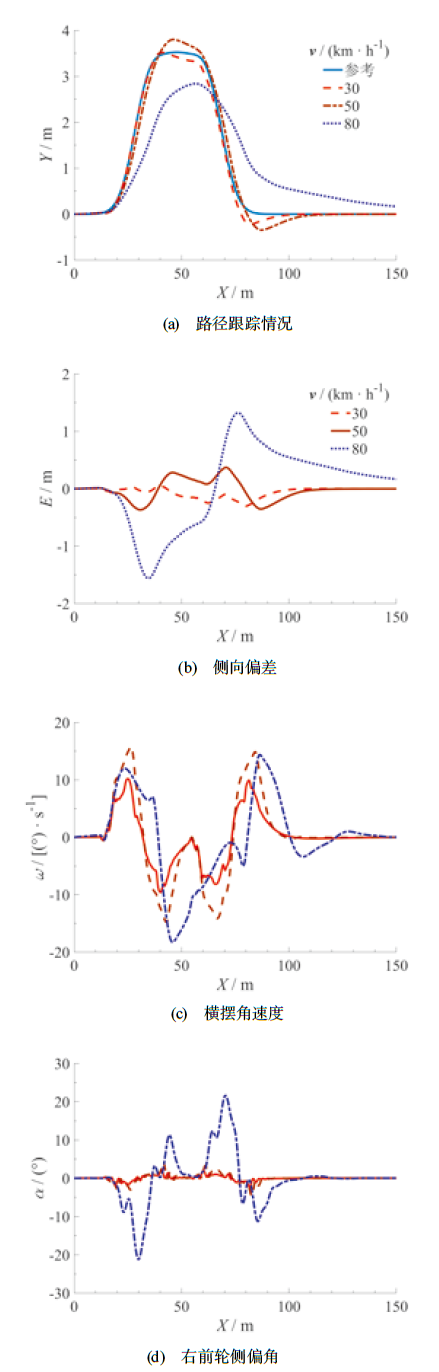

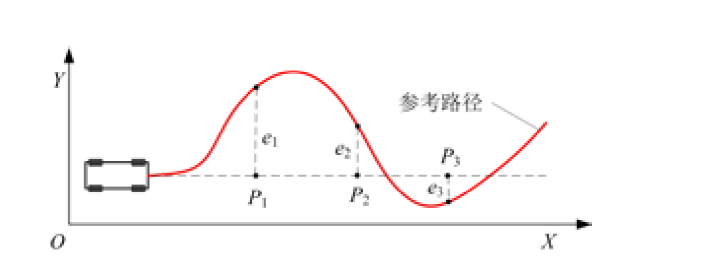

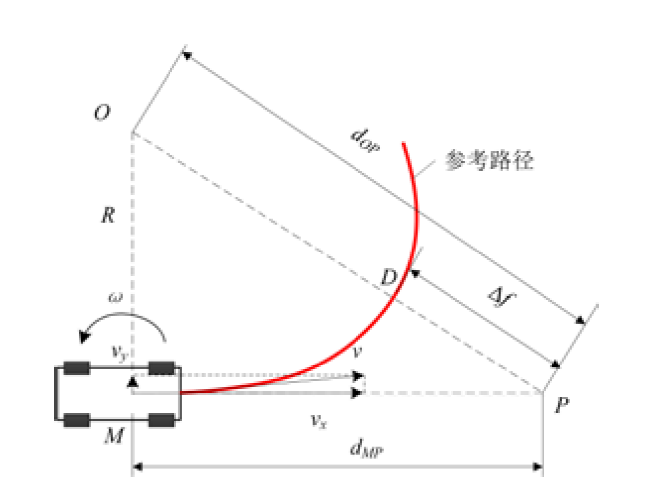

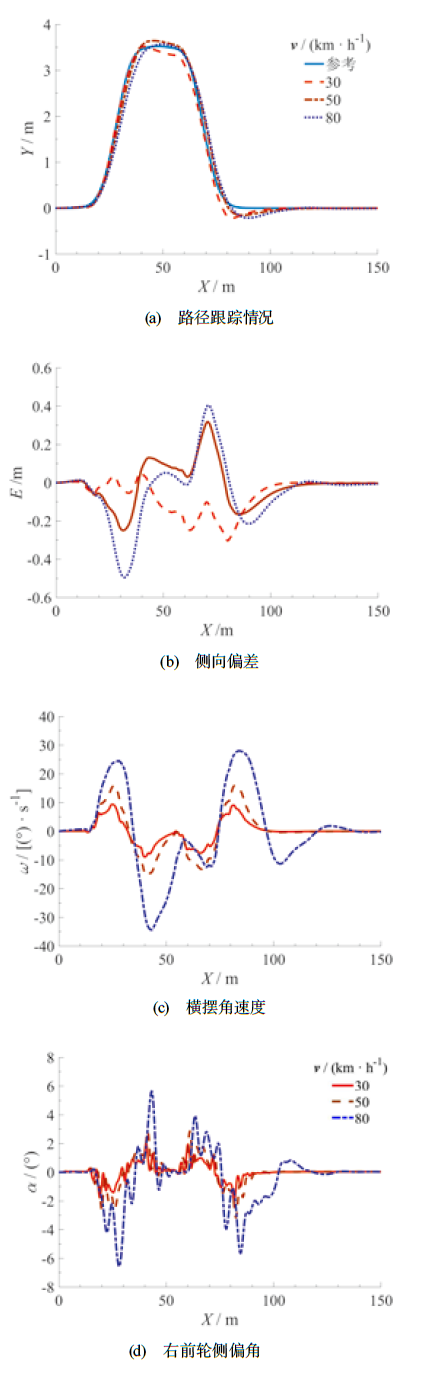

为解决智能商用车路径跟踪问题,采用一种最优预瞄控制策略。根据商用车航向角与路径曲率的关系,引入航向角偏差反馈控制;根据车速与预瞄距离的关系,提出了变权重因数的多点预瞄距离确定方法。为了保证商用车路径跟踪的稳定性,采用模型预测控制策略,对车轮侧偏角进行约束。通过TruckSim与Simulink联合仿真,对比分析了侧向偏差、横摆角速度和前轮侧偏角变化情况。结果表明：最优预瞄控制策略对车速变化具有较好的适应性,但当路面附着因数较低时,车辆会失去稳定性;模型预测控制策略对车速和路面附着因数变化都具有较好的适应性,行驶稳定性更好,且比最优预瞄控制策略具有更精确的路径跟踪效果。

关键词: 智能商用车, 路径跟踪, 路面附着因数, 最优预瞄控制, 模型预测控制

Abstract:

An optimal preview control strategy was adopted to solved path tracking problem of intelligent commercial vehicles. According to the relationship between the heading angle and the curvature of the path, the heading angle deviation feedback control was introduced. According to the relationship between the speed and the preview distance, a multi-point preview distance determination method with variable weight coefficient was proposed. In order to ensure the stability of path tracking, the model predictive control was used to restrict the wheel sideslip angle. Through co-simulation of TruckSim and Simulink, the lateral deviations, the yaw rates and the front wheel slip angles were compared. The results show that the optimal preview control has good adaptability to the speed, but when the road adhesion factor is low, the vehicle will lose stability; The model predictive control has better adaptability to speeds and road adhesion factors, and has better driving stability, and has more accurate path tracking effect than the optimal preview control.

Key words: intelligent commercial vehicles, path tracking, road adhesion factors, optimal preview control, model predictive control

中图分类号:

U471.15

李耀华, 刘洋, 冯乾隆, 南友飞, 何杰, 范吉康. 基于最优预瞄和模型预测的智能商用车路径跟踪控制[J]. 汽车安全与节能学报, 2020, 11(4): 462-469.

LI Yaohua, LIU Yang, FENG Qianlong, NAN Youfei, HE Jie, FAN Jikang. Path tracking control for an intelligent commercial vehicle based on optimal preview and model predictive[J]. Journal of Automotive Safety and Energy, 2020, 11(4): 462-469.

图/表 9

参考文献 19

[1]	FU Miaomiao, NI Jun, LI Xueyuan, et al. Path tracking for autonomous race car based on G-G diagram[J]. Int’l J Automotive Tech, 2018,19(4):659-668. (in Chinese)
[2]	赵熙俊, 陈慧岩. 智能车辆路径跟踪横向控制方法的研究[J]. 汽车工程, 2011,33(5):382-387.
	ZHAO Xijun, CHEN Huiyan. A study on lateral control method for the path tracking of intelligent vehicles[J]. Automotive Engineering, 2011,33(5):382-387. (in Chinese)
[3]	段建民, 杨晨, 石慧. 基于Pure Pursuit算法的智能车路径跟踪[J]. 北京工业大学学报, 2016,42(9):1301-1306.
	Duan Jianmin, Yang Chen, Shi Hui. Path tracking based on pure pursuit algorithm for intelligent vehicles[J]. J Beijing Univ of Tech, 2016, 42(9):1301-1306. (in Chinese)
[4]	Park M, Lee S, Han W. Development of steering control system for autonomous vehicle using geometry-based path tracking algorithm[J]. Electr Telecom Res Inst J, 2015,37(3):617-625.
[5]	Citlalli G S, Yassine R. Dynamic Speed adaptation for path tracking based on curvature information and speed limits[J]. Sensors, 2017, 17(6):1383.
[6]	LEE Taeyoung, KANG Juyong, YI Kyongsu, et al. An investigation on the integrated human driver model for closed-loop simulation of intelligent safety systems[J]. J Mech Sci and Tech, 2010,24(3):761-767.
[7]	KANG Juyong, Hindiyeh R Y, Moon S W, et at. Design and testing of a controller for autonomous vehicle path tracking using GPS/INS sensors[C]// Proc 17th IFAC World Congr, Seoul, Korea. 2008: 6-11.
[8]	陈杨, 贺汉根, 戴斌. 基于车辆动力学的轨迹跟踪器设计[J]. 中国工程科学, 2007,9(11):68-73.
	CHEN Yang, HE Hangen, DAI Bin. Design of trajectory tracker based on vehicle dynamics[J]. Strategic Study of CAE, 2007,9(11):68-73. (in Chinese)
[9]	陈无畏, 王家恩, 汪明磊, 等. 视觉导航智能车辆横向运动的自适应预瞄控制[J]. 中国机械工程, 2014,25(5):698-704.
	CHEN Wuwei, Wang Jiaen, WANG Minglei, et al. Adaptive preview control of vision guided intelligent vehicle lateral movement[J]. Chin Mech Engi, 2014,25(5):698-704. (in Chinese)
[10]	Besselmann T, Morari M. Hybrid parameter-varying model predictive control for autonomous vehicle steering[J]. Euro J Control, 2008,14(5):418-431.
[11]	Hong Sanghyun, Hedrick J K. Roll prediction-based optimal control for safe path following[C]// American Control Conference. IEEE, 2015: 3261-3266.
[12]	孙银健. 基于模型预测控制的无人驾驶车辆轨迹跟踪控制算法研究[D]. 北京:北京理工大学, 2015.
	Sun Yinjian. Research on model predictive control-based trajectory tracking algorithm for unmanned vehicles[D]. Beijing: Beijing Institute of Technology, 2015. (in Chinese)
[13]	王艺, 蔡英凤, 陈龙, 等. 基于模型预测控制的智能车辆路径跟踪控制器设计[J]. 汽车技术, 2017 (10):44-48.
	WANG Yi, CAI Yingfeng, CHEN Long, et al. Design of intelligent vehicle path tracking controller based on model predictive control[J]. Automobile Tech, 2017 (10):44-48. (in Chinese)
[14]	明廷友. 智能汽车的轨迹跟随控制研究[D]. 长春:吉林大学, 2016.
	MING Tingyou. Research on trajectory tracking control for intelligent vehicles[D]. Changchun: Jilin University, 2016. (in Chinese)
[15]	XU Shaobing, PENG Huei. Design, analysis, and experiments of preview path tracking control for autonomous vehicles[J]. IEEE Trans Intell Transp Syst, 2019,99:1-11.
[16]	Thommyppillai M P. Optimal path-tracking of virtual race-cars using gain-scheduled preview control[D]. London: Imperial College London, 2010.
[17]	Ozguner U, Unyelioglu K A, Hatipoglu C. An analytical study of vehicle steering control[C]// Proc 4th IEEE Conf Control Appl, Albany, USA, 1995: 125-130.
[18]	马芳武, 余烁, 吴量, 等. 基于时间因数的单点预瞄驾驶员模型分析[J]. 汽车工程, 2019,41(3):340-345.
	MA Fangwu, YU Shuo, WU Liang, et al. The analysis of single-point preview driver model based on time coefficient[J]. Automotive Engineering, 2019, 41(3):340-345. (in Chinese)
[19]	任玥, 郑玲, 张巍, 等. 基于模型预测控制的智能车辆主动避撞控制研究[J]. 汽车工程, 2019,41(4):304-310.
	REN Yue, ZHENG Ling, ZHANG Wei, et al. A study on active collision avoidance control of autonomous vehicles based on model predictive control[J]. Automotive Engineering, 2019,41(4):304-310. (in Chinese)

整备质量,m_c	12 t
总质量,m_a	16 t
长×宽×高,L×B×H	12 m × 2.5 m × 3.5 m
轴距,L_b	6 m
质心高度,H_m	1.35 m
转向器传动比,i	25
最高时速,v_max	80 km·h^-1
质心到前轴距离,L_mf	4 m
转向轴扭转刚度,T_s	700 Nm·rad^-1
车质量12 t前轮侧偏刚度,C_f	130 kN·rad

整备质量,m_c	12 t
总质量,m_a	16 t
长×宽×高,L×B×H	12 m × 2.5 m × 3.5 m
轴距,L_b	6 m
质心高度,H_m	1.35 m
转向器传动比,i	25
最高时速,v_max	80 km·h^-1
质心到前轴距离,L_mf	4 m
转向轴扭转刚度,T_s	700 Nm·rad^-1
车质量12 t前轮侧偏刚度,C_f	130 kN·rad

车速 km·h^-1	稳态最大侧向预瞄距离偏差 / mm
车速 km·h^-1	单点	定权重多点	变权重多点
30	205	187	159
70	288	271	224

车速 km·h^-1	稳态最大侧向预瞄距离偏差 / mm
车速 km·h^-1	单点	定权重多点	变权重多点
30	205	187	159
70	288	271	224

采样时间,T	20 ms
预测时域,N_p	20
控制时域,N_c	4
权重矩阵,Q	diag[200,30,50,100]
权重因数,R	10
权重因数,S	100
权重因数,ρ	1000
