行人头部与车辆碰撞中旋转速度对颅脑组织响应影响

doi:10.3969/j.issn.1674-8484.2021.01.007

汽车安全与节能学报 ›› 2021, Vol. 12 ›› Issue (1): 70-78.DOI: 10.3969/j.issn.1674-8484.2021.01.007

行人头部与车辆碰撞中旋转速度对颅脑组织响应影响

刘金明¹(), 马华星¹, 李奎², 李桂兵¹^,^*()

1.湖南科技大学机电工程学院,湘潭 411201,中国
2.陆军军医大学交通医学研究所,重庆 400042,中国

收稿日期:2021-12-11 出版日期:2021-03-31 发布日期:2021-04-02
通讯作者: 李桂兵
作者简介:*李桂兵(1987—),男(汉族),湖南,副教授。E-mail: guibing.li@hnust.edu.cn。
刘金明 (1997—),男(汉族),河北,硕士研究生。Email: 320115636@qq.com。
基金资助:
国家自然科学基金青年项目(51805162);国家自然科学基金青年项目(31800788);湖南省教育厅优秀青年项目(20B233)

The influence of rotational speed of pedestrian head-to-vehicle collision on brain tissue response

LIU Jinming¹(), MA Huaxing¹, LI Kui², LI Guibing¹^,^*()

1. School of Mechanical Engineering, Hunan University of Science and Technology, Xiangtan 411201, China
2. Institute for Traffic Medicine, Army Medical University, Chongqing 400042, China

Received:2021-12-11 Online:2021-03-31 Published:2021-04-02
Contact: LI Guibing

摘要/Abstract

摘要：

为了探究旋转速度在行人头部与车辆碰撞中对颅脑组织响应影响,对46例真实交通事故进行了运动学重建获得行人头部与车辆碰撞线性、旋转速度分布特征,并依此建立了头部与风挡、发动机罩碰撞有限元仿真模型,分析了头部旋转速度在不同线性速度和碰撞位置下对颅脑应力应变响应影响特征。结果表明：在行人头部与风挡碰撞中,当线性速度小于40 km/h时,颅脑最大主应力和Von Mises应力随头部旋转速度增加而增大, 头部线性速度大于40 km/h时,旋转速度对颅脑响应无显著影响;在行人头部与发动机罩碰撞中,所有工况下颅脑最大主应力和Von Mises应力均随头部旋转速度增加而增大,导致颅脑损伤风险显著增加。因此,在车辆安全性评价时应当考虑头部旋转速度作用及风挡玻璃和发罩碰撞差异。

关键词: 行人碰撞事故, 头部旋转速度, 颅脑损伤风险, 运动学重建, 有限元仿真

Abstract:

A distribution of pedestrian head-vehicle impact linear/rotational speed was firstly obtained by kinematics reconstruction of 46 real world cases to investigate the effect of pedestrian head rotational speed on brain injury risk in vehicle collisions. A finite element (FE) simulations of head-to-windscreen and head-to-bonnet impacts was conducted with these data, and the brain response was analyzed under different head rotational/linear speeds and collision locations. The results show that in head-to-windshield impacts, the maximum principal stress and Von Mises stress increase with the increase of head rotational speed when the linear speed is less than 40 km/h, and the rotational speed has no significant effect on brain response when the linear speed is greater than 40 km/h; for head-to-bonnet impacts, the maximum principal stress and Von Mises stress increase with the increase of head rotational speed under all impact conditions, leading to significant increase in brain injury risk. It is suggested that the effect of head rotational speed and the difference between windshield and bonnet impact should be considered in vehicle safety evaluation.

Key words: pedestrian collision reconstruction, head rotational speed, brain injury, finite element (FE) modeling

中图分类号:

U461.91

刘金明, 马华星, 李奎, 李桂兵. 行人头部与车辆碰撞中旋转速度对颅脑组织响应影响[J]. 汽车安全与节能学报, 2021, 12(1): 70-78.

LIU Jinming, MA Huaxing, LI Kui, LI Guibing. The influence of rotational speed of pedestrian head-to-vehicle collision on brain tissue response[J]. Journal of Automotive Safety and Energy, 2021, 12(1): 70-78.

图/表 9

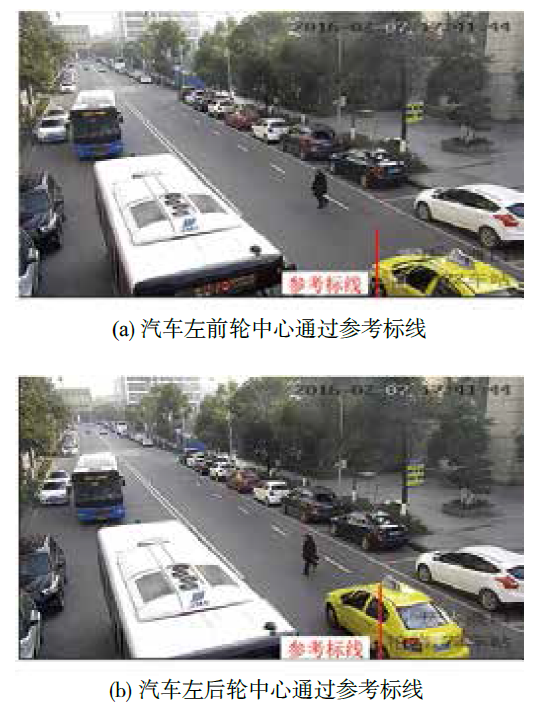

图1 汽车前后轴通过参考标线时的监控录像

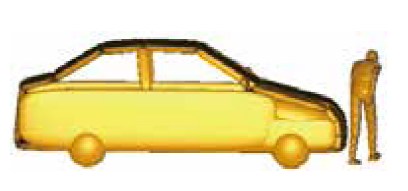

图2 车辆与行人碰撞重建模型

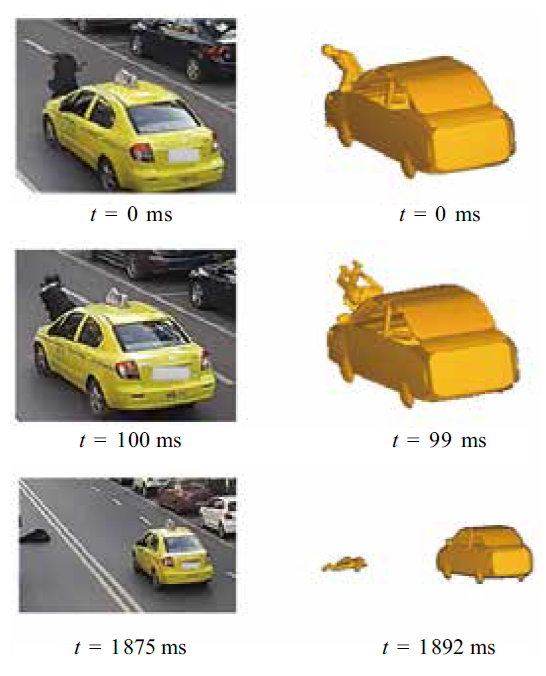

图3 仿真与监控视频对比

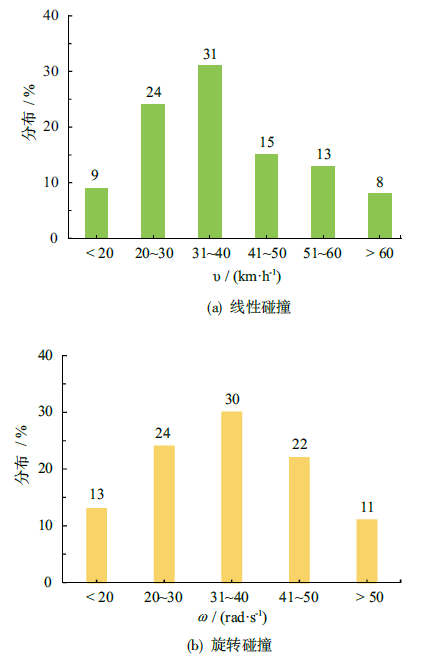

图4 头部与车辆碰撞线性速度和旋转速度分布

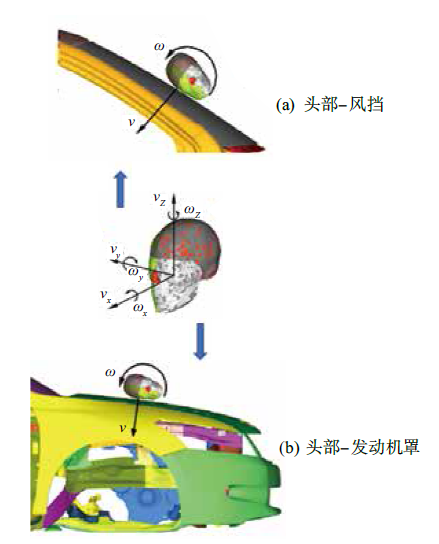

图5 头部碰撞有限元仿真模型

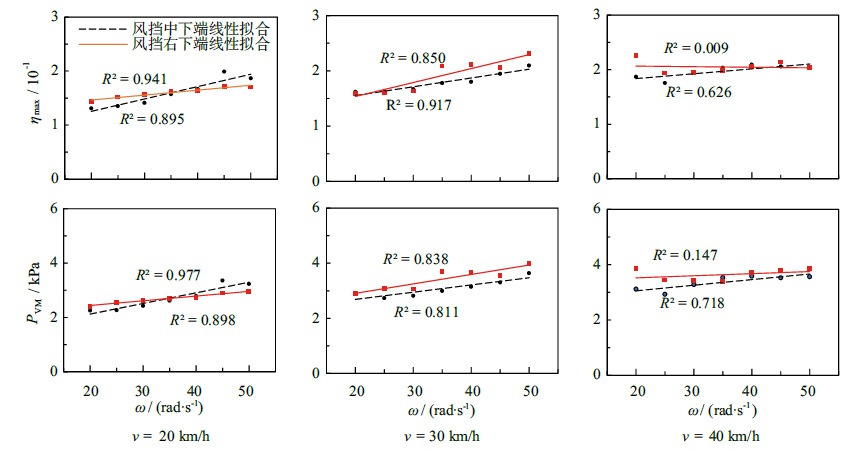

图6 线性速度为20~40 km/h时头部与风挡碰撞中颅脑最大主应变和Von Mises应力随旋转速度变化趋势

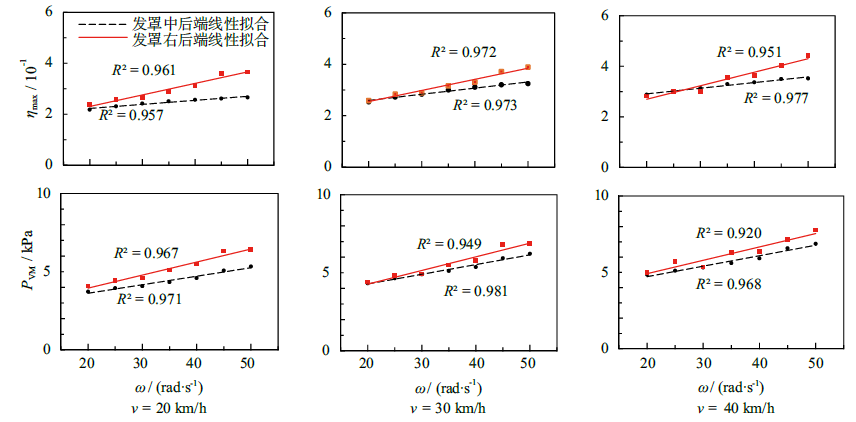

图7 线性速度20~40 km/h时头部与发动机罩碰撞中颅脑最大主应变和Von Mises应力随旋转速度变化趋势

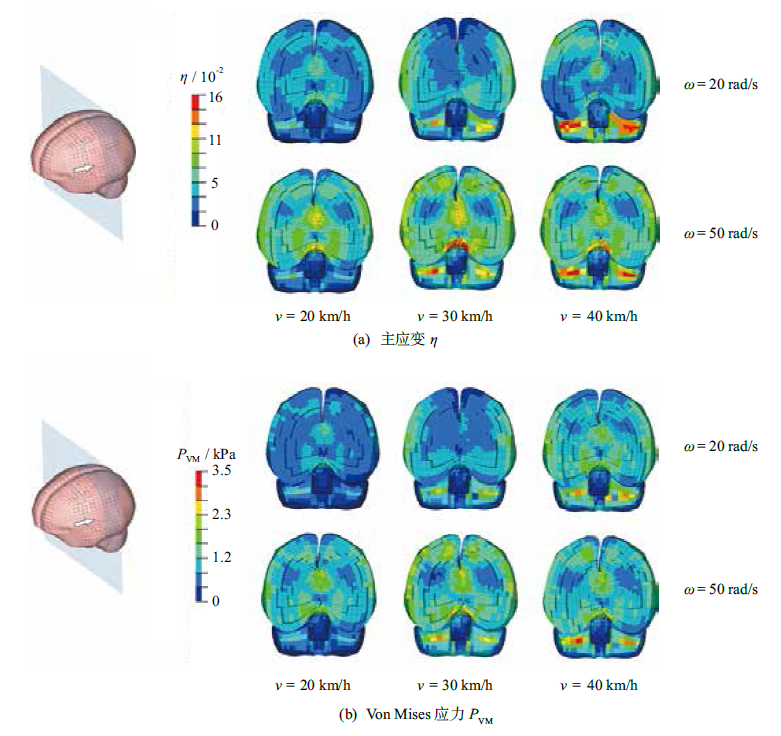

图8 线性速度为20~40 km/h时头部-风挡碰撞中颅脑主应变和Von Mises应力分布云图

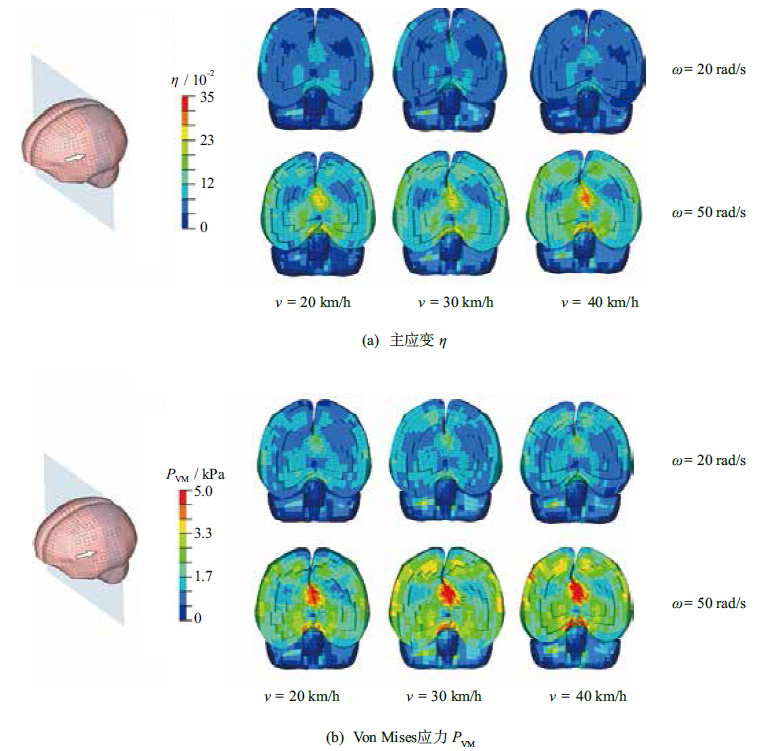

图9 线性速度为20~40 km/h时头部与发动机罩碰撞中颅脑主应变和Von Mises应力分布云图

参考文献 34

[1]	World Health Organization. Global status report on road safety 2018: Summary[R]. Geneva,Switzerland, 2018.
[2]	Fahlstedt M, Halldin P, Kleiven S. Comparison of multibody and finite element human body models in pedestrian accidents with the focus on head kinematics[J]. Traffic Injur Prev, 2016,17(3):320-327.
[3]	Otte D, Jänsch M, Haasper C. Injury protection and accident causation parameters for vulnerable road users based on German In-Depth Accident Study GIDAS[J]. Accid Anal Preve, 2012,44(1):149-153.
[4]	YANG Jikuang. Review of injury biomechanics in car-pedestrian collisions[J]. Int’l J Vehi Safe, 2005,1(1/2/3):100-117.
[5]	Simms C, Wood D. Pedestrian and Cyclist Impact[M]. Springer, 2009: 76-77.
[6]	Schmitt K, Niederer P, Muser M, et al. Trauma Biomechanics (3rd Edit)[M]. Springer, 2010: 55-78.
[7]	Gennarelli T, Ommaya A, Thibault L. Comparison of translational and rotational head motions in experimental cerebral concussion[R]. SAE Tech Papers, 710882, 1971.
[8]	Margulies S S, Thibault L E, Gennarelli T A. Physical model simulations of brain injury in the primate[J]. J Biomech, 1990,23(8):823-836.
[9]	Otte D. Severity and mechanism of head impacts in car-to-pedestrian accidents[C]// Proceed Int’l Res Council on Biomechanics of Injury IRCOBI) Conf. 1999,27:329-341.
[10]	Mizuno K, Kajzer J. Head injuries in vehicle-pedestrian impact [R]. SAE Tech Papers, 2000,1:29-40.
[11]	CHEN Yong, YANG Jikuang, XU Wei. A study on head injury risk in car-to-pedestrian collisions using fe-model [R]. SAE Tech Papers, 2009: 1-9.
[12]	PENG Yong, CHEN Yong, YANG Jikuang, et al. A study of pedestrian and bicyclist exposure to head injury in passenger car collisions based on accident data and simulations[J]. Safe Sci, 2012,50(9):1949-1959.
[13]	冯成建, 王富平, 徐臣, 等. 基于车人碰撞事故重建的行人头部动力学响应[J]. 医用生物力学, 2013,28(2):164-170.
	FENG Chengjian, WANG Fuping, XU Chen, et al. Head dynamic response based on reconstruction of vehicle-pedestrian accidents with the video[J]. J Medi Biomech, 2013,28(2):164-170. (in Chinese)
[14]	刘博涵. 汽车风挡玻璃夹层材料的力学特性与吸能机理研究[D]. 北京:清华大学, 2014.
	LIU Bohan. Research on mechanical characteristics and energy absorption mechanism of windscreen inter-layered material[D]. Beijing: Tsinghua University, 2014.(in Chinese)
[15]	WANG Jiawen, WANG Runhao, GAO Wei, et al. Numerical investigation of impact injury of a human head during contact interaction with a windshield glazing considering mechanical failure[J]. Int’l J Impact Engi, 2020: 103577.
[16]	Gadd C. Use of a weighted-impulse criterion for estimating injury hazard[R]. SAE Tech Papers, 660793,1966: 95-100.
[17]	Ommaya A K, Yarnell P, Hirsch A E, et al. Scaling of experimental data on cerebral concussion in sub-human primates to concussion threshold fro man[C]// Proceed 11th Stapp Car Crash Conf. California, USA: Society of Automotive Engineers, 1967:73-80.
[18]	C-NCAP. Management Regulation (2021 Version)[S]. China New Car Assessment Programme. China Automotive Technology and Research Center, 2020.
[19]	Euro-NCAP. Assessment Protocol-Vulnerable Road User Protection (Version 10.0.3)[S]. European New Car Assessment Programme, 2020.
[20]	TASS. MADYMO Human Body Models Manual Release 7.5[M]. Helmand,The Netherlands: TASS, 2013: 88-107.
[21]	Elliott J, Lyons M, Kerrigan J, et al. Predictive capabilities of the MADYMO multi-body pedestrian model: three-dimensional head translation and rotation, head impact time and head impact velocity[J]. P I Mech Eng k-j Mul, 2012,226(K3):266-277.
[22]	YU Chao, WANG Fang, WANG Bingyu, et al. A computational biomechanics human body model coupling finite element and multibody segments for assessment of head/brain injuries in car-to-pedestrian collisions[J]. Int’l J Envi Res Publ Heal, 2020,17(2):492-492.
[23]	Martinez L, Guerra L J, Ferichola G, et al. Stiffness corridors of the European fleet for pedestrian simulation[C]// Proceed 20th ESV, Lyon, France, 2007,No:07-0267.
[24]	Toyota Motor Corporation. THUMS User’s Manual. Toyota Central R&D Labs., Inc., Aichi,Japan, 2011.
[25]	冯成建. 基于典型交通事故的颅脑损伤力学机制研究[D]. 重庆: 第三军医大学, 2013.
	FENG Jiancheng. Research on the mechanism of traumatic brain injury based on typical traffic accident[D]. Chongqing: Third Military Medical University, 2013.(in Chinese)
[26]	NCAC. Finite element model of Honda accord. National Crash Analysis Center Vehicle Model Library, NCAC, 2017[EB / OL]. [2017-04-15]. http://www.ncac.gwu.edu/vml/models.html.
[27]	PENG Yong, YANG Jikuang, Deck C, et al. Finite element modeling of crash test behavior for windshield laminated glass[J]. Int’l J Impact Engi, 2013,57(7):27-35.
[28]	Willinger R, Baumgartner D. Human head tolerance limits to specific injury mechanisms[J]. Int’l J Crashworthiness, 2003,8(6):605-617.
[29]	Raul J S, Baumgartner D, Willinger R, et al. Finite element modelling of human head injuries caused by a fall[J]. Int’l J Legal Med, 2006,120(4):212-218.
[30]	Deck C, Willinger R. Improved head injury criteria based on head FE model[J]. Int’l J Crashworthiness, 2008,13(6):667-678.
[31]	Chawla A, Grover V, Mukherjee S, et al. Car accident reconstruction and head injury correlation[J]. J Chin Instit Engi, 2013,94(2):113-121.
[32]	YAO Jianfeng, YANG Jikuang, Otte D. Investigation of head injuries by reconstructions of real-world vehicle-versus-adult-pedestrian accidents[J]. Safe Sci, 2008,46(7):1103-1114.
[33]	HUANG Jing, PENG Yong, YANG Jikuang, et al. A study on correlation of pedestrian head injuries with physical parameters using in-depth traffic accident data and mathematical models[J]. Accid Anal Preve, 2018,119(10):91-103.
[34]	Takhounts E G, Craig M J, Moorhouse K, et al. Development of Brain Injury Criteria (BrIC)[J]. Stapp Car Crash J, 2013,57:243-266.
