不同类型互通立交匝道上驾驶人心理负荷的差异

doi:10.3969/j.issn.1674-8484.2025.06.004

摘要/Abstract

摘要： 研究了在不同类型的环境复杂的互通立交匝道区域上，驾驶人心理负荷的差异。开展实车试验，收集了驾驶人心率等数据，基于心电双模态指标（心率、心率变异性），构建了心理负荷评估体系。结果显示：相较于一般互通立交匝道，驾驶人在枢纽互通立交匝道的心理负荷更高。在互通立交中，驾驶人的心理负荷在小半径环圈式匝道区域最高，其次是左转半定向式匝道区域，在右转定向式匝道区域最低。驾驶人在枢纽互通场景下更为紧张；相较其他类型的匝道区域，小半径环圈式匝道区域下驾驶人的心理负荷最大，且心理负荷程度与匝道半径呈现显著负相关关系。因此笔者建议：枢纽互通路段应提前设置减速标志。

关键词: 交通工程, 互通立交, 立交匝道, 驾驶行为, 心率指标, 心理负荷

Abstract:

Interchange ramp areas present complex environments where drivers' mental workload varies significantly. The drivers' mental workloads were analyzed while they crossed different interchange ramp types, with the data of driver heart rates being collected by real-vehicle experiments. A mental workload evaluation system was established by using dual-modal electrocardiogram indicators (the HR (heart rate) and the HRV (heart rate variability)). The results show that drivers experience higher mental workload in hub interchange ramps than that in general interchange ramps. Within interchanges, the mental workload is the highest in small-radius loop ramps, followed by the left-turn semi-directional ramps, and the lowest in right-turn directional ramps. Drivers also exhibit greater tension in hub interchange scenarios. The mental workload demonstrates a significant negative correlation with ramp radius. The authors recommend installing deceleration signs in advance on hub interchange sections.

Key words: traffic engineering, interchange, interchange ramps, driving behaviors, heart rate indicators, psychological load

中图分类号:

U491.2

梁雨琛, 段伟建, 张诗, 朱兴林, 徐进. 不同类型互通立交匝道上驾驶人心理负荷的差异[J]. 汽车安全与节能学报, 2025, 16(6): 851-858.

LIANG Yuchen, DUAN Weijian, ZHANG Shi, ZHU Xinglin, XU Jin. Mental workload variations of drivers navigating over the differential types of interchange ramps[J]. Journal of Automotive Safety and Energy, 2025, 16(6): 851-858.

图/表 14

参考文献 17

[1]	林声, 刘建蓓, 阎莹, 等. 基于驾驶负荷的山区高速公路长大下坡路段安全性评价模型[J]. 交通运输工程学报, 2013, 13(6): 99-106.
	LIN Sheng, LIU Jianbei, YAN Ying, et al. Safety evaluation model of long-steep downgrade section for mountain highway based on driving workload[J]. J Traff Transport Engi, 2013, 13(6): 99-106. (in Chinese)
[2]	郭玉洁, 郭唐仪, 吴军. 基于因子分析的城市隧道驾驶人心理负荷变化规律[J]. 交通运输研究, 2021, 7(2): 91-99.
	GUO Yujie, GUO Tangyi, WU Jun. Change regularity of drivers' psychological load in urban tunnels based on factor analysis[J]. Transport Res, 2021, 7(2):1-99. (in Chinese)
[3]	胡江碧, 何禄诚, 王荣华. 高速公路互通立交安全性评价研究综述[J]. 中国公路学报, 2020, 33(7): 17-28. doi: 10.19721/j.cnki.1001-7372.2020.07.002
	HU Jiangbi, HE Lucheng, WANG Ronghua. Review of safety evaluation of freeway interchange[J]. Chin J Highw Transport, 2020, 33(7): 17-28 (in Chinese) doi: 10.19721/j.cnki.1001-7372.2020.07.002
[4]	易刚, 杨迪, 矫成武, 等. 高密度立交出入口区段车流量对驾驶人精神负荷影响[J]. 科学技术与工程, 2024, 24(3): 1224-1233.
	YI Gang, YANG Di, JIAO Chengwu, et al. Influence of traffic flow in the entrance and exit section of high density interchange on the driver’s mental load[J]. Sci Tech Engi, 2024, 24(3): 1224-1233. (in Chinese)
[5]	阎莹, 王虹婷, 万利, 等. 基于因子分析与熵值法的不同隧道侧向宽度下驾驶负荷模型[J]. 中国公路学报, 2023, 36(2): 190-202. doi: 10.19721/j.cnki.1001-7372.2023.02.016
	YAN Ying, WANG Hongting, WAN Li, et al. Driver load model under different tunnel lateral widths based on factor analysis and entropy method[J]. Chin J Highw Transport, 2023 36(2): 190-202. (in Chinese) doi: 10.19721/j.cnki.1001-7372.2023.02.016
[6]	徐进, 陈正欢, 廖祺硕, 等. 基于心电数据的高速公路高密度互通立交驾驶负荷研究[J]. 吉林大学学报: 工学版, 2024, 54(10): 2807-2818.
	XU Jin, CHEN Zhenghuan, LIAO Qishuo, et al. Mental workload of drivers at high-density interchanges of freeways based on ECG data[J]. J Jilin Univ: Engi Ed, 2024, 54(10): 2807-2818. (in Chinese)
[7]	陈正欢. 高密度互通立交驾驶人精神负荷与安全风险研究[D]. 重庆: 重庆交通大学, 2023.
	CHEN Zhenghuan. Study on driver’s mental workload and safety risks of high-density interchanges[D]. Chongqing: Chongqing Jiaotong University, 2023. (in Chinese)
[8]	孙雨斐. 高速公路互通式立交路段对驾驶员工作负荷的影响研究[D]. 西安: 长安大学, 2021.
	SUN Yufei. Study on the impact of freeway interchange sections on driving workload[D]. Xian: Chang’an University, 2021. (in Chinese)
[9]	王畅, 牛津, 马万良, 等. 真实驾驶过程驾驶人分心特性个体差异[J]. 科学技术与工程, 2024, 24(24): 10538-10544.
	WANG Chang, NIU jin, MA Wanliang, et al. Individual differences of driver distraction characteristics during real driving[J]. Sci Tech Engi, 2024, 24(24): 10538-10544. (in Chinese)
[10]	徐进, 孙子秋, 冯忠祥, 等. 互通立交直连式右转匝道小客车运行特性[J]. 中国科技论文, 2022, 17(8): 844-850.
	XU Jin, SUN Ziqiu, FENG Zhongxiang, et al. Driving behavior of passenger car on direct-connected right-turn ramp of interchange[J]. China Scipaper, 2022, 17(8): 844-850. (in Chinese)
[11]	邓皓天, 王程瑜, 朱兴林, 等. 高速公路互通立交小半径匝道车辆行驶轨迹特征分析[J]. 中国科技论文, 2024, 19(9): 1027-1036.
	DENG Haotian, WANG Chengyu, ZHU Xinglin, et al. Analysis of vehicle trajectory characteristics on small radius ramps of freeway interchanges[J]. China Sci Paper, 2024, 19(9): 1027-1036. (in Chinese)
[12]	张敏, 陈嘉乐, 张驰, 等. 基于航拍数据的高速公路出口环圈匝道行车安全性评价方法[J]. 长安大学学报: 自然科学版, 2024, 44(4): 108-118.
	ZHANG Min, CHEN Jiale, ZHANG Chi, et al. Aerial photography data-based method for evaluating traffic safety of highway exit loop ramps[J]. J Changan Univ: Nat Sci, 2024, 44(4): 108-118. (in Chinese)
[13]	丁瑞, 刘俊, 蒋艳. 基于车辆加速度数据的互通立交匝道驾驶风险分析[J]. 交通信息与安全, 2021, 39(1): 17-25.
	DING Rui, LIU Jun, JIANG Yan, et al. Driving risks of interchange ramps based on vehicle acceleration data[J]. J Transport Info Safe, 2021, 39(1): 17-25. (in Chinese)
[14]	张玉, 刘俊, 林伟, 等. 互通立交迂回式匝道纵向加速度特性[J]. 科学技术与工程, 2021, 21(26): 11411-11418.
	ZHANG Yu, LIU Jun, LIN Wei, et al. Longitudinal acceleration characteristics of round about ramps of interchange[J]. Sci Tech Engi, 2021, 21(26): 11411-11418. (in Chinese)
[15]	陈正欢, 刘俊, 张河山, 等. 基于实车路试的迂回式立交匝道小客车行驶速度特征研究[J]. 科学技术与工程, 2022, 22(4): 1669-1677.
	CHEN Zhenghuan, LIU Jun, ZHANG Heshan, et al. Investigation of speed behavior of passenger cars on detour ramp based on field operational test[J]. Sci Tech Engi, 2022, 22(4): 1669-1677. (in Chinese)
[16]	刘伟. 心脏神经症患者心率变异性相关分析[J]. 昆明医学院学报, 2011, 32(8): 133-134.
	LIU Wei. Correlation Analysis of heart rate variability in patients with cardiac neurosis[J]. J Kunming Med Univ, 2011, 32(8): 133-134. (in Chinese)
[17]	罗杰, 程鹏, 陆百川, 等. 基于驾驶员心率变异性的光学隧道驾驶负荷分析[J]. 重庆理工大学学报: 自然科学, 2019, 33(8): 44-50, 64.
	LUO Jie, CHENG Peng, LU Baichuan, et al. Analysis of driver workload on optical tunnel based on driver HRV[J]. J Chongqing Univ: Nat Sci, 2019, 33(8): 44-50, 64. (in Chinese)

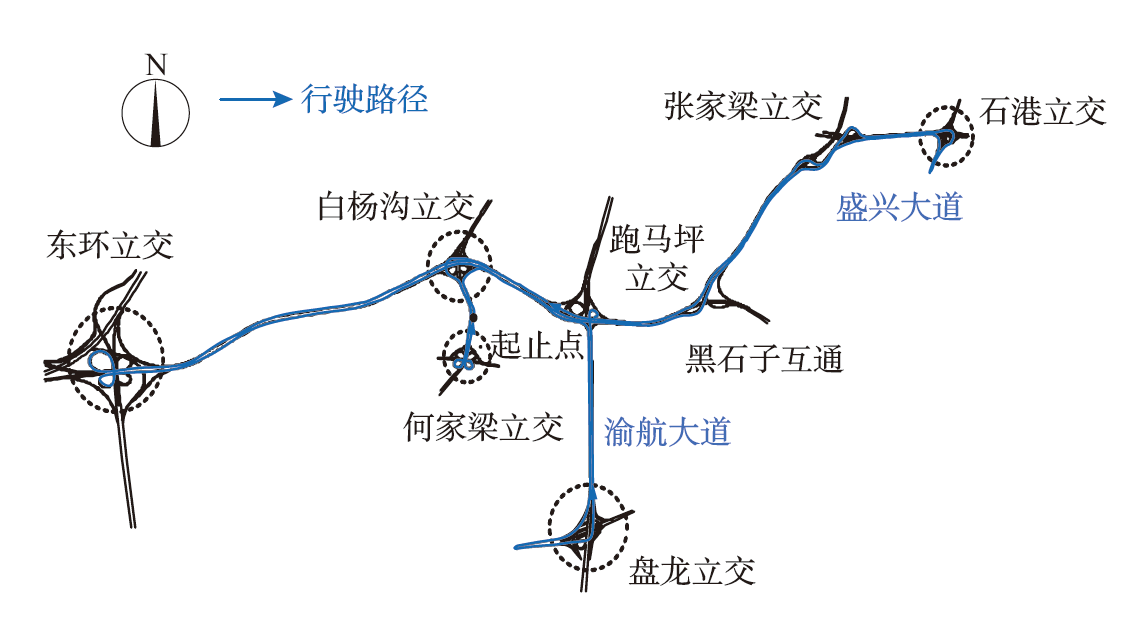

立交功能	结构形式	名称	匝道区域代码	匝道形式
枢纽互通	变形苜蓿叶形(对称双环式)	白杨沟立交	BY	右转定向式匝道
	变形苜蓿叶形(对称双环式)	白杨沟立交	BZ	左转半定向式匝道
	完全苜蓿叶形	东环立交	DX1	小半径环圈式匝道
	完全苜蓿叶形	东环立交	DX2	小半径环圈式匝道
一般互通	变形苜蓿叶形(单环式)	石港立交	SY	右转定向式匝道
		石港立交	SZ	左转半定向式匝道
		盘龙立交	TY	右转定向式匝道
		盘龙立交	TZ	左转半定向式匝道
	完全苜蓿叶形	何家梁立交	HX1	小半径环圈式匝道
	完全苜蓿叶形	何家梁立交	HX2	小半径环圈式匝道

立交功能	结构形式	名称	匝道区域代码	匝道形式
枢纽互通	变形苜蓿叶形(对称双环式)	白杨沟立交	BY	右转定向式匝道
	变形苜蓿叶形(对称双环式)	白杨沟立交	BZ	左转半定向式匝道
	完全苜蓿叶形	东环立交	DX1	小半径环圈式匝道
	完全苜蓿叶形	东环立交	DX2	小半径环圈式匝道
一般互通	变形苜蓿叶形(单环式)	石港立交	SY	右转定向式匝道
		石港立交	SZ	左转半定向式匝道
		盘龙立交	TY	右转定向式匝道
		盘龙立交	TZ	左转半定向式匝道
	完全苜蓿叶形	何家梁立交	HX1	小半径环圈式匝道
	完全苜蓿叶形	何家梁立交	HX2	小半径环圈式匝道

指标	指标平均值/ ms
	枢纽互通			一般互通
	右转定向式匝道区域	左转半定向式匝道区域	小半径环圈式匝道区域	右转定向式匝道区域	左转半定向式匝道区域	小半径环圈式匝道区域

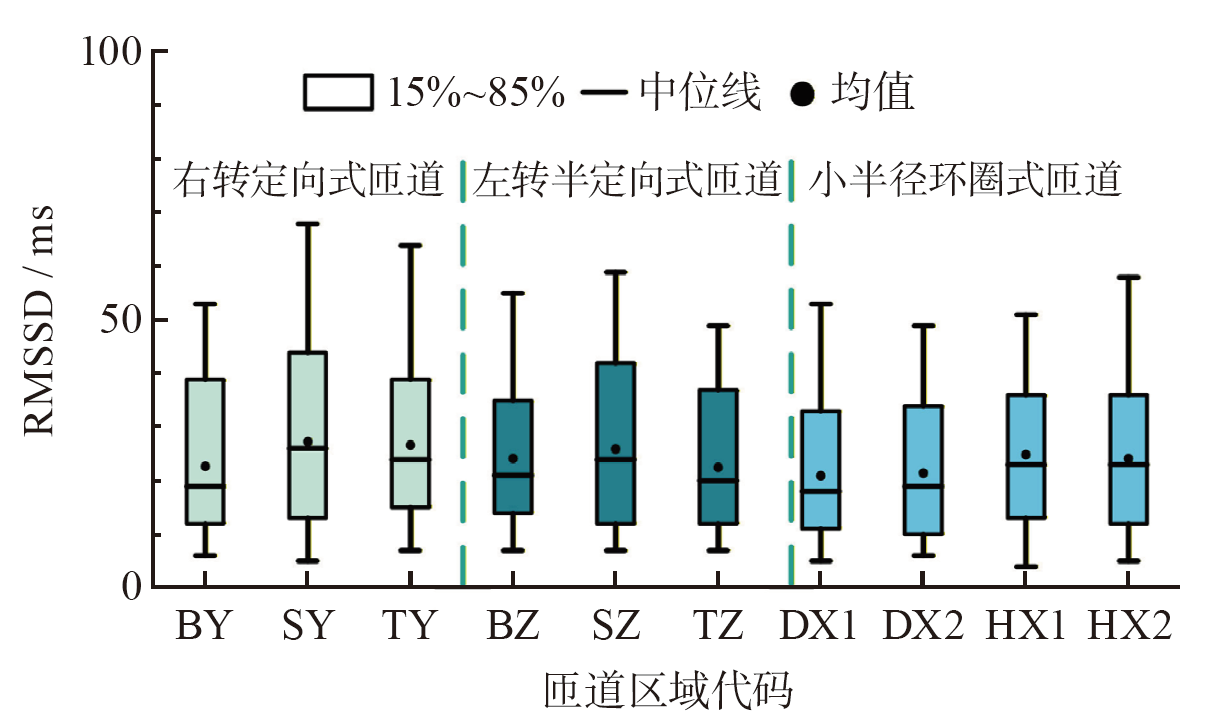

RMSSD	23.12	27.43	24.50	24.57	21.45	24.81

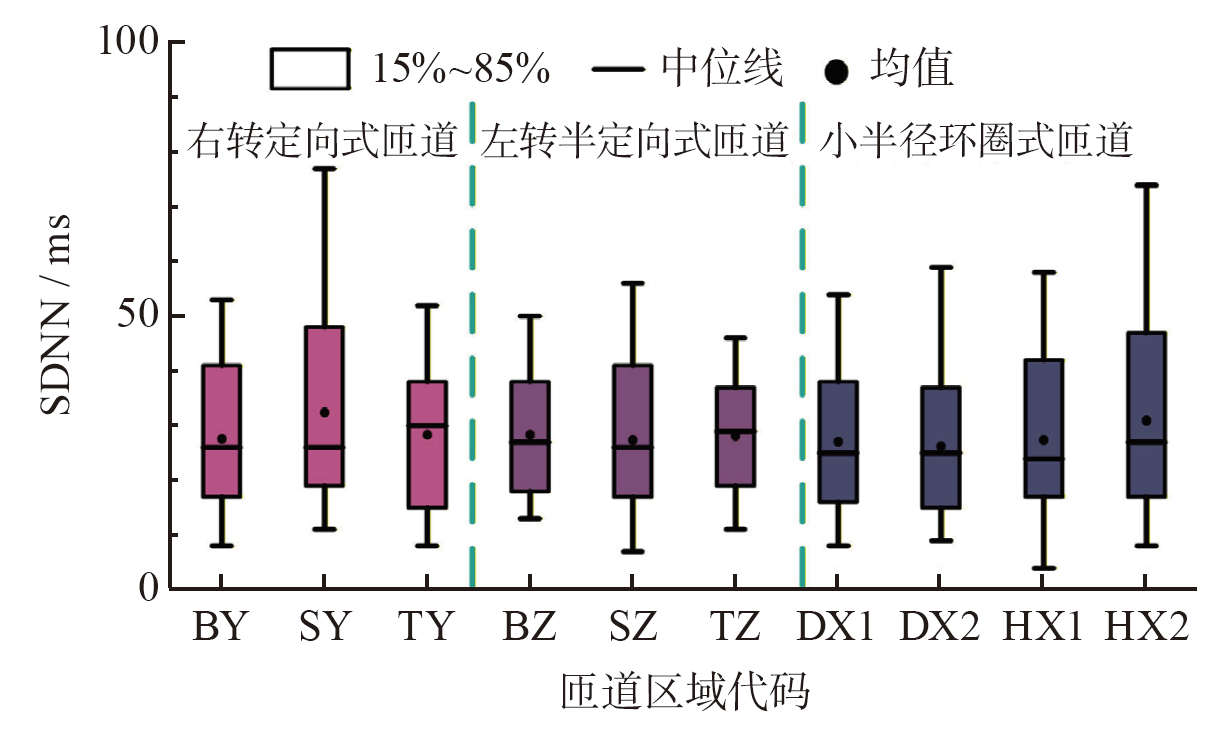

SDNN	27.63	28.34	26.65	30.20	27.73	29.14

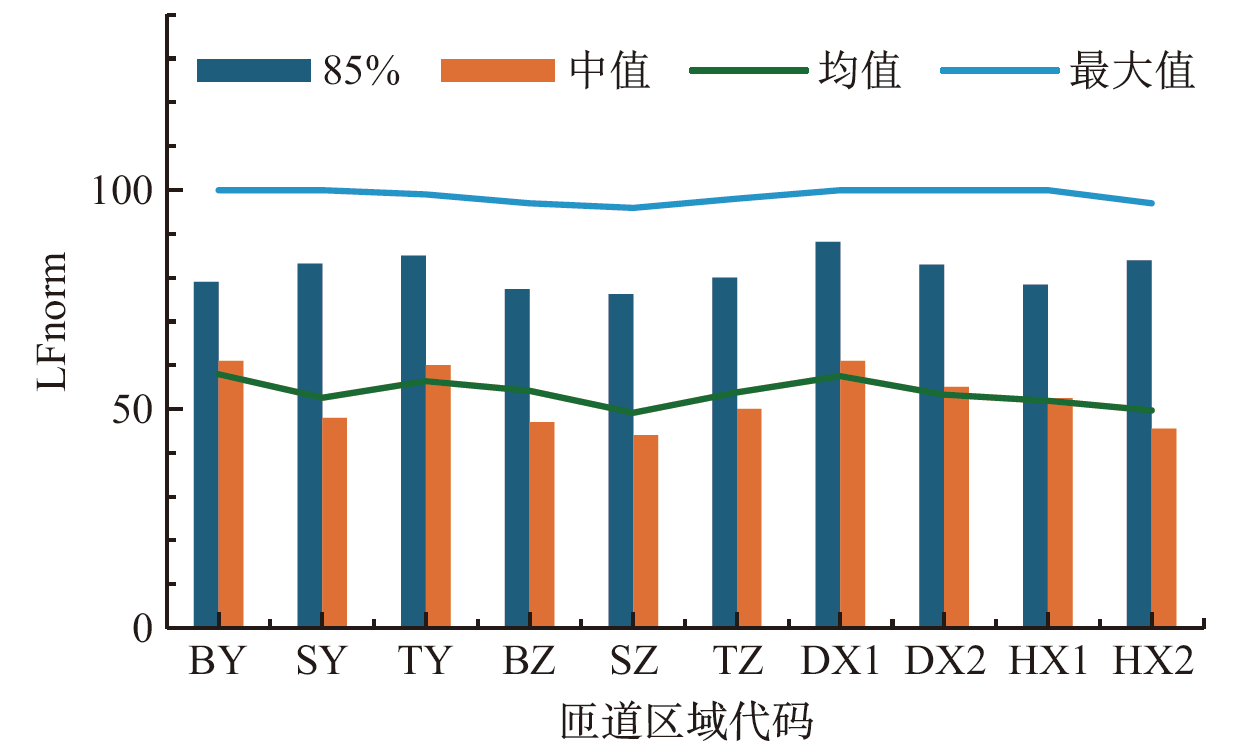

LFnorm	57.96	54.18	55.34	54.47	51.49	50.78

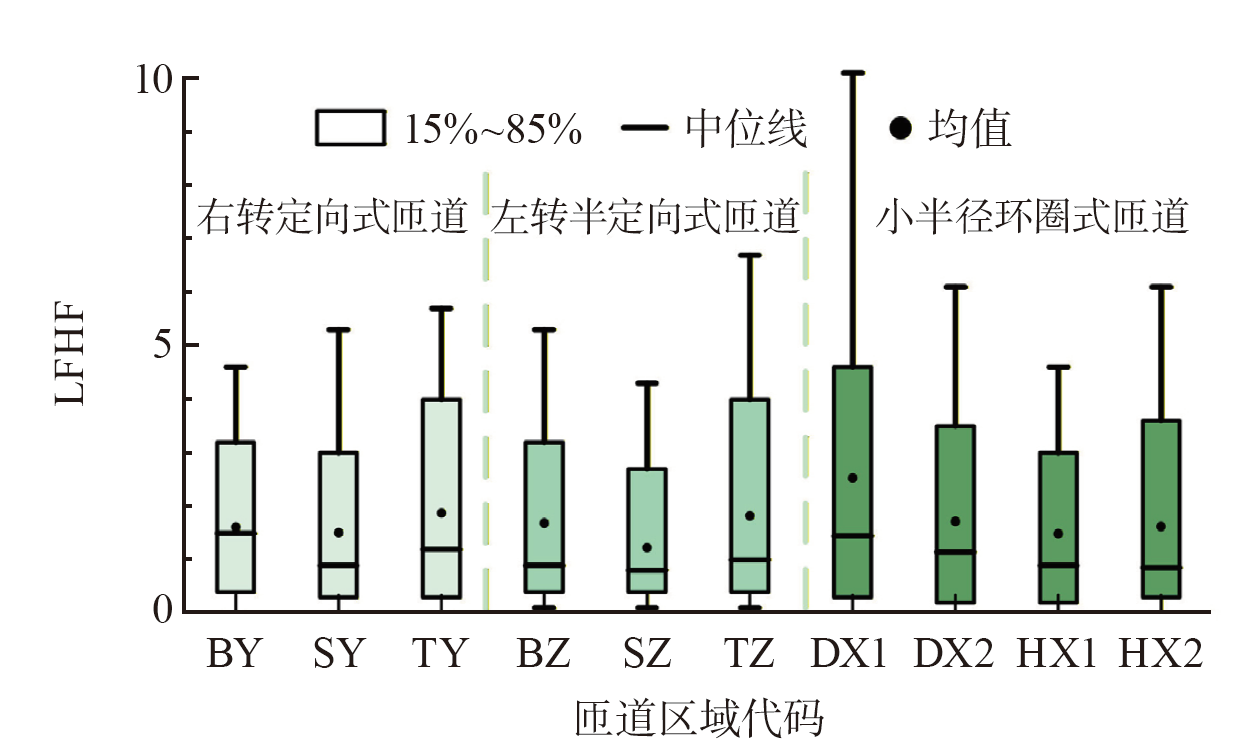

LFHF	1.56	1.51	1.73	1.55	1.44	1.29

指标	指标平均值/ ms
	枢纽互通			一般互通
	右转定向式匝道区域	左转半定向式匝道区域	小半径环圈式匝道区域	右转定向式匝道区域	左转半定向式匝道区域	小半径环圈式匝道区域
RMSSD	23.12	27.43	24.50	24.57	21.45	24.81
SDNN	27.63	28.34	26.65	30.20	27.73	29.14
LFnorm	57.96	54.18	55.34	54.47	51.49	50.78
LFHF	1.56	1.51	1.73	1.55	1.44	1.29
