考虑动能回收的电动客车长下坡制动盘温升状态

doi:10.3969/j.issn.1674-8484.2023.03.002

汽车安全与节能学报 ›› 2023, Vol. 14 ›› Issue (3): 274-281.DOI: 10.3969/j.issn.1674-8484.2023.03.002

考虑动能回收的电动客车长下坡制动盘温升状态

李子添¹(), 李彬¹^,^*(), 霍珅扬¹, 张晶², 吕小侠³

1.长安大学汽车学院，西安 710064，中国
2.宝鸡吉利汽车部件有限公司，宝鸡 721300，中国
3.北京小米移动软件有限公司，北京 100085，中国

收稿日期:2022-09-14 修回日期:2023-04-25 出版日期:2023-06-30 发布日期:2023-06-29
通讯作者: *李彬(1982—)，男(汉)，陕西，副教授。E-mail: binli@chd.edu.cn。
作者简介:李子添(2000—)，男(汉)，广东，大学本科生。E-mail: KAWHI86@outlook.com。
基金资助:
国家重点研发计划(2022YFE0102700);长安大学中央高校基本科研业务费专项资金(300102223208)

Temperature rising state of the brake disc of electric bus on long-downhill considering kinetic energy recovery

LI Zitian¹(), LI Bin¹^,^*(), HUO Shenyang¹, ZHANG Jing², LÜ Xiaoxia³

1. School of Automobile, Chang ‘an University, Xian 710064, China
2. Baoji Geely Auto Parts Co. LTD, Baoji 721300, China
3. Beijing Xiaomi Mobile Software Co. LTD, Beijing 100085, China

Received:2022-09-14 Revised:2023-04-25 Online:2023-06-30 Published:2023-06-29

摘要/Abstract

摘要：

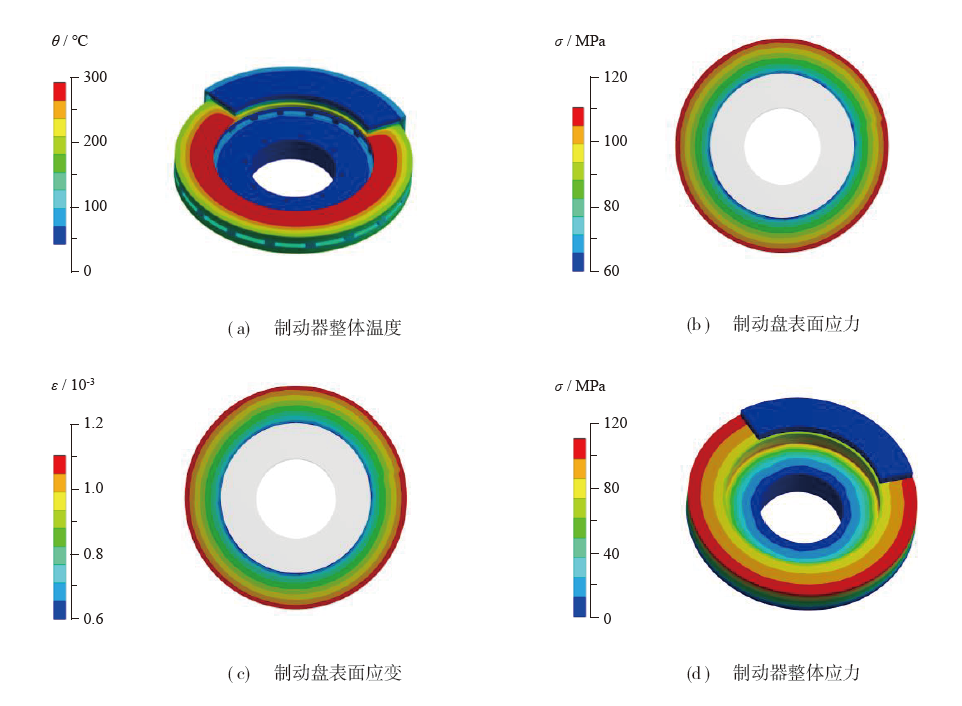

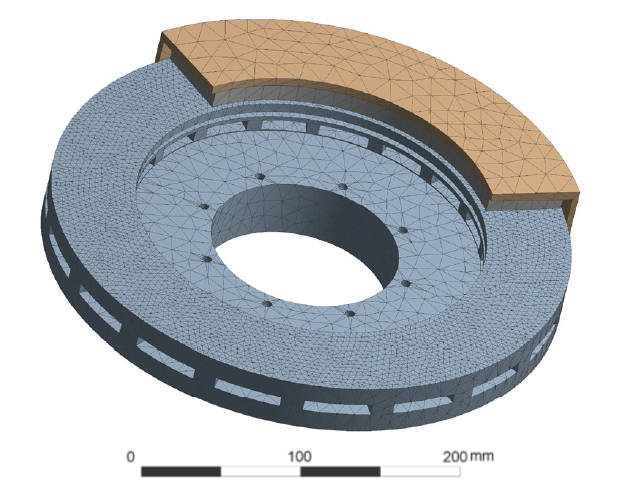

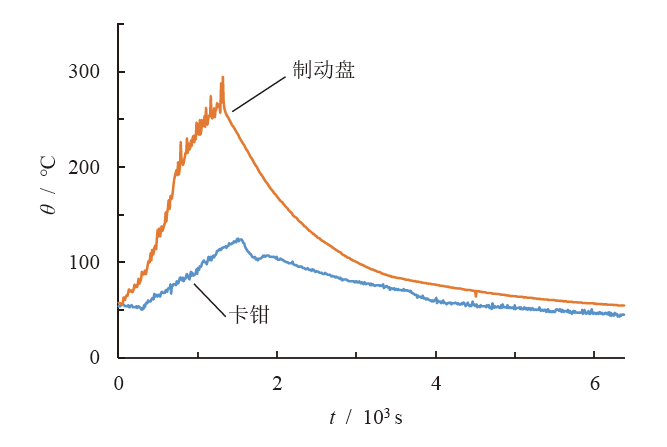

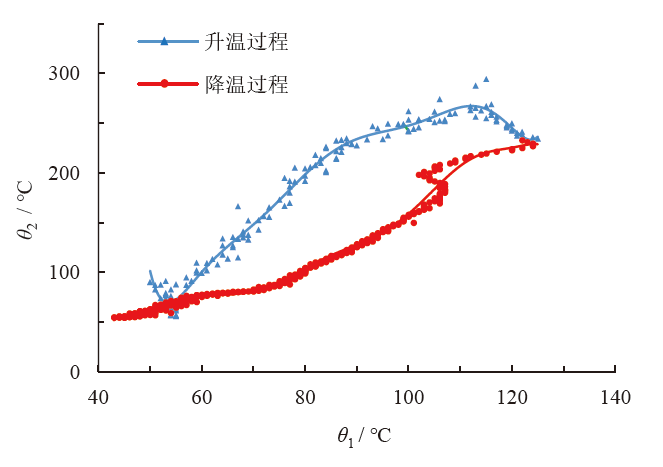

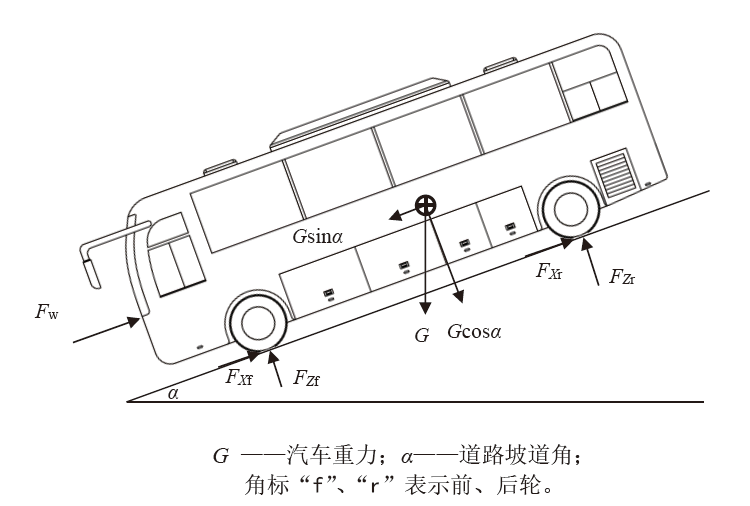

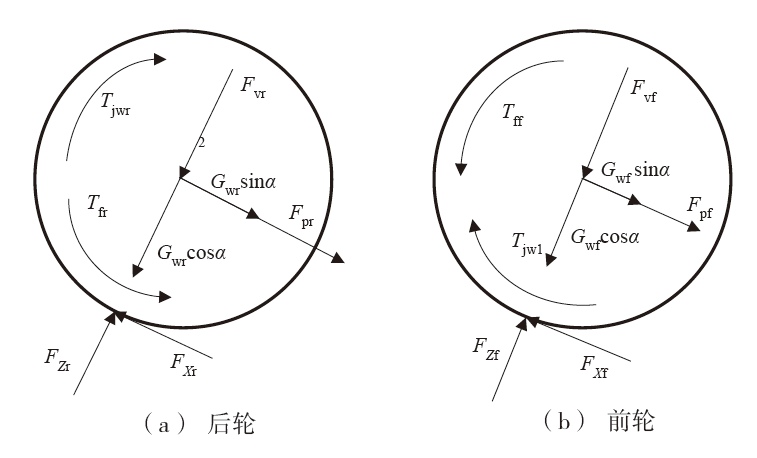

为了提高纯电动客车的安全性，研究了对中央驱动式纯电动客车，在长下坡工况制动盘温升过高的问题。采用模拟仿真和实际道路试验，对某电动客车的制动器和制动卡钳温升进行相关性研究，基于Ansys Workbench软件建立制动盘的热力耦合模型，利用Matlab根据实验数据拟合出制动钳与制动盘温升的相关函数。结果表明：该中央驱动式纯电动客车利用电机反拖持续制动坡度约为3.99%，坡度更大时需要行车制动参与。制动卡钳和制动盘温升相关系数高达0.9，从而，制动卡钳温度可用于监测制动盘热衰退和安全预警。这些结果，可为纯电动客车长下坡制动安全提供数据支撑。

关键词: 纯电动客车, 制动动能回收, 长下坡, 温升, 有限元分析

Abstract:

The high brake-disc temperature-rise in long downhill conditions was investigated for pure electric buses with central drive to improve the safety of pure electric buses. The simulations and the real road tests were used to investigate the temperature correlation between the ventilated disc brakes and the brake calipers of a certain vehicle model. A thermodynamic coupling model of brake disc was established based on Ansys Workbench software, and the temperature fitting function between brake caliper and brake disc was fitted by Matlab based on the experimental data. The results show that the continuous braking gradient is about 3.99% by anti-drag braking, and the service braking involvement is required when the gradient is larger. Brake calipers and disc temperature rise correlation coefficients is up to 0.9. That means that brake caliper temperature is used to monitor the brake-disc thermal decay for safety warning. These results provide data support for the long-downhill braking safety for pure electric buses.

Key words: pure electric buses, brake kinetic energy recovery, long-downhill, temperature rise, finite element analysis

中图分类号:

U467.1+4

李子添, 李彬, 霍珅扬, 张晶, 吕小侠. 考虑动能回收的电动客车长下坡制动盘温升状态[J]. 汽车安全与节能学报, 2023, 14(3): 274-281.

LI Zitian, LI Bin, HUO Shenyang, ZHANG Jing, LÜ Xiaoxia. Temperature rising state of the brake disc of electric bus on long-downhill considering kinetic energy recovery[J]. Journal of Automotive Safety and Energy, 2023, 14(3): 274-281.

图/表 11

参考文献 18

[1]	陈勇, 李聪聪, 郭立书, 等. 纯电动汽车电液复合制动能量回收策略研究[J]. 河北工业大学学报, 2022, 51(1): 7-14+20.
	CHEN Yong, LI Congcong, GUO Lishu, et al. Research on energy recovery strategy of electro-hydraulic composite braking for pure electric vehicle[J]. J Hebei Univ of Tech, 2022, 51(1): 7-14+20. (in Chinese)
[2]	赵轩, 余强, 袁晓磊, 等. 重型货车长下坡行驶制动器温升模型的研究[J]. 汽车工程, 2015, 37(4): 472-475.
	ZHAO Xuan, YU Qiang, YUAN Xiaolei, et al. Study on temperature rise model of brake for long downhill travel of heavy trucks[J]. Autom Energ, 2015, 37(4): 472-475. (in Chinese)
[3]	袁燕, 胡昌斌, 沈金荣. 山区公路长下坡路段货车鼓式制动器温升规律数值分析[J]. 福州大学学报(自然科学版), 2009, 37(6): 895-904+928.
	YUAN Yan, HU Changbin, SHEN Jinrong. Numerical analysis of temperature rise law of truck drum brake in long downhill section of mountain highway[J]. J Fuzhou Univ (Nat Sci), 2009, 37(6): 895-904+928. (in Chinese)
[4]	刘宏伟. 国产某机型风电机组实现高速刹车温度监测功能研究[J]. 能源科技, 2020, 18(4): 64-68.
	LIU Hongwei. Research on high-speed brake temperature monitoring function of a domestic wind turbine[J]. Energ Tech, 2020, 18(4): 64-68. (in Chinese)
[5]	史召峰, 邢刚, 许庆. 卡车制动系统温度监控系统设计[J]. 科技风, 2018, 31(20): 148+152.
	SHI Zhaofeng, XING Gang, XU Qing. Design of temperature monitoring system for truck brake system[J]. Techwind, 2018, 31(20): 148+152. (in Chinese)
[6]	Aviles R, Hennequet G. Low Frequency vibrations in disc brakes at high car speed PartⅡ: Mathematical model and simulation[J]. Int’l J Vehi Des, 1995, 16(6): 556-569.
[7]	Daniel T. Influence of material properties on sliding contact braking applications[J]. Wear, 2004, 257: 451-460. doi: 10.1016/j.wear.2004.01.009 URL
[8]	吴昊. 汽车通风式盘式制动器热—结构耦合分析及结构的优化设计[D]. 广州: 华南理工大学, 2016.
	WU Hao. Thermal-structural coupling analysis and structural optimization design of automotive ventilated disc brake[D]. Guangzhou: South China University of Technology, 2016. (in Chinese)
[9]	罗庆生, 韩宝玲. 汽车摩擦片摩擦热分布规律的分析与研究[J]. 润滑与密封, 2004, 39(2): 20-22+26.
	LUO Qingsheng, HAN Baoling. Analysis and research on friction heat distribution of automobile friction plate[J]. Lubr Sealing, 2004, 39(2): 20-22+26. (in Chinese)
[10]	苏海赋. 盘式制动器热机耦合有限元分析[D]. 广州: 华南理工大学, 2011.
	SU Haifu. Thermal-mechanical coupling finite element analysis of disc brake[D]. Guangzhou: South China University of Technology, 2011. (in Chinese)
[11]	张雪松, 王兆恒, 王长通. 热结构耦合状态下盘式制动器材料参数对耦合场的影响[J]. 中原工学院学报, 2022, 33(1): 34-39.
	ZHANG Xuesong, WANG Zhaoheng, WANG Changtong. Influence of material parameters of disc brake on coupling field under thermal structure coupling state[J]. J Zhongyuan Inst of Tech, 2022, 33(1): 34-39. (in Chinese)
[12]	郑腾师. 基于ANSYS的盘式制动器热—机耦合仿真特性与分析[D]. 西安: 长安大学, 2021.
	ZHENG Tengshi. Thermal-mechanical coupling simulation characteristics and analysis of disc brake based on ANSYS[D]. Xi’an: Chang’an University, 2021. (in Chinese)
[13]	王沅, 李玉龙, 李军霞. 盘式制动器热力耦合分析及其温度试验[J]. 煤炭技术, 2019, 38(1): 145-149.
	WANG Yuan, LI Yulong, LI Junxia. Thermal-mechanical coupling analysis and temperature test of disc brake[J]. Coal Tech, 2019, 38(1): 145-149. (in Chinese)
[14]	赵崇, 王成龙, 王睿楠, 等. 基于ABAQUS的通风式制动盘连续制动的热性能仿真研究[J]. 传动技术, 2021, 35(3): 3-7+29.
	ZHAO Chong, WANG Chenglong, WANG Ruinan, et al. Thermal performance simulation of ventilated disc continuous braking based on ABAQUS[J]. Transmi Tech, 2021, 35(3): 3-7+29. (in Chinese)
[15]	孟祥宝. 基于ANSYS的制动器摩擦生热分析[D]. 延吉: 延边大学, 2014.
	MENG Xiangbao. Thermal analysis of brake friction based on ANSYS[D]. Yanji: Yanbian University, 2014. (in Chinese)
[16]	芦明阳. 通风盘式制动器摩擦生热仿真研究[D]. 太原: 太原科技大学, 2019.
	LU Mingyang. Simulation study on friction heat generation of ventilated disc brake[D]. Taiyuan: Taiyuan University of Science and Technology, 2019. (in Chinese)
[17]	罗吉安, 周星越. 有限单元法分析中应力奇异问题的研究[J]. 廊坊师范学院学报(自然科学版), 2021, 21(4): 42-45+50.
	LUO Jian, ZHOU Xingyue. Study on stress singularity in finite element analysis[J]. J Langfang Normal University (Nat Sci), 2021, 21(4): 42-45+50. (in Chinese)
[18]	刘利敏, 吴敏丽. 基于Matlab的最小二乘曲线拟合[J]. 福建电脑, 2019, 35(8): 9-12.
	LIU Limin, WU Minli. Matlab-based least squares curve fitting[J]. Fujian Computer, 2019, 35(8): 9-12. (in Chinese)

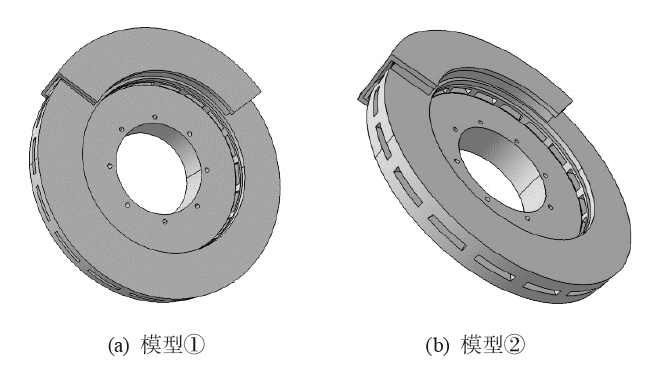

环境温度，θ₀	22 ℃	摩擦因数	0.4±0.06
制动器效能因数	0.65	内制动衬片半径	110 mm
制动效率	0.95	制动器有效制动半径，	147 mm
制动盘直径	377 mm	制动盘与摩擦片间隙	0.7 mm
制动盘厚度	45 mm

环境温度，θ₀	22 ℃	摩擦因数	0.4±0.06
制动器效能因数	0.65	内制动衬片半径	110 mm
制动效率	0.95	制动器有效制动半径，	147 mm
制动盘直径	377 mm	制动盘与摩擦片间隙	0.7 mm
制动盘厚度	45 mm

路面类型	f / 10^-3
良好的沥青	10~18
一般的沥青	18~20
碎石	20~25
良好的卵石	25~30
坑洼的卵石	35~50
压紧干燥土路	25~35
压紧雨后土路	50~150
结冰	15~30
压紧雪道	30~50

路面类型	f / 10^-3
良好的沥青	10~18
一般的沥青	18~20
碎石	20~25
良好的卵石	25~30
坑洼的卵石	35~50
压紧干燥土路	25~35
压紧雨后土路	50~150
结冰	15~30
压紧雪道	30~50

车型	A / m²	C_D
典型轿车	1.7~2.1	0.30~0.41
货车	3.0~7.0	0.60~1.00
客车	4.0~7.0	0.50~0.80
