缸内直喷氢燃料内燃机技术发展及趋势

doi:10.3969/j.issn.1674-8484.2021.03.001

汽车安全与节能学报 ›› 2021, Vol. 12 ›› Issue (3): 265-278.DOI: 10.3969/j.issn.1674-8484.2021.03.001

• 综述与展望 • 下一篇

缸内直喷氢燃料内燃机技术发展及趋势

孙柏刚(), 包凌志, 罗庆贺

北京理工大学机械与车辆学院,北京 100081,中国

收稿日期:2021-09-18 出版日期:2021-09-30 发布日期:2021-10-08
作者简介:孙柏刚（1969—）,男（汉族）,黑龙江,教授。Email: Sunbg@bit.edu.cn。北京理工大学教授,博士生导师,能源与动力工程系主任。主要从事氢燃料内燃机与燃料电池方面的研究开发工作。主持承担国家自然科学基金、863、科技部国际合作及总装备部、国防科工局等项目20余项,发表学术论文60余篇,出版学术著作3部。获中国汽车工业技术奖1项,国防科技进步二等奖1项。主持建立了中国国内首套氢燃料内燃机技术开发平台,开发了第1辆氢内燃机样车,在氢能应用领域进行了开创性的工程实践探索,在氢气存储、氢气供应与喷射、氢能安全、氢内燃机整机及整车开发方面具有丰富的应用与开发经验。
Prof. SUN Baigang He is a professor and a doctoral supervisor of the Beijing Institute of Technology, the Head of Department of Energy and Power Engineering, mainly engaged in the research and development of hydrogen-fueled internal combustion engine and fuel cell. He is responsible for more than 20 projects of National Natural Science Foundation of China, 863, International Cooperation of Ministry of Science and Technology, Ministry of General Armaments, National Defense Bureau of Science and Industry, etc. He has published more than 60 academic papers and 3 academic books. He was awarded the Technology Award of China Automobile Industry and the Second Prize of National Defense Science and Technology Progress. He presided over the establishment of the first hydrogen fuel internal combustion engine technology development platform in China, developed the first hydrogen internal combustion engine prototype, and carried out pioneering engineering practice exploration in the field of hydrogen energy application, with rich application and development experience in hydrogen storage, hydrogen supply and injection, hydrogen energy safety, hydrogen internal combustion engine and vehicle development.

Development and trends of direct injection hydrogen internal combustion engine technology

SUN Baigang(), BAO Lingzhi, LUO Qinghe

School of Mechanical Engineering, Beijing institute of Technology, Beijing 100081, China

Received:2021-09-18 Online:2021-09-30 Published:2021-10-08

摘要/Abstract

摘要：

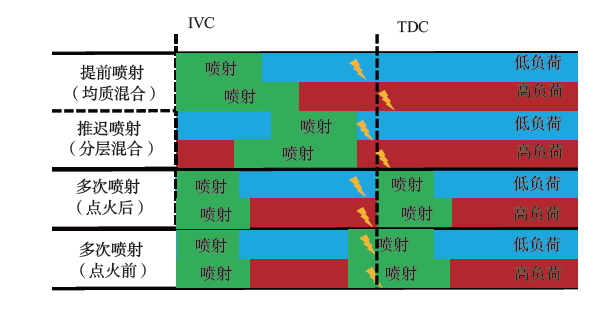

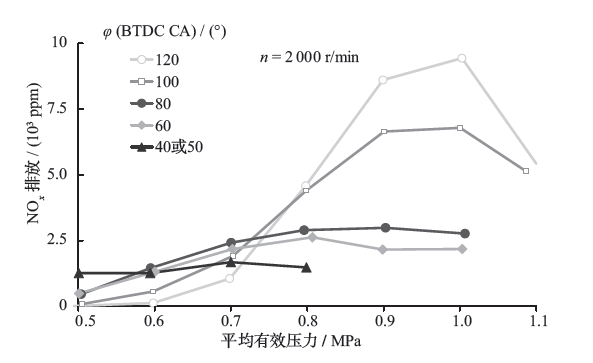

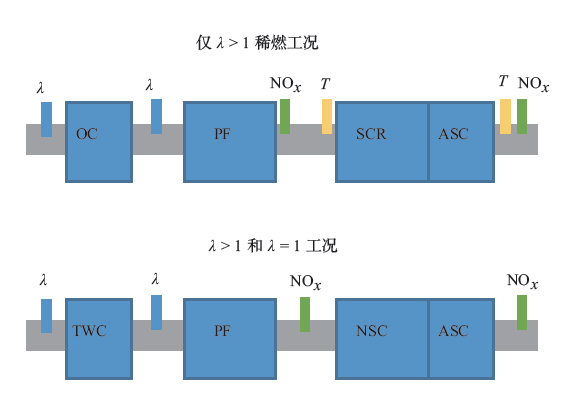

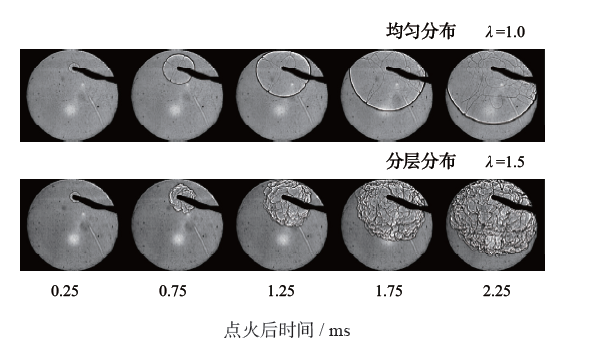

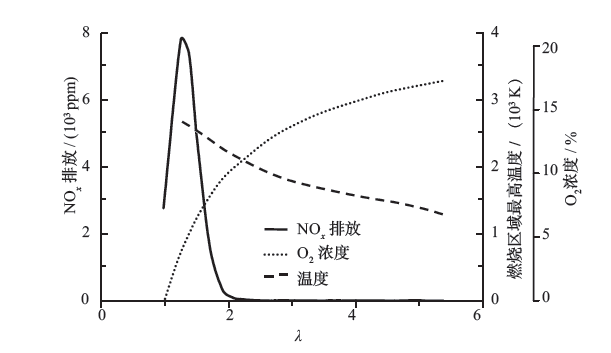

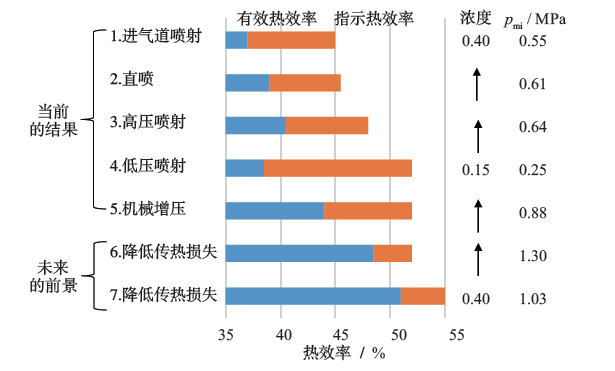

氢能是实现碳达峰与碳中和的最佳能源形式,也被誉为21世纪的终极能源。氢内燃机具有零碳排放、高效率、高可靠性和低成本的显著优势,成为氢能应用的重要方向之一。缸内直喷氢内燃机可有效抑制回火,并显著提高功率密度,是氢内燃机近阶段的发展热点,引发了国内外汽车企业和研究机构的高度关注。该文系统总结了各类氢内燃机的优缺点以及相关直喷氢内燃机的技术途径及其达到的技术指标,采用废气涡轮增压可使氢内燃机的功率密度达到80 kW/L,采用高压缩比、稀薄燃烧可使有效热效率提升至42% ~ 45%,采用废气再循环技术等可使氢内燃机的唯一污染物NO_x降低至0.5 g/kWh,并具有达到近零排放的潜力。该文也针对下一代缸内直喷氢内燃机所带来的新问题,从混合气形成、燃烧特性、燃烧模式、有效热效率提升、NO_x控制方法及后处理器等技术角度分析了开发现状及技术水平,探讨了近零排放条件下有效热效率达到50%的未来技术发展趋势。

关键词: 氢内燃机, 直接喷射, NO_x排放, 有效热效率, 稀薄燃烧, 后处理

Abstract:

Hydrogen energy is the best energy carrier to achieve carbon peak and carbon neutrality, and is also regarded as the ultimate energy source in the 21st century. The hydrogen internal combustion engine has the significant advantages of zero carbon emission, high efficiency, high reliability and low cost, which makes it one of the important directions for hydrogen energy applications. The direct-injection hydrogen internal combustion engine, which can effectively suppress backfire and significantly increase power density, is a hot topic in the recent stage of development of hydrogen engine. It has attracted much attention from traditional automobile companies and research institutes at home and abroad. This paper systematically summarizes the advantages and disadvantages of various types of hydrogen internal combustion engines as well as the technical approaches and the details of the relevant hydrogen engines. The utilize of exhaust gas turbocharging can make the power density of hydrogen internal combustion engine reach 80 kW/L. High compression ratio and lean burn combustion can reach the brake thermal efficiency to 42% ~ 45%, and the exhaust gas recirculation technology can reduce the NO_x pollutant of hydrogen engine less than 0.5 g/kWh. The paper also addresses the new issues posed by the next-generation direct-injection hydrogen engine, analyzing the current state of development and the technical details including mixture formation, combustion characteristics, combustion mode, effective thermal efficiency improvement, NO_x control methods and post-processors. We also discuss the future technological development trend of reaching 50% brake thermal efficiency under near-zero emission working conditions.

Key words: hydrogen internal combustion engine, direct injection, brake thermal efficiency, lean-burn combustion, exhaust post-processing

中图分类号:

U464.9

孙柏刚, 包凌志, 罗庆贺. 缸内直喷氢燃料内燃机技术发展及趋势[J]. 汽车安全与节能学报, 2021, 12(3): 265-278.

SUN Baigang, BAO Lingzhi, LUO Qinghe. Development and trends of direct injection hydrogen internal combustion engine technology[J]. Journal of Automotive Safety and Energy, 2021, 12(3): 265-278.

图/表 11

参考文献 64

[1]	Rana K K, Natarajan S, Jilakara S. Potential of hydrogen fuelled IC engine to achieve the future performance and emission norms [C] // SAE World Congress & Exhibition 2015, Michigan USA, 2015-26-0050, 2015.
[2]	Mohammadi A, Shioji M, Nakai Y, et al. Performance and combustion characteristics of a direct injection SI hydrogen engine[J]. *Int’l J Hydro Energ*, 2007, 32(2):296-304.
[3]	Wimmer A, Wallner T, Ringler J, et al. H₂-direct injection-a highly promising combustion concept[C] // SAE World Congress & Exhibition 2005, Michigan USA, 2005-01-0108, 2005.
[4]	Rottengruber H, Berckmüller M, Elsässer G, et al. Direct-injection hydrogen SI-engine - operation strategy and power density potentials[C] // Powertrain & Fluid Systems Conference and Exhibition Tampa 2004, Florida USA, 2004: 2001-2004.
[5]	Kawamura A, Yanai T, Sato Y, et al. Summary and progress of the hydrogen ice truck development project[J]. *SAE Int’l J Engines*, 2009, 2(1):110-117.
[6]	Tanno S, Ito Y, Michikawauchi R, et al. High-efficiency and low-Nox hydrogen combustion by high pressure direct injection[J]. *SAE Int’l J Engines*, 2010, 3(2):259-268.
[7]	Matthias N S, Wallner T, Scarcelli R. A hydrogen direct injection engine concept that exceeds U.S. DOE light-duty efficiency targets[J]. *SAE Int’l J Engines*, 2012, 5(3):838-849.
[8]	Yamane K. Hydrogen fueled ICE, successfully overcoming challenges through high pressure direct injection technologies: 40 years of japanese hydrogen ICE research and development [C] // SAE 2018 World Congress & Exhibition 2015, Michigan USA, 2018-01-1145, 2018.
[9]	Tsujimura T, Suzuki Y. Development of a large-sized direct injection hydrogen engine for a stationary power generator[J]. *Int’l J Hydro Energ*, 2019, 44(22):11355-11369.
[10]	Eichlseder H. H₂ ICE for future passenger cars and light commercial vehicles [C]// 2019 International Vienna Motor Symposium, Vienna Austria, 2019.
[11]	Wallner T, Nande A M, Naber J. Evaluation of injector location and nozzle design in a direct-injection hydrogen research engine [C]// SAE International Powertrains, Fuels and Lubricants Congress 2008, Shanghai China, 2008: 2001-2008.
[12]	Verhelst S, Wallner T. Hydrogen-fueled internal combustion engines[J]. *Prog Energ Combust*, 2009, 35(6):490-527. doi: 10.1016/j.pecs.2009.08.001 URL
[13]	Verhelst S, Demuynck J, Sierens R, et al. Update on the Progress of Hydrogen-Fueled Internal Combustion Engines[M]. Belgium, 2013, 381-400.
[14]	Welch A, Mumford D, Munshi S, et al. Challenges in developing hydrogen direct injection technology for internal combustion engines [C]// Powertrains, Fuels and Lubricants Meeting 2008, Illinois USA, 2008: 2001-2008
[15]	Verhelst S, Sierens R, Verstraeten S. A critical review of experimental research on hydrogen fueled SI engines [C]// SAE World Congress & Exhibition 2006, Michigan USA, 2006-01-0430, 2006.
[16]	Kim J M, Kim Y T, Lee J T, et al. Performance characteristics of hydrogen fueled engine with the direct injection and spark ignition system [C]// SAE Fuels & Lubricants Meeting & Exposition 1995, Toronto Canada, 1995: 952498.
[17]	Antonelli M, Martorano L. Realization and testing of a low pressure hydrogen direct injection engine using commercial injectors [C]// SAE World Congress & Exhibition 2012, Michigan USA, 2012-01-0652, 2012.
[18]	Schumacher M, Wensing M. Investigations on an injector for a low pressure hydrogen direct injection [C]// SAE 2014 International Powertrain, Fuels & Lubricants Meeting 2014, Illinois USA, 2014-01-2699, 2014.
[19]	Takagi Y, Oikawa M, Sato R, et al. Near-zero emissions with high thermal efficiency realized by optimizing jet plume location relative to combustion chamber wall, jet geometry and injection timing in a direct-injection hydrogen engine[J]. *Int’l J Hydro Energ*, 2019, 44(18):9456-9465.
[20]	Yamane K, Nogami M, Umemura Y, et al. Development of high pressure H₂ gas injectors, capable of injection at large injection rate and high response using a common-rail type actuating system for a 4-cylinder, 4.7-liter total displacement, spark ignition hydrogen engine [C]// SAE 2011 International Powertrain, Fuels & Lubricants Meeting 2011, Illinois USA, 2011-01-2005, 2011.
[21]	WANG Xi, SUN Bai-gang, et al. Visualization research on hydrogen jet characteristics of an outward-opening injector for direct injection hydrogen engines[J]. *Fuel, 2020, 280*:118710. doi: 10.1016/j.fuel.2020.118710 URL
[22]	Yip H L, Srna A, Yuen A C Y, et al. A review of hydrogen direct injection for internal combustion engines: towards carbon-free combustion[J]. *Appl Scie*, 2019, 9(22):4842.
[23]	Konagaya R, Naitoh K, Tsuru K, et al. Unsteady three-dimensional computations of the penetration length and mixing process of various single high-speed gas jets for engines[C]// SAE World Congress & Exhibition 2017, Michigan USA, 2017-01-0817, 2017.
[24]	Wallner T, Ciatti S, Bihari B. Investigation of injection parameters in a hydrogen di engine using an endoscopic access to the combustion chamber [C] // SAE World Congress & Exhibition 2007, Michigan USA, 2007-01-1464, 2007.
[25]	Shudo T, Oba S. Mixture distribution measurement using laser induced breakdown spectroscopy in hydrogen direct injection stratified charge[J]. *Int’l J Hydro Energ*, 2009, 34(5):2488-2493.
[26]	Verhelst S. Recent progress in the use of hydrogen as a fuel for internal combustion engines[J]. *Int’l J Hydro Energ*, 2014, 39(2):1071-1085.
[27]	White C M. Qualitative evaluation of mixture formation in a direct-injection hydrogen-fuelled engine [C]// SAE World Congress & Exhibition 2007, Michigan USA, 2007-01-1467, 2007.
[28]	Scarcelli R, Wallner T, Matthias N, et al. Mixture formation in direct injection hydrogen engines: CFD and optical analysis of single- and multi-hole nozzles[J]. *SAE Int’l J Engines*, 2011, 4(2):2361-2375.
[29]	Kaiser S, White C M. PIV and PLIF to evaluate mixture formation in a direct-injection hydrogen-fuelled engine[J]. *SAE Int’l J Engines*, 2008, 1(1):657-668.
[30]	Rahman K M, Kawahara N, Matsunaga D, et al. Local fuel concentration measurement through spark-induced breakdown spectroscopy in a direct-injection hydrogen spark-ignition engine[J]. *Int’l J Hydro Energ*, 2016, 41(32):14283-14292.
[31]	Salazar V M, Kaiser S A. An optical study of mixture preparation in a hydrogen-fueled engine with direct injection using different nozzle designs[J]. *SAE Int’l J Engines*, 2009, 2(2):119-131.
[32]	Salazar V, Kaiser S. Interaction of intake-induced flow and injection jet in a direct-injection hydrogen-fueled engine measured by PIV[C]// SAE World Congress & Exhibition 2011, Michigan USA, 2011-01-0673, 2011.
[33]	Scarcelli R, Wallner T, Salazar V M, et al. Modeling and Experiments on mixture formation in a hydrogen direct-injection research engine[J]. *SAE Int’l J Engines*, 2009, 2(2):530-541.
[34]	LI Yong, GAO Wenzhi, ZHANG Pan, et al. Effects study of injection strategies on hydrogen-air formation and performance of hydrogen direct injection internal combustion engine[J]. *Int’l J Hydro Energ*, 2019, 44(47):26000-26011.
[35]	Hamzehloo A, Aleiferis P. modelling of mixture formation and combustion in DISI hydrogen engines with various injection strategies[C] // SAE World Congress & Exhibition 2014, Michigan USA, 2014-01-2577, 2014.
[36]	Roy M K, Kawahara N, Tomita E, et al. Jet-guided combustion characteristics and local fuel concentration measurements in a hydrogen direct-injection spark-ignition engine[J]. *P Combust Insti*, 2013, 34(2):2977-2984.
[37]	Aleiferis P G, Rosati M F. Flame chemiluminescence and OH LIF imaging in a hydrogen-fuelled spark-ignition engine[J]. *Int’l J Hydro Energ*, 2012, 37(2):1797-1812.
[38]	Wallner T, Nande A M, Naber J. Study of basic injection configurations using a direct-injection hydrogen research engine[J]. *SAE Int’l J Engines*, 2009, 2(1):1221-1230.
[39]	Wimmer A, Messner D, et al. Application and Validation of the 3D CFD Method for a Hydrogen Fueled IC Engine with Internal Mixture Formation [C]// SAE World Congress & Exhibition 2006, Michigan USA, 2006-04-03, 2006.
[40]	Shudo T, Cheng W K, Kuninaga T, et al. Reduction of cooling loss in hydrogen combustion by direct injection stratified charge [C]// Powertrain & Fluid Systems Conference & Exhibition Pittsburgh 2003, Pennsylvania USA, 2003-01-3094, 2003.
[41]	Takagi Y, Mori H, Mihara Y, et al. Improvement of thermal efficiency and reduction of NO_x emissions by burning a controlled jet plume in high-pressure direct-injection hydrogen engines[J]. *Int’l J Hydro Energ*, 2017, 42(41):26114-26122.
[42]	Wallner T, Scarcelli R, Nande A M, et al. Assessment of multiple injection strategies in a direct-injection hydrogen research engine[J]. *SAE Int’l J Engines*, 2009, 2(1):1701-1709.
[43]	Heindl R, Eichlseder H, Spuller C, et al. New and innovative combustion systems for the h2-ice: compression ignition and combined processes[J]. *SAE Int’l J Engines*, 2009, 2(1):1231-1250.
[44]	Oikawa M, Takagi Y, Mihara Y, et al. Attainment of high thermal efficiency and near-zero emissions by optimizing injected spray configuration in direct injection hydrogen engines [C] // SAE World Congress & Exhibition 2019, Michigan USA, 2019-01-2306, 2019.
[45]	Rosati M F, Aleiferis P G. Hydrogen SI and HCCI combustion in a direct-injection optical engine[J]. *SAE Int’l J Engines*, 2009, 2(1):1710-1736.
[46]	Gomesantunes J, Mikalsen R, Roskilly A. An investigation of hydrogen-fuelled HCCI engine performance and operation[J]. *Int’l J Hydro Energ*, 2008, 33(20):5823-5828.
[47]	Bleechmore C, Brewster S. Dilution strategies for load and NOx management in a hydrogen fuelled direct injection engine [C]// SAE Powertrain & Fluid SystemsConference & Exhibition Rosemont 2007, Illinois USA, 2007-01-4097, 2017.
[48]	YE Yixaing, GAO Wenzhi, LI Yong, et al. Numerical study of the effect of injection timing on the knock combustion in a direct-injection hydrogen engine[J]. *Int’l J Hydro Energ*, 2020, 45(51):27904-19.
[49]	Wallner T, Matthias N S, Scarcelli R. Influence of injection strategy in a high-efficiency hydrogen direct injection engine[J]. *SAE Int’l J Engines*, 2011, 5(1):289-300.
[50]	Abinash P, Vssut B. Formation, Kinetics and control strategies of NO_x emission in hydrogen fueled IC engine[J]. *Int’l J Engi Res Tech*, 2020, 9(1):91-108.
[51]	Wallner T. Efficiency and emissions potential of hydrogen internal combustion engine vehicles [C] // SAE World Congress & Exhibition 2011, Michigan USA, 2011-01-19, 2011.
[52]	Rahman M M, Kamil M, Bakar R A. Engine performance and optimum injection timing for 4-cylinder direct injection hydrogen fueled engine[J]. *Simu Mode Pract Theo*, 2011, 19(2):734-751.
[53]	Nakagawa K, Yamane K, Ohira T. Potential of large output power, high thermal efficiency, near-zero NOx emission, supercharged, lean-burn, hydrogen-fuelled, direct injection engines[J]. *Energy*, 2012, 29:455-462.
[54]	Kawamura A, Sato Y, Naganuma K, et al. Development project of a multi-cylinder DISI hydrogen ICE system for heavy duty vehicles [C] // SAE World Congress & Exhibition 2010, Michigan USA, 2010-10-25, 2010.
[55]	BAO Lingzhi, SUN Baigang, LUO Qinghe, et al. Simulation and experimental study of the NO_x reduction by unburned H2 in TWC for a hydrogen engine[J]. *Int’l J Hydro Energ*, 2020, 45(39):20491-20500.
[56]	Verhelst S, Vancoillie J, Naganuma K, et al. Setting a best practice for determining the EGR rate in hydrogen internal combustion engines[J]. *Int’l J Hydro Energ*, 2013, 38(5):2490-2503.
[57]	Thomas K D, Sousa A, Bertram D. H₂-Engine operation with EGR achieving high power and high efficiency emission-free combustion [C] // 2019 SAE Powertrains, Fuels and Lubricants, Michigan USA, 2019-12-19, 2019.
[58]	Naganuma K, Takagi Y, Kawamura A, et al. Study of NO_x emissions reduction strategy for a naturally aspirated 4-cylinder direct injection hydrogen ICE[C] // SAE 2015 World Congress & Exhibition 2015, Michigan USA, 2015: 2011-2015.
[59]	Younkins M, Wooldridge M, Boyer B. Direct in-cylinder injection of water into a PI hydrogen engine[C]// SAE World Congress & Exhibition 2010, Michigan USA, 2010-10-25, 2010
[60]	XU Puyan, JI Cangwei, WANG Shuofeng, et al. Effects of direct water injection on engine performance in engine fueled with hydrogen at varied excess air ratios and spark timing[J]. *Fuel, 2020, 269*:117209. doi: 10.1016/j.fuel.2020.117209 URL
[61]	Nande A M, Wallner T, Naber J. Influence of water injection on performance and emissions of a direct-injection hydrogen research engine[C]// SAE World Congress & Exhibition 2015, Michigan USA, 2015: 2011-2015.
[62]	Gadallah A H, Elshenawy E A, Elzahaby A M, et al. Application of neural networks for prediction and optimization of emissions and performance in a hydrogen fuelled direct injection engine equipped with in cylinder water injection[C]// SAE 2009 Powertrains Fuels and Lubricants Meeting, Michigan USA, 2009-11-02, 2009
[63]	Younkins M, Wooldridge M S, Boyer B A. Port injection of water into a DI hydrogen engine [C]// SAE 2015 World Congress & Exhibition 2015, Michigan USA, 2015: 2011-2015.
[64]	Kufferath A, Schünemann E. H₂ ICE powertrains for future on-road mobility [C]// 2021 International Vienna Motor Symposium, Vienna Austria, 2021-25, 2021.

特性	氢气	甲烷	汽油	柴油
碳含量,w / %	0	75	84	86
低热值 /（MJ·kg^-1）	119.7	45.8	44.8	42.5
密度 / (kg·m^-3)	0.089	0.72	730~780	830
体积能量密度 / (MJ·m^-3)	10.7	33.0	33×10³	35×10³
自燃温度 / K	858	813	~623	~523
辛烷值	130	130	92~98	25
空气中最小点火能量 / mJ	0.02	0.29	0.24	0.24
当量空燃比	34.5	17.2	14.7	14.5
当量比下体积分数,φ	0.2953	0.0948	~0.02	-
淬熄距离 / mm	0.64	2.1	~2	-
空气中层流燃烧速度 / (m·s^-1)	1.85	0.38	0.37~0.43	0.37~0.43
空气中扩散系数 / (m²·s^-1)	8.5×10^-6	1.9×10^-6	-	-
空气中燃烧极限,φ_a / %	4~76	5.3~15	1~7.6	0.6~5.5
燃烧极限（过量空气系数）	0.2~10	0.7~21	0.4~1.4	0.5~1.3
绝热火焰温度 / K	2 480	2 214	2 580	~2 300

特性	氢气	甲烷	汽油	柴油
碳含量,w / %	0	75	84	86
低热值 /（MJ·kg^-1）	119.7	45.8	44.8	42.5
密度 / (kg·m^-3)	0.089	0.72	730~780	830
体积能量密度 / (MJ·m^-3)	10.7	33.0	33×10³	35×10³
自燃温度 / K	858	813	~623	~523
辛烷值	130	130	92~98	25
空气中最小点火能量 / mJ	0.02	0.29	0.24	0.24
当量空燃比	34.5	17.2	14.7	14.5
当量比下体积分数,φ	0.2953	0.0948	~0.02	-
淬熄距离 / mm	0.64	2.1	~2	-
空气中层流燃烧速度 / (m·s^-1)	1.85	0.38	0.37~0.43	0.37~0.43
空气中扩散系数 / (m²·s^-1)	8.5×10^-6	1.9×10^-6	-	-
空气中燃烧极限,φ_a / %	4~76	5.3~15	1~7.6	0.6~5.5
燃烧极限（过量空气系数）	0.2~10	0.7~21	0.4~1.4	0.5~1.3
绝热火焰温度 / K	2 480	2 214	2 580	~2 300

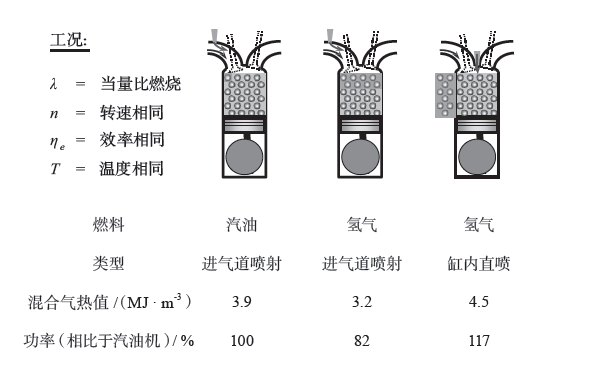

氢气喷射方式	进气道单点喷射	进气道多点喷射	低压缸内直喷	高压缸内直喷
喷射时刻	进气冲程初段	排气冲程末段或进气冲程初段	压缩冲程初段	压缩冲程初段至接近压缩上止点
喷射压力/MPa	0.5~3.0	0.5~3.0	1.5~6.0	> 10.0
能量密度变化	损失30%	损失30%	提升20%	提升20%
异常燃烧	高风险回火	低风险回火	无回火	无回火
混合气形成	易形成不均匀混合气	易形成均匀混合气	混合气基本均匀	混合气均匀或分层, 可调控
特点	升功率低、异常燃烧风险大	升功率低、有异常燃烧风险	升功率低	升功率高、效率高、喷嘴要求高

氢气喷射方式	进气道单点喷射	进气道多点喷射	低压缸内直喷	高压缸内直喷
喷射时刻	进气冲程初段	排气冲程末段或进气冲程初段	压缩冲程初段	压缩冲程初段至接近压缩上止点
喷射压力/MPa	0.5~3.0	0.5~3.0	1.5~6.0	> 10.0
能量密度变化	损失30%	损失30%	提升20%	提升20%
异常燃烧	高风险回火	低风险回火	无回火	无回火
混合气形成	易形成不均匀混合气	易形成均匀混合气	混合气基本均匀	混合气均匀或分层, 可调控
特点	升功率低、异常燃烧风险大	升功率低、有异常燃烧风险	升功率低	升功率高、效率高、喷嘴要求高

序号	研究机构	年份	参数	典型性能指标	技术	氮氧排放
1	宝马汽车公司^[4]	2004	单缸0.5 L	当量比燃烧负荷可达1.4 MPa,有效热效率30%	合适点火、压缩比12	外特性点原始排放可达600 ppm
2	丰田汽车公司^[2]	2006	单缸0.85 L	0.95 MPa@1 200 r/min,最高有效热效率38.9%	优化喷射相位	热效率点排放为 400 ppm
3	日本武藏工业大学^[5]	2009	六缸 7.68 L	3 000 r/min, 147 kW	压缩比13 + EGR + 后处理系统	日本JP05循环排放小于0.5 g/kWh
4	丰田汽车公司^[6]	2010	四缸2.2 L	0.8 MPa @2 000 r/min 有效热效率43.8%	分层扩散燃烧+ EGR	效率点排放0.35 g/kWh,满足欧六排放标准
5	日本东京城市大学^[6]	2010	单缸1.0 L	0.85 MPa@1 000 r/min 指示热效率41%	合适的燃烧策略 + 压缩比13 + EGR	热效率点NO_x 0.7 g/kWh
6	美国阿贡国家实验室^[7]	2012	单缸0.66 L	1.41 MPa@2 000 r/min 最高有效热效率45%	喷嘴CFD优化+ 压缩比12.9 + 机械增压	2 000 r/min,1.0 MPa,3 000 r/min,0.6 MPa以下的工况排放小于0.1 g/kWh
7	日本东京城市大学^[8]	2018	四缸4.7 L	400 Nm@1 500 r/min 最大扭矩 0.8 MPa@1 600 r/min 有效热效率40%	可变压缩比12.7 ~ 18.0 + 冷EGR + 后处理系统	日本JP05循环排放小于0.2 g/kWh
8	日本可持续能源研究中心^[9]	2019	单缸1.3 L	150 Nm@1 000 r/min 指示热效率50%	EGR + 压缩比12.9 + 机械增压	功率点排放小于 0.36 g/kWh
9	博世公司^[10]	2020	四缸2.0 L	升功率83 kW/L,升扭矩191 Nm/L,有效热效率39%	涡轮增压 + 稀薄燃烧	1.2 MPa以下的工况,NO_x排放小于 0.1 g/kWh
