基于整车转毂的轻型车油耗特征研究

doi:10.3969/j.issn.1674-8484.2024.04.013

摘要/Abstract

摘要：

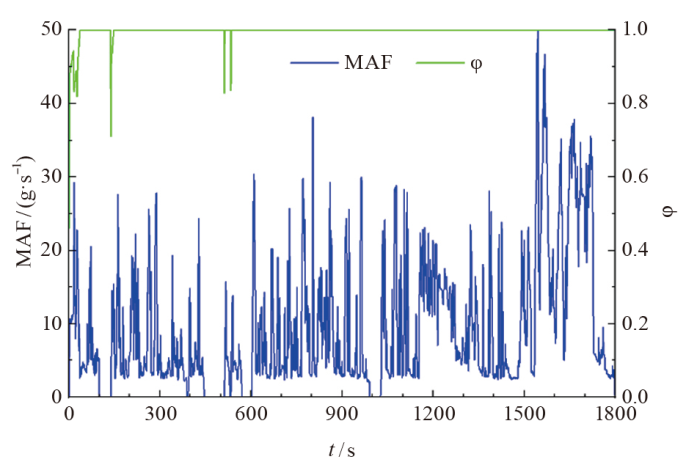

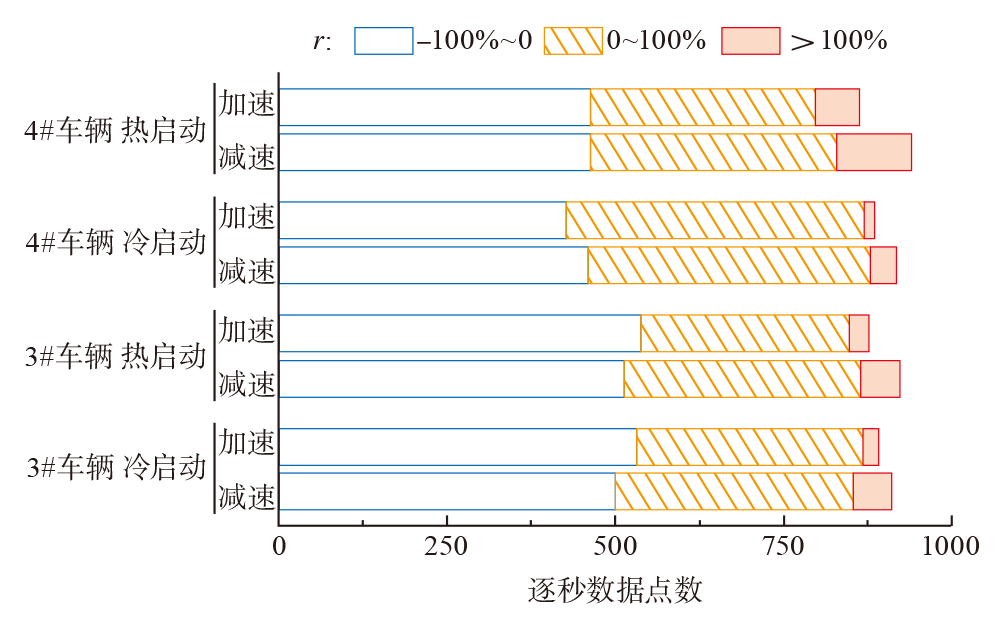

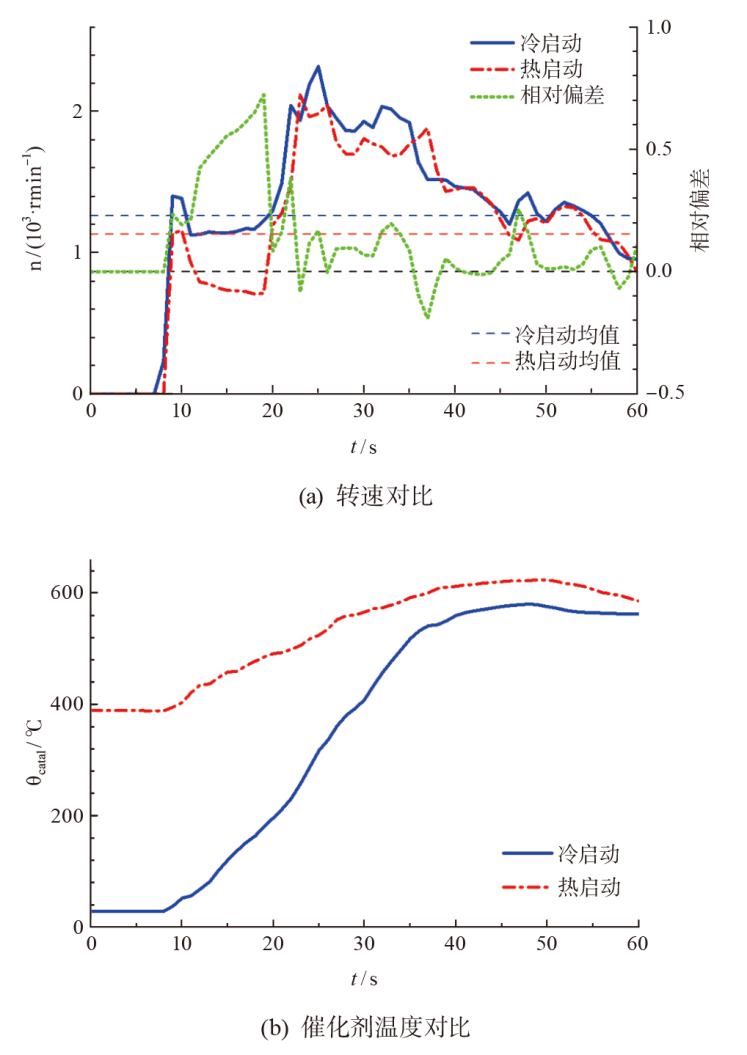

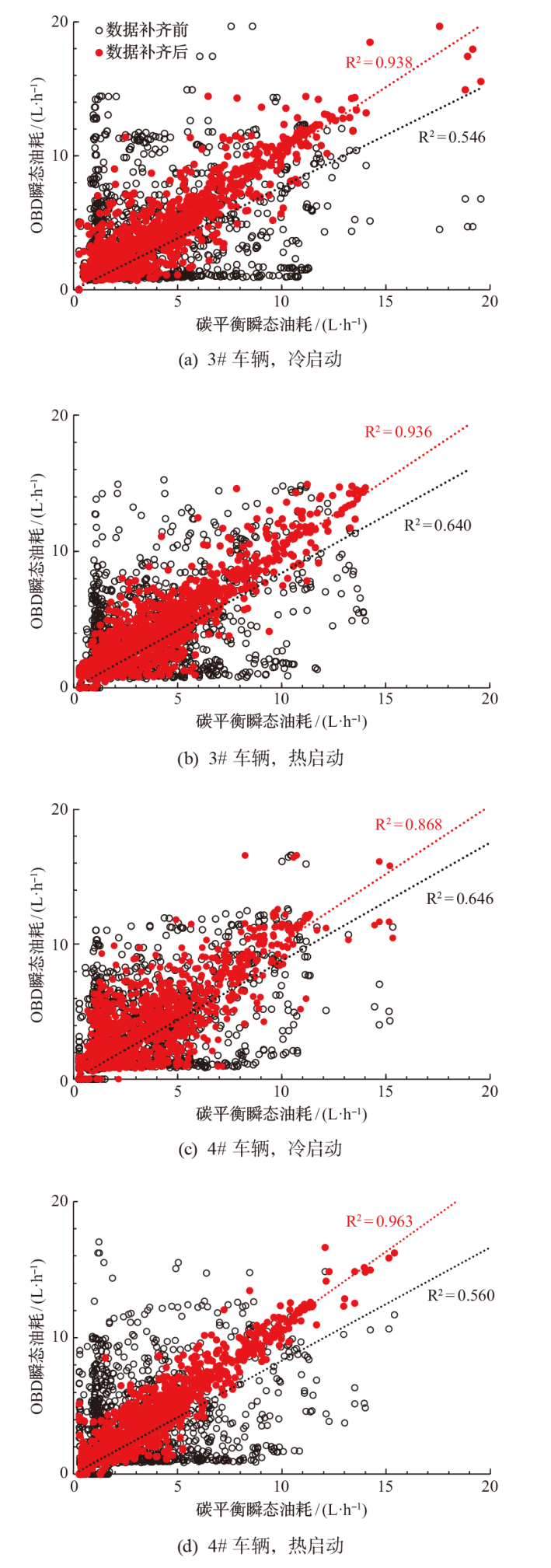

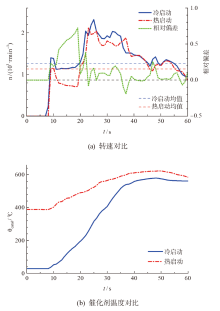

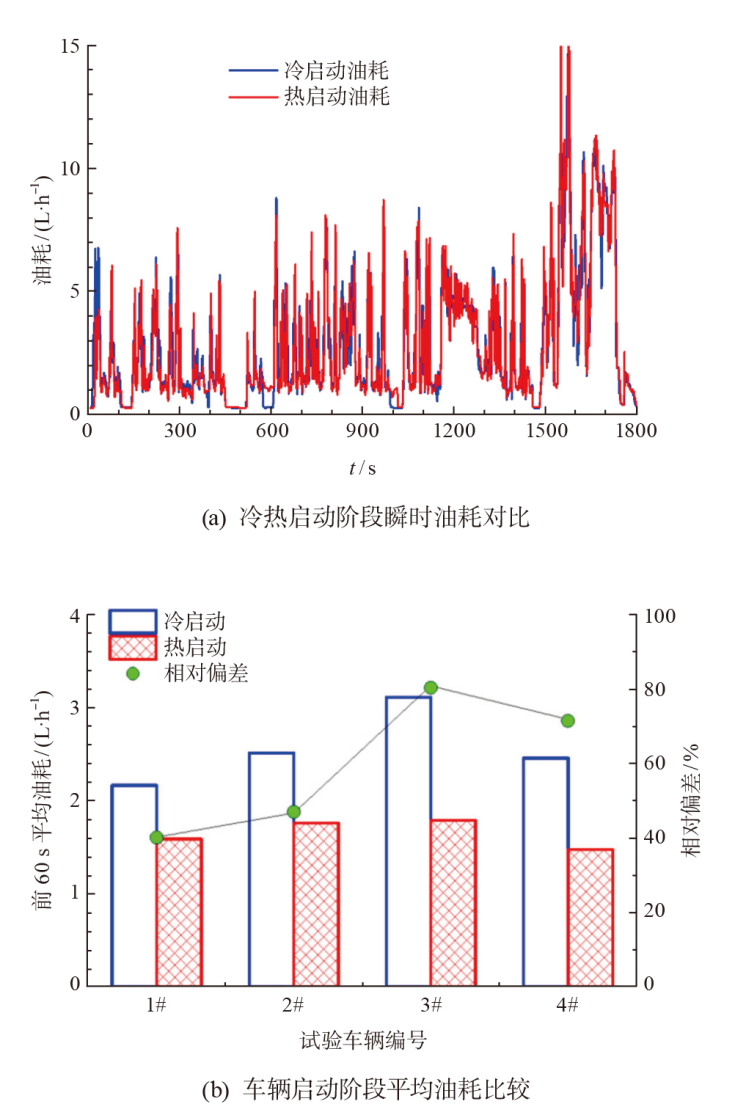

为探究影响轻型汽油车油耗的因素和车载诊断系统（OBD）油耗数据的修正方法，以促进机动车油耗的精细化控制和管理，该文对不同轻型汽油车的油耗测量值进行了详细分析。以满足国V和国VIb排放标准的轻型汽油车（LDGVs）为研究对象，在全球统一轻型车测试循环（WLTC）工况下进行冷、热启动测试，同时用OBD读取发动机和整车的瞬态运行参数，再分别用碳平衡法和OBD空燃比法计算被测车辆在不同启动温度和不同速度段下的油耗，分析温度和速度对不同车辆的油耗影响。利用均值法补齐了OBD参数读取过程中的数据损失，提高了2种油耗计算方法在瞬时油耗上的线性相关性，并分析了OBD油耗计算的误差来源。结果表明：与国V车辆相比，国VIb车辆油耗受启动温度的影响更小，其冷启动油耗仅比热启动高2.02%~2.27%；加装了汽油车颗粒捕集器（GPF）的车辆比未加装车辆的100 km油耗高出约0.48 L，且由GPF导致的油耗增幅与行驶速度有关；发动机在低速段的反复启停会导致该阶段的油耗达到全阶段的1.46倍；OBD的油耗测量误差更多来自车辆减速阶段。

关键词: 轻型汽油车（LDGVs）, 油耗, 车载诊断系统（OBD）, 碳平衡

Abstract:

A detailed analysis was conducted on the fuel consumption measurement values of different light-duty gasoline vehicles to explore the factors affecting fuel consumption of light gasoline vehicles and provide experimental data support for the development of real-time fuel consumption data correction methods for on-board diagnostic systems (OBD), thereby promoting refined control and management of motor vehicle fuel consumption. The light-duty gasoline vehicles (LDGVs), complying with emission standards phases V and VIb (China V and VIb), were tested under both cold- and hot-start conditions using the Worldwide Light-duty Test Cycle (WLTC). Transient operating parameters of each engine and each entire vehicle were read by an OBD system during the testing. Subsequently, the fuel consumption of the tested LDGVs at different starting temperatures and speeds were calculated using the carbon balance method and the OBD air fuel ratio method. The effects of temperature and speed on fuel consumption of different LDGVs were also analyzed. The interpolation method was applied to compensate for the data loss during the OBD parameter reading process, enhancing the linear correlation coefficients in instantaneous fuel consumption between the two calculation methods. Furthermore, the causes of errors in OBD fuel consumption calculation were investigated. The results showed that the fuel consumption of China VIb LDGVs is less affected by the starting temperature than China V, with cold start fuel consumption only 2.02%~2.27% higher than hot start. The LDGVs equipped with gasoline particulate filter (GPF) have a fuel consumption increase of approximately 0.48 L per 100 kilometers compared to vehicles without GPFs, and the increase in fuel consumption caused by GPF is related to the driving speed. The repeated start stop of the engine in the low-speed range will result in fuel consumption reaching 1.46 times that of the entire stage. Uncertainties of the measured fuel consumption in OBD mainly occur in the deceleration stage of the vehicle.

Key words: light-duty gasoline vehicles (LDGVs), fuel consumption, on-board diagnostic (OBD), carbon balance

中图分类号:

U467.4+98

兰云飞, 郭淑雯, 杨博涵, 曾乐薇, 罗明婧, 王凤滨, 李昕瞳, 郑轩. 基于整车转毂的轻型车油耗特征研究[J]. 汽车安全与节能学报, 2024, 15(4): 561-568.

LAN Yunfei, GUO Shuwen, YANG Bohan, ZENG Lewei, LUO Mingjing, WANG Fengbin, LI Xintong, ZHENG Xuan. Research on fuel consumption characteristics of light vehicles based on chassis dynamometer test[J]. Journal of Automotive Safety and Energy, 2024, 15(4): 561-568.

图/表 9

参考文献 23

[1]	中华人民共和国生态环境部. 中国移动源环境管理年报(2022年)[R/OL]. 2022. (2022-12-07). https://www.mee.gov.cn/hjzl/sthjzk/ydyhjgl/202212/W020221207387013521948.pdf.
	Ministry of Ecology and Environment of the People’s Republic of China. China mobile source environmental management annual report annual report (2022)[R/OL]. 2022. (2022-12-07). https://www.mee.gov.cn/hjzl/sthjzk/ydyhjgl/202212/W020221207387013521948.pdf. (in Chinese)
[2]	HU Xiaojun, CHANG Shiyan, LI Jingjie, et al. Energy for sustainable road transportation in China: Challenges, initiatives and policy implications[J]. Energy, 2010, 35(11): 4289-4301.
[3]	International Energy Agency. Global fuel economy initiative[R/OL]. 2021. [2023-6-5]. https://iea.blob.core.windows.net/assets/79a0ee25-9122-4048-84fe-c6b8823f77f8/GlobalFuelEconomyInitiative2021.pdf.
[4]	王力辉, 耿培林, 刘乐, 等. 国六轻型车不同技术路线对排放油耗影响研究[C]// 中国汽车工程学会, 上海, 2020: 827-832.
	WANG Lihui, GENG Peilin, LIU Le, et al. Research on different technical route of LDV for CHINA 6 and influence to emission and fuel economy[C]// China Society of Automotive Engineers, Shanghai, 2020: 827-832. (in Chinese)
[5]	冯谦, 曹丽娟, 方熙宇, 等. 柴油车实际道路PEMS排放测试与发动机台架测试的对比关联分析[C]// 中国汽车工程学会. 上海, 2019: 813-820.
	FENG Qian, CAO Lijuan, FANG Xiyu, et al. Correlation analysis of diesel vehicle’s PEMS emission test on real road and engine bench test[C]// China Society of Automotive Engineers. Shanghai, 2019: 813-820. (in Chinese)
[6]	张腾, 刘兴华, 靳航, 等. 燃气车PEMS排放测试与发动机台架WHTC测试对比分析[J]. 车用发动机, 2022(3): 82-87.
	ZHANG Teng, LIU Xinghua, JIN Hang, et al. Comparison between PEMS and bench WHTC test for natural gas vehicle[J]. Vehi Engi, 2022(3): 82-87. (in Chinese)
[7]	杨柳含子. 基于车载诊断系统的机动车油耗与氮氧化物排放特征研究[D]. 北京: 清华大学, 2016.
	YANG Liuhanzi. Evaluating vehicle fuel consumption and nitrogen oxides emission characteristics based on on-board diagnostic approach[D]. Beijing: Tsinghua University, 2016. (in Chinese)
[8]	ZHENG Xuan, LU Sheng, YANG Liuhanzi, et al. Real-world fuel consumption of light-duty passenger vehicles using on-board diagnostic (OBD) systems[J]. Front Envi Sci Engi, 2020, 14(2): 33-42.
[9]	Tolouei R, Titheridge H. Vehicle mass as a determinant of fuel consumption and secondary safety performance[J]. Transport Res Part D: Transport Envi, 2009, 14(6): 385-399.
[10]	Kargul J, Stuhldreher M, Barba D, et al. Benchmarking a 2018 Toyota Camry 2.5-liter Atkinson cycle engine with cooled-EGR[J]. SAE Int’l J Advan Curr Pract Mobi, 2019, 1(2): 601-638.
[11]	Stuhldreher M, Kargul J, Barba D, et al. Benchmarking a 2016 Honda Civic 1.5-liter L15B7 turbocharged engine and evaluating the future efficiency potential of turbocharged engines[J]. SAE Int’ J Engi, 2018, 11(6): 1273-1305.
[12]	李配楠, 程晓章, 骆洪燕, 等. 基于国六标准的汽油机颗粒捕集器(GPF)的试验研究[J]. 内燃机与动力装置, 2017, 34(1): 1-5.
	LI Peinan, CHENG Xiaozhang, LUO Hongyan, et al. The experimental study of gasoline particulate filter (GPF) for CHINA 6 standard[J]. ICE Powerplant, 2017, 34(1): 1-5. (in Chinese)
[13]	王谦, 曹芳, 付明亮, 等. 在用机动车基于台架试验CO₂排放因子研究[J]. 南京信息工程大学学报(自然科学版), 2022, 14(2): 156-166.
	WANG Qian, CAO Fang, FU Mingliang, et al. Emission factors of carbon dioxide from in-use vehicles based on bench testing[J]. J Nanjing Univ Info Sci Tech (Nat Sci Edit), 2022, 14(2): 156-166. (in Chinese)
[14]	刘欣, 程瑞涛, 马相明. WLTC与NEDC循环油耗差异性研究[C]// 中国汽车工程学会. 北京, 2019: 1533-1538.
	LIU Xin, CHENG Ruitao, MA Xiangming. Study on fuel consumption difference between WLTC and NEDC[C]// China Society of Automotive Engineers. Beijing, 2019: 1533-1538. (in Chinese)
[15]	刘慎微, 黄成林, 刘文亮, 等. WLTC和CLTC-P循环工况及其排放污染物和油耗分析[J]. 北京汽车, 2021(1): 11-14+62.
	LIU Shenwei, HUANG Chenglin, LI Wenliang, et al. Analysis of WLTC and CLTC-P cycle conditions and their emissions of pollutants and fuel consumption[J]. Beijing Autom, 2021(1): 11-14+62. (in Chinese)
[16]	龚香坤. 不同工况对1. 6L排量及以下增压车辆油耗的影响[J]. 时代汽车, 2020(9): 20-22.
	GONG Xiangkun. The impact of different operating conditions on fuel consumption of turbocharged vehicles with a displacement of 1.6L or less[J]. Times Autom, 2020(9): 20-22 (in Chinese)
[17]	侯献军, 苏达, 刘志恩, 等. 轻型商用车不同循环工况下排放性能与油耗分析[J]. 内燃机工程, 2022, 43(1): 29-38+47.
	HOU Xianjun, SU Da, LIU Zhien, et al. Analyzes of emission performance and fuel consumption of light commercial vehicle under different driving cycles[J]. Chin Inte Comb Engi Engineering, 2022, 43(1): 29-39+47. (in Chinese)
[18]	Saito C, Nakatani T, Miyairi Y, et al. New particulate filter concept to reduce particle number emissions[C]// SAE 2011 World Cong Exhibit. Detroit, 2011: 2011-01-0814.
[19]	Mamakos A, Steininger N, Martini G, et al. Cost effectiveness of particulate filter installation on direct injection gasoline vehicles[J]. Atmosph Envi, 2013, 77: 16-23.
[20]	Spiess S, Wong K F, Richter J M, et al. Investigations of emission control systems for gasoline direct injection engines with a focus on removal of particulate emissions[J]. Topi Catal, 2013, 56(1-8): 434-439.
[21]	Defries T H, Sabisch M, Kishan S, et al. In-use fuel economy and CO₂ emissions measurement using OBD data on US light-duty vehicles[J]. SAE Int’l J Engi, 2014, 7(3): 1382-1396.
[22]	卢笙. 基于车载诊断系统的轻型乘用车油耗影响因素量化分析[D]. 北京: 清华大学, 2018.
	LU Sheng. Quantitative Analysis of factors affecting fuel consumption of light-duty passenger vehicles based on-board diagnostic approach[D]. Beijing: Tsinghua University, 2018. (in Chinese)
[23]	XIN Baiyu, LI Jialing, WANG Qiang, et al. Emission control method for fuel cut-off condition of GDI engine[J]. IFAC-PapersOnLine, 2018, 51(31): 158-161.

车号	品牌	发动机型号	生产时间	排放标准	后处理	行驶里程 / 10³ km	排量 / L	整备质量 / t	额定功率 / kW	喷油方式
1#	本田	L15BT	2021.04	国VIb	TWC+GPF	5	1.5	1.53	142	GDI
2#	丰田	A25A	2017.03	国VIb	TWC	5	2.5	1.58	154	GDI
3#	雪佛兰	LFV	2017.06	国V	TWC	123	1.5	1.52	130	GDI
4#	雪佛兰	L3G	2017.11	国V	TWC	171	1.5	1.27	84	GDI

车号	品牌	发动机型号	生产时间	排放标准	后处理	行驶里程 / 10³ km	排量 / L	整备质量 / t	额定功率 / kW	喷油方式
1#	本田	L15BT	2021.04	国VIb	TWC+GPF	5	1.5	1.53	142	GDI
2#	丰田	A25A	2017.03	国VIb	TWC	5	2.5	1.58	154	GDI
3#	雪佛兰	LFV	2017.06	国V	TWC	123	1.5	1.52	130	GDI
4#	雪佛兰	L3G	2017.11	国V	TWC	171	1.5	1.27	84	GDI

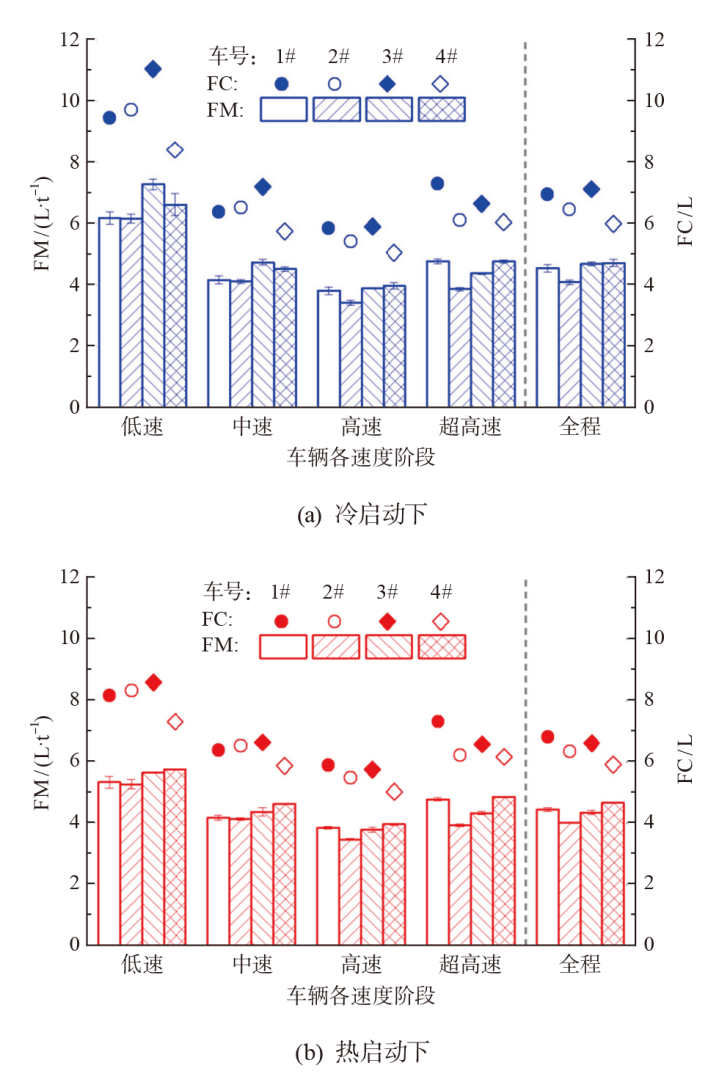

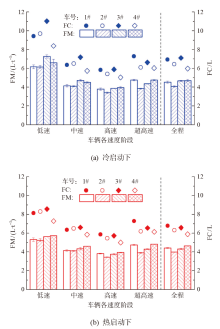

数据来源	排放标准	测试方法	启动方式	各速度阶段100 km油耗/全阶段油耗
数据来源	排放标准	测试方法	启动方式	低速段	中速段	高速段	超高速段
本研究	国V	WLTC	冷启动	1.48	0.99	0.84	0.97
王谦等^[14]	国V	WLTC	冷启动	1.38	0.92	0.95
刘欣等^[15]	国V	WLTC	冷启动	1.30	0.97	0.87	1.02
本研究	国VIb	WLTC	冷启动	1.43	0.96	0.84	1.00
刘慎微等^[16]	国VIb	WLTC	冷启动	1.50	1.01	0.83	0.94
刘欣等^[15]	国VI	WLTC	冷启动	1.40	0.96	0.86	1.00
龚香坤等^[17]	国VI	WLTC	冷启动	1.39	0.96	0.85	1.00

数据来源	排放标准	测试方法	启动方式	各速度阶段100 km油耗/全阶段油耗
数据来源	排放标准	测试方法	启动方式	低速段	中速段	高速段	超高速段
本研究	国V	WLTC	冷启动	1.48	0.99	0.84	0.97
王谦等^[14]	国V	WLTC	冷启动	1.38	0.92	0.95
刘欣等^[15]	国V	WLTC	冷启动	1.30	0.97	0.87	1.02
本研究	国VIb	WLTC	冷启动	1.43	0.96	0.84	1.00
刘慎微等^[16]	国VIb	WLTC	冷启动	1.50	1.01	0.83	0.94
刘欣等^[15]	国VI	WLTC	冷启动	1.40	0.96	0.86	1.00
龚香坤等^[17]	国VI	WLTC	冷启动	1.39	0.96	0.85	1.00

	启动方式	100 km 油耗/ L		r
	启动方式	碳平衡油耗	OBD油耗	%
3#车辆	冷启动	7.05	7.39	4.83
3#车辆	热启动	6.53	6.86	5.01
4#车辆	冷启动	6.09	6.62	8.69
4#车辆	热启动	5.90	6.37	7.96
