面向网联环境的汽车平视显示器人因测试研究综述与展望

doi:10.3969/j.issn.1674-8484.2022

汽车安全与节能学报 ›› 2022, Vol. 13 ›› Issue (2): 225-241.DOI: 10.3969/j.issn.1674-8484.2022

面向网联环境的汽车平视显示器人因测试研究综述与展望

赵晓华(), 李雪玮, 张钰, 李振龙^*(), 李海舰, 张建华

交通工程北京市重点实验室（北京工业大学）,北京工业大学城市建设学部,北京 100124,中国

收稿日期:2022-05-31 修回日期:2022-06-10 出版日期:2022-06-30 发布日期:2022-07-01
通讯作者: 李振龙
作者简介:*李振龙 (1976—),男 (汉),山西,教授。E-mail: lzl@bjut.edu.cn。
赵晓华 (1971—),女 (汉),山西,教授。E-mail: zhaoxiaohua@bjut.edu.cn。赵晓华教授, 博士,北京工业大学教授,博士生导师。兼任美国国家交通研究协会（TRB)车辆用户特征委员会委员、交通控制设施委员会委员,世界交通运输大会WTC交通安全与环境学科交通安全分析与改善技术委员会（JT0502)主席等职务。主要研究方向为驾驶行为与安全。近年来,主持并参加国家科技支撑计划项目、国家自然科学基金、北京市自然科学基金等课题70余项。以第一作者发表论文161篇,其中SCI/SSCI检索70篇,EI检索65篇。出版专著、教材和译著共9本,获批专利8项,软件著作权16项。
Prof. ZHAO Xiaohua, Ph. D, a professor, and a doctoral adviser in Beijing University of Technology. She also serves as a member of the Vehicle User Characteristics Committee and the Traffic Control Facilities Committee of the National Transportation Research Board (TRB), and the chairman of the Traffic Safety Analysis and Improvement Technical Committee (JT0502) for Traffic Safety and Environment Discipline of the World Transportation Conference. Her main research interests are driving behavior and safety. In recent years, she has presided over and participated in more than 70 projects such as the national science and technology support program, the National Science Foundation of China, and the Beijing Natural Science Foundation. She has published 161 papers as the first author, including 70 papers in SCI/SSCI and 65 papers in EI. She has published monographs, teaching material, and translations for 9 items, and has obtained 8 patents and 16 software copyrights.
基金资助:
国家自然科学基金面上项目(61876011)

Review and prospect of human factor testing of automotive head up displays in connected environment

ZHAO Xiaohua(), LI Xuewei, ZHANG Yu, LI Zhenlong^*(), LI Haijian, ZHANG Jianhua

Beijing Key Laboratory of Traffic Engineering(Beijing University of Technology);Faculty of Architecture, Civil and Transportation Engineering, Beijing University of Technology, Beijing 100124, China

Received:2022-05-31 Revised:2022-06-10 Online:2022-06-30 Published:2022-07-01
Contact: LI Zhenlong

摘要/Abstract

摘要：

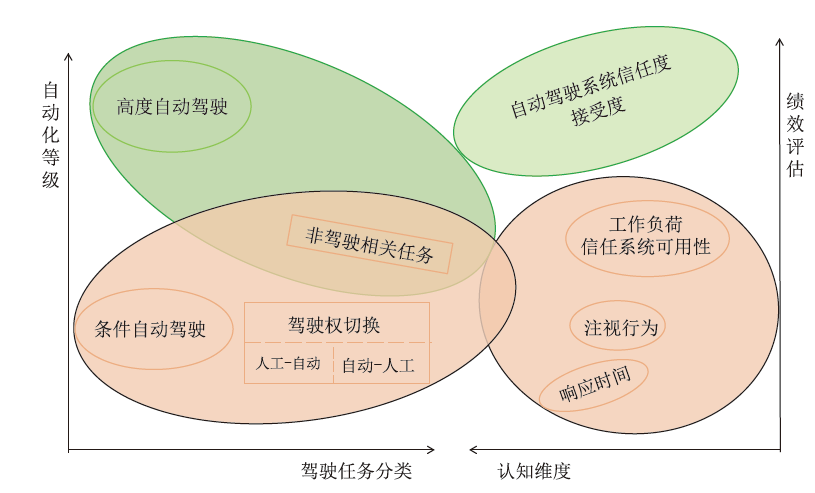

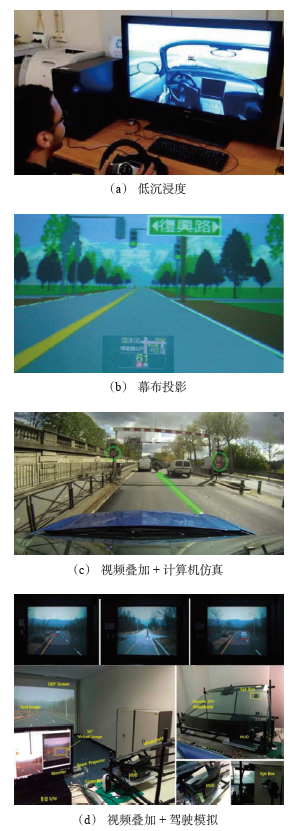

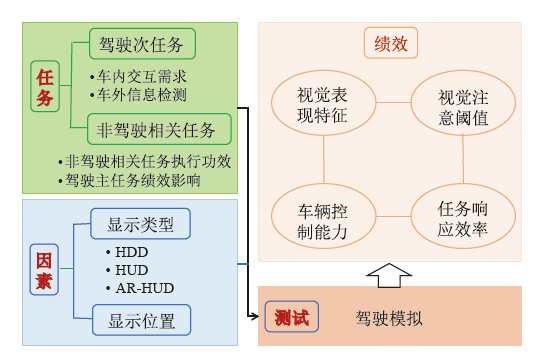

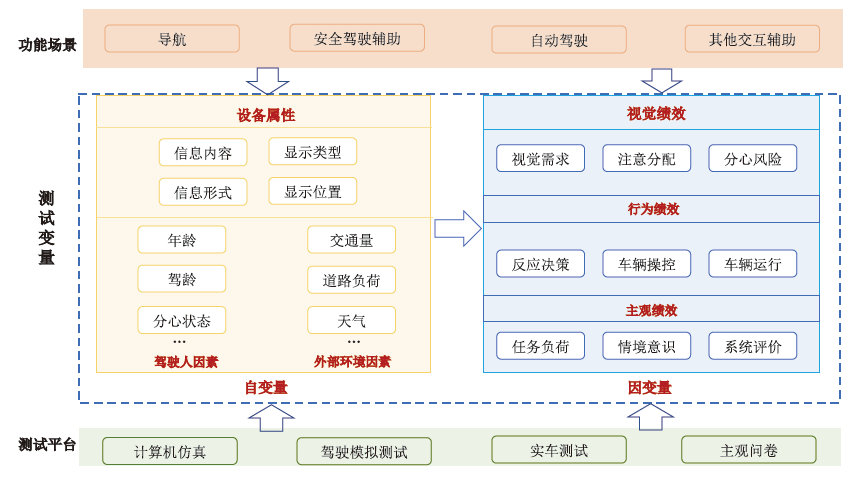

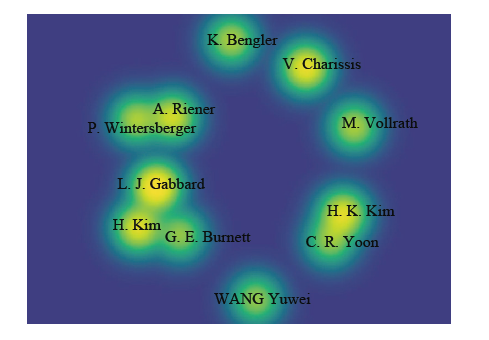

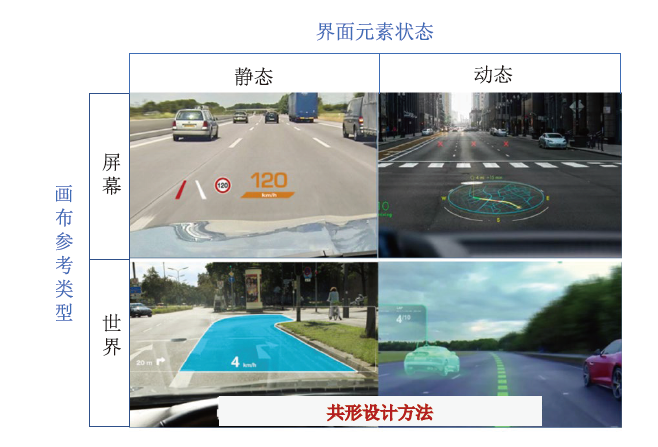

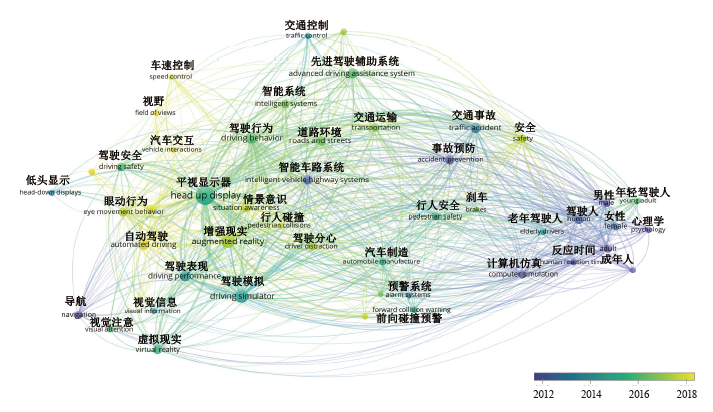

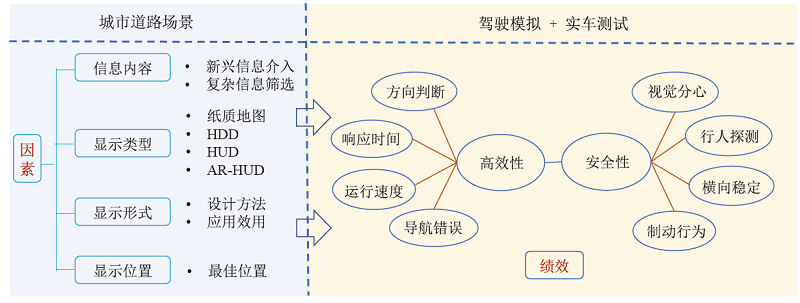

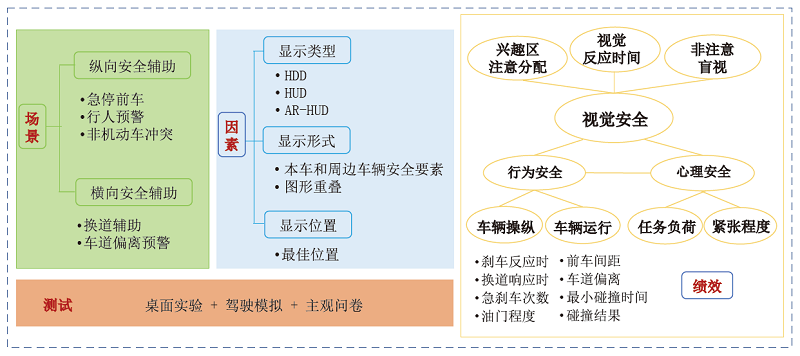

平视显示器（HUD）是网联环境下车内人机交互的新兴方式和未来发展的热点方向,开展汽车HUD人因测试是保证其预期安全效益的关键前提。该综述介绍了HUD的产品分类、现状应用及信息建议;绘制了HUD人因测试研究知识图谱以明晰现有研究的关键内容及其随时间和空间的变化趋势;从功能场景、测试变量和测试方法提出网联环境下HUD人因测试框架,并针对出行导航、安全辅助、自动驾驶及其他交互辅助场景的人因测试展开进一步论述;归纳总结了现有研究的不足,梳理和展望未来HUD人因领域的相关研究内容,为推进网联环境下人机交互及智慧座舱的建设提供参考。

关键词: 网联环境, 人机交互, 平视显示器（HUD）, 人因, 驾驶辅助,自动驾驶, 智慧座舱

Abstract:

Head up displays (HUD) is an emerging way and hot topic of in-vehicle human-computer interaction in connected environment. The human factor testing of automotive HUD is a fundamental step to ensure the expected safety benefits. This paper introduces the classification, the application status, and the suggested information of HUD; The knowledge maps of human factors research of HUD are drawn to clarify the key content of previous research and its changing trend with time and space; And the paper puts forward the general testing framework of HUD from the functional scenarios, test variables, and test methods; and further discusses the human factors testing in the scenarios of navigation, safety assistance, automated driving, and other interactive assistance tasks. Finally, it summarizes the existing research gaps and put forward the future research prospects for human factors research of HUD, and provides references for the construction of the intelligent cockpit in connected environment.

Key words: connected environment, human computer interaction, head up display (HUD), human factors, driving assistance, automatic driving, intelligent cockpit

中图分类号:

U491.2+5

赵晓华, 李雪玮, 张钰, 李振龙, 李海舰, 张建华. 面向网联环境的汽车平视显示器人因测试研究综述与展望[J]. 汽车安全与节能学报, 2022, 13(2): 225-241.

ZHAO Xiaohua, LI Xuewei, ZHANG Yu, LI Zhenlong, LI Haijian, ZHANG Jianhua. Review and prospect of human factor testing of automotive head up displays in connected environment[J]. Journal of Automotive Safety and Energy, 2022, 13(2): 225-241.

图/表 13

参考文献 75

[1]	冉斌, 谭华春, 张健, 等. 智能网联交通技术发展现状及趋势[J]. 汽车安全与节能学报, 2018, 9(2): 119-130.
	RAN Bin, TAN Huachun, ZHANG Jian, et al. Development status and trend of connected automated vehicle highway system[J]. J Autom Safe Energ, 2018, 9(2): 119-130. (in Chinese)
[2]	中华人民共和国公安部. 道路交通车路协同信息服务通用技术要求[S/OL]. [2022-05-31], http://www.tmri.cn/detail.aspx?id= 10388192.
	Ministry of Public Security of the PRC. General technical requirements for road traffic information service based on cooperative vehicle infrastructure system[S/OL]. [2022-05-31], http://www.tmri.cn/detail.aspx?id= 10388192. (in Chinese)
[3]	李克强, 戴一凡, 李升波, 等. 智能网联汽车 ( ICV ) 技术的发展现状及趋势[J]. 汽车安全与节能学报, 2017, 8(1): 1-14.
	LI Keqiang, DAI Yifan, LI Shengbo, et al. State-of-the-art and technical trends of intelligent and connected vehicles[J]. J Autom Safe Energ, 2017, 8(1): 1-14. (in Chinese)
[4]	佐思汽研. 汽车智能座舱白皮书(2021)[R/OL]. [2022-05-31], http://db.shujubang.com/home/login/index/gid/15370.
	Zuo Si Qi Yan. Automotive intelligent cabin white book (2021)[R/OL]. [2022-05-31], http://db.shujubang.com /home /login/index/gid/15370. (in Chinese)
[5]	华为技术有限公司. 车路一体化智能网联体系C-V2X白皮书[R/OL]. [2022-05-31], https://www.sgpjbg.com/baogao/64925.html.
	Huawei Technologies Co., Ltd. C-V2X white book of vehicle road integrated intelligent network system[R/OL]. [2022-05-31], https://www.sgpjbg.com/baogao/64925.html. (in Chinese)
[6]	SAX J. Picturing the future of connected mobility: How HUDS are paving the way[EB/OL]. (2018-12-26), https://www.3m.com/3M/en_Us/auomotive-experience-vsolutions-us/human-machine-ineface-solutions head-up-display/jim-sax-hud-article.
[7]	东吴证券. 汽车新技术专题报告:座舱第三屏HUD,赋能驾驶新体验[R/OL]. [2022-05-31], https://wenku.baidu.com/view/827d2fda6e175f0e7cd184254b35eefdc9d315ea.html.
	Soochow Securities. Special report on new automobile technology:HUD on the third screen of the cockpit, enabling new driving experience.[R/OL]. [2022-05-31], https://wenku.baidu.com/view/827d2fda6e175f0e7c d184254b3 5eefdc9d315ea.html. (in Chinese)
[8]	ABI Research. Automotive display technologies: Touch screens, HUDS, and dynamic clusters[EB/OL]. (2018-12-26), https://www.abiresearch.com/market-research/product/1021371-automotive-display-technologies-touch-scre/.
[9]	单铮, 朱晓东, 朱弘戈, 等. 面向网联自动驾驶汽车的平视显示系统综述[C]// 第14届中国智能交通年会论文集.中国,青岛, 2019: 38-49.
	SHAN Zheng, ZHU Xiaodong, Zhu Hongge, et al. A review of head-up display for connected automated vehicles[C]// Proceed 14th China Intel Transport Annu Conf, 2019: 38-49. (in Chinese)
[10]	Gabbard J L, Smith M, Tanous K, et al. AR DriveSim: An immersive driving simulator for augmented reality head-up display research[J]. Fron Robot AI, 2019, 6 (98): 1-16.
[11]	Tran C, Bark K, Ng-Thow-Hing V. A left-turn driving aid using projected oncoming vehicle paths with augmented reality[C]// Proceed 5^th Int’l Conf Autom user Interf Intera Vehi Appl. New York, NY, USA: Association for Computing Machinery, 2013: 300-307.
[12]	谭浩, 谭证宇, 景春晖. 汽车人机交互界面设计[M]// 汽车工程. 北京: 电子工业出版社, 2015: 316-321.
	TAN Hao, TAN Zhengyu, JING Chunhui. Design of automobile human-computer interaction interface[M]// Automotive Engineering. Beijing: Publishing House of Electronics Industry, 2015: 316-321. (in Chinese)
[13]	齐涛, 邵丽青. 车载 HUD 的发展现状及趋势分析[J]. 汽车纵横, 2019, 11: 54-57.
	QI Tao, SHAO Liqing. Development status and trend analysis of vehicle HUD[J]. Auto Rev, 2019, 11: 54-57. (in Chinese)
[14]	Park J, Park W. Functional requirements of automotive head-up displays: A systematic review of literature from 1994 to present[J]. Appl Ergon, 2019, 76: 130-146. doi: 10.1016/j.apergo.2018.12.017 URL
[15]	NHTSA. Visual-manual NHTSA driver distraction guidelines for in-vehicle electronic devices[R/OL]. Washington DC: NHTSA, 2012. NHTSA-2010-0053. [2022-06-10], https://www.nhtsa.gov/sites/nhtsa.gov/files/docketnhtsa-2010-0053.pdf
[16]	Smith M, Gabbard J L, Conley C. Head-up vs. head-down displays: Examining traditional methods of display assessment while driving[C]// Proceed 8th Int’l Conf Autom User Interf Intera Vehi Appl. New York, NY, USA: Association for Computing Machinery, 2016: 185-19
[17]	YANG Bo, ZHENG Rencheng, YIN Yuandong, et al. Analysis of influence on driver behavior while using in-vehicle traffic lights with application of head-up display[J]. IET Intel Transport Syst, Institut Engi Tech, 2016, 10(5): 347-353.
[18]	Hwang Y, Park B J, Kim K H. The effects of augmented-reality head-up display system on the perception of precautionary situation[C]// 015 Int’l Conf Info Commun Tech Converg (ICTC). IEEE, 2015: 1146-1148.
[19]	Smith M, Streeter J, Burnett G, et al. Visual search tasks: The effects of head-up displays on driving and task performance[C]// Proceed 7th Int’l Conf Autom User Interf Intera Vehi Appl., 2015: 80-87.
[20]	Chintamani K, Cao A, Ellis R D, et al. Improved telemanipulator navigation during display-control misalignments using augmented reality cues[J]. IEEE Trans Syst, Man, Cyber, Part A: Syst Huma, 2009, 40(1): 29-39.
[21]	Eyraud R, Zibetti E, Baccino T. Allocation of visual attention while driving with simulated augmented reality[J]. Transport Res Part F: Traf Psych Behav, 2015, 32: 46-55.
[22]	Srinivasan R, Jovanis P P. Effect of selected in-vehicle route guidance systems on driver reaction times[J]. Human Factors, 1997, 39(2): 200-215. pmid: 9302888
[23]	LIU Yungching, WEN Minghui. Comparison of head-up display (HUD) vs. head-down display (HDD): Driving performance of commercial vehicle operators in Taiwan[J]. Int’l J Human Computr Stud, 2004, 61(5): 679-697.
[24]	Phannmueller L, Kramer M, Senner B, et al. A comparison of display concepts for a navigation system in an automotive contact analog head-up display[J]. Proced Manufact, 2015, 3: 2722-2729.
[25]	Bauerfeind K, Drüke J, Bendewald L, et al. When does the driver benefit from AR information in a navigation task compared to a head-up display?Results of a driving simulator study[C]// Proceed Human Factors Ergonom Soc Europe. Berlin, Germany. 2019: 219-230.
[26]	Medenica Z, Kun A L, Paek T, et al. Augmented reality vs.Street views: A driving simulator study comparing two emerging navigation aids[C]// Conf Human-Comput Intera Mobil Devi Servi. Stockholm, Sweden. 2011: 265-274.
[27]	Bauerfeind K, Drüke J, Schneider J, et al. Navigating with augmented reality - How does it affect drivers’ mental load?[J]. Appl Ergon, 2021, 94(3): 103398. doi: 10.1016/j.apergo.2021.103398 URL
[28]	Gabbard J L, Fitch G M, Kim H. Behind the glass: Driver challenges and opportunities for AR automotive applications[J]. Proceed IEEE, 2014, 102(2): 124-136. doi: 10.1109/JPROC.2013.2294642 URL
[29]	Merenda C, Kim H, Tanous K, et al. Augmented reality interface design approaches for goal-directed and stimulus-driven driving tasks[J]. IEEE Trans Visual Comput Graph, IEEE Comput Soc, 2018, 24(11): 2875-2885.
[30]	Bark K, Tran C, Fujimura K, et al. Personal Navi: Benefits of an augmented reality navigational aid using a see-thru 3D volumetric HUD[C]// Proceed 6th Int’l Conf Autom User Interf Intera Vehi Appl. New York, NY, USA: Association for Computing Machinery, 2014: 1-8.
[31]	Kim H, Miranda A A, Misu T, et al. Look at Me: Augmented reality pedestrian warning system using an in-vehicle volumetric head up display[C]// Proceed 21th Int’l Conf Autom User Interf Intera Vehi Appl. New York, NY, USA: Association for Computing Machinery, 2016: 294-298.
[32]	Kim H, Gabbard J L, Anon A M, et al. Driver behavior and performance with augmented reality pedestrian collision warning: An outdoor user study[J]. IEEE Tran Visual Comput Graph, IEEE Comput Soc, 2018, 24(4): 1515-1524.
[33]	Tönnis M, Broy V, Klinker G. A survey of challenges related to the design of 3D user interfaces for car Drivers[C]// 3D User Interfaces (3DUI’06). IEEE, 2006: 127-134
[34]	Campbell J L, Brown J L, Graving J S, et al. Human factors design guidance for level 2 and level 3 automated driving concepts[R]. 2018, DOT HS 812 555.
[35]	Tretten P, Gärling A, Nilsson R, et al. An on-road study of head-up display: Preferred location and acceptance levels[C]// Proceed Human Fact Ergono Soci. Sage Publications, 2011, 55(1): 1914-1918.
[36]	Flannagan M J, Harrison A K. The effects of automobile head-up display location for younger and older drivers[R]. 1994. No. UMTRI-94-22.
[37]	Wu Y, Abdel-Aty M, Park J, et al. Effects of crash warning systems on rear-end crash avoidance behavior under fog conditions[J]. Transport Res part C: Emerg Tech, 2018, 95: 481-492.
[38]	McGehee D V, LeBlanc D J, Kiefer R J, et al. Human factors in forward collision warning systems: Operating characteristics and user interface requirements[R]. Warrendale, PA: Soc Autom Engi, 2002. No. J2400.
[39]	Perez M A, Kiefer R J, Haskins A, et al. Evaluation of forward collision warning system visual alert candidates and SAE J2400[J]. SAE Int’l J Passenger Cars-Mech Syst, 2009, 2(2009-01-0547): 750-764.
[40]	ZHANG Yanjun, YANG Tian, ZHhang Xia, et al. Effects of full windshield head-up display on visual attention allocation[J]. Ergonomics, 2021, 64(10): 1310-1321. doi: 10.1080/00140139.2021.1912398 URL
[41]	史金磊. 基于用户调研和模拟驾驶的平视显示预警系统有效性研究[D]. 杭州: 浙江理工大学, 2020.
	SHI Jinlei. Research on effectiveness of head-up display warning system based on user research and simulated Driving[D]. Hangzhou: Zhejiang Sci-Tech Univ, 2020. (in Chinese)
[42]	Phan M T, Thouvenin I, Frémont V. Enhancing the driver awareness of pedestrian using augmented reality cues[C]// 2016 IEEE 19th Int’l Conf Intel Transport Syst (ITSC). IEEE, 2016: 1298-1304.
[43]	Park B J, Lee J W, Yoon C, et al. Augmented reality and representation in vehicle for safe driving at night[C]// 2015 Int’l Conf Info Commu Tech Converg (ICTC). IEEE, 2015: 1261-1263.
[44]	陈澄. 增强现实平视显示系统辅助驾驶中的非注意盲视研究[D]. 杭州: 浙江理工大学, 2019.
	CHEN Cheng. The study of in attentional blindness in augmented reality head-up display system assisted driving[D]. Hangzhou: Zhejiang Sci-Tech Univ, 2019. (in Chinese)
[45]	LIU Yungching, WEN Minghui. Comparison of head-up display (HUD) vs. head-down display (HDD): Driving performance of commercial vehicle operators in Taiwan[J]. Int’l J Human Comput Stud, 2004, 61(5): 679-697.
[46]	Kass S J, Cole K S, Stanny C J. Effects of distraction and experience on situation awareness and simulated driving[J]. Transport Res Part F: Traf Psych Beha, 2007, 10(4): 321-329.
[47]	Kim H, Wu X, Gabbard J L, et al. Exploring head-up augmented reality interfaces for crash warning systems[C]// Proceed 5th Int’l Conf Autom User Interf Intera Vehi Appl. New York, NY, USA: Association for Computing Machinery, 2013: 224-227.
[48]	李卓, 周晓, 郑杨硕. 基于AR-HUD的汽车驾驶辅助系统设计研究[J]. 武汉理工大学学报(交通科学与工程版), 2017, 41(6): 924-928.
	LI Zhuo, ZHOU Xiao, ZHENG Yangshuo. Design and research of vehicle driving auxiliary system based on AR-HUD[J]. J Wuhan Univ Tech(Transport Sci Engi), 2017, 41(6): 924-928. (in Chinese)
[49]	Frémont V, Phan M T, Thouvenin I. Adaptive visual assistance system for enhancing the driver awareness of pedestrians[J]. Int’l J Human-Comput Interact, 2020, 36(9): 856-869.
[50]	Ali Y, Zheng Z, Haque M M. Connectivity’s impact on mandatory lane-changing behaviour: Evidences from a driving simulator study[J]. Transport Res Part C: Emerg Tech, 2018, 93: 292-309. doi: 10.1016/j.trc.2018.06.008 URL
[51]	Aksan N, Sager L, Hacker S, et al. Individual differences in cognitive functioning predict effectiveness of a heads-up lane departure warning for younger and older drivers[J]. Accid Anal Prevent, 2017, 99: 171-183. doi: 10.1016/j.aap.2016.11.003 URL
[52]	Kozak K, Pohl J, Birk W, et al. Evaluation of lane departure warnings for drowsy drivers[C]// Proceed human fact ergon soc annu meet. Sage CA: Los Angeles: CA: Sage Publications, 2006: 2400-2404.
[53]	Alves P R J A, Goncalves J, Rossetti R J F, et al. Forward collision warning systems using heads-up displays: Testing usability of two new metaphors[C]// IEEE Intel Vehi Symp, Proceed. Australia, 2013: 1-6.
[54]	Tonnis M, Lange C, Klinker G. Visual Longitudinal and lateral driving assistance in the head-up display of cars[C]// 2007 6th IEEE and ACM Int’l Symp Mixed Augment Real. IEEE, 2007: 91-94.
[55]	Ward N J, Parkes A, Crone P R. Effect of background scene complexity and field dependence on the legibility of head-up displays for automotive applications[J]. Human Factors, 1995, 37(4): 735-745. pmid: 8851776
[56]	Gabbard J L, Swan J E, Mix D. The effects of text drawing styles, background textures, and natural lighting on text legibility in outdoor augmented reality[J]. Presence: Teleoperat Virtu Environ, 2006, 15(1): 16-32.
[57]	Gabbard J L, Swan J E, Hix D, et al. An empirical user-based study of text drawing styles and outdoor background textures for augmented reality[C]// IEEE Proceed. VR 2005. Virtual Reality, 2005. IEEE, 2005: 11-18.
[58]	Oh H J, Ko S M, Ji Y G. Effects of superimposition of a head-up display on driving performance and glance behavior in the elderly[J]. Int’l J Human-Comput Interact. 2016, 32(2): 153-154.
[59]	Horrey W J, Wickens C D. In-vehicle glance duration: distributions, tails, and model of crash risk[J]. Transport Res Record, 2007, 2018(1): 22-28.
[60]	Sänger J, Bechtold L, Schoofs D, et al. The influence of acute stress on attention mechanisms and its electrophysiological correlates[J]. Front Beha Neurosci, 2014, 8: 1-13.
[61]	国家市场监督管理总局. GB/T 40429-2021: 汽车驾驶自动化分级[S]. 2021.
	The State Administration for Market Regulation. GB/T 40429-2021: Taxonomy of driving automation for vehicles[S]. 2021. (in Chinese)
[62]	Feierle A, Beller D, Bengler K. Head-up displays in urban partially automated driving: Effects of using augmented reality[C]// 2019 IEEE Intel Transport Syst Conf (ITSC). IEEE, 2019: 1877-1882.
[63]	Karatas N, Tanaka T, Fujikakc K, et al. Evaluation of AR-HUD interface during an automated intervention in manual driving[C]// 2020 IEEE Intel Vehi Symp (IV). IEEE, 2020: 2158-2164.
[64]	张艺凡. 基于AR-HUD的人机界面交互设计及实验测试[J]. 科学技术创新, 2021, 35: 60-63.
	ZHANG Yifan. Human-computer interface interaction design and experimental test based on AR-HUD[J]. Sci Tech Innovat, 2021, 35: 60-63. (in Chinese)
[65]	Schartmüller C, Weigl K, Wintersberger P, et al. Text comprehension: Heads-up vs. Auditory displays: Implications for a productive work environment in SAE level 3 automated vehicles[J]. Proceed 11th Int’l ACM Conf Autom User Interf Interae Vehi Appl. Association for Computing Machinery, Inc, 2019: 342-354.
[66]	Hensch A C, Rauh N, Schmidt C, et al. Effects of secondary tasks and display position on glance behavior during partially automated driving[J]. Transport Res Part F: Traf Psych Beha, 2020, 68: 23-32.
[67]	Schömig N, Wiedemann K, Naujoks F, et al. An Augmented Reality Display for Conditionally Automated Driving[C]// Adjunct proceed 10th Int’l Conf Aautom Uuser Interf Intera Vehi Appl. New York, NY, USA: Association for Computing Machinery, 2018: 137-141.
[68]	Wintersberger P, Frison A K, Riener A, et al. Fostering user acceptance and trust in fully automated vehicles: Evaluating the potential of augmented reality[J]. Presence: Teleoperat Virtu Environ, MIT Press J. 2019, 27(1): 46-62.
[69]	Jakus G, Dicke C, Sodnik J. A user study of auditory, head-up and multi-modal displays in vehicles[J]. Appl Ergon, 2015, 46: 184-192. doi: 10.1016/j.apergo.2014.08.008 URL
[70]	LIU Yungching. Effects of using head-up display in automobile context on attention demand and driving performance[J]. Displays. 2003, 24(4-5): 157-165. doi: 10.1016/j.displa.2004.01.001 URL
[71]	LI Rui, CHEN Yingjie Victor, ZHANG Linghao, et al. Effects of perception of head-up display on the driving safety of experienced and inexperienced drivers[J]. Displays, 2020, 64: 101962. doi: 10.1016/j.displa.2020.101962 URL
[72]	Smith M, Jordan L, Bagalkotkar K, et al. Hit the Brakes!: Augmented reality head-up display impact on driver responses to unexpected events[C]// Adjunct Proceed 12th Int’l ACM Conf Autom User Interf Intera Vehi Appl. Association for Computing Machinery, Inc, 2020: 46-49.
[73]	Topliss B H, Pampel S M, Burnett G, et al. Evaluating head-up displays across windshield locations[C]// Proceed 11th Int’l Conf Autom User Interf Inter Vehi Appl. Association for Computing Machinery, Inc, 2019: 244-253.
[74]	Horrey J W, Wickens D C, Alexander L A. The effects of head-up display clutter and in-vehicle display separation on concurrent driving performance[C]// Proceed Human Fact Ergon Soc Annu Meet. Sage CA, Los Angeles, CA: SAGE Publications, 2003: 1880-1884.
[75]	Hannah T B, Harvey C, Burnett G. How long can a driver look?Exploring time thresholds to evaluate head-up display imagery[C]// Proceed 12th Int’l ACM Conf Autom User Interf Intera Vehi Appl. Association for Computing Machinery, Inc, 2020: 169-180.

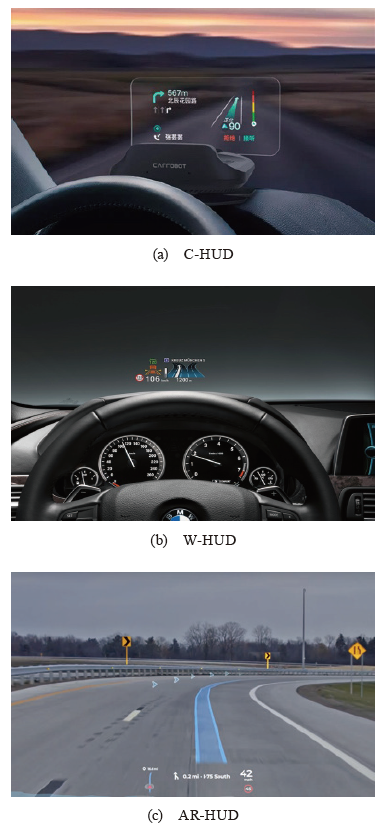

对比项	C-HUD	W-HUD	AR-HUD
视觉示区域	透明树脂玻璃	前挡风玻璃（近投面）	前挡风玻璃 (近投面+远投面)
产业应用	后装或前装; 已量产	前装; 已量产	前装; 小规模量产
主要特点	成本容易控制; 显示效果较好; 车辆事故时容易产生二次伤害	一体化显示; 节省车内空间; 高精度非球面反射镜致使成本高	驾驶安全性高; 显示效果更真实; 技术难度大; 制造成本高

对比项	C-HUD	W-HUD	AR-HUD
视觉示区域	透明树脂玻璃	前挡风玻璃（近投面）	前挡风玻璃 (近投面+远投面)
产业应用	后装或前装; 已量产	前装; 已量产	前装; 小规模量产
主要特点	成本容易控制; 显示效果较好; 车辆事故时容易产生二次伤害	一体化显示; 节省车内空间; 高精度非球面反射镜致使成本高	驾驶安全性高; 显示效果更真实; 技术难度大; 制造成本高

信息类型	信息内容	应用情况及目的
车辆状态信息	当前速度	支持驾驶人的纵向控制,特别是限速阶段
	巡航控制相关信息	告知驾驶人巡航控制系统模式和设置; 预防驾驶人失误并辅助车辆纵向控制;增强人机交互
	档位切换信息	告知驾驶人档位和车辆操作模式预防驾驶人失误;最佳档位建议以提高驾驶性能
	系统信息	通知驾驶人车辆故障或即将出现的问题;及时进行车辆维护;确保驾驶不受干扰,提高驾驶安全
	转速信息	告知驾驶人发动机状态;辅助驾驶人换挡决策;改善驾驶表现及燃油经济性
	油量相关信息	燃油不足提醒补充油量;保证驾驶不受干扰
	远光灯状态	告知驾驶人远光灯状态;增强驾驶人对外界环境的感知;当能见度低时有用;提高驾驶安全性
	转向灯状态	告知驾驶人转向灯状态;提供驾驶人操作反馈
	泊车辅助系统状态	告知驾驶人泊车辅助系统状态;减少人因错误;增强人车交互
	混合动力系统状态	告知驾驶人混合动力状态,例如动力驾驶模式、电池状态、功率/扭矩分布;仅适用于混合动力汽车
	赛车相关信息	告知驾驶人赛车相关信息,例如档位和圈数;适用于赛车;改善驾驶表现
	刹车辅助系统状态	告知驾驶人刹车辅助状态;减少人因错误;增强人车交互
	电子稳定控制状态	告知驾驶人电子稳定控制状态;帮助最大限度减少失控;提高驾驶安全
	生态驾驶状态	告知驾驶人生态驾驶模式;辅助降低油耗和二氧化碳排放
	胎压状态	尽早发现轮胎问题;确保驾驶不受干扰;提高驾驶安全性
安全信息	碰撞警告（包含盲区监测和距离提醒）	告知驾驶人即将发生的碰撞,并有助于防止碰撞或降低碰撞的严重程度;提高驾驶安全性
	道路标志通知/警告车道保持相关信息	增强驾驶人对道路标志和警告的感知;提高驾驶安全性;提醒驾驶人无意识车道偏离,提高驾驶安全性
	夜视相关警告	增强黑暗环境下的驾驶人意识;辅助驾驶人检测潜在危险;提高驾驶安全性
导航信息	导航指示	告知驾驶人导航指导和最佳路线;辅助在不熟悉环境驾驶;改善驾驶绩效和安全
	剩余距离	告知驾驶人距离下一转向的距离,从而帮助驾驶人知道何时转弯
	罗盘航向	为驾驶人提供指南针方向;帮助驾驶人在没有导航指示的情况下驾驶
环境信息	外界温度	告知驾驶人环境温度;改善驾驶人对外部环境的情境意识
娱乐/ 通讯信息	无线电相关信息	向驾驶人提供无线电相关信息,如当前电台、电台频率等。
	音频播放器	为驾驶人提供音频播放器信息,如歌曲标题、媒体类型等;支持驾驶人与车内娱乐系统交互;改善驾驶体验
	电话相关信息	提供驾驶人与电话相关的信息,如来电、通话历史等;支持驾驶人与车内通讯系统交互;改善驾驶体验。
	语音识别系统	告知驾驶人语音识别系统状态;支持驾驶人与车或人工智能系统交互;改善驾驶绩效与驾驶体验

信息类型	信息内容	应用情况及目的
车辆状态信息	当前速度	支持驾驶人的纵向控制,特别是限速阶段
	巡航控制相关信息	告知驾驶人巡航控制系统模式和设置; 预防驾驶人失误并辅助车辆纵向控制;增强人机交互
	档位切换信息	告知驾驶人档位和车辆操作模式预防驾驶人失误;最佳档位建议以提高驾驶性能
	系统信息	通知驾驶人车辆故障或即将出现的问题;及时进行车辆维护;确保驾驶不受干扰,提高驾驶安全
	转速信息	告知驾驶人发动机状态;辅助驾驶人换挡决策;改善驾驶表现及燃油经济性
	油量相关信息	燃油不足提醒补充油量;保证驾驶不受干扰
	远光灯状态	告知驾驶人远光灯状态;增强驾驶人对外界环境的感知;当能见度低时有用;提高驾驶安全性
	转向灯状态	告知驾驶人转向灯状态;提供驾驶人操作反馈
	泊车辅助系统状态	告知驾驶人泊车辅助系统状态;减少人因错误;增强人车交互
	混合动力系统状态	告知驾驶人混合动力状态,例如动力驾驶模式、电池状态、功率/扭矩分布;仅适用于混合动力汽车
	赛车相关信息	告知驾驶人赛车相关信息,例如档位和圈数;适用于赛车;改善驾驶表现
	刹车辅助系统状态	告知驾驶人刹车辅助状态;减少人因错误;增强人车交互
	电子稳定控制状态	告知驾驶人电子稳定控制状态;帮助最大限度减少失控;提高驾驶安全
	生态驾驶状态	告知驾驶人生态驾驶模式;辅助降低油耗和二氧化碳排放
	胎压状态	尽早发现轮胎问题;确保驾驶不受干扰;提高驾驶安全性
安全信息	碰撞警告（包含盲区监测和距离提醒）	告知驾驶人即将发生的碰撞,并有助于防止碰撞或降低碰撞的严重程度;提高驾驶安全性
	道路标志通知/警告车道保持相关信息	增强驾驶人对道路标志和警告的感知;提高驾驶安全性;提醒驾驶人无意识车道偏离,提高驾驶安全性
	夜视相关警告	增强黑暗环境下的驾驶人意识;辅助驾驶人检测潜在危险;提高驾驶安全性
导航信息	导航指示	告知驾驶人导航指导和最佳路线;辅助在不熟悉环境驾驶;改善驾驶绩效和安全
	剩余距离	告知驾驶人距离下一转向的距离,从而帮助驾驶人知道何时转弯
	罗盘航向	为驾驶人提供指南针方向;帮助驾驶人在没有导航指示的情况下驾驶
环境信息	外界温度	告知驾驶人环境温度;改善驾驶人对外部环境的情境意识
娱乐/ 通讯信息	无线电相关信息	向驾驶人提供无线电相关信息,如当前电台、电台频率等。
	音频播放器	为驾驶人提供音频播放器信息,如歌曲标题、媒体类型等;支持驾驶人与车内娱乐系统交互;改善驾驶体验
	电话相关信息	提供驾驶人与电话相关的信息,如来电、通话历史等;支持驾驶人与车内通讯系统交互;改善驾驶体验。
	语音识别系统	告知驾驶人语音识别系统状态;支持驾驶人与车或人工智能系统交互;改善驾驶绩效与驾驶体验

信息类别	信息内容	应用目的
自动驾驶相关	自动化公路信息（车辆运行模式、车车间距、当前车道位置）; 条件自动化车辆纵向和横向控制状态; L3自动驾驶车辆接管通知; 高度自动化车辆协同驾驶通信信息（例如,变道动作箭头、间隙信息和合作伙伴信息）	支持驾驶人与自动化车辆交互; 提高驾驶绩效和安全。
非驾驶相关	驾驶人—驾驶人通信（驾驶人对其他驾驶人行为的赞赏标志）; 驾驶人—乘客通信（乘客视线可视化信息）; 环境信息（驾驶人手握方向盘时指向目标的位置）; 娱乐信息（视频游戏相关信息）	支撑驾驶人与其他人的通信; 改善司机与乘客的驾驶体验; 提高驾驶绩效和安全; 减少驾驶疲劳,丰富驾驶娱乐性
