基于隐藏式出风口的汽车乘员舱热舒适性优化

doi:10.3969/j.issn.1674-8484.2026.02.008

摘要/Abstract

摘要：

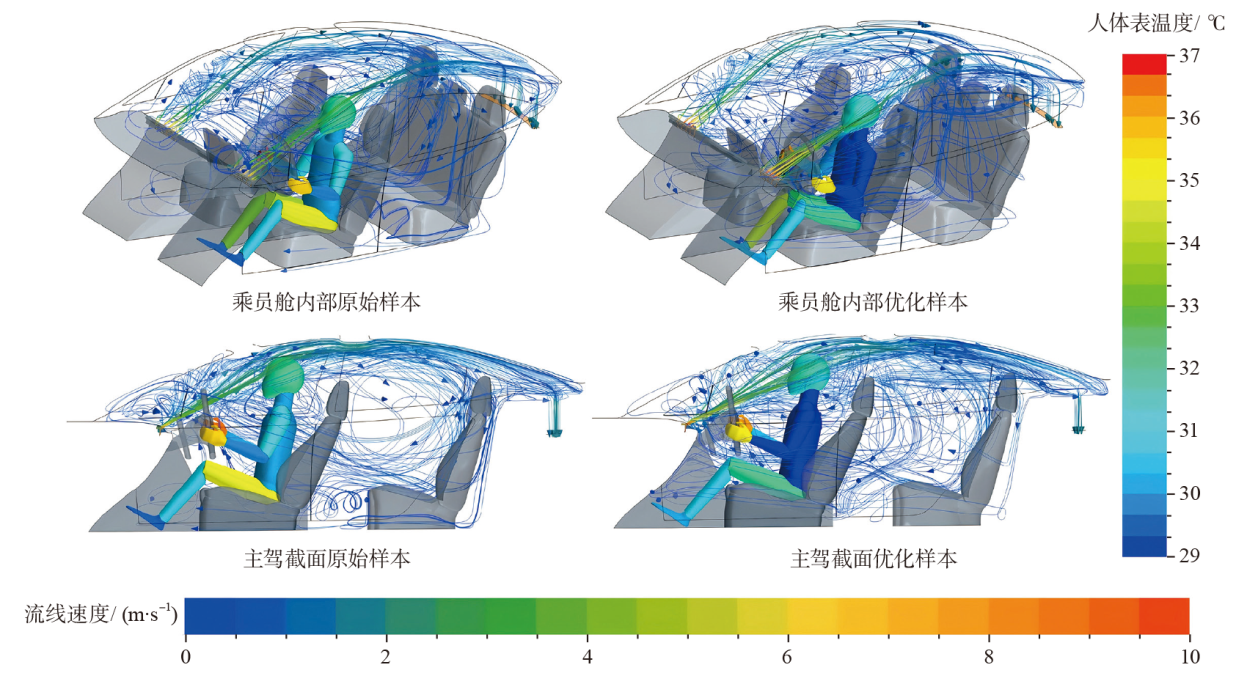

为研究汽车乘员舱新型隐藏式出风口对舱内热舒适性的影响，采用计算流体力学（CFD）技术对乘员舱内流场进行数值模拟，利用STAR-CCM+软件自带热舒适性模型和编写的场函数系统分析了不同送风参数下乘员舱的流场、热场及热舒适性。最后利用实验设计（DOE）与Kriging代理模型，对隐藏式出风口进行了优化设计。结果表明：送风风量对舱内温度场分布及空气品质具有显著影响，优化后的隐藏式出风口有效改善了气流分布，提高了温度均匀性与速度均匀性，空气流通效率显著增强，整体热感觉偏差指标η_AEQT 提升了47.2%，驾驶员热舒适性明显改善。

关键词: 乘员舱, 热舒适性, 隐藏式出风口, 气流分布

Abstract:

To investigate the influence of the novel hidden air outlet on the thermal comfort of an automotive passenger cabin, computational fluid dynamics (CFD) was employed to numerically simulate the internal airflow field. The built-in thermal comfort model of STAR-CCM+ combined with user-defined field functions was used to analyze the airflow, temperature field, and thermal comfort characteristics of the cabin under different air-supply parameters. Furthermore, the design of experiments (DOE) method and a Kriging surrogate model were applied to optimize the geometry of the hidden air outlet. The results indicate that the air-supply volume has a significant effect on the cabin temperature distribution and air quality. The optimized hidden air outlet effectively improves the airflow distribution, enhances the uniformity of temperature and velocity fields, and increases overall air-circulation efficiency. Consequently, the overall equivalent temperature deviation η_AEQT rises by 47.2%, demonstrating a notable improvement in driver thermal comfort.

Key words: passenger cabin, thermal comfort, concealed air vents, airflow distribution

中图分类号:

U27
TB47

成振波, 龙仔航, 彭腾骅, 孙亚超, 王全生. 基于隐藏式出风口的汽车乘员舱热舒适性优化[J]. 汽车安全与节能学报, 2026, 17(2): 225-235.

CHENG Zhenbo, LONG Zihang, PENG Tenghua, SUN Yachao, WANG Quansheng. Thermal comfort optimization of automotive passenger cabin enabled by concealed air vent design[J]. Journal of Automotive Safety and Energy, 2026, 17(2): 225-235.

图/表 19

参考文献 19

[1]	Wan W J, Kooi J V D. Influence of the position of supply and exhaust openings on comfort in a passenger vehicle[J]. *Int’l J Vehi Desi*, 1991, 12(5/6): 588-597.
[2]	Lin C-H, Han T, Koromilas C A. Effects of HVAC design parameters on passenger thermal comfort[C]// Int’l Cong Expo, SAE Tech Paper Ser. Warrendale, PA, USA: SAE International, 1992.
[3]	李亭墨. 某载货汽车驾驶室内流场气动特性分析[D]. 长春: 吉林大学, 2007.
	LI Tingmo. Analysis of aerodynamic characteristics of the flow field in the cab of a truck[D]. Changchun: Jilin University, 2007. (in Chinese)
[4]	王靖宇, 胡兴军, 李亭墨. 送风口对驾驶室内流场气动特性的影响[J]. 重庆理工大学学报(自然科学版), 2010, 24(7): 7-11.
	WANG Jingyu, HU Xingjun, LI Tingmo. The influence of air supply outlets on the aerodynamic characteristics of the flow field in the cab[J]. J Chongqing Univ Tech (Nat Sci Edit), 2010, 24(7): 7-11. (in Chinese)
[5]	李亮. 制冷工况下某轿车乘员舱热舒适性分析与优化[D]. 重庆: 重庆理工大学, 2021.
	LI Liang. Analysis and optimization of thermal comfort in the passenger cabin of a certain car under refrigeration conditions[D]. Chongqing: Chongqing University of Technology, 2021. (in Chinese)
[6]	Nielsen P V. Numerical prediction of air distribution in rooms-status and potentials. building system: Room air and air contaminant distributions[J]. ASHRAE J, 1988(5).
[7]	薛铁龙. 某轿车乘员舱内环境舒适性评价与分析研究[D]. 合肥: 合肥工业大学, 2015.
	XUE Tielong. Research on comfort evaluation and analysis of passenger cabin environment in a certain car[D]. Hefei: Hefei University of Technology, 2015. (in Chinese)
[8]	邓昱, 霍为炜, 成亚仙, 等. 电动汽车冬季乘员舱热环境分析[J]. 机械设计与制造, 2023(1): 91-95, 100.
	DENG Yu, HUO Weiwei, CHENG Yaxian, et al. Analysis of thermal environment in winter passenger cabin of electric vehicles[J]. *Mech Desig Manuf*, 2023(1): 91-95, 100. (in Chinese)
[9]	HUANG Wencai, HU Guangdi, University S J. Numerical simulation analysis of chamber airflow based on different air return position of car[J]. *Comput Simul*, 2018(12): 105-110, 126.
[10]	Fanger P O. Thermal Comfort Analysis and Applications in Environmental Engineering[M]. New York, McGraw-Hill, 1970: 224.
[11]	ZHOU Xiaojie, LAI Dayi, CHEN Qingyan. Thermal sensation model for driver in a passenger car with changing solar radiation[J]. *Build Environ, 2020, 183*: 107-123.
[12]	李明, 李明高, 高峰, 等. STAR-CCM+与流场计算[M]. 北京: 机械工业出版社, 2011: 271.
	LI Ming, LI Minggao, GAO Feng, et al. STAR-CCM+ Flow Field Calculation[M]. Beijing: Machinery Industry Press, 2011: 271. (in Chinese)
[13]	中国汽车工程协会. T/CSAE145-2020: 汽车空调系统最大降温性能试验规范[S]. 中国汽车工程学会, 2020.
	China Society of Automotive Engineers. T/CSAE 145-2020: Test specification for maximum cooling performance of automotive air conditioning systems[S]. China Society of Automotive Engineers, 2020. (in Chinese)
[14]	Sandberg M. What is ventilation efficiency[J]. *Build Environ*, 1981, 16(2): 123-135.
[15]	吕鸿斌. 车辆乘员舱热舒适性与节能边际效用分析[D]. 上海: 上海交通大学, 2019.
	Lü Hongbin. Analysis of thermal comfort and energy-saving marginal utility in vehicle passenger compartments[D]. Shanghai: Shanghai Jiao Tong University, 2019. (in Chinese)
[16]	李双双. 某型轿车车室内流场数值模拟分析[D]. 荆州: 长江大学, 2020.
	LI Shuangshuang. Numerical simulation and analysis of interior flow field in a certain passenger car[D]. Jingzhou: Yangtze University, 2020. (in Chinese)
[17]	赵彬. 汽车发动机舱内流阻力与散热性能的协同优化[D]. 重庆: 重庆理工大学, 2020.
	ZHAO Bing. Collaborative optimization of flow resistance and heat dissipation performance in automotive engine compartment[D]. Chongqing: Chongqing University of Technology, 2020. (in Chinese)
[18]	CHEN Hong, Ooka R, Kato S. Study on optimum design method for pleasant outdoor thermal environment using genetic algorithms (GA) and coupled simulation of convection, radiation and conduction[J]. *Build Environ*, 2008, 43(1): 18-30.
[19]	曾小华, 王振伟, 宋大凤. 基于多岛遗传算法的功率分流式双模混合动力客车参数优化[J]. 机械工程学报, 2020, 56(2): 98-105. doi: 10.3901/JME.2020.02.098
	ZENG Xiaohua, WANG Zhenwei, Song Dafeng. Parameter optimization of power split dual-mode hybrid electric bus based on multi island genetic algorithm[J]. *J Mech Engi*, 2020, 56(2): 98-105. (in Chinese)

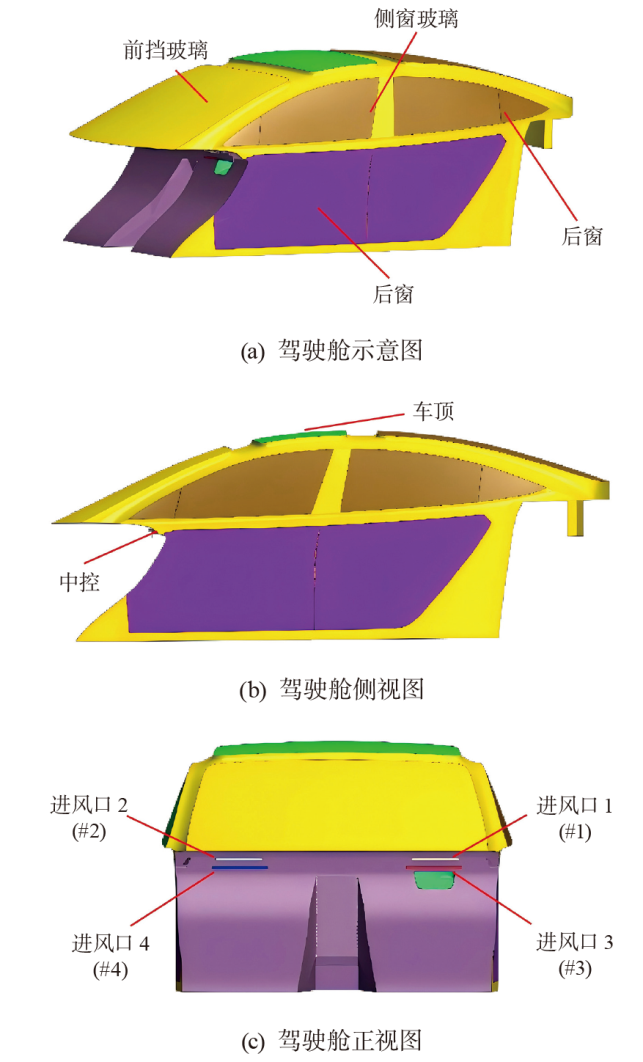

位置	传热系数/ [W(m²·K^-1)]	导热率/ [W(m²·K^-1)]
中控	4.8	0.25
侧窗玻璃与前挡玻璃	7.3	0.93
后窗与车顶	8.2	0.042
车门	9.6	0.018
车身	9.6	0.039

位置	传热系数/ [W(m²·K^-1)]	导热率/ [W(m²·K^-1)]
中控	4.8	0.25
侧窗玻璃与前挡玻璃	7.3	0.93
后窗与车顶	8.2	0.042
车门	9.6	0.018
车身	9.6	0.039

体网格数量/万	截面平均风速/ (m·s^-1)
762	0.688 7
701	0.707 6
859	0.701 7
957	0.723 8
983	0.724 0
1 082	0.714 5
1140	0.723 0
1200	0.723 4
1260	0.723 8

体网格数量/万	截面平均风速/ (m·s^-1)
762	0.688 7
701	0.707 6
859	0.701 7
957	0.723 8
983	0.724 0
1 082	0.714 5
1140	0.723 0
1200	0.723 4
1260	0.723 8

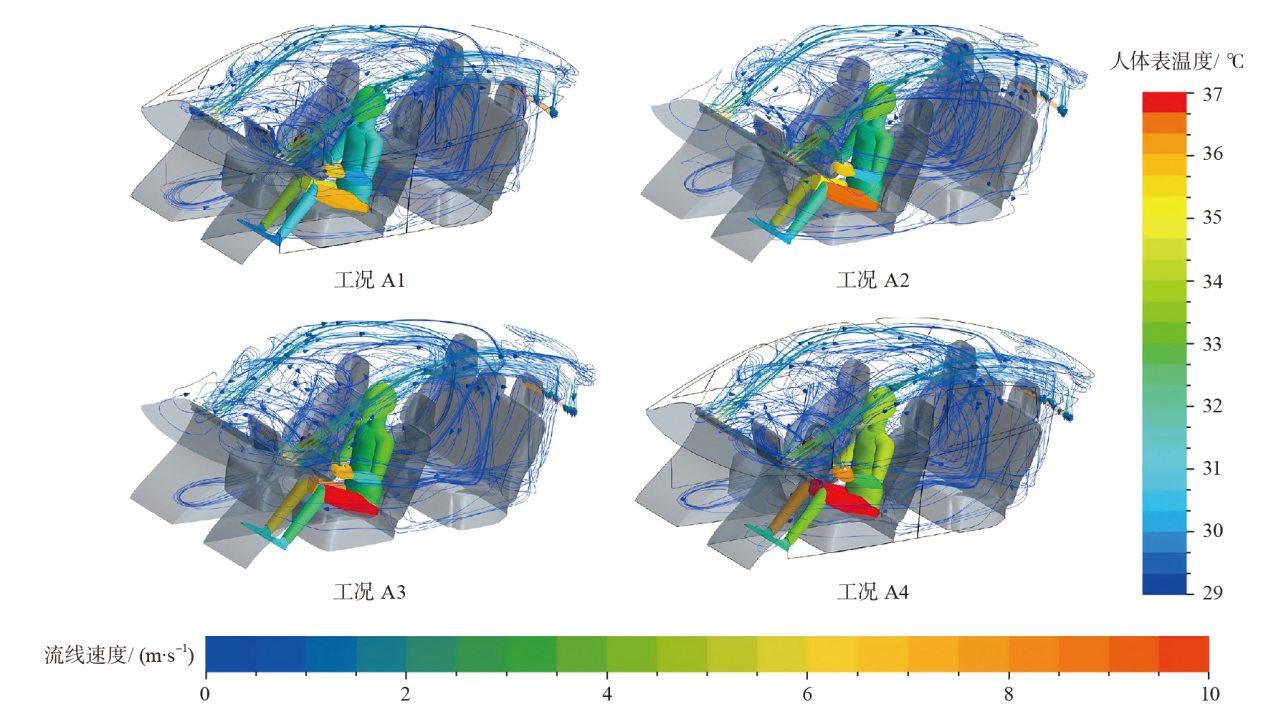

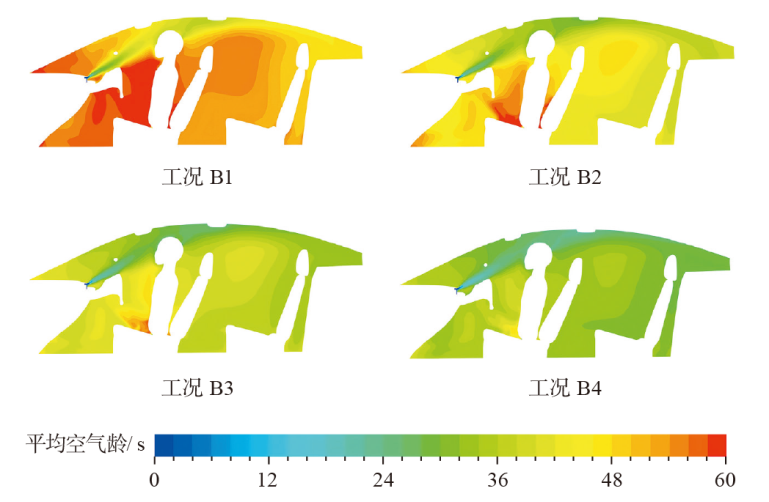

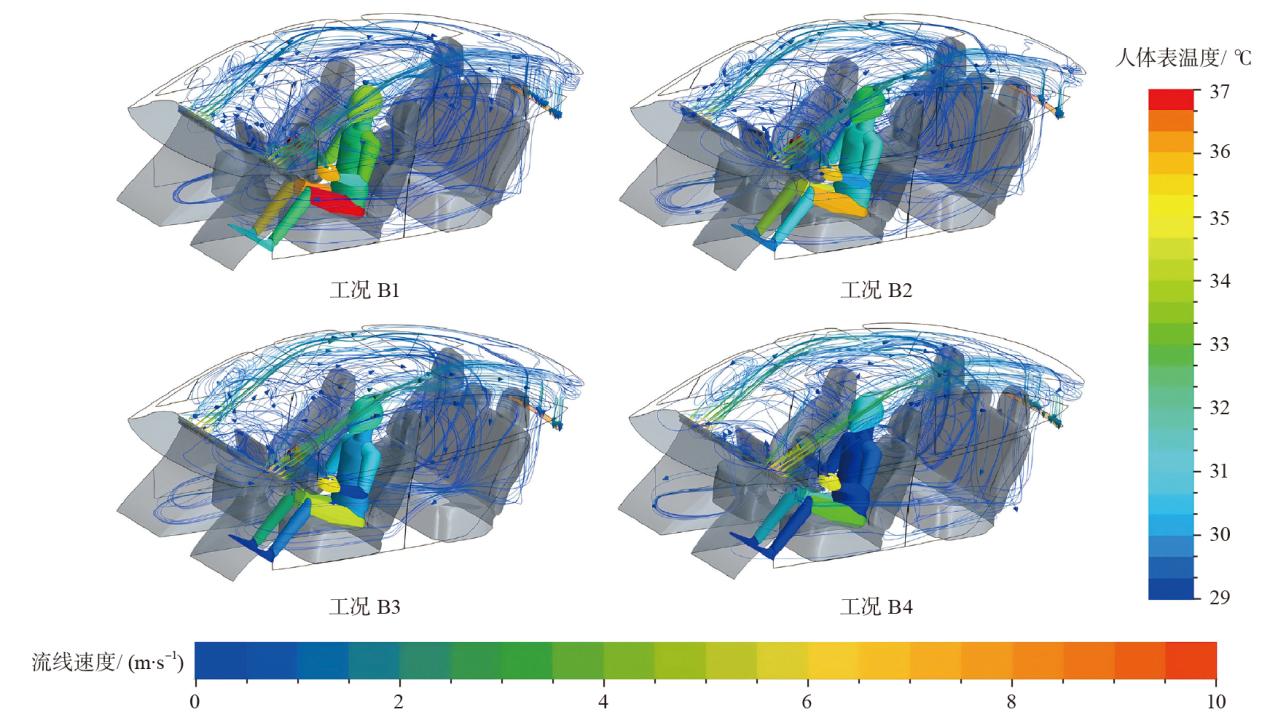

工况	θ / ℃	Q / (kg·s^-1)
工况	θ / ℃	#1和#2	#3和#4

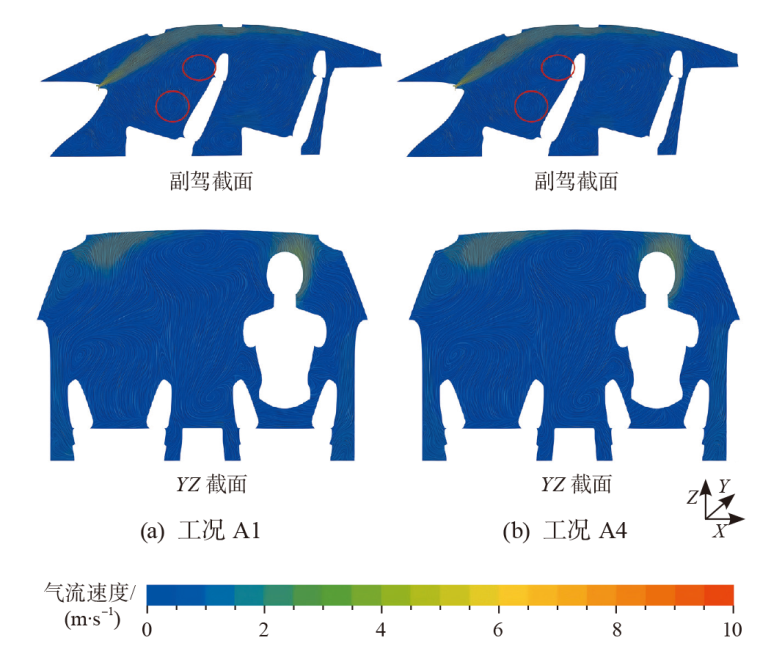

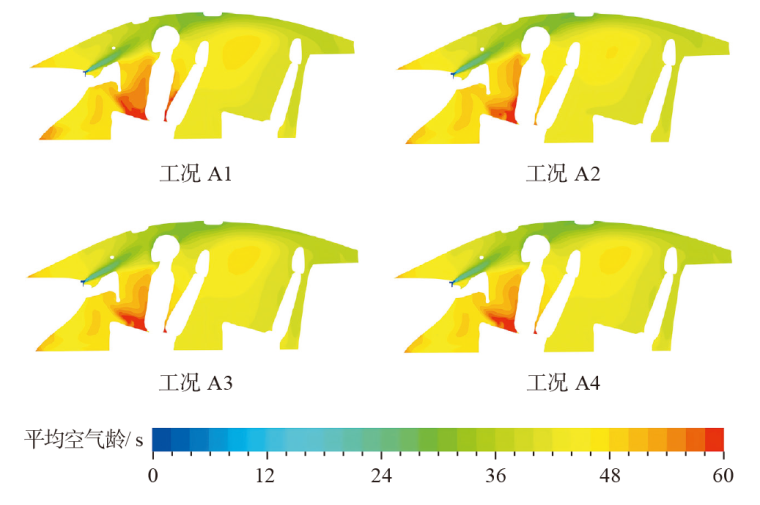

A1	8	0.021	0.023
A2	10	0.021	0.023
A3	12	0.021	0.023
A4	14	0.021	0.023

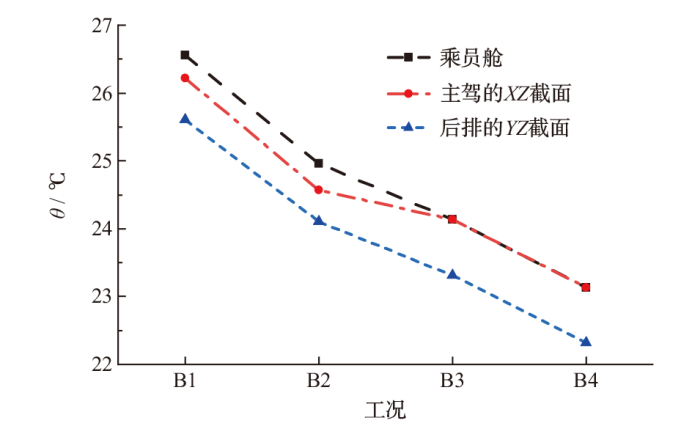

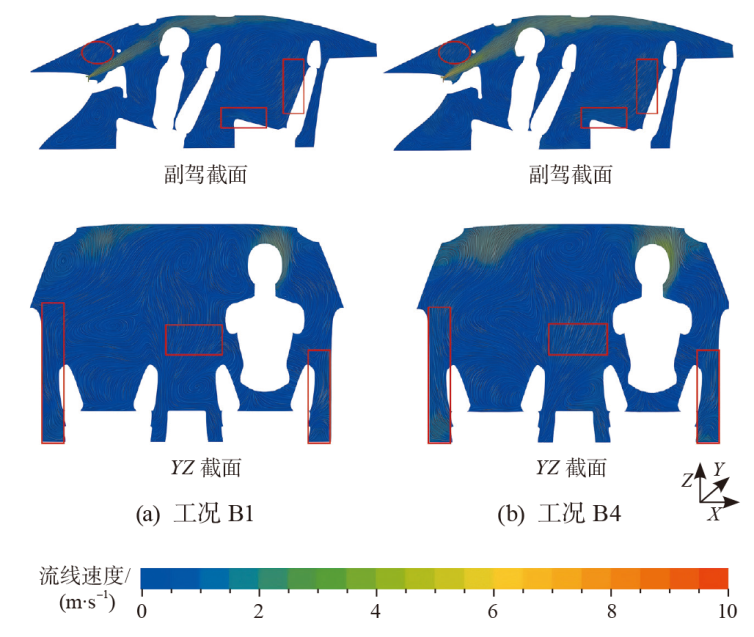

B1	8	0.017	0.019
B2	8	0.021	0.023
B3	8	0.024	0.026
B4	8	0.028	0.030
