基于车路协同技术的超高速公路虚拟轨道系统研究

doi:10.3969/j.issn.1674-8484.2024.03.016

摘要/Abstract

摘要：

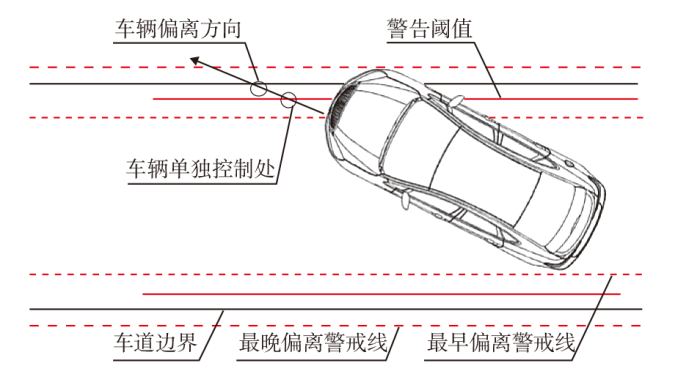

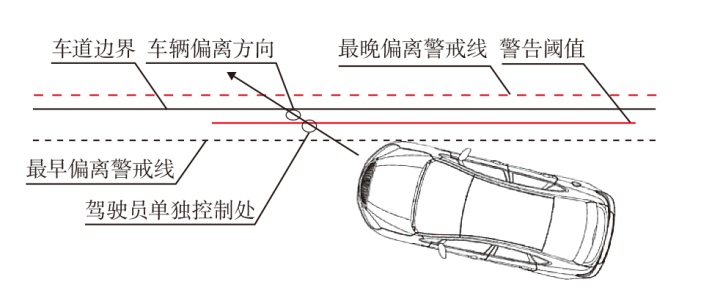

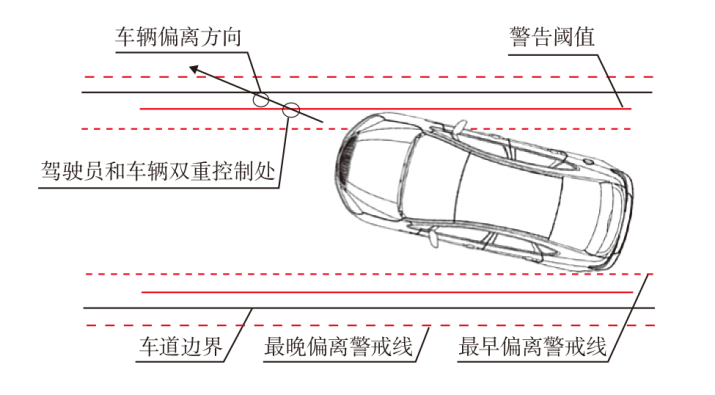

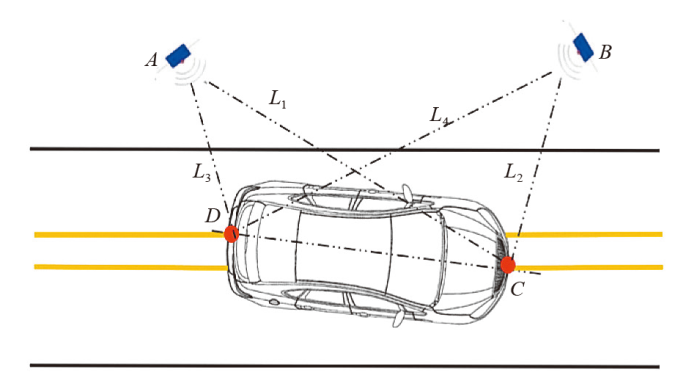

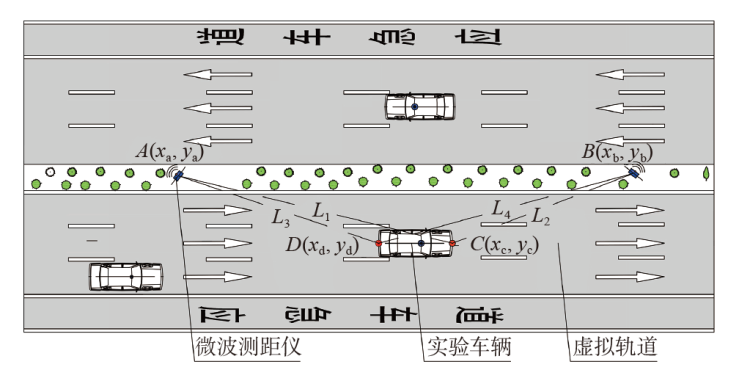

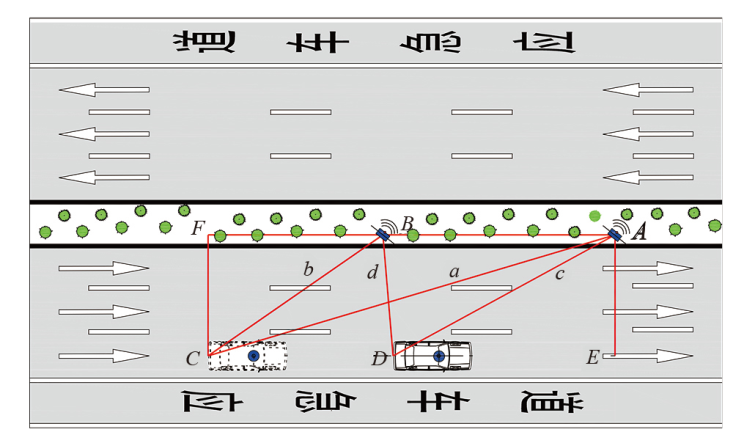

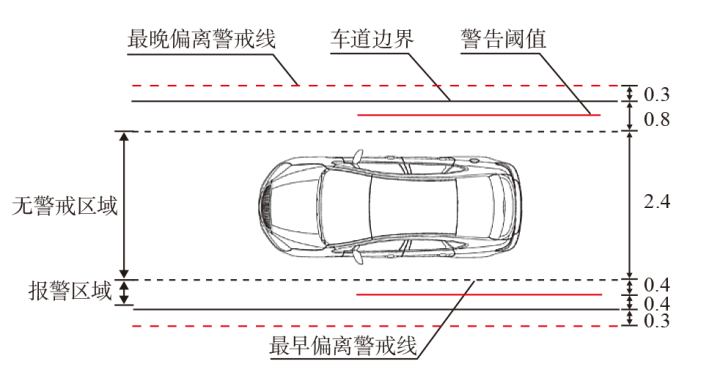

为保障超高速公路行车安全，论证虚拟轨道系统在超高速公路上应用的可行性，以车路协同技术为基础，搭建了超高速公路虚拟轨道系统模型。通过建立实时车辆动态坐标系，结合车辆偏离安全区域，计算出车辆横向偏转角度阈值；利用定位系统和路侧单元检测系统，研究了微波测距模块采样频率和安装间距随车速变化的情况。结果表明：在虚拟轨道单侧安全区域为10 cm时，小型两厢车、小型三厢车、中型车、中大型车、大型车车辆横向偏转的最大安全角度范围分别是1.43° ~ 1.59°、1.30° ~ 1.40°、1.22° ~ 1.33°、1.17° ~ 1.25°、1.10° ~ 1.20°；当车辆行驶速度为180 km/h时，路侧单元传感器的采样频率高于27.72 Hz，传感器的安装距离小于6.87 m时可满足要求。

关键词: 公路运输, 超高速公路, 车路协同, 虚拟轨道, 定位系统

Abstract:

A virtual track system model of the superexpressway was built to ensure the driving safety of the superexpressway and demonstrate the feasibility of the application of the virtual track system on the superexpressway based on the vehicle-road cooperation technology. The threshold of vehicle lateral deflection angle was calculated by establishing a real-time vehicle dynamic coordinate system with considering the deviation of vehicles from the safety zone. Simultaneously, the variation of the sampling frequency and installation spacing of the microwave ranging module with vehicle speed was studied by using a positioning system and a roadside unit detection system. The results show that when the virtual unilateral track safety zone is 10 cm, the maximum safe angle ranges for lateral deflection of small two box cars, small three box cars, medium size cars, medium to large size cars, and large size cars are 1.43°~1.59°, 1.30°~1.40°, 1.22°~1.33°, 1.17°~1.25°, and 1.10°~1.20°, respectively. When the vehicle is traveling at a speed of 180 km/h, the sampling frequency of the roadside unit sensor can reach a maximum of 27.72 Hz, and the installation distance of the sensor can reach a maximum of 6.87 meters.

Key words: highway transportation, superhighway, cooperative vehicle infrastructure system, virtual track, positioning system

中图分类号:

U495

何永明, 权聪, 邢婉钰. 基于车路协同技术的超高速公路虚拟轨道系统研究[J]. 汽车安全与节能学报, 2024, 15(3): 424-432.

HE Yongming, QUAN Cong, XING Wanyu. Research on virtual track system of superhighway based on vehicle road cooperation technology[J]. Journal of Automotive Safety and Energy, 2024, 15(3): 424-432.

图/表 16

参考文献 21

[1]	何永明, 冯佳, 权聪. 基于联合仿真的超高速公路车辆制动避撞系统[J]. 华南理工大学学报(自然科学版), 2022, 50(10): 19-28. doi: 10.12141/j.issn.1000-565X.210703
	HE Yongming, FENG Jia, QUAN Cong et al. Braking collision avoidance system for vehicles on super expressway based on Co-simulation[J]. J South China Univ Tech (Nat Sci Edit), 2022, 50(10): 19-28. (in Chinese)
[2]	杨洋, 王文慧, 吴先宇, 等. 高速公路非常规交通事故研究综述[J]. 应用基础与工程科学学报, 2024, 32(3): 601-626.
	YANG Yang, WANG Wenhui, WU Xianyu, et al. Review of research on unconventional traffic accidents in expressway[J]. J Appl Basic Engi Sci: 2024, 32(3): 601-626. (in Chinese).
[3]	何永明, 裴玉龙. 超高速公路发展可行性论证与必要性研究[J]. 公路, 2016, 61(1): 158-162.
	HE Yongmingming, PEI Yulong. Feasibility demonstration and necessity analysis on superhighway[J]. Highway, 2016, 61(1): 158-162. (in Chinese)
[4]	何永明. 超高速公路安全保障与经济评价研究[D]. 哈尔滨: 东北林业大学, 2017.
	HE Yongmingming. Research safety support and economy evaluation of superhighway[D]. Harbin: Northeast Forestry University, 2017. (in Chinese)
[5]	HE Yongmingming, SONG Yutingng, PEI Yulong, et al. Theoretical research on longitudinal profile design of superhighways[J]. J Advan Transport, 2020(1): 1-14.
[6]	PEI Yulong, HE Yongmingming, RAN Bin, et al. Horizontal alignment security design theory and application of superhighways[J]. Sustainability, 2020, 12(6): 33-47.
[7]	裘连毅. 超高速公路曲线型超高横断面设计方法研究[J]. 城市道桥与防洪, 2020(8): 257-261+27.
	QIU Lianyi. Research on design method of super high cross section of super expressway curve type[J]. Urban Road, Bridg Flood Contr, 2020 08): 257-261+27. (in Chinese)
[8]	刘展行. 超级高速公路设计初探[J]. 公路交通科技(应用技术版), 2018, 14(11): 260-262.
	LIU Zhanxing. Preliminary study on super highway design[J]. Highway Transport Sci Tech (Appl Tech Edit), 2018, 14(11): 260-262. (in Chinese)
[9]	赵酉超, 毛红日, 刘江东. 超高速公路安全平曲线半径研究[J]. 西部交通科技, 2019 (2): 159-163.
	ZHAO Youchao, MAO Hongri, LIU Jiangdong. Research on the safety horizontal curve radius of superhighways[J]. Western Transport Tech, 2019(2): 159-163. (in Chinese)
[10]	张明凯, 王鹏, 卢小林, 等. 基于无人驾驶的超级高速公路设计[J]. 冶金与材料, 2020, 40(4): 152+4.
	ZHANG Mingkai, WANG Peng, LU Xiaolin, et al. Design of a super highway based on autonomous driving[J]. Metal Mater, 2020, 40(4): 152+4. (in Chinese)
[11]	陈芬菲, 徐鹏. 基于SWOT分析法的超高速公路发展研究[J]. 科技视界, 2018 (5): 139-140.
	CHEN Fenfei, XU Peng. Research on the development of superhighways based on SWOT analysis method[J] Tech Perspect, 2018(5): 139-140. (in Chinese)
[12]	梁天霄, 郭忠印, 宋灿灿. 双向八车道超级高速公路客车专用车道宽度研究[J]. 上海公路, 2021(4): 110-118+123+145-146.
	LIANG Tianxiao, GUO Zhongyin, SONG Cancan. Research on the width of dedicated lanes for buses on a bidirectional eight lane super highway[J]. Shanghai Highway, 2021 (4): 110-118+123+145-146. (in Chinese)
[13]	张焕炯. 对“超级高速公路”的几点深度思考[C]// 世界交通运输工程技术论坛(WTC2021)论文集(上). 中国公路学会、世界交通运输大会执委会、西安市人民政府、陕西省科学技术协会, 2021: 1658-1661.
	ZHANG Huanjiong. Several deep reflections on Superhighways[C]// Proceed China Highway Soc, Execut Commit World Transport Conf. People's Government of Xi'an, Shaanxi Association for Science and Technology, and World Transportation Engineering Technology Forum (WTC2021) (Part 1), 2021: 1658-1661. (in Chinese)
[14]	林耳东. 基于安全和运营考虑的不限速高速公路设计参数研究[D]. 哈尔滨: 哈尔滨工业大学, 2022.
	LIN Erdong. Research on design parameters of unrestricted freeways based on safety and operational considerations[D]. Harbin: Harbin Institute of Technology, 2022. (in Chinese)
[15]	张航, 梁家明, 吕能超. 超高速公路圆曲线半径参数的可靠性分析[J]. 交通信息与安全, 2022, 40(2): 38-44.
	ZHANG Hang, LIANG Jiaming, LV Nengchao. Reliability analysis of radius parameters of circular curves on super highways[J]. Traf Info Safe, 2022, 40(2): 38-44. (in Chinese)
[16]	张毅, 姚丹亚, 李力, 等. 智能车路协同系统关键技术与应用[J]. 交通运输系统工程与信息, 2021, 21(5): 40-51.
	ZHANG Yi, YAO Danya, LI Li, et al. Technologies and applications for intelligent vehicle-infrastructure cooperation systems[J]. J Transport Syst Engi Info Tech, 2021, 21(5): 40-51. (in Chinese)
[17]	李克强, 戴一凡, 李升波, 等. 智能网联汽车(ICV)技术的发展现状及趋势[J]. 汽车安全与节能学报, 2017, 8(1): 1-14. (in Chinese)
	LI Keqiang, DAI Yi Fan, LI Shenbo, et al. State-of-the-art and technical trends of intelligent and connected vehicles[J]. J Autom Safe Energ, 2017, 8(1): 1-14. (in Chinese)
[18]	冉斌, 谭华春, 张健, 等. 智能网联交通技术发展现状及趋势[J]. 汽车安全与节能学报, 2018, 9(2): 119-130.
	RAN Bin, TAN Huachun, ZHANG Jian, et al. Development status and trend of connected automated vehicle highway system[J]. J Autom Safe Energ, 2018, 9(2): 119-130. (in Chinese)
[19]	何永明, 裴玉龙, 冉斌. 基于智能路钮的超高速公路虚拟轨道系统研究[J]. 交通运输系统工程与信息, 2020, 20(2): 55-60+75.
	HE Yongming, PEI Yulong, RAN Bin. Research on virtual track system of superhighway based on intelligent road knobs[J]. Transport Syst Engi Info, 2020, 20(2): 55-60+75. (in Chinese)
[20]	何永明, 陈世升, 冯佳, 等. 基于高精地图的超高速公路虚拟轨道系统[J]. 吉林大学学报(工学版), 2023, 53(7): 2016-2028.
	HE Yongming, CHEN Shisheng, FENG Jia, et al. A virtual track system for superhighways based on high precision maps[J]. J Jilin Univ (Engi Edit), 2023, 53(7): 2016-2028. (in Chinese)
[21]	何永明, 权聪, 魏堃, 等. 超高速公路虚拟轨道系统车辆坐标转换模型[J]. 山东大学学报(工学版), 2023, 53(4): 56-64.
	HE Yongming, QUAN Cong, WEI Kun, et al. Vehicle coordinate conversion model for virtual track system of superhighway[J]. J Shandong Univ (Engi Edit), 2023, 53(4): 56-64. (in Chinese)

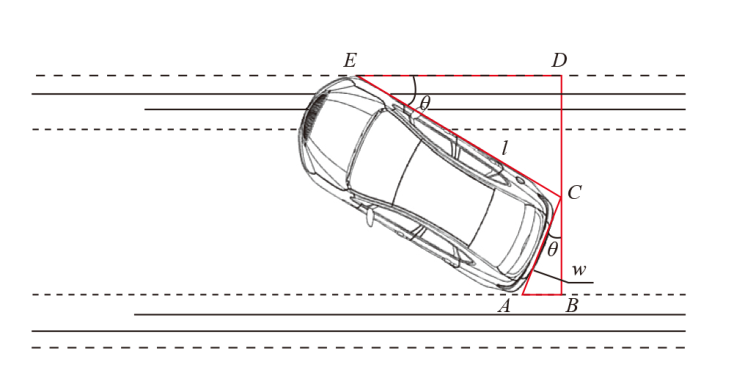

l / m	w / m	θ_min / (°)	θ_mid / (°)	θ_max / (°)
3.6	1.8	10.04	18.52	33.85
3.6	2.2	3.24	11.07	24.63
5.2	1.8	6.77	12.10	20.41
5.2	2.2	2.22	7.38	15.38

l / m	w / m	θ_min / (°)	θ_mid / (°)	θ_max / (°)
3.6	1.8	10.04	18.52	33.85
3.6	2.2	3.24	11.07	24.63
5.2	1.8	6.77	12.10	20.41
5.2	2.2	2.22	7.38	15.38

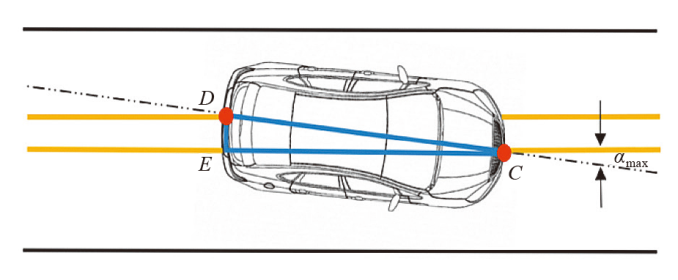

车型	l / m	α_max / (°)
小型两厢	3.60~4.00	1.43~1.59
小型三厢	4.10~4.40	1.30~1.40
中型	4.30~4.70	1.22~1.33
中大型	4.60~4.90	1.17~1.22
大型	4.80~5.20	1.10~1.20

车型	l / m	α_max / (°)
小型两厢	3.60~4.00	1.43~1.59
小型三厢	4.10~4.40	1.30~1.40
中型	4.30~4.70	1.22~1.33
中大型	4.60~4.90	1.17~1.22
大型	4.80~5.20	1.10~1.20

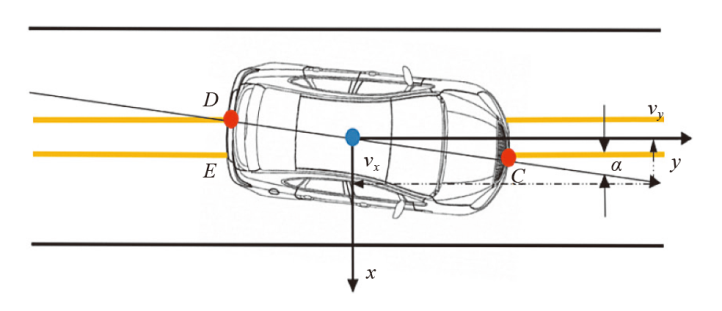

行驶速度 (km·h^-1)				v_X / (km·h^-1)
行驶速度 (km·h^-1)	α_max=	小型两厢轿车 (1.43°~1.59°)	小型三厢轿车 (1.30°~1.40°)	中型轿车 (1.22°~1.33°)	中大型轿车 (1.17°~1.25°)	大型轿车 (1.10°~1.20°)
10		0.25~0.28	0.22~0.24	0.21~0.23	0.20~0.22	0.19~0.21
40		1.00~1.12	0.88~0.96	0.84~0.92	0.80~0.88	0.80~0.84
60		1.50~1.68	1.32~1.44	1.26~1.38	1.20~1.32	1.14~1.26
80		2.00~2.24	1.76~1.92	1.68~1.84	1.60~1.76	1.52~1.68
100		2.50~2.80	2.20~2.40	2.10~2.30	2.00~2.20	1.90~2.10
110		2.75~3.08	2.42~2.64	2.31~2.53	2.20~2.42	2.09~2.31
120		3.00~3.36	2.64~2.88	2.52~2.76	2.40~2.64	2.28~2.52
130		3.25~3.64	2.86~3.12	2.73~2.99	2.60~2.86	2.47~2.73
140		3.50~3.92	3.08~3.36	2.94~3.22	2.80~3.08	2.66~2.94
150		3.75~4.20	3.30~3.60	3.15~3.45	3.00~3.30	2.85~3.15
160		4.00~4.48	3.52~3.84	3.36~3.68	3.20~3.52	3.04~3.36
170		4.25~4.76	3.74~4.08	3.57~3.91	3.40~3.74	3.23~3.57
180		4.50~5.04	3.96~4.32	3.78~4.14	3.60~3.96	3.42~3.78
