视觉障碍下十字路口电动两轮车事故特征和典型场景分析

doi:10.3969/j.issn.1674-8484.2023.06.002

汽车安全与节能学报 ›› 2023, Vol. 14 ›› Issue (6): 664-670.DOI: 10.3969/j.issn.1674-8484.2023.06.002

视觉障碍下十字路口电动两轮车事故特征和典型场景分析

韩勇¹^,²(), 孟昕¹, 潘迪¹^,², 吴贺³, 石金明¹, 张悦苁¹

1.厦门理工学院机械与汽车工程学院，厦门361024，中国
2.福建省客车先进设计与制造重点实验室，厦门 361024，中国
3.厦门大学航空航天学院，厦门 361024，中国

收稿日期:2023-05-07 修回日期:2023-07-17 出版日期:2023-12-31 发布日期:2023-12-29
作者简介:韩勇（1984—），男（汉），教授。E-mail：Yonghanxmut@gmail.com；yonghan@xmut.edu.cn。
基金资助:
厦门市自然科学基金(3502Z20227223);福建省技术创新重点攻关及产业化项目(2023G048)

Characteristics and typical scenario analysis of electric two-wheeler accidents at intersections with visual obstacle

HAN Yong¹^,²(), MENG Xin¹, PAN Di¹^,², WU He³, SHI Jinming¹, ZHANG Yuecong¹

1. School of Mechanical and Automotive Engineering, Xiamen University of Technology, Xiamen 361024, China
2. Fujian Provincial Key Laboratory of Advanced Design and Manufacturing of Buses, Xiamen 361024, China
3. Xiamen University School of Aeronautics and Astronautics, Xiamen 361024, China

Received:2023-05-07 Revised:2023-07-17 Online:2023-12-31 Published:2023-12-29

摘要/Abstract

摘要：

视觉障碍是导致汽车与电动两轮车在十字路口发生碰撞的主要原因之一。为了厘清其事故特征以促进适用于中国道路的电动两轮车自动紧急制动（AEB）测试场景的开发, 该文统计分析了道路弱势群体交通事故（VRU-TRAVi）数据库510例电动两轮车案例中具有视觉障碍的交通违规情况、障碍物类型和事故场景和等事故特征。采用逐帧分析法和直接线性理论估算不同事故场景下的碰撞速度和碰撞时间（TTC），获得不同事故场景下碰撞速度与TTC的分布关系并分析了障碍物对事故规避的影响。结果表明：将事故特征场景统计结果与前人研究结果对比得出4种典型场景，即固定障碍物场景、相邻车道反向行驶中车辆或同向等待车辆为障碍物场景、非相邻车道可移动障碍物场景，4种场景下TTC均值分别为1.12、1.02、0.96、1.27 s，汽车速度分别为24~47、27~46、27~46、18~45 km/h，电动两轮车速度分别为15~27、15~24、15~24、16~24 km/h。研究结果可为存在视觉障碍的电动两轮车碰前事故场景测试的关键技术提供参考。

关键词: 电动两轮车, 事故场景, 视觉障碍, 十字路口, 碰撞时间(TTC)

Abstract:

The visual obstacle is the main cause of collisions between cars and electric two-wheelers at intersections. In order to clarify the accident characteristics and facilitate the development of autonomous emergency braking (AEB) test scenarios for electric two-wheelers suitable for Chinese roads, this paper statistically analyzed the traffic violations, obstacle types and accident scenarios of 510 cases of car-to-electric two-wheel vehicle collisions with visual impairments in the Road Vulnerable Group Traffic Accidents (VRU-TRAVi) database. The relationship between the speed and time to collision (TTC) in the different collision scenarios was investigated and analyzed, the impact of obstacles on accident avoidance were also calculated with frame-by-frame analysis and direct linear theory. And the accident characteristics and scenario statistics were compared with the results of previous studies. The results show that four typical collision scenarios in the car-to-electric two-wheel vehicle with visual obstacles are extracted: fixed obstacle scenarios, adjacent lane of the vehicle in the reverse direction of travel or the same direction waiting for the vehicle as an obstacle scenarios, and non-adjacent lane moving obstacle scenarios. The average of TTC in the four scenarios are 1.12, 1.02, 0.96, and 1.27 s. The car speeds are 24-47, 27-46, 27-46, and 18-45 km/h; the electric two-wheeled vehicle speeds are15-27, 15-24, 15-24, and 16-24 km/h. The research results can provide reference for the key technology of pre-collision accident scene test of electric two-wheelers with visual impairment.

Key words: electric two-wheeler, accident scenario, visual obstacle, intersection, time to collision (TTC)

中图分类号:

U467.1+4

韩勇, 孟昕, 潘迪, 吴贺, 石金明, 张悦苁. 视觉障碍下十字路口电动两轮车事故特征和典型场景分析[J]. 汽车安全与节能学报, 2023, 14(6): 664-670.

HAN Yong, MENG Xin, PAN Di, WU He, SHI Jinming, ZHANG Yuecong. Characteristics and typical scenario analysis of electric two-wheeler accidents at intersections with visual obstacle[J]. Journal of Automotive Safety and Energy, 2023, 14(6): 664-670.

图/表 9

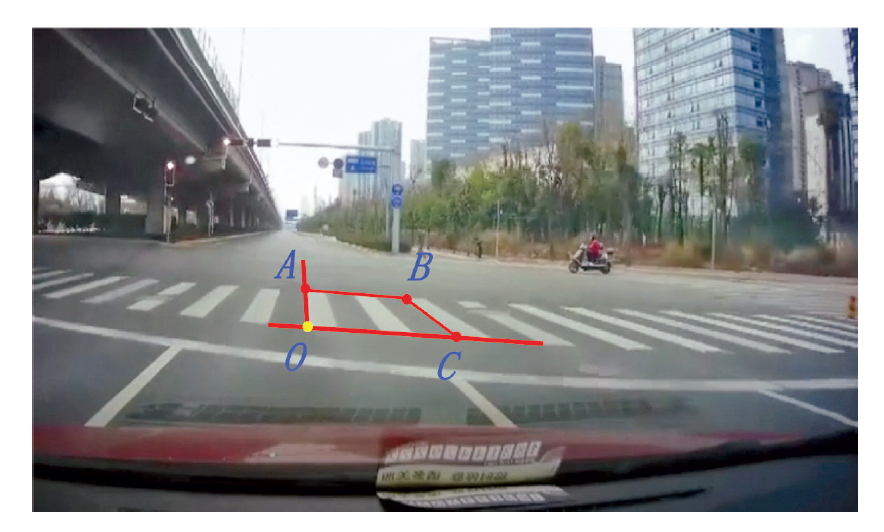

图1 坐标系转换示意图

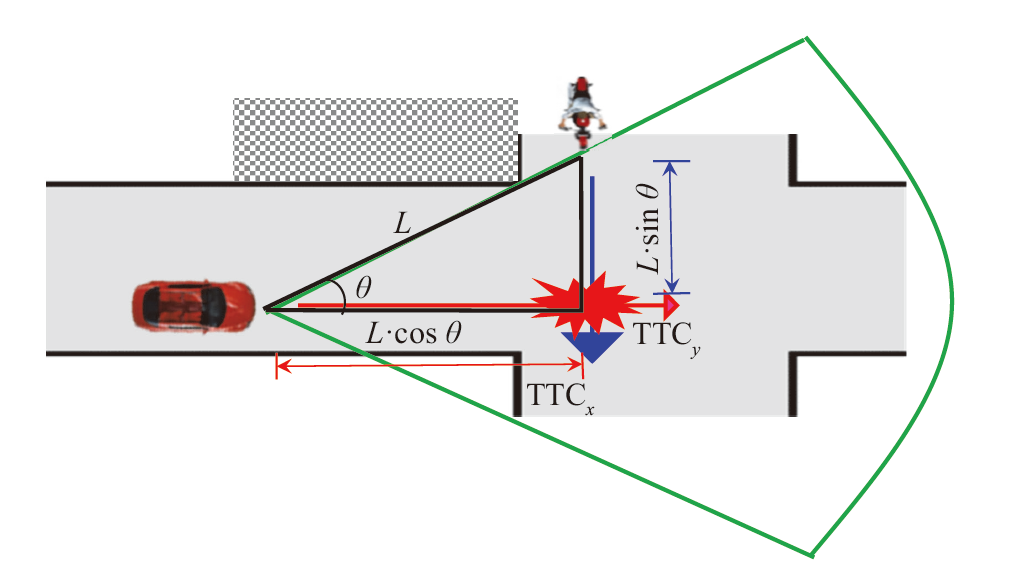

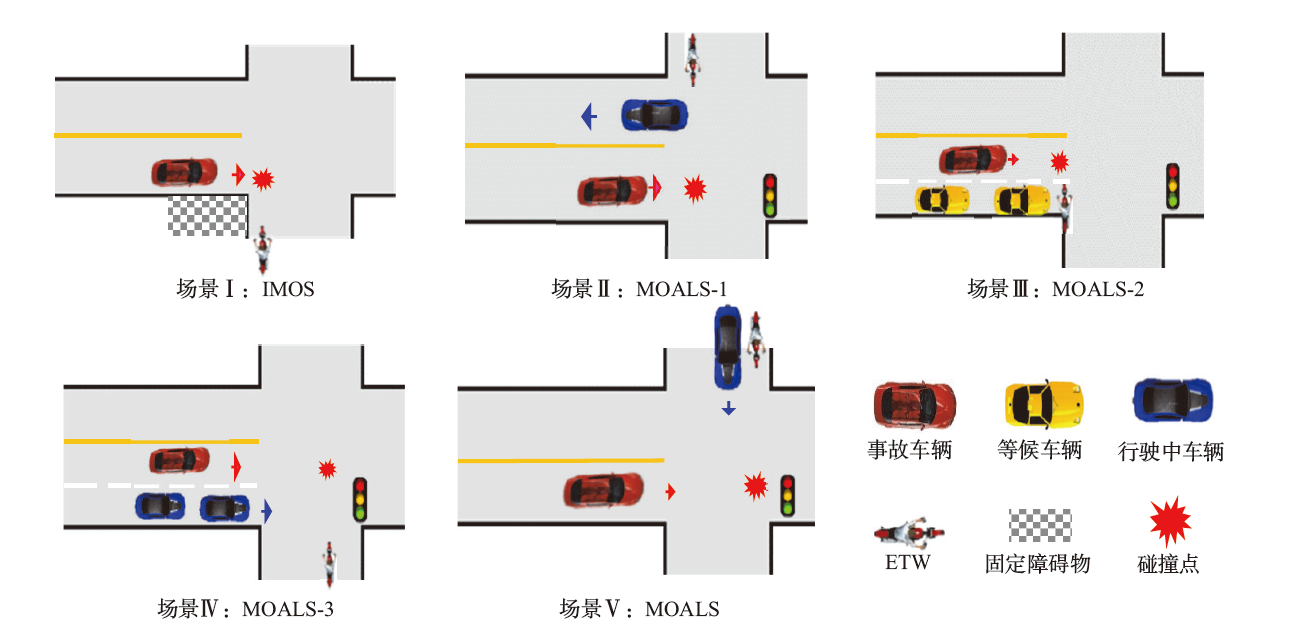

图2 场景模型

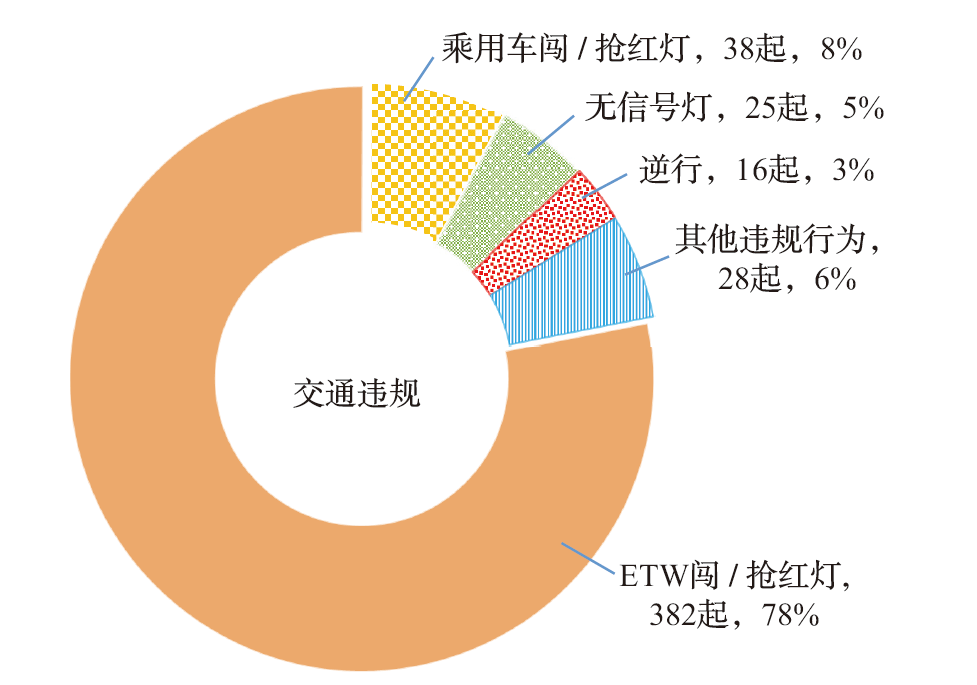

图3 交通违规类型

图4 视觉障碍场景类型

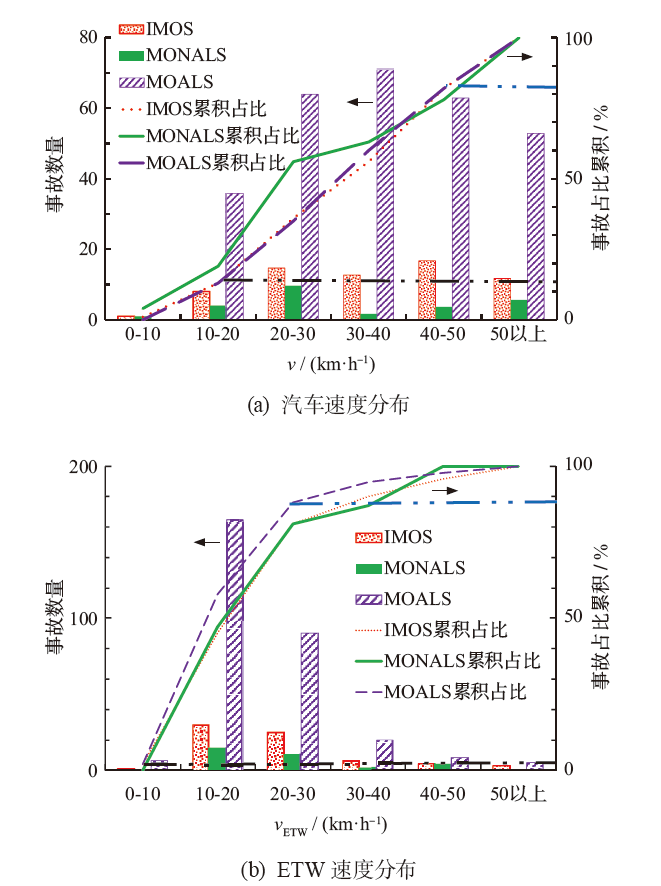

图5 汽车与ETW速度分布

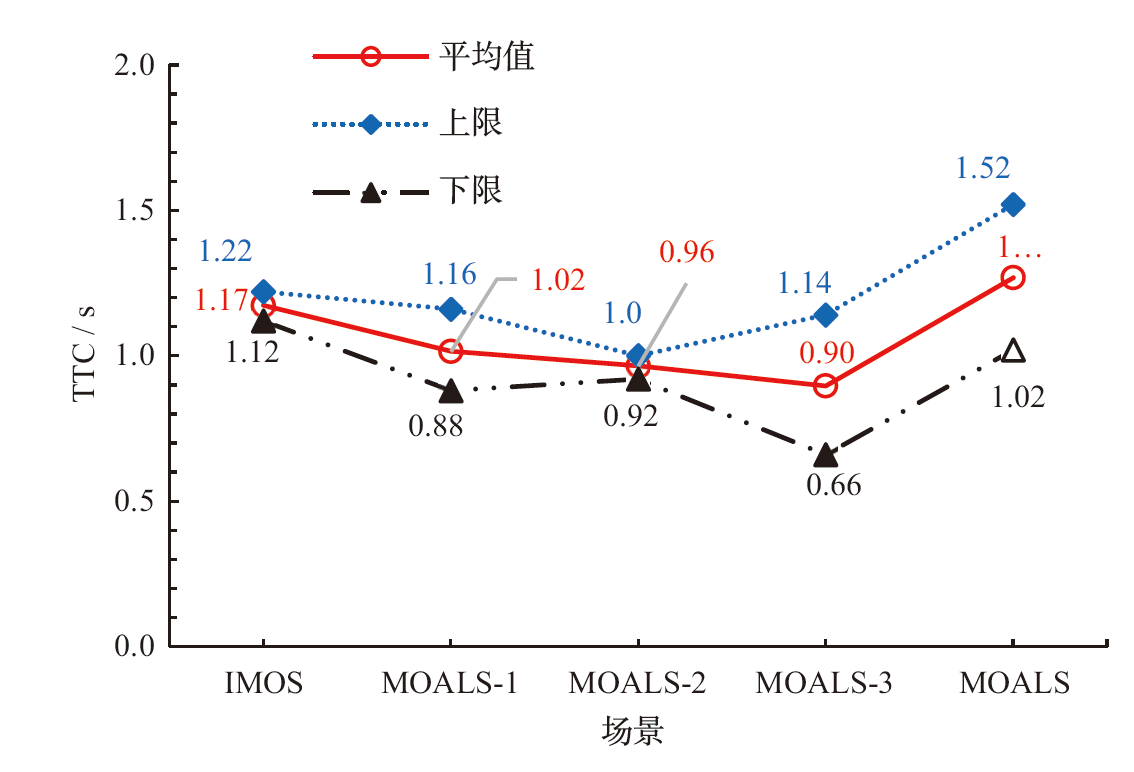

图6 95%置信区间下的TTC上限、下限及平均值分布

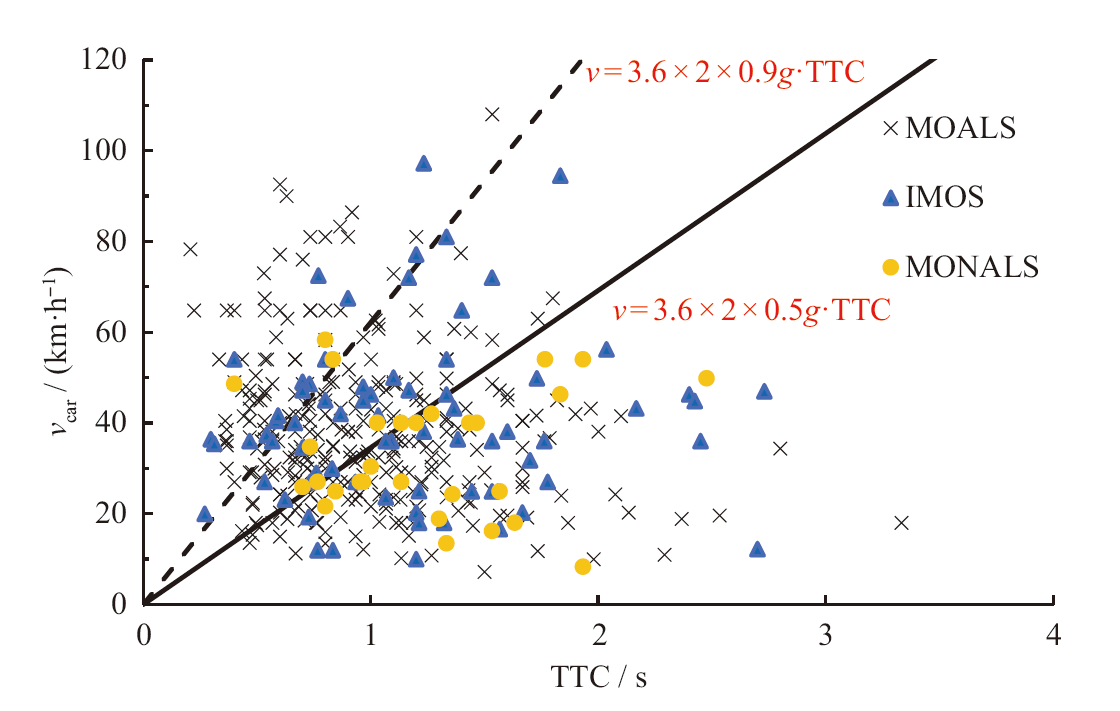

图7 TTC-v分布及避撞情况

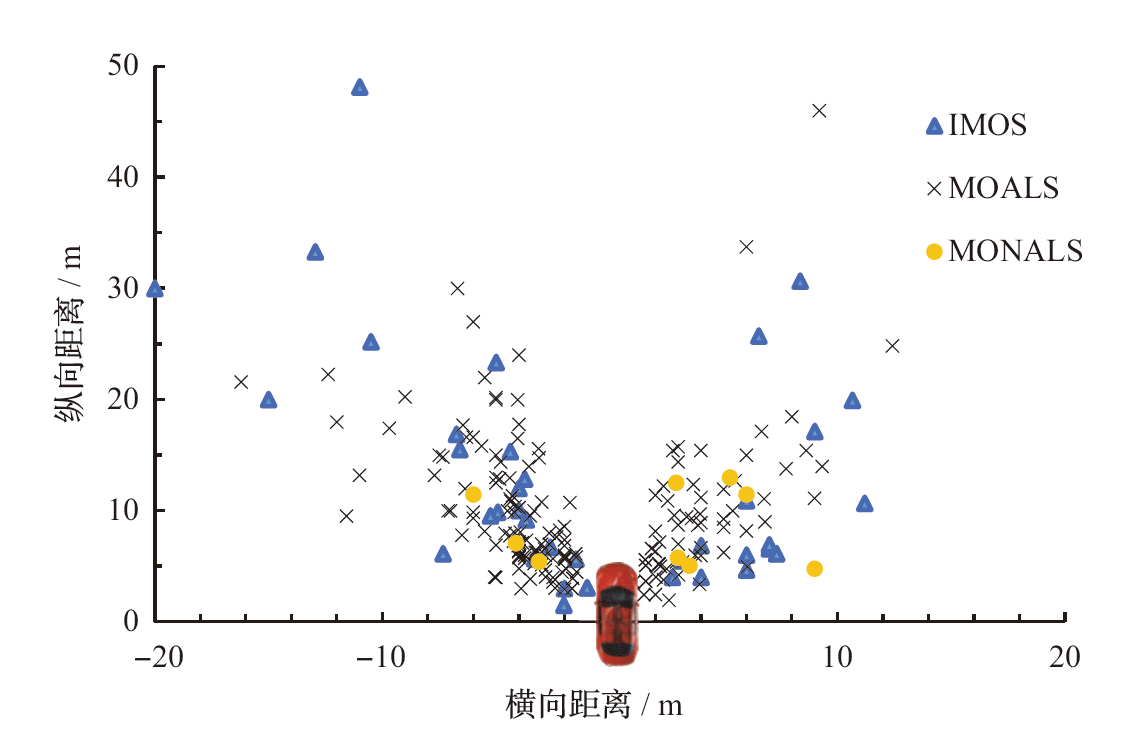

图8 AEB无法避撞案例的电动两轮车位置分布

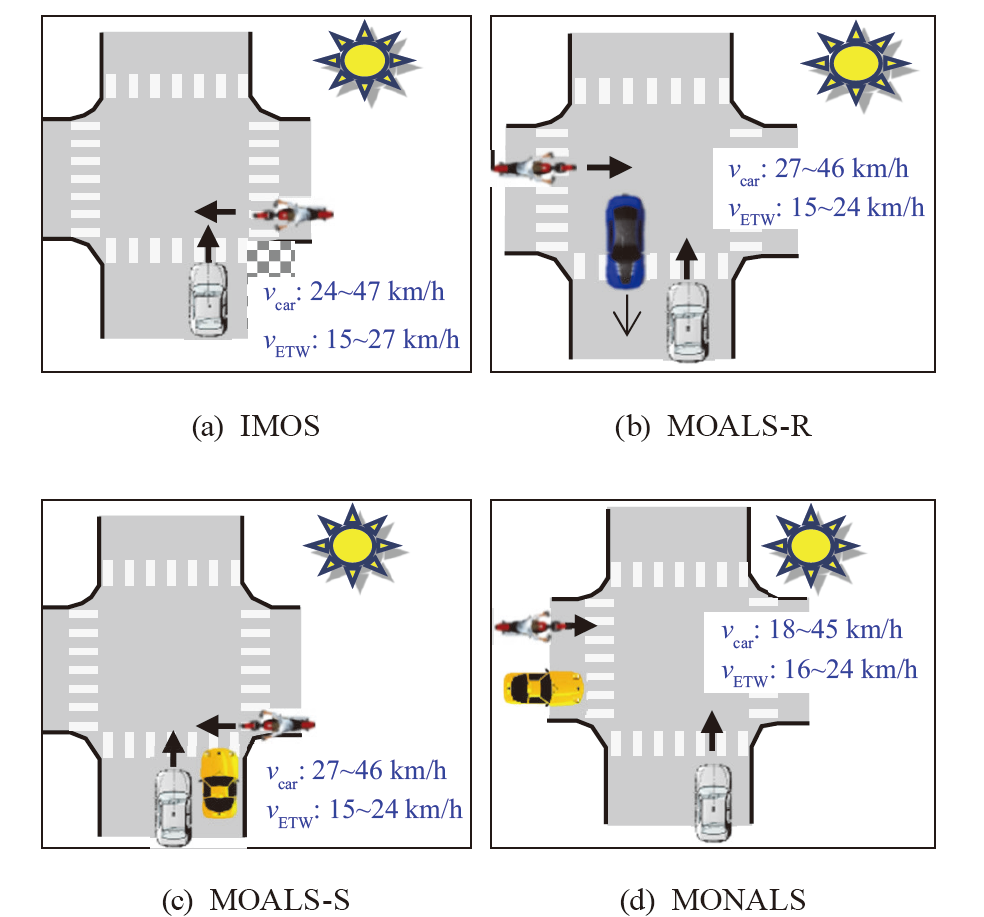

图9 十字路口视觉障碍情况下的典型场景

参考文献 24

[1]	中华人民共和国公安部. 中华人民共和国道路交通事故统计年报 (2020年度)[R]. 公安部交通管理局, 2020.
	Ministry of Public Security of the People’s Republic of China. Annual report on road traffic accidents of the People’s Republic of China (2020)[R]. Traffic Administration of the Ministry of Public Security, 2020. (in Chinese)
[2]	范天赐, 王宏雁, 杨震, 等. 基于中国两轮车事故的典型场景提取与分析[J]. 交通与运输, 2019, 35(2): 41-45.
	FAN Tianci, WANG Hongyan, YANG Zhen. Typical two-wheelers accident scenarios extraction and analysis based on Chinese road traffic data[J]. Traf Transport, 2019, 35(2): 41-45. (in Chinese)
[3]	Uittenbogaard J, Rodarius C, Op den Camp O. CATS Deliverable 1.2: CATS car-to-cyclist accident scenarios[M]. Helmond: TNO, 2016: 9-14.
[4]	Uittenbogaard J, Op den Camp O, van Montfort S. CATS Deliverable 2.2: CATS car to-cyclist accident parameters and test scenarios[M]. Helmond: TNO, 2016: 7-10.
[5]	Op den Camp O, van Montfort S, Uittenbogaard J, et al. Cyclist target and test setup for evaluation of cyclist-autonomous emergency braking[J]. Int’l J Autom Tech, 2017, 18(6): 1085-1097.
[6]	SUI Bo, Lubbe N, Bärgman J. A clustering approach to developing car-to-two-wheeler test scenarios for the assessment of automated emergency braking in China using in-depth Chinese crash data[J]. Accid Anal Prev, 2019, 132: 105242. doi: 10.1016/j.aap.2019.07.018 URL
[7]	SUI Bo, Lubbe N, Bärgman J. Evaluating automated emergency braking performance in simulated car-to-two-wheeler crashes in China: A comparison between C-NCAP tests and in-depth crash data[J]. Acci Anal Prev, 2021, 159: 106229.
[8]	PAN Di, HAN Yong, JING Qianqian, et al. Study of typical electric two-wheelers pre-crash scenarios using K-medoids clustering methodology based on video recordings in China[J]. Accid Anal Prev, 2021, 160: 106320. doi: 10.1016/j.aap.2021.106320 URL
[9]	Ito D, Hayakawa K, Kondo Y, et al. Difference between car-to-cyclist crash and near crash in a perpendicular crash configuration based on driving recorder analysis[J]. Accid Anal Prev, 2018, 117: 1-9. doi: S0001-4575(18)30133-7 pmid: 29625263
[10]	ZHAO Yuqing, Miyahara T, Mizuno K, et al. Analysis of car driver responses to avoid car-to-cyclist perpendicular collisions based on drive recorder data and driving simulator experiments[J]. Accid Anal Prev, 2021, 150: 105862. doi: 10.1016/j.aap.2020.105862 URL
[11]	金钱钱, 韩勇, 黄红武, 等.基于视频信息的电动两轮车在不同碰撞场景下TTC研究//第22届中国汽车安全技术学术会议论文集. 中国汽车工程学会安全技术分会, 保定, 2019.
	JIN Qianqian, HAN Yong, HUANG Hongwu et al. TTC study of electric two-wheelers based on video information in different collision scenarios[C] //Proceed Chin Conf Autom Safe Tech. China Society of Automotive Engineering Safety Technology Branch, Baoding, 2019. (in Chinese)
[12]	周华, 张巧玉, 母尧尧, 等. 十字路口乘用车与二轮车典型危险场景聚类及推演[J]. 中国安全科学学报, 2020, 30(4): 100-107. doi: 10.16265/j.cnki.issn1003-3033.2020.04.016
	ZHOU Hua, ZHANG Qiaoyu, MU Yaoyao, et al. Clustering and deduction of typical dangerous scenarios between passenger vehicles and two-wheelers at crossroads[J]. China Safe Sci J, 2020, 30(4): 100-107. (in Chinese)
[13]	邹斌, 干雷. 无信号灯十字路口行车碰撞预警方法研究[J]. 武汉理工大学学报, 2022, 44(4): 23-29.
	ZOU Bin, GAN Lei. Research on avoidance warning method of vehicle collision at unsignalized intersection[J]. J Wuhan Univ Tech, 2022, 44(4): 23-29. (in Chinese)
[14]	赵小龙. 基于V2I的无信号交叉路口车辆制动预警分析[D]. 长春: 吉林大学, 2022.
	ZHAO Xiaolong. Analysis of vehicle braking warning at unsignalized intersection based on V21[D]. Changchun: Jilin University, 2022. (in Chinese)
[15]	HAN Yong, LI Quan, QIAN Yubin, et al. Comparison of the landing kinematics of pedestrians and cyclists during ground impact determined from vehicle collision video records[J]. Int’l J Vehi Safe, 2018, 10(3-4): 212-234.
[16]	PAN Di, HAN Yong, JIN Qianqian, et al. Comparative analysis of AEB effectiveness based on typical and atypical scenarios of electric two-wheeler accidents in China[J]. Proceed Instit Mech Engi, Part D: J Autom Engi, 2022: 09544070221128173.
[17]	中华人民共和国国家质量监督检验检疫总局, 中国国家标准化管理委员会. GBT 33195—2016,道路交通事故车辆速度鉴定[S]. 北京: 公安部交通管理科学研究所, 2017.
	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China. Standardization Administration of the People's Republic of China. GB/T 33195—2016,Identification for the speed of vehicle involved in road traffic accident[S]. Traffic Management Research Institute of the Ministry of Public Security, 2017. (in Chinese)
[18]	吴贺, 韩勇, 石亮亮, 等. 基于视频信息的高精度事故重建方法研究[J]. 汽车工程, 2020, 42(6): 778-783+792.
	WU He, HAN Yong, SHI Liangliang, et al. Research on high precision accident reconstruction method based on video information[J]. Autom Engineering, 2020, 42(6): 778-783+792. (in Chinese)
[19]	吴子祥, 黄合来, 陈吉光, 等. 视线遮挡条件下面向弱势道路使用者的避撞策略研究[J]. 交通信息与安全, 2021, 39(4): 9-15+34.
	WU Zixiang, HUANG Helai, CHEN Jiguang, et al. A study on collision avoidance strategy for vulnerable road users under visual obstruction[J]. J Transport Info Safe, 2021, 39(4): 9-15+34. (in Chinese)
[20]	韩勇, 袁小宾, 卢明, 等. 汽车与电动两轮车碰撞典型场景下的AEB纵横向触发策略研究[J]. 汽车工程, 2023, 45(3): 501-509.
	HAN Yong, YUAN Xiaobin, LU Ming, et al. Research on AEB longitudinal and transverse triggering strategy in typical scenarios of vehicle to electric two-wheelers collisions[J]. Autom Engineering, 2023, 45(3): 501-509. (in Chinese)
[21]	ZHANG Xujun, YANG Yaming, YANG Jie, et al. Road traffic injuries among riders of electric bike/electric moped in southern China[J]. Traf Inju Prev, 2018, 19(4): 417-422.
[22]	缪依洺. 基于驾驶模拟的视觉盲区环境下人车冲突避让驾驶行为与预警功效研究[D]. 北京: 北京交通大学, 2021.
	MIAO Yiming. Research on pedestrian-vehicle collision avoidance bchavior and warning effect in visual blind area based on driving simulation[D]. Beijing: Beijing Jiaotong University, 2021. (in Chinese)
[23]	PAN Di, HAN Yong, JIN Qianqian, et al. Probabilistic prediction of collisions between cyclists and vehicles based on uncertainty of cyclist’movements[J]. Transport Res Record, 2022: 03611981221121270.
[24]	Euro NCAP. Euro NCAP test protocol-AEB VRU systems (Vers 3.0.4)[EB/OL]. (2022-11-21). https://www.euroncap.com/en/for-engineers/protocols/vulnerable-road-user-vru-protection/.
