基于路况和驾驶习惯的自适应能量回收控制策略

doi:10.3969/j.issn.1674-8484.2023.01.013

摘要/Abstract

摘要：

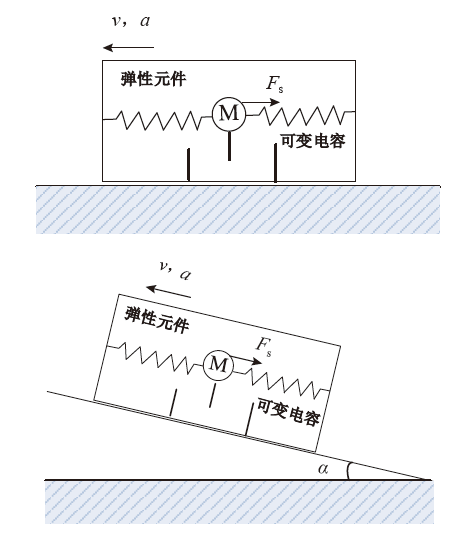

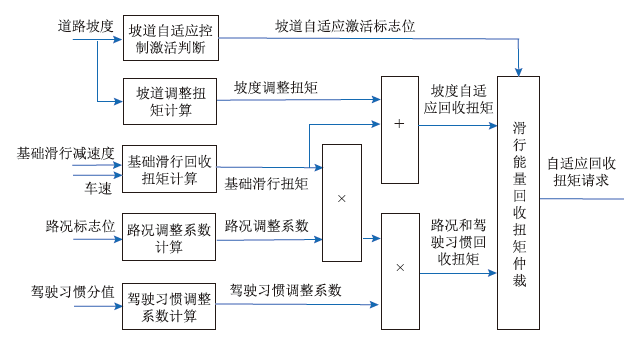

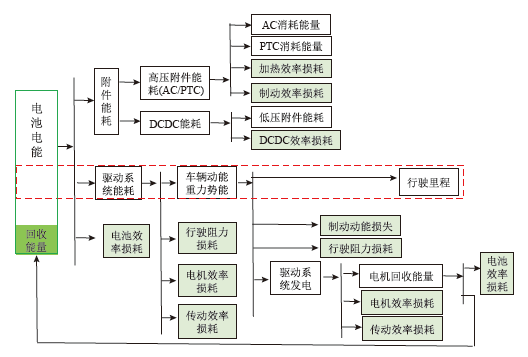

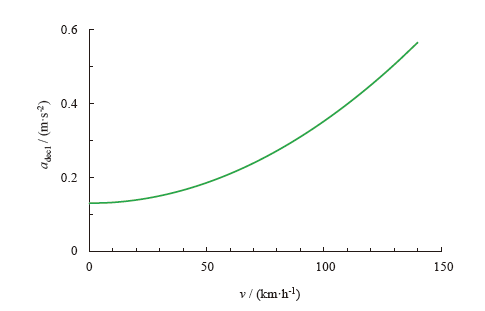

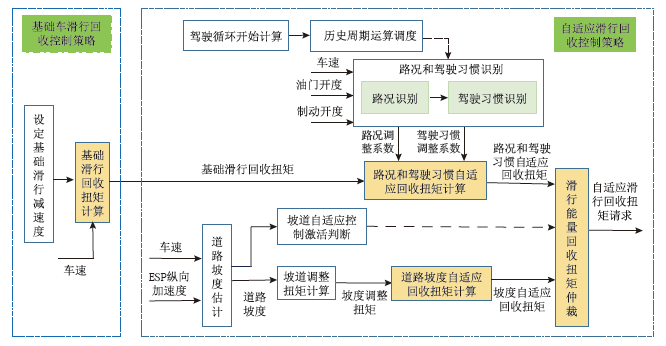

为提升电动汽车节能水平，运用理论分析和实际道路测试标定相结合的方法，设计了能够根据外部环境工况和驾驶习惯调整的自适应能量回收控制策略，并通过实车在3种典型道路工况下进行能耗对比测试。结果表明：相比于固定强度的能量回收策略，自适应滑行能量回收系统能够有效识别当前行驶路况和驾驶习惯并自适应调整车辆滑行能量回收强度，在山区、市郊和高速工况下可分别降低能耗4.35%、3.55%和0.86%，证明该文提出的自适应能量回收控制策略可以显著提升电动汽车节能水平。

关键词: 能量回收控制策略, 自适应控制, 驾驶习惯, 路况, 坡度

Abstract:

In order to improve the energy-saving level of electric vehicles, an adaptive energy recovery control strategy that can be adjusted according to external environmental conditions and driving habits was designed by using the method of combining theoretical analysis and actual road test calibration. The energy consumption comparison test was carried out by real vehicles under 3 typical road conditions. The results shows that compared with the fixed-intensity energy recovery strategy, the adaptive sliding energy recovery system can effectively identify the current driving conditions and driving habits and adaptively adjust the vehicle’s sliding energy recovery intensity, which can reduce energy consumption by 4.35%, 3.55% and 0.86% in mountainous, suburban and high-speed road conditions, respectively, which proves that the adaptive energy recovery control strategy proposed can significantly improve the energy saving level of electric vehicles.

Key words: energy recovery control strategy, adaptive control, driving habit, road condition, gradient

中图分类号:

U461.8

吴浩, 丁文敏, 魏广杰, 胡均, 游道亮. 基于路况和驾驶习惯的自适应能量回收控制策略[J]. 汽车安全与节能学报, 2023, 14(1): 106-117.

WU Hao, DING Wenmin, WEI Gaungjie, HU Jun, YOU Daoliang. Adaptive energy recovery control strategy based on road conditions and driving habits[J]. Journal of Automotive Safety and Energy, 2023, 14(1): 106-117.

图/表 18

参考文献 15

[1]	马建, 刘晓东, 陈轶嵩, 等. 中国新能源汽车产业与技术发展现状及对策[J]. 中国公路学报, 2018, 31(8): 1-19.
	MA Jian, LIU Xiaodong, CHENG Yisong, et al. Current status and counter-measures for China’s new energy automobile industry and technology development[J]. Chin J Highway and Transport, 2018, 31(8): 1-19 (in Chinese)
[2]	黄伟, 张桂连, 周登辉, 等. 基于能量流分析的纯电动汽车电耗优化研究[J]. 汽车工程, 2021, 43(2): 171-180
	HUANG Wei, ZHANG Guilian, ZHOU Denghui, et al. Research on optimization of power consumption of pure electric vehicle based on energy flow analysis[J]. Autom Engi, 2021, 43(2): 171-180. (in Chinese)
[3]	董冰, 田彦涛, 周长久, 等. 基于模糊逻辑的纯电动汽车能量管理优化控制[J]. 吉林大学学报, 2015, 45: 516-525
	DONG Bing, TIAN Yantao, ZHOU Changjiu, et al. Fuzzy logic-based optimal control method for energy management of pure electric vehicle[J]. J Jilin Univ, 2015, 45: 516-525. (in Chinese)
[4]	常九健, 张煜帆. 基于EMB的纯电动汽车制动能量回收优化控制策略研究[J]. 汽车工程, 2022, 44(1): 64-72
	CHANG Jiujian, ZHANG Yufan. Research on optimization control strategy for braking energy recovery of a battery electric vehicle based on EMB system[J]. Autom Engi, 44(1): 64-72. (in Chinese)
[5]	Sachenbacher M, Leucker M, Artmeier A, et al. Efficient energy-optimal routing for electric vehicle[C]// Preceed 25th AAAI Conf Artif Intel, San Francisco, California, USA, 2011.
[6]	武冬梅, 郑敏, 李洋, 等. 智能四驱电动汽车预测节能控制研究[J]. 同济大学学报, 2017, 45 (增刊1): 63-68
	WU Dongmei, ZHENG Min, LI Yang et al. Predictive energy control for intelligent 4WD electric vehicle[J]. J Tongji Univ, 2017, 45(Suppl.1): 63-68. (in Chinese)
[7]	董振鹏, 祖炳锋, 周建伟, 等. 基于交通信息的电动汽车制动策略及仿真[J]. 汽车安全与节能学报, 2021, 12(1): 35-42
	DONG Zhenpeng, ZU Bingfeng, ZHOU Jianwei, et al. Braking strategy and simulation of electric vehicle based on traffic information[J]. J Autom Safe Energ, 2021, 12(1): 35-42. (in Chinese)
[8]	毕江嫚. 丘陵地区电动汽车经济性分析及能耗优化控制研究[D]. 大连: 大连理工大学, 2020.
	BI Jiangman. Economic analysis and optimal control of energy consumption of electric vehicles in hilly areas[D]. Dalian University of Technology, Dalian, 2020
[9]	张营. 电驱动车辆状态估计与节能控制[D]. 长沙: 湖南大学, 2020
	ZHANG Ying. State estimation and energy-saving control of electrified vehicles[D]. Hunan University, Changsha, 2020 (in Chinese)
[10]	张红妮. 基于驾驶行为的纯电动公交车能耗规律与节能对策[D]. 西安: 长安大学, 2020.
	ZHANG Hongni. Energy consumption law and energy-saving measures based on driving behavior[D]. Chang’an University, Xi’an, 2020 (in Chinese)
[11]	严英. 纯电动公交客车加速踏板驾驶特性辅助优化策略研究[D]. 天津: 天津大学, 2012
	YAN Ying. Study on the driving assistant of acceleration pedal for the electric bus[D]. Tianjin University, Tianjing, 2012 (in Chinese)
[12]	余志生. 汽车理论[M]. 北京: 机械工业出版社, 2018
	YU Zhisheng. Automotive Theory [M]. China Machine Press, Beijing, 2018 (in Chinese)
[13]	刘荣昌, 廖云霞, 滕磊, 等. 驾驶风格和行驶工况对纯电动汽车续驶里程的影响研究[C] // 2020中国汽车工程学会论文集, 北京: 机械工业出版, 2020, EV053: 459-463
	LIU Rongchang, LIAO Yunxia, TENG Lei, et al. Study on the influence of driving style and driving cycle on electric vehicle range[C]// 2020 China-SAE Congress & Exhibition. Mechanical Industry Press, Beijing, 2020, EV053: 459-463 (in Chinese)
[14]	中国国家标准化管理委员会.GB/T 38146.1-2019 中国汽车行驶工况第1部分: 轻型汽车[S]. 北京: 中国标准出版社, 2019.
	China National Standardization Administration Committee.GB/T 38146.1-2019 China automotive test cycle-Part 1: Light vehicles [S]. China Standard Press,Beijing, 2019. (in Chinese)
[15]	郝胜强, 罗培培, 席军强. 基于稳态卡尔曼滤波的车辆质量与道路坡度估计[J]. 汽车工程, 2018, 40(9): 1162-1175
	HAO Shengqiang, LUO Peipei, XI Junqiang. Estimation of vehicle mass and road slope based on steady-state Kalman filter[J]. Autom Engi, 2018, 40(9): 1162-1175 (in Chinese)

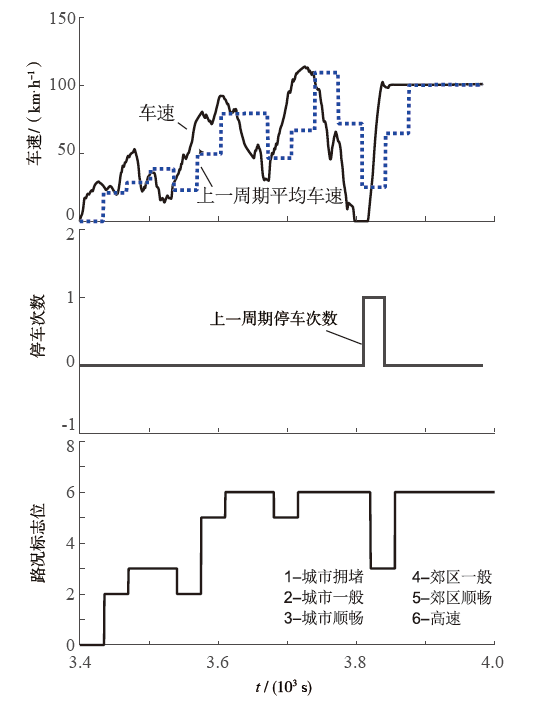

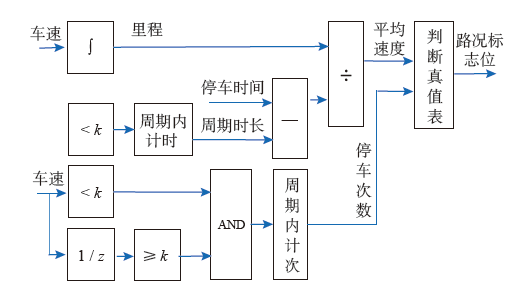

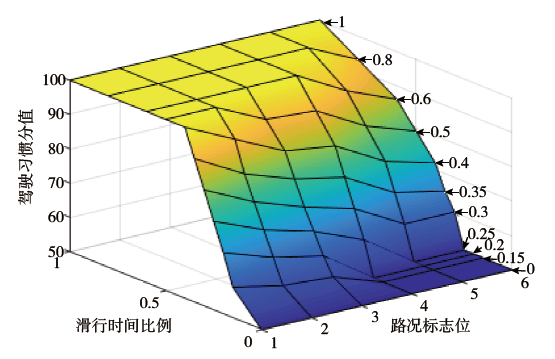

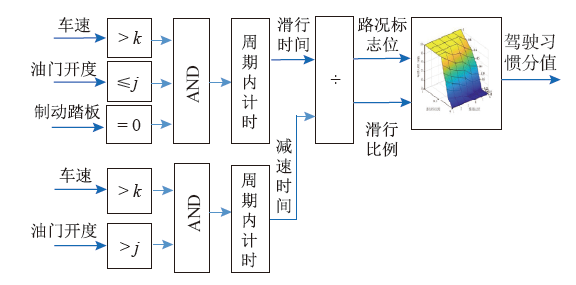

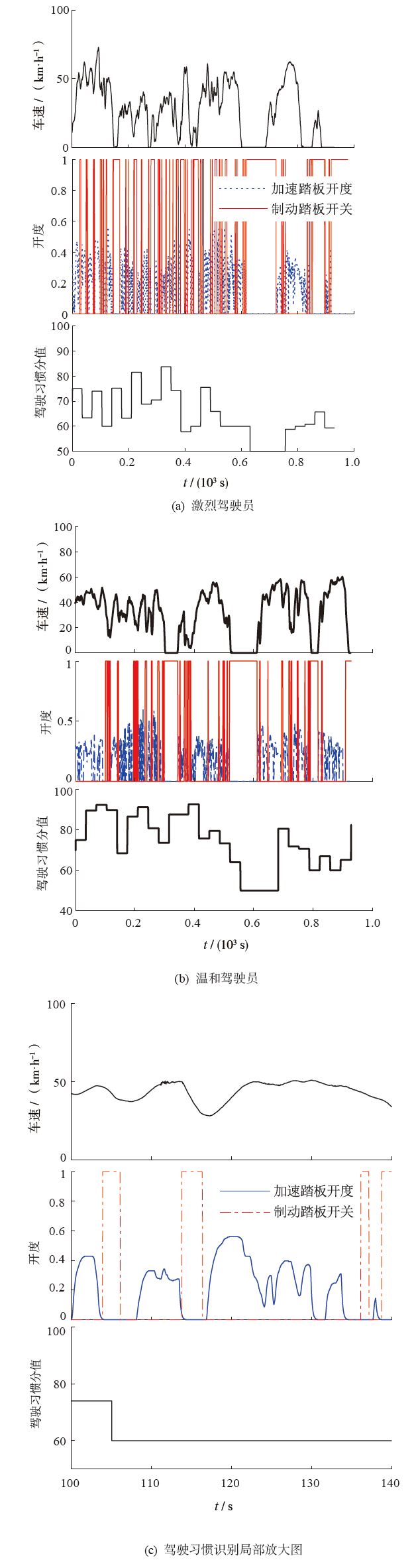

判断条件（“且”）		路况标志位
v_avg / (km?h^-1)	怠速停车次数n_stp / 次	路况标志位
< 20	≥ 3	城市拥堵
< 20	<	城市一般
20≤v_avg< 45	-	城市顺畅
45≤v_avg< 60	-	郊区一般
60≤v_avg< 75	-	郊区顺畅
≥ 75	-	高速

判断条件（“且”）		路况标志位
v_avg / (km?h^-1)	怠速停车次数n_stp / 次	路况标志位
< 20	≥ 3	城市拥堵
< 20	<	城市一般
20≤v_avg< 45	-	城市顺畅
45≤v_avg< 60	-	郊区一般
60≤v_avg< 75	-	郊区顺畅
≥ 75	-	高速

整备质量	1.8 t
测试质量	1.95 t
电池电量	60 kW? h
驱动形式	单电机、前驱
电机峰值扭矩	280 Nm
电机峰值功率	120 kW
SOC初始状态	100 %
附件设置	关闭空调、风扇、大灯

整备质量	1.8 t
测试质量	1.95 t
电池电量	60 kW? h
驱动形式	单电机、前驱
电机峰值扭矩	280 Nm
电机峰值功率	120 kW
SOC初始状态	100 %
附件设置	关闭空调、风扇、大灯

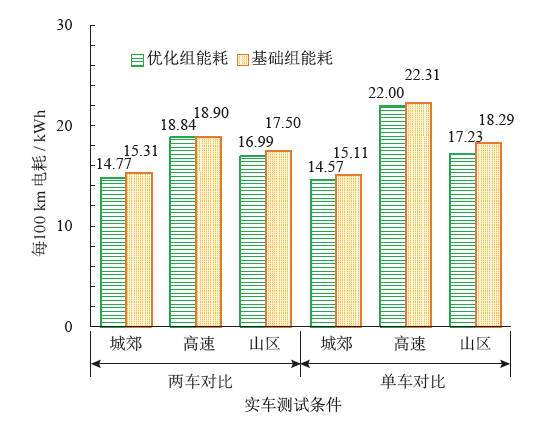

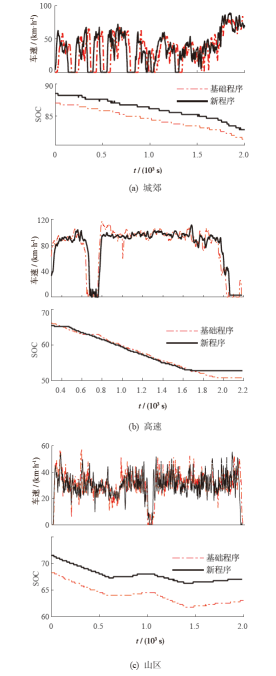

序号	类别	工况	程序	车辆?驾驶员	每100 km电耗 / kWh		节能率 %
序号	类别	工况	程序	车辆?驾驶员	优化组	对照组	节能率 %
01	两车对比	城郊		V1车(在前) ?司机1； V2车?司机2	15.47	16.22	3.53
02		城郊		V1车?司机2； V2车(在前) ?司机1	14.07	14.4	3.53
03		高速	V1车-基础 V2车-新	V1车(在前) ?司机1；V2车?司机2	18.91	18.94	0.32
04		高速	V1车-基础 V2车-新	V1车?司机2； V2车(在前) ?司机1	18.77	18.86	0.32
05		山区		V1车(在前) ?司机1；V2车?司机2	17.28	17.02	2.91
06		山区		V1车?司机2； V2车(在前) ?司机1	16.7	17.98	2.91
07	单车对比	城郊	新	V2车，司机1	14.57	?	3.57
08		城郊	基础	V2车，司机1	?	15.11	3.57
09		高速	新	V2车，司机1	22	?	1.39
10		高速	基础	V2车，司机1	?	22.31	1.39
11		山区	新	V2车，司机1	17.23	?	5.79
12		山区	基础	V2车，司机1	?	18.29	5.79
