人类自然驾驶状态下车辆轨迹摆动特性与车道宽度

doi:10.3969/j.issn.1674-8484.2022.04.013

汽车安全与节能学报 ›› 2022, Vol. 13 ›› Issue (4): 718-728.DOI: 10.3969/j.issn.1674-8484.2022.04.013

人类自然驾驶状态下车辆轨迹摆动特性与车道宽度

徐进¹^,²(), 张玉¹(), 戴振华¹, 李飞³, 陈坚¹

1.重庆交通大学交通运输学院，重庆 400074，中国
2.重庆交通大学，山区复杂道路环境“人—车—路”协同与安全重庆重点实验室，重庆 400074，中国
3.重庆城市综合交通枢纽（集团）有限公司，重庆 401121，中国

收稿日期:2021-12-27 修回日期:2022-07-08 出版日期:2022-12-31 发布日期:2023-01-01
作者简介:徐进（1977—），男（汉），吉林，教授。Email：yhnl_996699@163.com。
张玉（1998—），女（汉），四川，硕士研究生。Email：zhangyuazha@163.com。
基金资助:
重庆市高校创新研究群体项目(CXQT21022);重庆市技术创新与应用发展项目(cstc2021ycjh-bgzxm0338);重庆东站交通枢纽站前片区科研项目(E1210268)

Vehicle trajectory oscillation characteristics and lane width control under human natural driving conditions

XU Jin¹^,²(), ZHANG Yu¹(), DAI Zhenhua¹, LI Fei³, CHEN Jian¹

1. School of transportation, Chongqing Jiaotong University, Chongqing 400074, China
2. Chongqing Key Laboratory of “human-Vehicle-Road” Cooperation and Safety for Mountain Complex Environment, Chongqing Jiaotong University, Chongqing 400074, China
3. Chongqing City Integrated Transportation Hub (Group) Co. LTD, Chongqing 401121, China

Received:2021-12-27 Revised:2022-07-08 Online:2022-12-31 Published:2023-01-01

摘要/Abstract

摘要：

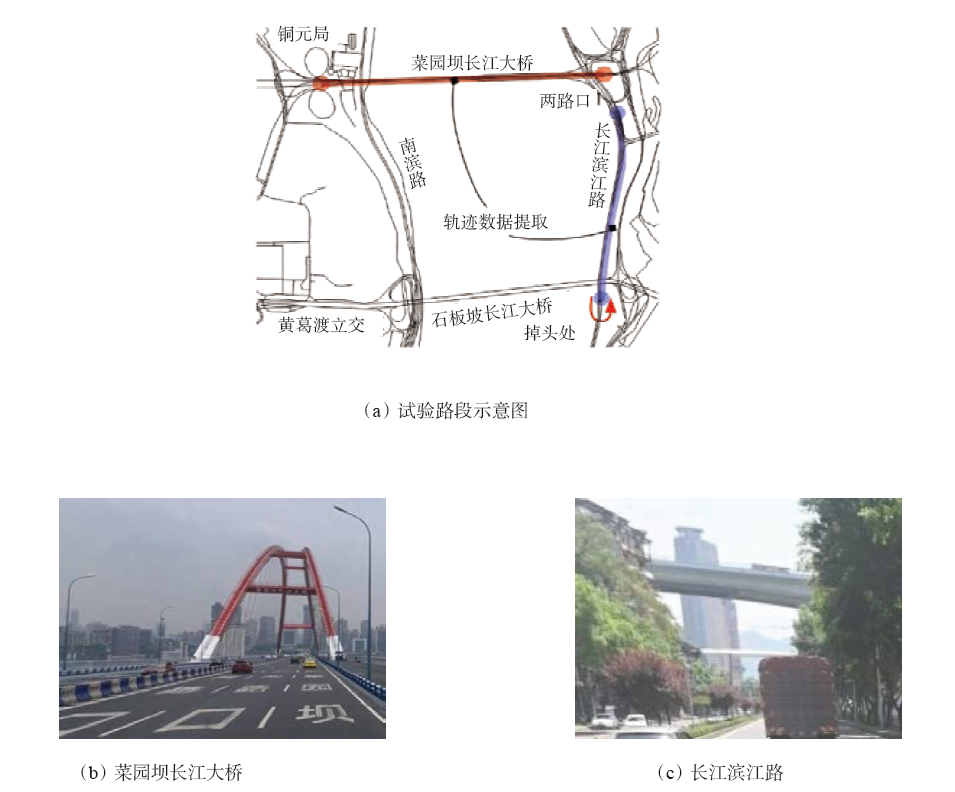

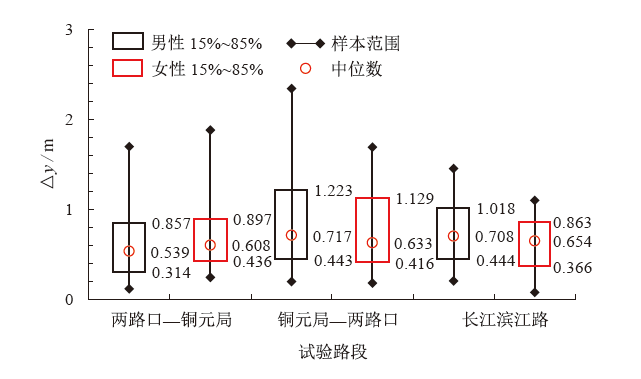

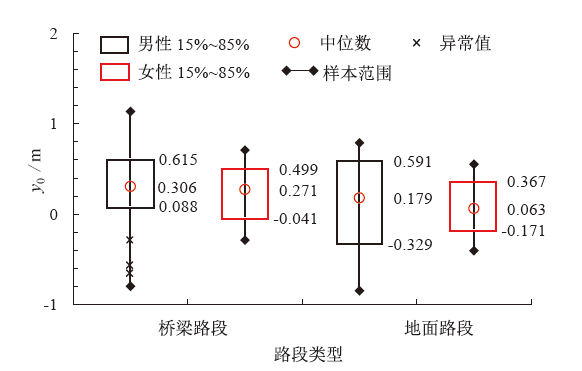

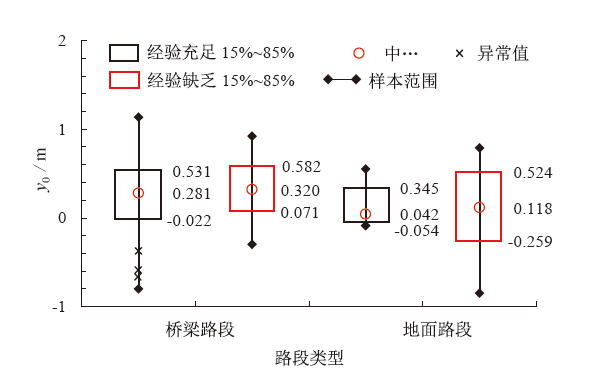

研究了车辆在城市干路上的轨迹摆动特性，开展了实车驾驶试验。以重庆市菜园坝长江大桥和长江滨江路为研究对象，用车载仪器采集自然驾驶状态下的行驶速度、车辆位置和车辆形心与车道线的横向距离数据。结果表明：大多数车辆会向左偏离车道中心线行驶；在路面悬空的行驶环境下驾驶人更倾向于将车辆靠向道路中央；女性驾驶人较男性驾驶人更注意车辆轨迹控制；熟练驾驶人在地面路段上对于车辆轨迹的控制优于非熟练驾驶人；相比于人类驾驶，无人驾驶车辆能够实现更精确的轨迹控制，轨迹横向摆动将显著减小，2.75~3.00 m的车道宽度可满足无人驾驶小客车的行驶需求。

关键词: 人类自然驾驶, 无人驾驶车辆, 行驶轨迹, 轨迹摆动, 城市机动车道宽度

Abstract:

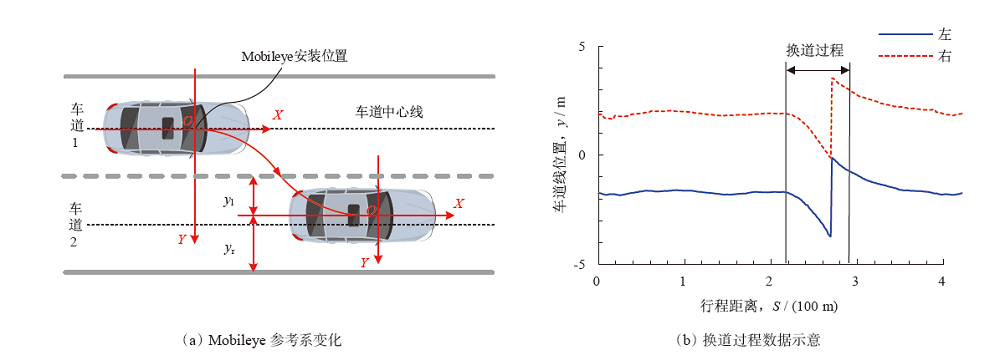

A real-vehicle driving test was carried out in order to study the vehicle trajectory oscillation characteristics on an urban main road. The Caiyuanba Yangtze River Bridge and the Binjiang Road on the Yangtze River in the Chongqing city were chosen as research objects. Onboard instruments collected data on driving speed, vehicle position, and lateral distance between the vehicle centroid and the lane under natural driving conditions. The results show that most vehicles tend to deviate from the center of the lane and drive to the left. The vehicle is more inclined to move towards the road center on the bridge section. Female drivers pay more attention to controlling vehicle trajectory than male drivers. Skilled drivers have better control over vehicle trajectory than unskilled drivers on the road surface. Compared with human driving, the autonomous vehicle can control its trajectory more accurately with the trajectory lateral oscillation will be significantly reduced. The lane width of 2.75~3.00 m can meet the driving requirements of an autonomous vehicle.

Key words: human natural driving, autonomous vehicle, vehicle track, trajectory oscillation, urban vehicle lane width

中图分类号:

U412.3

徐进, 张玉, 戴振华, 李飞, 陈坚. 人类自然驾驶状态下车辆轨迹摆动特性与车道宽度[J]. 汽车安全与节能学报, 2022, 13(4): 718-728.

XU Jin, ZHANG Yu, DAI Zhenhua, LI Fei, CHEN Jian. Vehicle trajectory oscillation characteristics and lane width control under human natural driving conditions[J]. Journal of Automotive Safety and Energy, 2022, 13(4): 718-728.

图/表 20

参考文献 19

[1]	YE Xinchen, WANG Xuesong, LIU Shuang, et al. Feasibility study of highway alignment design controls for autonomous vehicles[J]. *Accid Anal Preve, 2021, 159*: 1-12.
[2]	Fernandes P, Nunes U. Platooning with IVC-Enabled autonomous vehicles: strategies to mitigate communication delays[J]. *Improve Safe Traffic Flow*, 2012, 13(1): 91-106.
[3]	Manivasakan H, Kalra R, O’Hern S, et al. Infrastructure requirement for autonomous vehicle integration for future urban and suburban roads - Current practice and a case study of Melbourne, Australia[J]. Transp Res Part A: Policy Practice, 2021, 152: 36-53.
[4]	Chen N F, Small K A. Tradeoffs among free-flow speed, capacity, cost, and environmental footprint in highway design[J]. *Transportation*, 2012, 39(6): 1259-1280.
[5]	Nair G S, Bhat C R. Sharing the road with autonomous vehicles: Perceived safety and regulatory preferences[J]. Transp Res Part C: Emerging Tech, 2021, 122: 1-21.
[6]	吴咪艺. 面向无人驾驶的道路交通关键参数优化研究[D]. 南京: 东南大学, 2020.
	WU Miyi. Study on optimizationg of key road and traffic parameters in driverless conditions[D]. Nanjing: Southeast University, 2020. (in Chinese)
[7]	刘凯, 常四铁. 面向自动驾驶的城市街道设计研究[C]// 品质交通与协同共治——2019年中国城市交通规划年会论文集, 2019: 1-8.
	LIU Kai, CHANG Sitie. Research on urban street design for autonomous driving[C]// 2019: 1-8. (in Chinese)
[8]	戴琪, 刘军, 孙腾. 城市道路机动车道宽度取值研究[J]. 交通科技, 2014(3): 91-92+95.
	DAI Qi, LIU Jun, SUN Teng. Study on the value of vehicle lane width in urban Road[J]. *Traffic Sci Tech*, 2014(3): 91-92+95. (in Chinese)
[9]	滕生强, 杨晓光, 姚占春. 关于城市道路交通设计若干问题的探讨[J]. 中国市政工程, 2000(3): 2-6.
	TENG Shengqiang, YANG Xiaoguang, YAO Zhanchun. Problems in urban road traffic design[J]. *China Municipal Eng*, 2000(3): 2-6. (in Chinese)
[10]	李朝阳, 徐循初. 城市道路横断面规划设计研究[J]. 城市规划汇刊, 2001(2): 47-52+ 80.
	LI Chaoyang, XU Xunchu. Study on cross-sectional planning and design of urban road[J]. *Urban Planning Forum*, 2001(2): 47-52+ 80. (in Chinese)
[11]	常鑫. 城市道路信号交叉口车道宽度设计研究[D]. 北京: 北京工业大学, 2017.
	CHANG Xin. Research on the lane width of urban signalized intersection[D]. Beijing: Beijing University of Technology, 2017. (in Chinese)
[12]	王维礼, 郑莘荑, 朱杰. 无人驾驶环境下城市交通空间优化设计探讨[J]. 天津建设科技, 2020, 30(5): 75-80.
	WANG Weili, ZHENG Xinyi, ZHU Jie. Discussion on spatial optimization design of urban traffic under unmanned driving environment[J]. *Tianjin Constr Sci Tech*, 2020, 30(5): 75-80. (in Chinese)
[13]	周孝波. 基于视觉边缘率的高速公路弯道转向诱导设计方法及应用[D]. 武汉: 武汉理工大学, 2010.
	ZHOU Xiaobo. Approach and application of steering on freeway curve based oon visual edge rate[D]. Wuhan: Wuhan University of Technology, 2010. (in Chinese)
[14]	魏文海. 多因素交互作用下缩减车道对驾驶行为的影响[J]. 长安大学学报(自然科学版), 2020, 40(4): 117-126.
	WEI Wenhai. Influnce of lane reduction on driving behavior characteristics under multi- factor interaction[J]. J Chang᾽an Univ (Nat Sci Ed), 2020, 40(4): 117-126. (in Chinese)
[15]	曲大义, 韩乐潍, 贾彦峰, 等. 考虑横向偏移的车辆行为特性及全速度差拓展模型[J]. 吉林大学学报(工学版), 2020, 50(3): 963-969.
	QU Dayi, HAN Lewei, JIA Yanfeng, et al. Vehicle behavior characteristics considering lateral offset and its full velocity difference expansion model[J]. J Jilin Univ (Eng Tech Ed), 2020, 50(3): 963-969. (in Chinese)
[16]	马栋栋, 吴玉涛, 郭宏伟. 小客车交通条件下车道宽度对通行能力的影响[J]. 公路, 2011(11): 130-132.
	MA Dongdong, WU Yutao, GUO Hongwei. Influence of lane width on capacity of small bus traffic[J]. *Highway*, 2011(11): 130-132. (in Chinese)
[17]	中交第一公路勘察设计研究院有限公司. 公路路线设计规范(JTG D20-2017)[S]. 中华人民共和国交通运输部, 2017.
	China Communications First Highway Survey and Design Institute Co. LTD. Design specification for highway alignment (JTG D20-2017)[S]. Ministry of Transport, PRC, 2017. (in Chinese)
[18]	徐进, 陈钦, 陈正委, 等. 适应无人驾驶汽车的道路设施设计综述[J/OL]. 西南交通大学学报. [2022-07-03], http://kns.cnki.net/kcms/detail/51.1277.U.20220520.1908.012.html.
	XU Jin, CHEN Qin, CHEN Zhengwei, et al. Review of roadway infrastructure design for self-driving cars[J/OL]. *J Southwest Jiaotong Univ*. [2022-07-03], http://kns.cnki.net/kcms/detail/51.1277.U.20220520.1908.012.htm (in press)
[19]	Gopalakrishna D, Carlson P, Sweatman P, et al. Impacts of automated vehicles on highway infrastructure[R]. FHWA-HRT-21-015. USA Department of Transportation Federal Highway Administration, Washington DC, 2021.

性别	年龄/岁	驾龄/年	累计驾驶里程 / 万km
男	24 ~ 48	2 ~ 22	5 ~ 60
女	29 ~ 37	6 ~ 14	8 ~ 15

性别	年龄/岁	驾龄/年	累计驾驶里程 / 万km
男	24 ~ 48	2 ~ 22	5 ~ 60
女	29 ~ 37	6 ~ 14	8 ~ 15

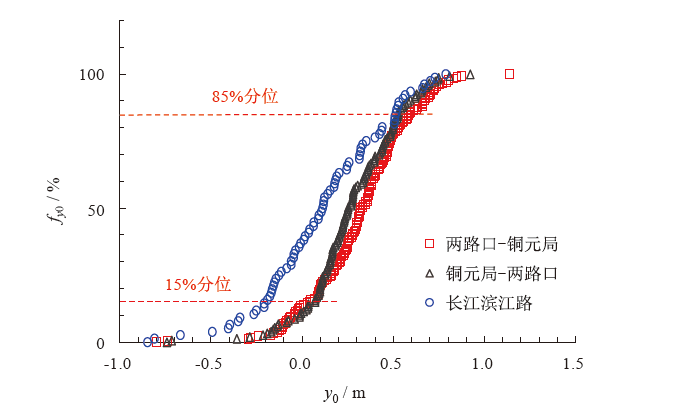

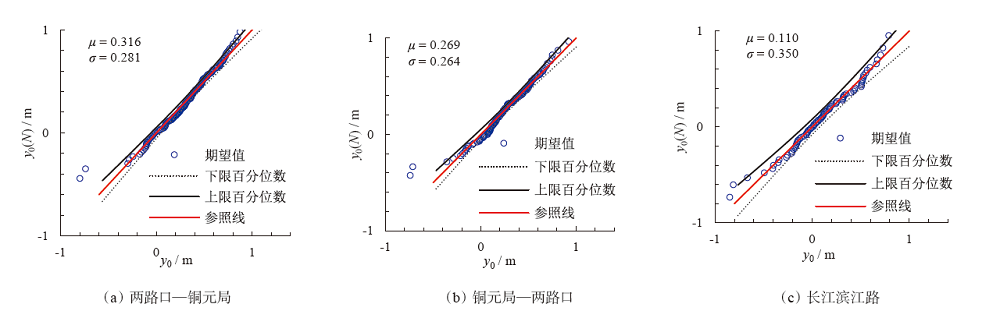

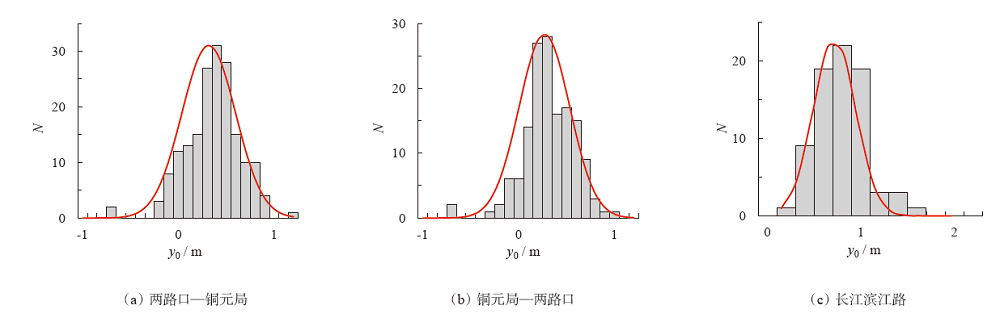

试验路段	平均值	中位数	标准差	方差	偏差	峰度	15分位数	85分位数
两路口—铜元局	0.316	0.320	0.281	0.079	-0.545	1.599	0.036	0.588
铜元局—两路口	0.267	0.252	0.264	0.069	-0.613	1.799	0.071	0.527
长江滨江路	0.110	0.113	0.349	0.124	-0.348	0.092	-0.200	0.513

试验路段	平均值	中位数	标准差	方差	偏差	峰度	15分位数	85分位数
两路口—铜元局	0.316	0.320	0.281	0.079	-0.545	1.599	0.036	0.588
铜元局—两路口	0.267	0.252	0.264	0.069	-0.613	1.799	0.071	0.527
长江滨江路	0.110	0.113	0.349	0.124	-0.348	0.092	-0.200	0.513

检验对象	假设	Levene方差等同性检验		平均值等同性T检验					差值95%置信区间
检验对象	假设	F	显著性	t	自由度	sig.	平均值差值	标准误差差值	下限	上限
桥梁路段往返方向	假定等方差	0.447	0.504	1.541	325.0	0.124	0.468	0.030	-0.013	0.106
桥梁路段往返方向	不假定等方差	—	—	1.550	319.9	0.122	0.468	0.030	-0.013	0.106
桥梁路段与地面路段	假定等方差	8.398	0.040	4.993	402.0	0.000	0.184	0.037	0.111	0.256
桥梁路段与地面路段	不假定等方差	—	—	4.287	98.8	0.000	0.184	0.043	0.099	0.269

人类自然驾驶状态下车辆轨迹摆动特性与车道宽度

Vehicle trajectory oscillation characteristics and lane width control under human natural driving conditions

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 20

参考文献 19

相关文章 3

编辑推荐

Metrics

本文评价

期刊信息

在线期刊

作者中心

审稿中心

联系我们

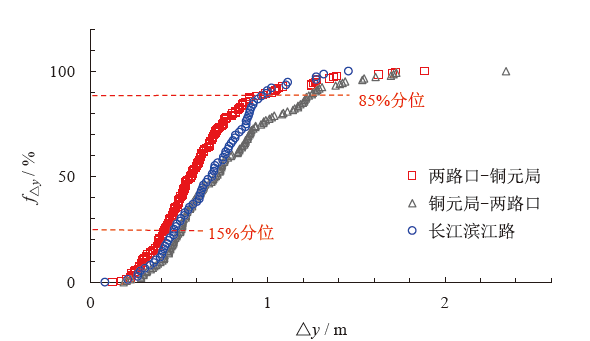

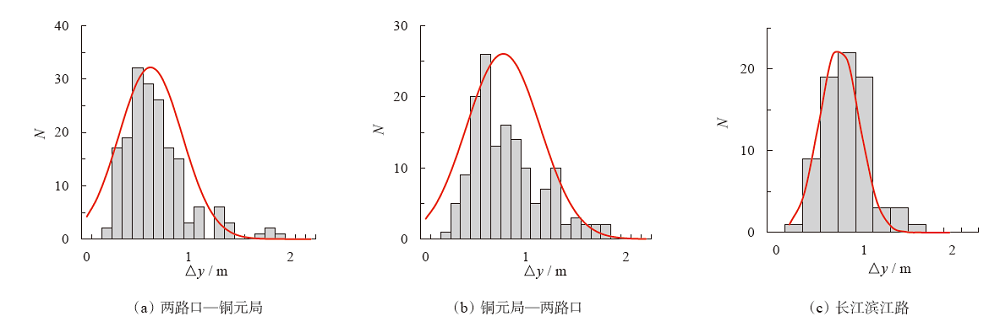

试验路段	平均值	平均值标准差	中位数	方差	偏差	峰度	15分位数	85分位数
两路口—铜元局	0.626	0.231	0.566	0.095	1.455	2.788	0.352	0.877
铜元局—两路口	0.775	0.303	0.704	0.136	1.099	1.596	0.442	1.203
长江滨江路	0.686	0.310	0.686	0.074	0.399	0.152	0.407	0.929
