基于单牵引轨道的两轮车与机动车联动碰撞测试

doi:10.3969/j.issn.1674-8484.2020.04.006

汽车安全与节能学报 ›› 2020, Vol. 11 ›› Issue (4): 470-475.DOI: 10.3969/j.issn.1674-8484.2020.04.006

基于单牵引轨道的两轮车与机动车联动碰撞测试

李月明(), 周大永, 商恩义

浙江省汽车安全技术研究重点实验室,吉利汽车研究院（宁波）有限公司,宁波315336, 中国

收稿日期:2020-08-14 出版日期:2020-12-30 发布日期:2021-01-04
作者简介:李月明（1982–）,男（汉）,浙江,工程师。E-mail:liyueming@geely.com。
基金资助:
国家重点研发计划资助(2018YFE0192900)

Tests of two-wheeler-to-car linkage impact based on single drag rail

LI Yueming(), ZHOU Dayong, SHANG Enyi

Zhejiang Key Laboratory of Automobile Safety Technology, Geely Automobile Research Institute (Ningbo) Co., Ltd., Ningbo 315336, PR China

Received:2020-08-14 Online:2020-12-30 Published:2021-01-04

摘要/Abstract

摘要：

为降低两轮车与汽车发生碰撞造成的伤害,提出一套基于单牵引轨道实现两轮车与机动车联动碰撞的测试方案。在该方案中,以自行设计的、压缩空气为动力源的简易驱动机构,来实现两轮车不同角度、不同速度的运行模式;在牵引系统拖动机动车行进过程中,通过碾压特定位置的带状开关,来控制两轮车驱动机构的启动时机,实现特定运行状态下的两轮车与机动车在设定位置发生碰撞。该方案可模拟两轮车与机动车前、后、侧围等任意位置的碰撞形式,且撞击精度小于±25 mm。因而,实现了在单牵引轨道上两轮车与机动车联动碰撞的高精度试验能力。这为道路弱势群体（VRU）保护技术研究提供一种基础测试方法。

关键词: 两轮车, 机动车, 联动碰撞, 道路弱势群体（VRU）保护

Abstract:

A linkage impact test method was designed based on single drag rail to reduce the damages of two-wheeler riders impacting with car. The test method kept two-wheeler’s motion states at different angles and different speeds with an ease driving mechanism powered by compressed air. The trigger time of launch a two-wheeler was controlled by rolling compaction a switch tape of the running car at an accuracy position, it made the impact between two-wheeler and vehicle was in the setting condition. This method can simulate the impact at any sides of car with a two-wheeler, and the position accuracy was less than 25 mm. Therefore, the high-accuracy test capability for the two-wheeler-to-car linkage impact test on single drag rail will prove a basic test method to the research on Vulnerable Road User (VRU) protection technology.

Key words: two-wheelers, vehicles, linkage impact, vulnerable road user (VRU) protection

中图分类号:

U461.91

李月明, 周大永, 商恩义. 基于单牵引轨道的两轮车与机动车联动碰撞测试[J]. 汽车安全与节能学报, 2020, 11(4): 470-475.

LI Yueming, ZHOU Dayong, SHANG Enyi. Tests of two-wheeler-to-car linkage impact based on single drag rail[J]. Journal of Automotive Safety and Energy, 2020, 11(4): 470-475.

图/表 5

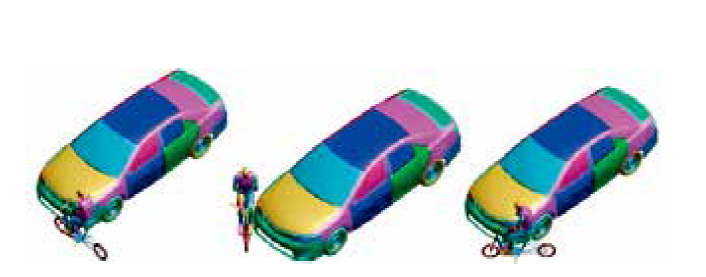

图1 两轮车与机动车主要碰撞形式

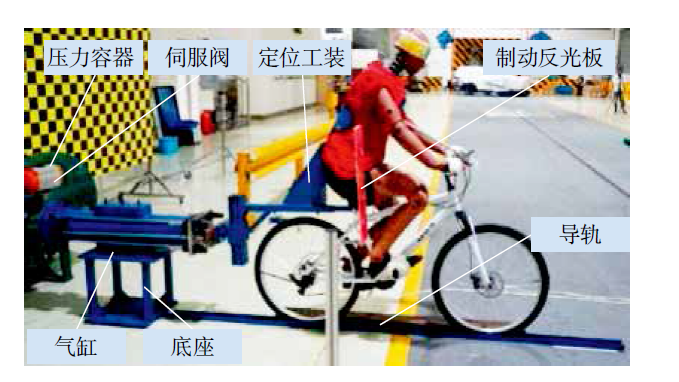

图2 两轮车驱动机构

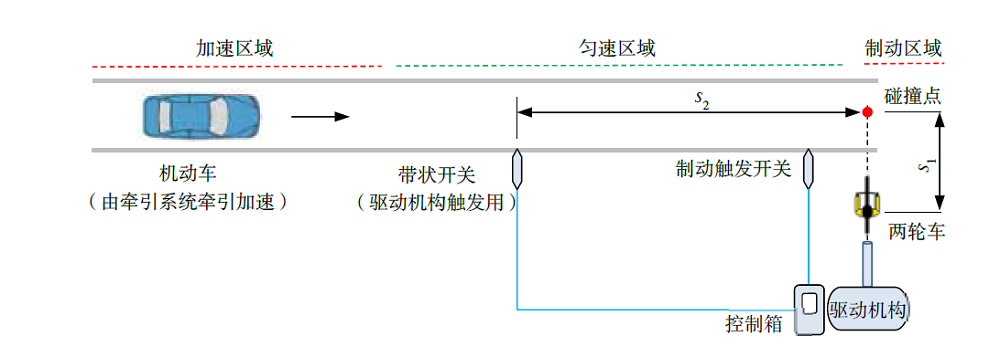

图3 两轮车与机动车联动碰撞方案图

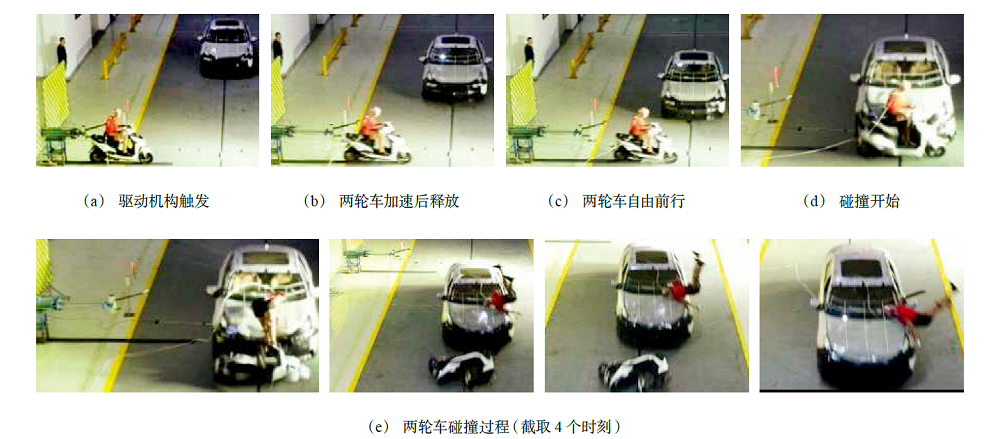

图4 两车联动碰撞过程（航拍）

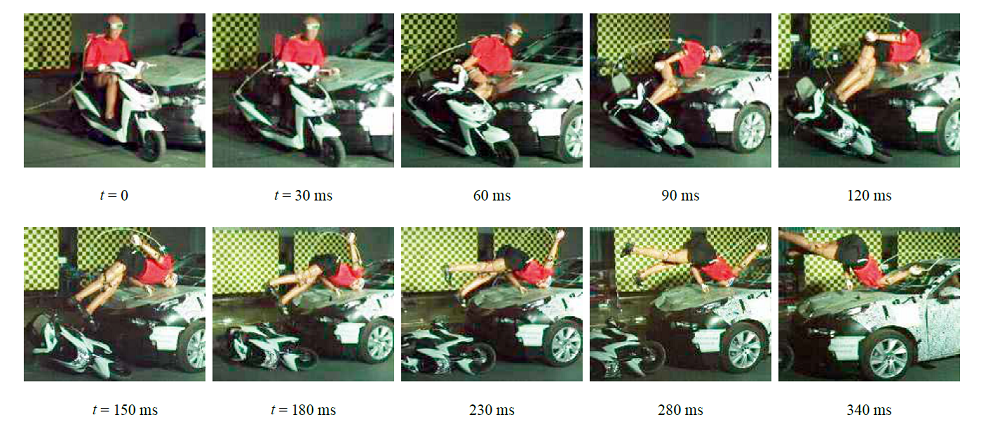

图5 两车联动碰撞过程

参考文献 12

[1]	Tedros A G. Vulnerable road users disproportionately impacted: Global status report on road safety 2018[R], World Health Organization, WHO/NMH/NVI/18.20.
[2]	Association of European Motorcycle Manufacturers. MAIDS in-depth investigations of accidents involving powered two wheelers[Z]. Association of European Motorcycle Manufacturers Brussels. Belgium. 2004.
[3]	SUI Bo, ZHOU Shengqi, ZHAO Xiaohua, et al. An overview of car-to-two-wheeler accidents in China: Guidance for AEB assessment[C/OL]// 25th Int’l Tech Conf Enha Safety Vehicles (ESV), 2017. Detroit, USA, 17-0204-O. [2020-08-01]. https://xueshu.baidu.com/usercenter/paper.
[4]	王鑫, 张道文, 张文辉. 汽车与自行车碰撞事故重建研究[J]. 湖北汽车工业学院学报, 2016,30(2):13-17.
	WANG Xin, ZHANG Daowen, ZHANG Wenhui. Research on accident reconstruction of vehicle-bicycle collision[J]. J Hubei Univ of Automotive Tech, 2016,30(2):13-17. (in Chinese)
[5]	邹冬华, 刘宁国, 陈建国. 轿车与自行车碰撞事故仿真研究及骑车者致伤特点分析[J]. 法医学杂志, 2007(4):250-253+257.
	ZOU Donghua, LIU Ningguo, CHEN Jianguo, et al. Simulation study on the bicyclist involved traffic accident and analysis of the injury[J]. J Forensic Medi, 2007(4):250-253+257.(in Chinese)
[6]	张晓天, 李勇, 赵伟. 基于有限元仿真的车撞电动二轮车事故的伤害机理研究[C]// 中国汽车安全技术学术会, 2019: 413-415.
	ZHANG Xiaotian, LI Yong, ZHAO Wei. Research on the injury mechanism of car collision with electric two-wheeler accident based on finite element simulation[C]// China Automotive Safety Tech Conf, 2019: 413-415. (in Chinese)
[7]	国家市场监督管理总局, 国家标准化委员会. 电动自行车安全技术规范,GB17761-2018[S]. 北京: 中国标准出版社, 2019.
	State Administration for Market Regulation, Standardization Administration. Safety technical specifications for electric bicycles,GB17761-2018[S]. Beijing: Standards Press of China, 2019.(in Chinese)
[8]	中华人民共和国国家质量监督检验检疫总局, 中国国家标准化管理委员会. 汽车对行人的碰撞保护,GB/T 24550-2009[S]. 北京: 中国标准出版社, 2010.
	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration. Cars for pedestrian impact protection, GB/T 24550-2009[S]. Beijing: Standards Press of China, 2010.(in Chinese)
[9]	中华人民共和国国家质量监督检验检疫总局, 中国国家标准化管理委员会. 汽车侧面碰撞的乘员保护,GB20071-2006[S]. 北京: 中国标准出版社, 2007.
	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration. The protection of the occupants in the event of a lateral collision, GB20071-2006 [S]. Beijing: Standards Press of China, 2007.(in Chinese)
[10]	胡林, 方胜勇, 陈强. 基于正交实验的汽车-两轮车碰撞事故再现的参数影响研究[J]. 汽车工程, 2016,38(5):567-573.
	HU Lin, FANG Shengyong, CHEN Qiang. A research on the parameter influences of the accident reconstruction for a car-motorcycle collision based on orthogonal experiments[J]. Automotive Engineering, 2016,38(5):567-573. (in Chinese)
[11]	袁泉, 陈宏云, 李一兵. 汽车-弱势道路使用者事故的碰撞速度与伤害严重度研究[J]. 中国司法鉴定, 2016(3):32-39.
	YUAN Quan, CHEN Hongyun, LI Yibing. Using injury severity data to determine the impact speed of traffic accidents between vehicle and vulnerable road user[J]. Chin J Forensic Sci, 2016(3):32-39. (in Chinese)
[12]	张鹏, 张道文, 尹均. 电动自行车与汽车侧面碰撞对骑车人的损伤研究[J]. 中国安全科学学报, 2017,27(10):13-18.
	ZHANG Peng, ZHANG Daowen, YIN Jun, et al. Study on injuries to cyclist from car-electric bicycle side collision[J]. China Safety Sci J, 2017, 27(10):13-18. (in Chinese)
